Topdon ArtiDiag900 BT Car Diagnostic Tool

The Topdon ArtiDiag900 BT is a powerful, wireless Diagnostic Tool designed for both ambitious DIYers and professional workshops. The system builds on the success of the ArtiDiag800 BT and introduces significant improvements in both functionality and hardware. With in-depth system reading, bidirectional control and extensive maintenance and coding functions, this device is suitable for reading and maintaining vehicles from more than 130 brands worldwide.

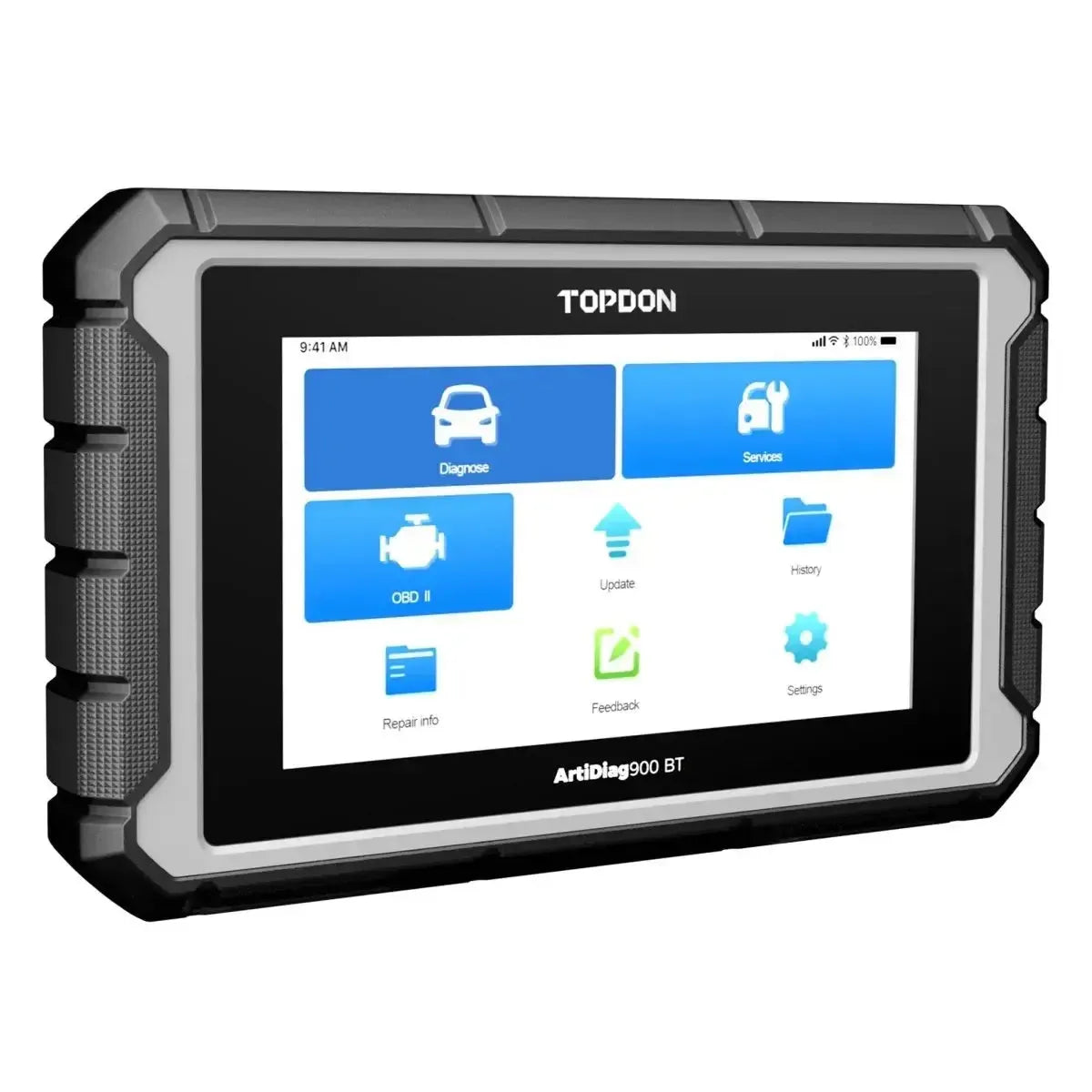

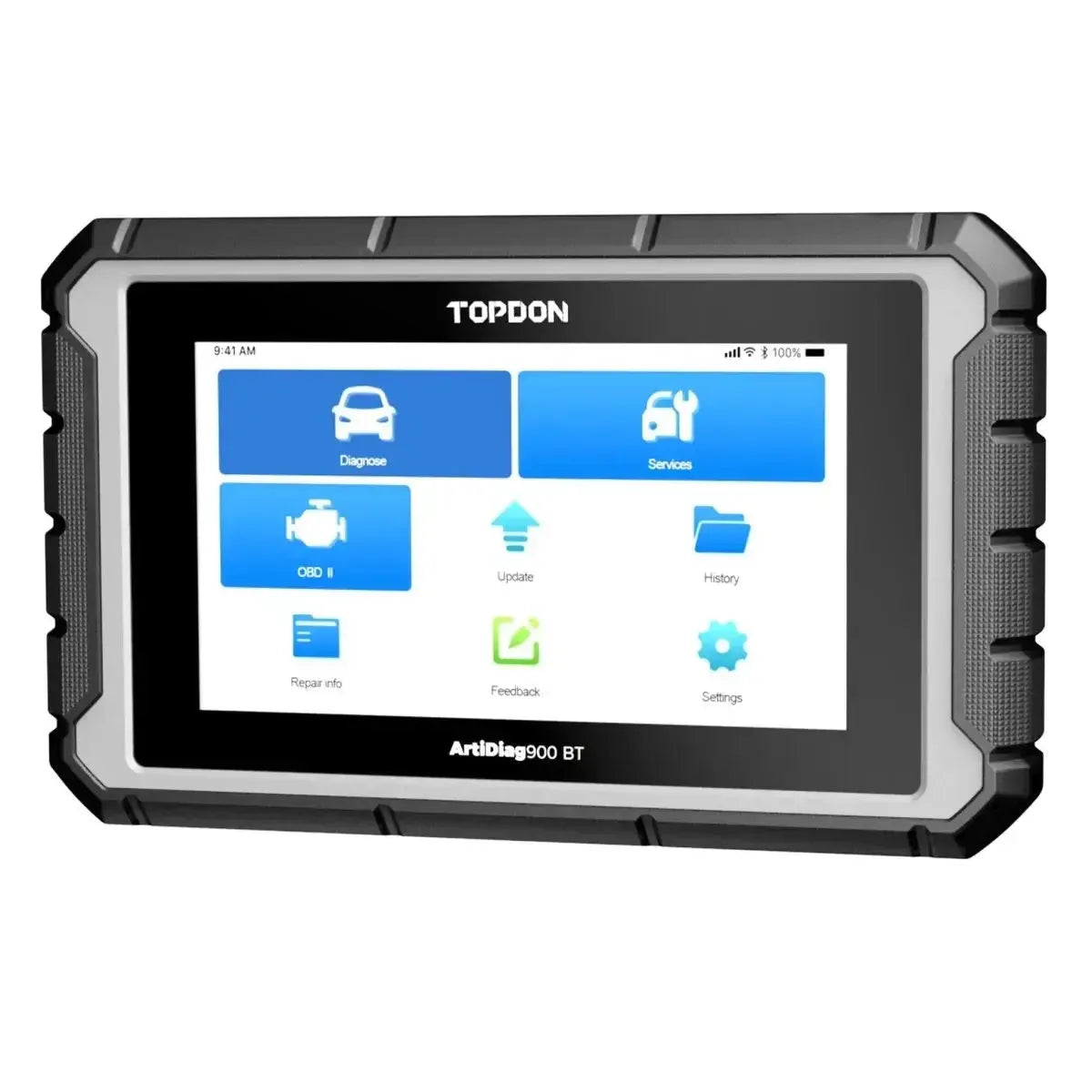

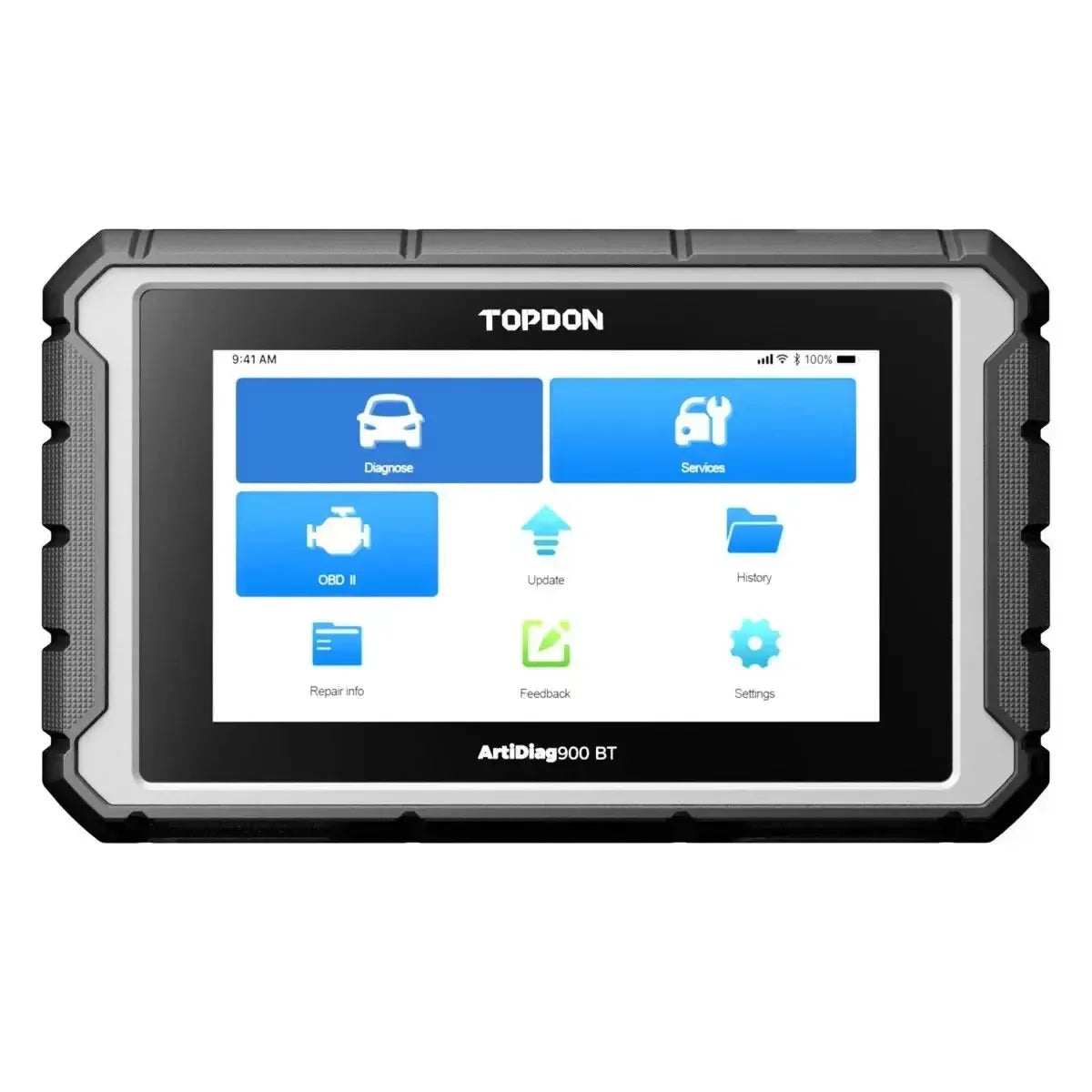

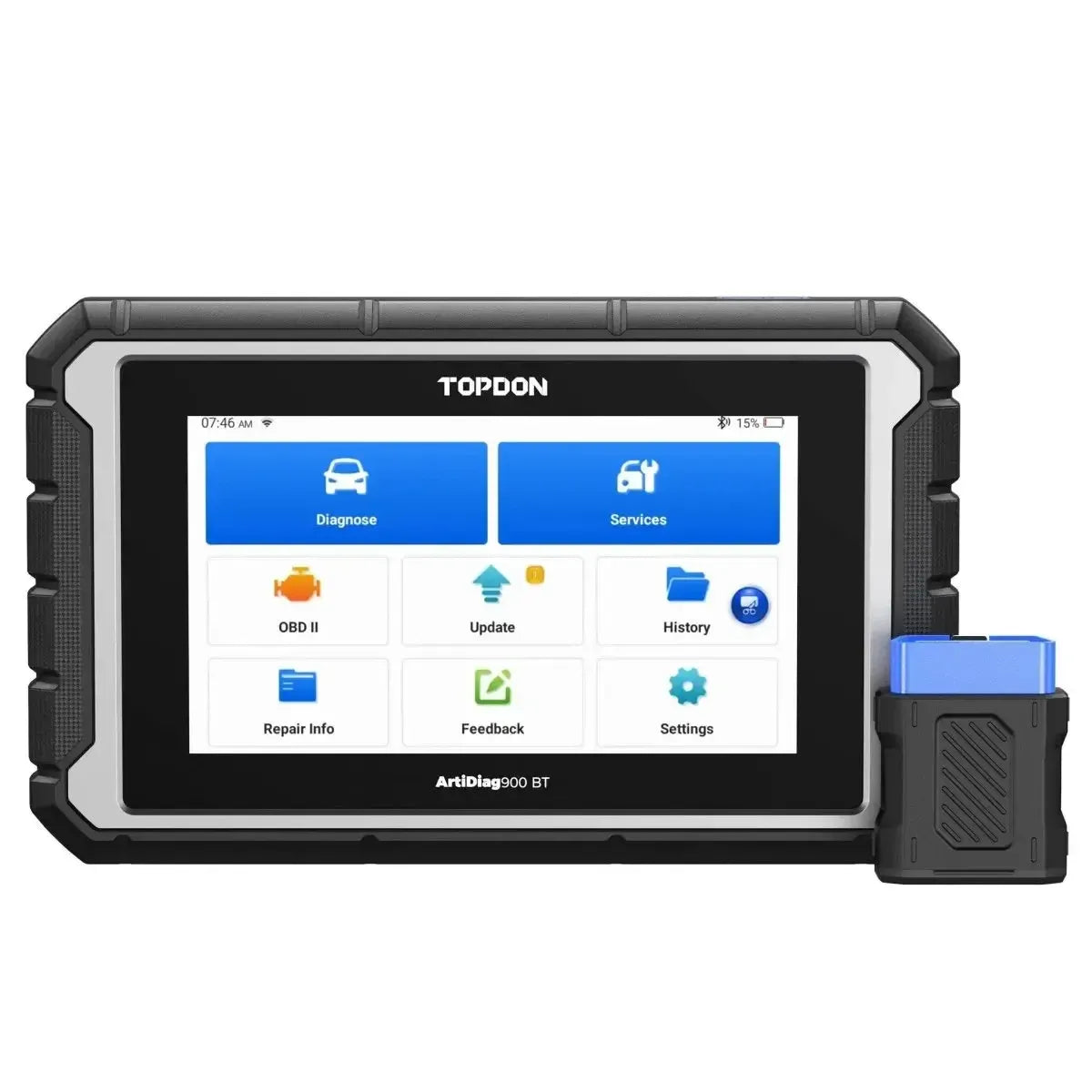

The heart of the system is a robust 7-inch Android 10 tablet, equipped with a fast processor and an intuitive user interface. Communication with the vehicle is completely wireless via Bluetooth 4.0, with a range of up to 10 meters through the included VCI dongle. Unique in this price range is the support for the modern CAN-FD protocol, which is required for diagnosis of the latest models from, among others, General Motors. The device is delivered standard with two years of free software updates. After this period, the device remains fully functional on the last installed software version; access to new updates and cloud features requires a annual license.

Diagnostic functions:

The Topdon ArtiDiag900 BT offers comprehensive diagnostic functionality at OE level and is suitable for reading, testing, and analyzing all electronic systems of modern vehicles. Thanks to bidirectional control and real-time data monitoring, fast and targeted fault detection is possible.

• Complete system diagnosis (OE-level): Provides access to all electronic control units, including engine, transmission, ABS, airbag (SRS), body control module (BCM), air conditioning, steering, lighting, instrument cluster and more. Supports reading and clearing fault codes with technical descriptions.
• Active tests (bidirectional control): Sends commands to actuators, relays, and systems to directly test their operation. Examples include activating the fuel pump, controlling the air conditioning clutch, opening/closing windows or operating windshield wipers.
• AutoVIN technology: Automatically recognizes the vehicle based on the chassis number (VIN), selects the correct make and model, and thus speeds up the diagnostic process with minimal chance of input errors.
• Live datastream: Displays real-time measured values from sensors and modules. The data can be shown as text, analog instrument or line and bar charts. Supports simultaneous display of up to four datastreams for accurate comparison and analysis.

Maintenance and service functions:

The Topdon ArtiDiag900 BT supports more than 30 maintenance and reset functions, allowing vehicle systems to be reset, calibrated, or relearned after maintenance or part replacement. These functions make the device suitable for daily use in both universal workshops and advanced home use.

• Oil service reset (Service): Resets the service light and maintenance interval after an oil change.
• Electronic parking brake (EPB): Activates or deactivates the electric handbrake for safe brake maintenance.
• Battery management system (BMS): Registers a new Battery in the vehicle and resets charging parameters.
• Steering angle sensor (SAS): Calibrates the steering angle sensor after alignment or replacement of steering components.
• Diesel particulate filter (DPF): Starts forced regeneration of the soot filter and clears related fault codes.
• ABS pump bleeding (ABS): Activates the ABS system to remove air from brake lines after repair.
• TPMS reset: Recognizes new tire pressure sensors and clears fault codes from the TPMS system.
• Throttle body learning (ETC): Recalibrates the throttle position after cleaning or replacement.
• Injector coding: Programs the new injectors with their specific codes for precise injection.
• Transmission adaptation (CVT): Resets learning values of automatic transmissions for better shifting behavior.
• Crankshaft sensor learning (TEC): Relearns the crankshaft position, necessary after sensor replacement.
• AdBlue reset: Resets level measurement and fault codes of the urea injection system after refilling or replacement.
• Headlight adjustment (AFS): Calibrates adaptive or steering headlights for correct illumination.
• Air suspension calibration: Adjusts the ride height after replacing air suspension components.
• Start/stop settings: (De)activates the automatic start/stop system based on customer preference.
• Initialize windows and sunroof: Restores automatic functions of windows or panoramic roof after power loss.
• Seat occupancy sensor (SRS): Calibrates the occupancy sensor for correct airbag deployment.
• Transport mode: Puts the vehicle into or out of transport mode, for example during delivery or storage.
• System language: Changes the language setting of the vehicle infotainment system (if supported).
• Reset air/fuel ratio (A/F): Restores adaptation values for air/fuel control.

Programming and coding functions:

The Topdon ArtiDiag900 BT features advanced coding capabilities normally only offered in higher segments. This makes the device suitable for in-depth adjustments and configuring modules after replacement.

• Advanced ECU coding: Provides the ability to reconfigure electronic modules, for example after replacement or when adjusting vehicle settings. This also allows hidden functions to be activated, such as disabling the start/stop system, adjusting coming-home lighting, or setting automatic locking. This feature is particularly powerful for vehicles of the VAG group (Volkswagen, Audi, Seat, Skoda) and BMW.
• Online coding: Supports cloud-based coding where configuration data is retrieved directly from the factory server. Supported brands include VW, Audi, Seat, Skoda, Porsche, Mercedes-Benz and BMW. This enables correct coding without manual input of long parameter sets.

Cloud and reporting functions:

The Topdon ArtiDiag900 BT offers various reporting and feedback options, simplifying workshop processes and making support available faster.

• Diagnostic reports: After each complete system scan, a detailed report is automatically generated. This report contains fault codes, system status, and vehicle identification and can be saved as a PDF file for internal use or customer files.
• Easy sharing and printing: Reports can be directly shared via email or wirelessly printed via Wi-Fi from the tablet, without the need for a PC. This speeds up communication with customers or insurance experts.
• Diagnostic feedback function: With one press of a button, a diagnostic issue can be forwarded to Topdon's technical service. The report contains vehicle data and fault codes, allowing the support team to provide quick and targeted assistance with complex malfunctions.

Additional features and special capabilities:

The Topdon ArtiDiag900 BT is equipped with various features that distinguish the system in its price range. These additional capabilities make the device suitable for use on modern vehicles and within a professional workshop environment.

• Support for CAN-FD: The VCI supports the CAN-FD protocol, which is necessary for fast communication with vehicles from, among others, General Motors (after 2020). This ensures a more stable and faster diagnosis, essential for modern vehicle platforms.
• FCA AutoAuth access: Provides direct access to the Secure Gateway (SGW) of vehicles from Fiat, Chrysler, Jeep and Alfa Romeo. A valid AutoAuth account is required, enabling full diagnostic and maintenance access on FCA vehicles.
• OBFCM / APK2 compatibility: Supports reading On-Board Fuel Consumption Monitoring (OBFCM) data, as required for the APK2 inspection. This allows the fuel or energy consumption of hybrid and electric vehicles to be recorded and reported to the RDW.

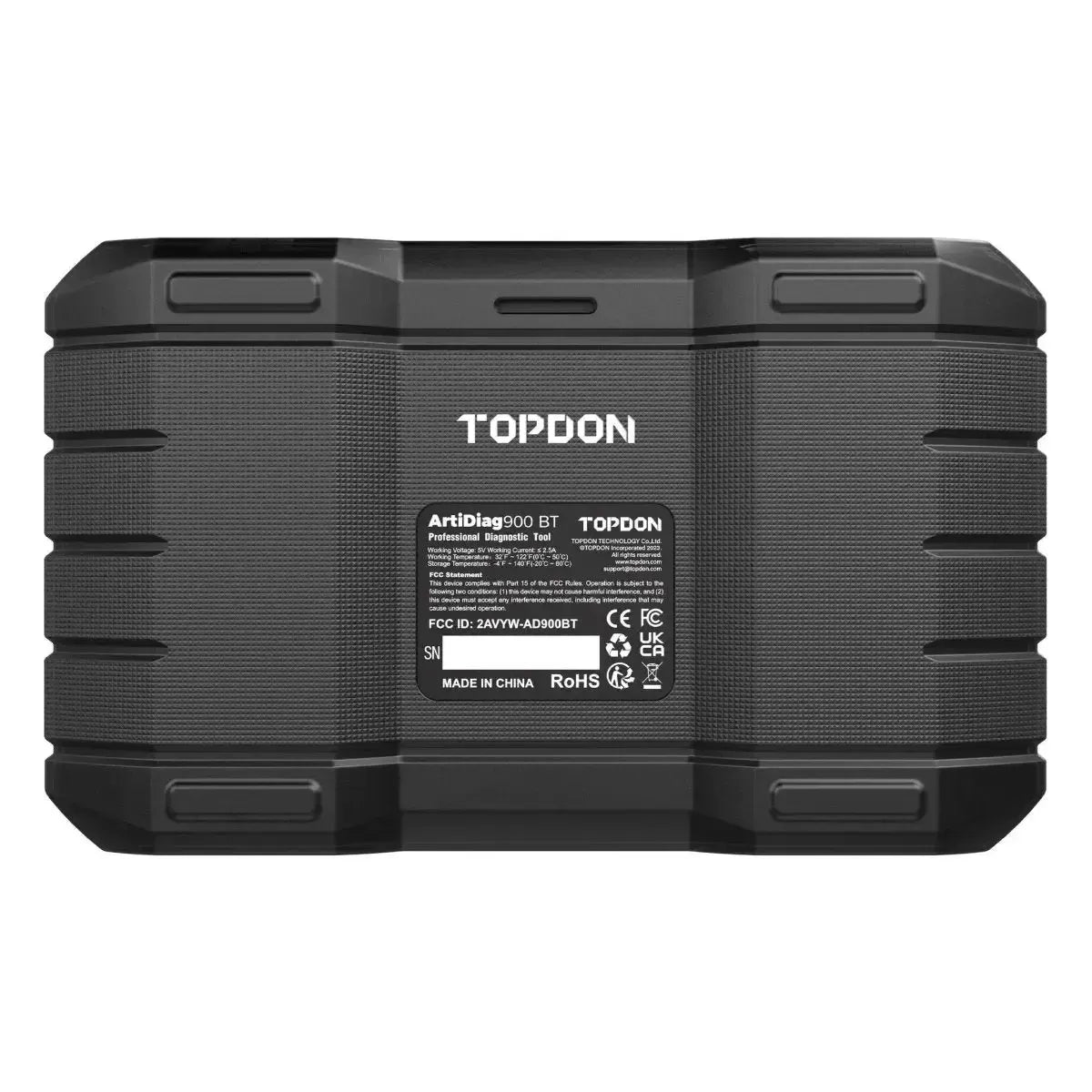

• Wireless VCI storage: The compact Bluetooth VCI dongle can be neatly stored in the back of the tablet. This increases ease of use and makes the system ideal for mobile use and on-site diagnostics.

Supported car brands:

• European brands: Abarth, Alfa Romeo, Aston Martin, Audi, Bentley, BMW, Bugatti, Citroën, Dacia, DR, Ferrari, Fiat, FordEU, GAZ, Iveco, IZH, Jaguar, Lamborghini, Lancia, Land Rover, Maserati, Maybach, Mercedes-Benz, MINI, Opel, PAZ, Peugeot, Porsche, Renault, Rolls-Royce, Rover, Saab, Seat, SeAZ, Skoda, Smart, Sprinter, UAZ, Vauxhall, VAZ, Volvo, Volkswagen, Volkswagen CV, ZAZ
• Asian brands: Acura, Daewoo, Daihatsu, GTR, Holden, Honda, Hyundai, IKCO, Infiniti, Isuzu, Kia, Lexus, Luxgen, Mahindra, Maruti, Mazda, Mitsubishi, MVM, Nissan, Perodua, Proton, SAIPA, Samsung, SsangYong, Subaru, Suzuki, Tata, Toyota, United Pakistan
• American brands: Buick, Cadillac, Chevrolet, Chrysler, Dodge, Ford, GM, Jeep, Lincoln
• Chinese brands: BAIC, BJEC, Brilliance, BYD, Changan, Changhe, Chery, DFSK, FAW, Foton, Geely, Gonow, GWM, Hafei, Haima, JAC, JAC Refine, Jinlong, JMC, Joylong, Lifan, Maxus, MG, Polarsun, Qoros, Senova, Senoua, Soueast, SGM, SGMW, Shineray, Spark, Trumpchi, Weiwang, Xinkai, Zotye, Zhongxing

Package contents:

• Topdon ArtiDiag900 BT Diagnostic Tool
• Topdon ArtiDiag900 BT Interface
• USB-A - USB-C adapter cable
• Charging plug
• Manual
• Storage bag

License information:

• Includes 2 years of updates: A 24-month update license is included with purchase.

After the first year, the license can be renewed for an annual fee. The device remains fully functional for already supported models, even without license renewal. However, new software updates can no longer be installed, and some online features may be limited or no longer supported.
