Topdon One Lite | Diagnostic Tool | Car

Diagnostic Functions

The Topdon One Lite diagnostic tool offers extensive diagnostic functions for vehicle systems, including reading fault codes, live data streaming, and active tests.

• Read and clear fault codes: Identification and removal of diagnostic trouble codes (DTCs) from all available electronic control units (ECUs).
• Live data: Real-time display of sensor data and system parameters in text, graph, or combined view.
• Active tests (bidirectional control): Ability to control specific components and test their functionality, such as fuel pumps, injectors, ABS pumps, and EGR valves.
• Full system diagnosis: Diagnoses all electronic systems in the vehicle, including engine, transmission, ABS, airbags, TPMS, and other comfort and safety systems.
• Read vehicle information: Retrieves important vehicle information such as vehicle identification number (VIN), calibration ID (CID), and calibration verification number (CVN).
• Generate diagnostic report: Automatically creates clear reports with the results of performed diagnostics.

Service and maintenance functions

The reader supports more than 50 service and maintenance functions. Available functions may vary by vehicle make, model, and year.

Engine and drivetrain

• Reset oil service: Resets the maintenance interval indicator for the engine oil.
• Diesel particulate filter (DPF) regeneration: Initiates and manages the regeneration process of the diesel particulate filter.
• Reset air/fuel ratio: Resets the adaptation values for the air/fuel ratio.
• Reset AdBlue: Resets the AdBlue counter or adaptation values.
• Learn camshaft: Performs the learning process for the camshaft position.
• Bleed cooling system: Assists with bleeding the cooling system.
• Coolant service: Performs procedures related to the coolant system.
• EGR valve adaptation: Adjusts the adaptation values of the EGR valve.
• Code injectors: Programs new injector compensation codes into the ECU.
• Reset NOx sensor: Resets the adaptation values of the NOx sensor.
• Learn throttle valve: Performs the basic adjustment for the throttle valve.
• Learn variable turbo geometry (VGT): Performs the learning process for the variable turbo geometry.

Transmission and drivetrain

• Clutch learning: Performs the learning process for the clutch.
• Transmission adaptation: Resets and relearns the adaptation values of the automatic transmission.
• Speed limiter and PTO setting: Sets the speed limiter or PTO functions.

Brake and stability systems

• Electronic parking brake (EPB) service: Opens and closes the brake calipers for maintenance, calibrates and resets the EPB.
• Tire pressure sensor (TPMS) reset: Learns new TPMS sensors or resets the values.
• ABS brake system bleeding: Performs automatic bleeding procedures for the ABS brake system.

Steering and chassis

• Steering angle sensor (SAS) calibration: Calibrates the steering angle sensor.
• Air suspension calibration: Adjusts the parameters of the air suspension system.

Body and comfort systems

• Adaptive cruise control (ACC) calibration: Calibrates the sensor for adaptive cruise control.
• Adaptive headlights (AFS) calibration: Calibrates the adaptive headlights.
• Rain and light sensor calibration: Calibrates the rain and light sensors.
• Seat calibration: Performs calibration for seat positions.
• Start/stop system reset: Resets the parameters of the start/stop system.
• Sunroof initialization: Initializes the sunroof functions.
• Electric window initialization: Initializes the electric windows.
• Transport mode on/off: Activates or deactivates the vehicle's transport mode.

Electrical and safety systems

• Battery registration (BMS): Registers a new battery and adjusts vehicle parameters.
• Airbag reset: Resets the airbag module after a crash or replacement.
• FRM module reset: Resets the footwell module.
• High voltage system deactivate/activate: Switches the high voltage system on or off for safe maintenance.

Other service and maintenance functions

• Engine angle sensor calibration: Calibrates the engine angle sensor.
• Odometer adjustment: Performs adjustments related to the odometer.
• Control unit reset: Resets specific control units to factory settings or default values.
• Resolver sensor calibration: Calibrates the resolver sensor.

Special features and capabilities

The Topdon One Lite offers specific features that support diagnostic and repair processes, including ECU Coding and access to integrated repair information.

• ECU Coding: Programs, learns, and configures electronic control units (ECUs), including adjusting vehicle-specific parameters.
• TopFix AI: Integrated system offering access to repair information, fault code analysis, repair guides, wiring diagrams, and technical service bulletins (TSBs).
• Security Gateway Access (SGW): Provides access to protected vehicle modules for diagnosis and service on vehicles that require it (requires active license).
• Topology Map: Visual display of the communication structure of vehicle modules, including fault code status and interconnections (requires active license).
• Generate Diagnostic Report: Creates professional and shareable diagnostic reports.

Supported vehicle brands

The Topdon One Lite diagnostic tool offers extensive support for more than 200 vehicle brands from various regions, ensuring broad compatibility for professionals.

• European: Abarth, Alfa Romeo, Aston Martin, Audi, Bentley, BMW, Bugatti, Citroën, Cupra, Dacia, DS Automobiles, Ferrari, Fiat, Iveco, Jaguar, Lamborghini, Lancia, Land Rover, MAN, Maserati, Maybach, Mercedes-Benz, Mini, Opel, Peugeot, Porsche, Renault, Rolls-Royce, Saab, Seat, Skoda, Smart, Vauxhall, Volvo, Volkswagen
• Asian: Acura, Daihatsu, Genesis, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Mahindra, Maruti Suzuki, Mazda, Mitsubishi, Nissan, Perodua, Proton, Renault Samsung, Scion, SsangYong, Subaru, Suzuki, Tata, Toyota
• American: Buick, Cadillac, Chevrolet, Chrysler, Dodge, Ford, General Motors, GMC, Holden, Jeep, Lincoln
• Chinese: Aeolus, BAIC Motor, BYD, Chery, Denza, Dongfeng Fengguang, Emgrand, Englon, Exeed, Geely, Gleagle, Great Wall, Hafei, Jetour, Karry, Maple, Maxus, MG, Rely, Riich, Roewe, Senova, Sokon, SWM, Venucia, Weiwang

Optional additions and expansions

The Topdon One Lite diagnostic tool can be expanded with various optional modules and accessories to further enhance functionality for specific tasks.

Hardware modules and accessories

• BTMobile ProS Battery Tester: Performs detailed tests on battery status, voltage, and performance, enabling an in-depth analysis of the vehicle battery.

License Information

The Topdon One Lite diagnostic device comes with a software license that provides access to updates and specific features. After the first year, basic diagnostic functions such as EOBD diagnosis, reading/clearing fault codes, live data, active tests, and more than 50 service functions remain permanently available without a subscription.

• License period: The diagnostic device includes 1 year of free software updates from the registration date.
• Software updates: An active license provides access to the latest vehicle coverage, system improvements, and new features released regularly.
• Extended features: Features such as ECU coding, TopFix AI, Security Gateway Access, and the Topology Map require an active license.
• After license expiration: After the first free year, the device continues to work with the permanent free features, including basic diagnostics and more than 50 service functions; however, updates and subscription-based features will no longer be available.

Package Contents

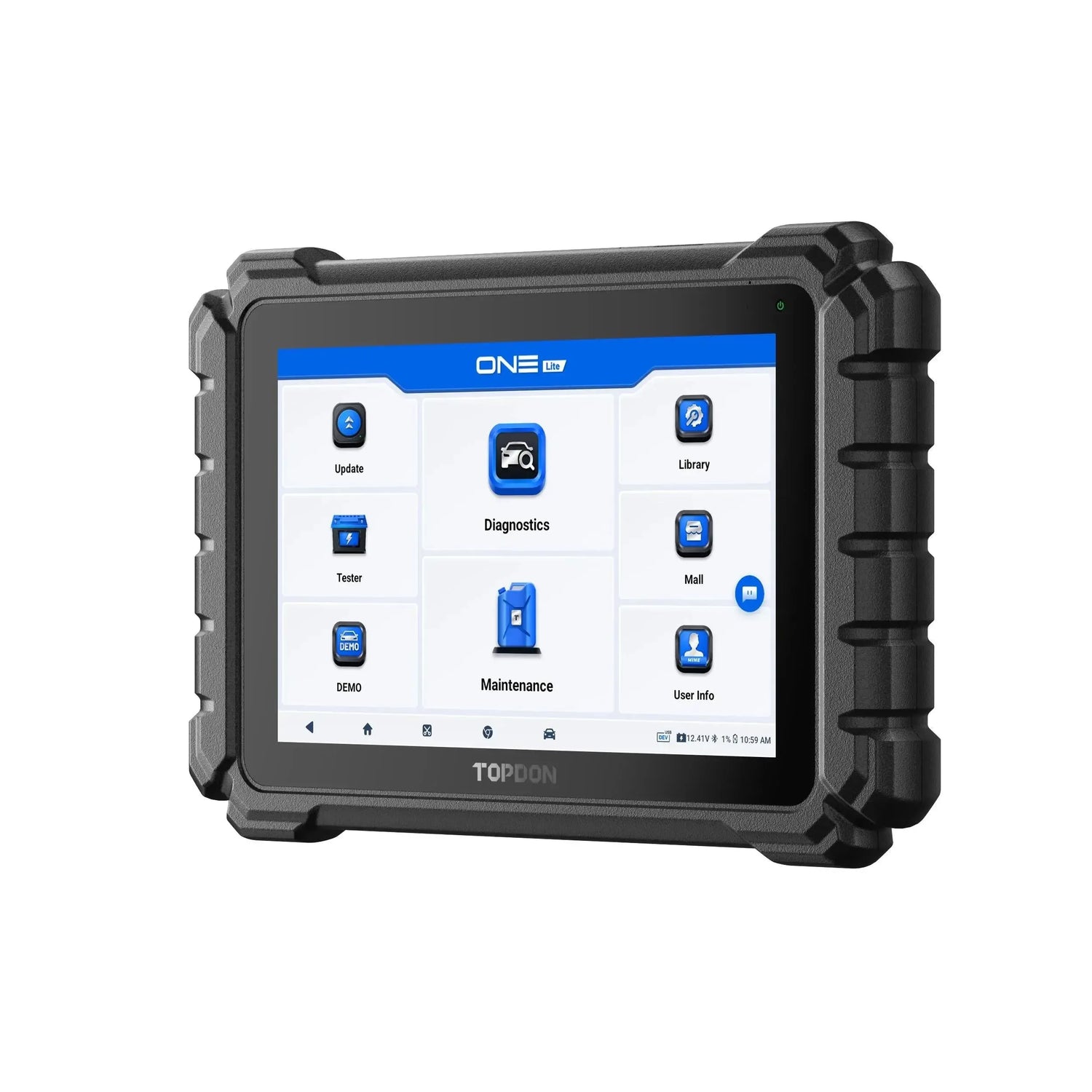

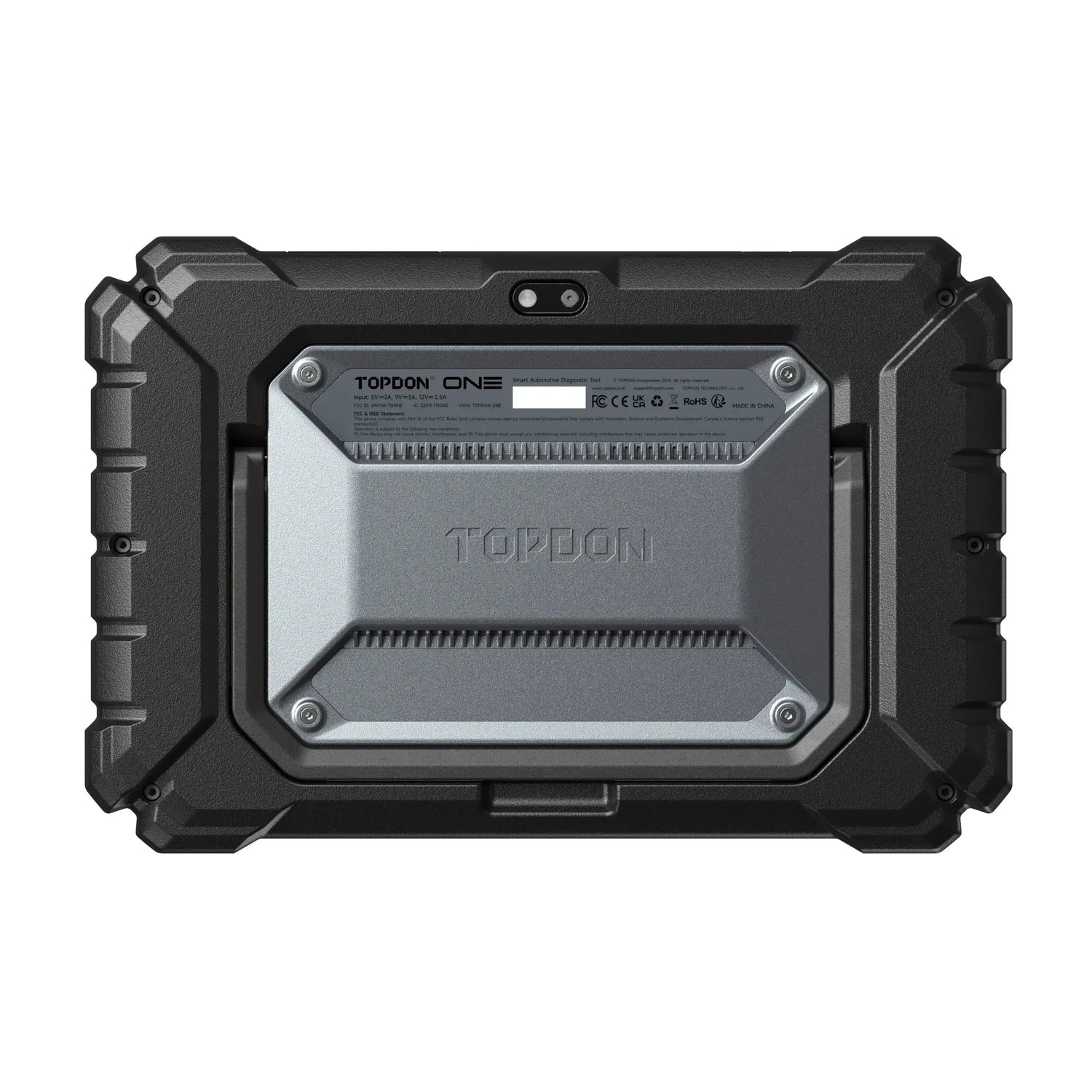

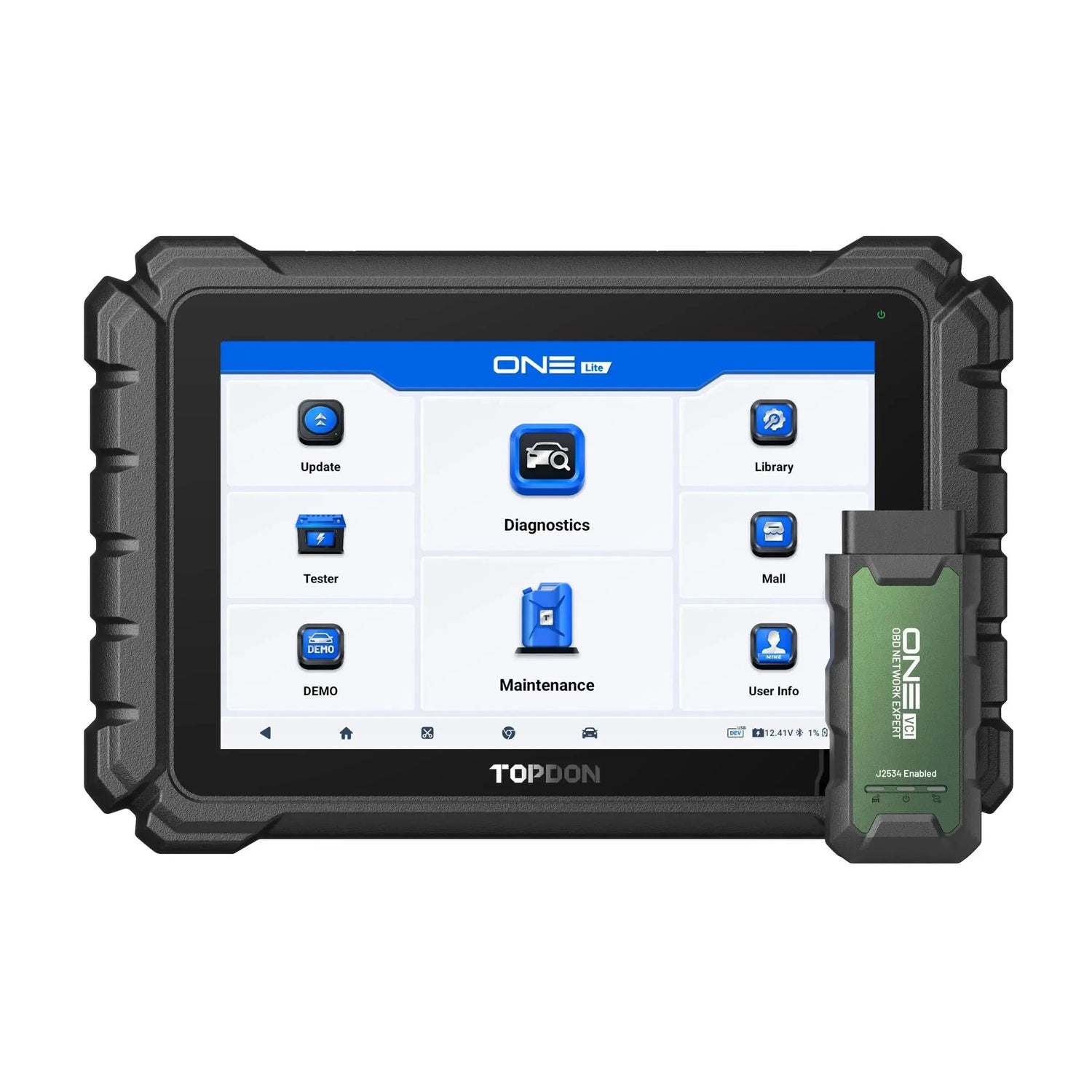

• 1x Topdon One Lite diagnostic device (tablet)
• 1x Topdon One Lite VCI (Vehicle Communication Interface)
• 1x Charger
• 1x Diagnostic extension cable
• 1x USB-C to USB-C cable
• 1x USB-A to USB-C cable
• 1x Quick user guide
• 1x Package Contents list
• 1x Carrying case
• 1x Package Contents box
