Topdon  |  SKU: TD52130089

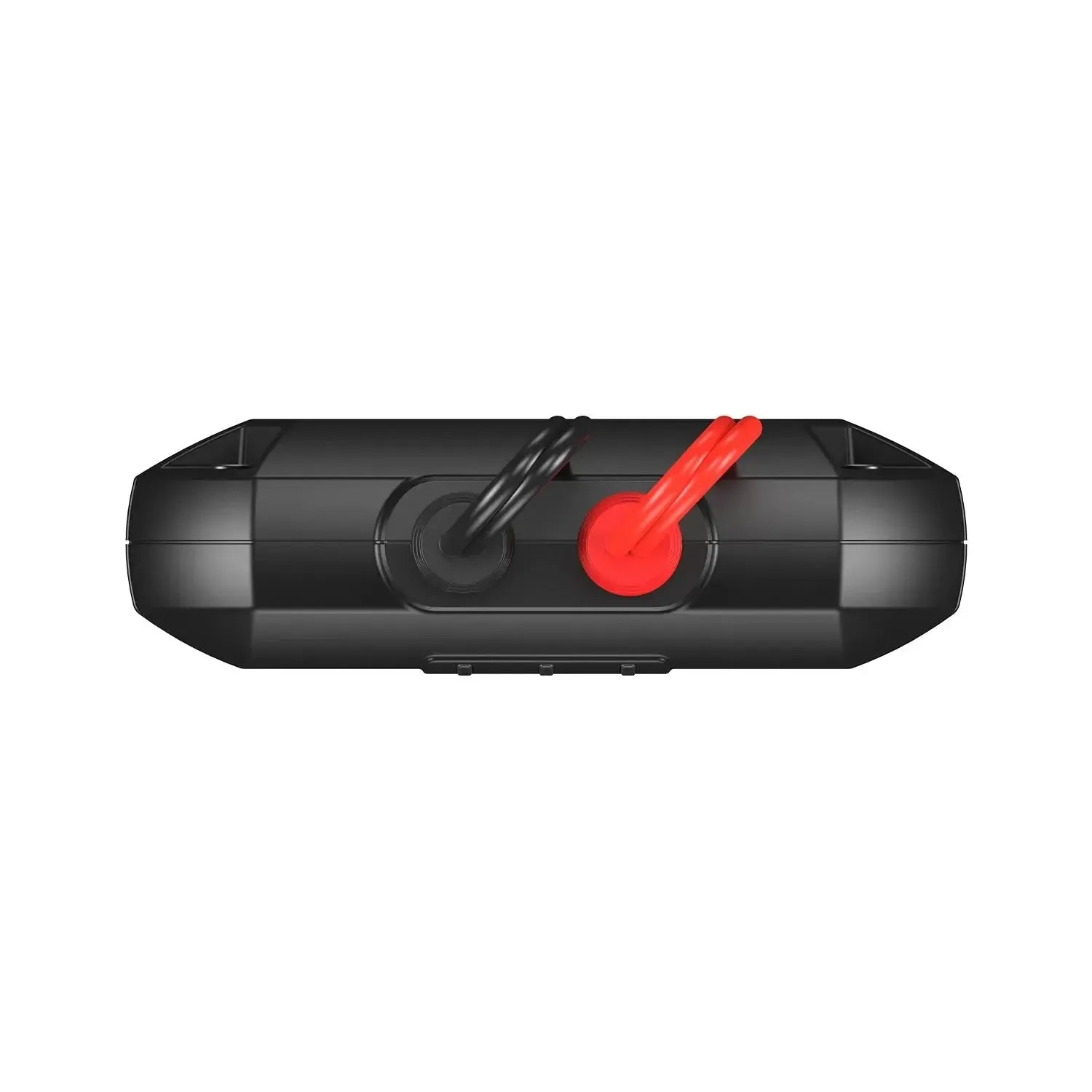

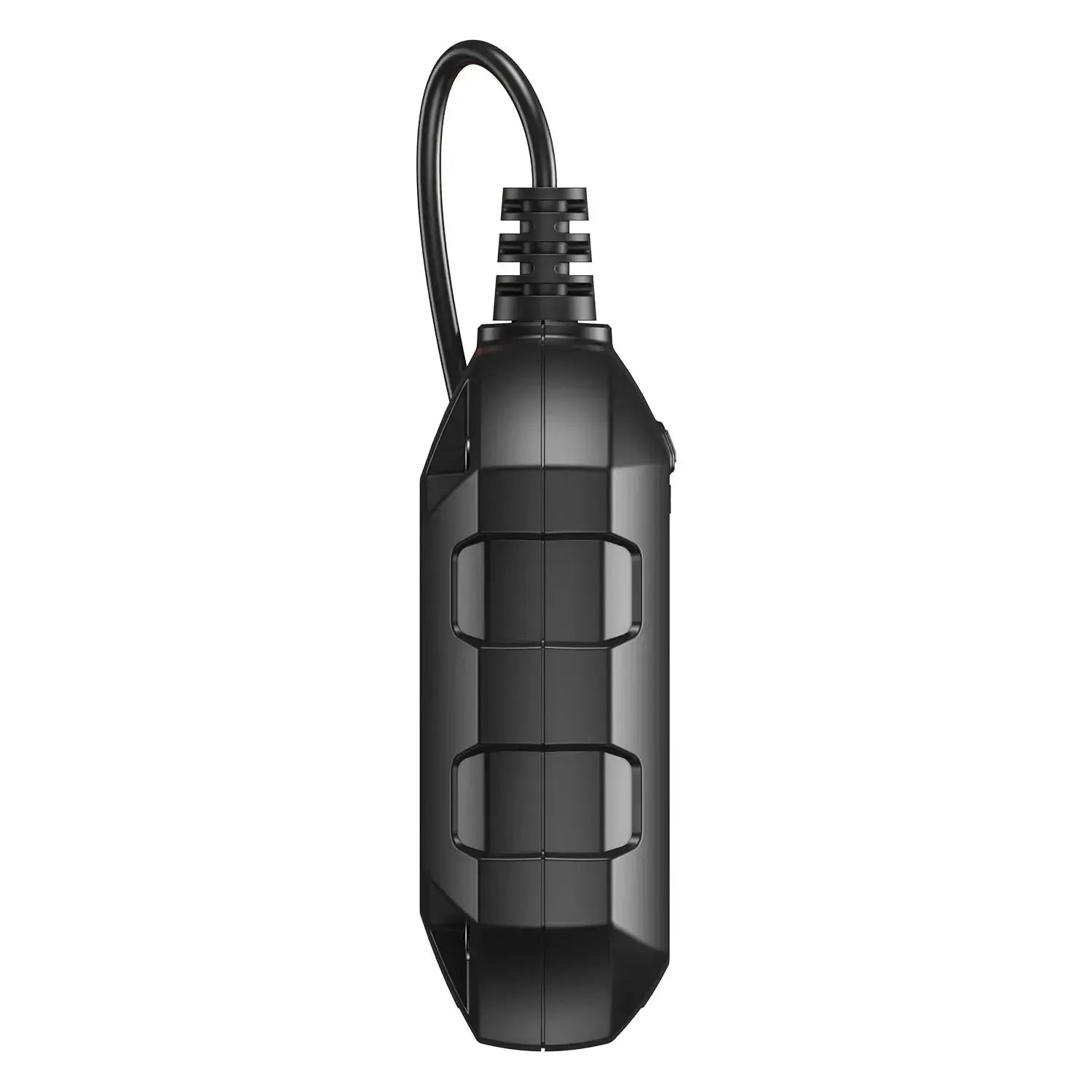

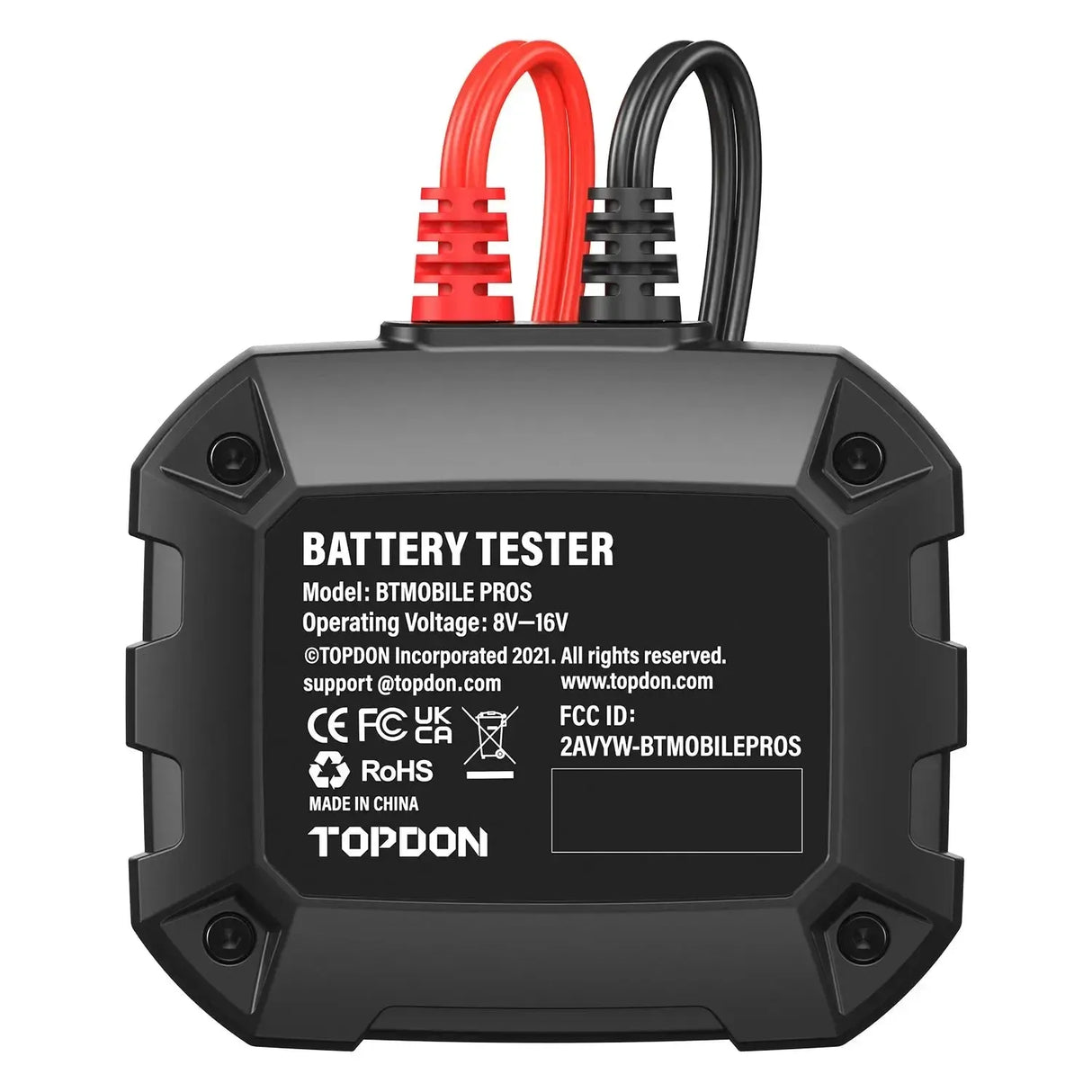

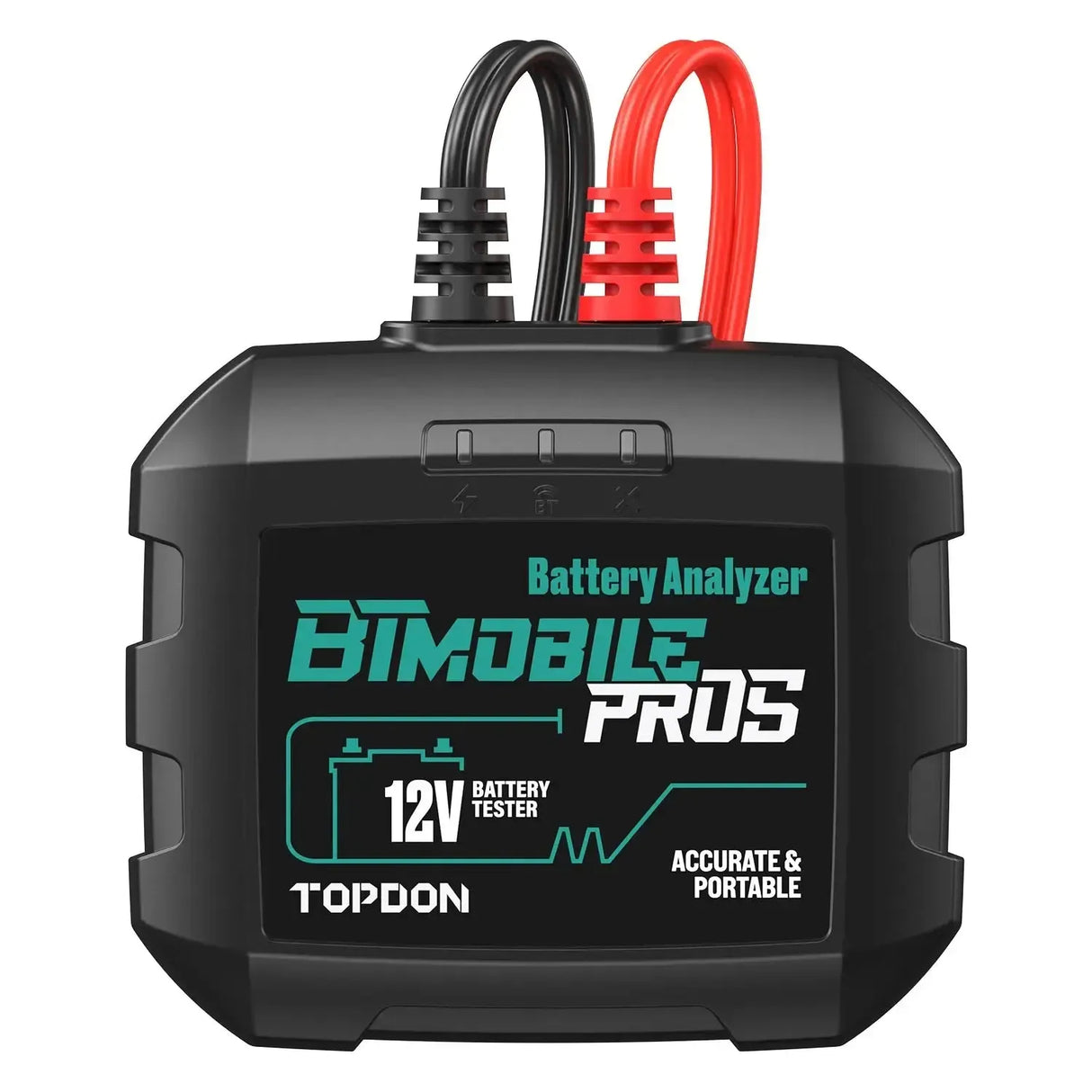

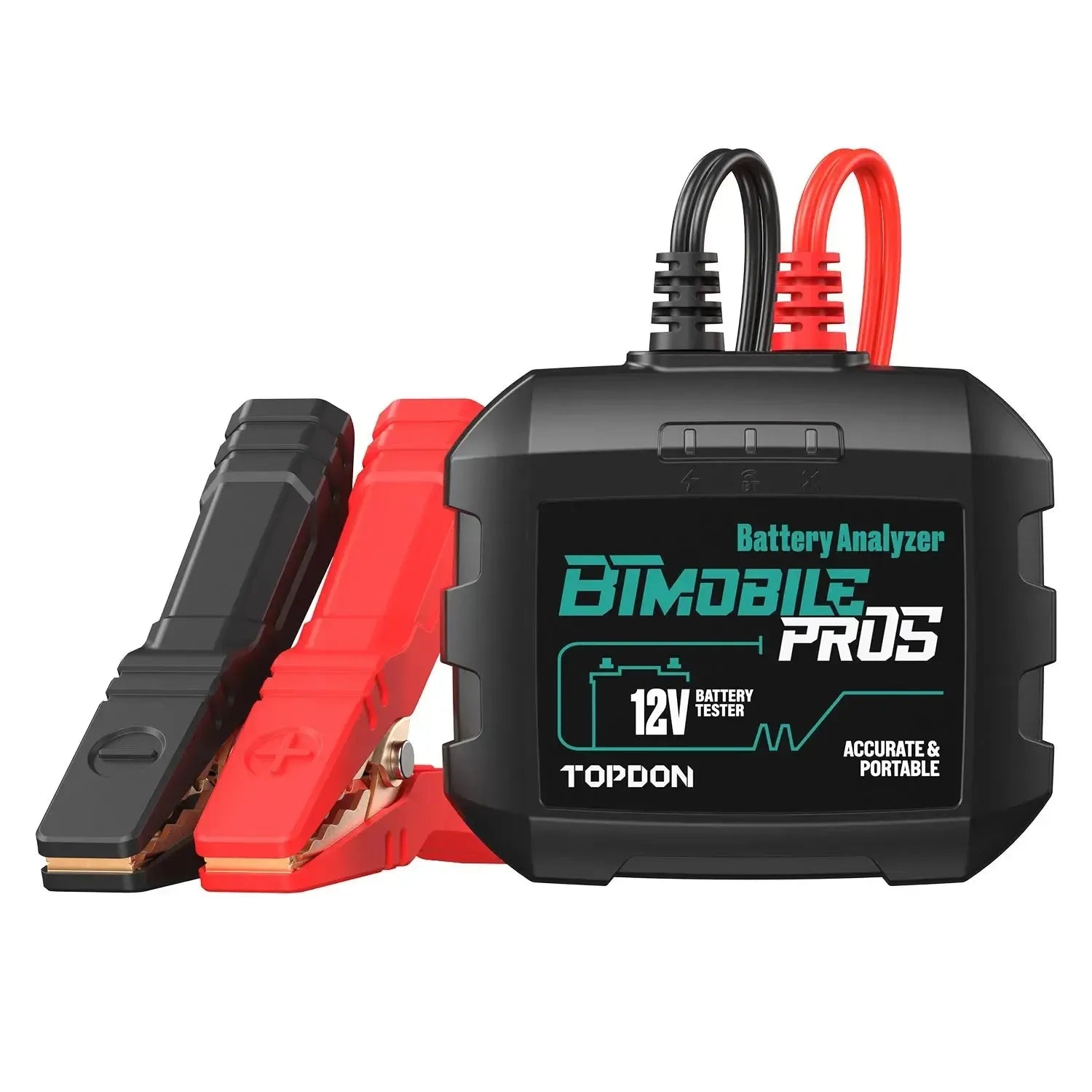

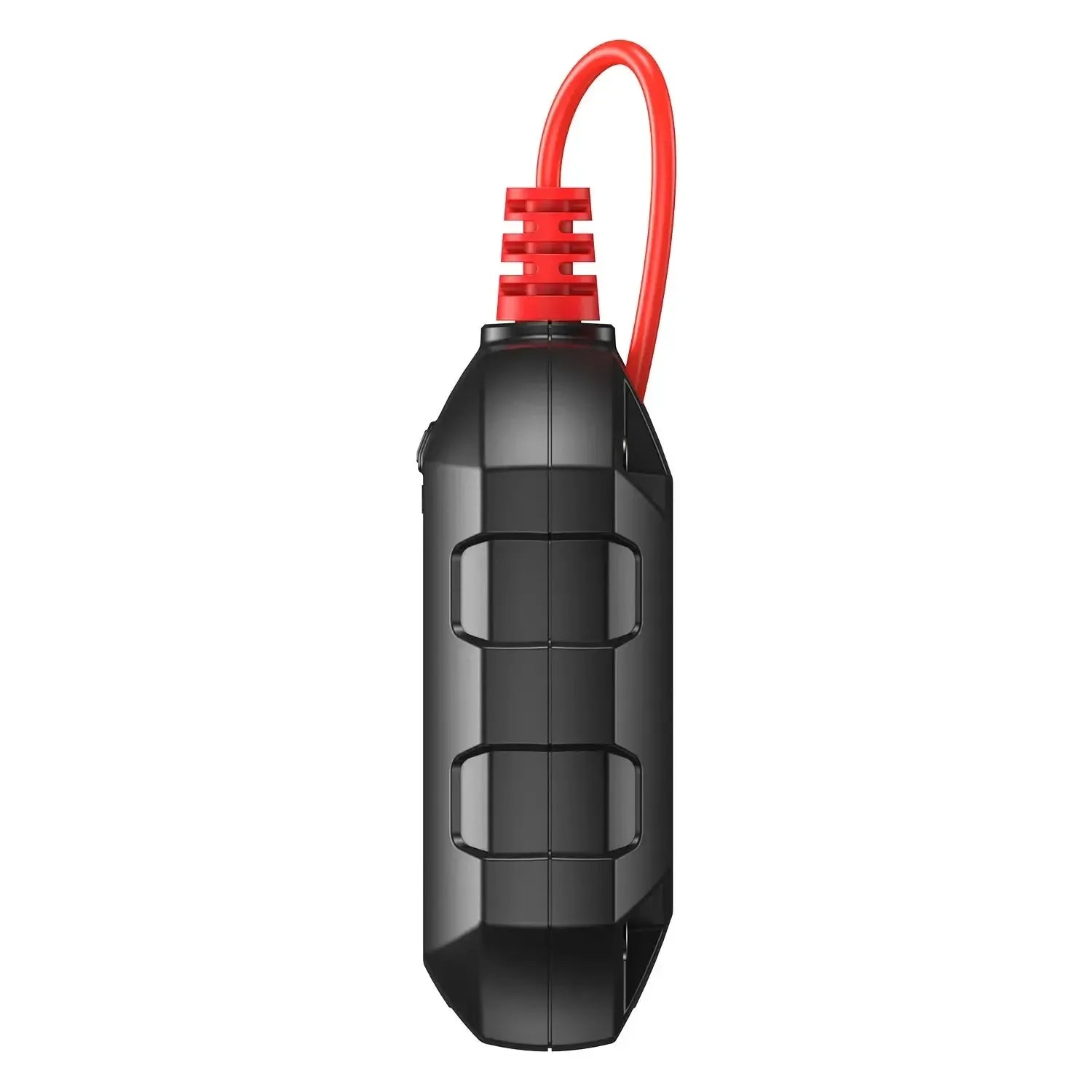

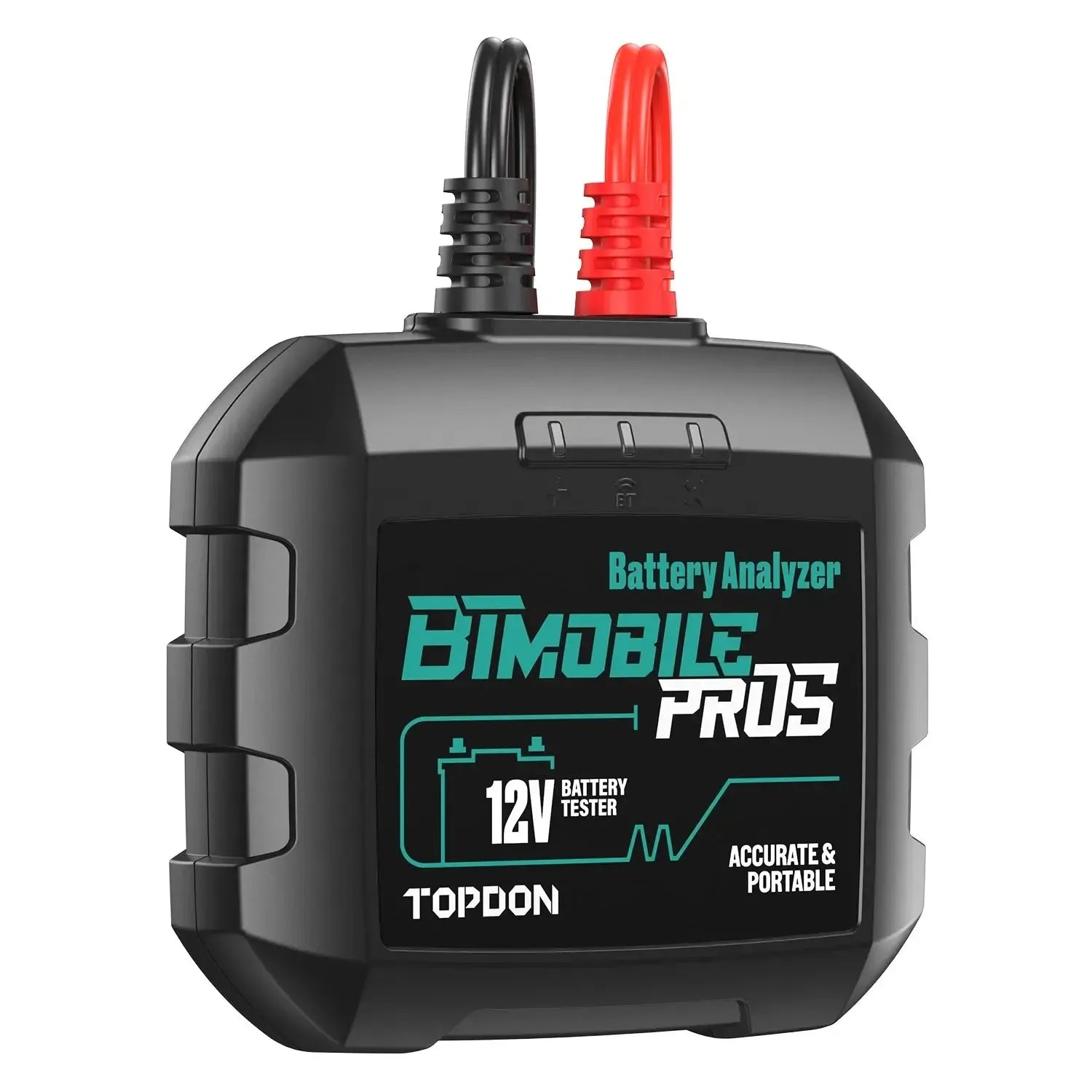

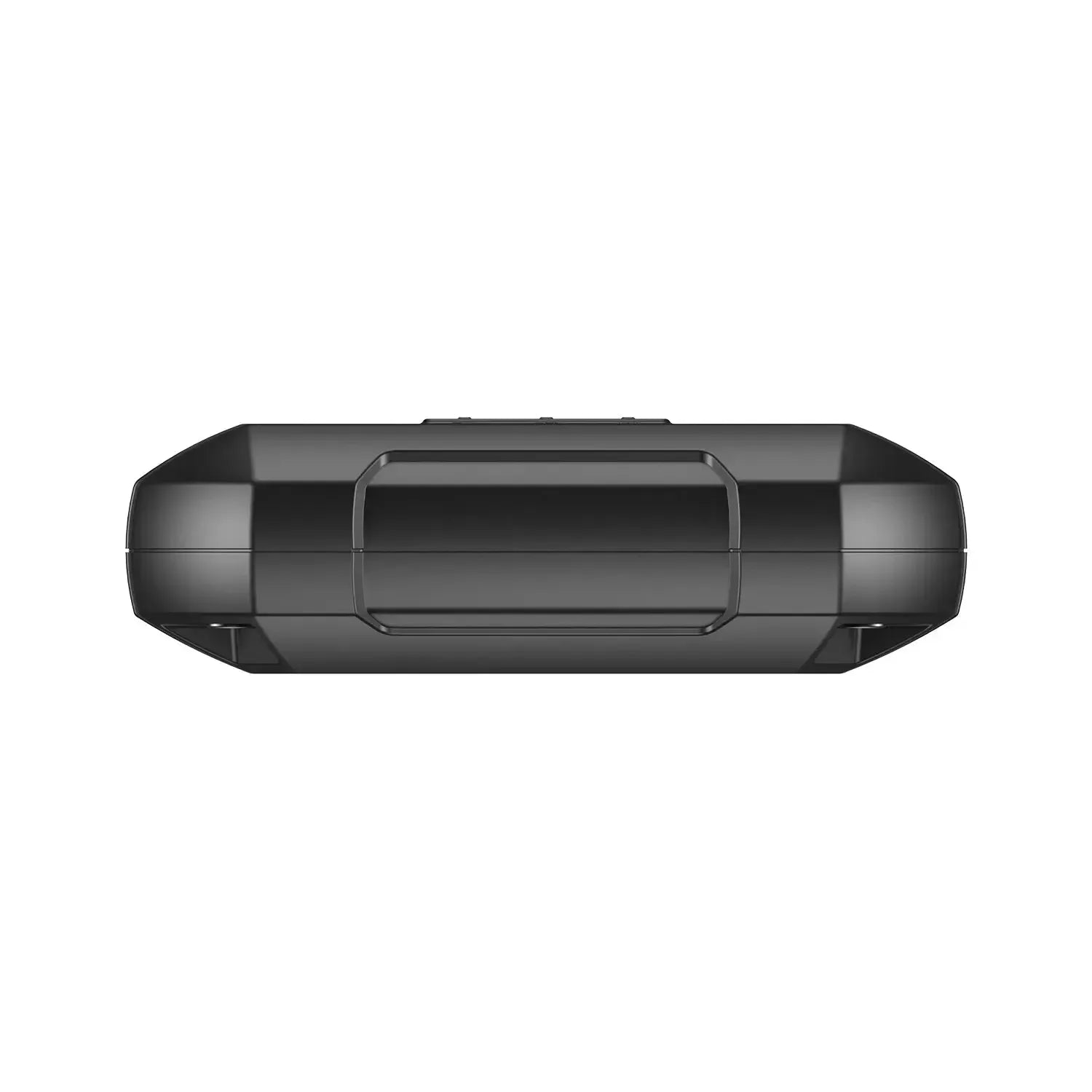

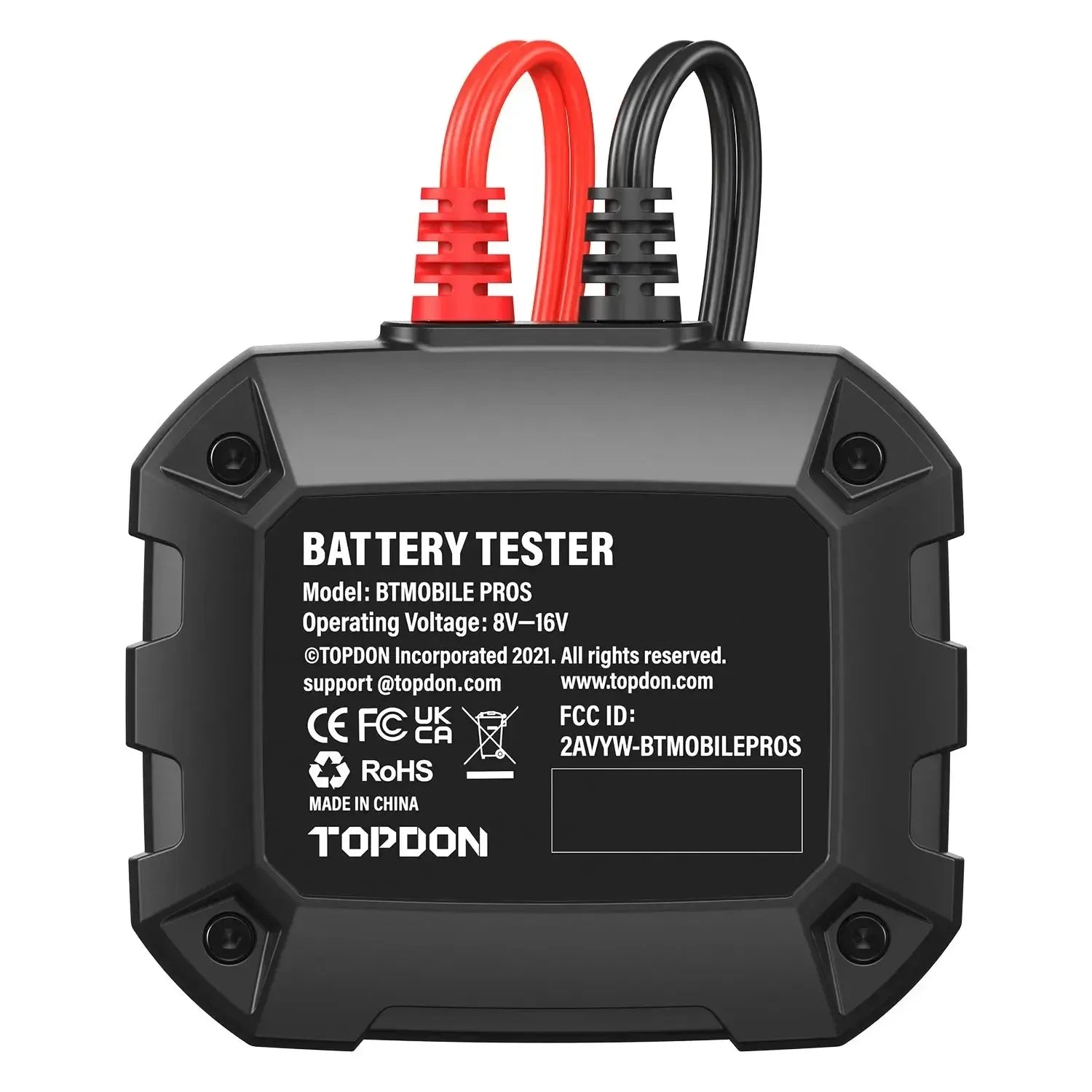

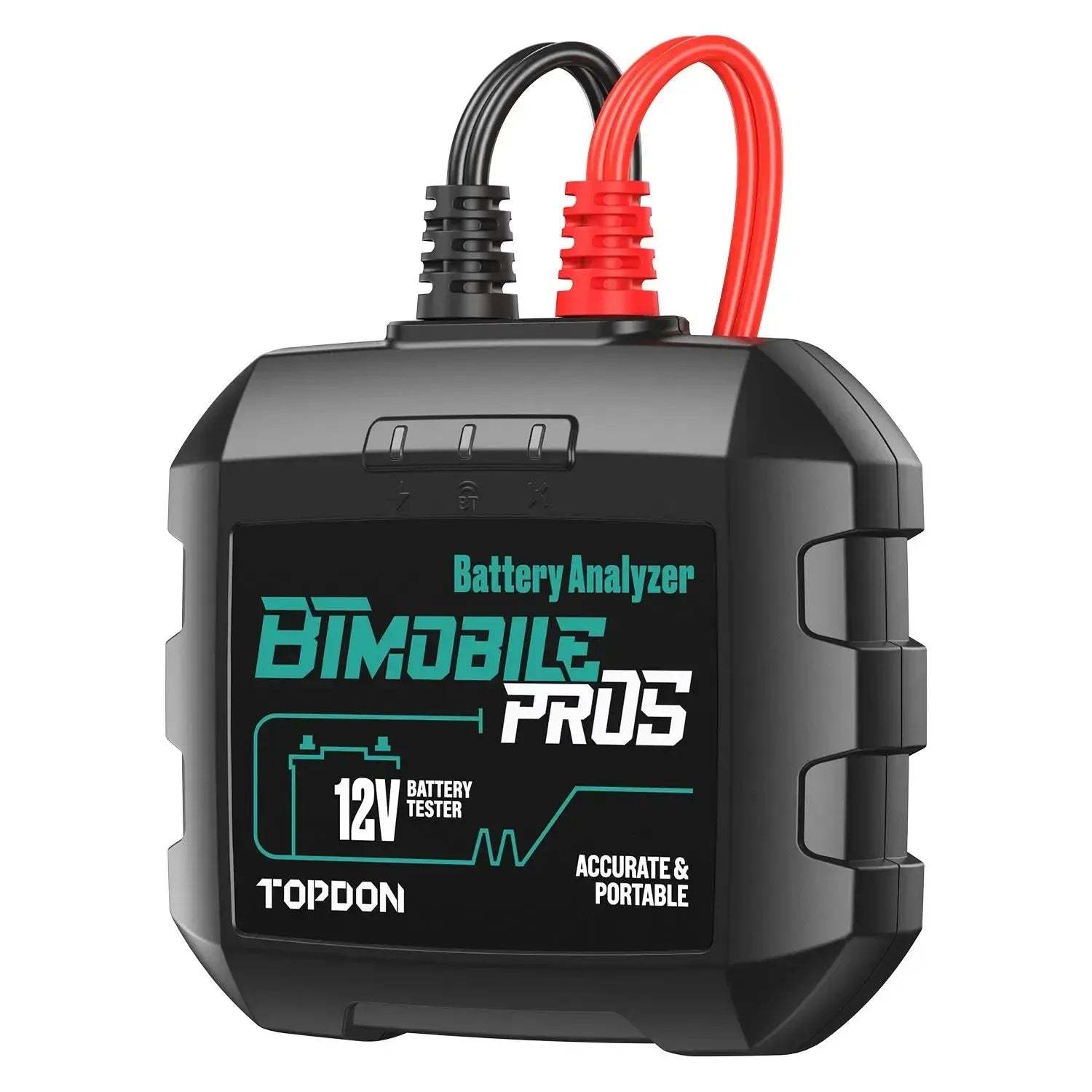

Topdon BTMobile ProS | Battery Tester

€164,95 incl.
€136,32 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns via Returnless

Returns are easy via Returnless. Register your return online and choose your own shipping method. Return costs are at your own expense.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

The Topdon BTMobile ProS battery tester operates via conductance measurement to analyze the condition of 12V vehicle batteries. The battery tester has an operating voltage range of 8V to 16V and a measurement range of 100 to 2000 Cold Cranking Amps (CCA). The tester is calibrated for various battery technologies, including wet lead-acid batteries, AGM flat plate, AGM spiral, GEL, and EFB. The hardware connects directly to the battery terminals and performs diagnostic tests on batteries positioned both inside and outside the vehicle.

Measurements are processed and visualized through a connected mobile application via a Bluetooth 4.2 connection. The software includes specific modules for performing a starting capacity test, a charging system test, and a combined system diagnosis. The resulting dataset includes parameters such as state of charge (SOC), health status (SOH), internal resistance, and actual terminal voltage. An integrated protection circuit safeguards the instrument and vehicle against short circuit, overvoltage, and reverse polarity during the connection procedure.

ADVANTAGES

✔ Wireless data transfer via Bluetooth 4.2 to external devices.
✔ Wide measurement range from 100 to 2000 CCA for various vehicle types.
✔ Integrated hardware protection against reverse polarity and short circuit.
✔ Supports full system diagnostics including the starting capacity test.

ATTENTION POINTS

✕ Not suitable for 24V systems; the maximum voltage range is 16V.
✕ Requires an active wireless connection and an external application for data reading.
✕ Only compatible with operating systems from Android 4.4 or an iOS equivalent.
✕ The module has no built-in display and functions solely as a measuring probe.

Applications and functionalities

The Topdon BTMobile ProS offers various test modules for analyzing the battery status and the vehicle's electrical circuit via the application.

  • Battery test: Calculates the health status (SOH), state of charge (SOC), internal resistance, and the actual capacity of the connected 12V battery.
  • Starting capacity test: Records the voltage drop and startup time during the combustion engine start to assess the condition of the starter motor.
  • Charging system test: Analyzes the alternator output voltage at no load and under load to verify the efficiency of the charging circuit.
  • System Test: Performs an automatic sequence analyzing the battery, starter motor, and alternator consecutively.

Special Features and Capabilities

The hardware unit communicates with specific control software that provides extensive data management options to the diagnostic technician.

  • Automatic data logging: Saves test results chronologically in the application memory for reviewing historical measurement data per vehicle.
  • Integrated battery library: Contains a built-in reference database to view factory specifications of compatible batteries during parameter setting.
  • Three-color LED indication: Provides direct visual feedback on the hardware module about the power connection (green), Bluetooth status (blue), and system errors (red).

Supported Battery Types

The measuring instrument is configured and calibrated for diagnostics on the following chemical 12V battery structures:

  • AGM (Absorbent Glass Mat - Flat Plate and Spiral)
  • EFB (Enhanced Flooded Battery)
  • GEL (Gel Battery)
  • Lead Acid (Standard Wet Battery / Regular Flooded)

Supported Battery Standards

The battery tester supports the following international test protocols for input and calculation of starting current values:

  • BCI (Battery Council International)
  • CA (Cranking Amps)
  • CCA (Cold Cranking Amps)
  • DIN (Deutsches Institut für Normung)
  • EN (European Norm)
  • GB (Guobiao Standards)
  • IEC (International Electrotechnical Commission)
  • JIS (Japanese Industrial Standards)
  • MCA (Marine Cranking Amps)
  • SAE (Society of Automotive Engineers)
💡
Good to know: Turn off all electrical consumers in the vehicle before starting the measurement. Parasitic current draw during a conductivity measurement affects the internal resistance calculation and leads to inaccurate results.

Package Contents

  • 1x Topdon BTMobile ProS
  • 1x Manual
  • 1x Carrying Case

Technical Specifications

Specification Description
Product Brand Topdon
Product Model BTMobile ProS
Measurement Range (CCA) 100 - 2000 CCA
Operating Voltage Range 8V - 16V DC
Measurement Method Conductivity Measurement
Communication Protocol Bluetooth 4.2
Hardware Protection Polarity reversal, short circuit, overvoltage
Test Cable Length 556 mm
Operating Temperature -10°C to 45°C
Storage Temperature -20°C to 75°C
Dimensions (L x W x H) 100.9 x 87.6 x 30 mm
Weight 257 grams
