OBDSTAR IScan Polaris Multi | Diagnostic Tool | Motorcycle

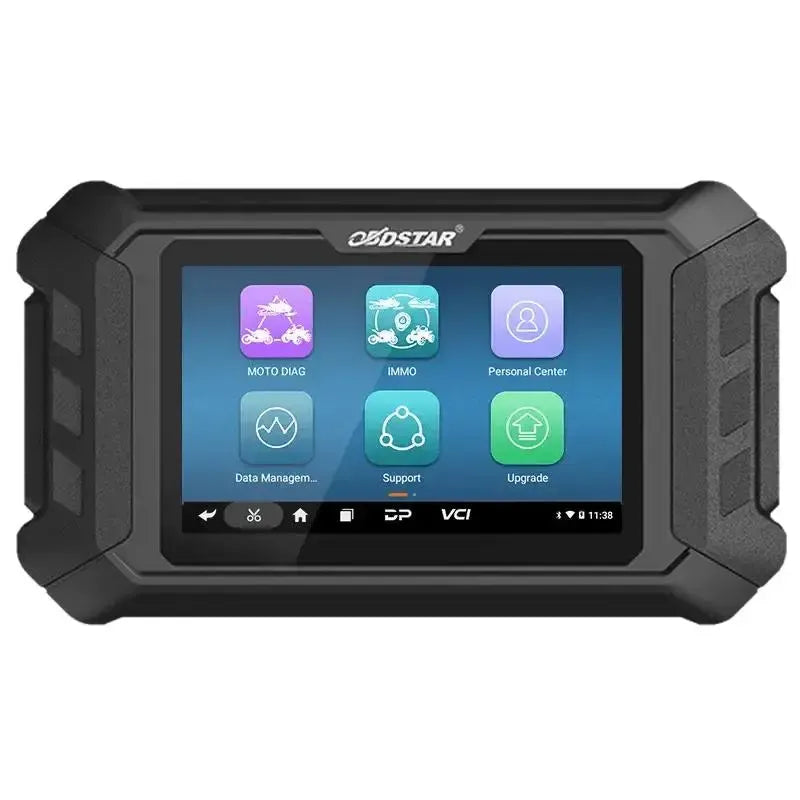

The OBDSTAR IScan Polaris Multi is a tablet-form diagnostic tool specifically designed for diagnostics on Polaris series vehicles, including motorcycles, ATVs, UTVs, and snowmobiles. The system is based on a RK3128 quad-core processor and features a 5.0 inch capacitive touchscreen. The device supports extensive diagnostic functions, such as reading and clearing fault codes, displaying live data, and performing actuator tests. A license with 1 year of software updates is included upon purchase.
The IScan Polaris Multi offers a range of advanced features, including more than 25 service and maintenance procedures. Thanks to the Wi-Fi connectivity, software updates can be performed directly on the device. Additional functionalities include remote technical assistance and access to technical bulletins and help data. The device is operated via an Android 5.1.1 operating system.
Diagnostic functions:

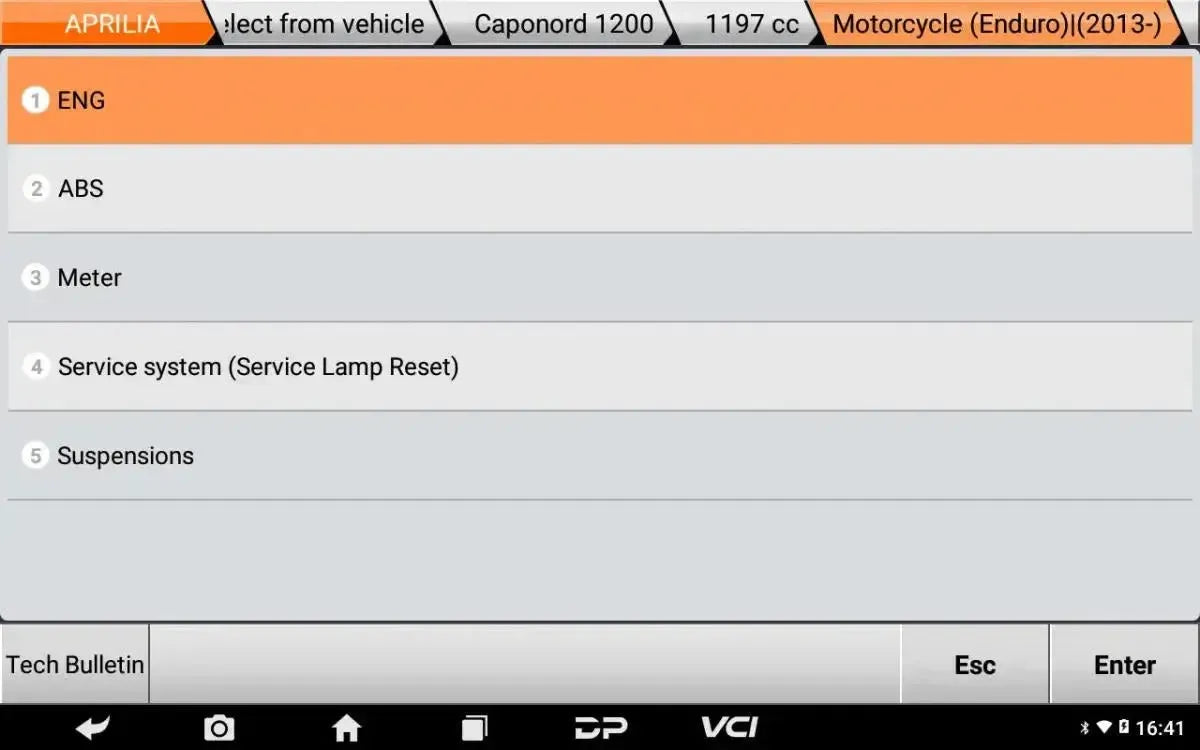

The diagnostic tool offers the ability to perform a complete diagnosis of all electronic systems present in the vehicle.
- Read and clear fault codes: Reads and clears fault codes from all available control units, such as the engine, ABS, and instrument panel.
- Display freeze frame data: Shows the stored vehicle data at the moment a fault code was activated.
- Live data: Displays real-time data from sensors and components. The display is available in text, graph, and meter form.
- Record and playback data: Enables recording live data streams and analyzing them later.
- Actuator test: Directly controls components to check functionality.
- ECU information: Retrieves detailed information from the control unit, such as type and software version.
- Vehicle identification (VIN): Automatically identifies the vehicle via the chassis number.

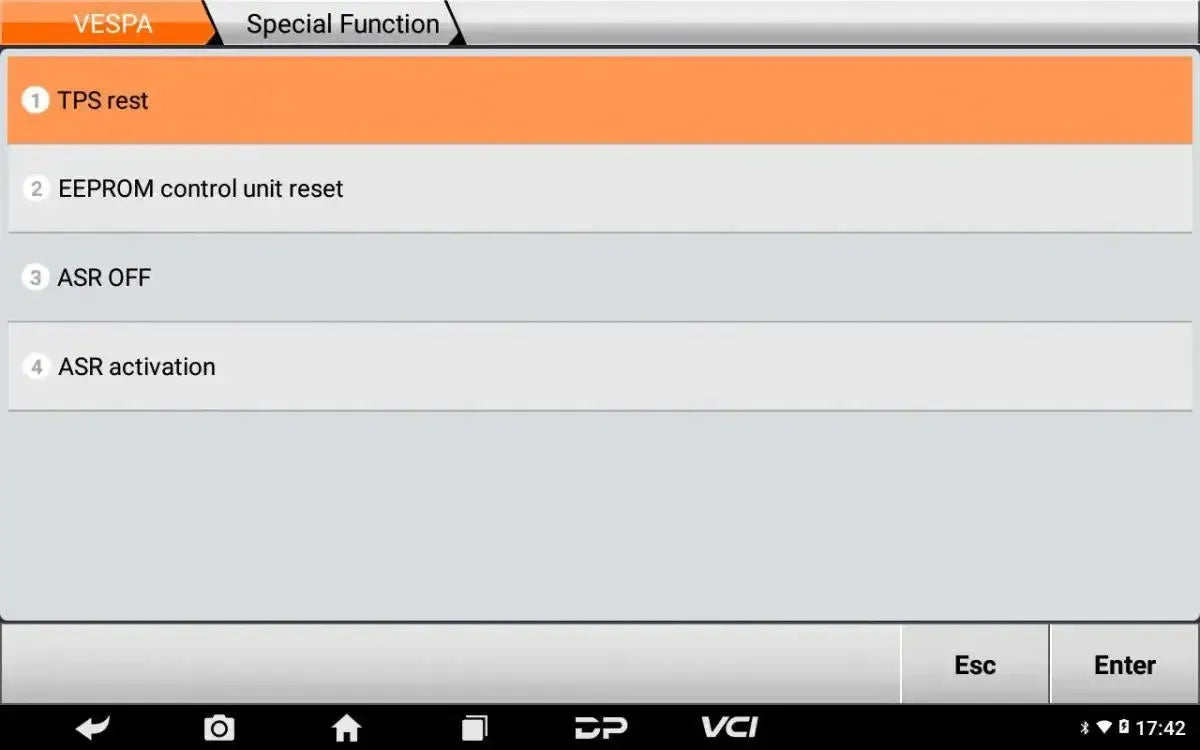

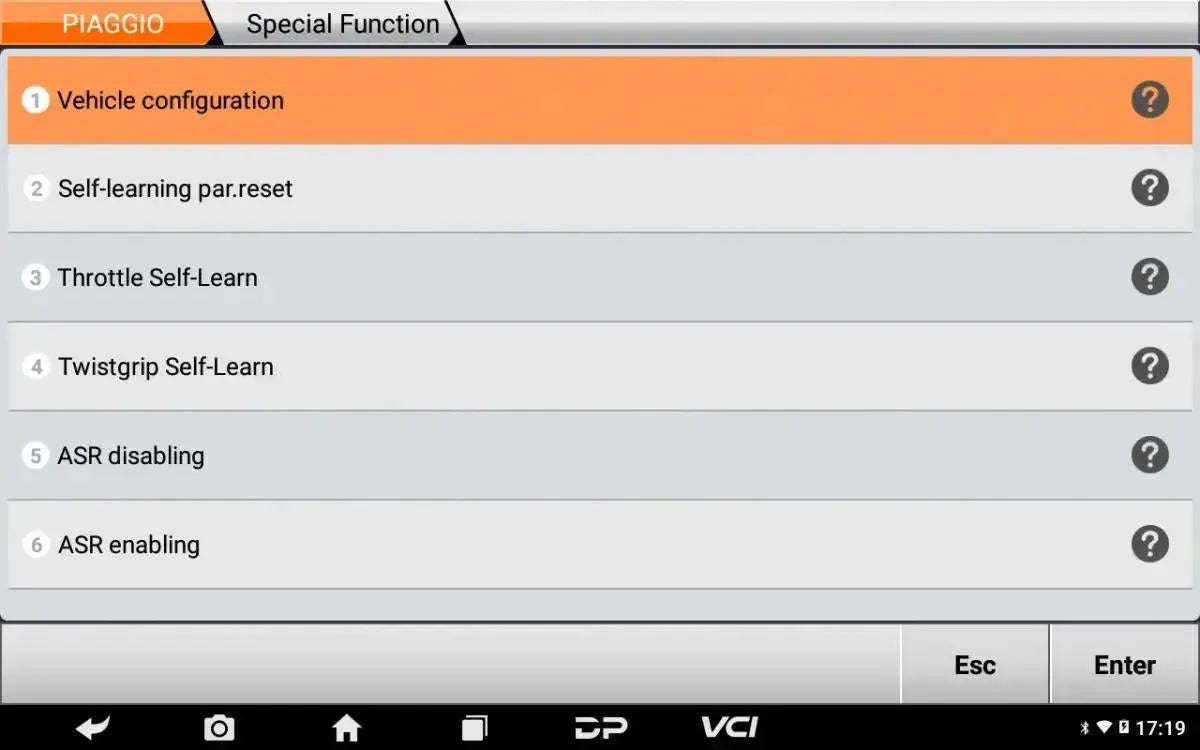

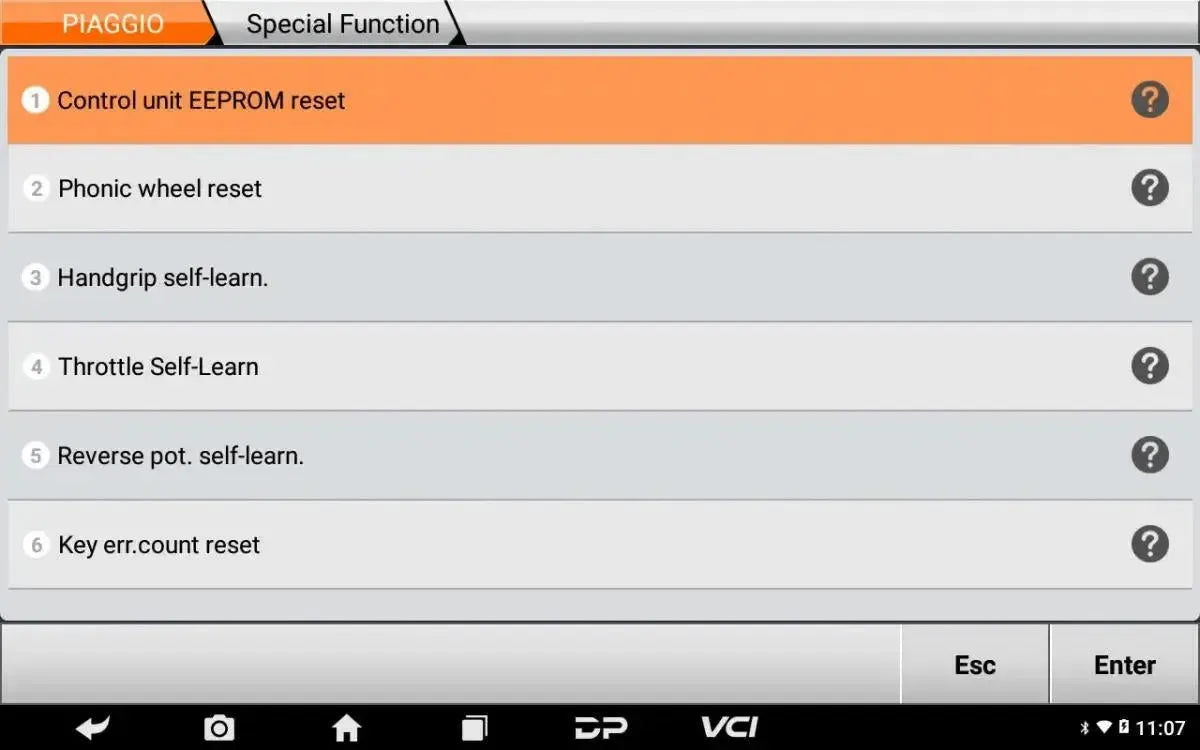

Service and maintenance functions:
This diagnostic tool supports more than 25 service and maintenance functions. The availability of specific functions may vary depending on the vehicle's make, model, and year.
Engine and drivetrain:
- Set throttle position sensor (TPS): Calibrates the throttle position sensor after cleaning or replacement.
- Replace ECU: Configures the control unit and pairs it with the vehicle after replacement.
- Transmission control module adaptation (TCM): Resets the adaptive values of the transmission control module.
- Bleed fuel pump: Fills and bleeds the fuel system, for example after replacing the pump or filter.
- Bleed oil pump: Fills and bleeds the oil system after maintenance work.
- Learn wastegate: Calibrates the turbo wastegate actuator for correct boost pressure control.
- Learn exhaust valve: Calibrates the position of the exhaust valve.
- Adjust gear ratio: Configures the gear ratio in the ECU after adjustments.
- Reset break-in period: Resets the maintenance indicator or restrictions after the vehicle's break-in period.
- Transmission service procedures: Performs various maintenance tasks on the transmission.
- Enable/disable PTO: Procedure for activating or deactivating the Power Take-Off (PTO).
Brakes:
- ABS bleeding: Performs an automatic bleeding procedure for the ABS brake system to remove air bubbles.
- ABS service: Provides various service functions for the anti-lock braking system.
- Bleed hydraulic oil: Supports bleeding of various hydraulic systems.
Steering and suspension:
- Steering angle sensor calibration (EPS): Calibrates the sensor for electronic power steering.
- Power steering centering module (EPS): Centers and calibrates the power steering module.
- Calibrate ride height: Adjusts the ride height sensor on vehicles with adjustable suspension.
- Suspension control module: Provides diagnostic and service functions for the electronic suspension module.
Security and keys:
- Security functions: Access to various vehicle security-related procedures.
- Maintenance key transponder: Programs or maintains keys and remote controls.
- Vehicle security (P.A.S.S. status): Checks the status of the Polaris Anti-theft Security System.
Other functions and configurations:
- Slingshot configuration: Performs specific configurations for Polaris Slingshot models.
- Speed key options: Configures options related to the speed key.
- Tire selection: Sets the type and size of the tires in the vehicle computer for correct speed measurement.
- Select audio tuning: Selects and configures audio settings.
- Heater calibration: Calibrates the vehicle's heating unit.
Special features and capabilities:
The device offers additional functions that support diagnosis and maintenance.
Cloud and reporting functions:
- Remote assistance: Offers the possibility for remote technical support by the manufacturer.
Documentation and diagrams:

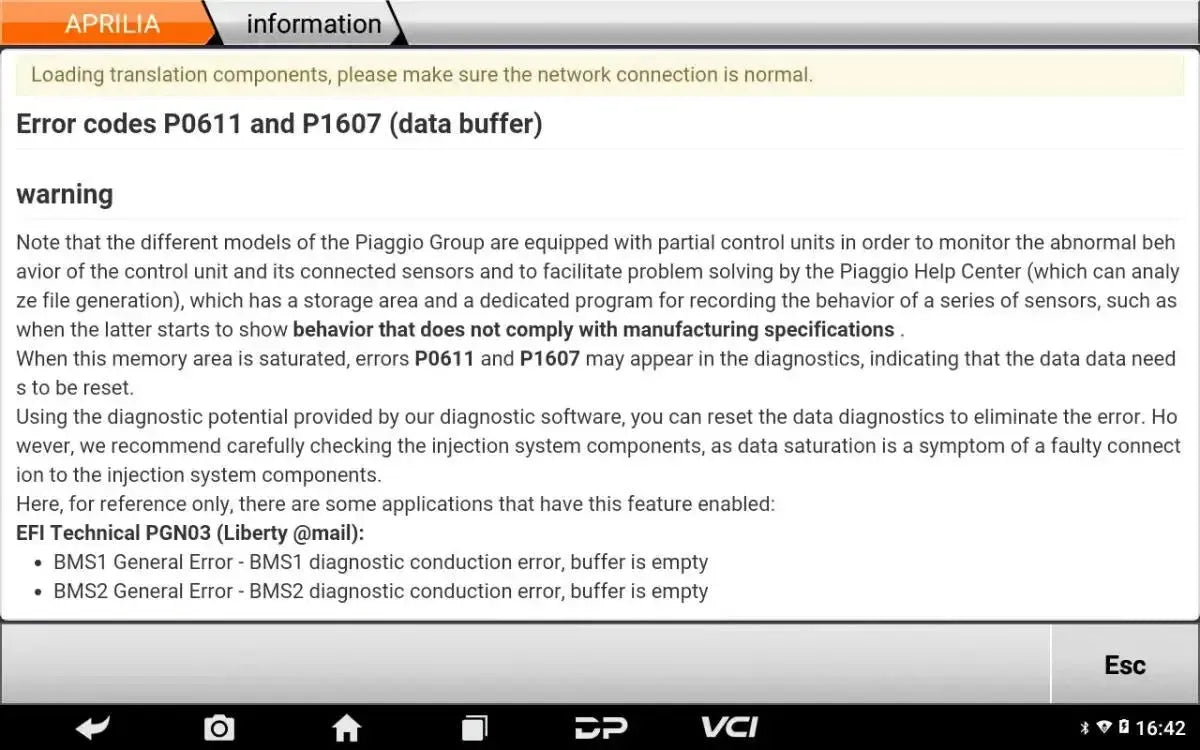

- Error guidance: Provides step-by-step instructions and information for troubleshooting specific error codes.

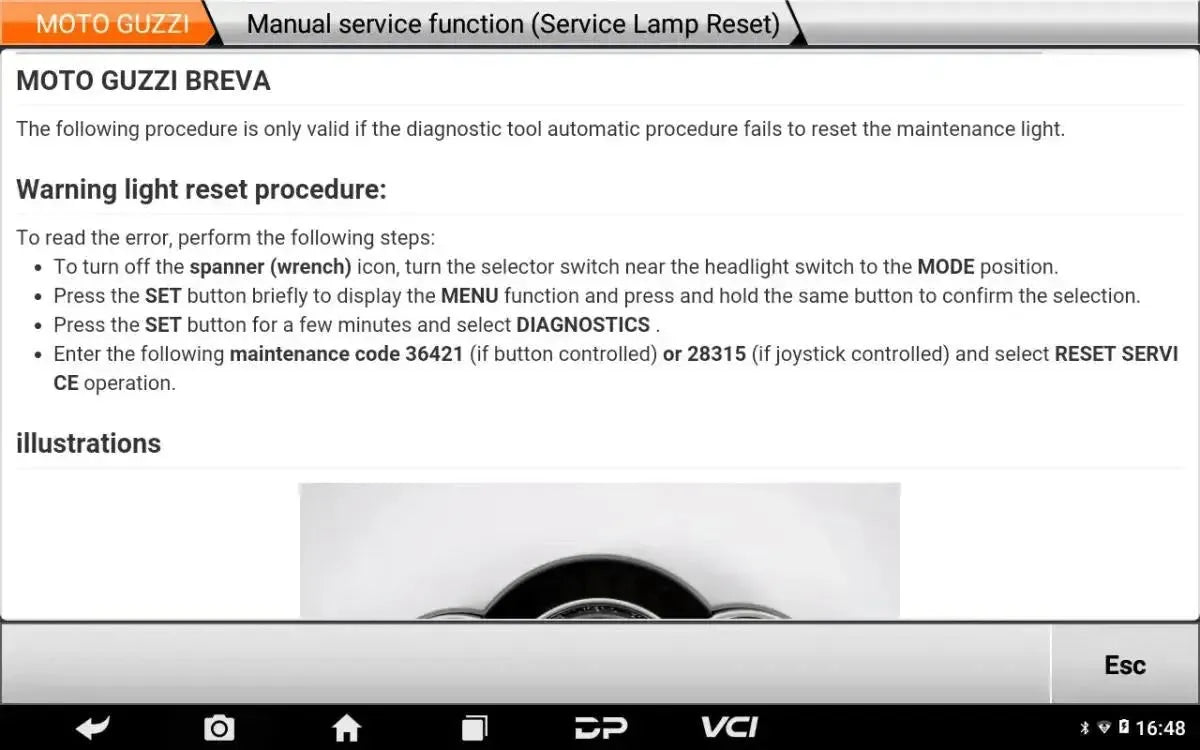

- Help data: Provides access to technical documentation and help information directly on the device.

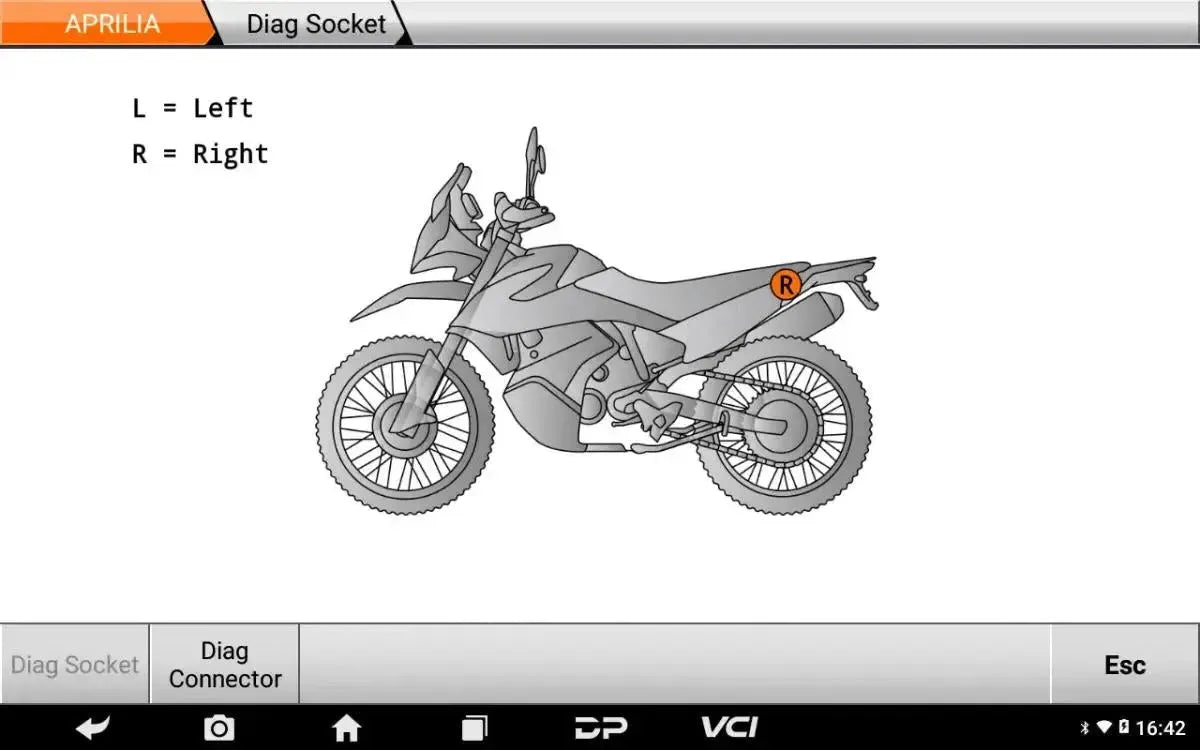

- Location of diagnostic connector: Shows the location of the diagnostic connector (DLC) in the vehicle.
- Technical bulletins: Provides access to manufacturer-issued technical bulletins.
Optional expansion modules:
The functionality of the OBDSTAR IScan Polaris Multi can be expanded with various optional hardware modules and accessories, which are sold separately.
Hardware modules and accessories:
- M002A: A grounding cable (GND) for establishing a stable ground connection during diagnostic procedures.
- M003A: A multifunctional jumper cable used to connect to specific pins on various vehicle connectors.

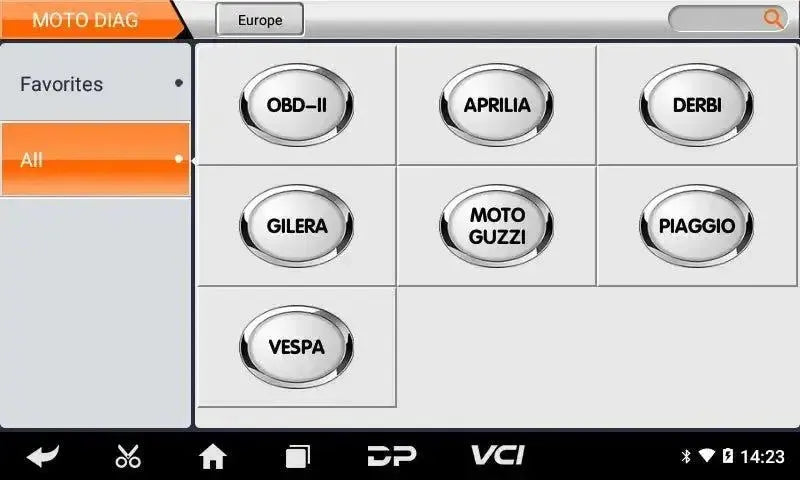

Supported vehicle brands:
This diagnostic device is compatible with a range of vehicles, including motorcycles, ATVs, UTVs, and snowmobiles from various brands.
- American: BRP, Indian, Polaris, Victory
Package Contents:
- 1x OBDSTAR IScan Polaris Multi diagnostic device
- 1x M001 Main cable
- 1x M042A Indian/Victory/Polaris adapter
- 1x 12V2A Charger
License information:
- Including 1 year updates: A 12-month update license is included with purchase.
After the license period expires, the device will continue to operate on the last installed software version. Receiving new software updates is no longer possible. Online functions may be limited.
Technical specifications:
| Specification | Description |
|---|---|
| Product brand | OBDSTAR |
| Product model | IScan Polaris Multi |
| Operating system | Android 5.1.1 |
| Screen size | 5.0 inch |
| Screen resolution | 800*480 |
| Processor | RK3128 quad-core ARM cortex A7 |
| Connectivity | Wi-Fi |
| Battery | 2600mA, rechargeable polymer lithium Battery |
