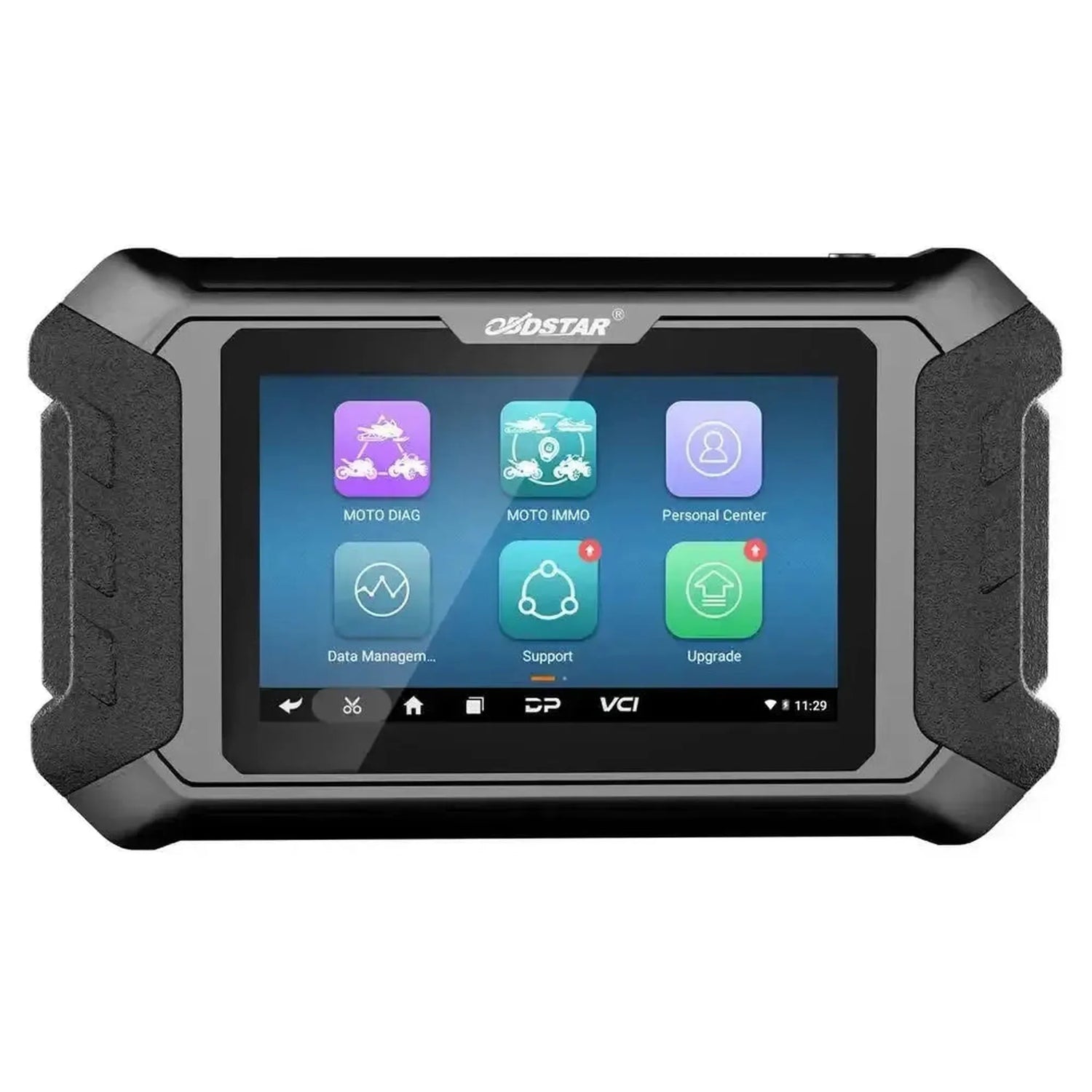

OBDSTAR IScan Vespa | Diagnostic Tool | Moped/Motorcycle

Diagnostic functions

The OBDSTAR Vespa offers complete diagnostic functions for the electronic systems of Piaggio vehicles. The following functions are available for reading and analysis.

• Read fault codes: Reading active and stored fault codes from the available control modules.
• Clear fault codes: Removing fault codes after completed repair.
• Live data streams: Real-time display of sensor and component values in text, waveform, or gauge chart.
• Actuator tests: Controlling components to check operation and locate defects.
• Settings and coding: Adjusting control module parameters and performing coding.
• Automatic VIN recognition: Automatic identification of the vehicle based on the VIN.
• Automatic scanning: Full system scan to map all present control modules and fault codes.
• Data recording and playback: Recording data streams during a drive for later analysis of intermittent faults.
• Troubleshooting guidance: Guided diagnosis with help data, technical bulletins, and information about diagnostic connectors.

Key and EEPROM functions

The OBDSTAR Vespa supports key programming for Vespa models.

• Program key: Creating and linking new keys to the vehicle's immobilizer system.

Service and maintenance functions

The diagnostic tool supports multiple service and maintenance functions. Available functions may vary by vehicle make, model, and year.

Engine and drivetrain

• Throttle body reset: Initializing the throttle body after cleaning or replacement.
• Throttle calibration: Calibrating the throttle position for correct steering signal value.
• Adjust idle speed: Adjusting the idle speed according to specification.
• CO adjustment: Adjusting the CO value for exhaust gas calibration.
• A/F value reset: Resetting the air-fuel ratio after maintenance or component replacement.
• Reset adaptation values: Clearing learned adaptation values in the engine control module.

Brake and stability systems

• Bleed ABS brake system: Bleeding the ABS brake system via control of the hydraulic block.
• ABS settings: Configuration and adjustment of the ABS control module.

Electrical and safety systems

• Tire pressure system: Configuration and reset of the tire pressure monitoring system (TPMS).
• Instrument coding: Coding the instrument panel after replacement or programming.

Other service and maintenance functions

• Maintenance indicator reset: Resetting the service interval after maintenance.
• EOL mode: End-of-line mode for final configuration and activation of control modules.
• Reset transmission memory: Clearing stored values in the transmission memory.
• Clear computer memory: Deleting stored data from the control module.

Special functions and capabilities

In addition to standard diagnostic and service functions, the device offers additional capabilities for advanced applications.

• ECU programming and coding: Programming and coding of control modules after replacement or software changes.
• Fault guidance: Guided diagnosis with help data, technical bulletins, and connector information of diagnostic plugs.
• Diversified data flow display: Visualization of data streams in text, waveform, or instrument chart.
• Remote assistance: Remote help by OBDSTAR technicians via one-click remote function.
• Wi-Fi software updates: Easy software upgrades via a wireless internet connection.

Supported vehicle brands

The diagnostic tool is specifically developed for brands within the Piaggio group.

• European: Vespa

Optional additions and expansions

Additional hardware modules are available for specific diagnostic applications.

Hardware modules and accessories

• Multifunction jumper (M003A): Jumper cable for various diagnostic connections.
• Vespa diagnostic cable (M047): Specific diagnostic cable for Vespa models.

License information

The OBDSTAR Vespa comes with a 1-year software license. During this period, software updates can be installed that add new vehicles, features, and improvements. After expiration, the diagnostic tool continues to work with the software installed at that time.

• License period: 1 year of software updates included.
• Software updates: Updates can add new vehicles and features.
• Extended functions: Some functions require an active license.
• After license expiration: The device continues to work with existing functions and installed software.

Package Contents

• 1x OBDSTAR Vespa diagnostic tool
• 1x 12V2A charger
• 1x Main cable (M001A)
• 1x Power cable (M002)
• 1x Vespa adapter (N004)
• 1x OBD adapter (N041)
