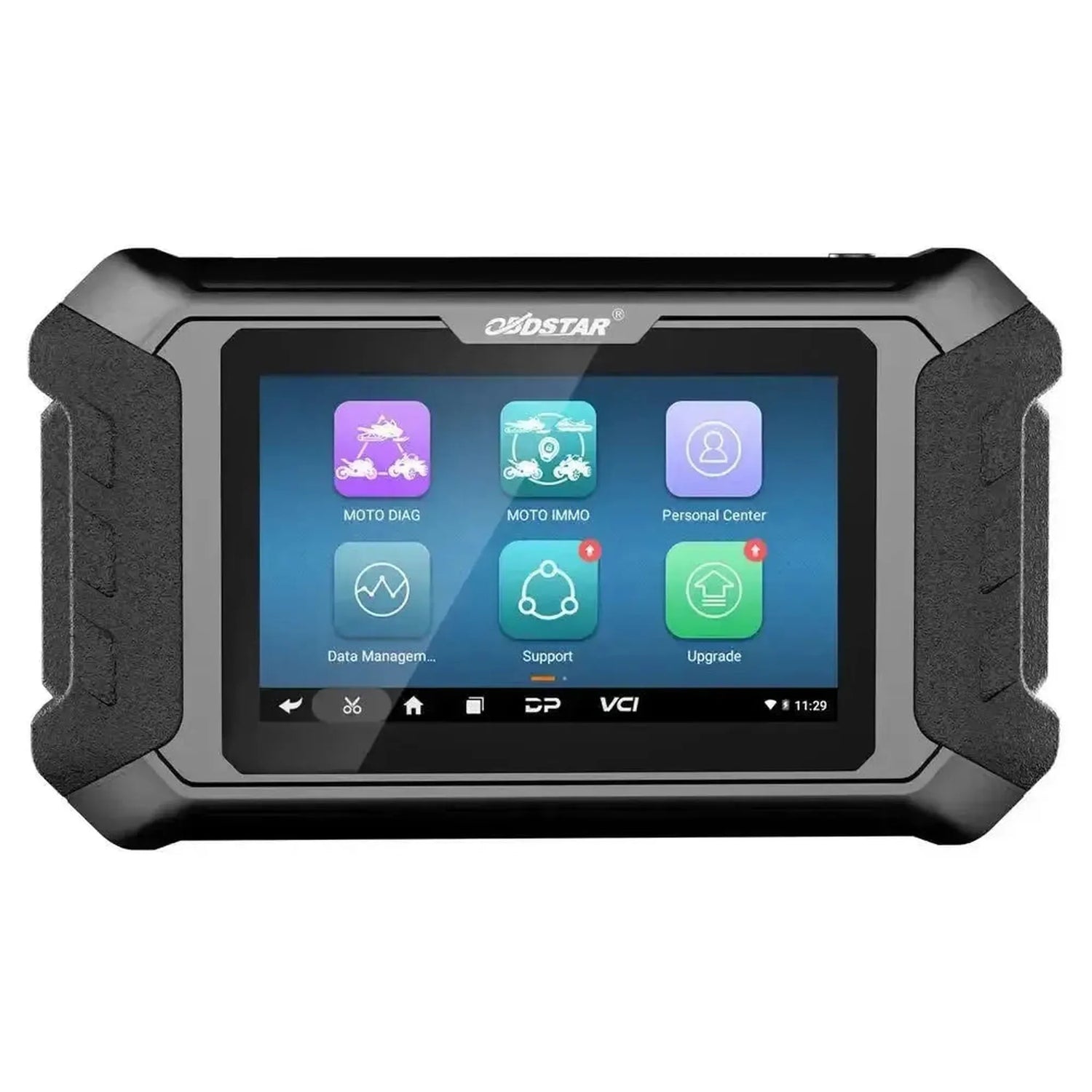

The OBDSTAR IScan CFMOTO is a reader device specifically developed for diagnosing and programming CFMOTO motorcycles. The device features a portable tablet design with a 5.0-inch capacitive touchscreen and a resolution of 800x480 pixels. The hardware is based on a RK3128 quad-core ARM Cortex A7 processor and runs on Android 5.1.1. The reader supports diagnostic functions such as reading and clearing fault codes, live datastream, actuator tests, and coding. The standard license duration is 1 year.
In addition to diagnostic functions, the device offers additional features such as key programming, ECU configuration, instrument coding, and adjustments to systems like TPMS, ABS, and transmission. The reader device has WiFi connectivity for one-click software updates and supports OBDSTAR remote assistance. To extend the working range, a multi-brand adapter cable (N004) can be used, enabling connection to multiple other motorcycle brands. Memory expansion via micro-SD up to 32 GB is also supported.
ADVANTAGES
IMPORTANT NOTES
Diagnostic functions
The IScan CFMOTO offers a range of diagnostic functions to analyze and assess systems of CFMOTO motorcycles. The availability of functions may vary by model and year.
- Read fault codes: Read stored fault codes from the motorcycle's control units.
- Clear fault codes: Remove fault codes after repair or inspection.
- Live datastream: Real-time display of sensor values and parameters for diagnosing operation and deviations.
- Record and playback datastream: Capturing live data to analyze intermittent faults and component failures afterward.
- Data visualization: Displaying data streams in various forms such as text, waveform, and instrument display.
- Actuator test: Activating components to check their operation.
- Coding: Adjusting parameters and settings in control units.
- Automatic VIN recognition: Identifying the vehicle based on the VIN number.
- Automatic scanning: Scanning all connected control units to display existing faults.
- Error guidance: Support via help data, technical bulletins, and connection information for targeted diagnosis.
Key and EEPROM functions
In addition to diagnostics, the device also supports key-related tasks on CFMOTO motorcycles.
- Key programming: Teaching and registering keys for CFMOTO models.
Service and maintenance functions
The IScan CFMOTO supports multiple service and maintenance functions. Available functions may vary by vehicle brand, model, and year.
Engine and drivetrain
- Oil service reset: Resetting the maintenance interval after an oil change.
- Throttle position learning: Teaching the basic position of the throttle after cleaning or replacement.
- Idle speed control reset: Resetting the idle speed for stable operation.
- Air-fuel ratio reset: Resetting the adaptive values for mixture control.
- CO value adjustment: Setting the CO value for proper emission control.
Brake and stability systems
- ABS Brake system bleeding: Bleeding the ABS system after maintenance on the brake hydraulics.
Special functions and capabilities
The diagnostic tool has additional functions that broaden its application in the workshop.
- ECU setting: Adjusting parameters in the engine control unit.
- Instrument coding: Coding the instrument panel after replacement or adjustment.
- Tire Pressure Monitoring System (TPMS): Functions for the tire pressure monitoring system.
- Maintenance light reset: Resetting the maintenance warning light.
- EOL mode: End-of-line procedures for completing work.
- Transmission memory reset: Clear learned values in the transmission control unit.
- Clear computer memory: Remove stored values from the control system.
- Remote assistance: Remote support by OBDSTAR technical staff with one press of a button.
- Simple software update: Software updates via WiFi with one click.
Supported vehicle brands
The diagnostic tool is standardly focused on one specific brand. With optional adapters, coverage can be further expanded.
- Chinese: CFMOTO
Optional additions and expansions
The device can be expanded with additional hardware to increase usability in the workshop.
Hardware modules and accessories
- Grounding cable (M002A): Cable for grounding the diagnostic tool during diagnosis and programming.
- Multifunction jumper cable (M003A): Jumper cable for various connections and measurements on vehicle systems.
- Multi-brand adapter cable (N004): Adapter for connection with motorcycles from Aprilia, Ducati, Honda, KTM, Piaggio, Vespa, and Yamaha.
License information
The IScan CFMOTO comes with a software license that provides access to updates. Updates can add new vehicle coverage and functions, while certain extended functions require an active license.
- License period: 1 year access to software updates.
- Software updates: Updates can add new vehicles and functions to the device.
- Extended functions: Some functions require an active license.
- After license expiration: The device usually continues to work with the functions and vehicle coverage installed at that time.
Package Contents
- 1x OBDSTAR IScan CFMOTO diagnostic tool
- 1x 12V2A charger
- 1x M001 main cable
Technical specifications
| Specification | Description |
|---|---|
| Brand | OBDSTAR |
| Model | IScan CFMOTO |
| Operating system | Android 5.1.1 |
| Processor | RK3128 quad-core ARM Cortex A7 |
| Battery | 2600 mAh rechargeable polymer lithium battery |
| Memory expansion | Supports micro-SD (TF) card up to 32 GB |
| Screen | 5.0-inch capacitive touchscreen |
| Screen resolution | 800 x 480 pixels |
| WiFi | Supported |
| Operating temperature | -10°C to 55°C |
| Storage temperature | -20°C to 70°C |
| Dimensions | 198 x 115 x 31 mm |
| Weight | Approximately 700 grams |
