OBDSTAR IScan Harley Davidson | Diagnostic Tool | Motorcycle

Diagnostic functions

The iScan Harley Davidson supports the standard diagnostic functions needed to analyze and resolve faults in the electronic systems of Harley-Davidson motorcycles.

• Read fault codes: Reading current and stored fault codes (DTCs) from the motorcycle's control modules.
• Clear fault codes: Removing fault codes from memory after repairs have been made.
• Live data: Real-time reading of sensor values and parameters in text, waveform, or gauge display.
• Actuator test: Activating actuators to check component operation.
• Settings and coding: Adjusting control module parameters and performing coding.
• Automatic scanning: Complete scan of all control modules present on the motorcycle.
• Automatic VIN recognition: Automatic identification of the vehicle based on the VIN number.
• Data stream recording and display: Recording live data during a test ride and reviewing it for analysis.
• Initial fault guidance: Assistance with fault diagnosis including additional help data and technical bulletins.

Key and EEPROM functions

The iScan Harley Davidson offers key programming functions for Harley-Davidson motorcycles, including reading PIN codes and learning replacement keys.

• Reading/changing PIN code: Reading and changing the PIN code required for key programming.
• Key learning/replacement: Learning new or replacement keys to the motorcycle's immobilizer system.

Service and maintenance functions

The diagnostic tool supports multiple service and maintenance functions. The availability of specific functions may vary by Harley-Davidson model and year.

Engine and drivetrain

• Idle speed adjustment: Adjusting the idle speed according to factory specifications.
• Adaptive fuel value reset: Resetting learned fuel correction values in the engine management system.
• A/F ratio reset: Resetting the air-fuel ratio for recalibration.
• CO adjustment: Adjusting the CO value for emission tuning.
• Throttle position sensor reset: Resetting and relearning the throttle position sensor (TPS).
• Vehicle speed sensor calibration: Calibrating the speed sensor for correct speed measurement.
• Transmission memory reset: Clearing learned shift values from the transmission memory.

Brake and stability systems

• ABS service procedure: Performing service procedures on the ABS system after maintenance or repair.
• ABS service date reset: Resetting the service interval for the ABS system.
• ABS control module settings: Adjusting configuration parameters of the ABS module.

Tire and wheel systems

• TPMS configuration: Setting and activating the tire pressure monitoring system.
• TPMS manual sensor assignment: Manually assigning TPMS sensors to the correct wheel positions.

Body and comfort systems

• Radio adjustment for aftermarket amplifier: Adjusting radio settings for use with an aftermarket amplifier.
• Service mode: Activating service mode for maintenance work.
• Maintenance light reset: Resetting the service/maintenance indicator light.

Electrical and safety systems

• Module replacement: Procedure for replacing and learning control modules.
• EOL mode: End-of-line mode for final factory testing and calibration of modules.
• Clear computer memory: Clearing the memory of control modules.

Special features and capabilities

In addition to the standard diagnostic and service functions, the iScan Harley Davidson has some additional features that support workshop work.

• One-click software update: Updating device software via wifi with one action.
• Remote assistance: Possibility of remote support by OBDSTAR technicians via internet connection.

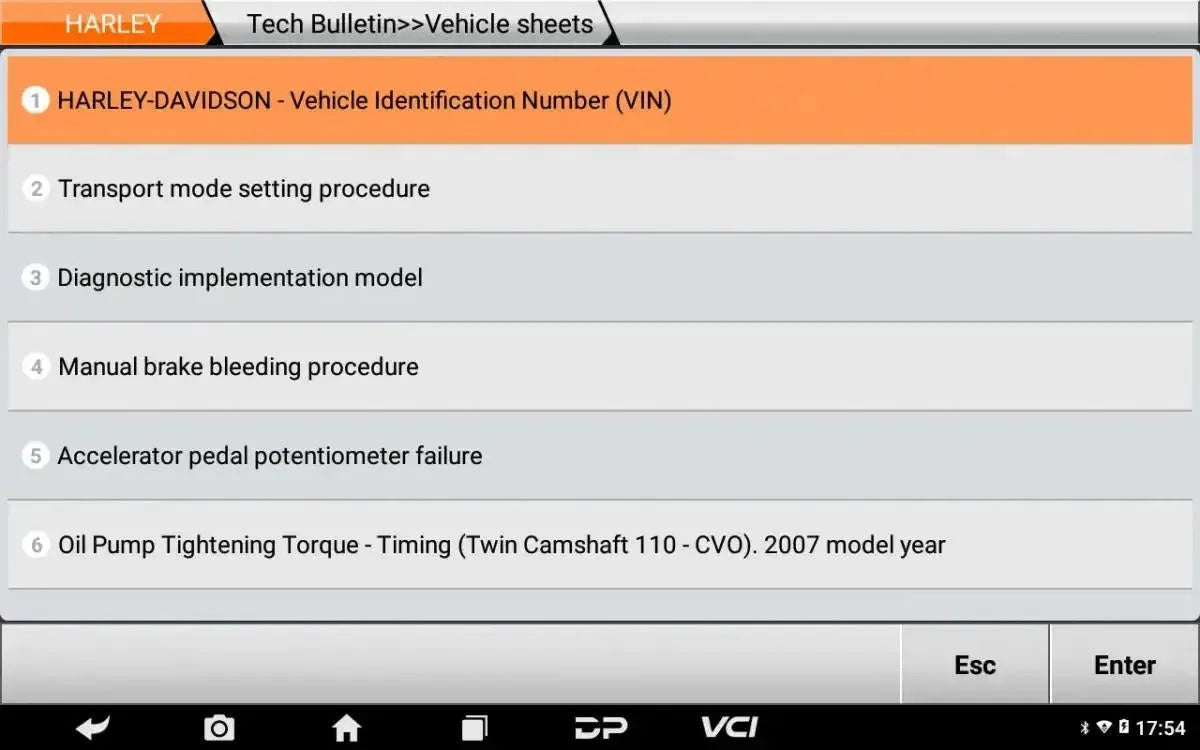

• Help data and technical bulletins: Access to additional technical information during diagnosis.

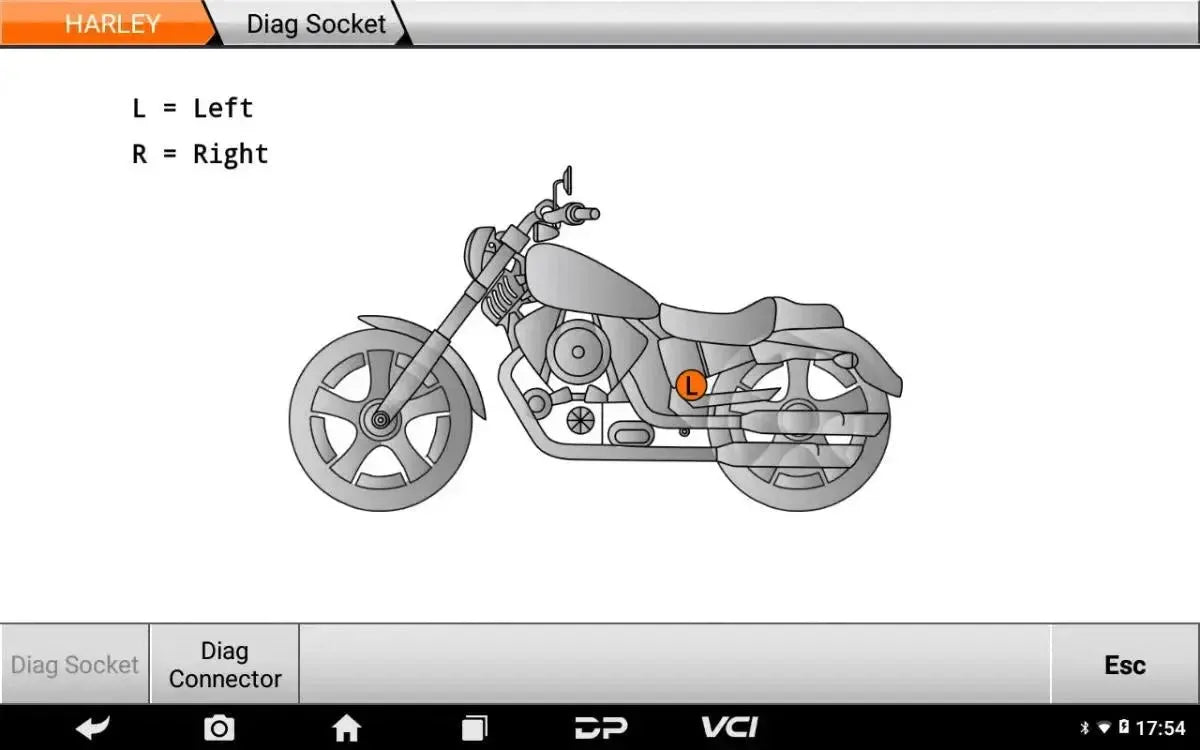

• Diagnostic connector overview: Display of diagnostic socket locations for supported models.
• Multiple data stream display: Display of live data in text, waveform chart, or instrument chart.

Supported vehicle brands

The iScan Harley Davidson is specifically developed for one vehicle brand within the motorcycle segment.

• American: Harley-Davidson

Optional additions and expansions

Optional hardware expansions are available for the iScan Harley Davidson for specific connections.

Hardware modules and accessories

• M002A grounding cable: Optional cable for making a grounding connection (GND) during diagnostic or programming work.
• M003A multifunction jumper cable: Jumper cable for making various connections between the Diagnostic Tool and the vehicle connector.

License information

The iScan Harley Davidson comes with a software license that provides access to Harley-Davidson diagnostic and key programming software. The license is tied to the device and determines the availability of software updates during the validity period.

• License period: The license is valid for 1 year from device activation.
• Software updates: During the license period, updates can be downloaded via Wi-Fi, including expansions for newer Harley-Davidson models, additional features, and bug fixes.
• Advanced functions: Features such as key programming, ECU coding, and module programming require an active license and the most current software version.
• After license expiration: The Diagnostic Tool will continue to work with the last installed software version, but new updates and expansions for newer models will no longer be available until the license is renewed.

Package Contents

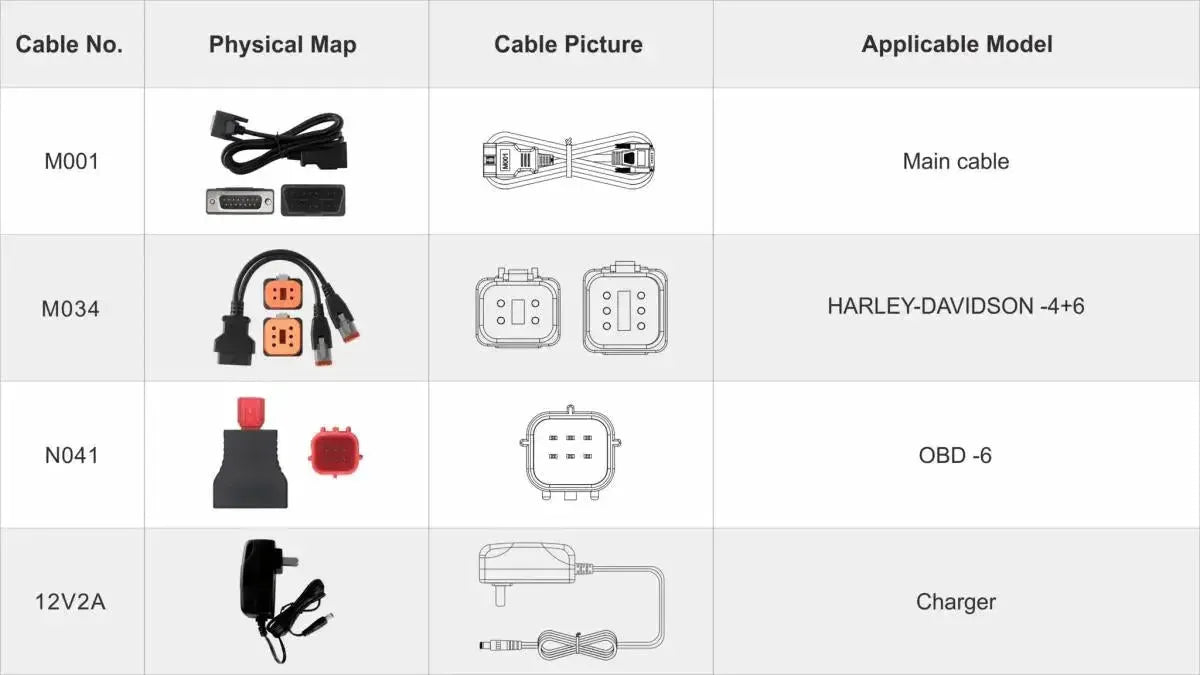

• 1x OBDSTAR iScan Harley Davidson Diagnostic Tool
• 1x 12V2A charger
• 1x M001 main cable
• 1x M034 Harley-Davidson diagnostic cable
• 1x N041 OBD adapter
