OBDSTAR IScan MV Agusta | Diagnostic Tool | Motorcycle

Diagnostic functions

The iScan MV Agusta offers full diagnostics on the electronic control modules of MV Agusta motorcycles. The functions below form the basis of daily fault diagnosis.

• Reading fault codes: Reading stored and current fault codes from all available control modules of the vehicle.
• Clearing fault codes: Removing fault codes after resolving the cause and turning off warning lights.
• Reading data streams: Real-time display of sensor and control module values in text, waveform, or instrument diagram.
• Data recording and playback: Recording real-time data and playing it back later for accurate localization of sensor and component faults.
• Actuator test: Activating components such as valves, relays, and actuators to check their operation.
• Settings and coding: Adjusting control module parameters and performing coding on components.

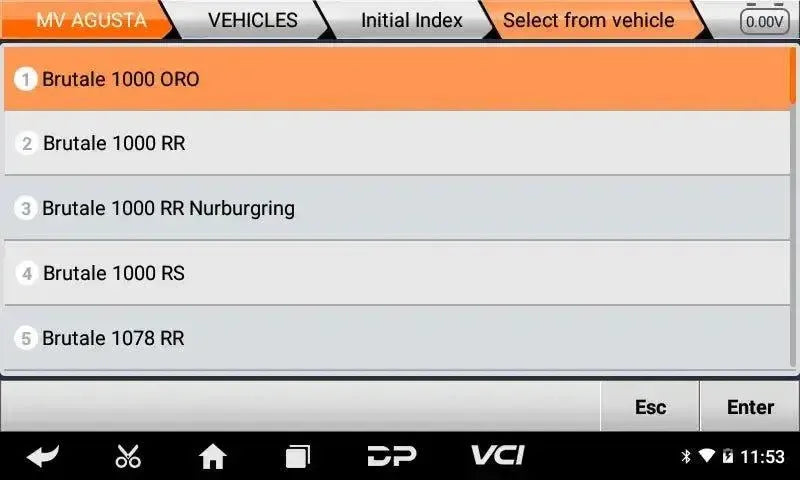

• Automatic VIN recognition: Automatic detection of the chassis number for quick vehicle identification.
• Control module programming: Programming and coding control modules on MV Agusta motorcycles.

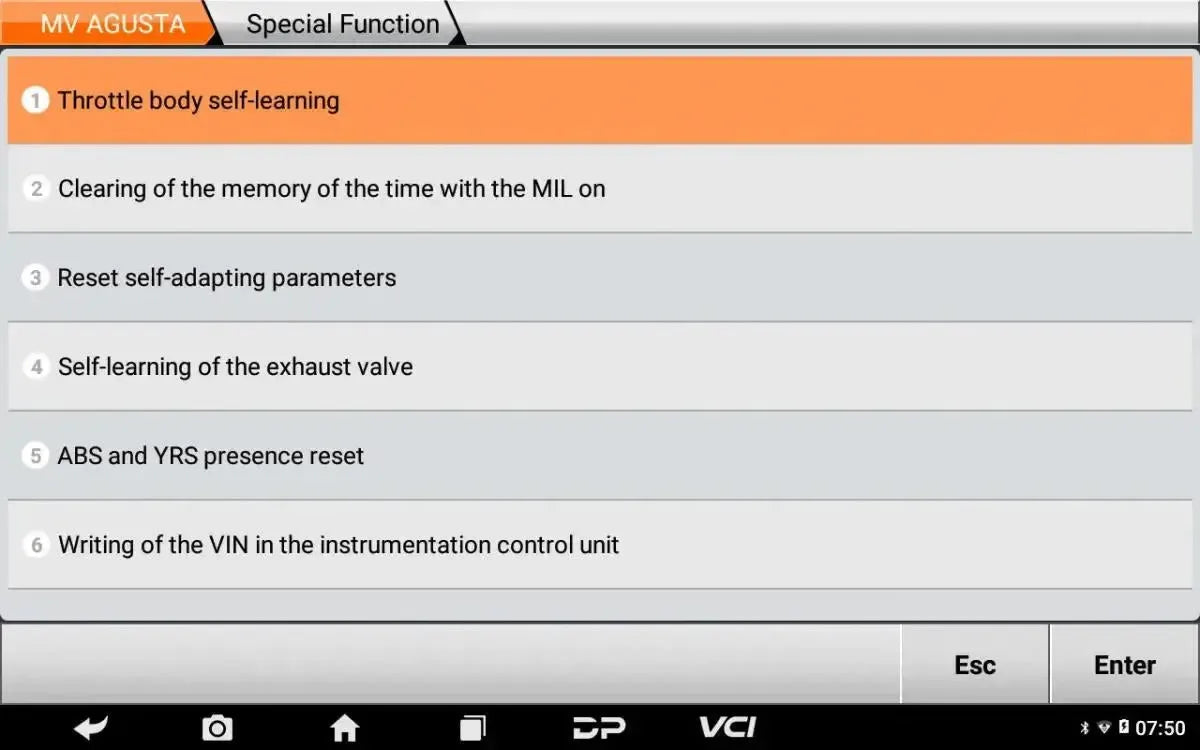

Service and maintenance functions

The iScan MV Agusta supports multiple service and maintenance functions required for regular and specialized maintenance. Available functions may vary by motorcycle model and year.

Engine and drivetrain

• Throttle body learning: Learning the throttle body after replacement or cleaning so the control module recognizes the correct positions.
• Throttle position sensor reset: Resetting the throttle position sensor for correct air intake control.
• Exhaust valve learning: Learning the exhaust valve for optimal operation of the exhaust control system.
• Resetting adaptation values: Clearing learned adjustments in the engine control module after maintenance or component replacement.
• Resetting the time with MIL on: Resetting the counter for the duration the malfunction indicator lamp (MIL) has been on.

Brake and stability systems

• Brake circuit bleeding and filling: Procedure for bleeding and refilling the brake system after maintenance.
• Reset traction control adaptation values: Clearing learned values in the traction control system after repair or calibration.
• Reset ABS and YRS presence: Resetting the detection of ABS and yaw rate sensor modules in the vehicle configuration.

Steering and chassis

• Inclination sensor initialization: Initializing the inclination sensor for correct operation of driver assistance systems.

Body and comfort systems

• Learn vehicle configuration: Adjusting the vehicle configuration in the control modules after changes to equipment or components.
• Write chassis number in dashboard module: Writing the chassis number (VIN) into the dashboard module after replacement.

Other service and maintenance functions

• Reset data buffer: Clearing the data buffer in the control module for a clean starting point after maintenance.

Special functions and capabilities

In addition to diagnostic and service functions, the iScan MV Agusta offers various additional features that support workshop work.

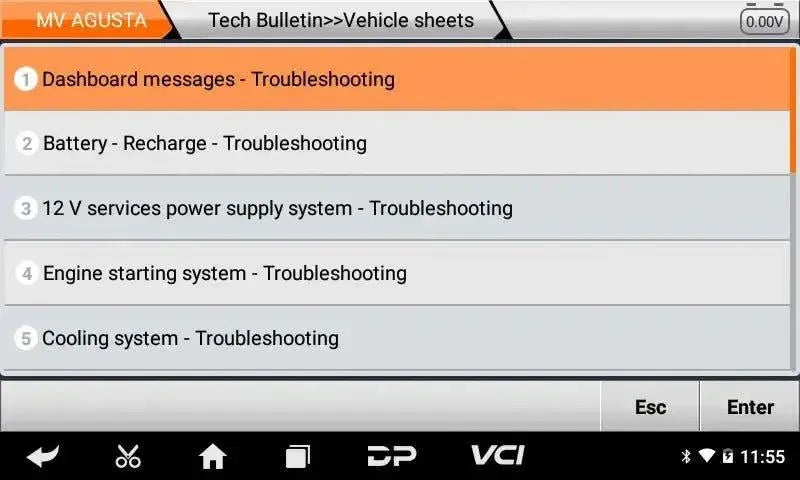

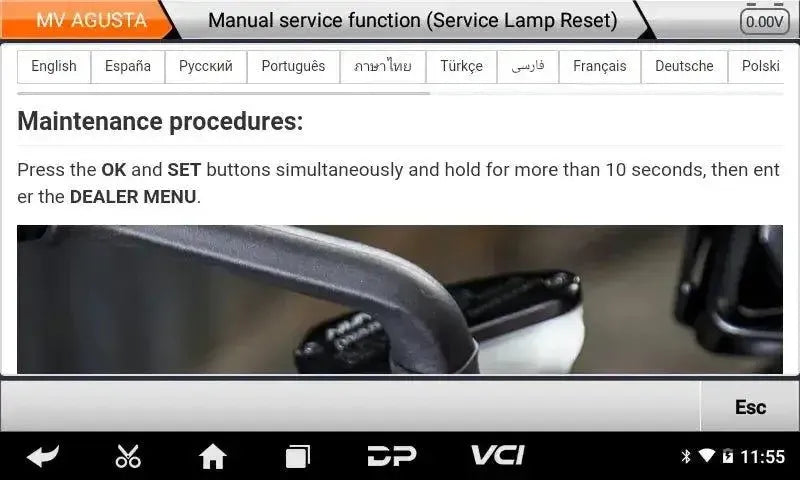

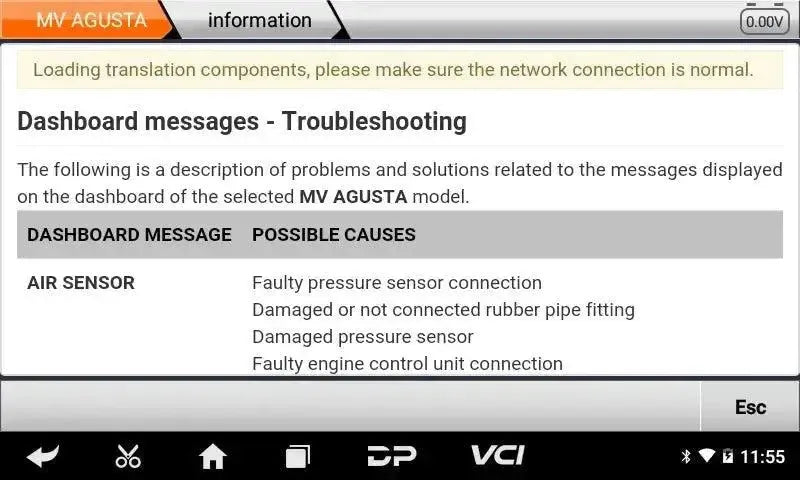

• First fault guidance: Help data, technical bulletins, and diagnostic hints for efficient fault analysis.
• Variety of data stream displays: Display of data in text, waveform, and instrument diagram for quick analysis of fault patterns.

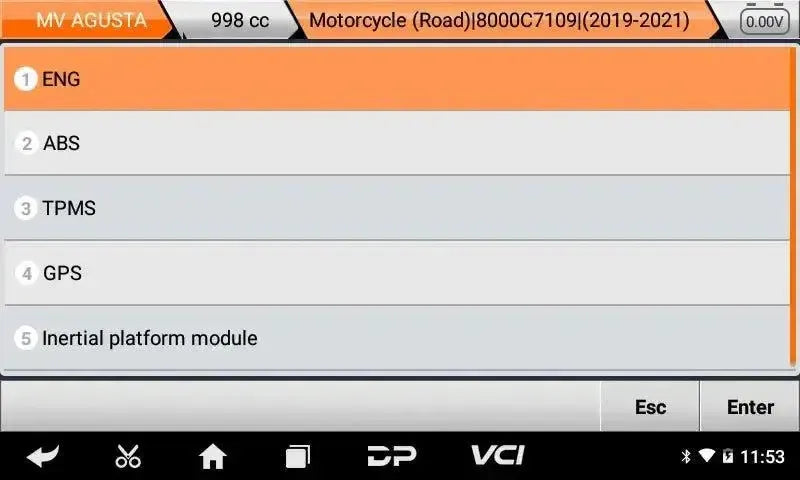

• Automatic scanning: Complete scan of all available control modules of the vehicle in one operation.
• One-click software update: Software update via WiFi connection with one press of a button.
• One-click remote support: Remote assistance by OBDSTAR technical staff.
• Expandable storage: Support for micro-SD cards up to 32 GB for storing log files and data.

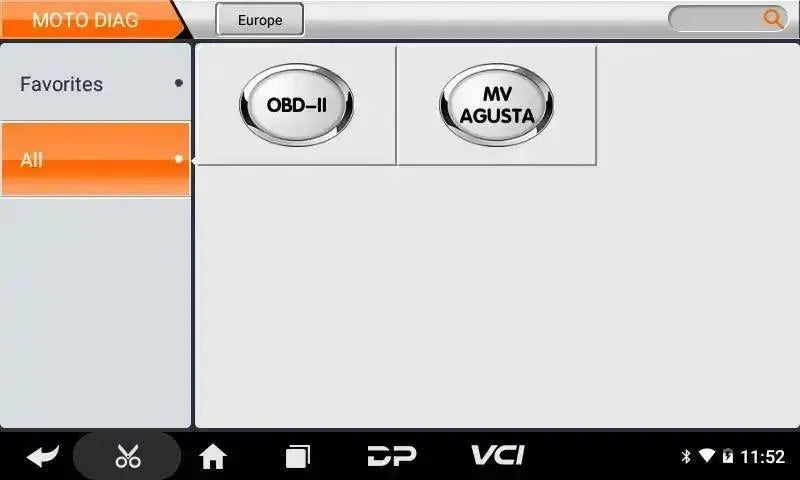

Supported vehicle brands

The iScan MV Agusta is a brand-specific diagnostic tool offering diagnosis for a single vehicle brand within the motorcycle sector.

• European: MV Agusta

Optional additions and expansions

The iScan MV Agusta can be supplemented with optional hardware modules for specific tasks beyond the standard diagnostic connection via the OBD port.

Hardware modules and accessories

• M002A Grounding Cable: Cable with battery clamps to establish a stable ground connection with the vehicle during diagnostic work.
• M003A Multifunction Jumper Cable: Cable for direct connections to ECU pins, intended for advanced diagnostics or programming on the workbench.

License information

The iScan MV Agusta comes with a software license that provides access to diagnostic and service functions for MV Agusta motorcycles. OBDSTAR periodically releases updates with expanded model coverage and features.

• License period: A 1-year license is included with purchase, allowing updates to be installed during this period.
• Software updates: Updates add support for newer MV Agusta model years, expand existing features, and include improvements and bug fixes.
• Extended features: An active license is required to download new software versions, access remote support, and expand model coverage.
• After license expiration: The device will continue to operate with the last installed software version, but new updates and expansions can only be installed after renewing the license.

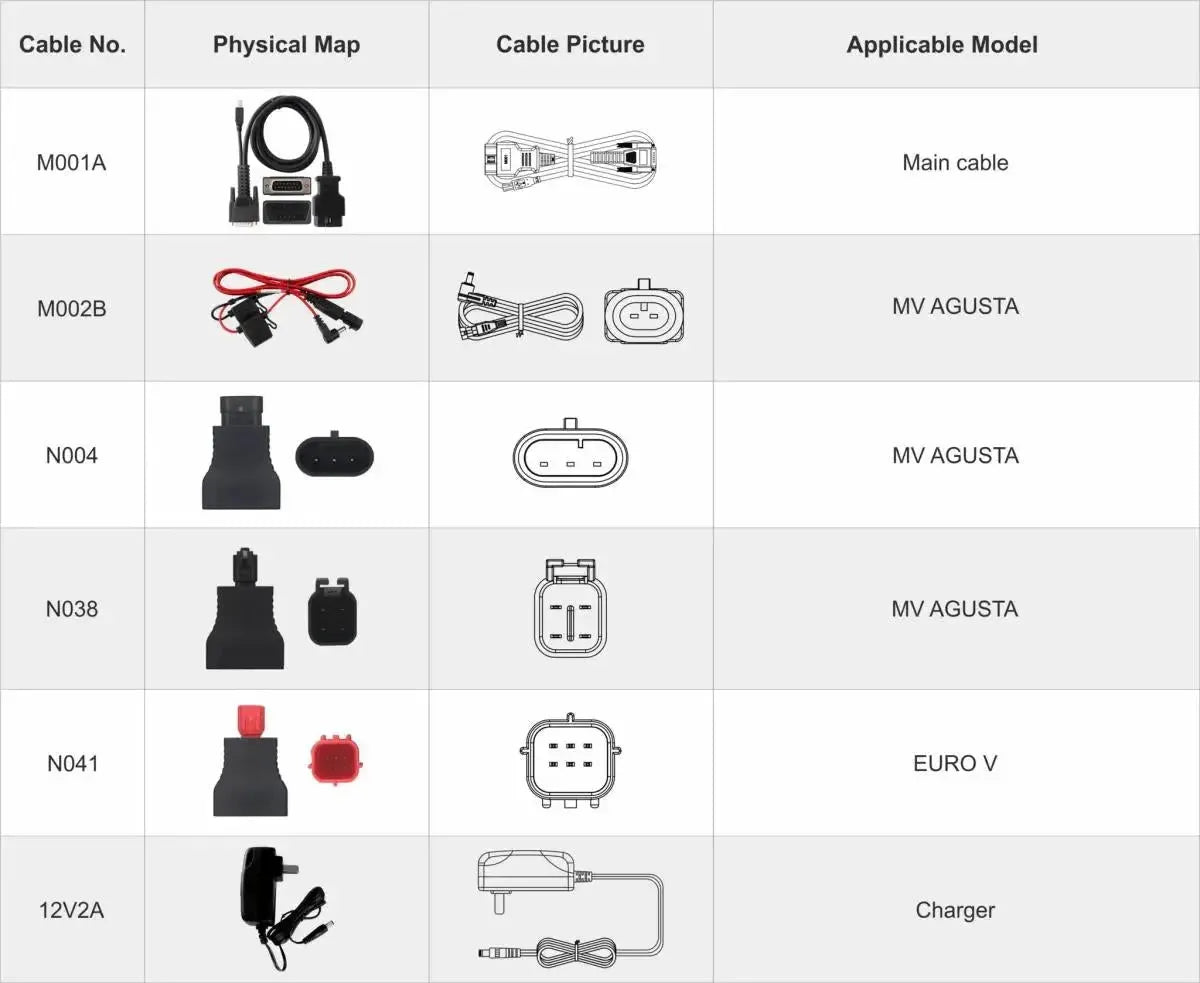

Package Contents

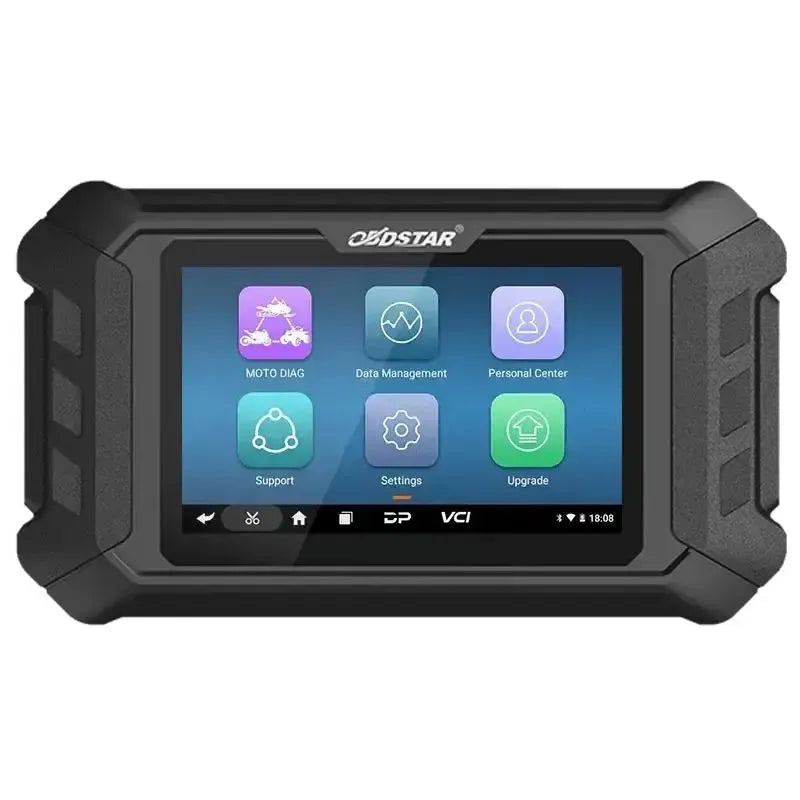

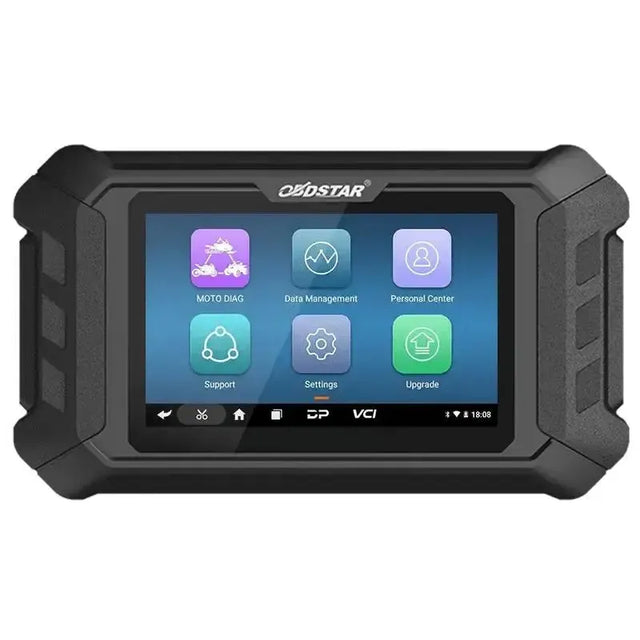

• 1x OBDSTAR iScan MV Agusta Diagnostic Tool
• 1x 12V2A charger
• 1x M001A main cable
• 1x M002B MV Agusta Adapter
• 1x N004 MV Agusta Adapter
• 1x N038 MV Agusta Adapter
• 1x N041 EURO V Adapter

Technical specifications
