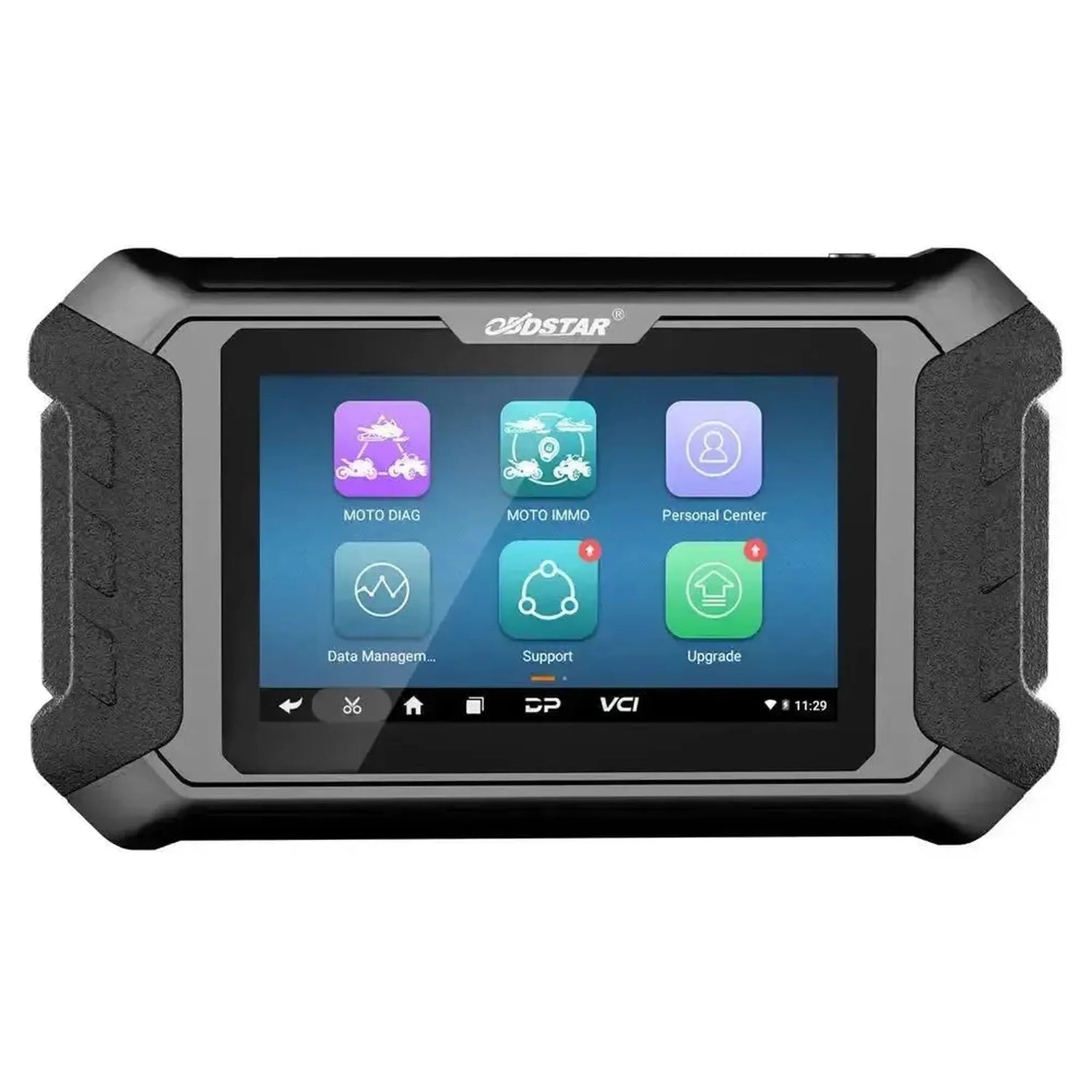

The OBDSTAR ISCAN Aprilia is a portable reader specifically developed for diagnostics and key programming on Aprilia motorcycles and mopeds. The device runs on Android 5.1.1 and is equipped with a RK3128 quad-core ARM Cortex A7 processor, a 5.0 inch capacitive touchscreen with 800x480 resolution, and a 2600 mAh lithium-polymer battery. Internal storage is expandable with a micro-SD card up to 32 GB. The standard license duration is 1 year and includes reading and clearing fault codes, datastream reading, actuator tests, settings, and coding.
Besides standard diagnostics, the device supports guided fault diagnosis, technical bulletins, and help data to locate faults more efficiently. Datastreams can be displayed as text, waveform, or gauge display. The device supports automatic VIN recognition, ECU coding, ECU settings, key programming, and service reset functions. Via WiFi, the device can connect to the internet for software updates and remote technical support from OBDSTAR can be enabled.
ADVANTAGES
IMPORTANT NOTES
Diagnostic functions
The ISCAN Aprilia offers full diagnostic functions for the electronic systems of Aprilia motorcycles and mopeds. Available functions may vary by model and year.
- Read fault codes: Read stored and current fault codes from the available control units.
- Clear fault codes: Remove fault codes after completed repair.
- Datastream reading: Real-time display of sensor values and parameters, shown as text, waveform, or gauge display.
- Actuator test: Controlling components such as injectors, valves, and relays to check operation.
- ECU settings: Adjusting parameters in the control unit.
- ECU coding: Coding control units after replacement or adjustment.
- Automatic VIN recognition: Automatic detection of the vehicle identification number for quick model selection.
- Automatic scanning: Complete system scan across all available control units.
- Guided fault diagnosis: Step-by-step guidance in locating faults using technical bulletins and help data.
- Record and playback data: Real-time recording of data streams for later analysis.
Key and EEPROM functions
The ISCAN Aprilia supports key programming for Aprilia vehicles. The optional P001 IMMO Kit is required for this function.
- Program key: Adding or replacing keys in combination with the vehicle's immobilizer.
Service and maintenance functions
The ISCAN Aprilia supports various service and maintenance functions. Available functions may vary by vehicle model and year.
Engine and drivetrain
- Service reset: Resetting the maintenance interval after a completed service.
- Idle speed control reset: Reinitializing the idle control parameters.
- Throttle body reset: Teaching the basic position of the throttle body after cleaning or replacement.
- Reset self-learning values: Clearing adaptive values in the engine control unit.
- CO value adjustment: Adjusting the CO value for exhaust gas regulation.
- Air-fuel ratio reset: Resetting the learned air-fuel ratio.
- ECU reset: Resetting the engine control unit to factory settings.
Transmission and drivetrain
- Reset transmission adaptation values: Clearing learned shift parameters of the transmission control unit.
Brake and stability systems
- Bleeding ABS Brake system: Guided procedure for bleeding the ABS Brake system.
Body and comfort systems
- Odometer correction: Adjusting the mileage on the instrument panel.
Special functions and features
In addition to diagnostics and service, the device offers some specific features for more efficient work in the workshop.
- Software update via WiFi: Updates can be installed directly on the device via a WiFi connection.
- Remote support: OBDSTAR technical staff can provide remote assistance via a built-in function.
- Record and playback data: Real-time data streams can be recorded and played back later for analysis.
- Various display modes: Display data streams as text, waveform, or instrument view.
Supported vehicle brands
The device is specifically developed for Aprilia. The supported brands are distributed as follows:
- European: Aprilia
Optional additions and expansions
The ISCAN Aprilia can be expanded with the hardware modules and accessories below for extra functionality and broader connection options.
Hardware modules and accessories
- M003A Multi-Functional Jumper: Universal jumper cable for various connections.
- M004 Diagnostic Cable: Diagnostic cable for Aprilia, Ducati, Honda, KTM, Piaggio, Vespa, and Yamaha.
- M048 Aprilia Diagnostic Cable: Specific diagnostic cable for Aprilia.
- P001 IMMO Kit: Kit for programming keys and immobilizer functions.
License information
The ISCAN Aprilia comes with a software license that provides access to updates and extended functions. After the license period expires, the device generally continues to operate with the already installed functions, but new updates are no longer available without renewal.
- License period: 1 year of software updates included.
- Software updates: Updates can add new vehicles and functions.
- Extended functions: Some functions require an active license.
- After license expiration: The device usually continues to work with existing functions.
Package Contents
- 1x OBDSTAR ISCAN Aprilia diagnostic tool
- 1x 12V2A charger
- 1x M001A main cable
- 1x M002 power cable
- 1x N004 Aprilia Adapter
- 1x N041 OBD Adapter
Technical specifications
| Specification | Description |
|---|---|
| Brand | OBDSTAR |
| Model | ISCAN Aprilia |
| Operating system | Android 5.1.1 |
| Processor | RK3128 quad-core ARM Cortex A7 |
| Battery | 2600 mAh rechargeable lithium-polymer battery |
| Memory expansion | Micro-SD card (TF) up to 32 GB |
| Screen | 5.0 inch capacitive touchscreen |
| Resolution | 800 x 480 |
| WiFi | Supported |
| Operating temperature | -10°C to 55°C |
| Storage temperature | -20°C to 70°C |
| Dimensions | 198 x 115 x 31 mm |
| Weight | Approximately 700 grams |
