OBDSTAR IScan Ducati | Diagnostic Tool | Motorcycle

Diagnostic functions

The iScan Ducati offers full diagnostic functions for Ducati motorcycles, focused on reading, analyzing, and resolving faults in all electronic control modules.

• Read fault codes: Read active and stored fault codes in all control modules of the vehicle.
• Clear fault codes: Remove stored fault codes after repairs have been performed.
• Live data streams: Real-time display of sensor and component values in text, waveform, or gauge chart.
• Record and playback data streams: Saving and reviewing data streams for analysis of intermittent faults.
• Actuation tests: Controlling actuators and components to check operation.
• Automatic scanning: Complete scan of all present control modules in one procedure.
• Automatic VIN recognition: Automatic vehicle identification based on the VIN.
• Read ECU information: Displaying module identification, software version, and hardware data.

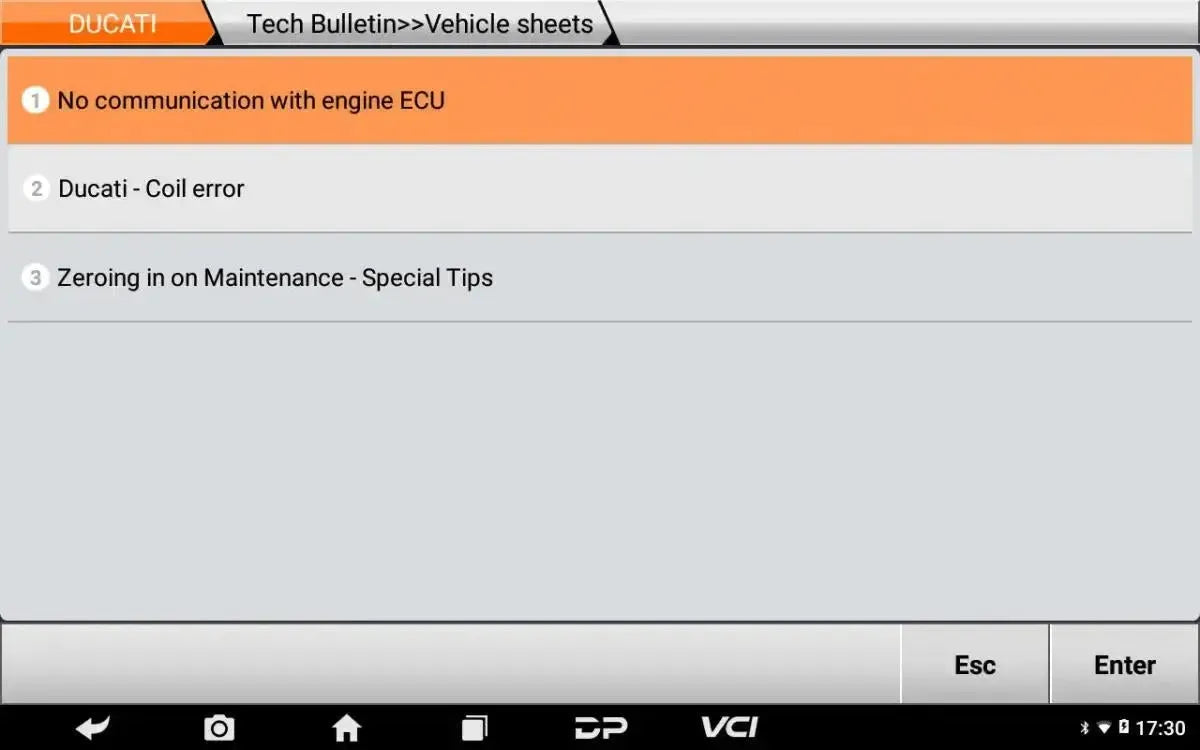

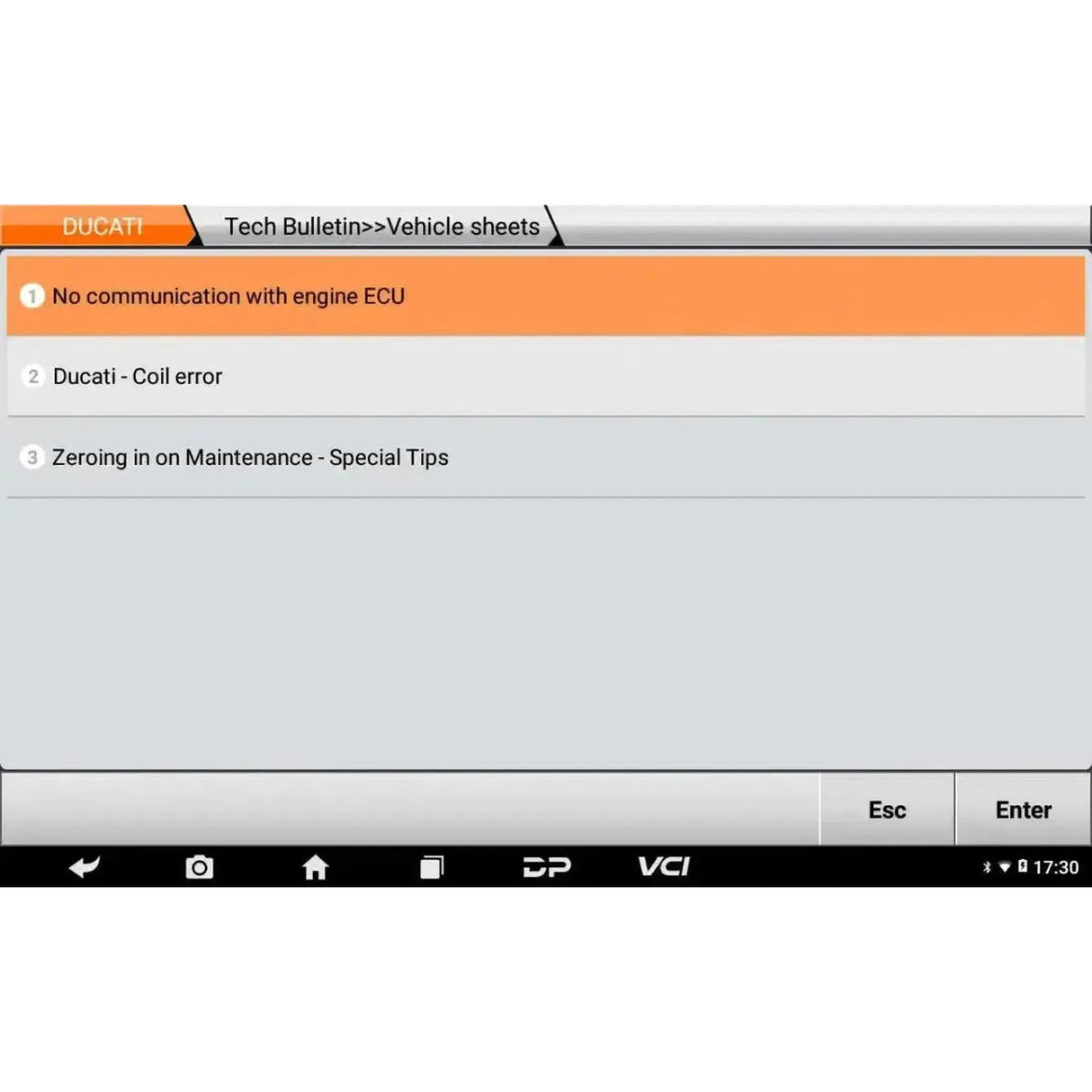

• Error guidance and help data: Technical bulletins and diagnostic tips for targeted troubleshooting.

Key and EEPROM functions

The iScan Ducati supports key programming and related immobilizer functions for Ducati motorcycles. The optional P001 IMMO Kit is required for these functions.

• Key programming: Programming new or replacement keys to the vehicle.
• Key reset (all keys lost): Complete reset of the key system when all keys are lost.
• Reset PIN code: Resetting the PIN code within the immobilizer system.
• Unlock immobilizer: Unlocking the immobilizer system in case of faults or after component replacement.
• Enable/disable theft protection: Activating or deactivating the theft protection feature.

Service and maintenance functions

The iScan Ducati supports a comprehensive range of service and maintenance functions for Ducati motorcycles. Available functions may vary by model and year.

Engine and drivetrain

• Oil service reset: Resetting the oil maintenance interval after service performed.
• Desmo service reset: Resetting the Desmo valve maintenance interval.
• Annual service reset: Resetting the annual maintenance interval.
• Valve clearance service reset: Resetting the service interval for valve clearance check.
• Reset mapping: Restoring the engine calibration maps.
• CO adjustment: Adjusting the CO value for emission control.
• Reset adaptive CO parameters: Resetting adaptive CO values in the engine control.
• Reset adaptive air-fuel ratio values: Resetting adaptive A/F values in the engine management.
• Mass air flow (MAF) adjustment in the cylinders: Calibrating air mass measurements per cylinder.
• Cylinder MAP vacuum adjustment: Adjusting the MAP sensor per cylinder.
• Reset adaptive barometric pressure values: Resetting adaptive barometric pressure values.
• Reset adaptive knock sensor values: Resetting adaptive knock control values.
• Reset adaptive idle control values: Resetting adaptive values for idle speed.
• Idle engine mode: Activating idle engine mode for adjustment.
• Reset self-adaptive parameters: Resetting general self-adaptive engine parameters.
• Reset power request parameters: Resetting power request parameters.
• Reset torque request for safety: Resetting safety-related torque request parameters.
• Engine control module power reset: Power reset of the engine control module.
• Synchronize throttles: Synchronizing the throttles between cylinders.
• Idle throttle adjustment: Adjusting the throttle in idle position.
• Throttle position reset after balancing: Resetting the throttle position after balancing procedure.
• Reset throttle position sensor closed position: Resetting the closed position of the throttle position sensor.
• Reset adaptive values of throttle in closed position: Resetting adaptive values in closed throttle position.
• Reset adaptive throttle position sensor values: Resetting the adaptive values of the TPS.
• Throttle reset: Reset of the throttle position.
• Reset accelerator pedal position sensor closed position: Resetting the closed position of the throttle/pedal sensor.
• Exhaust valve system maintenance: Maintenance procedure for the exhaust valve system.
• Exhaust valve calibration: Calibrating the electronic exhaust valve.
• Bypass valve calibration: Calibrating the bypass valve.
• Reset fuel level value: Resetting the fuel level reading.

Transmission and drivetrain

• Reset gear indicators: Resetting the gear indication and associated parameters.
• Enable/disable Ducati Quick Shift (DQS): Activating or deactivating the Ducati Quick Shift system.
• Reset adaptive Ducati Quick Shift (DQS) values: Resetting the adaptive DQS values.
• Enable/disable up/down buttons: Activating or deactivating the shift buttons on the steering wheel.
• Reset adaptive transmission values: Resetting the adaptive values of the transmission.

Brake and stability systems

• Enable/disable ABS: Activating or deactivating the ABS system.
• Enable ABS control module: Enabling the ABS control module.
• ABS variable coding: Coding of variable parameters in the ABS module.
• ABS setting in EOL mode: ABS configuration in end-of-line mode.
• Variant reset in ABS: Resetting variant data in the ABS system.
• ABS recovery for IMU test: Restoring the ABS status for IMU testing.
• Activate pump and ABS valves for secondary circuit recirculation: Activating the ABS pump and valves for venting the secondary brake circuit.
• Vehicle hold control on/off: Activating or deactivating the vehicle hold function.
• Rolling reset: Resetting the rolling vehicle status.
• RTS on/off: Activating or deactivating the RTS system.
• ABP on/off: Activating or deactivating ABP.
• DBL on/off: Activating or deactivating DBL.

Steering and chassis

• Electronic suspension activation: Activating the electronic suspension system.
• Rotational sensor rear suspension calibration: Calibrating the rotational sensor of the rear suspension.
• Linear sensor front suspension calibration: Calibrating the linear sensor of the front suspension.
• Accelerometer X-axis reset and set: Resetting and setting the X-axis of the accelerometer.
• Accelerometer Y-axis reset and set: Resetting and setting the Y-axis of the accelerometer.
• Accelerometer Z-axis reset and set: Resetting and setting the Z-axis of the accelerometer.
• Radar alignment: Aligning the radar sensor.
• Register tire pressure sensors (TPMS): Teaching TPMS sensors to the vehicle.
• Tire pressure sensors (TPMS) on/off: Activating or deactivating the TPMS system.

Body and comfort systems

• Handlebar heating on/off: Activating or deactivating the handlebar heating.
• Seat heating on/off: Activating or deactivating the seat heating.
• Daytime running lights (DRL) on/off: Activating or deactivating the daytime running light system.
• Fog lights on/off: Activating or deactivating the fog lights.
• Cruise control on/off: Activating or deactivating the cruise control.
• Alarm on/off: Activating or deactivating the alarm system.
• Navigation system on/off: Activating or deactivating the navigation system.
• Bluetooth on/off: Activating or deactivating the Bluetooth connection.
• Smartphone compartment fan on/off: Activating or deactivating the fan in the smartphone compartment.
• Connectivity module (CCU) on/off: Activating or deactivating the connectivity module.
• Set date in dashboard: Setting the date in the instrument panel.
• Set time in dashboard: Setting the time in the instrument panel.
• Set graphical model variant in dashboard: Setting the graphical model variant in the dashboard.

Safety systems

• Enable/disable D-Air: Activating or deactivating the D-Air airbag system.
• D-Air hard reset: Full reset of the D-Air system.
• Enable/disable DES: Activating or deactivating DES.

Coding and configuration

• Write Vehicle Identification Number (VIN): Writing the VIN in the control modules.
• Write odometer reading: Writing a new odometer reading when replacing the dashboard.
• Write serial number: Writing the serial number in a control module.
• Write variant data: Writing variant-specific data.
• Write MID code: Writing the MID code.
• Set model: Setting the model type in the control module.
• Optional configuration: Configuring optional equipment parameters.
• BBS optional factory configuration: Setting the optional factory configuration of BBS.
• T-module configuration: Configuring the T-module.
• GPS configuration: Configuring the GPS system.
• End-of-line (EOL) mode: Activating the end-of-line configuration mode.
• Restore CAN line: Restoring CAN bus communication.
• Enable/disable XCP: Activating or deactivating the XCP protocol.
• Enable/disable CCP: Activating or deactivating the CCP protocol.
• Enable/disable Hypermotard model: Activating or deactivating the Hypermotard model configuration.

Other service and maintenance functions

• Reset battery voltage history: Clearing the history of battery voltage measurements.
• Reset last 45 seconds history: Clearing the history of the last 45 seconds for the engine.

Special functions and features

In addition to standard diagnostics, the iScan Ducati offers several specific functions for Ducati motorcycles.

• Odometer correction via OBD: Adjusting the odometer on Ducati motorcycles via the OBD port.
• Module programming and coding: Programming and coding control modules.
• ECU setting: Adjusting ECU parameters.
• Instrument coding: Coding the instrument panel after replacement.
• Diagnostic data in multiple views: Display of data streams as text, waveform, or instrument diagram.
• Error guidance and technical bulletins: Step-by-step help and background information during diagnosis.
• Remote assistance: Remote support by OBDSTAR technical staff via the internet.
• One-click software update: Update software via Wi-Fi with one press of a button.

Supported vehicle brands

The iScan Ducati is specifically developed for one motorcycle brand and offers in-depth coverage for it.

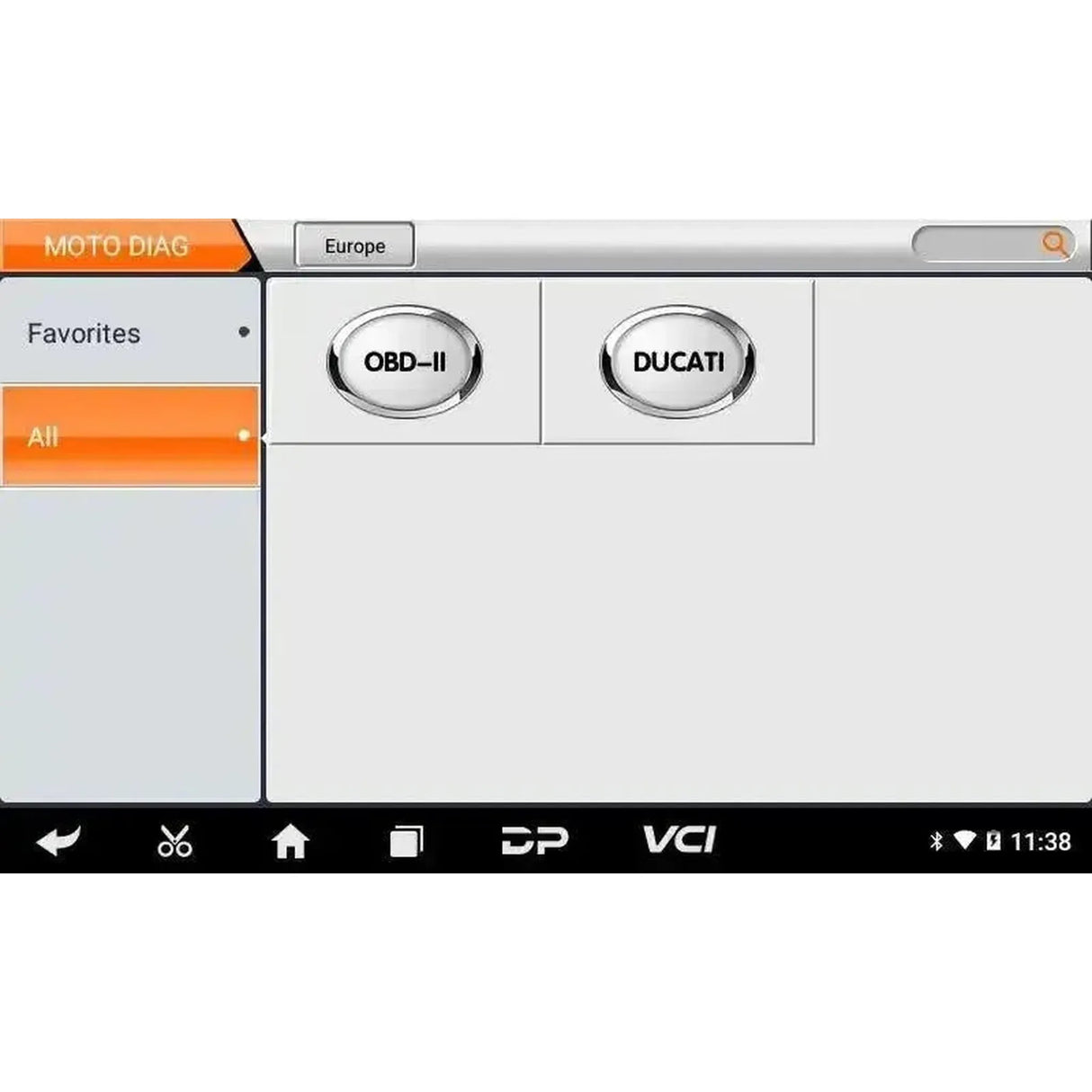

• European: Ducati

Optional additions and expansions

The iScan Ducati can be expanded with optional hardware for key programming and additional diagnostic connections.

Hardware modules and accessories

• P001 IMMO Kit: Kit for key programming and immobilizer functions on Ducati motorcycles.
• M003A Multi-Function Jumper: Jumper cable for establishing specific diagnostic connections.
• N041 OBD Adapter: Adapter for the On-Board Diagnostics (OBD) port.

License information

The iScan Ducati comes with a software license focused on Ducati models. Updates and additional features are tied to an active license period.

• License period: Upon purchase, the license is valid for 1 year for software updates and expansions.
• Software updates: Updates add support for new Ducati models, new service functions, and bug fixes for existing diagnostic procedures.
• Extended functions: New key programming routines, additional ECU codings, and expansions of the Ducati model overview require an active license.
• After license expiration: The device continues to operate with the last installed software version; new updates and model expansions require license renewal.

Package Contents

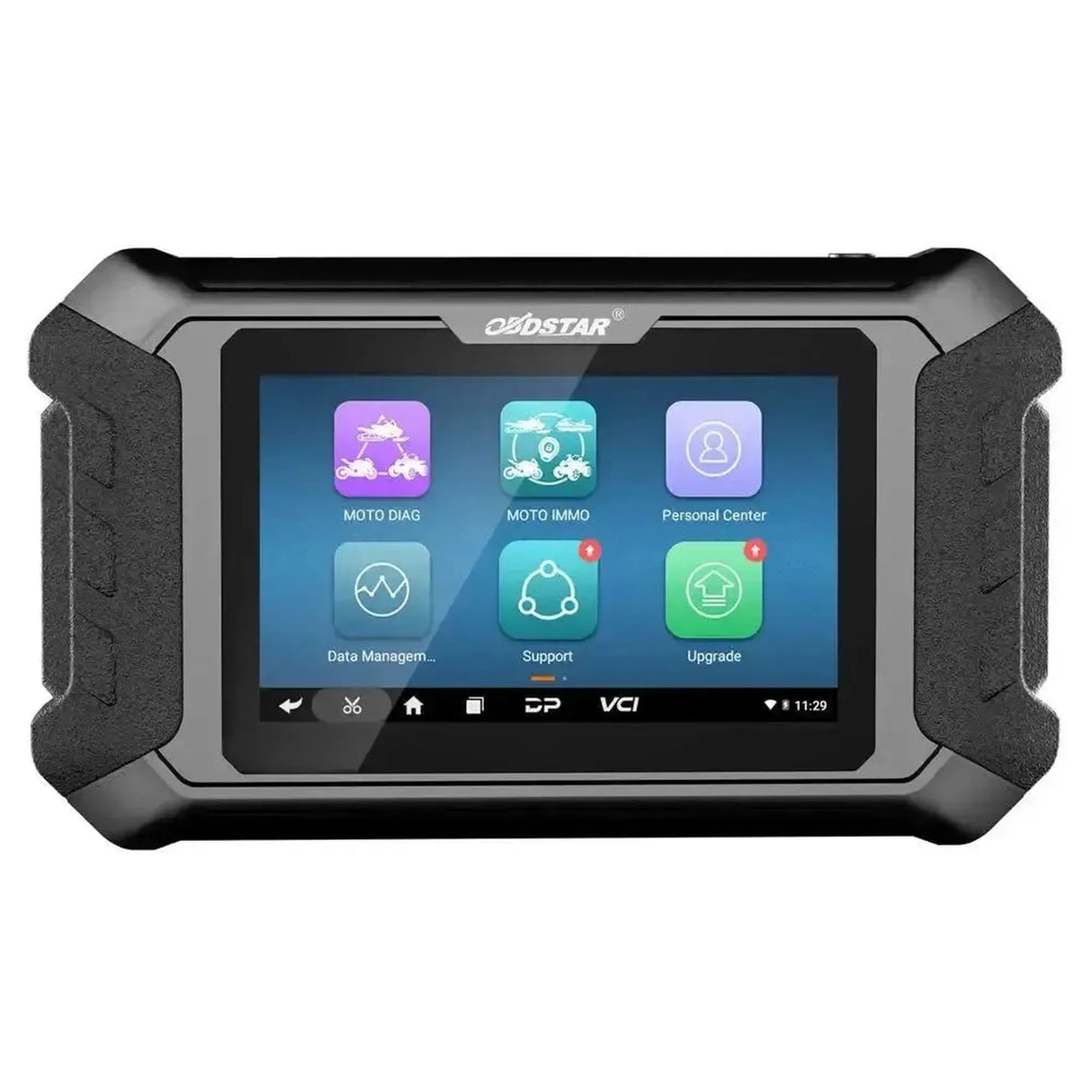

• 1x OBDSTAR iScan Ducati Diagnostic Tool
