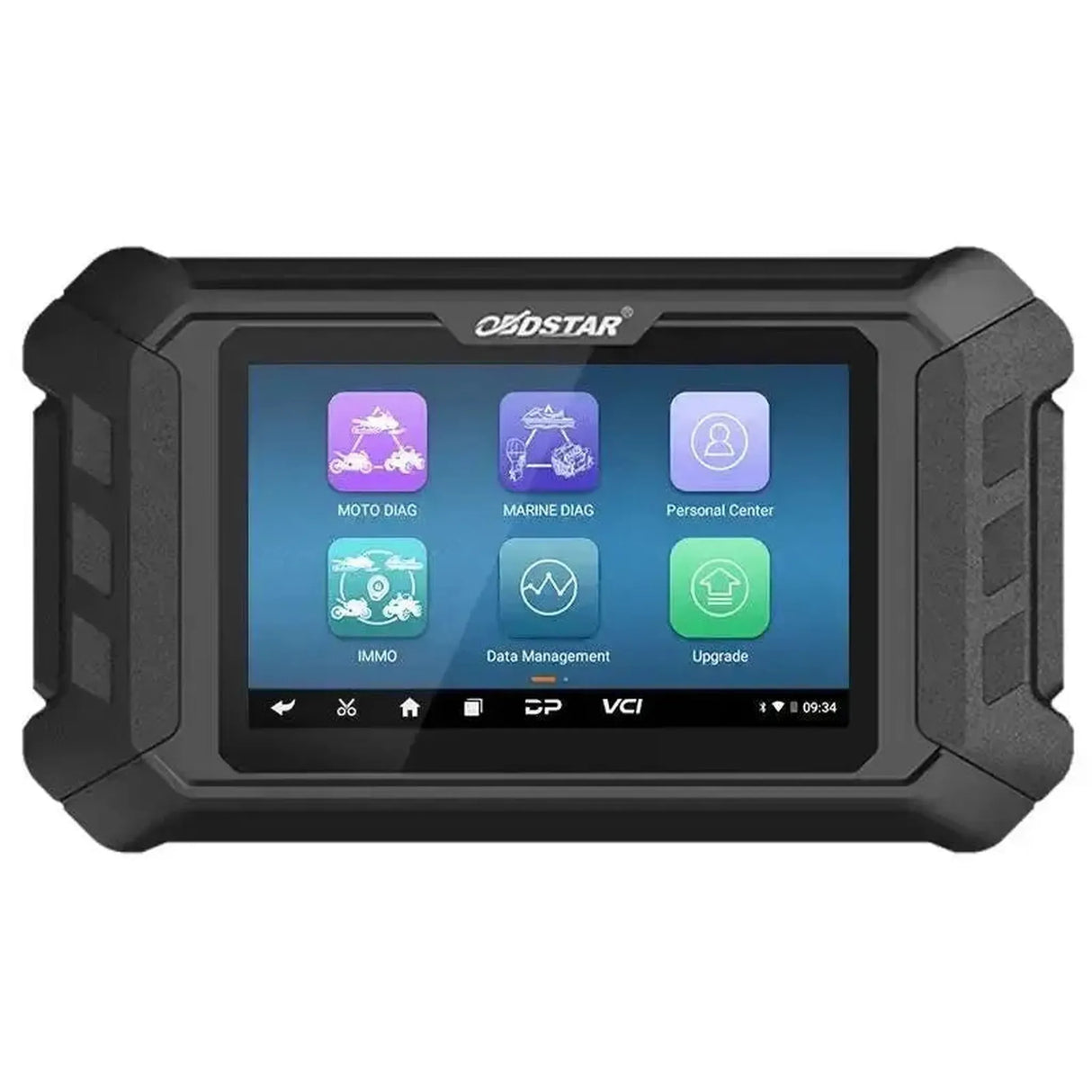

OBDSTAR IScan BRP | Diagnostic Tool | Motorcycle/Motorboat

Diagnostic functions

The OBDSTAR IScan BRP offers full diagnostic functionality for the electronic systems of BRP vehicles. The functions focus on detecting, analyzing, and resolving faults in engine management, instrumentation, and vehicle electronics.

• Read codes: Reading stored and active fault codes from connected control modules.
• Clear codes: Removing fault codes after repairs.
• Live data streams: Real-time display of sensor and parameter values during operation.
• Actuator test: Controlling components such as relays, valves, and sensors for functional checks.
• Adjustments (setting): Changing configuration parameters in control modules.
• Coding: Programming and coding control modules after replacement or repair.
• Automatic VIN recognition: Automatic identification of the vehicle via the chassis number.
• Automatic scan: Quick system scan of all available control modules.
• First fault guidance: Access to help data, technical bulletins, and wiring diagrams to support diagnosis.
• Data stream display modes: Visualization of data streams as text, waveform, or instrument chart.
• Record and playback: Capturing and playing back live data for later analysis.

Key and EEPROM functions

The OBDSTAR IScan BRP supports key programming for BRP vehicles. These functions allow learning new keys and adjusting existing key configurations.

• Key configuration: Setting key parameters for BRP vehicles.
• Instrument panel security coding: Coding security features in the instrument panel for key coupling.
• Clear full history: Deleting stored historical data in control modules.

Service and maintenance functions

The diagnostic tool supports multiple service and maintenance functions for BRP vehicles. The availability of functions may vary by vehicle brand, model, and year.

Engine and drivetrain

• Service reset: Resetting the maintenance interval after completed service.
• Oil compensation: Adjusting lubrication in two-stroke engines with a separate oil pump.
• ECM first initialization: Initializing the engine control module after replacement or programming.
• Break-in procedure restart: Restarting the break-in procedure after engine overhaul.
• Correction factor setting: Adjusting correction factors in engine management.
• Ignition and injection timing adjustment: Adjusting ignition and injection timing.
• RAVE valve setting: Configuring the exhaust valve on two-stroke engines.
• Throttle position sensor reset: Resetting and calibrating the throttle position sensor.
• Supercharger maintenance reset: Resetting the supercharger maintenance indicator.
• Engine speed calibration: Calibrating the engine speed.

Transmission and drive

• Transmission reset: Resetting transmission parameters after maintenance or replacement.
• Speed sensor ratio setting: Configuring the gear ratio for the speed sensor.
• Torque offset reset: Resetting torque offset values.
• Torque adjustment: Adjusting torque parameters in the control module.

Brake and stability systems

• Brake pressure adaptation: Adjusting brake pressure parameters in the brake system.
• Brake system bleeding: Assistance with bleeding the hydraulic brake system.
• Hydraulic Brake booster activation: Activating the hydraulic Brake booster after service.
• Intelligent Brake and Reverse (iBR) configuration: Setting up the iBR system on Sea-Doo watercraft.
• Intelligent Brake and Reverse (iBR) pairing: Pairing iBR components after replacement.
• Intelligent Brake and Reverse (iBR) monitor pairing: Pairing the iBR monitor to the system.

Steering and suspension

• Dynamic power steering pairing: Pairing the dynamic power steering after replacement.
• Intelligent suspension (iS) lock and unlock: Locking and unlocking the intelligent suspension.

Body and comfort systems

• Handlebar heating compensation: Compensation setting for heated handlebars.
• Speed calibration: Calibration of the speed display.
• Adjust instrument panel pointer position: Adjusting the pointer positions on the instrument panel.
• Instrument panel linking: Linking the instrument panel after replacement.
• Ballast coding: Coding ballast modules in the vehicle.
• Link WSM module: Linking the WSM module to the vehicle system.
• Roller bench mode: Activating roller bench mode for testing purposes.

Vehicle identification and registration

• Set Vehicle Identification Number (VIN): Programming the VIN in control modules.
• Set customer name: Recording the customer name in the vehicle system.
• Set engine number: Programming the engine number.
• Set vehicle model number: Recording the model number in the control module.
• Set delivery date: Registering the delivery date in the vehicle.
• Set total operating hours: Configuring the total operating hour meter.

Trip and operating hours functions

• Partial operating hours reset: Resetting the partial operating hour meter.
• Partial distance reset: Resetting the partial distance meter.
• Trip hours reset: Resetting the trip hour meter.
• Trip distance reset: Resetting the trip distance meter.

Special functions and features

In addition to diagnostic and service functions, the IScan BRP offers additional capabilities for extensive vehicle operations and user support.

• Module programming and coding: Programming and coding control modules in BRP vehicles.
• ECU setting: Adjusting parameters in the electronic control unit.
• Instrument coding: Coding the instrument panel after replacement.
• One-click remote function: Access remote support from OBDSTAR technicians via Wi-Fi.
• One-click software upgrade: Update the software via Wi-Fi connection.

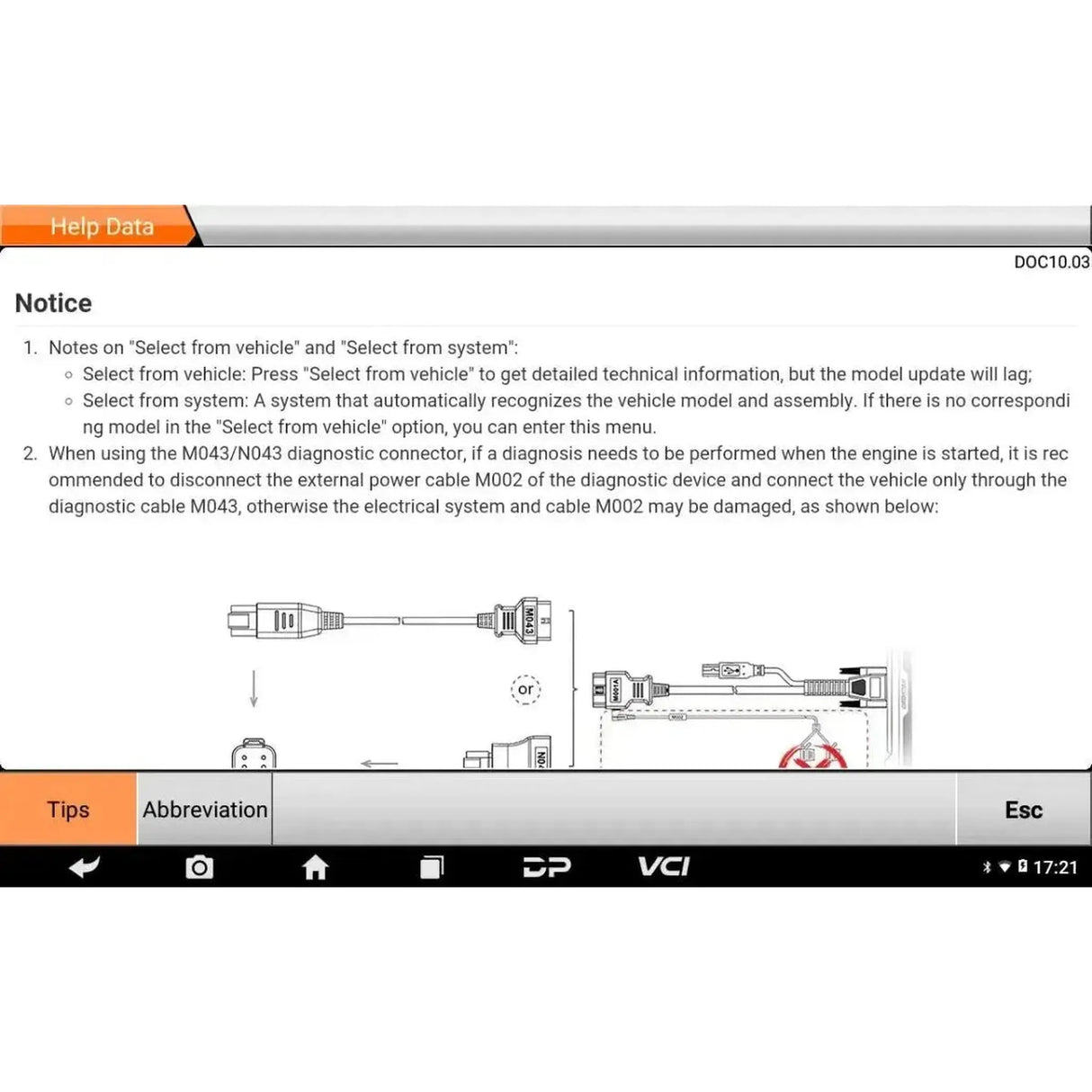

• Help data and technical bulletins: Access to support information and wiring diagrams during diagnosis.

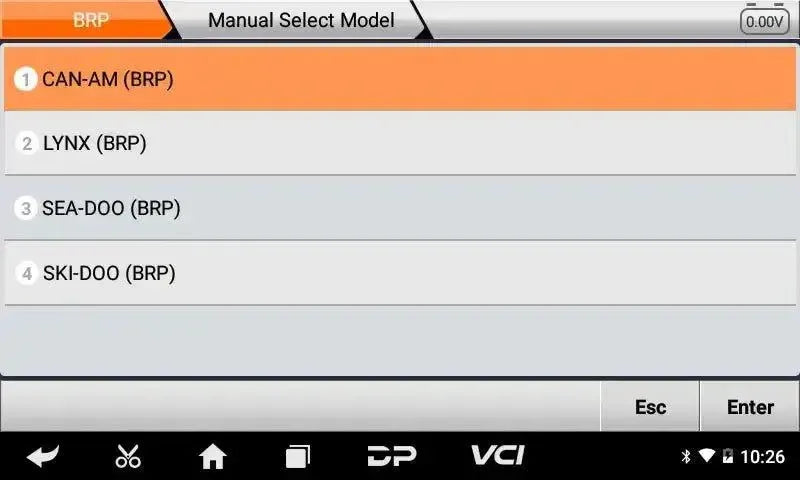

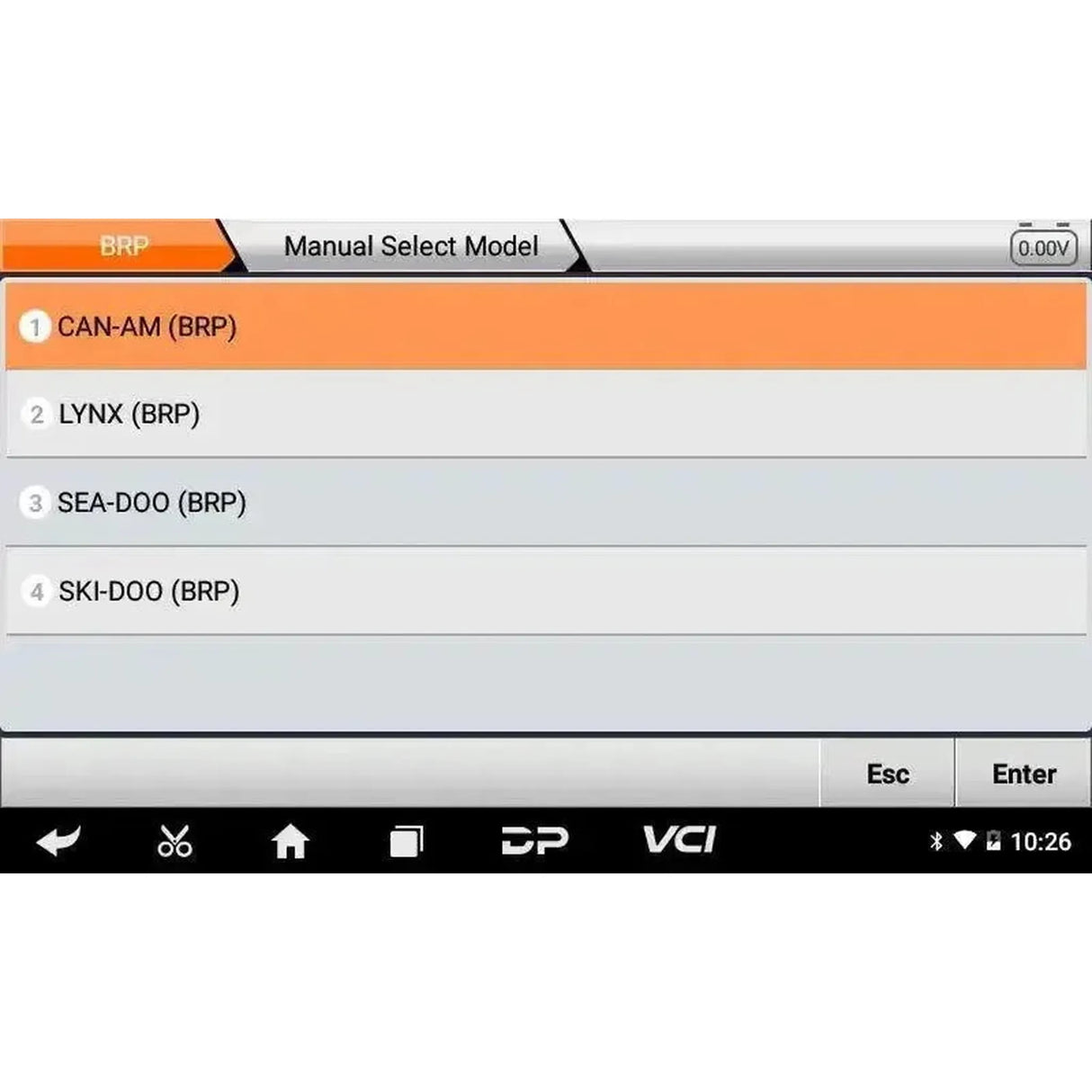

Supported vehicle brands

The OBDSTAR IScan BRP supports vehicles from the BRP group and related brands. The coverage includes motorcycles, snowmobiles, ATVs, UTVs, and watercraft.

• European: Lynx
• American: BRP, Can-Am, Evinrude, Sea-Doo, Ski-Doo

Optional additions and expansions

Additional hardware accessories are available for the OBDSTAR IScan BRP for specific diagnostic connections.

Hardware modules and accessories

• M002A grounding cable: Cable for grounding the device during diagnostic work.
• M003A multifunction jumper cable: Jumper cable for various diagnostic connections.

License information

The OBDSTAR IScan BRP comes with a software license specifically focused on the BRP brand package. The license controls access to software updates and extended functionality for BRP vehicles.

• License period: The license is valid for 1 year from activation.
• Software updates: Updates add new model years, vehicle types, and functions within the BRP brand package, and include bug fixes and improvements to existing diagnostic routines.
• Extended functions: Key programming, module coding, and advanced service functions for BRP vehicles require an active license.
• After license expiration: The Diagnostic Tool will continue to work with the last installed software version, but new updates and expansions cannot be downloaded until the license is renewed.

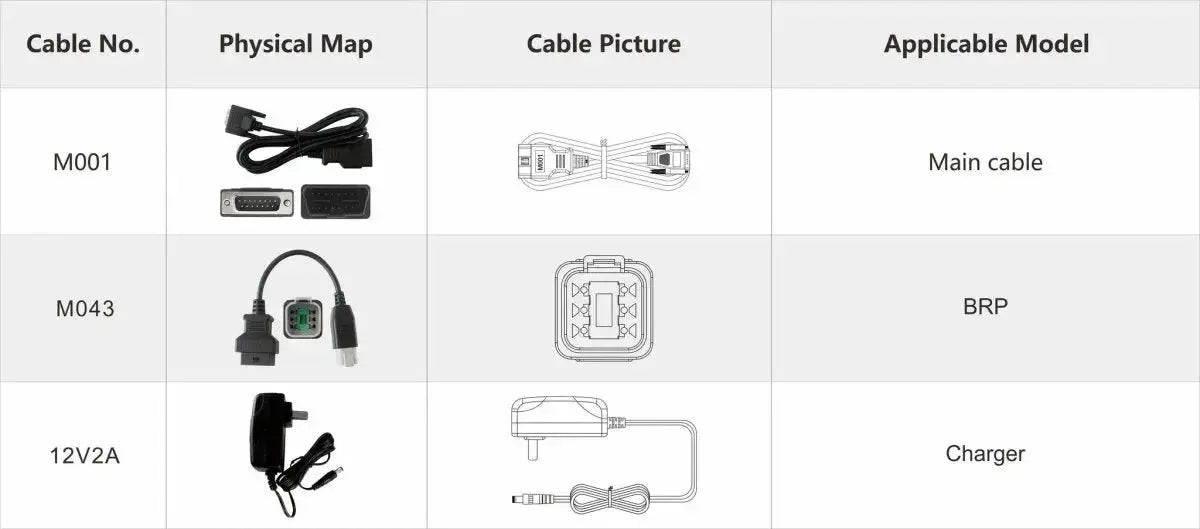

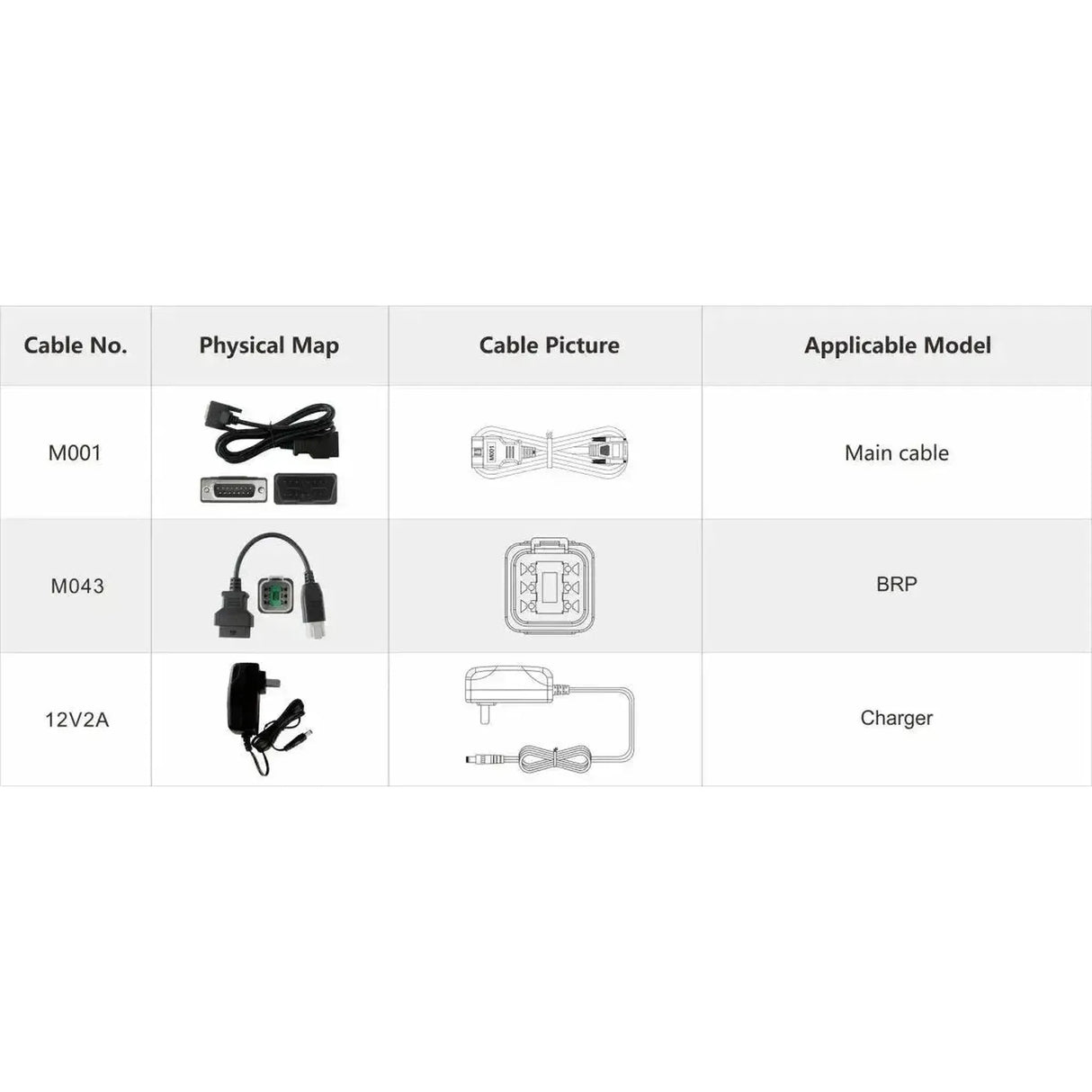

Package Contents

• 1x OBDSTAR IScan BRP Diagnostic Tool
• 1x 12V2A charger
• 1x M001 main cable
• 1x M043 BRP adapter
