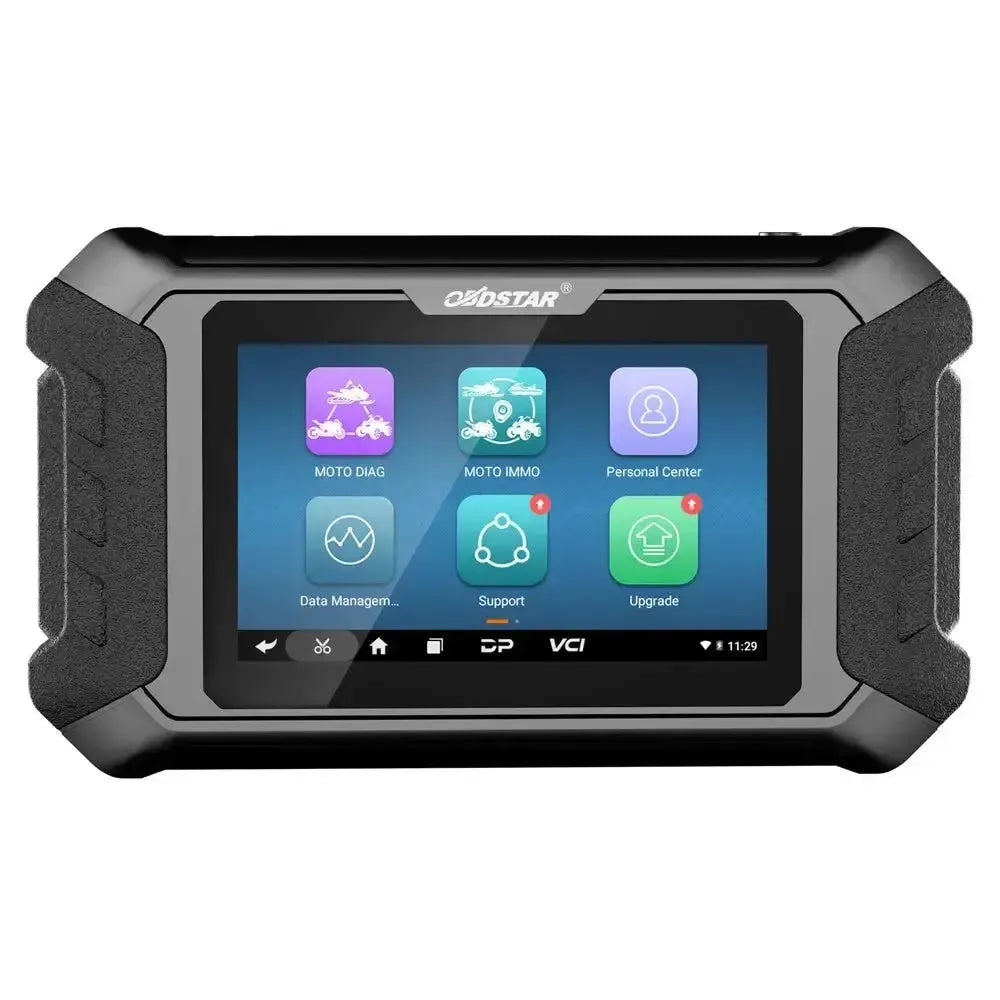

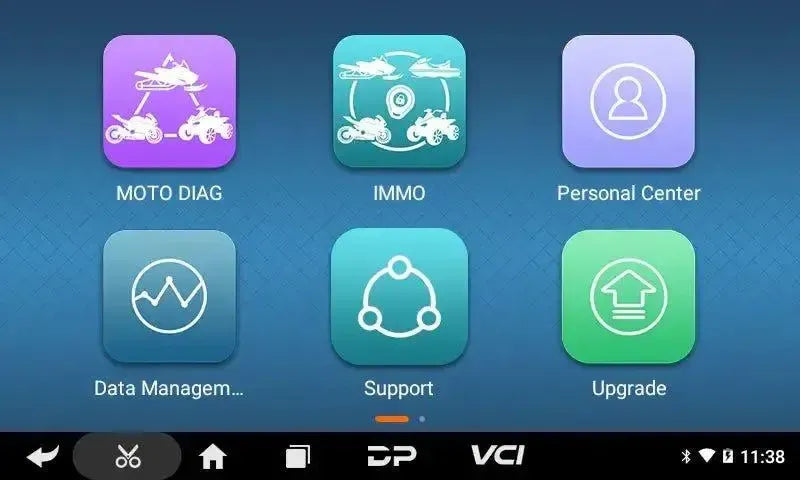

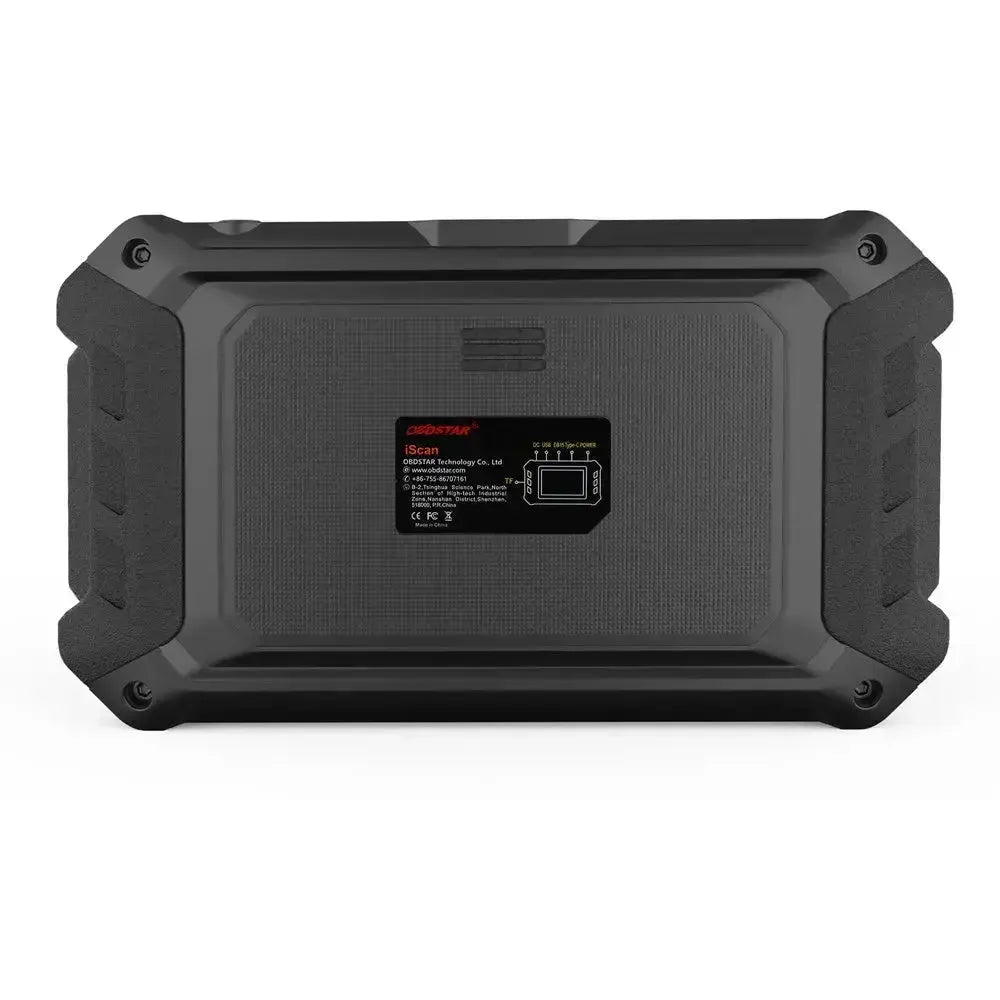

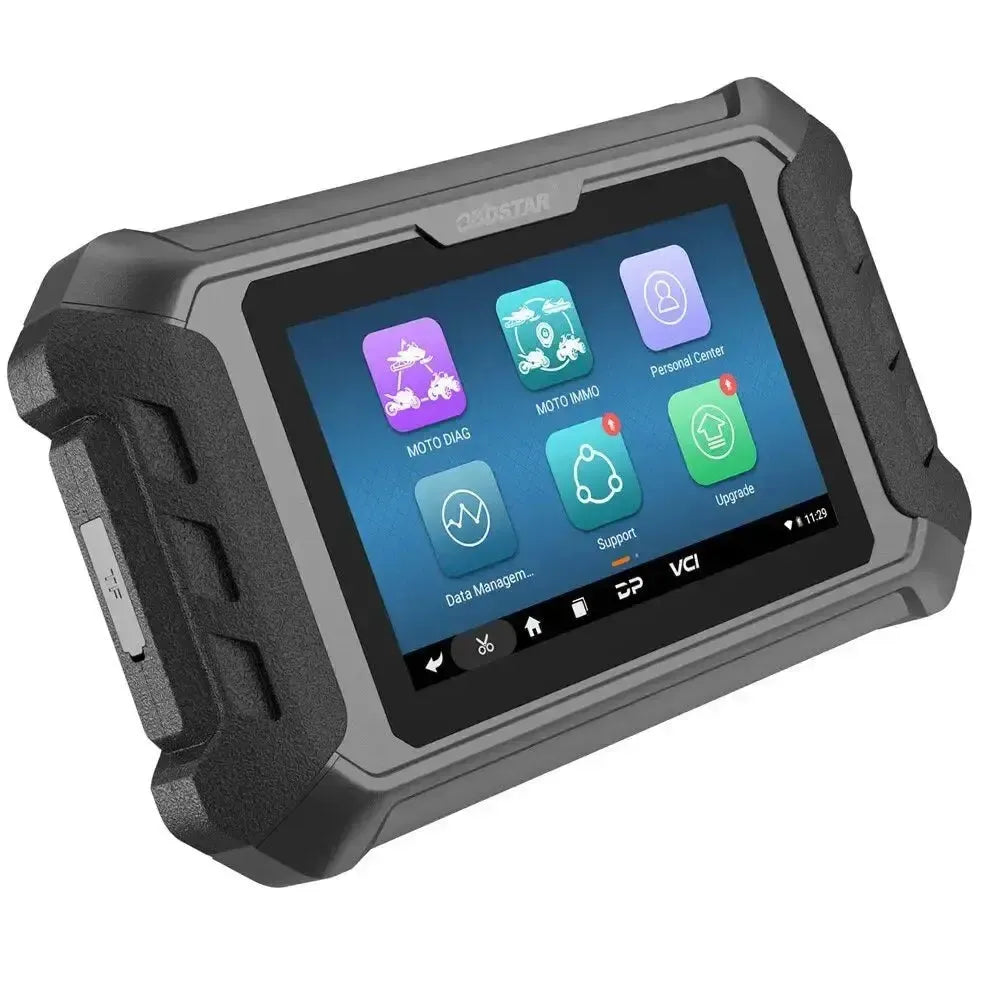

The OBDSTAR IScan Piaggio Multi is a reader device specifically developed for performing diagnostics and maintenance on motorcycles, mopeds, and scooters from the Piaggio group. The system runs on Android 5.1.1 and is equipped with a RK3128 quad-core processor and a 5.0 inch touchscreen. The functionalities include reading full systems, service and maintenance functions, and key programming. A license with 1 year of software updates is included with purchase.
The device offers a graphical display of live data, such as engine speed and Battery voltage, to analyze system performance. The software also includes technical documentation, such as interactive diagrams and component descriptions, to support the diagnostic process. Software updates can be performed via the Wi-Fi connection. The system supports expansion with optional hardware modules for advanced functions, such as the P001 programming kit.
Diagnostic functions:
The OBDSTAR IScan Piaggio Multi supports diagnostic functions for all electronic systems present in the vehicle.
- Read and clear fault codes: Reads and clears fault codes (DTCs) from all available control units, including engine, ABS, and instrument panel.
- Live Data: Displays real-time data from sensors and components. Data can be shown in various formats, such as text, graph, and gauges.
- Actuator Control: Allows direct control of components and actuators for testing purposes, such as activating the ABS pump or headlight actuator.
Key and EEPROM Functions:
This diagnostic tool supports key programming for various models within the Piaggio group. Function availability may vary by vehicle model and system.
Key Functions:
- Key Programming: Programming new or replacement keys into the vehicle's immobilizer system.
Service and Maintenance Functions:
This device supports more than 35 service functions for a wide range of models. Available functions may vary by brand, model, and year of manufacture.
Engine and Drivetrain:
- ECU Coding: Allows parameters in the engine control unit (ECU) to be adjusted or configured.
- Reset Self-Learning and Adaptive Parameters: Resets the system-learned values to factory settings.
- Reset and Zero Throttle Position Sensor (TPS): Calibrates the throttle position sensor for accurate measurement.
- Learn Minimum and Maximum Throttle Position: Sets the end positions of the throttle so the ECU knows the full range.
- Throttle Self-Learning Procedure: Starts a procedure where the system learns the throttle response and positions.
- Reset Synchronization: Restores the synchronization settings of engine systems.
Brakes and Safety Systems:
- Activate ABS Pump and Solenoid Valves: Performs a component test on the ABS pump and the front and rear wheel valves.
- Reset Brake Intervention Counters: Resets the internal counters for brake system interventions.
- Traction Control (ASR) On and Off: Provides the ability to activate or deactivate the ASR system via software.
- Test tilt angle sensor: Checks the correct operation of the sensor that measures the vehicle's tilt angle.
- Deactivate vehicle stop: Disables the automatic engine stop function.
Body and electronics:
- Reset service interval: Resets the service message on the dashboard after maintenance is performed.
- Adjust odometer: Allows correction or setting of the odometer reading, for example after replacing the instrument panel.
- Control headlamp actuator: Tests the actuator responsible for adjusting the headlamp.
- Operate BMS switch: Opens or closes the switch of the Battery Management System (BMS) for maintenance purposes.
- Control alarm light: Activates the alarm light for testing purposes.
General configurations and resets:
- Reset vehicle settings: Restores various vehicle configurations to default values.
- Total actuator reset: Performs a full reset on all connected actuators.
- Pre-positioning reset: Restores the start or base positions of certain components.
- Resetting value logs: Clears the stored logs with recorded minimum and maximum values.
- Language and unit configuration: Changes the system language (English, Italian) and the units used (Km/miles, °C/°F, US/UK gallon).

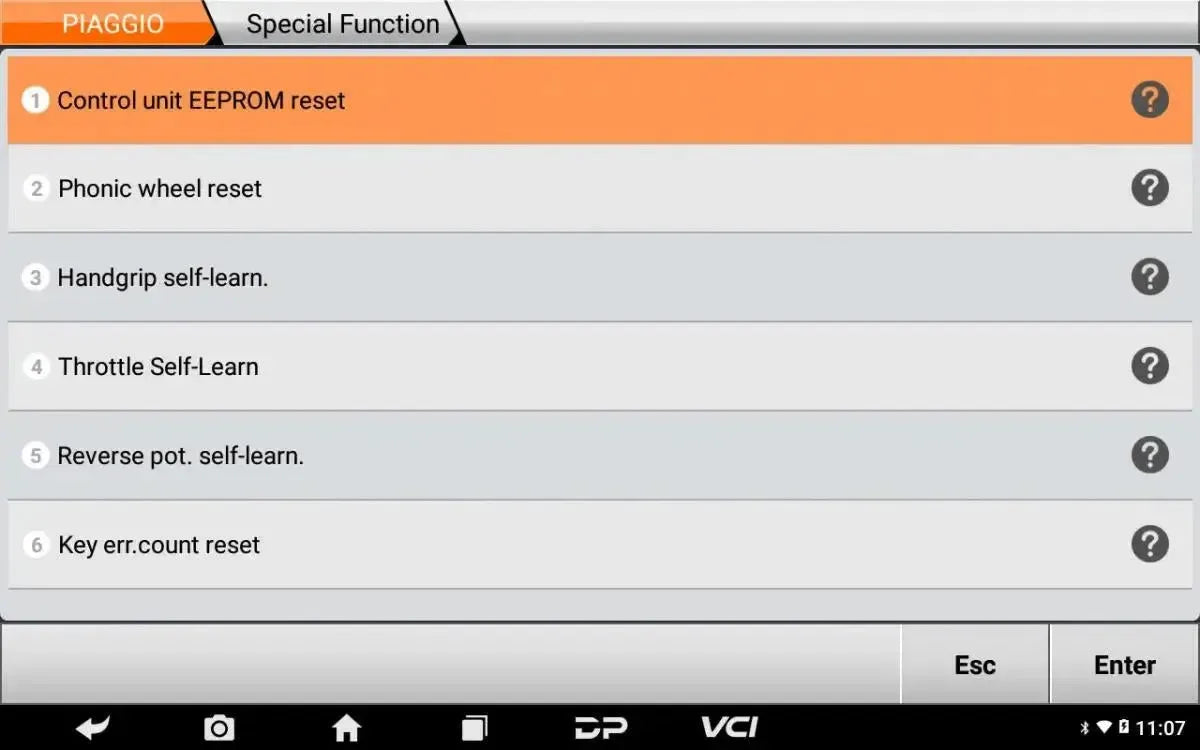

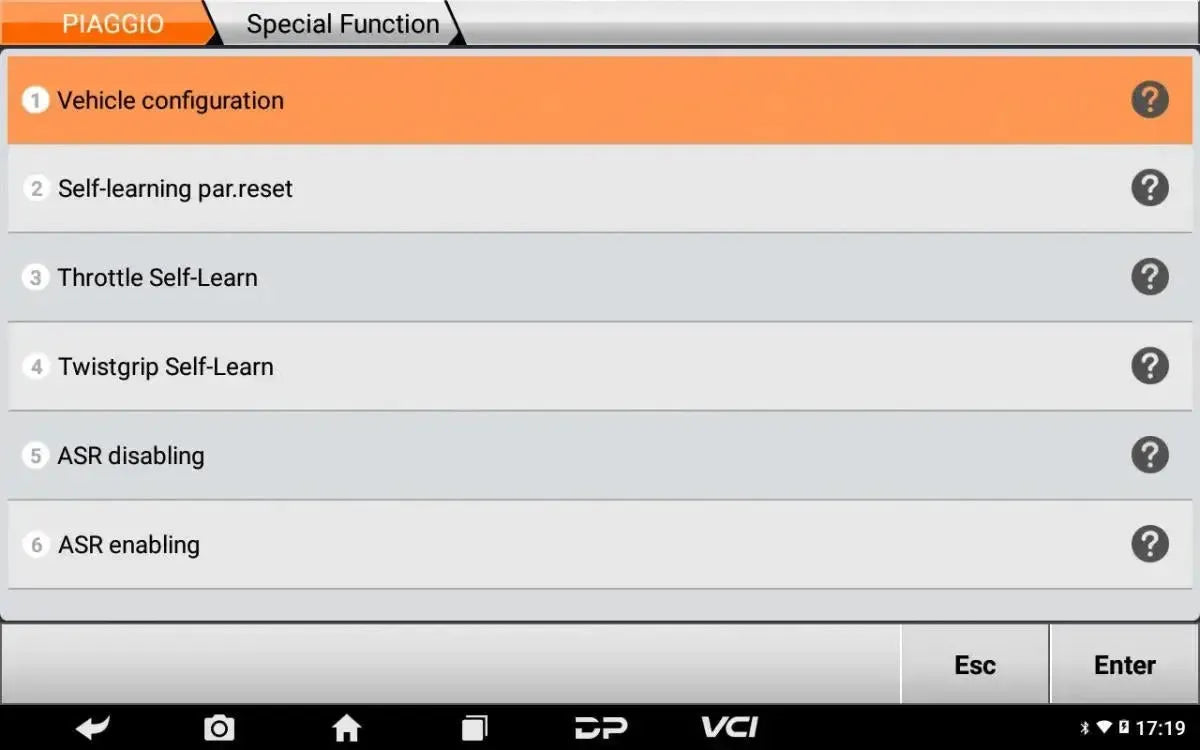

Special functions and capabilities:
The OBDSTAR IScan Piaggio Multi features various advanced functions that support the diagnostic and repair process.
Codings and programming:
- ECU coding: Enables adjustment of configurations and parameters in the engine control unit.
Cloud and reporting functions:
- Diagnostic reports: Generates and stores reports of the performed diagnostics. These reports can be printed or shared digitally.
Documentation and diagrams:

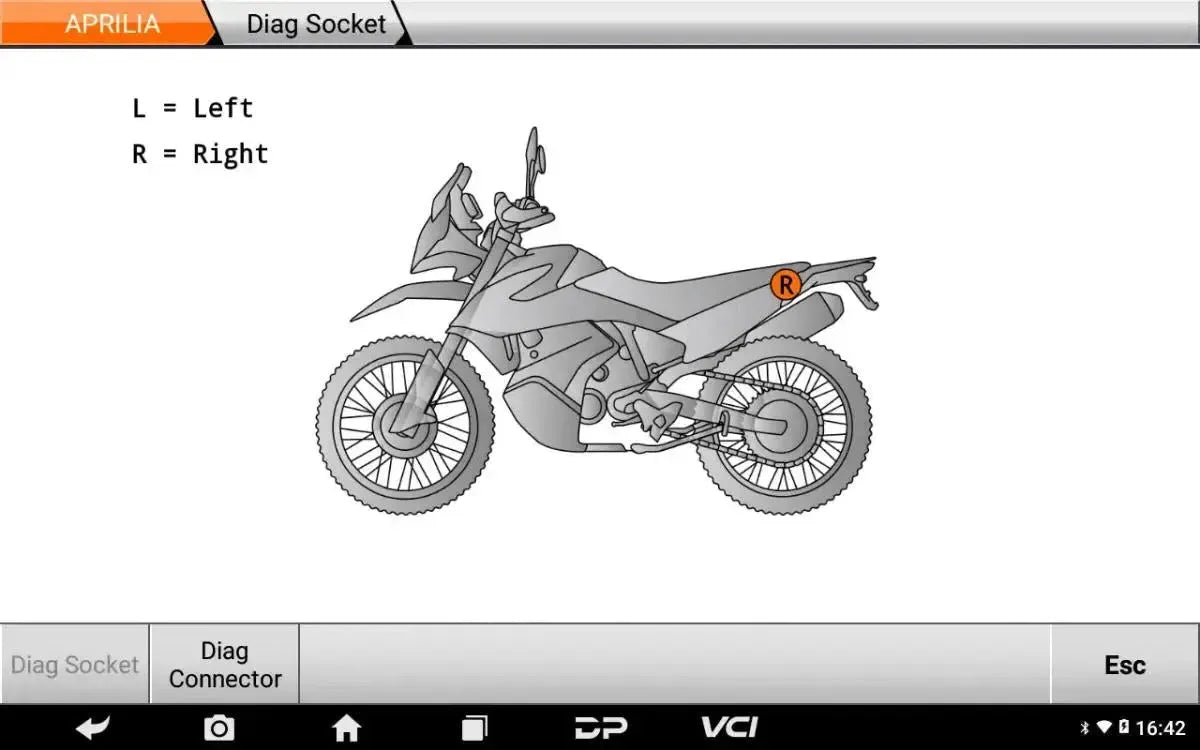

- Help data: Provides access to technical information such as fault code descriptions, technical bulletins, diagnostic connector locations, and interactive wiring diagrams.
Optional expansion modules:
Optional expansions are available for the OBDSTAR IScan Piaggio Multi. These modules depend on the specific vehicle model and the tasks to be performed.
Hardware modules and accessories:
- M003A: A multifunctional jumper cable for making various diagnostic connections.
- M047: Diagnostic cable for communication with specific Vespa models.
- M048: Diagnostic cable for communication with specific Aprilia models.
- P001 Kit: A programming kit for performing functions related to the immobilizer.
Supported vehicle brands:
The reader device is specifically developed for various models within the Piaggio group, including motorcycles, mopeds, scooters, ATVs, and UTVs. The list below provides an overview of the supported brands for both general diagnostics and key programming.

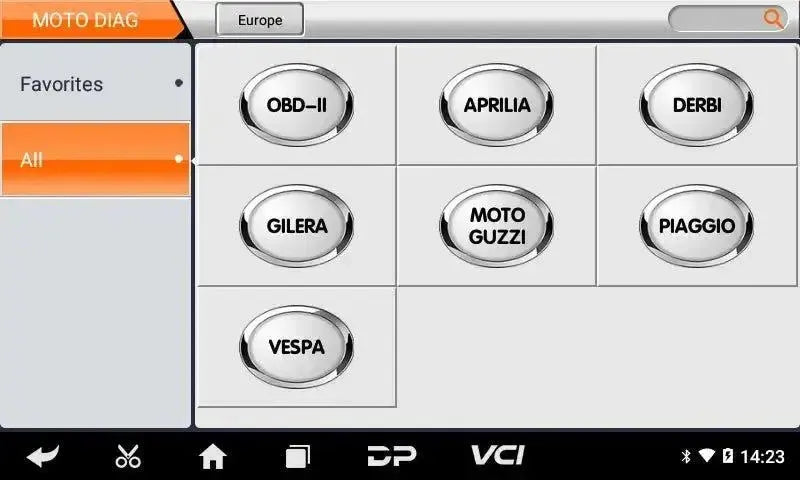

- European: Aprilia, Derbi, Gilera, Moto Guzzi, Piaggio, Vespa

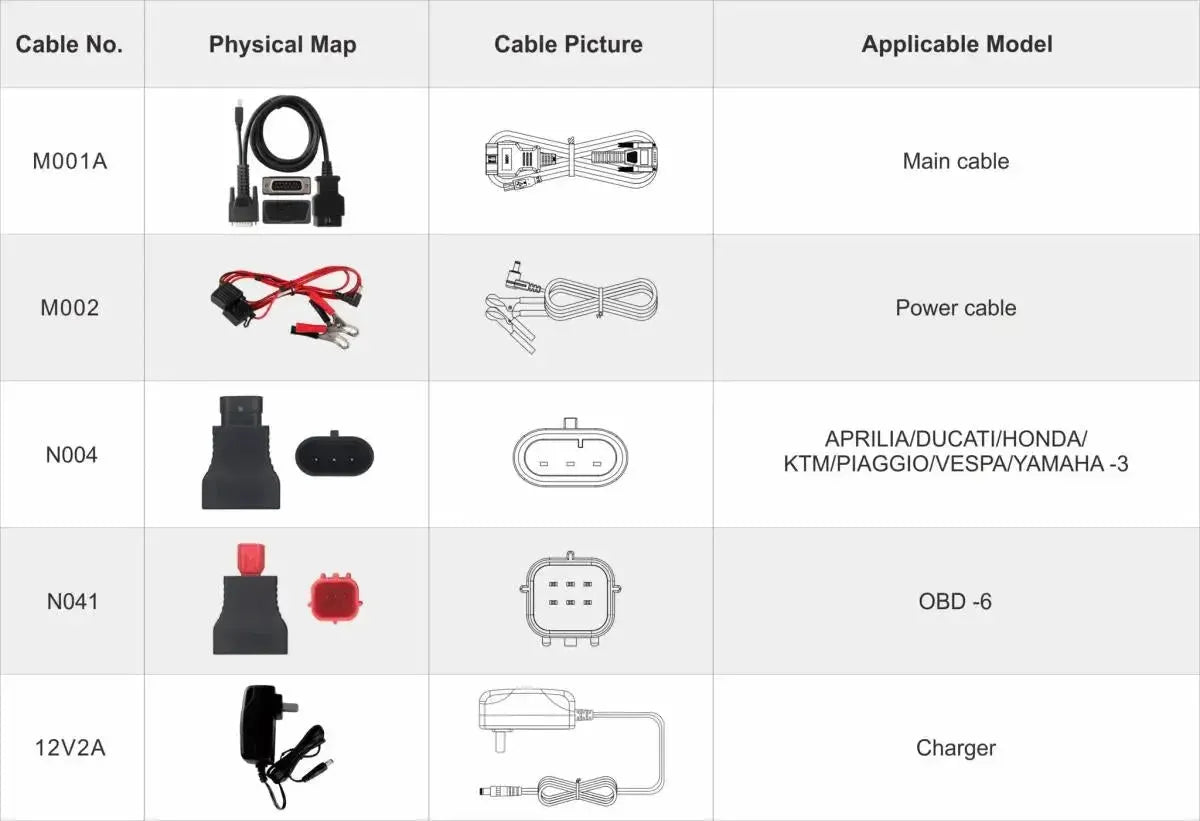

Package Contents:
- 1x OBDSTAR IScan Piaggio Multi
- 1x M001A Main cable
- 1x M002 Power cable
- 1x 12V2A Charger
- 1x N004 Adapter
- 1x N041 OBD adapter
License information:
- Includes 1 year of updates: A 12-month update license is included with purchase.
After the license expires, the reading device will continue to operate on the last installed software version. Access to new software updates and online features requires a new, paid license.
Technical specifications:
| Specification | Description |
|---|---|
| Product brand | OBDSTAR |
| Product model | IScan Piaggio Multi |
| Operating system | Android 5.1.1 |
| Screen size | 5.0 inch |
| Screen resolution | 800*480 |
| Processor | RK3128 quad-core ARM cortex A7 |
| Storage memory | 32G MicroSD card supported |
| Connectivity | Wi-Fi |
| Battery | 2600mA lithium-polymer |
