The Topdon TopScan Moto 3-in-1 Cable Kit accessories is a physical expansion set for performing vehicle diagnostics on various motorcycle brands. The purpose of this cable set is to create a reliable connection between a standard 16-pin OBD2 diagnostic scanner and the brand-specific data ports of motorcycles. The set features adapter cables with the exact hardware pin-out for successfully routing K-line and CAN-bus communication signals from the engine control unit (ECU) to the tester.
When connected, the internal wiring mechanically and electrically converts the specific pin assignment of the vehicle connector to the standardized J1962 OBD2 connector. This enables reading, coding, and fault clearing with universal equipment. For motorcycle systems that do not supply 12V power via their own diagnostic port, the system uses a 3-pin adapter cable with integrated battery clamps. This draws operating voltage directly from the vehicle battery, ensuring a stable power supply for the diagnostic tester during active diagnostic processes.
ADVANTAGES
ATTENTION POINTS
Applications and functionalities
This adapter set enables universal diagnostic equipment to connect to closed, brand-specific motorcycle networks to establish data communication.
- OBD2 signal conversion: Mechanically and electrically convert the specific pinout of vehicle connectors to the standard 16-pin female OBD2 format, allowing standard OBD plugs to be connected.
- External power supply: Provides a constant 12V operating voltage to the connected diagnostic tester via the integrated crocodile clips when reading older motorcycles that do not supply power through the diagnostic port.
- Hardware protocol transmission: Facilitates correct wiring for flawless transmission of communication signals such as CAN High, CAN Low, and the K-line between the engine control unit and the diagnostic tester.
Special features and capabilities
The cable kit includes specific designs to make diagnostic sessions in the workshop more efficient and safer.
- Combined Y-cable layout: Bundles the commonly used 4-pin and 6-pin connectors for Harley-Davidson into one overarching adapter cable, providing the correct connector immediately without needing to switch cables.
- Integrated fuse holder: The battery clamp connection is equipped with a replaceable standard blade fuse in the positive cable. This protects both the diagnostic device and the vehicle's electrical circuit against voltage spikes and short circuits during testing.
Package Contents

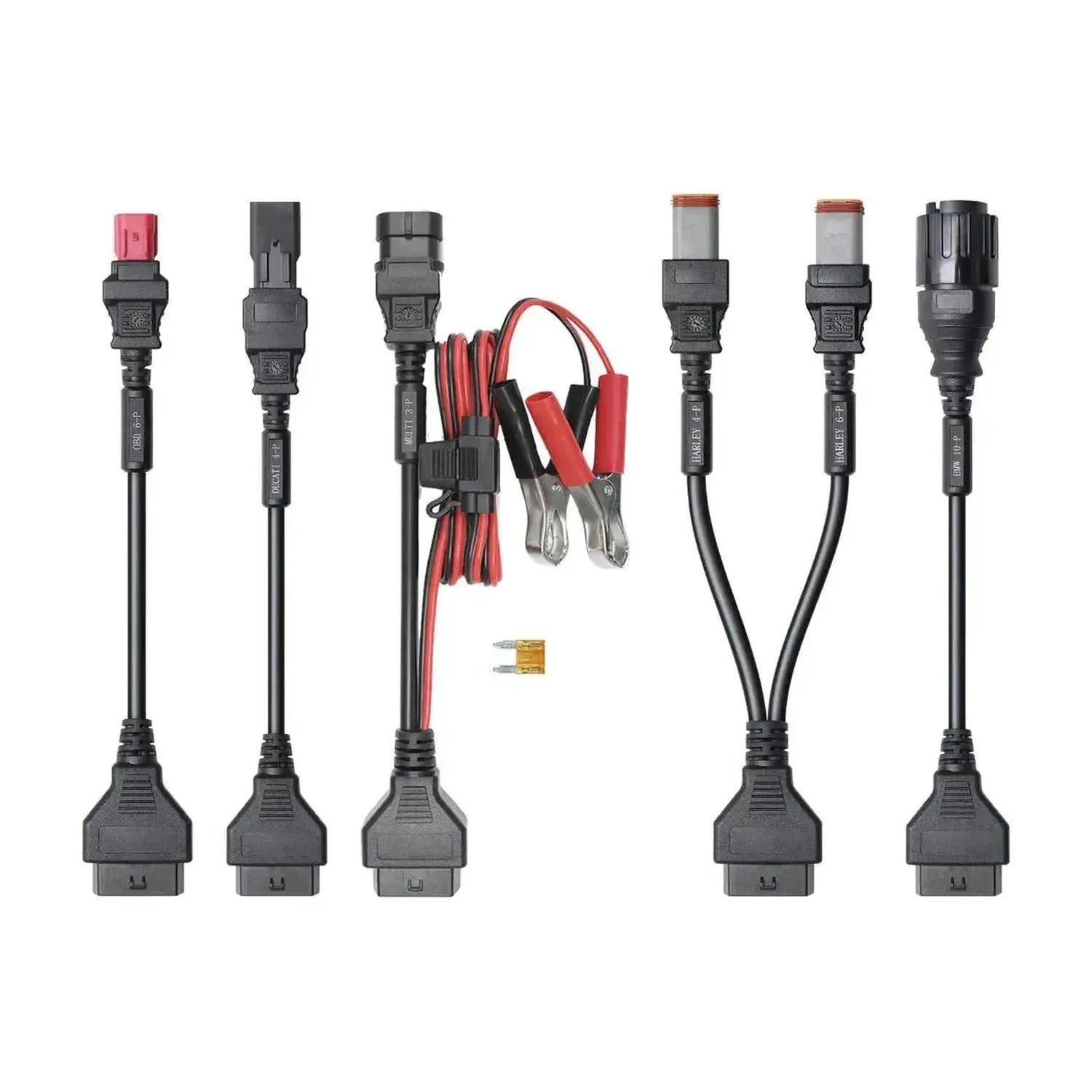

- 1x Topdon TopScan Moto 3-in-1 Cable Kit
- 1x OBD 6-P adapter cable (red)
- 1x DUCATI 4-P adapter cable
- 1x MULTI 3-P adapter cable including 12V battery clamps
- 1x HARLEY 4-P and 6-P Y-adapter cable
- 1x BMW 10-P adapter cable
- 1x Spare blade fuse
Technical specifications
| Specification | Description |
|---|---|
| Product brand | Topdon |
| Product model | TopScan Moto 3-in-1 Cable Kit |
| Tester side connection | 16-pin OBD2 (J1962) female |
| Motorcycle connectors | BMW 10-pin, Harley 4-pin, Harley 6-pin, Ducati 4-pin, OBD 6-pin, Multi 3-pin |
| Supported protocols | Pass-through for CAN bus and K-line (depending on tester) |
| Power supply method | Via vehicle diagnostic port or via included 12V battery clamps |
| Electrical protection | Integrated blade fuse on the external power cable |
