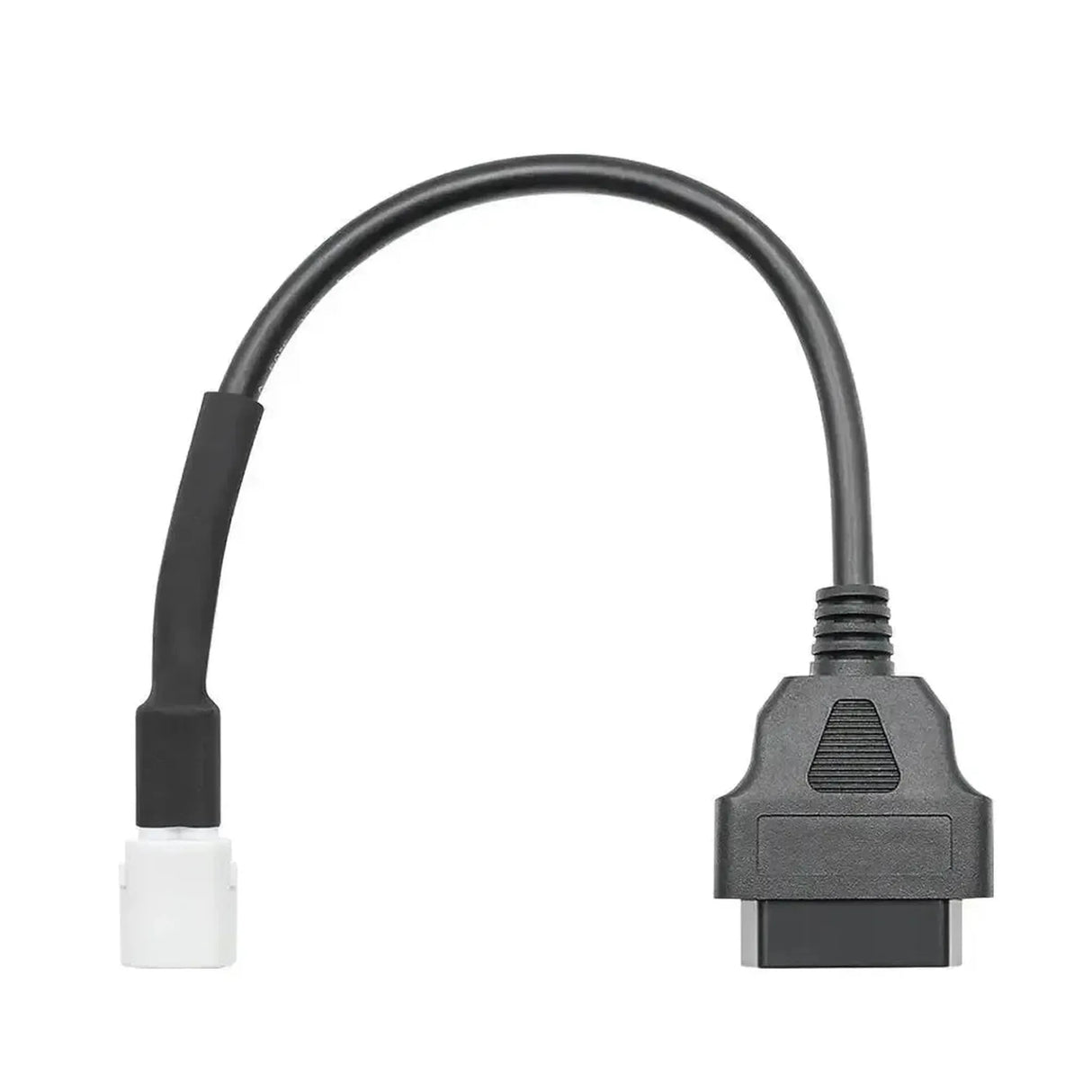

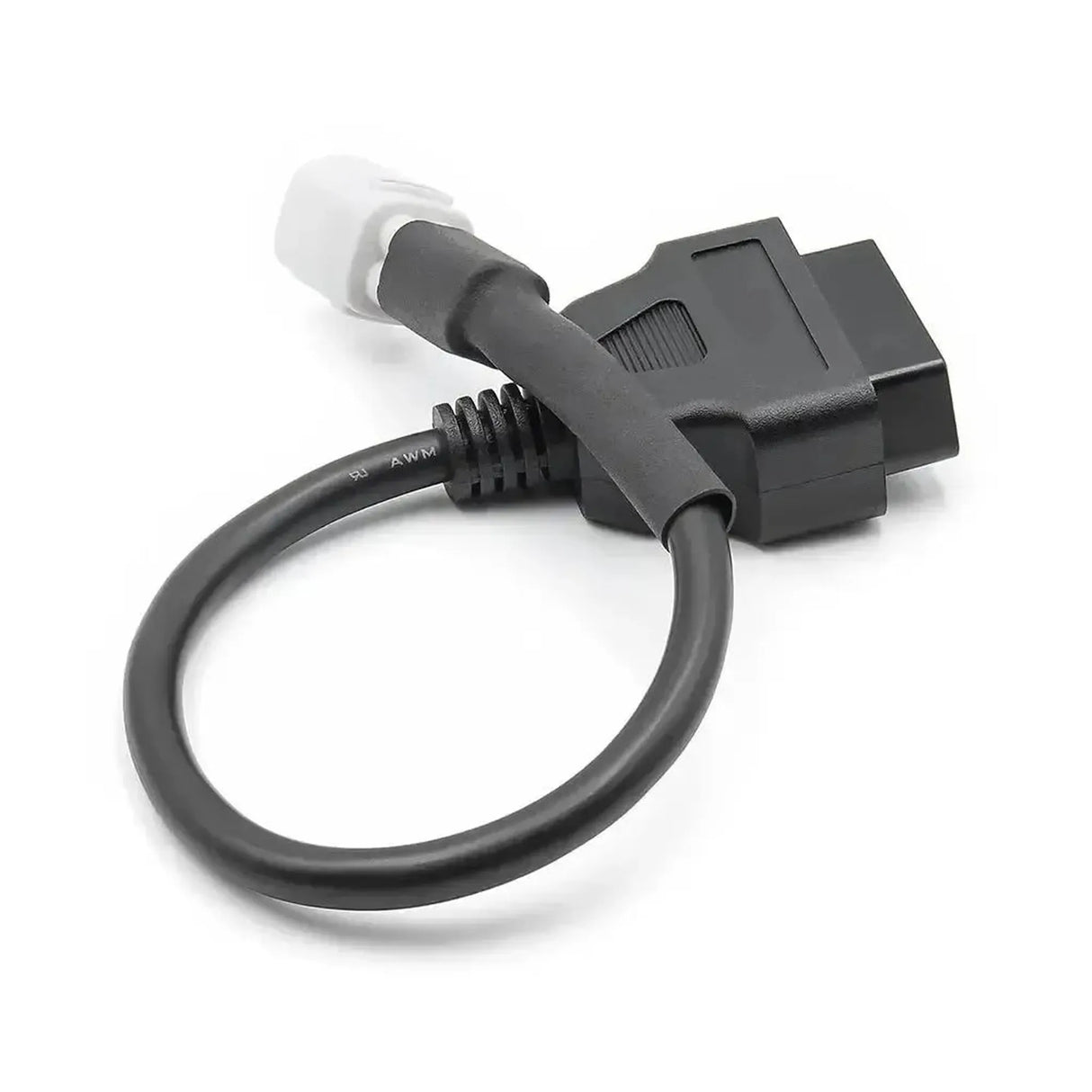

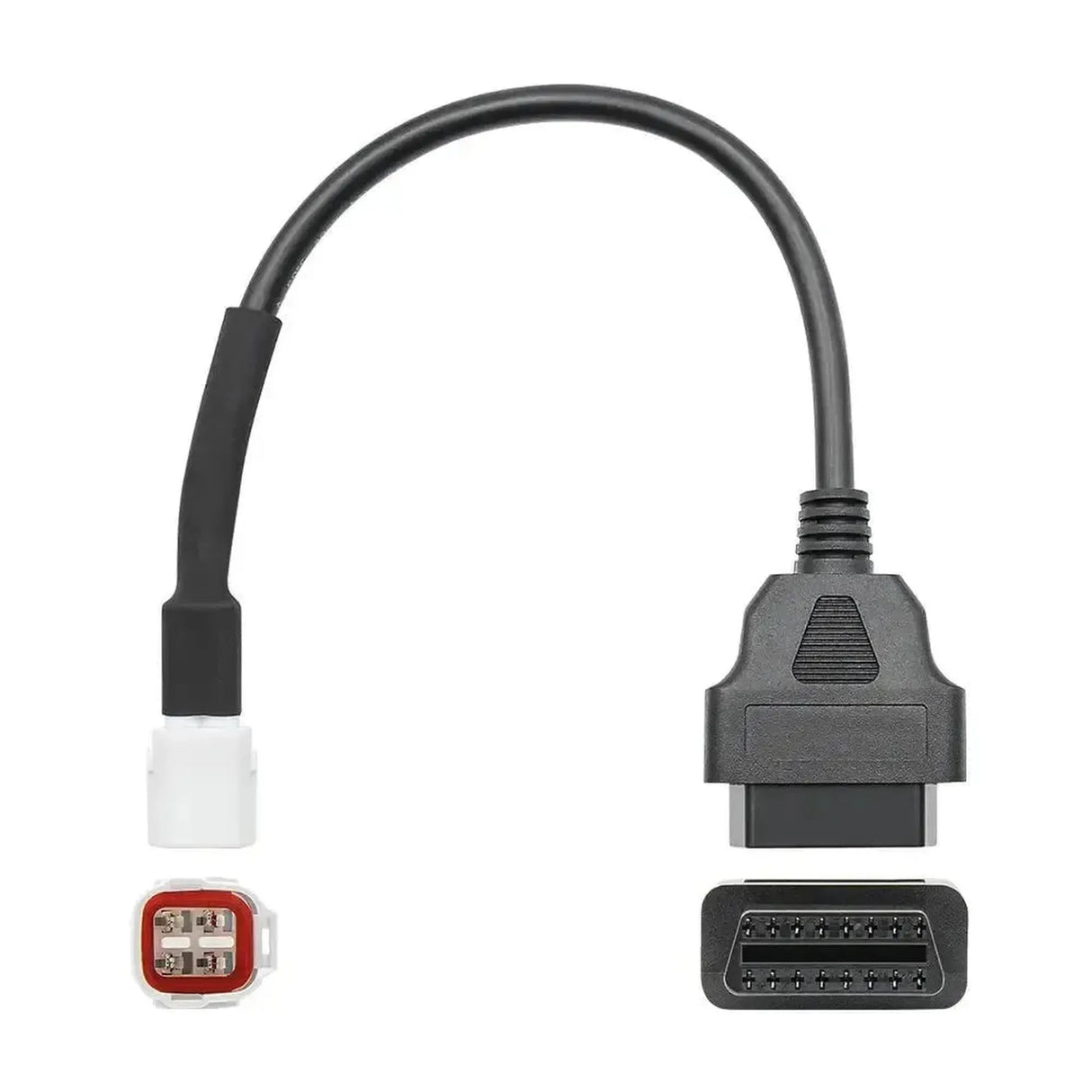

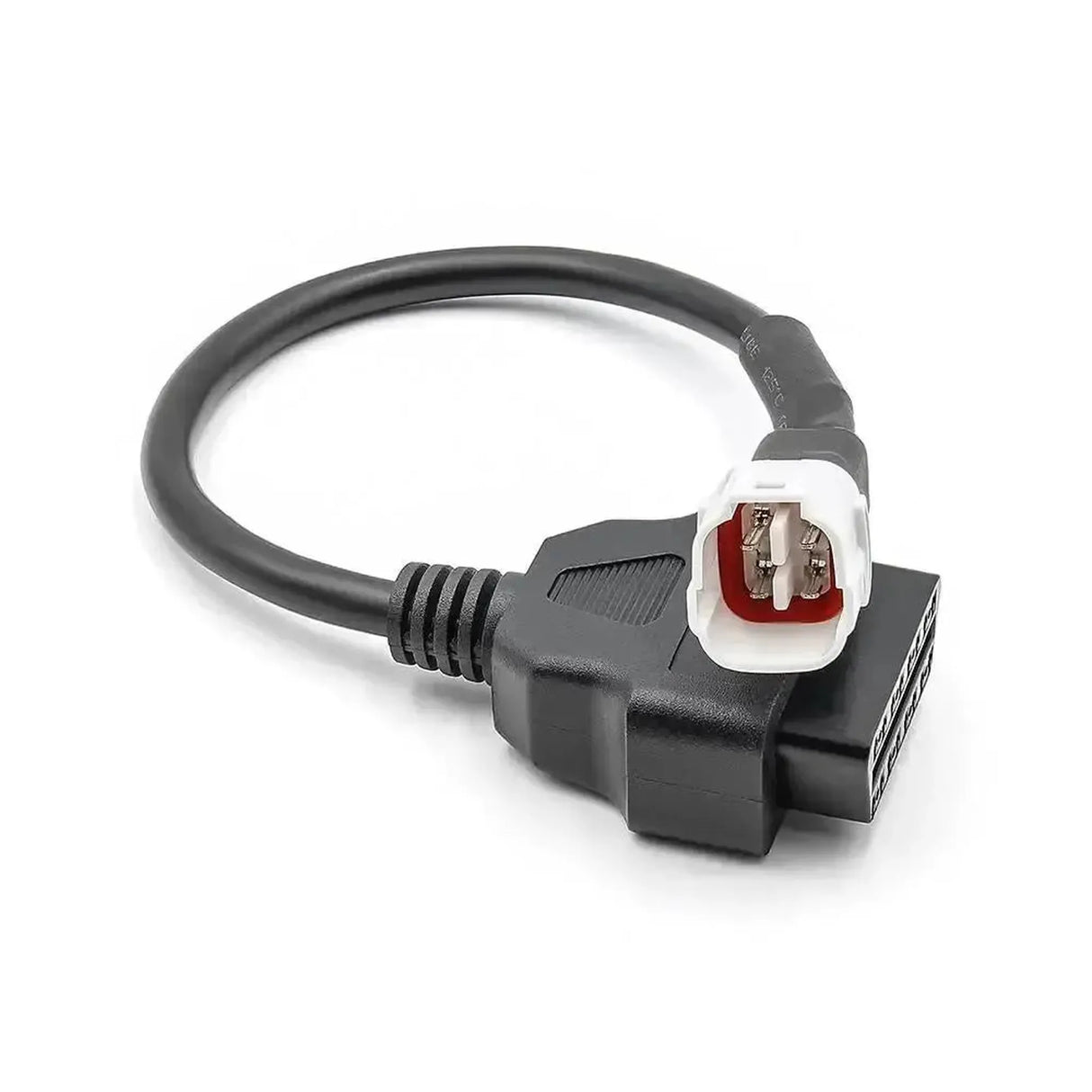

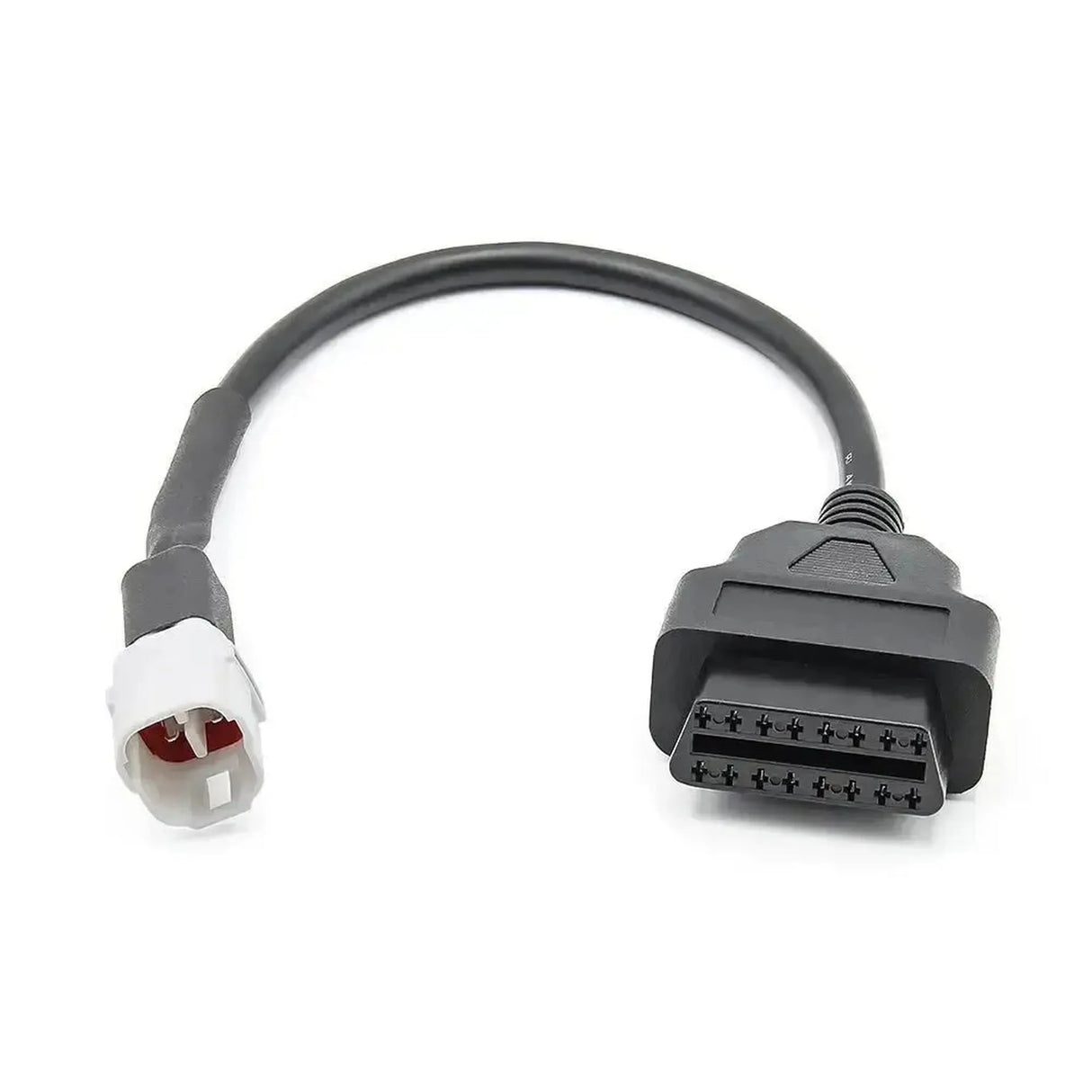

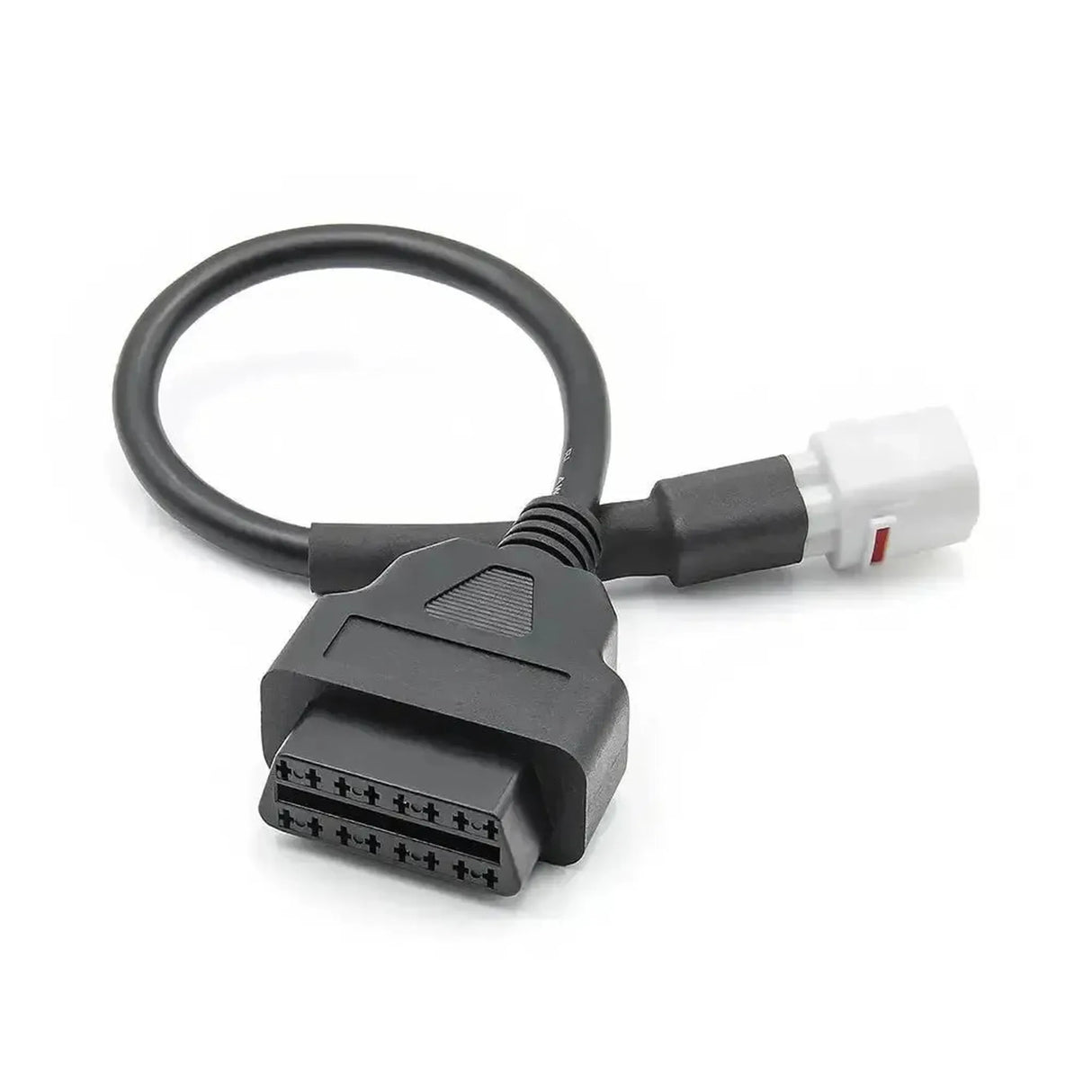

Yamaha 4-pins OBD – 16-pins OBD2 Adapter Cable | Motorcycle
Regular price
€9,95 incl.
€8,22 excl.
Unit price
Translation missing: en.products.product.price.unit_price_separator
Unavailable
Warranty directly via AsTools
Warranty directly via AsTools
We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.
2 years warranty on all products
2 years warranty on all products
All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.
Easy returns
Easy returns
You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.
Professional customer service
Professional customer service
Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!
AsTools | SKU:
A0153
Regular price
€9,95 incl.
€8,22 excl.
Unit price
Translation missing: en.products.product.price.unit_price_separator
Unavailable
The Yamaha 4-pin OBD to 16-pin OBD2 adapter cable is developed to connect the vehicle-specific diagnostic port of Yamaha motorcycles with universal OBD2 diagnostic equipment. This adapter enables the physical connection between the 4-pin connector on the motorcycle and the standard 16-pin connector of a reader or interface.
The adapter cable facilitates signal transmission of the CAN-bus communication protocol used by modern Yamaha ECUs. The correct pin configuration establishes a stable connection, making technical data and fault codes accessible to diagnostic equipment normally intended only for cars or generic OBD2 applications.
ADVANTAGES
✔
Suitable for Yamaha motorcycles with CAN-bus system.
✔
Enables use of universal OBD2 scanners.
✔
Robust connectors for stable signal transmission.
IMPORTANT NOTES
✕
Not suitable for older models with a 3-pin connector (K-Line).
✕
Not compatible with Euro 5 models (2021+) that use a 6-pin red connector.
✕
Works only in combination with an external diagnostic tester.
Applications and functionalities
This adapter cable allows the user to perform standard OBD2 functions on compatible motorcycles, depending on the capabilities of the connected diagnostic device.
- Read fault codes: Consult active and stored fault codes in the ECU.
- Clear fault codes: Reset the engine warning light after repair or maintenance.
- Live data display: Real-time reading of sensors such as RPM, temperature, and throttle position.
- Vehicle information: Retrieve VIN and calibration IDs if supported.
Compatible vehicles and applications
This adapter cable is specifically designed for Yamaha motorcycles and scooters that use the 4-pin white diagnostic connector (mostly CAN-bus models from around 2016 to 2020).
Yamaha:
- FJR 1300: (2016 - 2020)
- MT-03: (2016 - 2020)
- MT-07: (2016 - 2020)
- MT-09 / MT-09 Tracer: (2016 - 2020)
- MT-10: (2016 - 2020)
- R1 (YZF-R1): (2016 - 2020)
- R6 (YZF-R6): (2017 - 2020)
- TMAX 530 / 560: (2016 - 2020)
- XSR 700 / 900: (2016 - 2020)
- XT1200Z Super Ténéré: (2017 - 2020)
💡
Good to know: The diagnostic connector on Yamaha motorcycles is usually located under the seat, near the battery or behind the side panels. Always check if your vehicle has the white, square 4-pin connector.
Package Contents
- 1x Yamaha 4-pin OBD - 16-pin OBD2 Adapter Cable | Motorcycle
