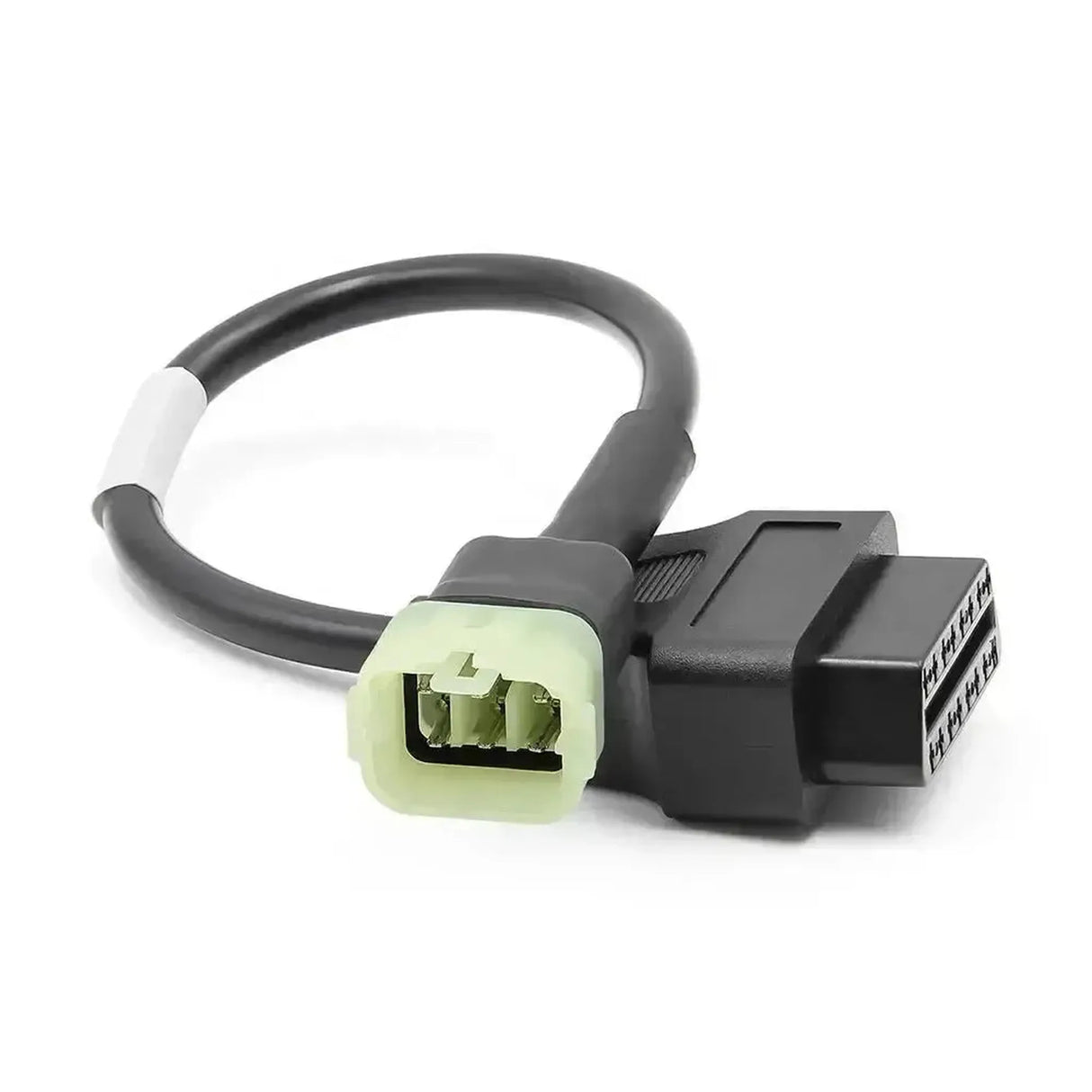

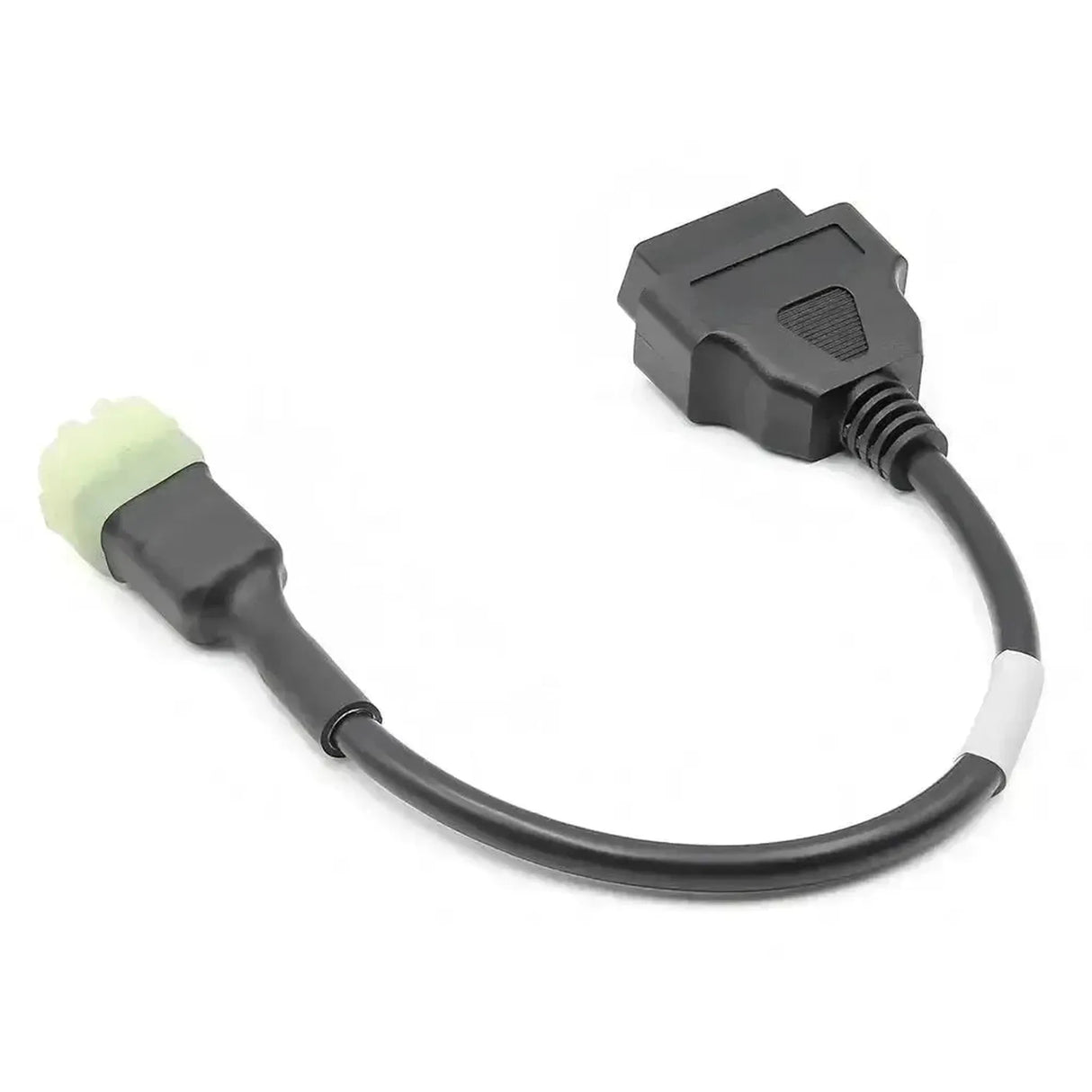

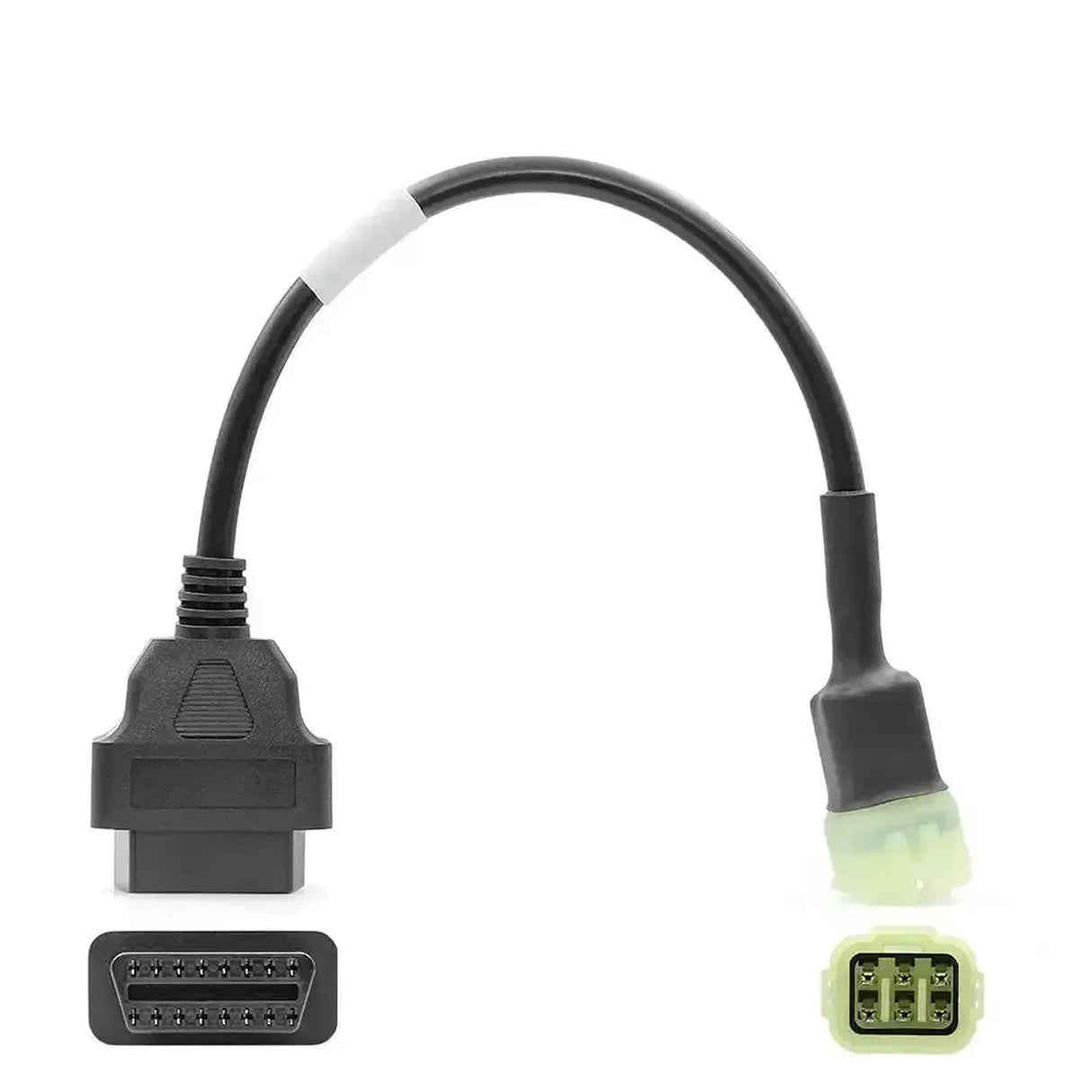

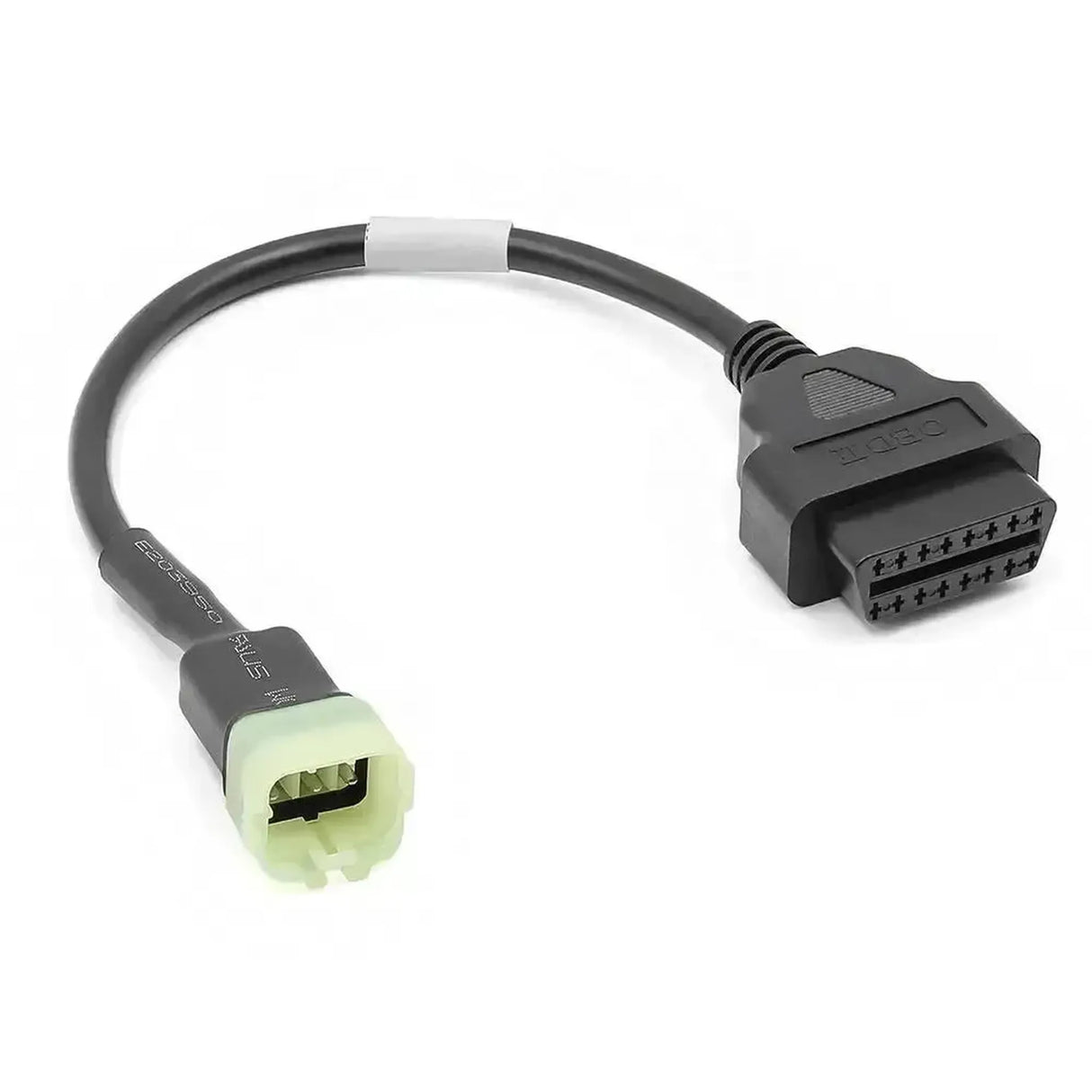

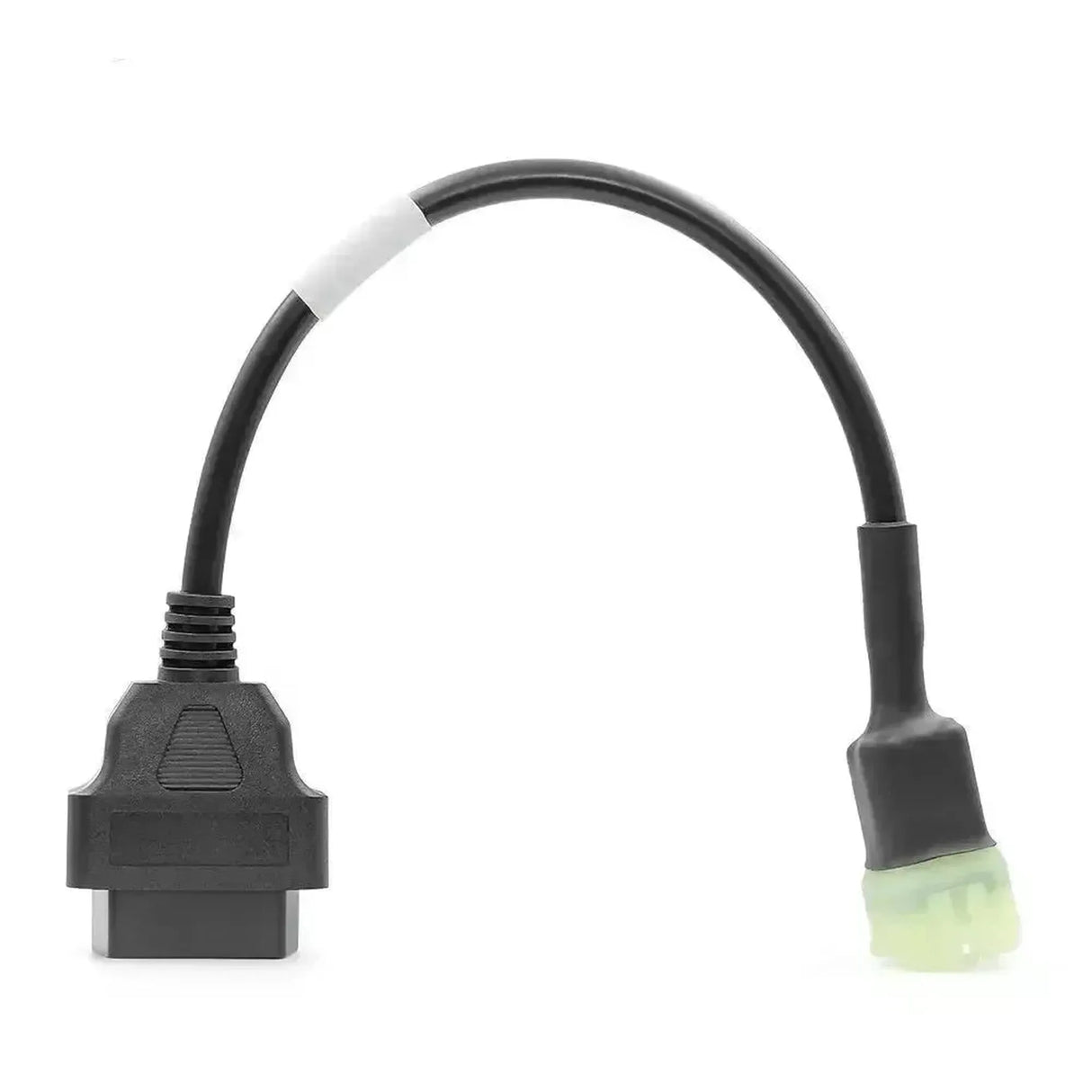

This adapter cable connects the 6-pin diagnostic connector of Kawasaki motorcycles to a diagnostic tool with a 16-pin OBD2 plug. The connector is usually located under the seat.

Kawasaki uses this plug on Euro 4 models from around 2016. With the cable you can read fault codes and live data from the engine management system, via CAN-bus or K-Line. The cable only converts the connector physically. The diagnostic tool itself must support Kawasaki diagnostics.

ADVANTAGES

✔Makes the 6-pin Kawasaki connector accessible for your existing OBD2 diagnostic tool or interface.

✔Suitable for models including the Ninja ZX-10R, Z900 and Ninja H2.

✔The connector carries both CAN-bus and K-Line, depending on the model.

✔The cable works passively: it requires no software or its own electronics.

POINTS TO NOTE

✕Your diagnostic tool must support Kawasaki diagnostics via this 6-pin connector; the cable does not convert protocols.

✕A simple EOBD code reader for passenger cars does not work via this cable.

✕Older Kawasaki models with the 4-pin connector do not fit this cable.

✕Many models from 2020 onwards have the Euro 5 connector; therefore check the plug first.

Applications and functions

This cable is intended for workshops and motorcyclists who read out a Kawasaki with the 6-pin connector.

Control units you can access

Engine management: Injection, ignition and throttle valve.
ABS: On models with ABS.
Other modules: Depending on model.

What you can do

Fault codes: Read and clear per system.
Live data: View current sensor values.
Vehicle info: Retrieve software and ECU data.
Service reset: Where the diagnostic tool offers it.

How to use it

Locate the port: Remove the seat and find the 6-pin connector.
Remove the cap: Take off the protective cap from the port.
Connecting: Insert the 6-pin plug of the cable into it.
Connecting the diagnostic tool: Connect the 16-pin plug.
Reading out: Switch the ignition on and select Kawasaki and the model.

Compatible vehicles and applications

Decisive is the 6-pin Kawasaki diagnostic connector of the Euro 4 models. The cable is suitable for models including the following:

Kawasaki:

Ninja ZX-10R: 2016 to 2020.
ZX-14R (ZZR1400): From model year 2016.
Z900: From model year 2017, Euro 4 version.
Z900RS: From model year 2018, Euro 4 version.
Ninja H2: From model year 2017.
Ninja H2 SX: From model year 2018.

💡

Good to know: Count the pins of the connector under the seat. With 6 pins on a Euro 4 model this cable fits; older models have a 4-pin plug.

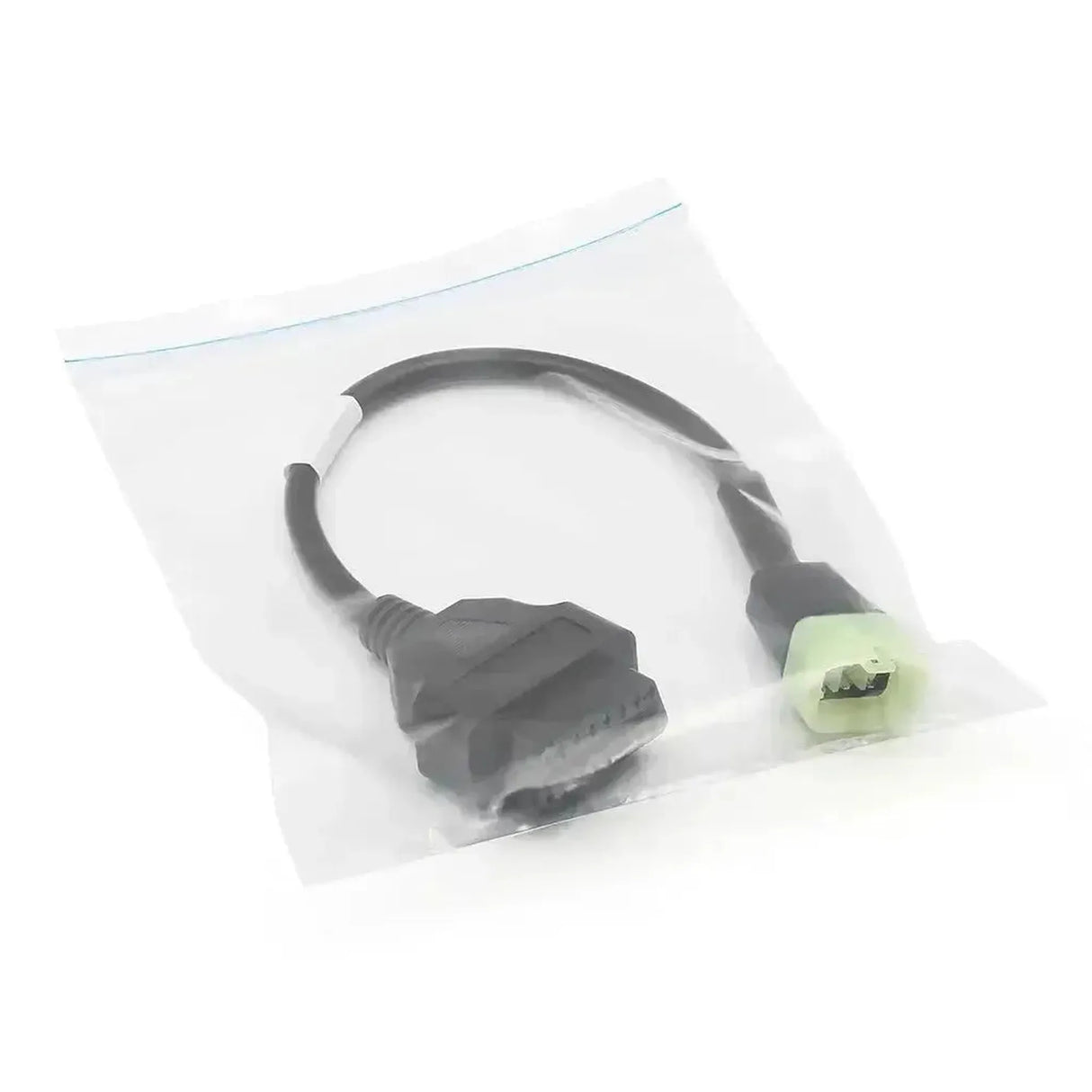

Package contents

1x Kawasaki 6-pin OBD – 16-pin OBD2 adapter cable | Motorcycle

Technical specifications

General

The brand of the cable or adapter. It often has to match the brand of your diagnostic tool.Brand: AsTools
The type of product: a separate adapter cable, an adapter without a cable or a complete set.Product type: Adapter cable

Connections

The connector on the side of your diagnostic tool or interface. Usually a 16-pin OBD2 connector.Tool-side connector: 16-pin OBD2 (J1962)
The data lines through which the cable passes signals. The vehicle and the tester must use the same communication method.Communication: K-line
CAN-bus
