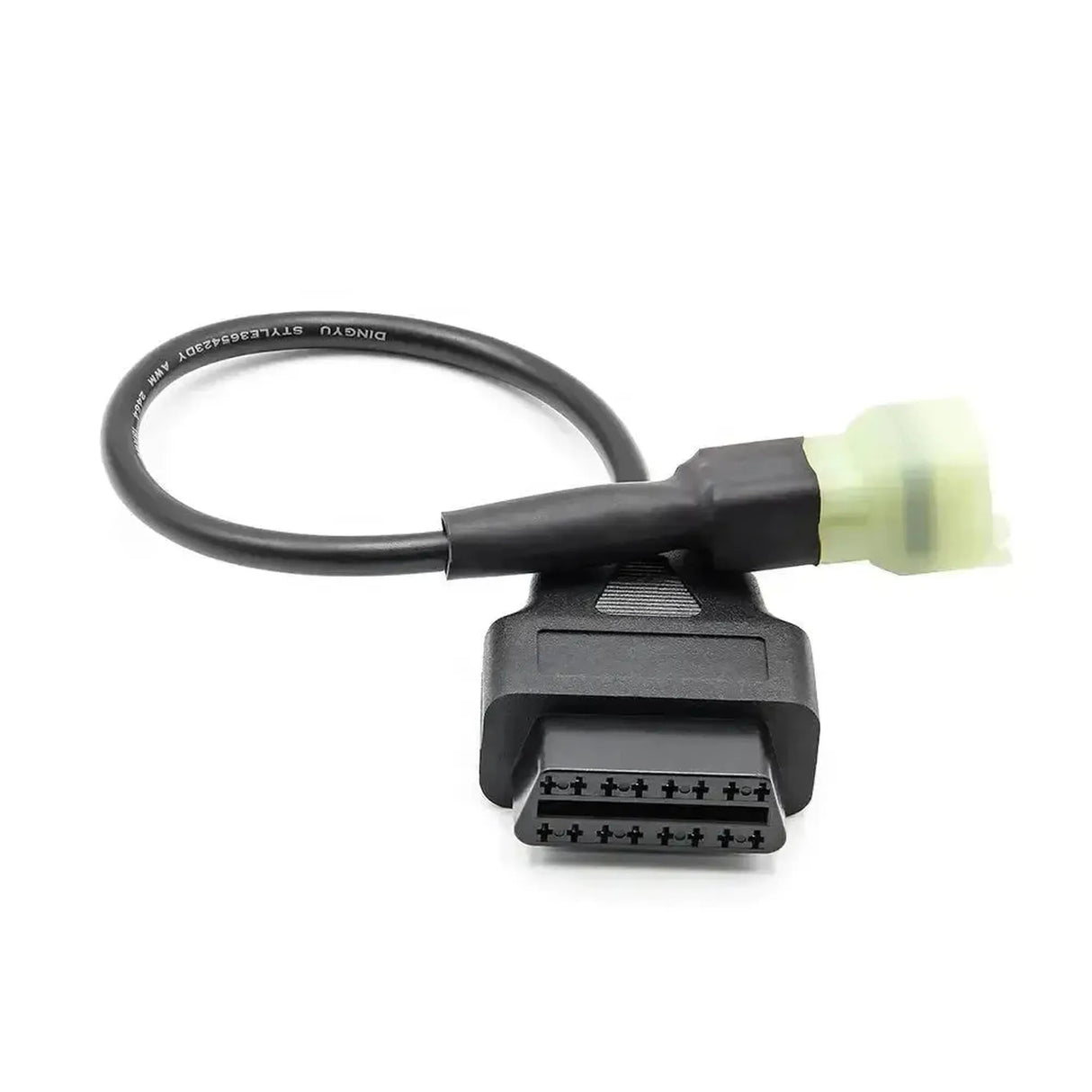

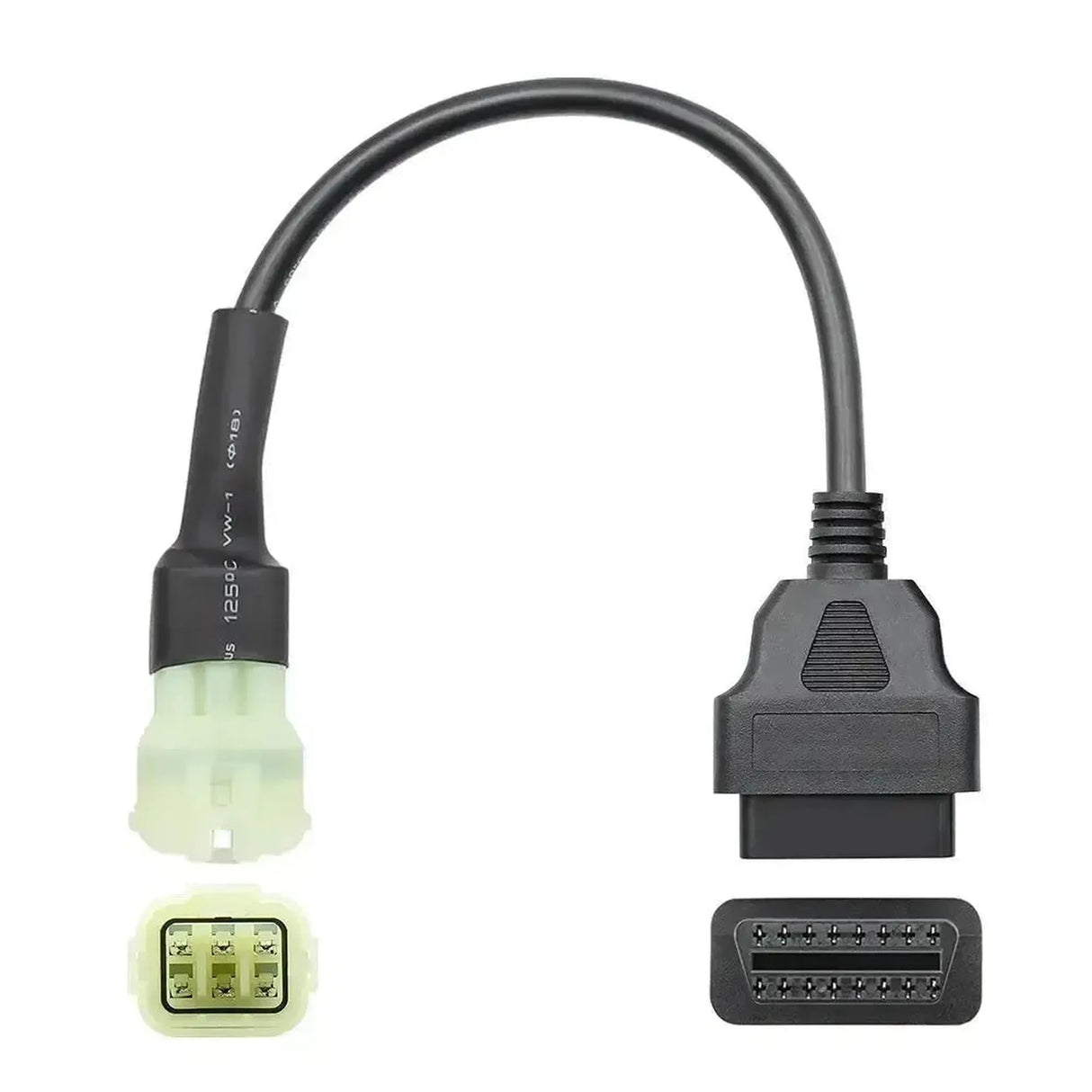

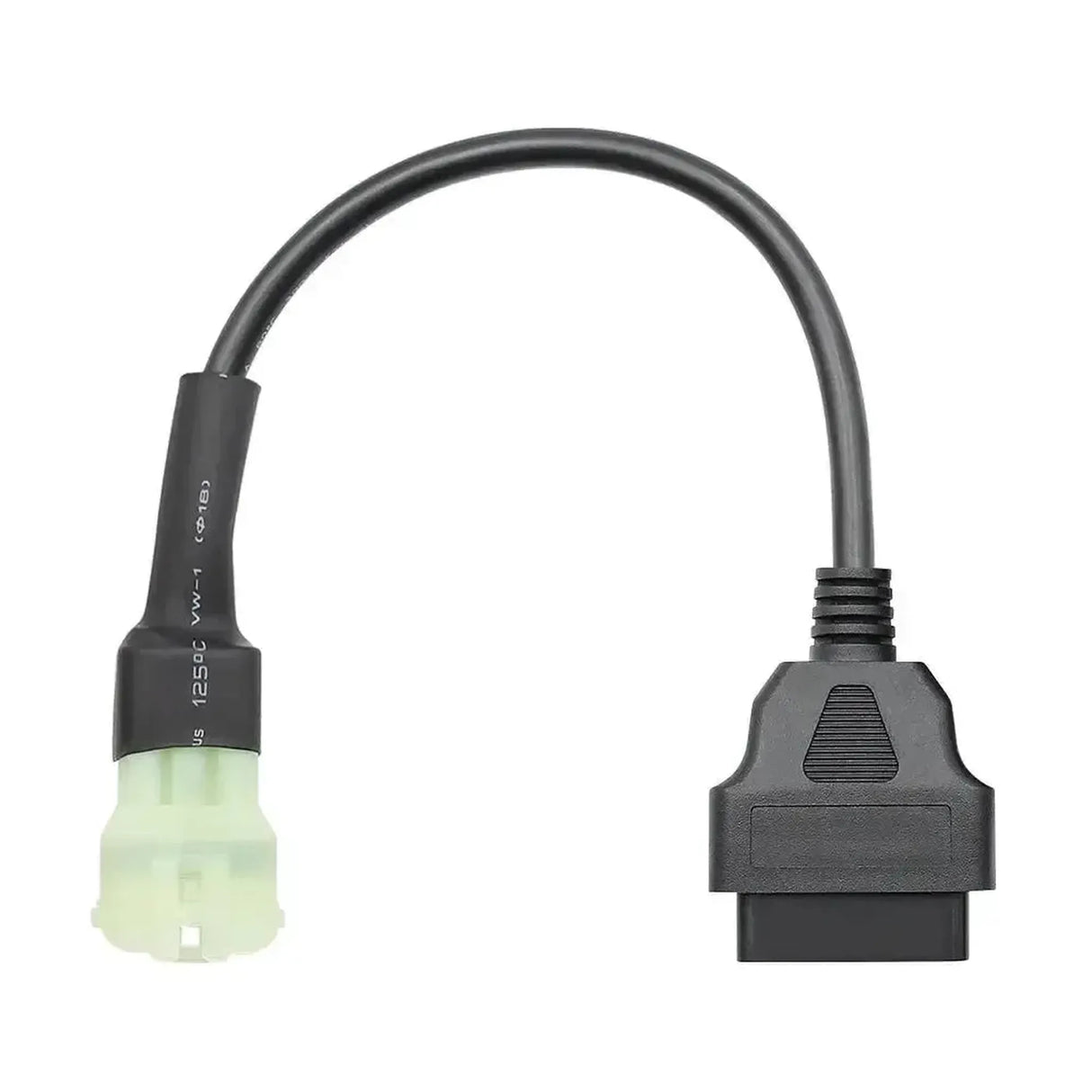

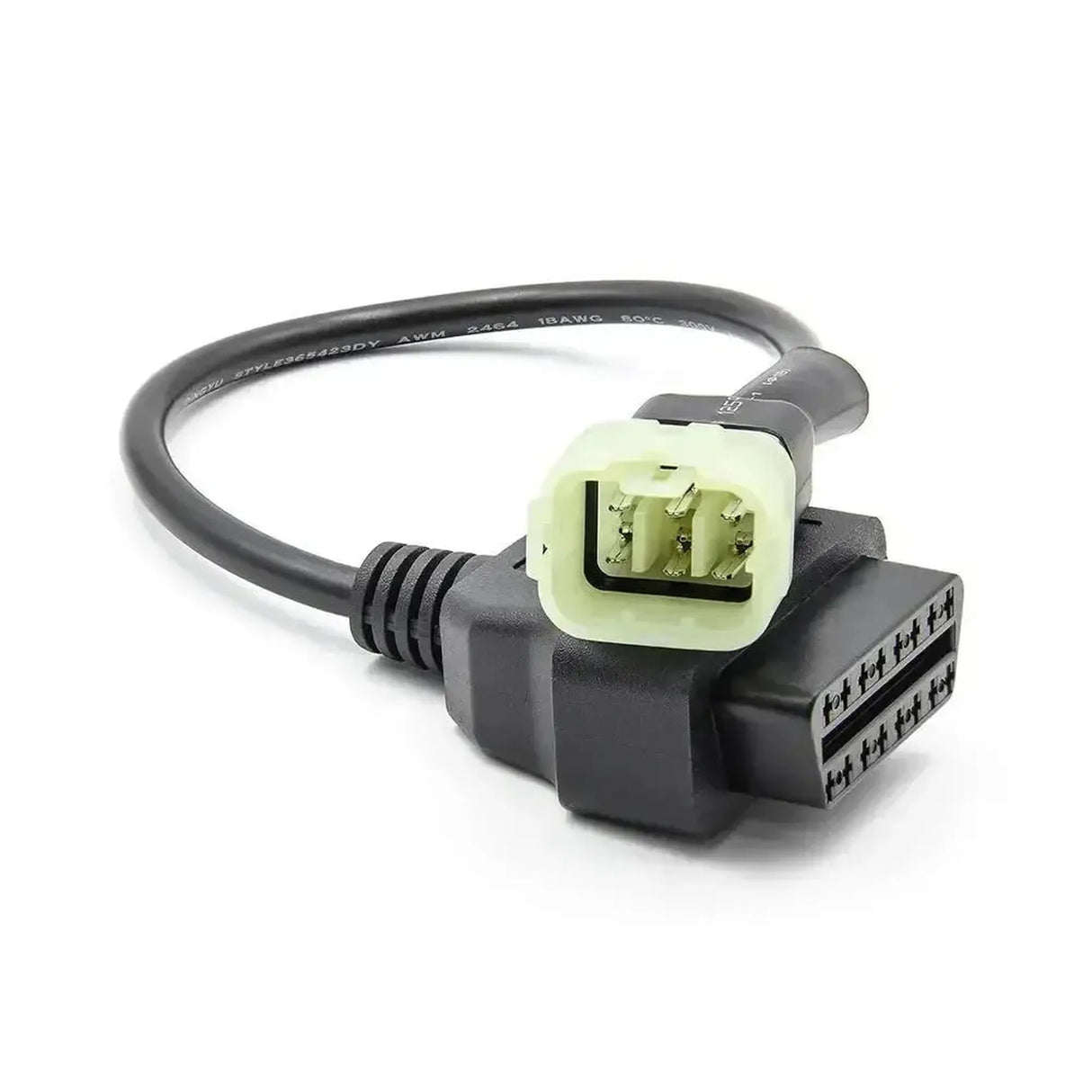

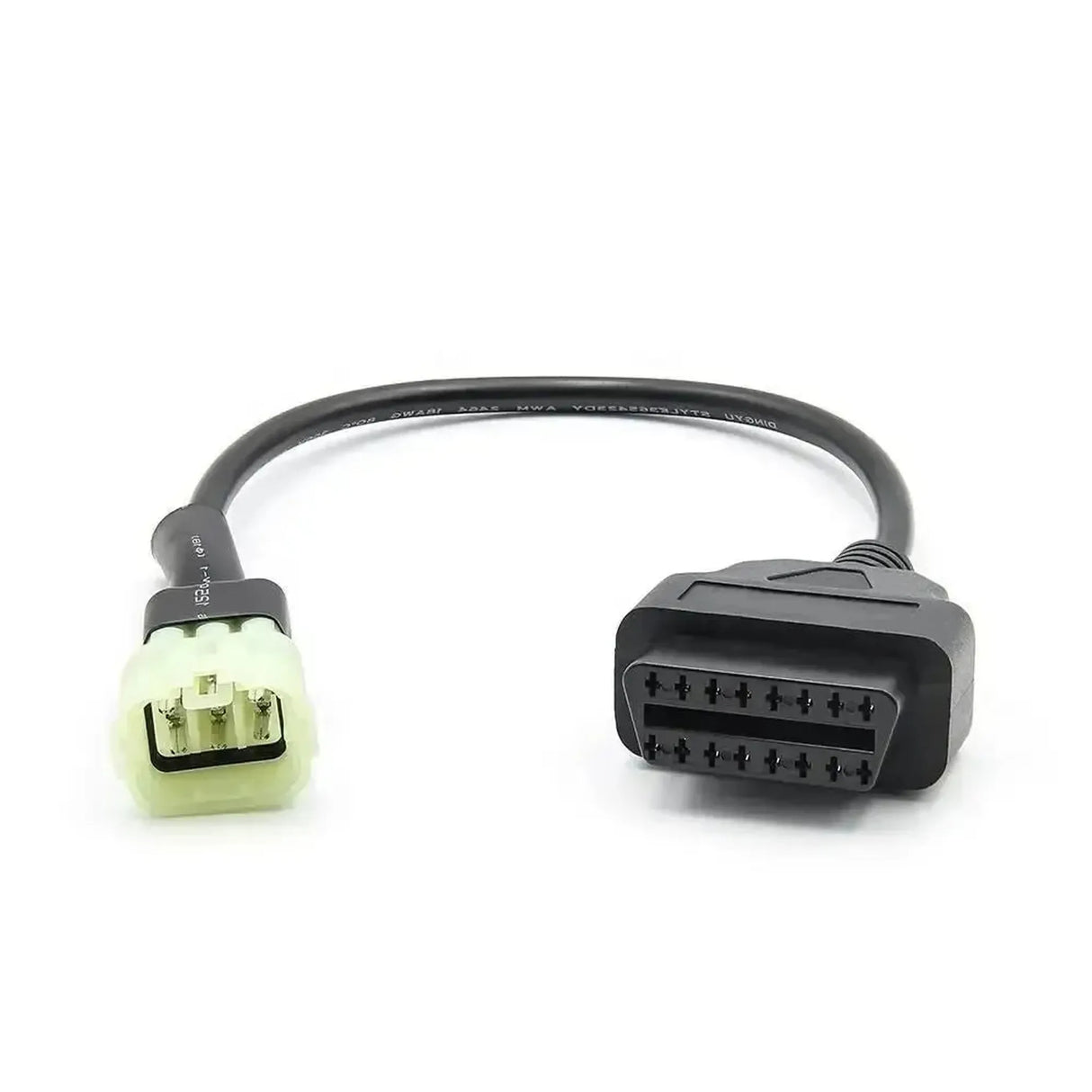

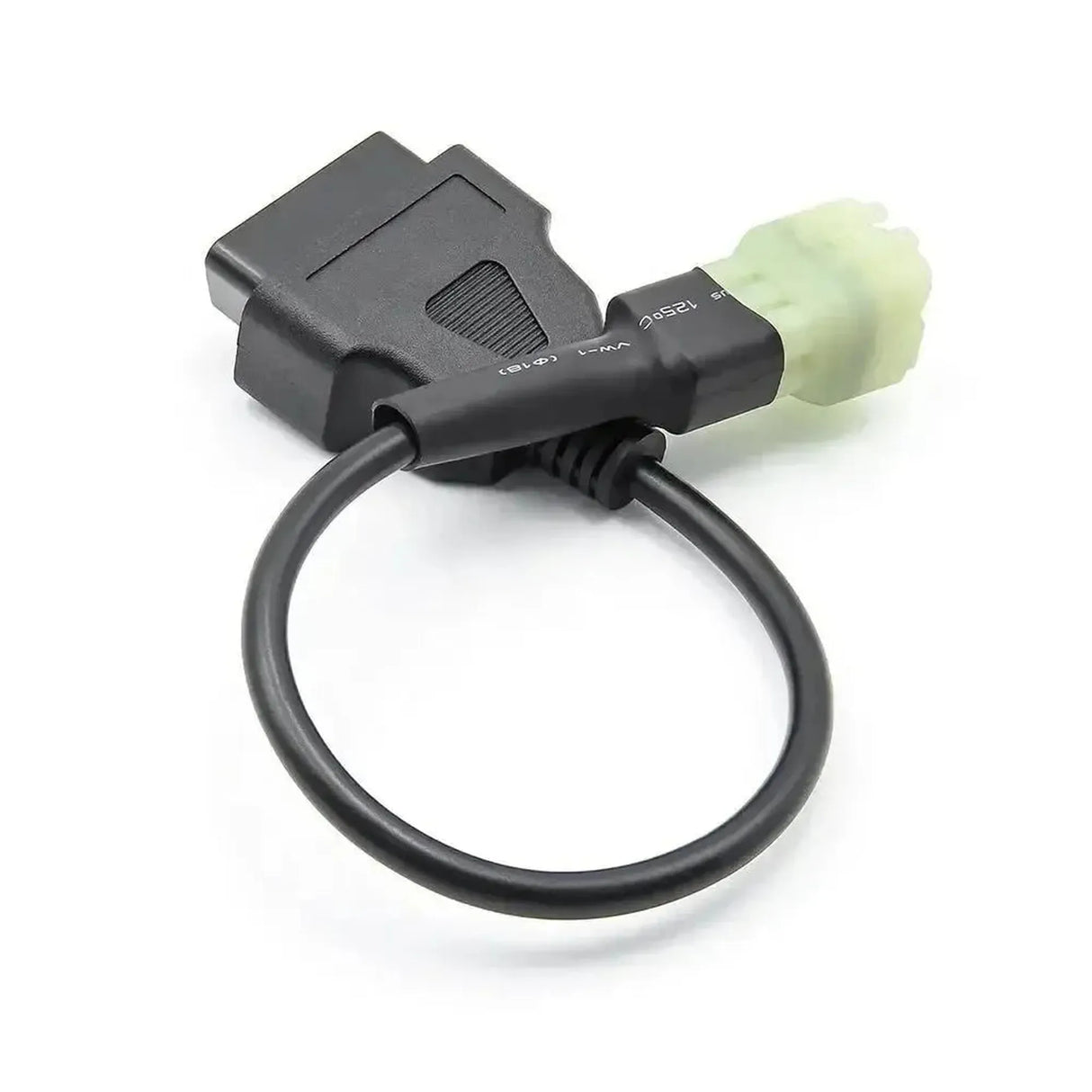

KTM 6-pins OBD – 16-pins OBD2 Adapter Cable | Motorcycle

4 reviews
€9,95 incl.
€8,22 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

This adapter cable connects the 6-pin diagnostic port of KTM motorcycles to a diagnostic tool with a 16-pin OBD2 connector. On most models the port is located under the seat, often under the pillion seat.

Without this cable, your OBD2 diagnostic tool will not fit the motorcycle. With the cable you can read fault codes and live data from the engine management system, and with suitable software you can also access the ECU. The cable supports K-Line and CAN-BUS and only physically converts the connector. The diagnostic tool must itself handle KTM diagnostics.

ADVANTAGES

✔Makes the 6-pin KTM port accessible for your existing OBD2 diagnostic tool or interface.
✔Suitable for models from the 690 Duke to the 1290 Super Duke R and the Adventure range.
✔The port carries both K-Line and CAN-BUS, depending on the model.
✔The cable operates passively: it requires no software or electronics of its own.

POINTS TO NOTE

✕Your diagnostic tool must support KTM diagnostics via this 6-pin port; the cable does not convert protocols.
✕A simple EOBD code reader for passenger cars does not work via this cable.
✕Euro 5 KTM models have a different 6-pin port and require their own cable.
✕Which systems you can access varies by model, year of manufacture and diagnostic tool.

Applications and functions

This cable is intended for workshops and motorcyclists who read out a KTM with the 6-pin port.

Control units you can access

  • Engine management: Injection, ignition and throttle valve.
  • ABS: On models with ABS.
  • Other modules: Depending on model.

What you can do

  • Fault codes: Read and clear per system.
  • Live data: View current sensor values.
  • Vehicle info: Retrieve software and ECU data.
  • Service reset: Where the diagnostic tool offers it.

How to use it

  1. Locate the port: Remove the seat and find the 6-pin connector.
  2. Remove the cap: Take off the protective cap from the port.
  3. Connect: Insert the 6-pin connector of the cable into the port.
  4. Connect the diagnostic tool: Attach the 16-pin connector.
  5. Read out: Switch the ignition on and select KTM and the model.

Compatible vehicles and applications

Decisive is the 6-pin KTM diagnostic port from before Euro 5. The cable is suitable for, among others, the following models:

KTM:

  • 1190 Adventure: From model year 2013.
  • 1050 Adventure: From model year 2015.
  • 1090 Adventure: From model year 2017.
  • 1290 Super Duke R: 2014 to 2020.
  • 1290 Super Duke GT: 2016 to 2021.
  • 690 Duke and 690 Duke R: From model year 2016.
  • 690 Enduro R and 690 SMC R: 2019 to 2021.
💡
Good to know: The 6-pin port is usually under the pillion seat, often beneath a protective cap. If in doubt, first check under the seat: Euro 5 models have a different connector.

Package contents

  • 1x KTM 6-pin OBD – 16-pin OBD2 Adapter Cable | Motorcycle

Technical specifications

General

The brand of the cable or adapter. It often has to match the brand of your diagnostic tool.Brand
AsTools
The type of product: a separate adapter cable, an adapter without a cable or a complete set.Product type
Adapter cable

Connections

The connector on the side of your diagnostic tool or interface. Usually a 16-pin OBD2 connector.Tool-side connector
16-pin OBD2 (J1962)
The data lines through which the cable passes signals. The vehicle and the tester must use the same communication method.Communication
  • K-line
  • CAN-bus

Other specifications

Application
KTM motorcycles with the 6-pin diagnostic port
Vehicle-side connection
6-pin (KTM)
Device-side connection
16-pin OBD2 (J1962)
Operation
Passive, no protocol conversion
