AsTools | SKU:
A0032

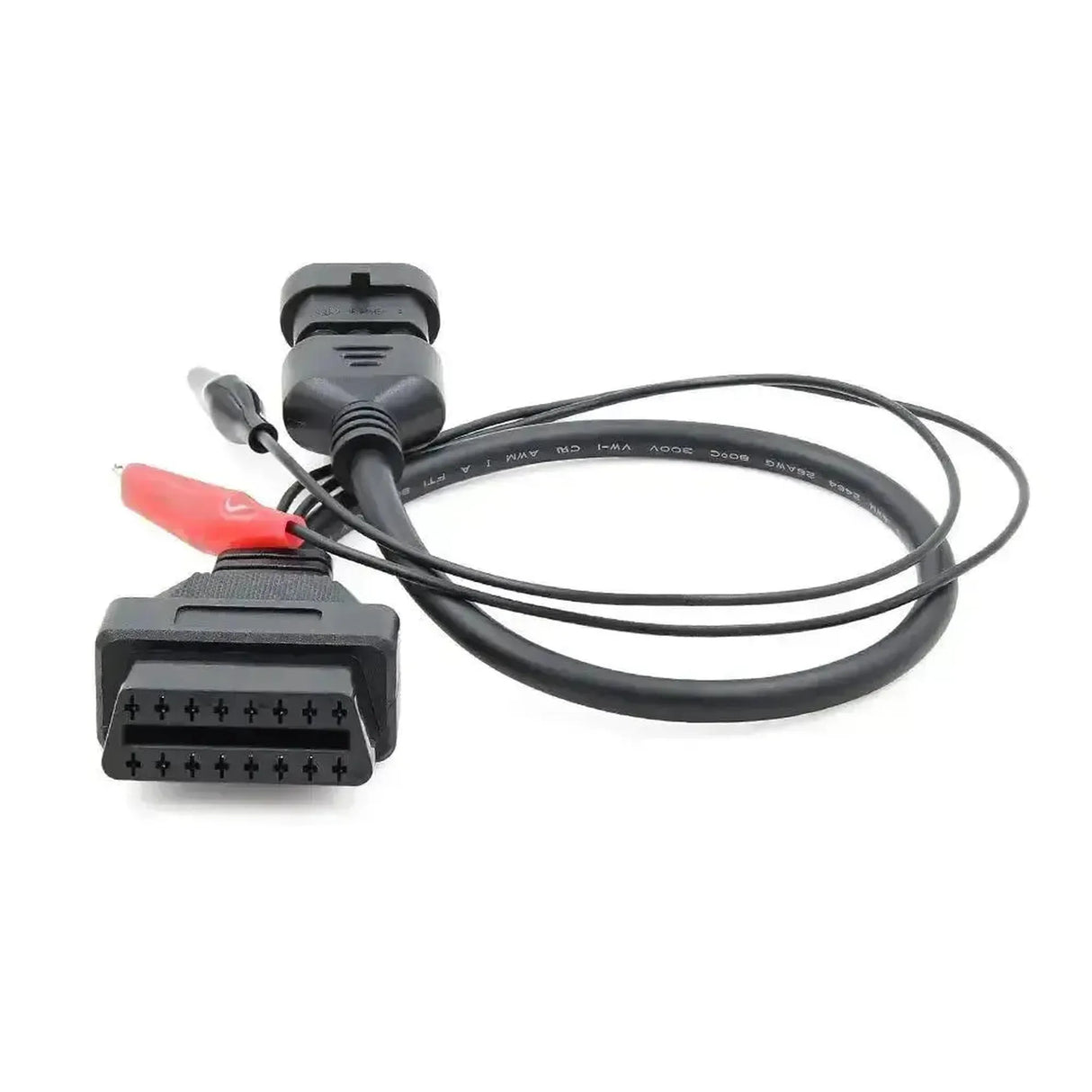

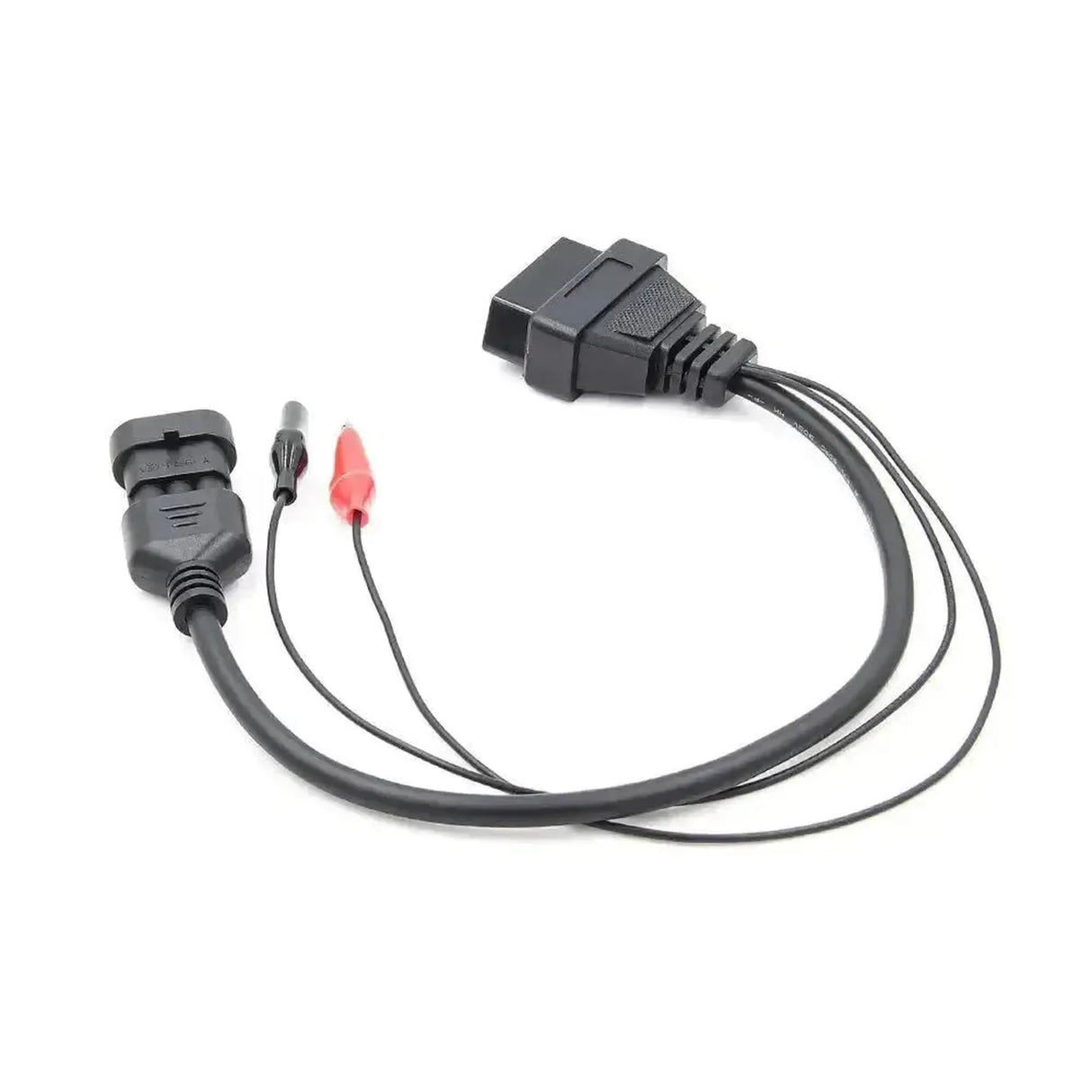

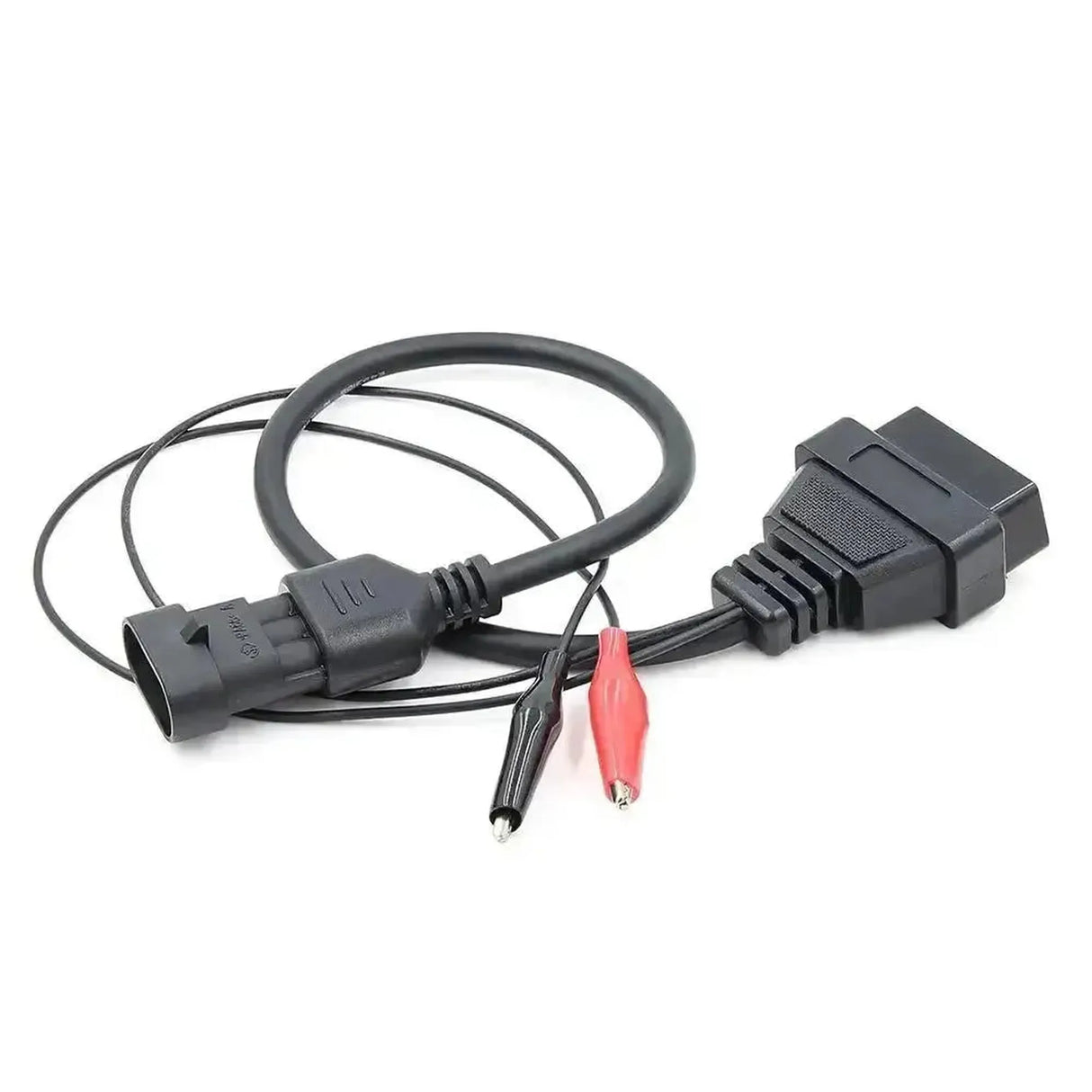

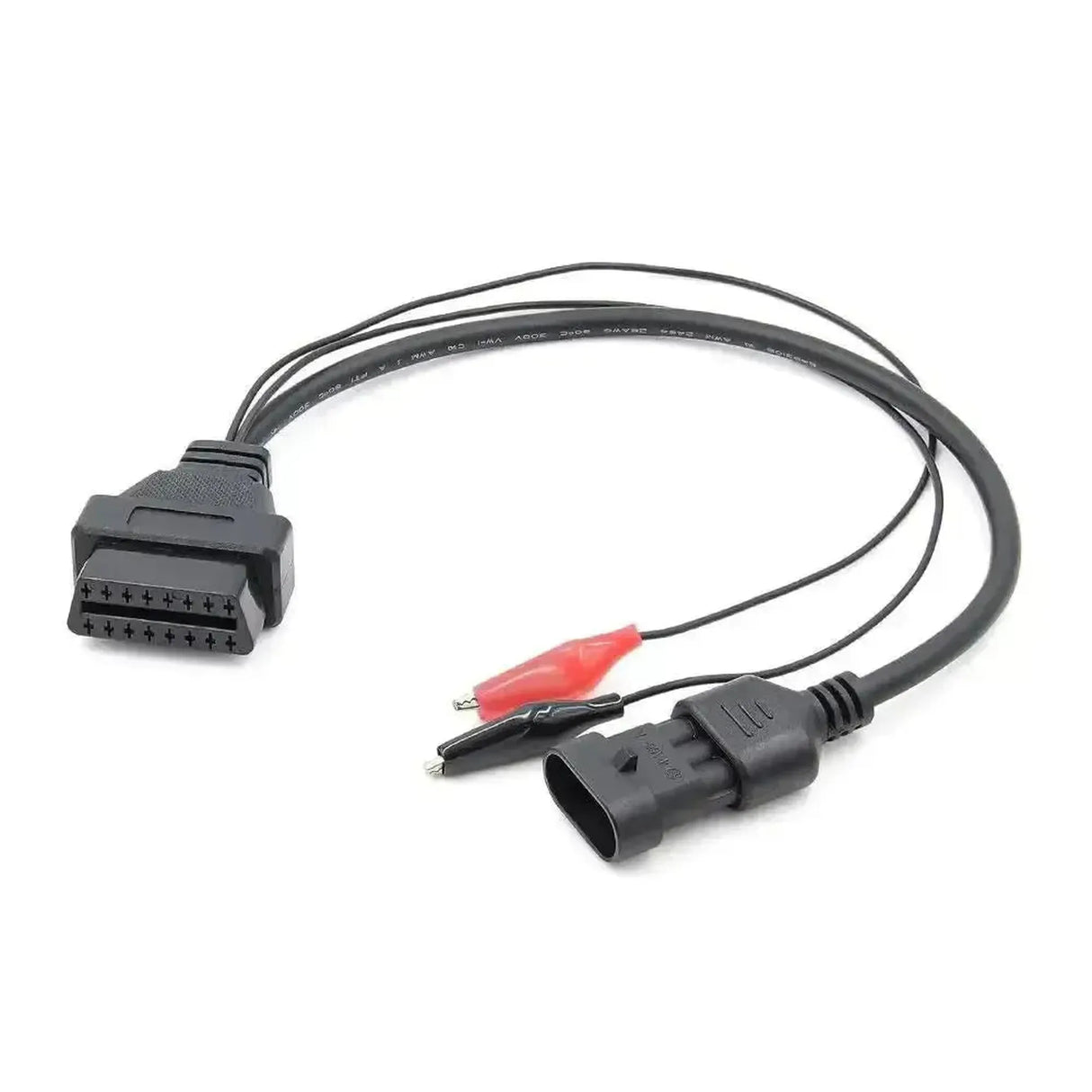

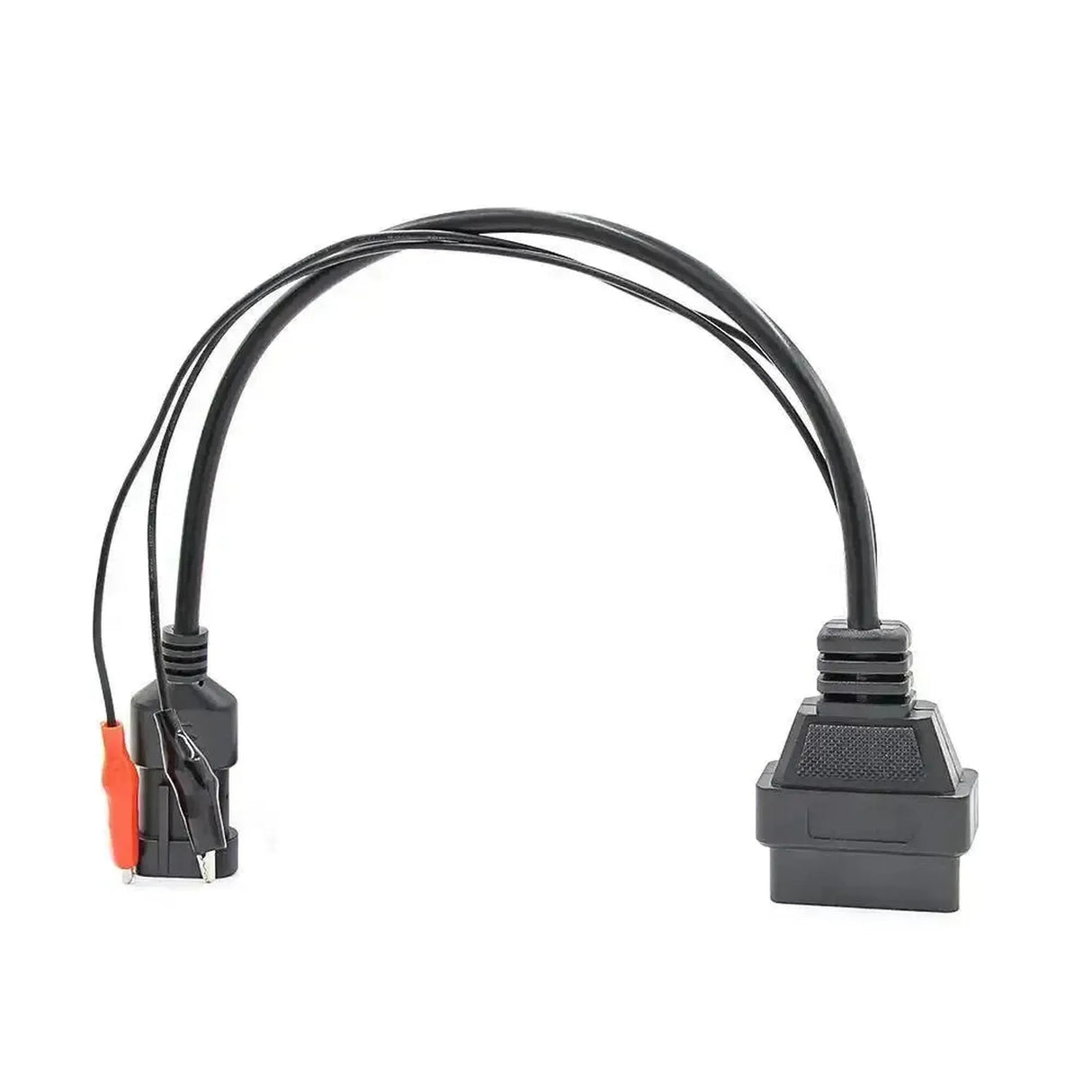

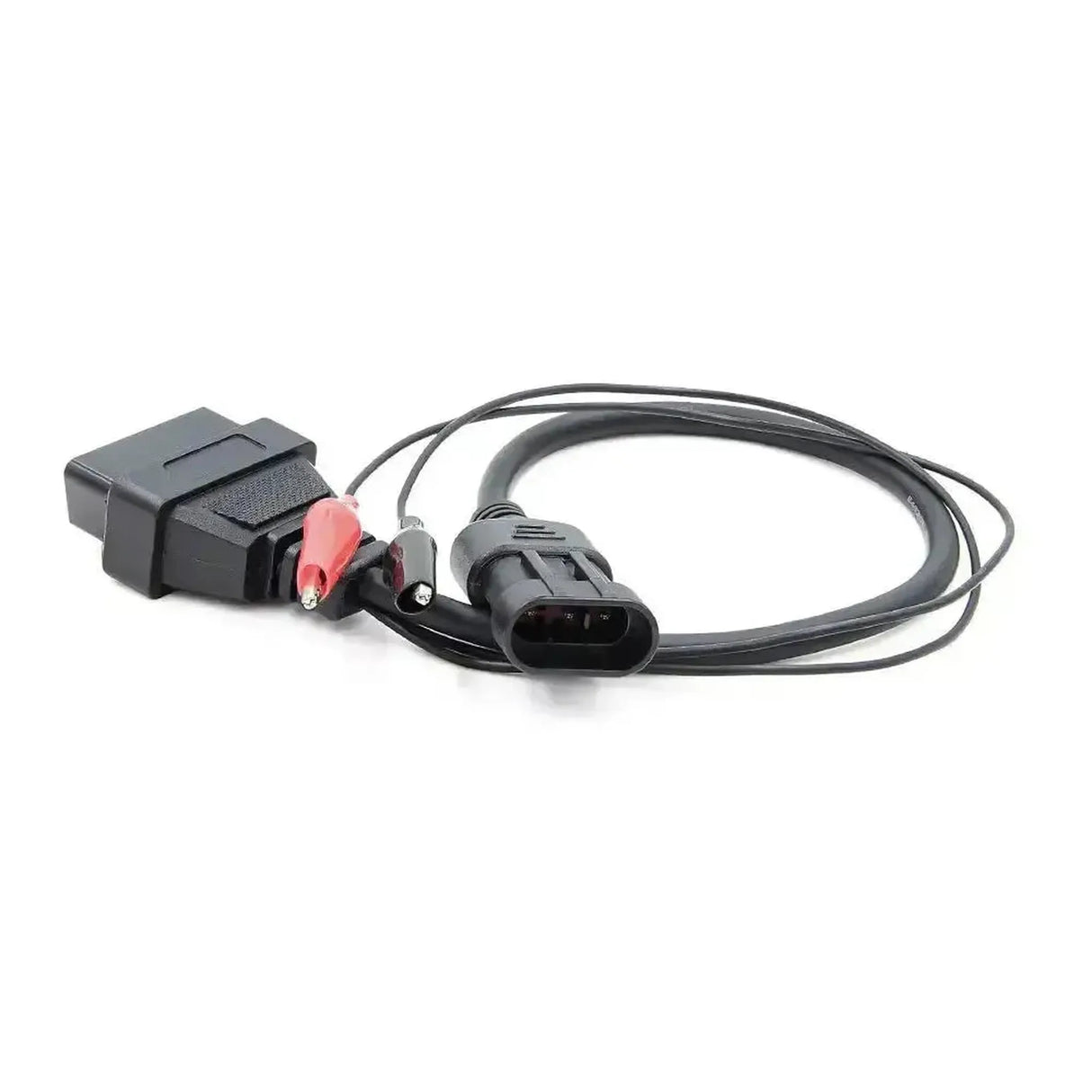

Alfa Romeo/Fiat/Lancia 3-pin OBD1 – 16-pin OBD2 Adapter Cable | Passenger Vehicle
Regular price
€9,95 incl.
€8,22 excl.
Unit price
Translation missing: en.products.product.price.unit_price_separator
Unavailable
Warranty directly via AsTools
Warranty directly via AsTools
We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.
2 years warranty on all products
2 years warranty on all products
All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.
Easy returns
Easy returns
You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.
Professional customer service
Professional customer service
Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!
AsTools | SKU:
A0032
Regular price
€9,95 incl.
€8,22 excl.
Unit price
Translation missing: en.products.product.price.unit_price_separator
Unavailable
The Alfa Romeo, Fiat and Lancia 3-pin to 16-pin OBD2 adapter cable connects older vehicle models to modern diagnostic equipment. This adapter bridges the vehicle-specific OBD1 connector with a standard OBD2 interface. This enables you to use brand-specific diagnostic software on passenger cars from before the universal OBD2 standardization.
The interface reliably transmits communication signals from the 3-pin diagnostic port to the connected diagnostic scanner. Since the old 3-pin port doesn't supply operating voltage, the cable features two crocodile clamps. These clamps connect directly to the 12V vehicle battery to supply the connected diagnostic device with the required power supply.
KEY FEATURES
✔ Enables communication with older vehicle modules via OBD2.
✔ Powers the diagnostic scanner through external battery clamps.
✔ Ready to use without configuration or software installation.
✔ Standard 16-pin OBD2 port compatible with any common diagnostic cable.
IMPORTANT NOTES
✕ Always requires connection of an external 12V power source.
✕ Does not support modern or broadband CAN-bus networks.
✕ Diagnostic capabilities depend entirely on the diagnostic software used.
Features and Functions
This adapter cable supports basic and advanced diagnostic functions for pre-OBD2 vehicles from the Fiat group.
- Read fault codes: Access stored diagnostic trouble codes within the engine control unit (ECU).
- Live data: Real-time display of available sensor readings while the engine is running.
- Service reset: Support for resetting maintenance intervals using compatible diagnostic equipment.
- Actuator testing: Ability to control specific components when using specialized software such as MultiECUScan.
Compatible Vehicles and Applications
This adapter is specifically designed for vehicles equipped with a 3-pin diagnostic connector.
Alfa Romeo:
- 145 / 146: (1994 - 2000)
- 155: (1992 - 1998)
- GTV / Spider (916): (1995 - 2000)
Fiat:
- Bravo / Brava: (1995 - 2001)
- Cinquecento: (1991 - 1998)
- Punto (176): (1993 - 1999)
Lancia:
- Dedra: (1989 - 1999)
- Delta II: (1993 - 1999)
- Y (840): (1995 - 2003)
💡
Good to know: On these models, the 3-pin diagnostic connector is typically located in the engine bay, near the engine control unit (ECU) or firewall. Always connect the battery terminals first (red to positive, black to ground) before initiating communication.
Package contents
- 1x Alfa Romeo/Fiat/Lancia 3-pin OBD1 – 16-pin OBD2 Adapter Cable | Passenger Vehicle
Technical specifications
| Specification | Description |
|---|---|
| Product type | Adapter cable (OBD1 to OBD2) |
| Vehicle-side connector | 3-pin OBD1 (Alfa Romeo / Fiat / Lancia) |
| Device-side connector | 16-pin OBD2 (J1962), female |
| Power supply | 2x alligator clips (red/black) for 12V battery |
| Compatible brands | Alfa Romeo, Fiat, Lancia (pre-OBD2) |
| Type | Passive adapter cable |
| Color | Black |
