Discover similar products: Vehicle OBD Adapter Cables & Adapters
AsTools  |  SKU: A0154

BMW 10-pins OBD – 16-pins OBD2 Adapter Cable | Motorcycle

3 reviews
€13,95 incl.
€11,53 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

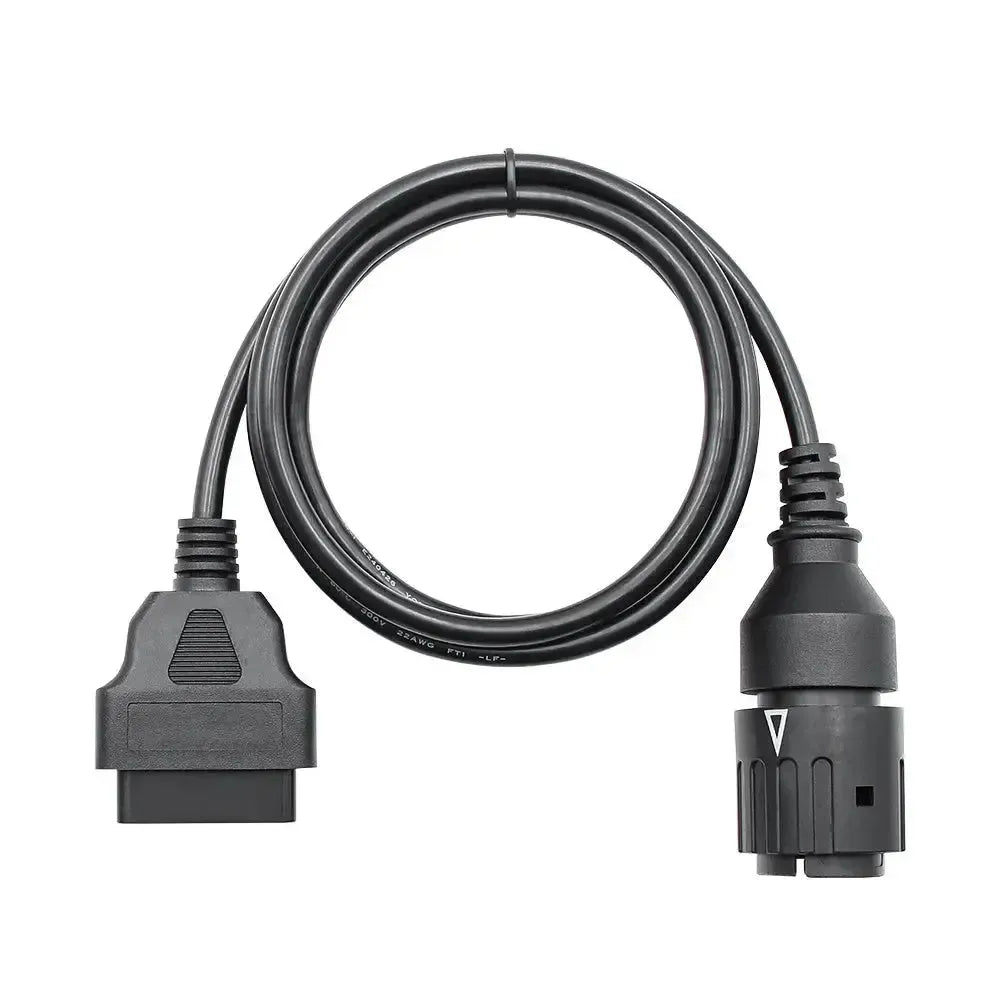

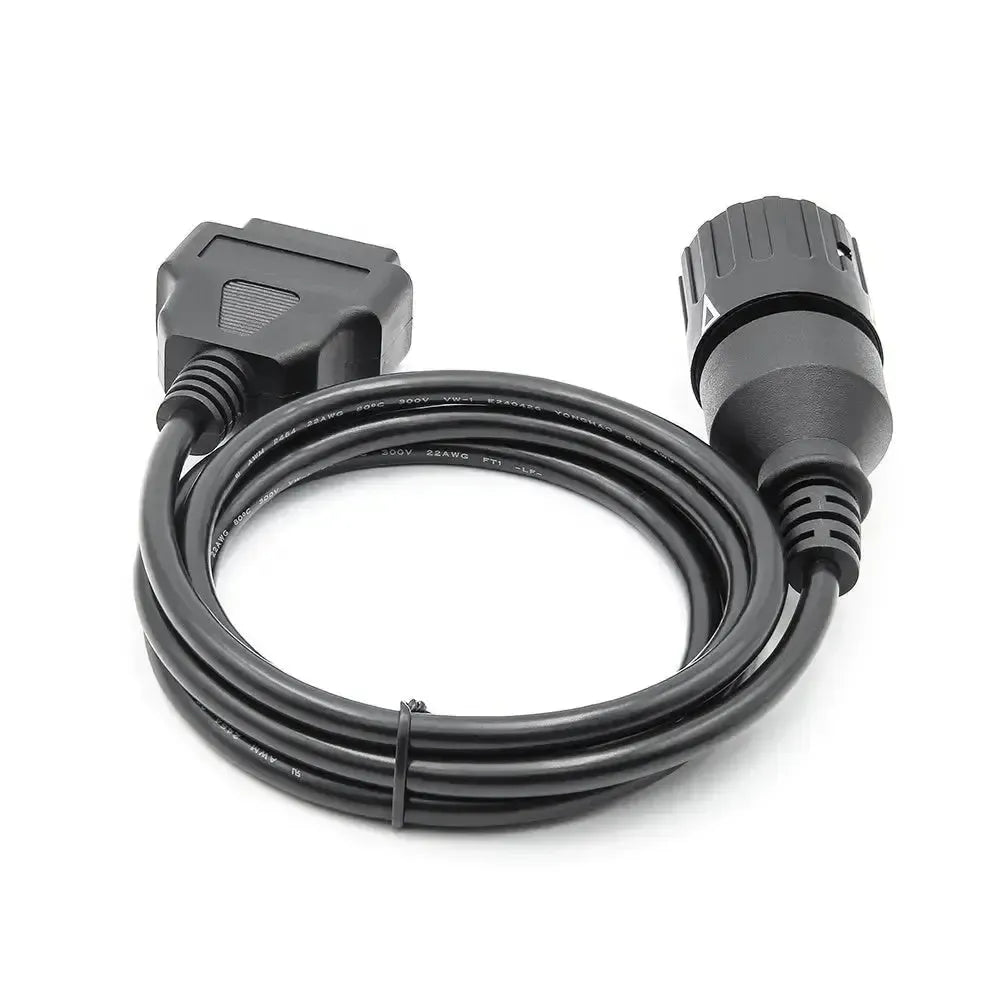

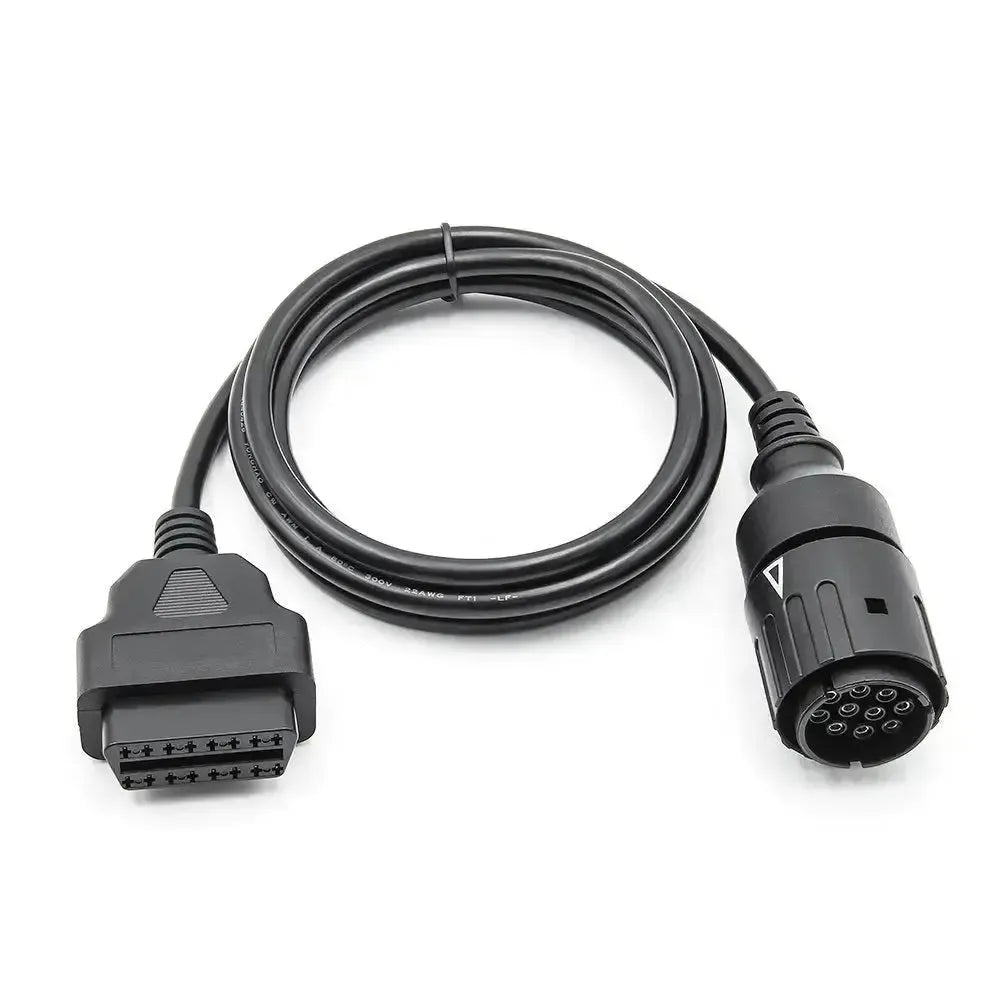

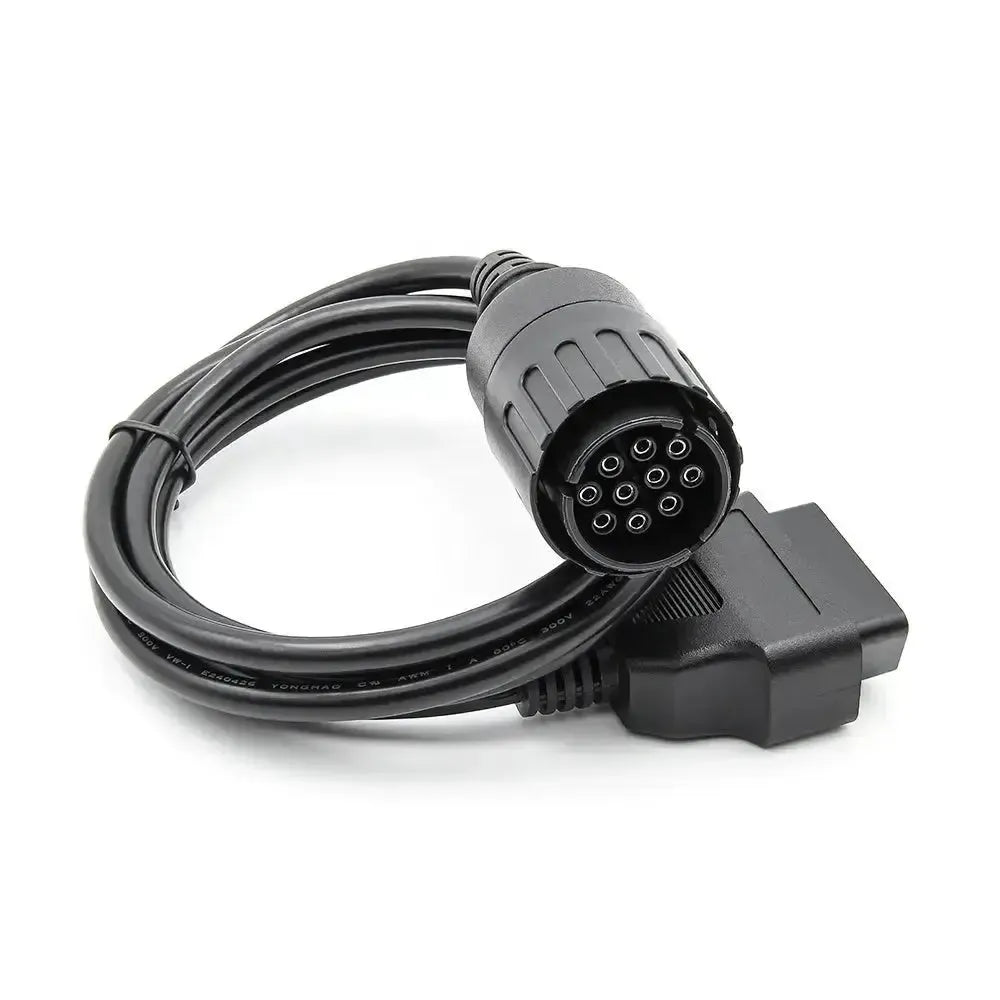

This adapter cable connects the round 10-pin diagnostic connector of BMW motorcycles to a diagnostic tool with a 16-pin OBD2 plug. The round connector is located under a cover, usually beneath the seat.

BMW used this round plug until around 2016. After that, Euro 4 models were fitted with a rectangular OBD2 connector. With the cable you can read fault codes and live data from engine management and ABS. The cable only converts the connector physically. The diagnostic tool itself must support the BMW Motorrad diagnostics.

ADVANTAGES

✔Makes the round 10-pin connector accessible for your existing OBD2 diagnostic tool or interface.
✔Suitable for many BMW models up to 2016, including the R 1200 GS, R 1200 RT, K 1600 and S 1000 RR.
✔You do not need a separate BMW testing device to reach the connector.
✔The cable works passively: it requires no software or its own electronics.

POINTS TO NOTE

✕Your diagnostic tool must support BMW diagnostics via this round 10-pin connector; the cable does not convert protocols.
✕A simple EOBD code reader for passenger cars does not work via this cable.
✕BMW motorcycles with a rectangular OBD2 connector, from around 2016, do not need this cable.
✕Which systems you can access varies by model, year of manufacture and diagnostic tool.

Applications and functions

The cable is intended for workshops and motorcyclists who read out a BMW with the round 10-pin connector.

Control units you can access

  • Engine management: Injection, ignition and throttle valve.
  • ABS: On models with ABS.
  • Other modules: Depending on model.

What you can do

  • Fault codes: Read and clear per system.
  • Live data: View current sensor values.
  • Vehicle info: Retrieve software and ECU data.
  • Service reset: Where the diagnostic tool offers it.

How to use it

  1. Locate the connector: Find the round plug, usually beneath the seat.
  2. Remove the cover: Turn or pull off the connector cover.
  3. Connect: Insert the round plug and lock it in place.
  4. Connecting the diagnostic tool: Connect the 16-pin plug.
  5. Read out: Switch the ignition on and select BMW and the model.

Compatible vehicles and applications

The deciding factor is the round 10-pin diagnostic connector. BMW used it until around 2016, including on these models:

BMW Motorrad:

  • R 1200 GS and GS Adventure (LC): 2013 to 2016.
  • R 1200 RT (LC): 2014 to 2016.
  • K 1600 GT and GTL: 2011 to 2016.
  • S 1000 RR: 2009 to 2016.
💡
Good to know: The round 10-pin connector is located under a cover, usually beneath the seat. If you find a rectangular 16-pin connector there, connect your diagnostic tool directly.

Package contents

  • 1x BMW 10-pin OBD – 16-pin OBD2 Adapter Cable | Motorcycle

Technical specifications

General

The brand of the cable or adapter. It often has to match the brand of your diagnostic tool.Brand
AsTools
The type of product: a separate adapter cable, an adapter without a cable or a complete set.Product type
Adapter cable
The types of vehicles or machinery on which the cable can be used. This shows quickly whether it suits the vehicles entering your workshop.Vehicle types
  • Motorcycle and scooter

Connections

The connector on the side of your diagnostic tool or interface. Usually a 16-pin OBD2 connector.Tool-side connector
16-pin OBD2 (J1962)

Other specifications

Application
BMW motorcycles with the round 10-pin diagnostic connector
Vehicle-side connection
10-pin round (BMW)
Device side connection
16-pin OBD2 (J1962)
Operation
Passive, no protocol conversion
