OBDSTAR | SKU: M019

OBDSTAR (M019) | KTM 6-pins OBD – 16-pins OBD2 Adapter Cable | Motorcycle

Name: OBDSTAR (M019) | KTM 6-pins OBD – 16-pins OBD2 Adapter Cable | Motorcycle
Brand: OBDSTAR
SKU: M019
Price: 26.95 EUR
Availability: InStock
Rating: 5 (1 reviews)

1 review

€26,95 incl.

€22,27 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

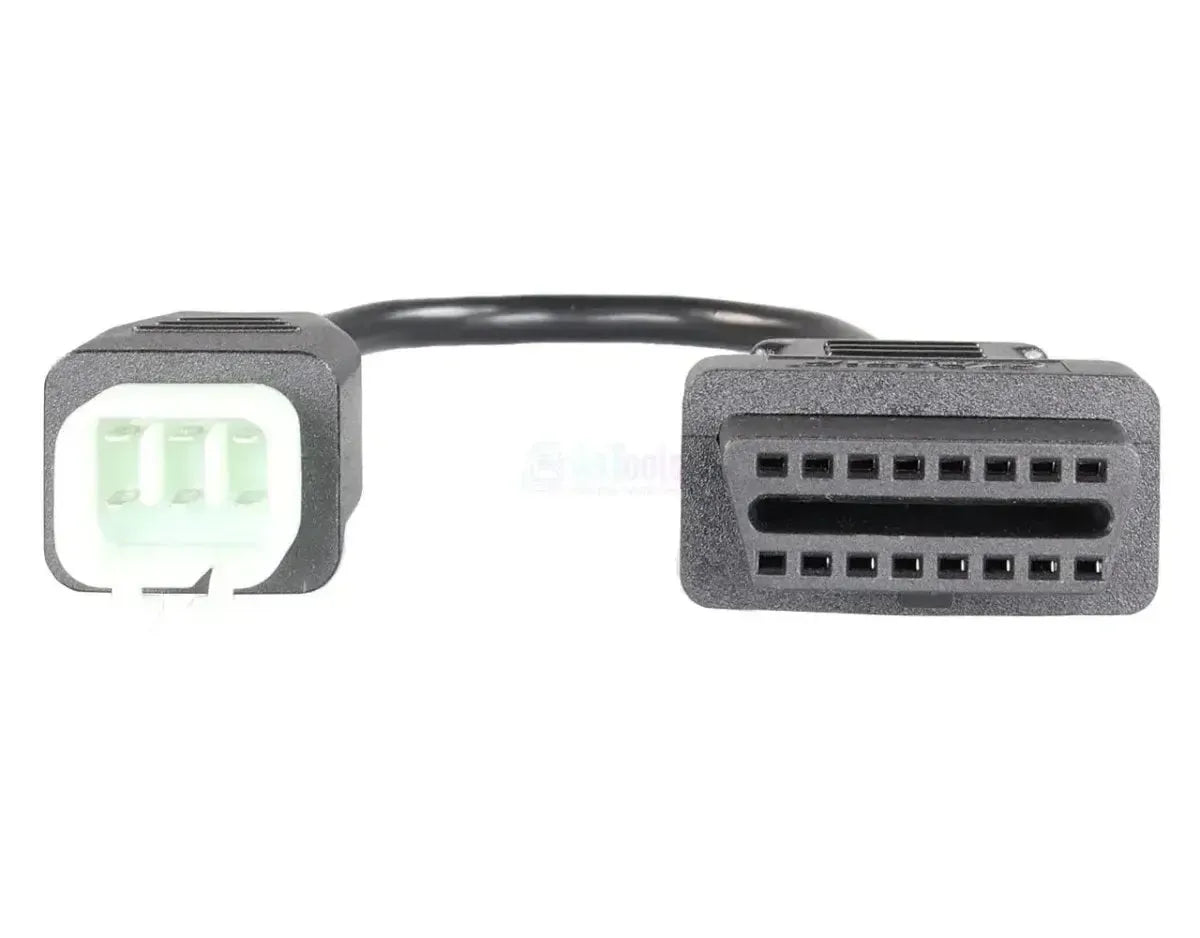

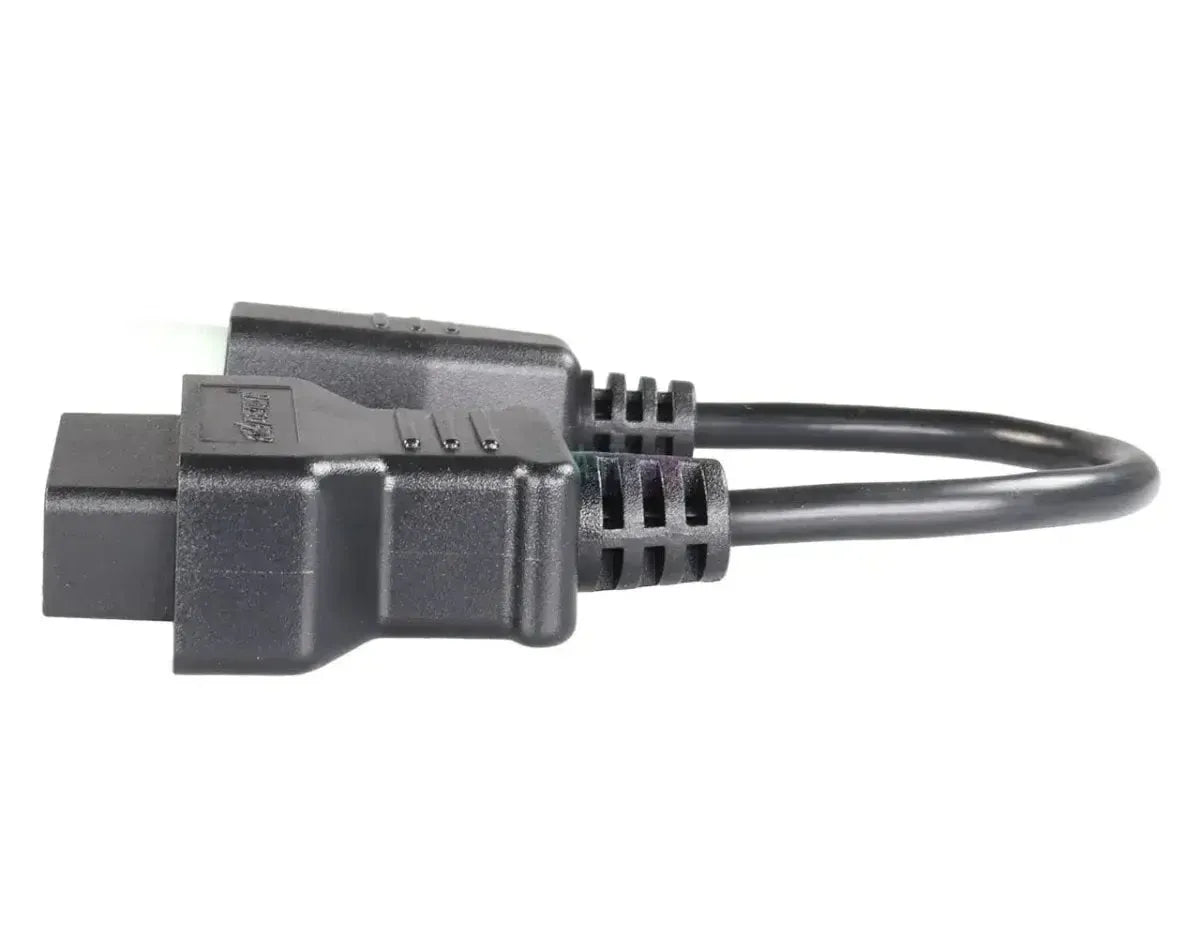

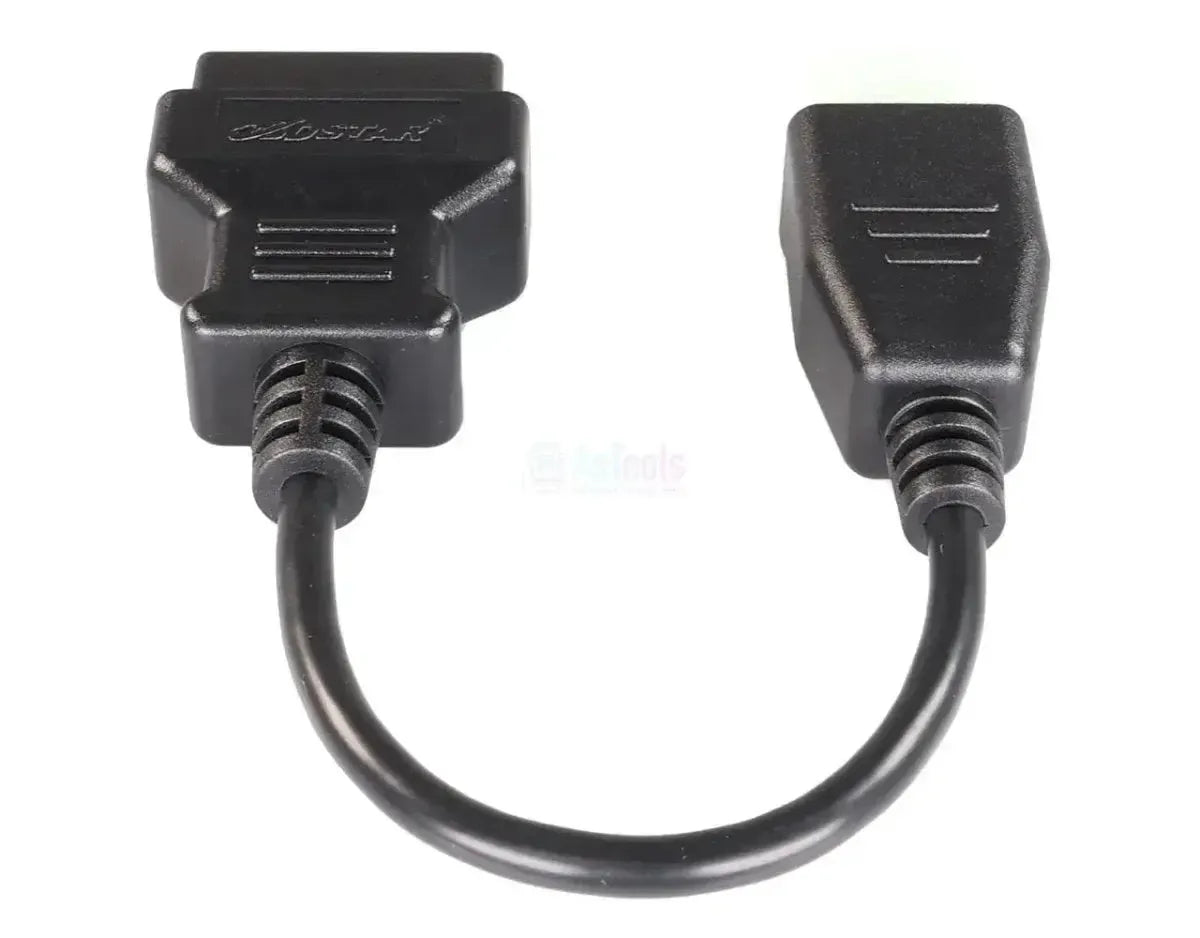

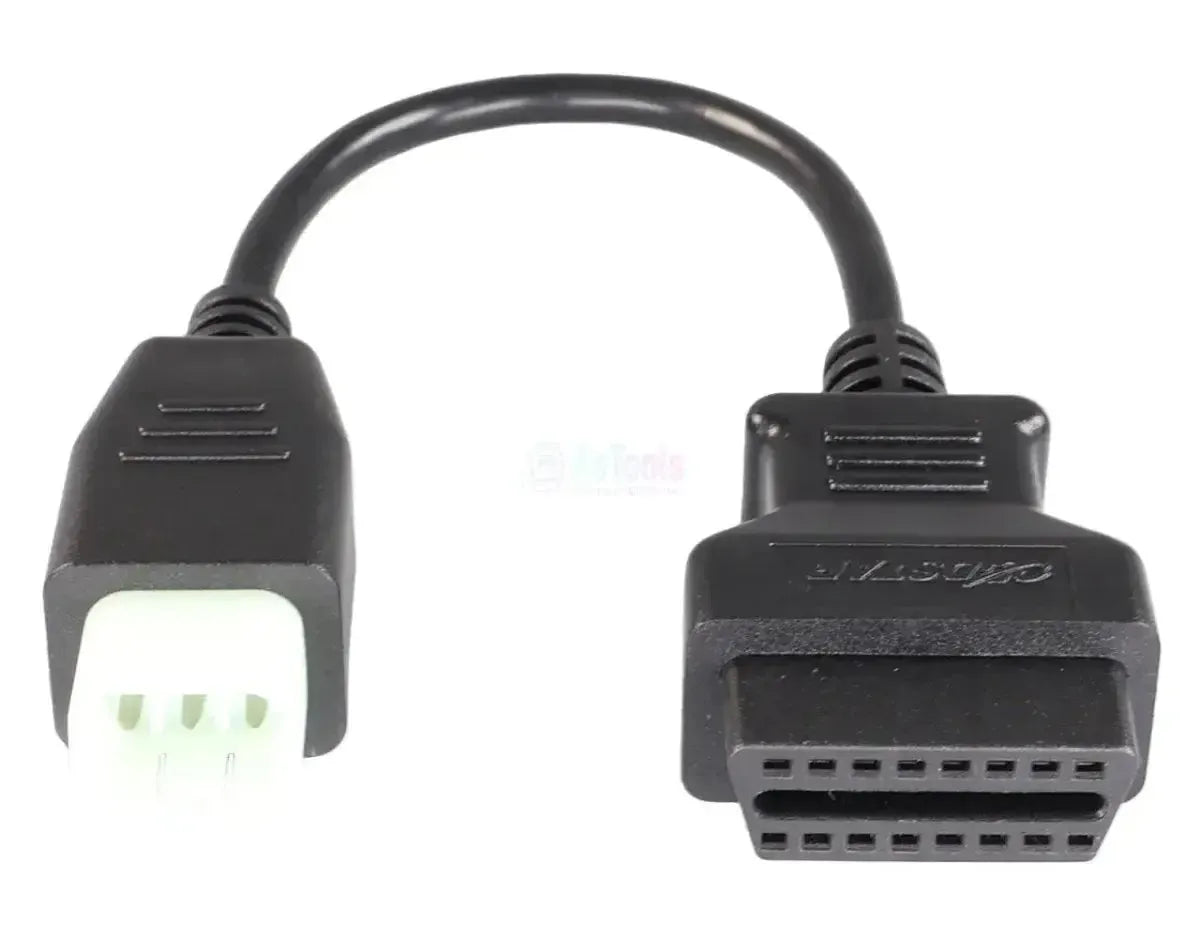

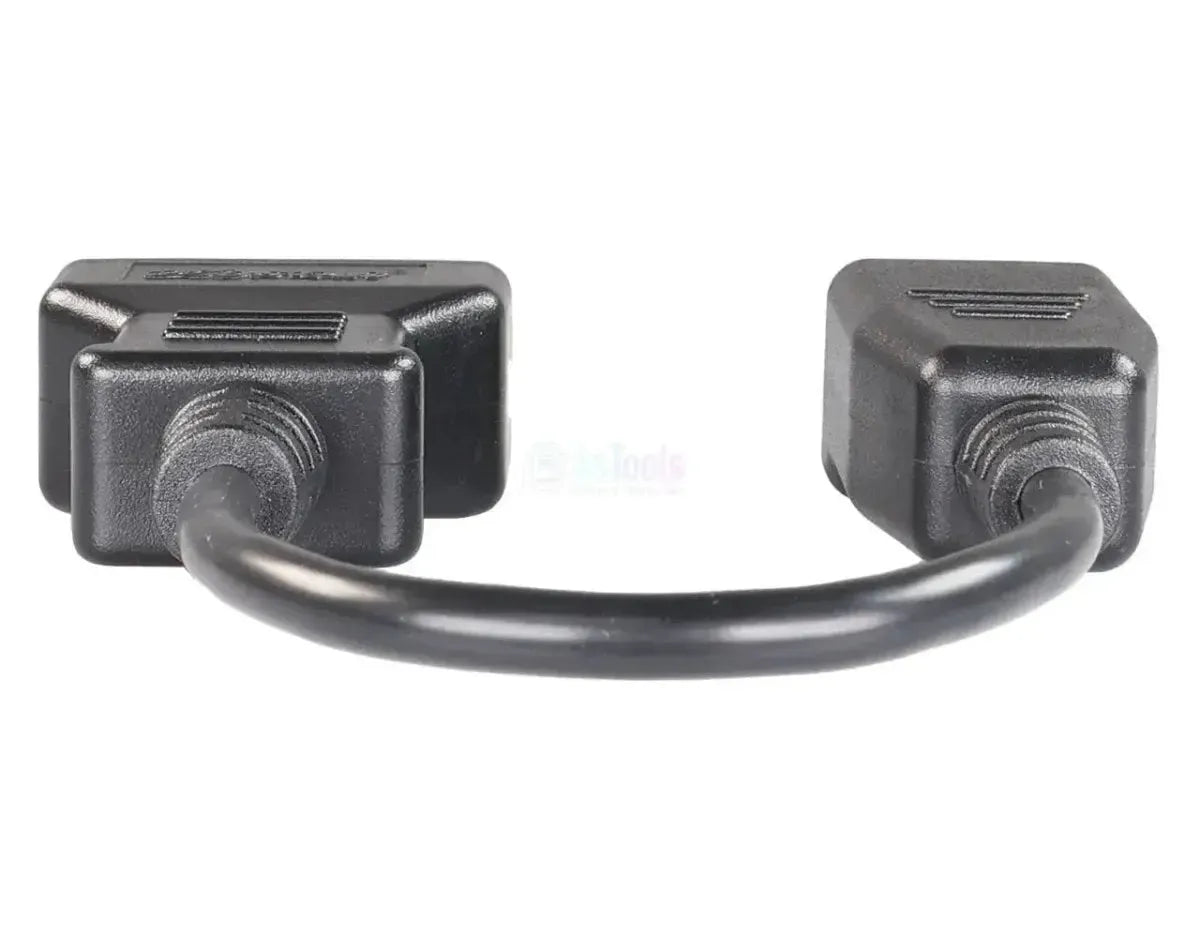

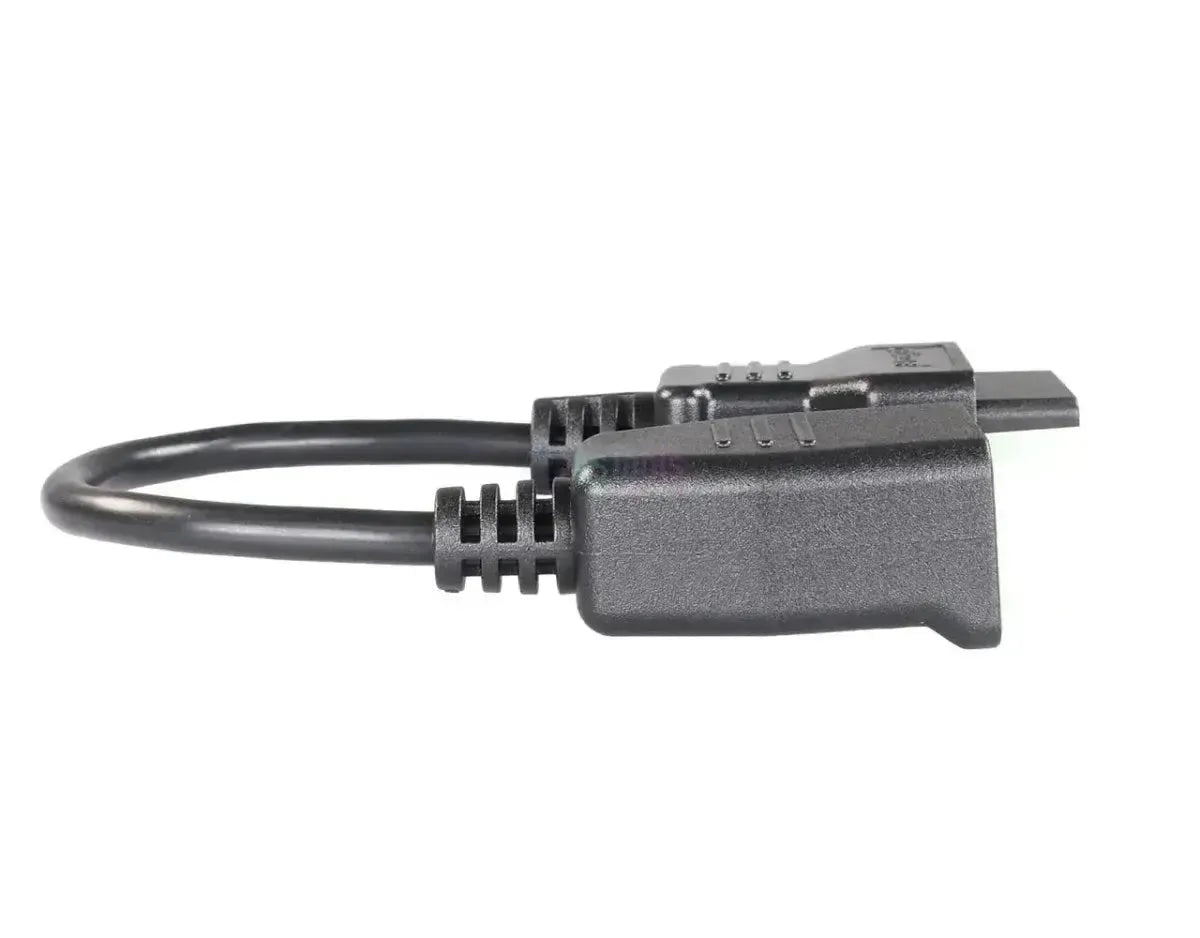

This adapter cable connects the 6-pin diagnostic connector of KTM motorcycles to the 16-pin OBD2 plug of the OBDSTAR main cable. On most models the connector is located under the seat, often under the duo seat.

Without this cable, the main cable of your device does not fit the motorcycle. With the cable you can read fault codes and live data from the engine management. The M019 is the version with a short cable; the N019 is the same connection as a compact adapter. OBDSTAR supplies the M019 with the MotoMaster. The device itself must support the KTM diagnostics.

HIGHLIGHTS

✔Makes the 6-pin KTM connector accessible for your OBDSTAR motorcycle device.

✔Suitable for KTM models from the 690 Duke to the 1290 Super Duke R and the Adventure range.

✔Original OBDSTAR cable, the same as included in the MotoMaster box.

✔Thanks to the short cable, the main cable does not need to be connected directly to the plug on the motorcycle.

POINTS TO NOTE

✕Your device must support KTM diagnostics via this 6-pin connector; the cable only converts the plug.

✕A simple EOBD code reader does not work with this cable; it only reads the standard OBD2 data of cars.

✕The cable is intended for the OBDSTAR main cable; operation with diagnostic readers of other brands is not confirmed.

✕Euro V models from KTM have a different 6-pin connector; for these you use the M041 or N041.

Applications and functions

The cable is intended for workshops and motorcycle riders who read out a KTM with the 6-pin connector using an OBDSTAR device.

Control units you can access

Engine management: Injection, ignition and throttle valve.
ABS: On models with ABS.
Other modules: Depending on model.

What you can do

Fault codes: Read and erase per system.
Live data: View current measured values.
Vehicle info: Retrieve ECU and software data.
Service reset: Where the device offers it.

How to use it

Locate the port: Remove the seat and find the 6-pin connector.
Connect main cable: Connect the OBDSTAR main cable to the device.
Connect: Plug the cable into the main cable and into the 6-pin plug.
Ignition on: Switch the ignition on without starting the engine.
Read out: Select KTM, the model and the system.

Compatible vehicles and applications

Decisive is the 6-pin KTM diagnostic connector from before Euro V. The cable is suitable for, among others, the following models:

KTM:

1190 Adventure: From model year 2013.
1050 Adventure: From model year 2015.
1090 Adventure: From model year 2017.
1290 Super Duke R: 2014 to 2020.
1290 Super Duke GT: 2016 to 2021.
690 Duke and 690 Duke R: From model year 2016.
690 Enduro R and 690 SMC R: 2019 to 2021.

💡

Good to know: The 6-pin connector is usually located under the duo seat, often under a protective cap. If in doubt, first check under the seat: Euro V models have a different plug, for which the M041 or N041 is intended.

Package contents

1x OBDSTAR (M019) | KTM 6-pin OBD – 16-pin OBD2 Adapter Cable | Motorcycle

Technical specifications

General

The brand of the cable or adapter. It often has to match the brand of your diagnostic tool.Brand: OBDSTAR
The type of product: a separate adapter cable, an adapter without a cable or a complete set.Product type: Adapter cable

Suitable for

The brand of diagnostic tool the cable works with. A cable for one brand usually does not fit a tester of another brand.Compatible diagnostic tool: OBDSTAR
Whether the cable needs a separate power connection, for example via battery clamps. A passive cable works without one.Separate power supply required: No

Connections

The connector that plugs into the diagnostic port of the vehicle or machine. It must fit exactly.Vehicle-side connector: 6-pin OBD
The connector on the side of your diagnostic tool or interface. Usually a 16-pin OBD2 connector.Tool-side connector: 16-pin OBD2
