OBDSTAR IScan Triumph | Diagnostic Tool | Motorcycle

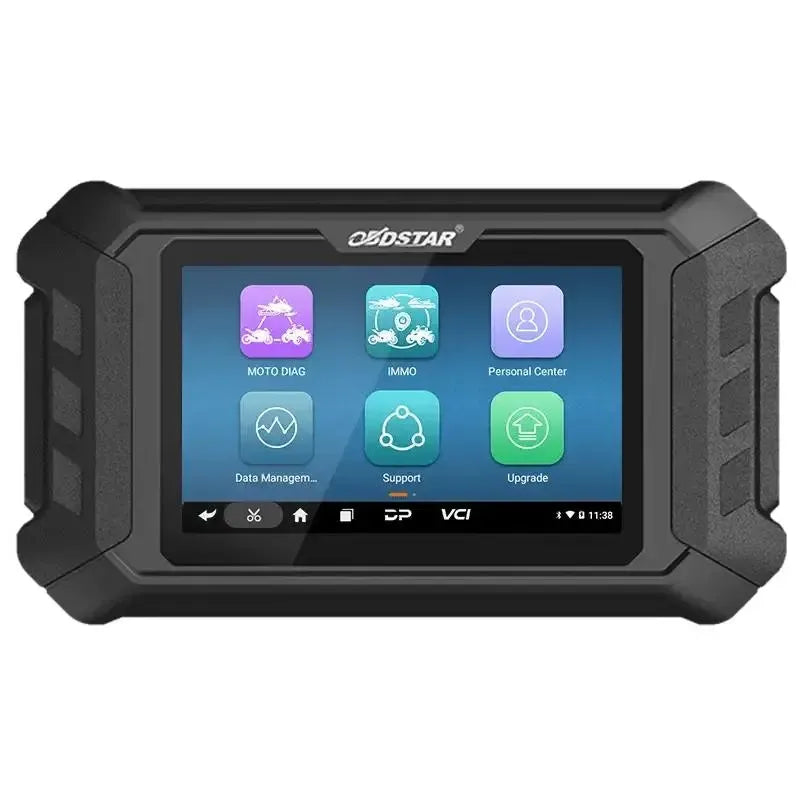

The OBDSTAR IScan Triumph is a diagnostic device for motorcycles, specifically developed for Triumph. This system is based on a tablet with Android 5.1.1, a RK3128 quad-core processor, and a 5.0-inch touchscreen. The IScan Triumph supports extensive diagnostic functions, special functions, and key programming. A 1-year license for software updates is included with purchase.

The device offers advanced capabilities such as automatic VIN identification and the display of live data in various formats, including text, waveform graphs, and instrument diagrams. Updates are performed via a Wi-Fi connection. The software also includes access to technical bulletins, troubleshooting guidance, and interactive wiring diagrams, providing support for complex diagnostic procedures.

---

Diagnostic functions:

The IScan Triumph supports reading all present control units in the motorcycle, including the ECU, ABS, and the TPMS.

• Actuator test: Controls components such as injectors, fans, or valves to verify correct operation.

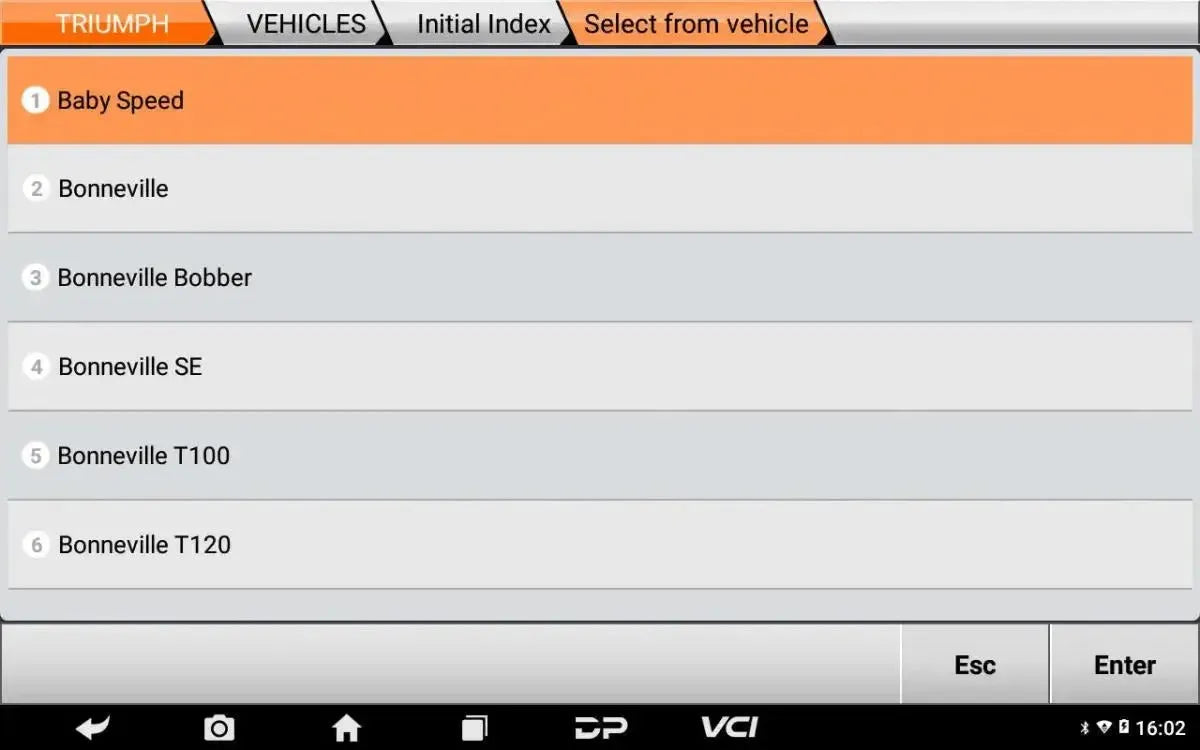

• Automatic VIN identification: Automatically identifies the motorcycle based on the chassis number for a quick system scan.
• Read and clear fault codes: Reads and clears diagnostic trouble codes (DTCs) from all available motorcycle systems.
• Live data: Displays real-time data from sensors and components in various views, such as text, graphs, and gauges.

---

Key and EEPROM functions:

The IScan Triumph offers functions for managing keys and the motorcycle's immobilizer.

Key functions:

• Key programming: Programming new or replacement keys, including support for complete key loss.
• Immobilizer functions: Pairing and managing components of the immobilizer system, such as the engine control unit and the electronic steering lock.

---

Service and maintenance functions:

This device supports more than 40 Service and maintenance functions. The available functions may vary depending on the brand, model, and year of manufacture of the motorcycle.

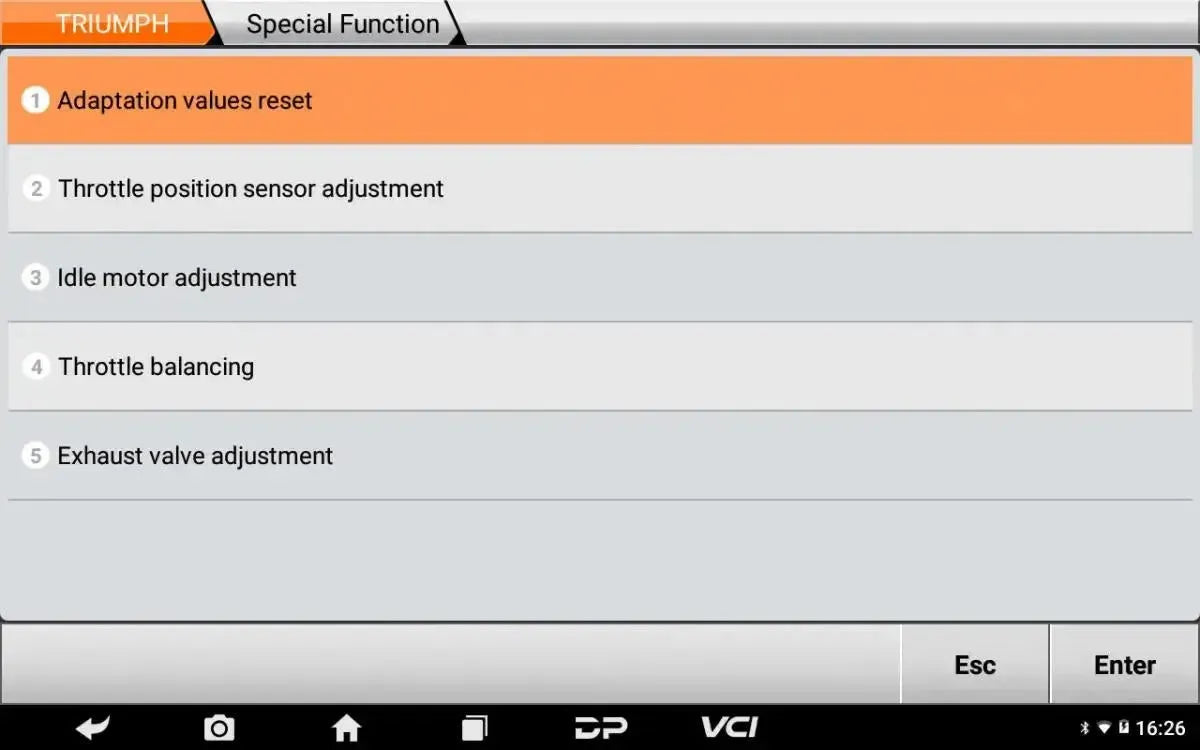

Engine and Drivetrain:

• Reset engine adaptations: Restores the learned values of the engine control unit to factory settings.
• Synchronize throttle valves: Ensures equal opening of all throttle valves for smooth engine operation.
• Adjust throttle position sensor: Calibrates the sensor that measures the position of the throttle valve.
• Learn minimum throttle valve position: Sets the base position of the throttle valve in the engine control unit.
• Adjust idle speed: Sets the engine speed when it is idling.
• Adjust stepper motor idle speed control: Calibrates the stepper motor that controls the idle speed.
• Reset gear position/neutral position adaptation: Resets the learned values for the gear position sensor.
• Learn neutral gear position: Calibrates the sensor for the neutral gear.
• Reset shift force sensor adaptation: Restores the adaptive values of the shift force sensor.
• Adjust shift pattern shift force sensor: Changes the settings for the sensitivity or pattern of the shift assistant.
• Crankshaft position adaptation: Performs a learning procedure for the crankshaft position sensor.
• Set fuel correction (long term): Sets the long-term adjustments of the fuel mixture.
• Adjust exhaust valve cables: Calibrates the cables of the throttle valve in the exhaust system.
• Unlock engine control unit (ECM): Unlocks the control unit to perform specific adjustments.
• Dealer lock status: Checks the status of the dealer lock on the control unit.

Brakes, Safety and Suspension:

• Bleed brake system: Activates the ABS pump to remove air from the brake system during bleeding.
• ABS variant coding: Configures the ABS control unit for the specific variant of the motorcycle.
• Configure ABS menu in instrument panel: Enables the display of the ABS menu on the dashboard.
• Tire Pressure Monitoring System (TPMS) on or off: Activates or deactivates the TPMS system.
• Install/replace wheel sensor(s): Registers new or replaced wheel sensor(s) in the system.
• Instrumentation for Triumph electronic suspension: Configures the settings of the electronic suspension system.

Body and Electronics:

• Set service interval: Resets or configures the maintenance reminder on the instrument panel.
• Cruise control on/off: Activates or deactivates the cruise control function in the control unit.
• Triumph Shift Assist on/off: Activates or deactivates the quickshifter function.
• Instrument panel configuration (market, pressure unit, tire pressure): Adjusts the instrument panel settings, such as region, measurement units (e.g., bar/psi), and tire pressure display.
• Set/reset odometer: Adjusts the odometer on the instrument panel.
• Adjust clock and date settings: Sets the time and date on the dashboard.
• Headlamp position adjustment: Performs a calibration for the headlamp alignment.
• Heated parts configuration: Sets the functionality of the heated grips and the heated seat.

Keys and Immobilizer:

• Key pairing: Programs new or existing keys for the immobilizer.
• Add new key: Registers an additional key in the system. Supports situations with complete key loss.
• Re-register all keys: Deletes all existing keys and registers a new set. Supports situations with complete key loss.
• Electronic steering lock pairing: Pairs a new or existing electronic steering lock to the system.
• Engine Control Module (ECM) and immobilizer pairing: Synchronizes the ECM with the immobilizer, for example after replacing one of the components.

---

Special features and capabilities:

The OBDSTAR IScan Triumph offers various advanced features for specialized tasks.

Documentation and diagrams:

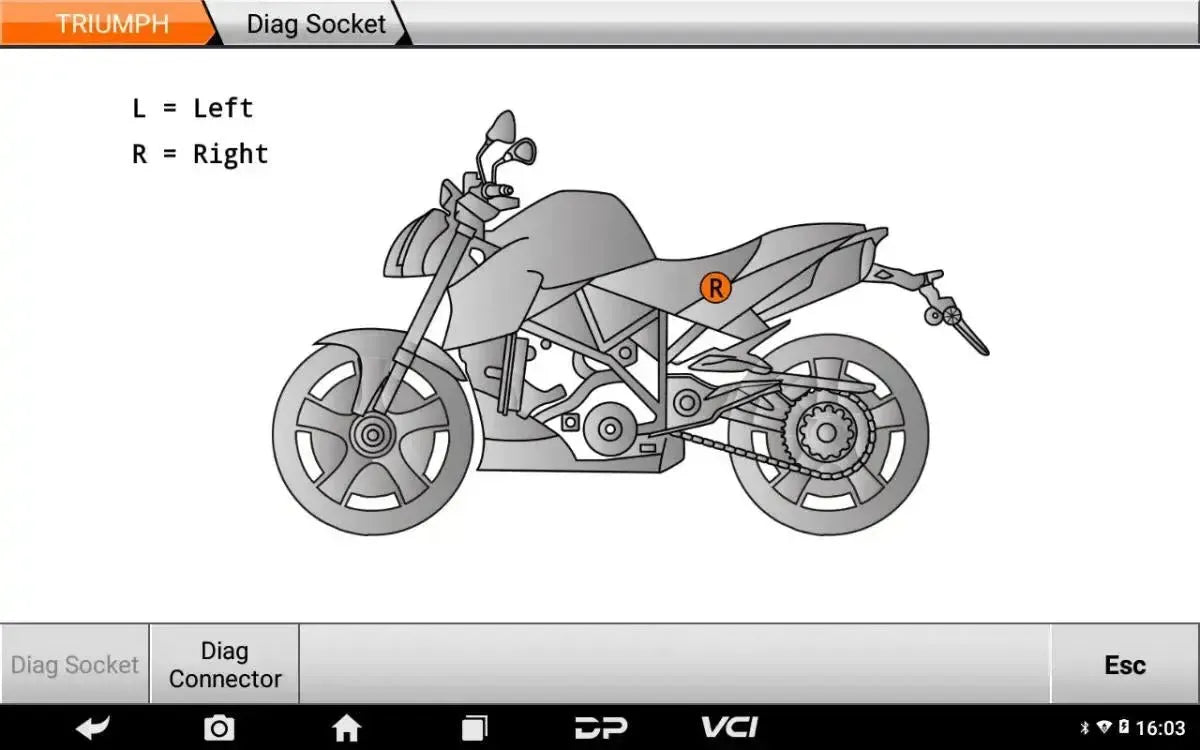

• Interactive wiring diagrams: Provide visual support for tracing electrical faults.
• Fault guidance: Offers step-by-step assistance in resolving specific fault codes.
• Technical bulletins: Provides access to manufacturer-issued technical information.

Other special features:

• ECU cloning: Enables copying data from an engine control unit to a replacement module.

---

Optional expansion modules:

Optional expansions are available for the OBDSTAR IScan Triumph in the form of hardware accessories. These are developed by OBDSTAR to enhance the application possibilities of the diagnostic device.

Hardware modules and accessories:

• M002A: A cable with battery clamps for establishing a ground (GND) connection.
• M003A: A multifunction jumper cable for making connections to specific pins on non-standard diagnostic connectors.

---

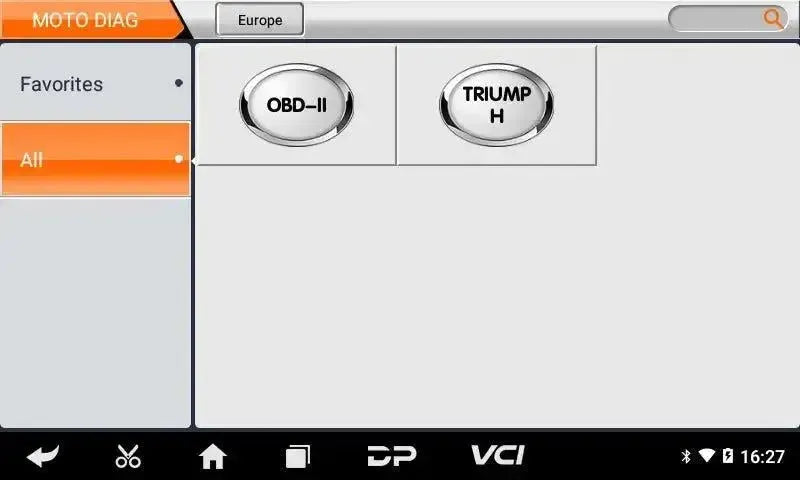

Supported vehicle brands:

The OBDSTAR IScan Triumph is specifically developed for performing diagnostic procedures on Triumph motorcycles.

• European: Triumph

---

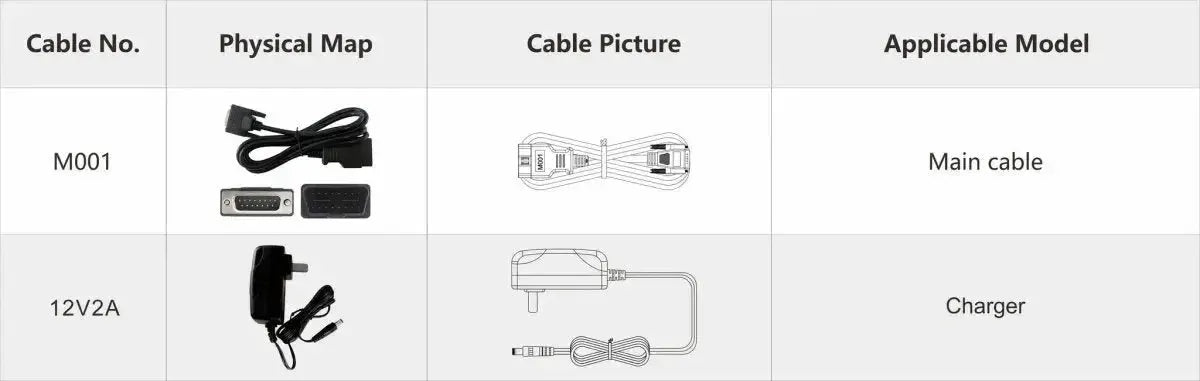

Package Contents:

• 1x OBDSTAR IScan Triumph diagnostic device

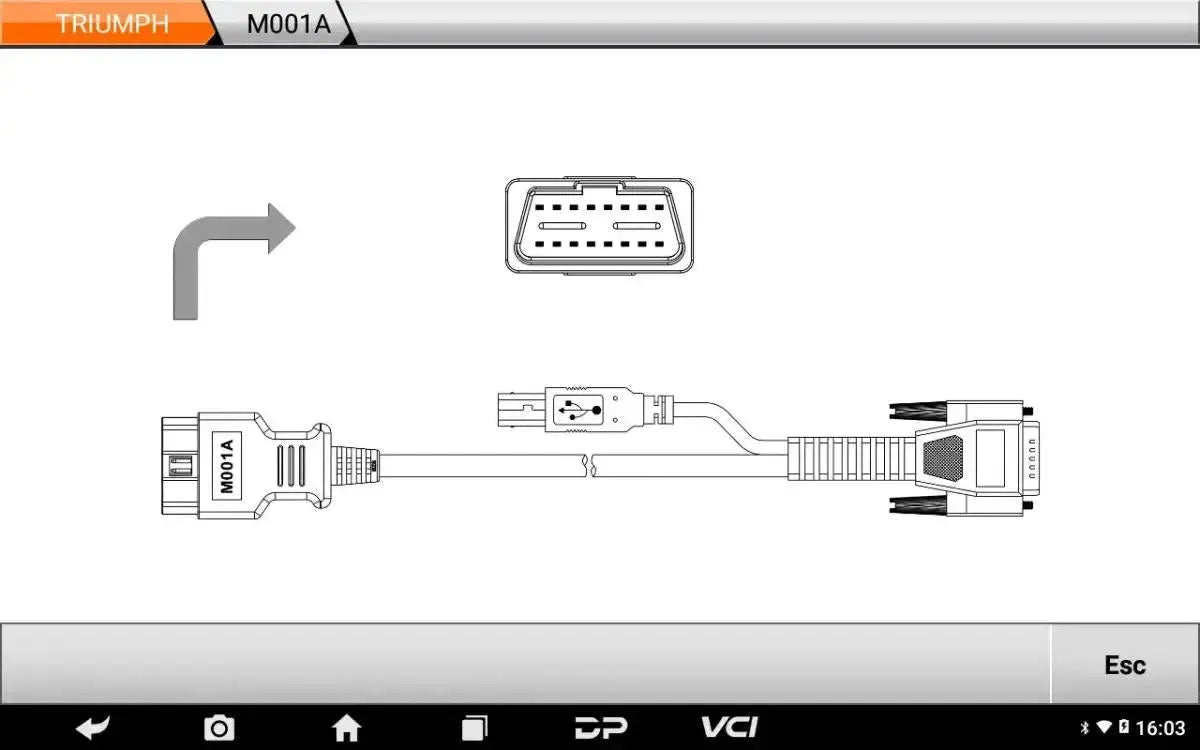

• 1x M001 Main Cable
• 1x 12V 2A Charger

---

License information:

• Including 1 year updates: A 12-month update license is included with purchase.

After the license period expires, the basic functions of the device with the last installed software version remain available. Access to new software updates and online features requires a new license.

---

Technical specifications:

Specification	Description
Product brand	OBDSTAR
Product model	IScan Triumph
Operating system	Android 5.1.1
Screen size	5.0 inch
Screen resolution	800x480
Processor	RK3128 quad-core ARM cortex A7
Storage memory	Supports 32GB Micro SD (TF) card
Connectivity	Wi-Fi, USB
Battery	2600mA, rechargeable polymer lithium Battery
