Diagnostic functions

The OBDSTAR IScan KTM/Husqvarna offers diagnostic functions that provide access to control modules of KTM and Husqvarna motorcycles for reading, analyzing, and resolving faults.

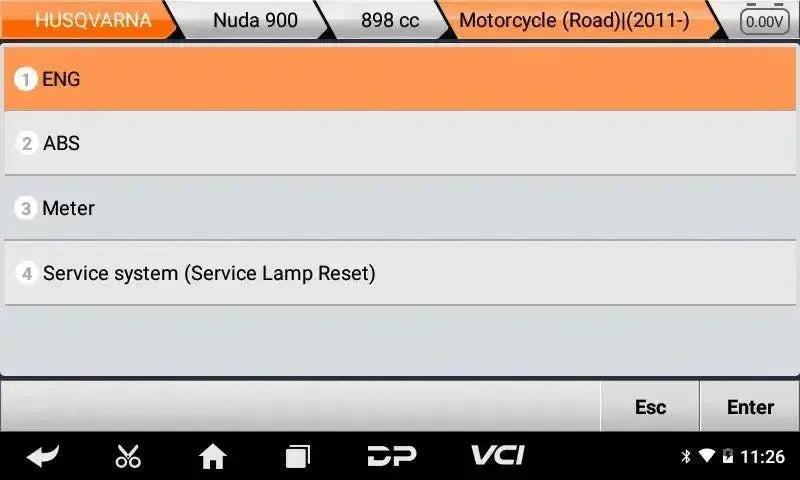

• Read fault codes: Read active and stored fault codes from the control modules of the motorcycle.
• Clear fault codes: Remove stored fault codes after repair or analysis.
• Live data streams: Real-time display of sensor values in text form, as waveform, or as instrument display for visual analysis.
• Data recording and playback: Capturing real-time data streams during a test ride or workshop diagnosis for later analysis of sensor and component faults.
• Actuation tests: Controlling actuators and components via the control module to verify operation.

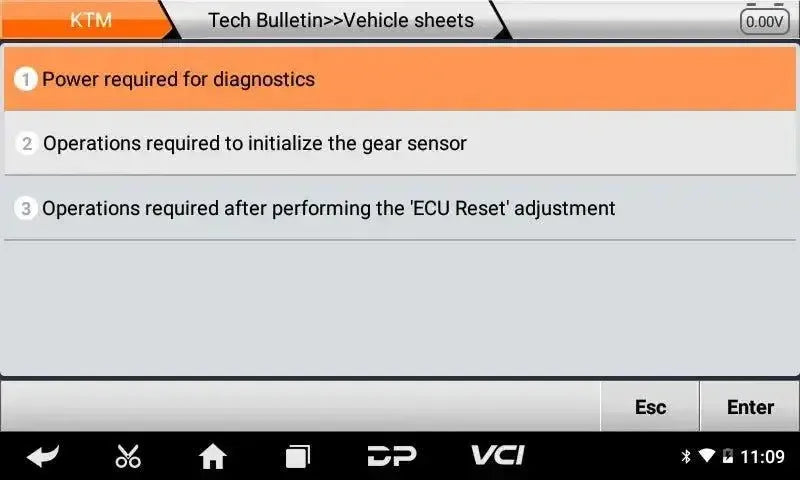

• First-fault guidance: Support data, technical bulletins, and diagnostic information to assist targeted fault analysis.
• Automatic scan: Automatic detection of control modules in the motorcycle and reading existing fault codes.
• Automatic VIN recognition: Identifying the vehicle based on the VIN number to select the correct software.
• Coding: Modifying configuration parameters in control modules.
• ECU setting: Programming and adjusting settings in the engine control unit.

Service and maintenance functions

The OBDSTAR IScan KTM/Husqvarna supports multiple service and maintenance functions for KTM and Husqvarna motorcycles. Available functions may vary by model and year.

Engine and drivetrain

• Service interval reset: Resetting the maintenance counter after service performed.
• Service interval partial setting: Configuring interim service intervals.
• Engine hour meter reset: Resetting the engine operating hour meter.
• Oil temperature sensor replacement: Guided procedure for replacing the oil temperature sensor.
• Idle motor adjustment: Adjusting the engine idle speed.
• Throttle valve position sensor adaptation: Adapting the throttle valve position sensor after replacement or reset.
• Reset throttle valve adaptation values: Clearing learned throttle valve position values.
• Basic position throttle valve actuator adjustment: Setting the default position of the throttle valve actuator.
• Emergency position throttle valve actuator adjustment: Configuring the emergency running position of the throttle valve actuator.
• Throttle valve actuator position adjustment: Fine-tuning the throttle valve actuator position.
• Throttle valve actuator position control: Activating the control routine for the throttle valve actuator.
• Throttle grip sensor position adjustment: Calibrating the sensor value of the throttle grip.
• Exhaust valve adjustment: Adjusting the adjustable exhaust valve.
• CO multiplier cylinder 1 adjustment (idle): Adjusting the CO correction value for cylinder 1 at idle speed.
• Adjust CO multiplier cylinder 1 (full load): Adjusting the CO correction value for cylinder 1 under full load.
• Adjust CO multiplier cylinder 2 (idle): Adjusting the CO correction value for cylinder 2 at idle speed.
• Adjust CO multiplier cylinder 2 (full load): Adjusting the CO correction value for cylinder 2 under full load.
• Reset mixture adaptation values: Erasing learned fuel mixture corrections.
• Reset all adaptation values: Completely erasing adaptive correction values in the engine control module.
• Fuel tank type configuration: Setting the type of fuel tank.
• Engine ECM and immobilizer ECM synchronization: Linking the engine control module and immobilizer module.
• Write VIN: Writing the vehicle identification number into the control module.
• Speed correction: Adjusting the speed display for tire or gear ratio changes.

Transmission and drivetrain

• Quick shift on/off: Activating or deactivating the shift assistant.
• Shift indicator configuration: Setting the operation of the shift indicator.
• Acceleration sensor initialization: Initializing the acceleration position sensor.
• Learn reference value shift shaft: Learning the base position of the shift shaft.
• Transmission reset: Resetting learned values in the transmission control module.

Brake and stability systems

• ABS coding: Coding the ABS control module.
• Tire pressure monitoring system service: Service functions for the TPMS system.
• Tire pressure sensor on/off: Activating or deactivating the tire pressure sensors.
• Learn LF activation sensor: Learning the LF activation sensor of the TPMS system.
• Learn impact sensor offset (rear): Learning the zero position of the rear suspension sensor.
• Adjust offset for lowering: Adjusting the offset value for the lowered ride height profile.

Body and comfort systems

• Driver seat heating on/off: Activating or deactivating the driver seat heating.
• Passenger seat heating on/off: Activating or deactivating the passenger seat heating.
• Handlebar heating on/off: Activating or deactivating the heated handlebars.
• Electronic suspension on/off: Activating or deactivating the electronically controlled suspension.
• Track pack configuration: Configuring the Track Pack feature package.
• Start control mode configuration: Setting the Start Control riding mode.
• Model configuration: Set model-specific parameters.

Lighting and signaling

• Headlight presence control on/off: Activate or deactivate the headlight presence function.
• Daytime running light on/off: Activate or deactivate the daytime running lights.
• Cornering light on/off: Activate or deactivate the cornering lights.
• Turn signal configuration: Set the behavior of the turn signals.
• Automatic turn signal shutoff configuration: Configure the automatic shutoff function of the turn signals.
• Turn signal intensity adjustment: Adjust the light intensity of the turn signals.
• Emergency stop signal configuration: Configure the emergency stop signal during hard braking.

Electrical and safety systems

• Expected tilt angle acquisition: Read reference values for the tilt angle sensor.
• Relearn sensor values: Renew sensor value adaptation after replacement or reset.
• Reset low battery voltage detection counter: Reset the counter for low battery voltage detections.
• Powerlock time reduction: Adjust the activation time of the Powerlock system.
• Threshold configuration: Set warning and activation threshold values.
• Connectivity module configuration: Configure the connectivity module.
• Reset paired devices list: Clear the list of paired Bluetooth devices.
• Registration ID: Register an identification ID in the control module.
• Control unit reset: Reset a control module to its default state.
• Factory calibration: Reset control modules to factory calibration values.

Special functions and capabilities

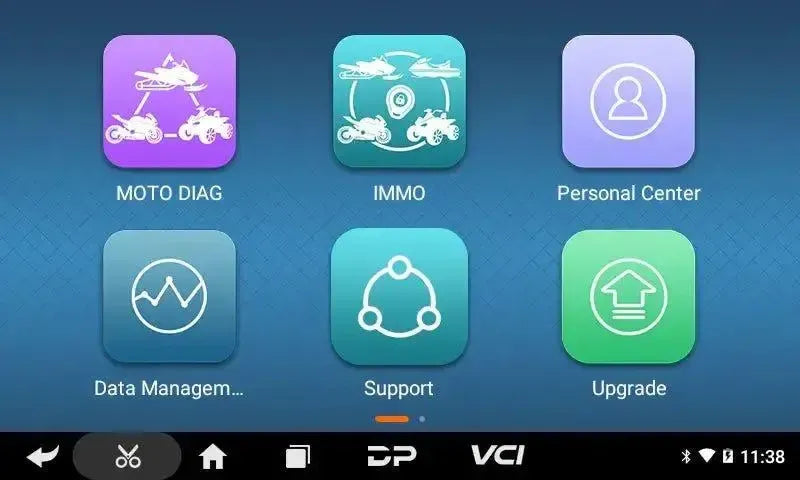

In addition to the standard diagnostic and service functions, the OBDSTAR IScan KTM/Husqvarna offers some additional features that support workshop diagnostics.

• One-click software update: Install software updates via Wi-Fi with a single action.
• One-click remote support: Direct connection to the OBDSTAR technical support team for remote assistance.
• Data stream visualization: Display real-time data as text, waveform, or gauge view for various analysis methods.
• Datalogging and playback: Recording and playback of data streams for later analysis of intermittent faults.
• Menu navigation: Free menu selection for quick access to specific functions.

Supported vehicle brands

The OBDSTAR IScan KTM/Husqvarna is specifically developed for motorcycle diagnostics on the following brands.

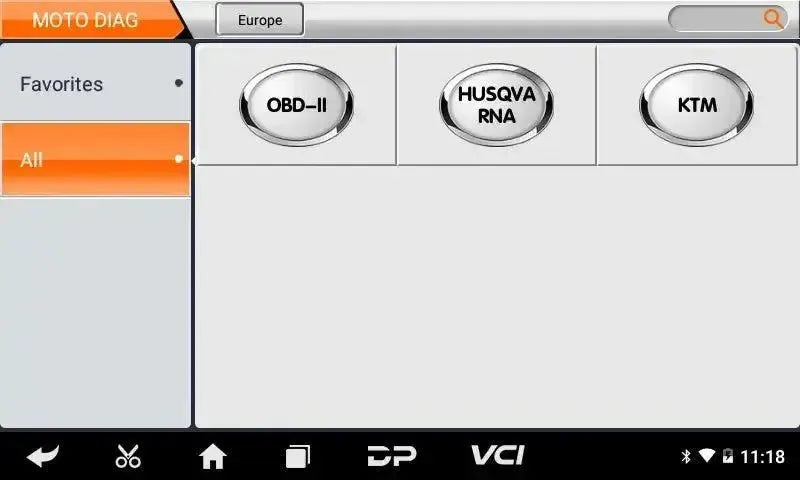

• European: KTM, Husqvarna

Optional additions and expansions

The OBDSTAR IScan KTM/Husqvarna can optionally be expanded with additional hardware for specific tasks and connections on various motorcycle models.

Hardware modules and accessories

• M002A Battery Cable (GND): Connection cable with battery clamps for stable power supply and grounding directly from the motorcycle battery.
• M003A Multi-Functional Jumper Cable: Wiring harness for making direct connections to individual pins of an ECU for programming or diagnosis outside the vehicle.
• N004 Diagnostic Adapter (Aprilia/Ducati/Honda/KTM/Piaggio/Vespa/Yamaha): Adapter to connect the OBD-II connector to the specific 4-pin diagnostic port of various motorcycle brands.

License information

When purchasing the OBDSTAR IScan KTM/Husqvarna, a 1-year software license is included. During this period, software updates can be downloaded that add new model years, features, and fixes for KTM and Husqvarna motorcycles.

• License period: 1 year of software updates is included at purchase, after which renewal is possible through OBDSTAR.
• Software updates: Updates add support for newer KTM and Husqvarna models, expand existing features, and include fixes for the diagnostic software.
• Extended features: An active license provides access to one-click online updates, one-click remote support, and the latest coding and ECU adjustment features.
• After license expiration: The device will continue to operate with the last installed software version but cannot receive new updates until the license is renewed.

Package Contents

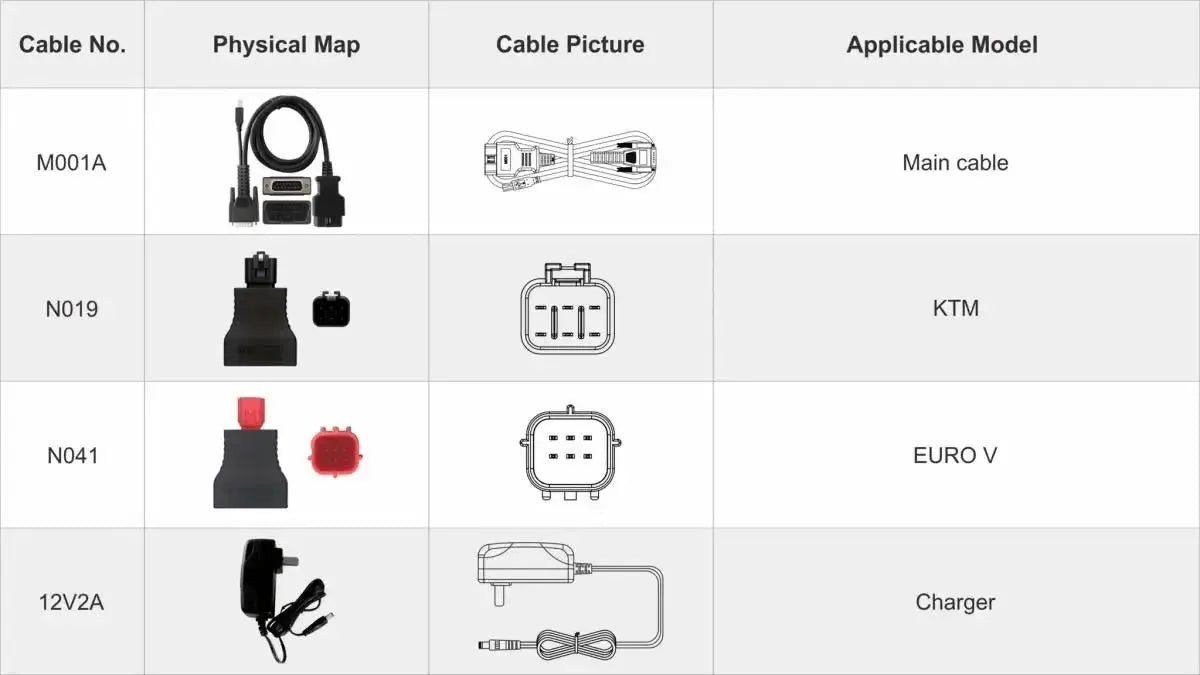

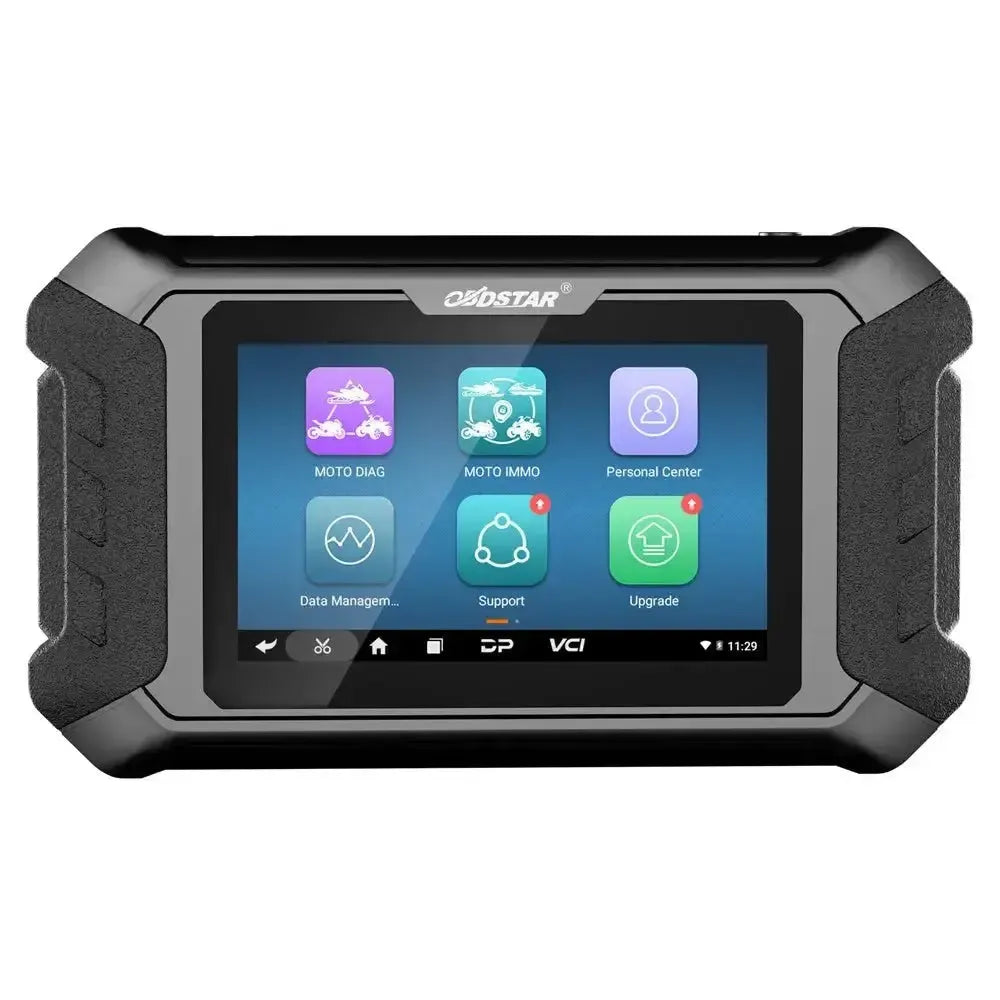

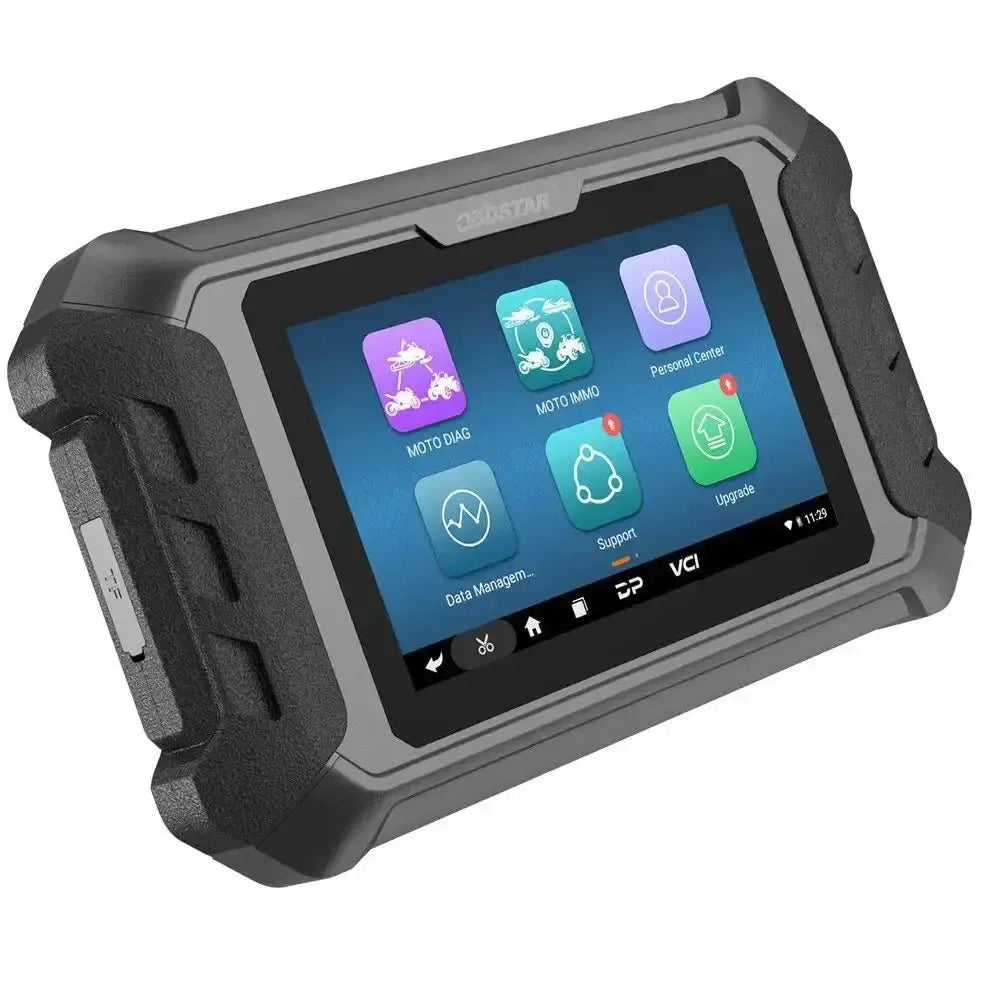

• 1x OBDSTAR IScan KTM/Husqvarna Diagnostic Tool
• 1x 12V2A charger
• 1x M001A main cable
• 1x N019 KTM adapter
• 1x N041 EURO V adapter
