Cojali | SKU: 2260113

Cojali (2260113) | Wabco 7-pins EBS (ISO 7638) Spiral Cable | Trailer

Name: Cojali (2260113) | Wabco 7-pins EBS (ISO 7638) Spiral Cable | Trailer
Brand: Cojali
SKU: 2260113
Price: 84.95 EUR
Availability: InStock

€84,95 incl.

€70,21 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

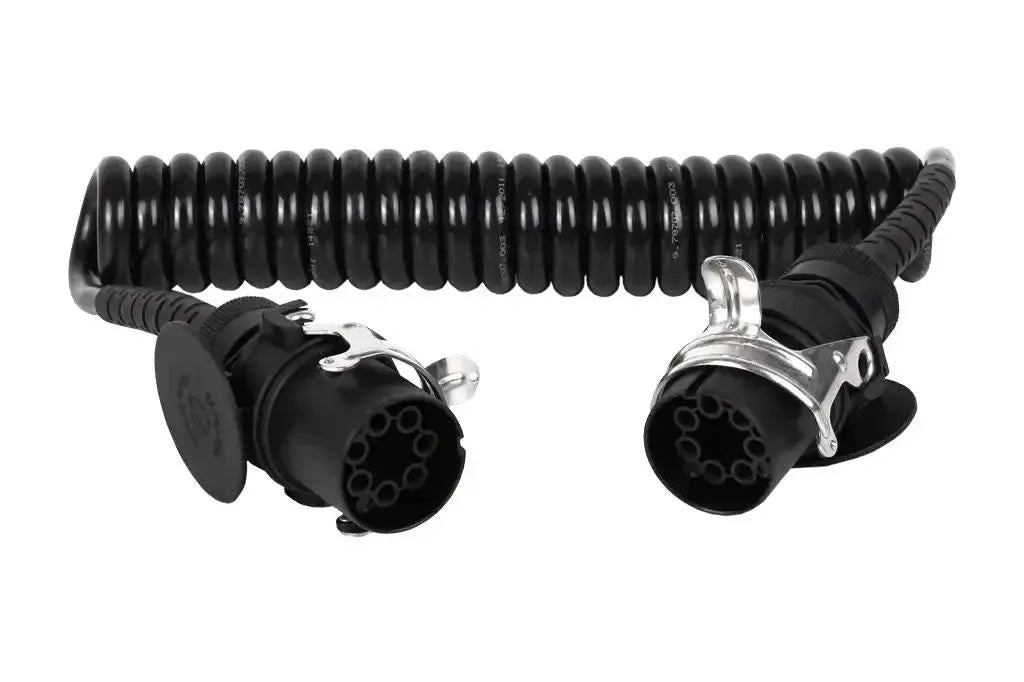

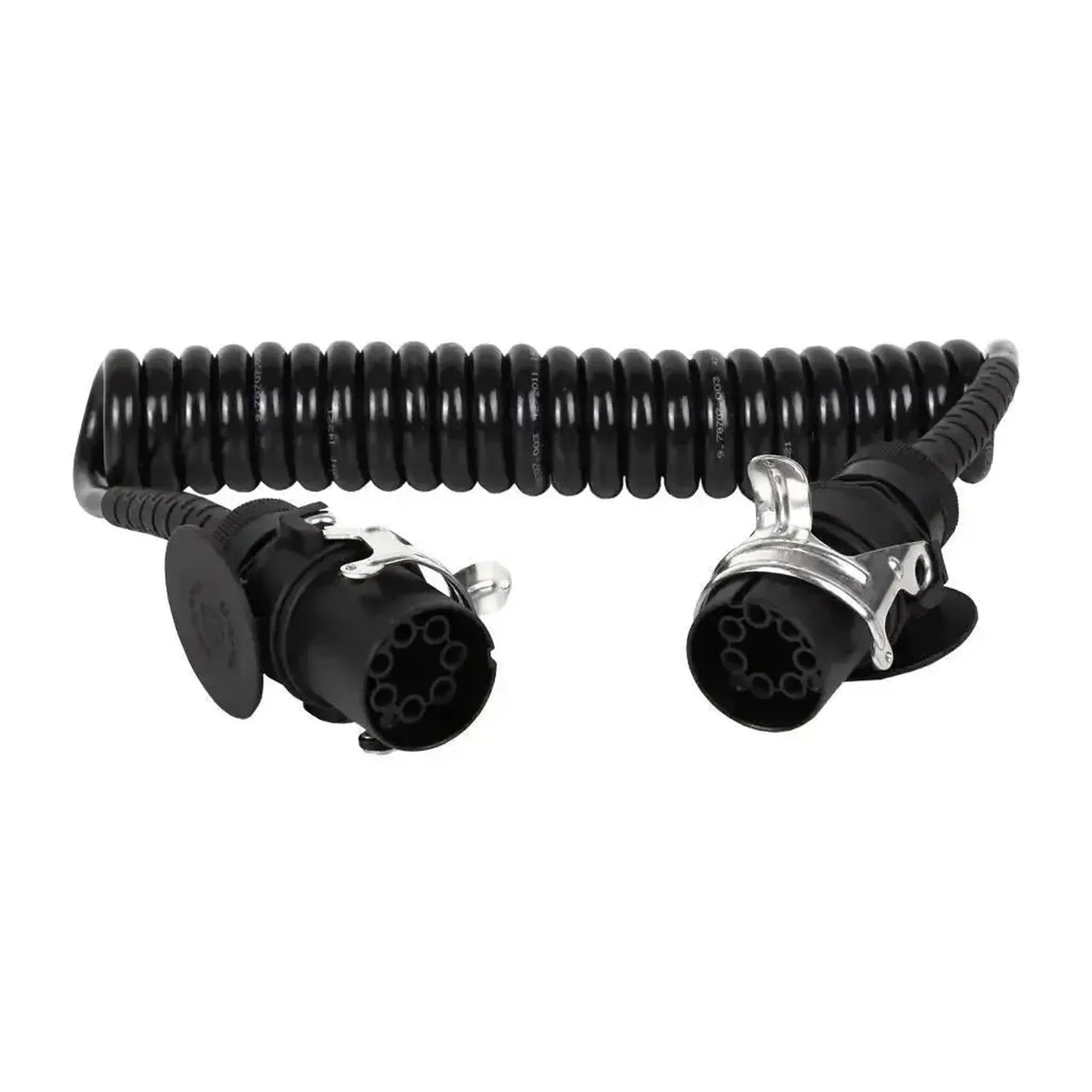

The Cojali 2260113 is a spiral cable with a 7-pin connector to ISO 7638 at each end, the connection for the trailer's EBS/ABS. All seven pins are connected one-to-one.

According to the standard, ISO 7638 carries the power supply for the control valves, the power supply for the electronics, the ABS fault signal and the CAN connection for EBS and ABS. Cojali lists WABCO 4460082430 as the OE reference. The Cojali catalogue also lists the cable as an optional cable for the Jaltest PTE.

ADVANTAGES

✔Equivalent to WABCO 4460082430, so you can directly replace a worn original cable.

✔Carries the CAN signals for EBS and ABS, which do not pass through the 15-pin and 7-pin lighting cables.

✔All seven pins are connected one-to-one, so the cable works with every ISO 7638 connection.

✔With a maximum length of 4.0 m and an operating temperature of -40 to 80 °C, the cable is suitable for daily outdoor use.

POINTS TO NOTE

✕The cable provides the brake system connection only; for lighting you also need a 15-pin or 7-pin cable.

✕For a trailer with only a 24S connection, the 2260105 is the correct cable.

✕A poor earth connection on pin 3 or 4 causes fault messages; check the pins before use.

✕Cojali does not state a voltage; ISO 7638 has a 24V and a 12V version with different coding, so check the connector on the trailer.

Applications and functions

The cable connects the ISO 7638 connection of the tractor and trailer, or serves as a test cable with the Jaltest PTE.

What the cable connects

Pins 1 and 4: Power supply and earth for the control valves.
Pins 2 and 3: Power supply and earth for the electronics.
Pin 5: ABS fault signal.
Pins 6 and 7: CAN High and CAN Low for EBS/ABS.

What you can do

Coupling: Connect the EBS/ABS of the tractor and trailer.
Testing: Check the ISO 7638 with the Jaltest PTE.
Replacing: Replace a worn EBS spiral cable.

How to use it

Check the connectors: Make sure the pins are clean and free of corrosion.
Locate the connection: Find the ISO 7638 socket on the trailer.
Connect the trailer side: Insert a connector into the trailer.
Connect the tractor side: Insert the other plug into the tractor or PTE.
Check: Make sure the EBS warning light on the dashboard goes out.

Compatible vehicles and applications

What matters is the 7-pin ISO 7638 connection. Cojali lists the cable for the following brands.

Trucks:

DAF, Iveco, MAN, Renault and Scania: With ISO 7638 connection.

Trailers and semi-trailers:

Benalu, Kässbohrer, Kögel, Krone and Schwarzmüller: With ISO 7638 connection.
SAF and Tirsan: With ISO 7638 connection.

Bus:

Otokar: With ISO 7638 connection.

💡

Good to know: The 24V version of ISO 7638 has a key on the outer ring next to pin 5, while the 12V version has a key between pins 3 and 4. Check the trailer socket to see which coding you have.

Package contents

1x Cojali (2260113) | Wabco 7-pin EBS (ISO 7638) Spiral Cable | Trailer

Technical specifications

General

The brand of the cable or adapter. It often has to match the brand of your diagnostic tool.Brand: Cojali
The type of product: a separate adapter cable, an adapter without a cable or a complete set.Product type: Coiled cable

Suitable for

The brand of diagnostic tool the cable works with. A cable for one brand usually does not fit a tester of another brand.Compatible diagnostic tool: Jaltest
The Jaltest module required to use the cable. Without the correct licence, the cable will not work.Jaltest software module: PTE trailers

Connections

The data lines through which the cable passes signals. The vehicle and the tester must use the same communication method.Communication: CAN-bus
The temperature range within which the cable can be used safely.Operating temperature: -40 to 80 °C
