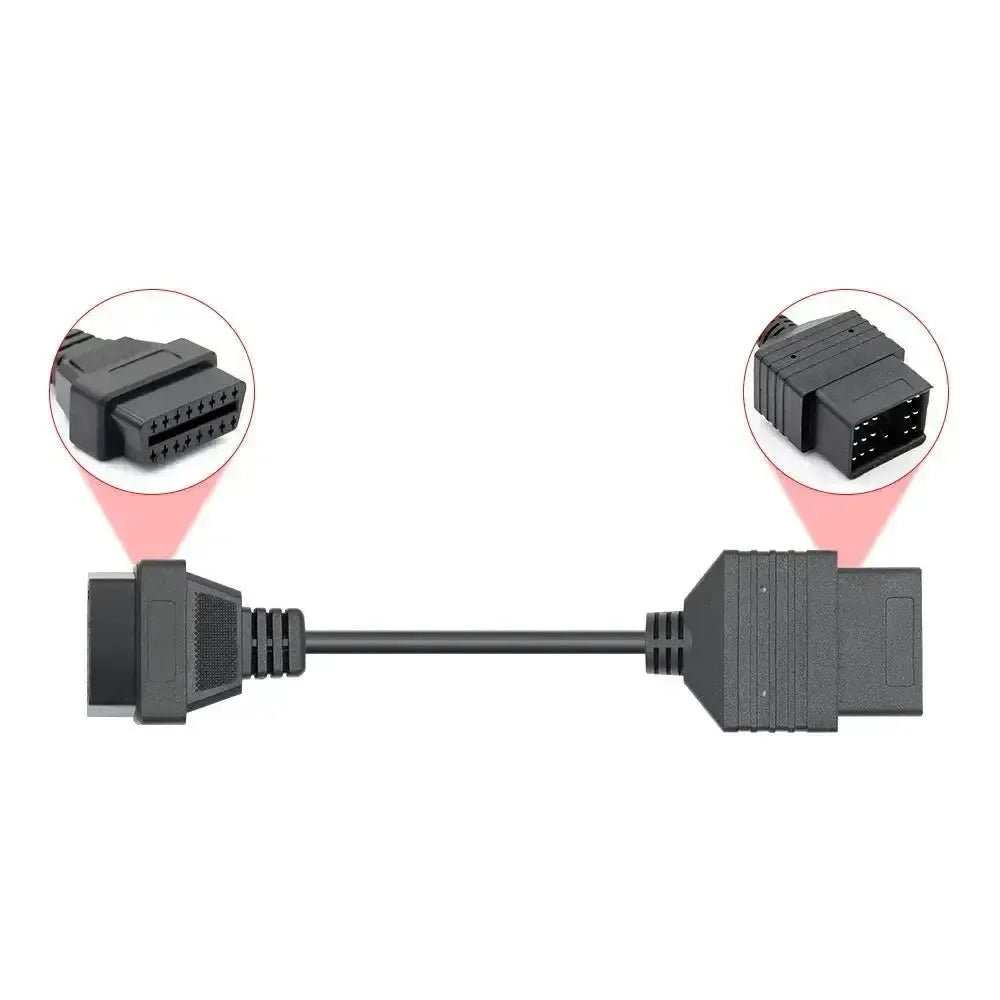

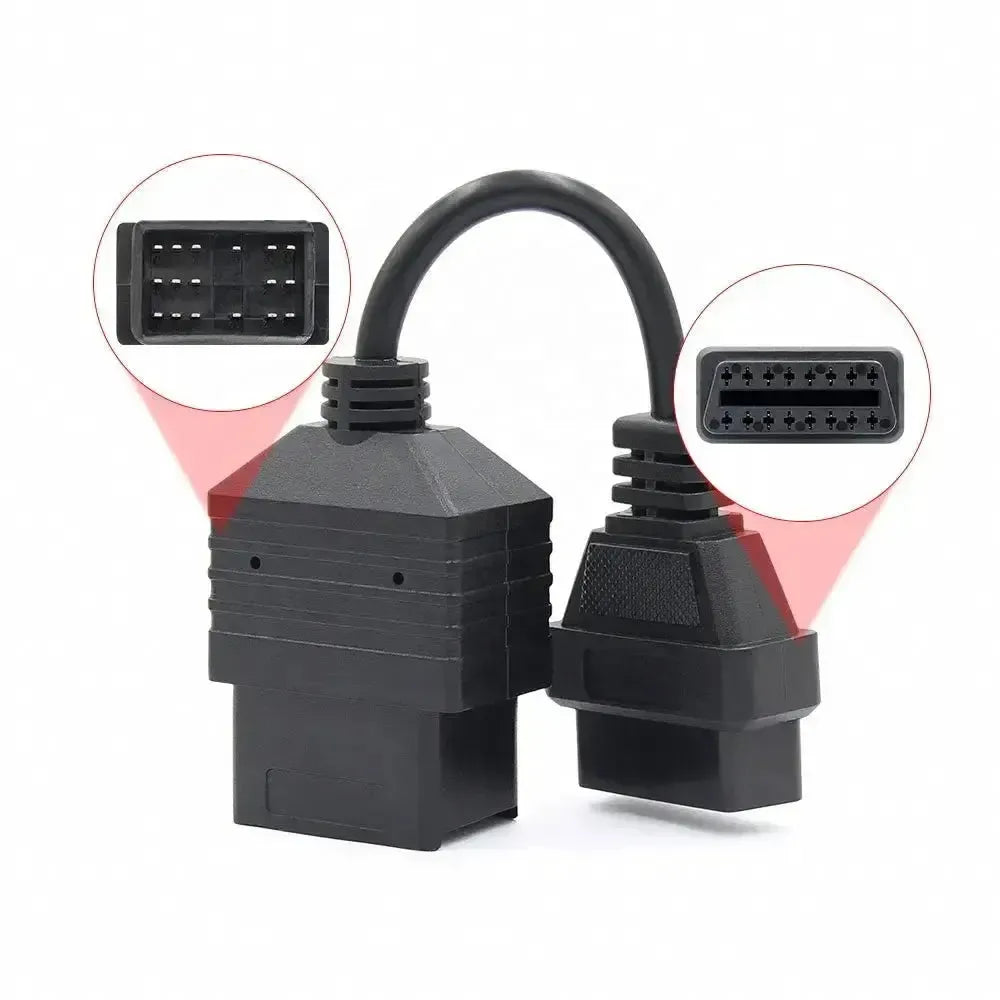

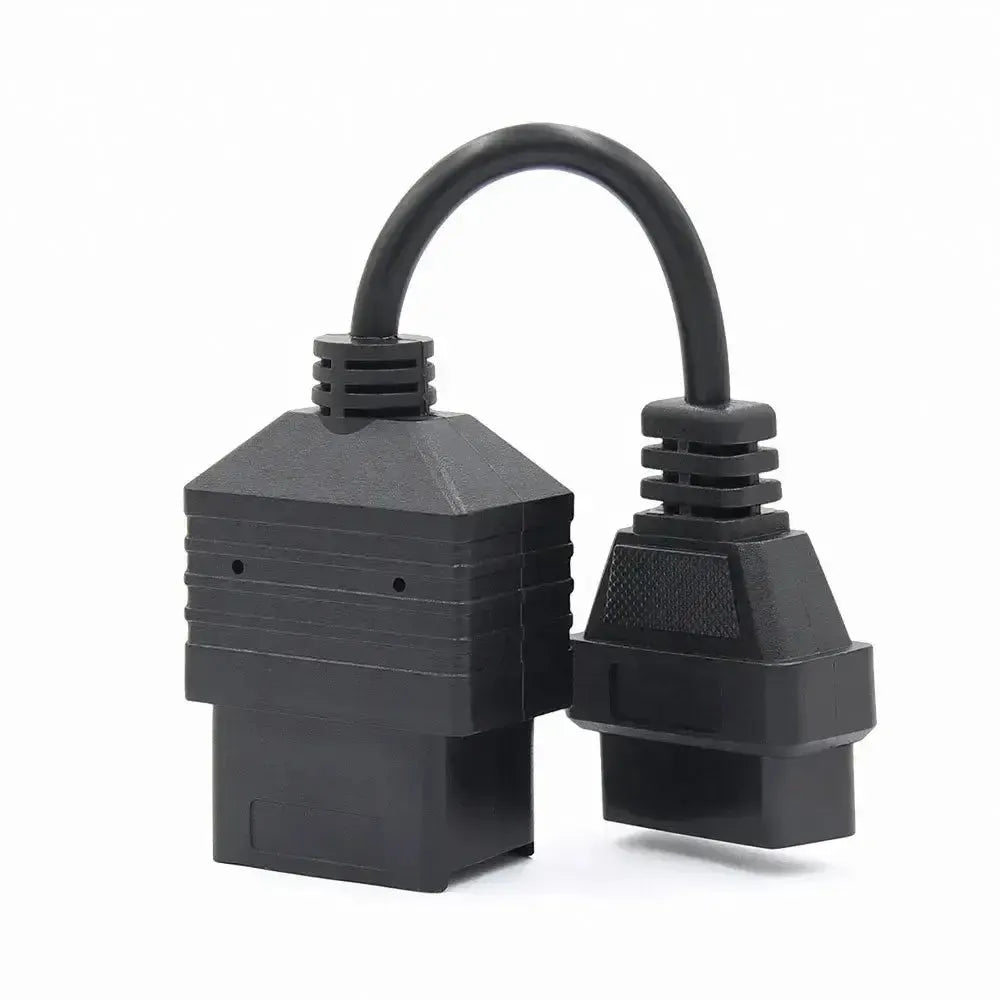

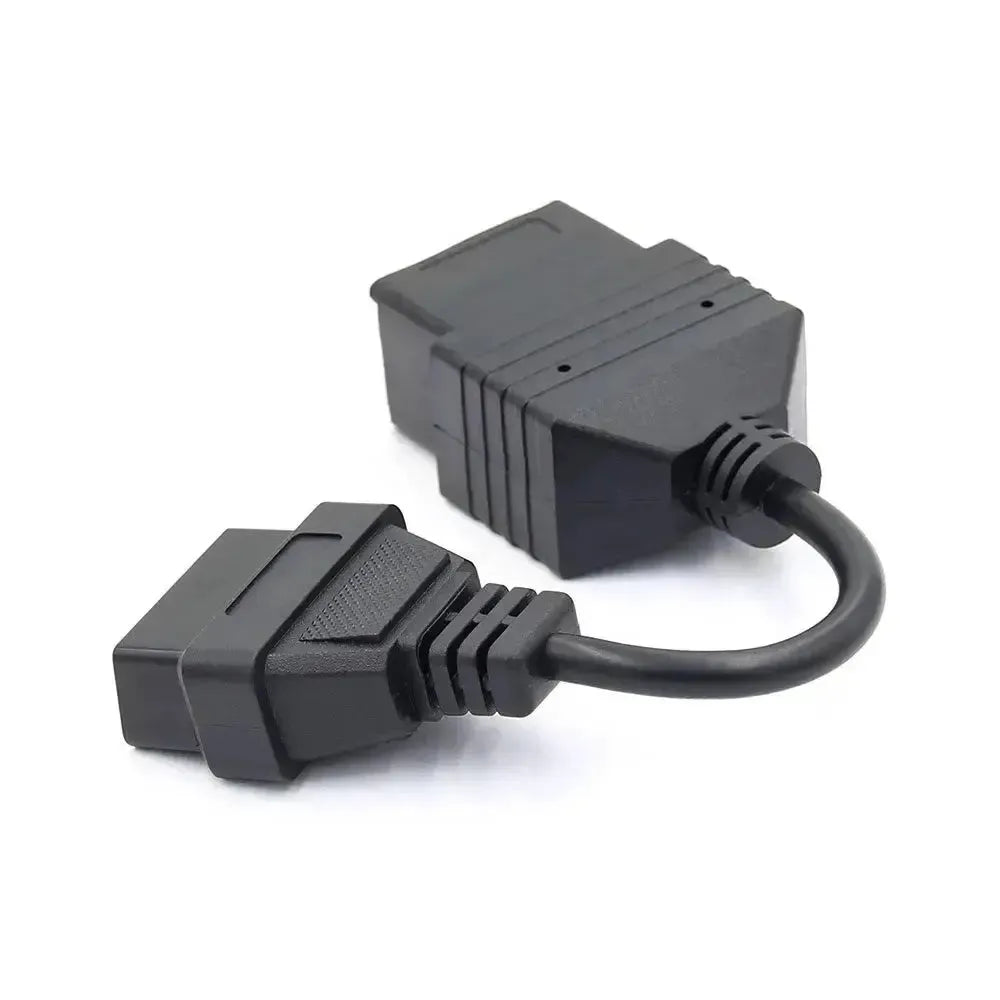

Toyota 22-pins to 16-pins OBD2 adapter cable – Passenger car
The Toyota 22-pin to 16-pin OBD2 adapter cable is a specific diagnostic adapter designed to bridge older Toyota passenger cars and modern OBD2 diagnostic equipment. Many Toyota models from before the general introduction of the OBD2 standard (around 1996) are equipped with a unique, rectangular 22-pin diagnostic port. This port is usually located in the engine compartment and is not compatible with the 16-pin connectors of modern OBD2 scanners.
This adapter is an essential tool for both the professional automotive technician and the do-it-yourselfer working on classic Toyota vehicles. In combination with a protocol-compatible scan tool, the user can efficiently access the ECU. The cable is designed for reliable signal transmission and durable use.
Application and functionality:
The main function of this adapter is to establish a stable, physical connection between the 22-pin DLC (Data Link Connector) of the Toyota and a standard 16-pin OBD2 diagnostic device. Depending on the scanner used, the following functions can be performed:
- Read and clear fault codes from the engine management
- Monitor live data from sensors
- Perform basic diagnostic functions without using blink code methods
The adapter contains no internal electronics and only works with a suitable scan tool that supports Toyota OBD1 protocols.
Compatible with the following vehicle makes and models:
This adapter cable is compatible with Toyota models (late '80s through mid '90s) equipped with a 22-pin diagnostic port. Examples:
- Toyota Camry: pre-1996
- Toyota Celica: T180, T200
- Toyota Corolla: E90, E100
- Toyota MR2: SW20
- Toyota Land Cruiser: 80 Series
- Toyota Supra: A70, A80 (pre-OBD2)
- Toyota Starlet: P80
Also compatible with some older Lexus models.
Package Contents:
- 1x Toyota 22-pin OBD1 to 16-pin OBD2 adapter cable
Technical specifications:
| Specification | Description |
|---|---|

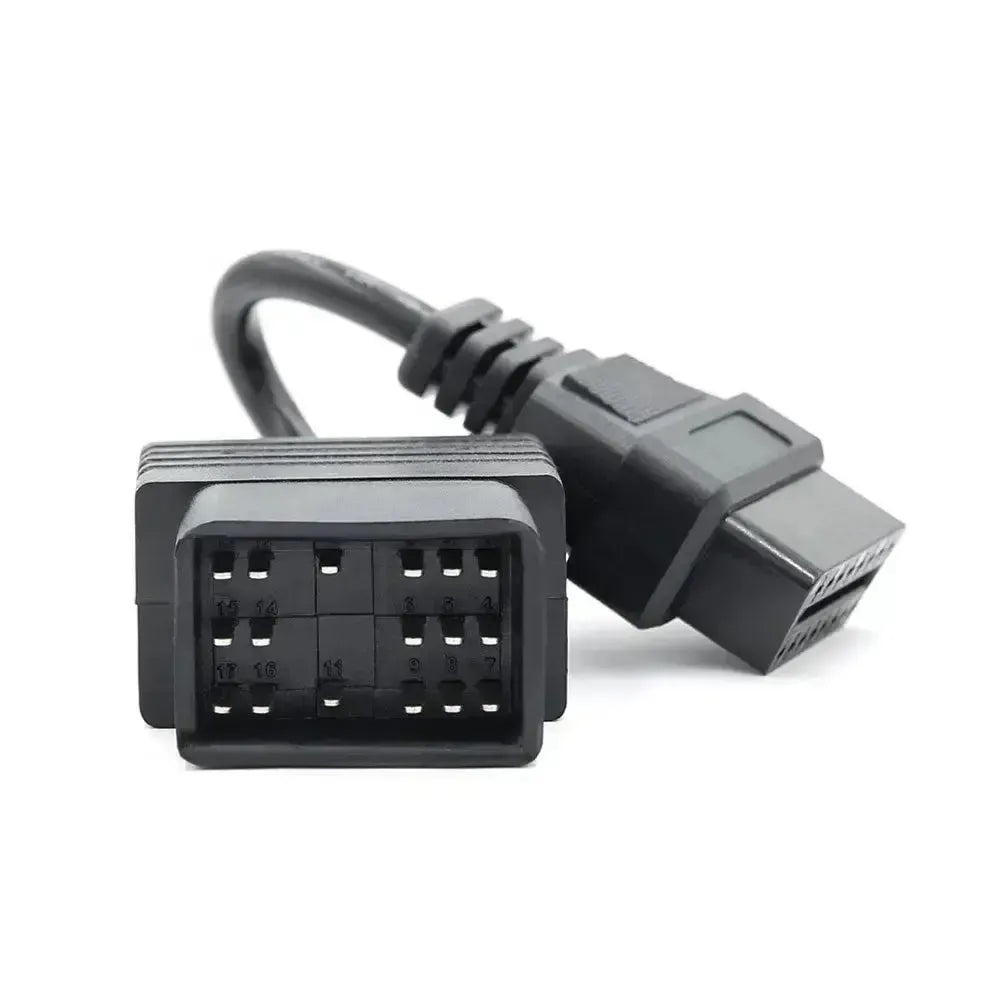

| Connector A | Toyota 22-pin male connector |

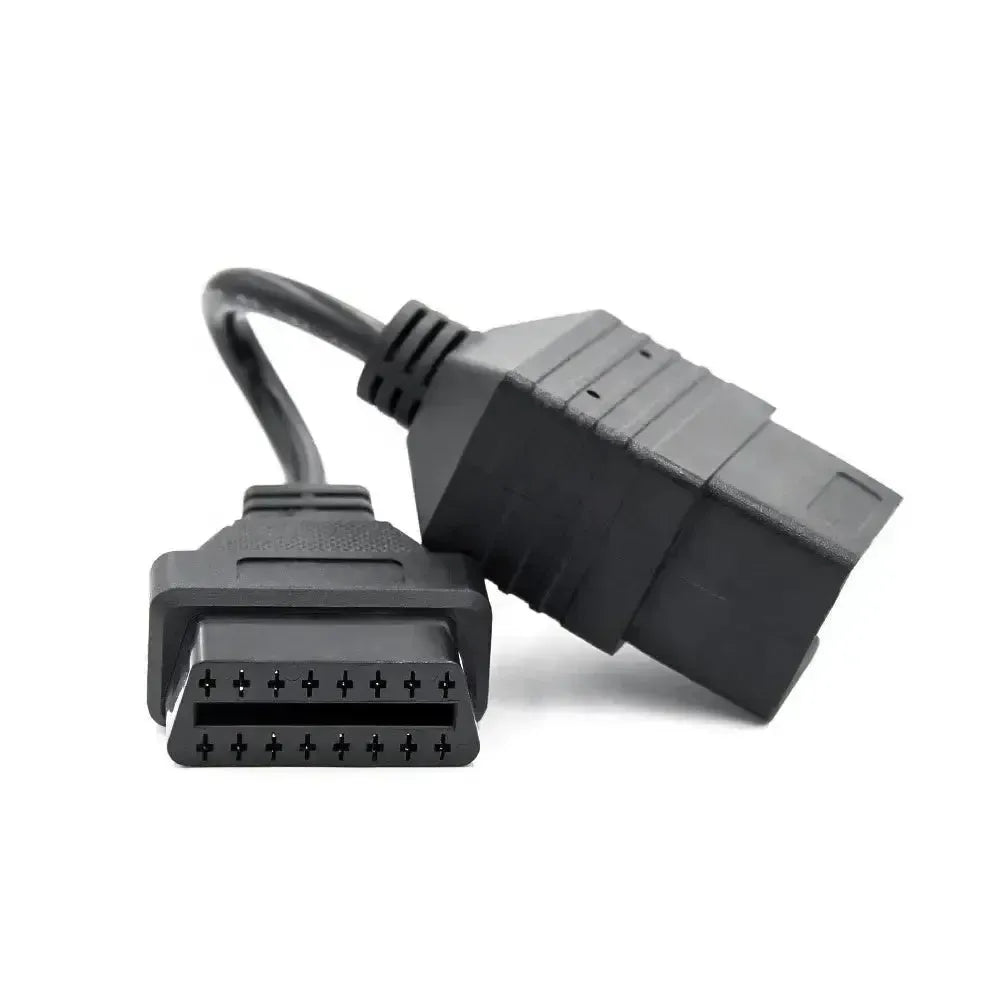

| Connector B | Standard 16-pin OBD2 (J1962) female connector |
| Cable type | Passive adapter cable (no internal software or protocol conversion) |
| Cable length | Approximately 20 to 30 cm (depending on manufacturer) |
| Pinout | Connects power, ground, and data lines (K-Line) to the correct OBD2 pins |
