OBDSTAR  |  SKU: M072

OBDSTAR (M072) | Universal 10-pin OBD – 16-pin OBD2 Adapter Cable | Motorboat

€24,95 incl.
€20,62 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

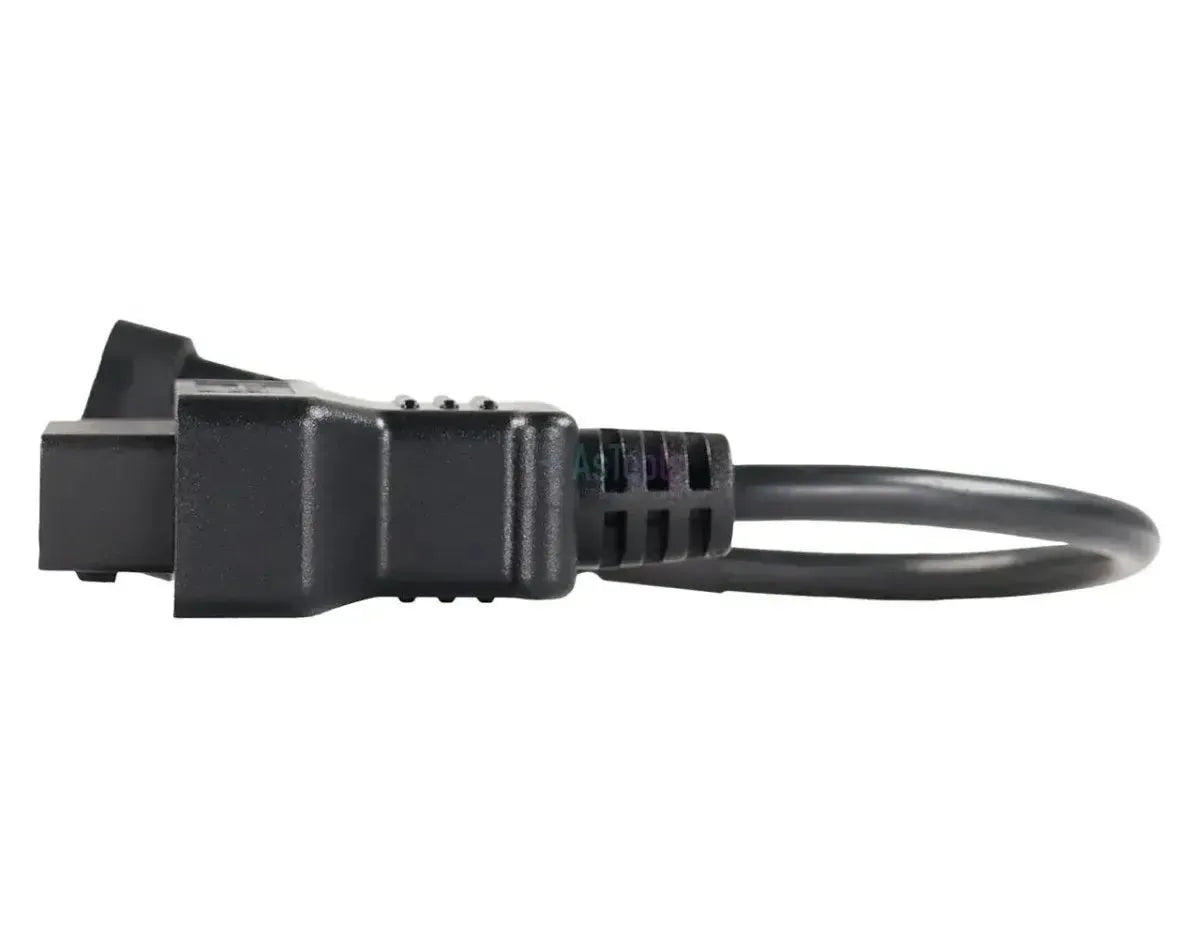

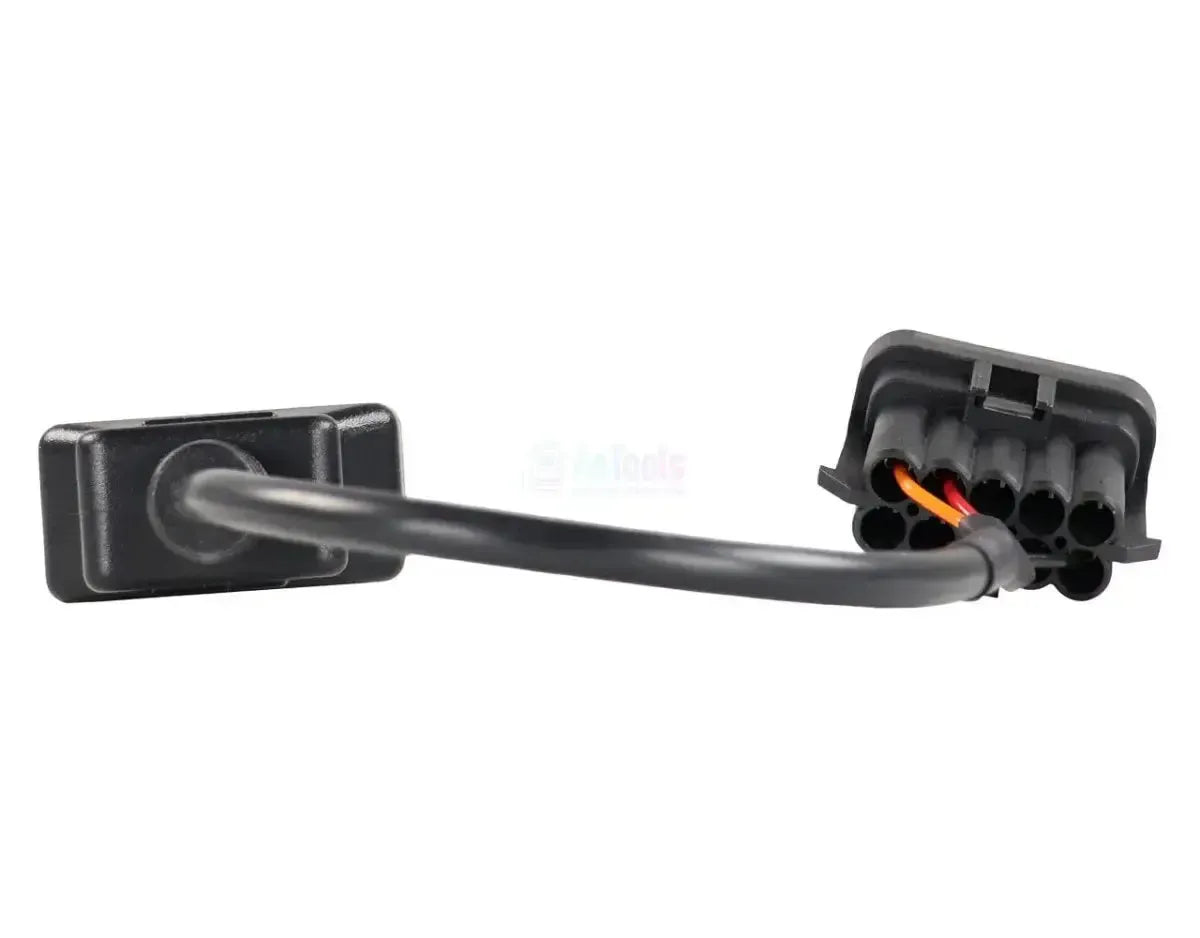

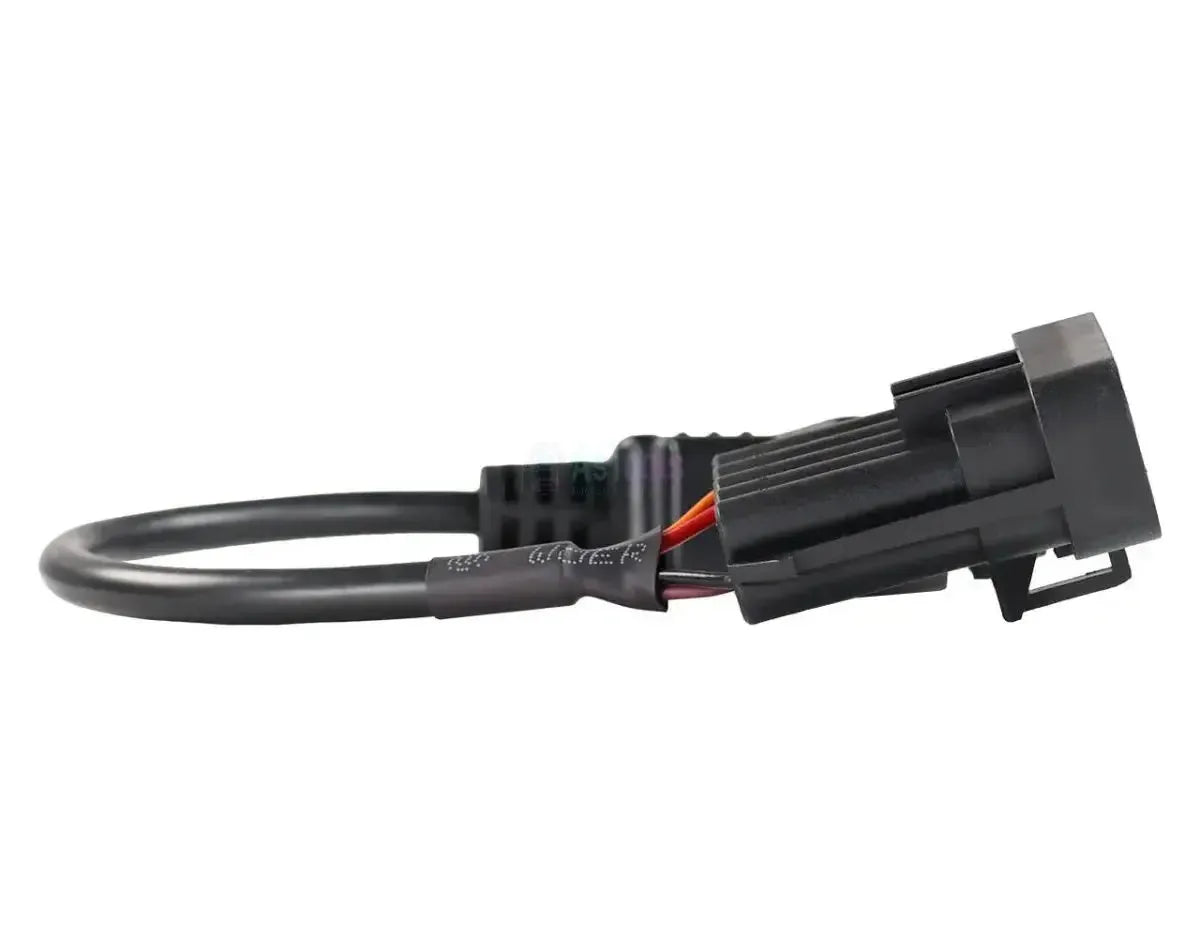

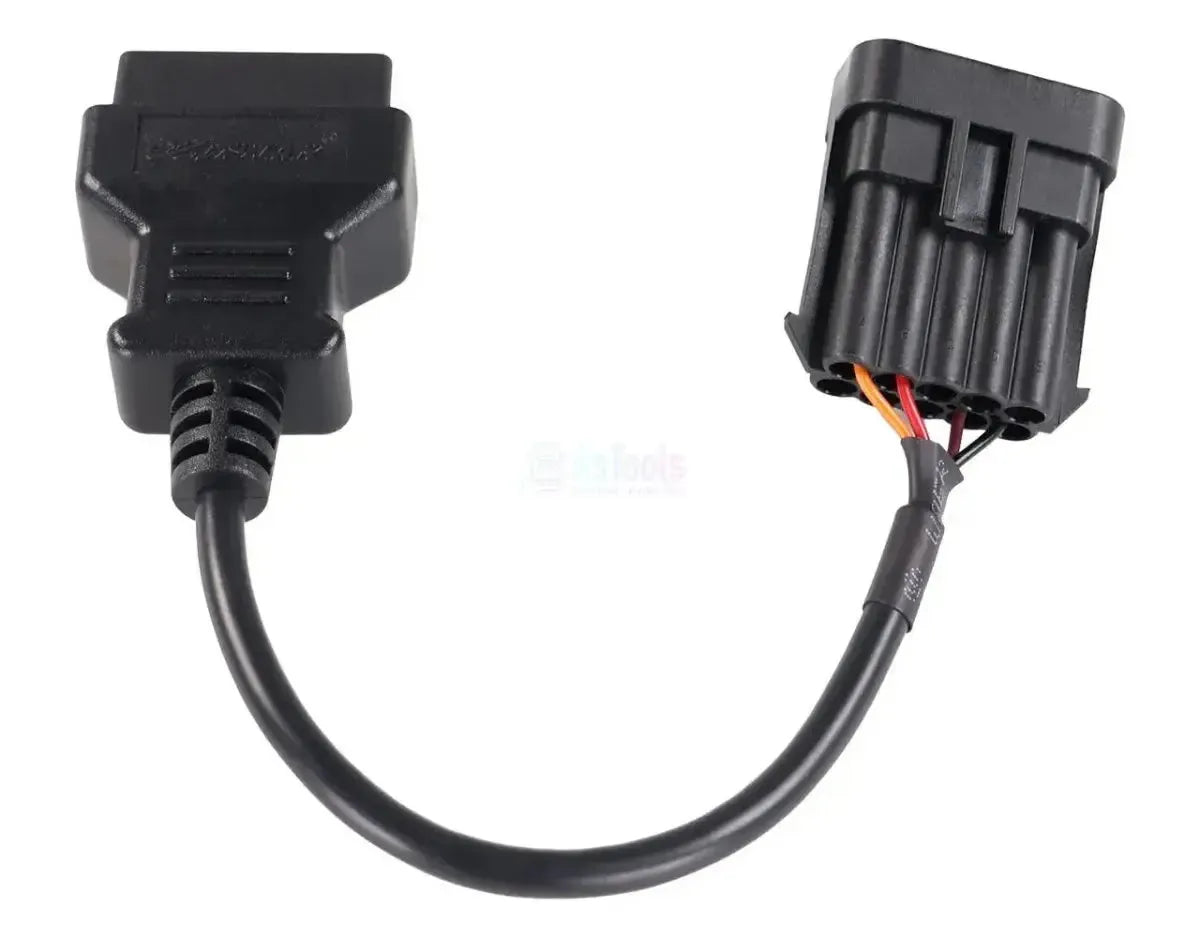

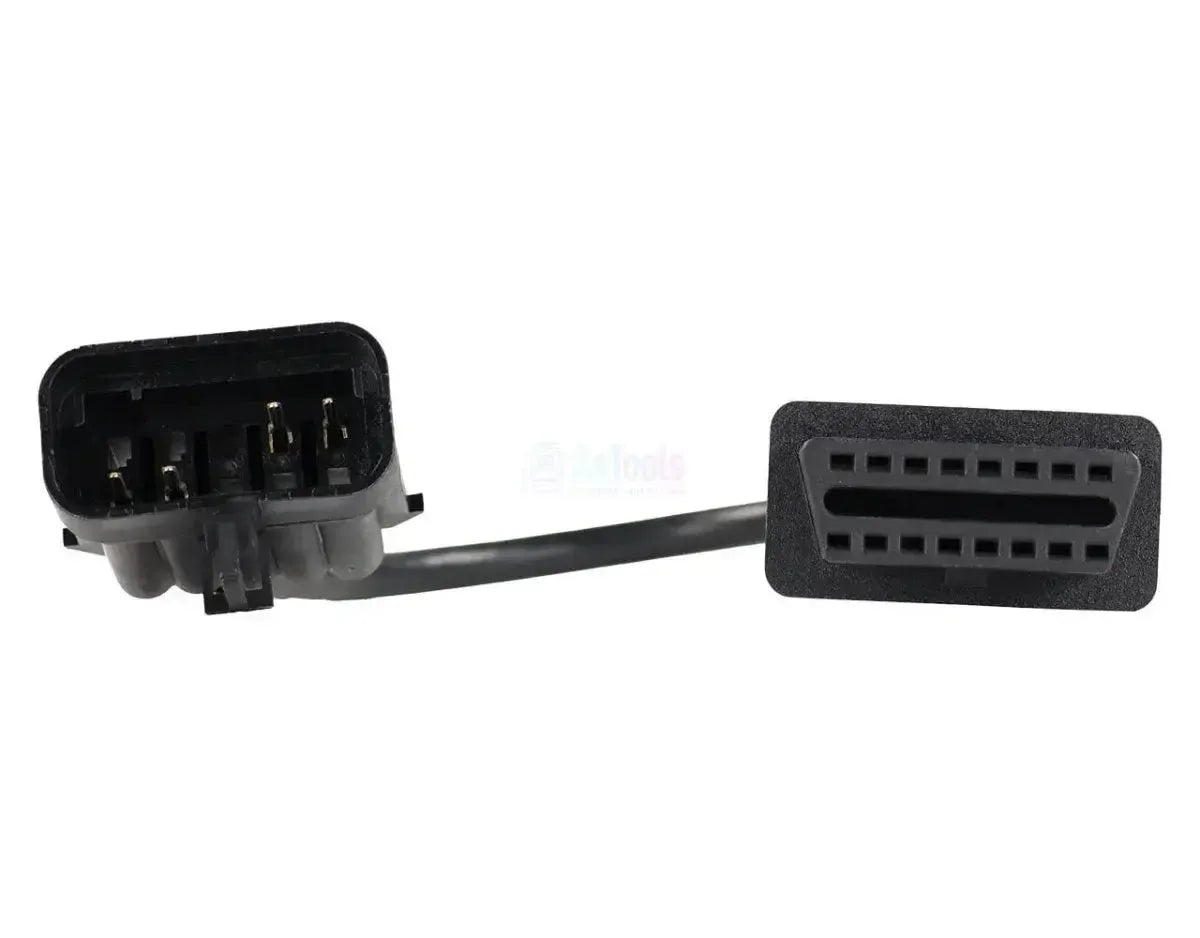

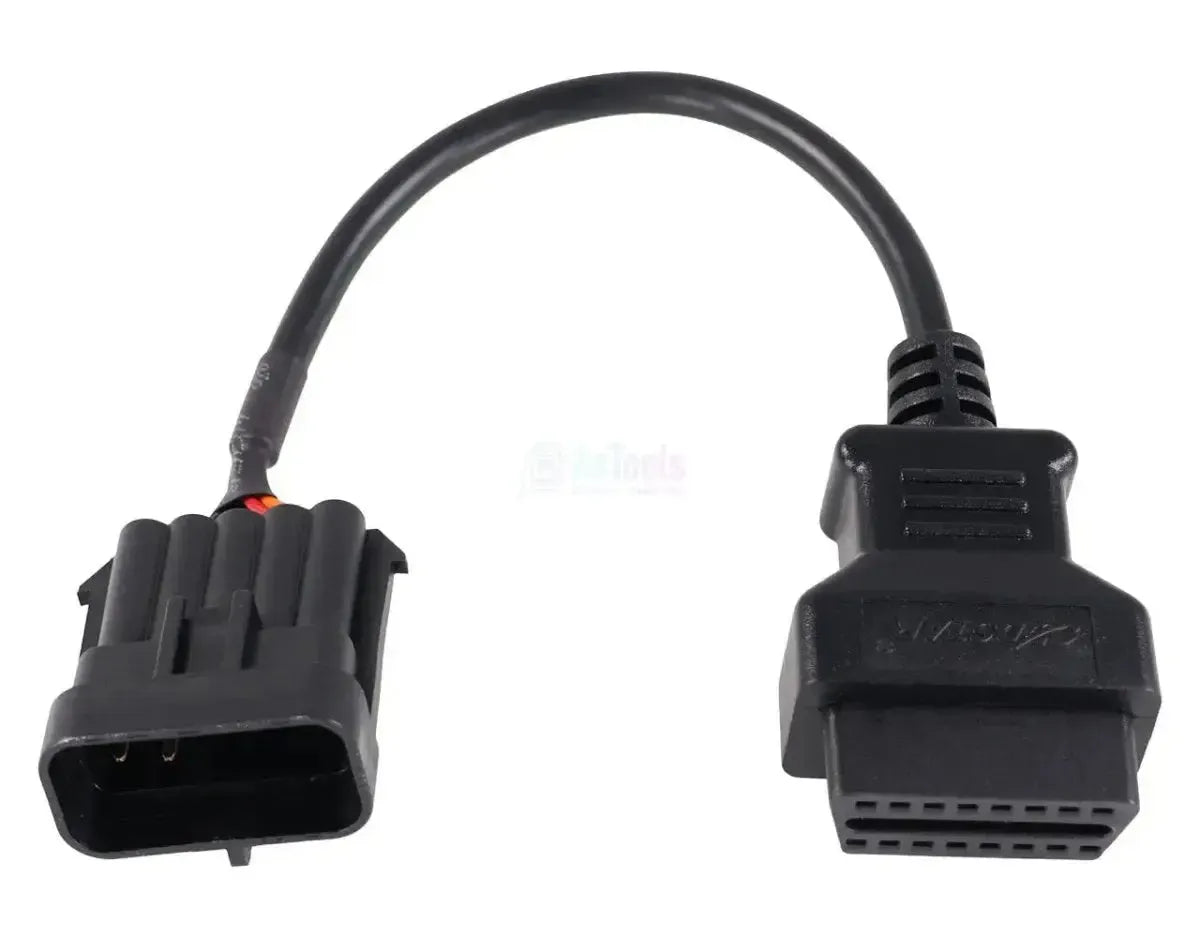

The OBDSTAR M072 is the universal adapter cable for the 10-pin diagnostic connector on marine inboard engines. It connects that socket to the 16-pin OBD2 (J1962)-port on your OBDSTAR device. On the engine side, the cable connects directly to the diagnostic connector of the motor.

Various inboard engine manufacturers use the same 10-pin diagnostic connector, which does not fit standard OBD2 equipment. The cable translates the pin assignment to the corresponding pins of the OBD2 port and routes the relevant lines — power, ground and diagnostic data lines — correctly through. The cable unlocks the engine management electronics of the inboard motor, nothing more. Whether you can read and clear fault codes and which live data is visible depends on the support in your own OBDSTAR device for the specific engine type.

KEY BENEFITS

✔One cable for six brands — the 10-pin connector is used by multiple marine manufacturers, so you don't need a separate cable for each brand.
✔Direct connection to the engine connector — connection without intermediate wiring or additional adapter.
✔Power, ground and data lines intact — the pin translation maintains all relevant communication lines.
✔For installations without OBD2 — inboard engines lack a standard diagnostic port; this cable makes it accessible.

IMPORTANT NOTES

✕10-pin connector only — engines with a different number of pins fall outside the scope of this cable, even within the same brands.
✕Not for road vehicles — use is limited to marine inboard engines.
✕OBDSTAR equipment only — the cable is designed for OBDSTAR diagnostic devices and programmers; equipment from other manufacturers is not supported.
✕Coverage depends on your device — what is available varies by engine manufacturer and type; this is determined by the software of your OBDSTAR device, not by the cable.

Applications and functionality

Via the 10-pin connector, you access the engine management electronics of the inboard motor.

Control units you can reach

  • Engine management system: The control unit of the inboard engine connected to the 10-pin diagnostic connector.
  • Other modules: Which additional units are accessible varies by manufacturer and installation.

What you can do

  • Read fault codes: Retrieve stored and active diagnostic trouble codes (DTCs) from the engine management system.
  • Clear fault codes: Remove the retrieved codes after inspection or repair.
  • Request live data: Display real-time parameters such as engine speed, temperatures and sensor readings.
  • Convert connection: The 10-pin marine connector is adapted to the OBD2 format used by your device.
  • Note: Available functions depend on the OBDSTAR device used and the specific engine type.

Compatible vehicles and applications

The 10-pin diagnostic connector is the determining factor, not the manufacturer or model. The manufacturers listed below use this connector on their marine inboard engines. OBDSTAR does not specify particular models with production years.

  • Crusader Engines: Marine inboard engines (various models)
  • Marine Power: Marine inboard engines (various models)
  • Mercury Racing: Marine inboard engines (various models)
  • MerCruiser: Marine inboard engines (various models)
  • PCM (Pleasurecraft Engine Group): Marine inboard engines (various models)
  • Volvo Penta: Marine inboard engines (various models)
💡
Good to know: The 10-pin diagnostic connector is typically located in the engine compartment of the vessel, in close proximity to the engine block or cable routing. Check the number of pins on the diagnostic connector in the engine compartment before ordering.

Package contents

  • 1x OBDSTAR (M072) | Universal 10-pin OBD to 16-pin OBD2 Adapter Cable | Marine Engine

Technical specifications

Specification Description
Brand OBDSTAR
Part number M072
Type Adapter cable
Application 10-pin diagnostic connector for marine inboard engines
Vehicle-side connection Universal 10-pin OBD
Device-side connection 16-pin OBD2
Control units Inboard engine management system
Segment Marine engine
Supported brands Crusader Engines, Marine Power, Mercury Racing, MerCruiser, PCM (Pleasurecraft Engine Group) and Volvo Penta
Model range Not limited by year of manufacture; determined by the presence of the 10-pin diagnostic connector
Required to use OBDSTAR diagnostic device with marine coverage, such as the Marine Master or an iScan variant
Additional requirements None; the cable operates without adapter or power supply
Weight 0,1 kg
