Topdon TopScan Pro | Diagnostic Tool | Car

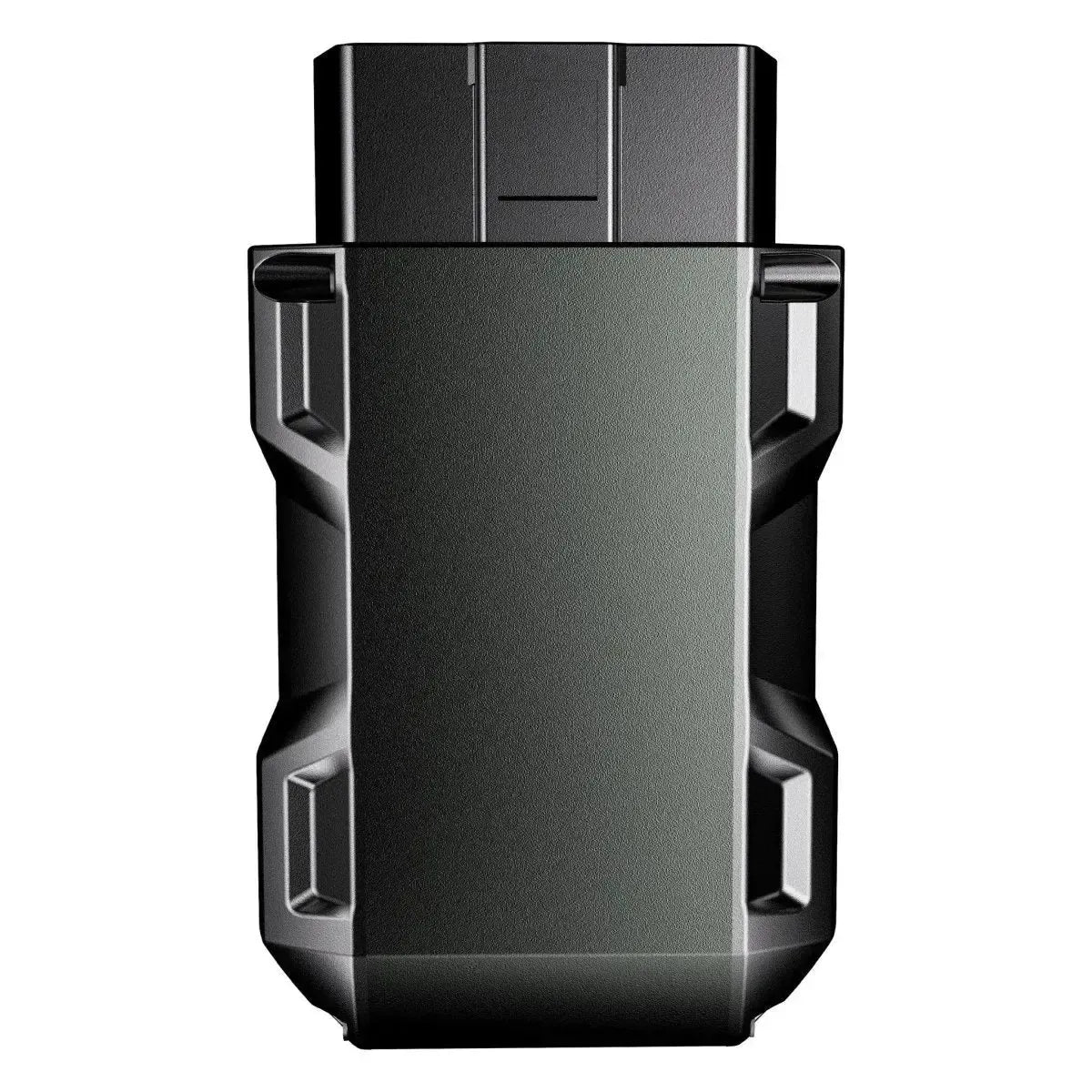

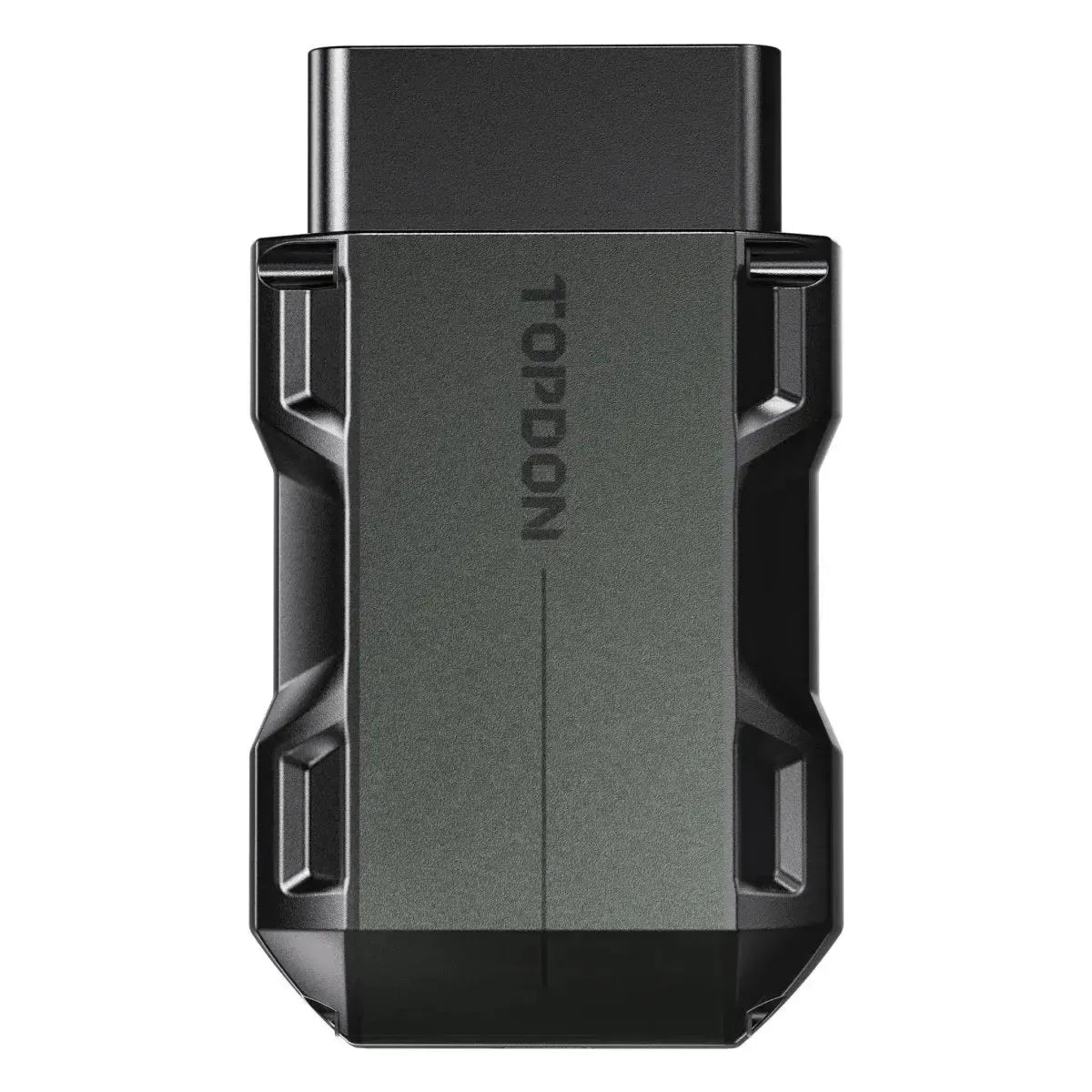

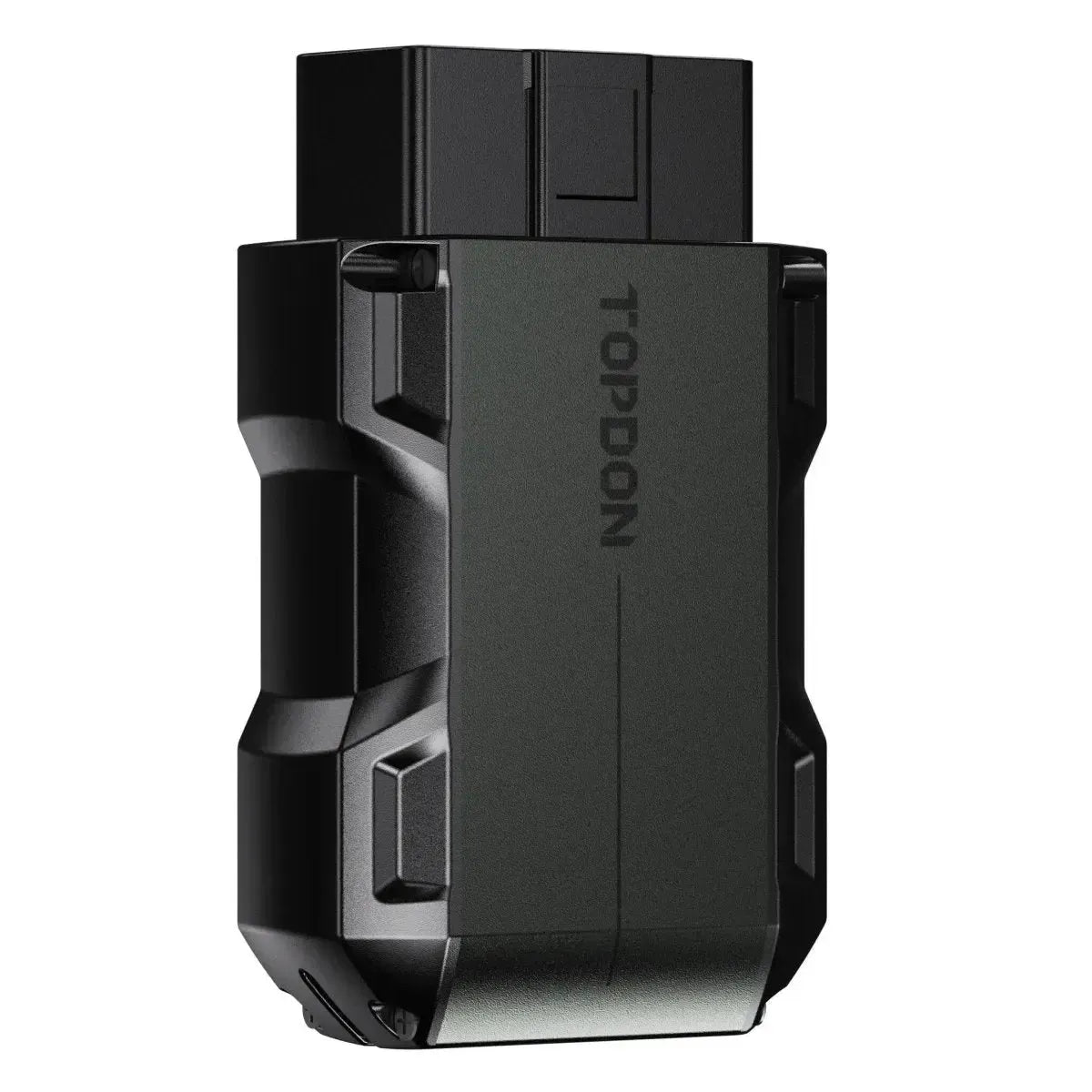

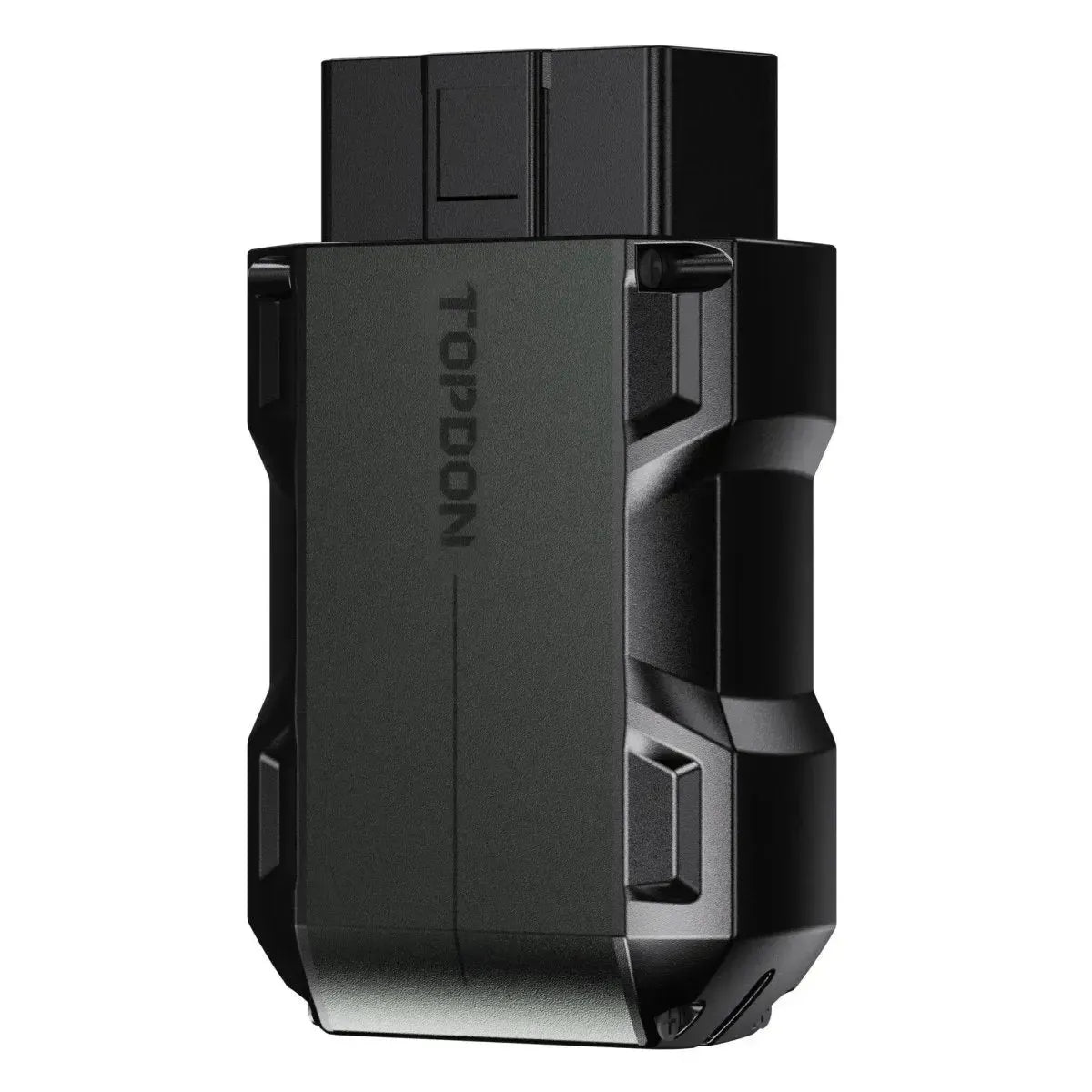

The Topdon TopScan Pro is a compact reader in the form of a VCI dongle that transforms a smartphone or tablet (iOS/Android) into a diagnostic tool. The connection is established via Bluetooth 5.0, ensuring stable communication with the vehicle. This system supports more than 60 vehicle brands and performs a full system diagnosis on all present electronic control units. The license for updates and functionalities is included for 1 year.

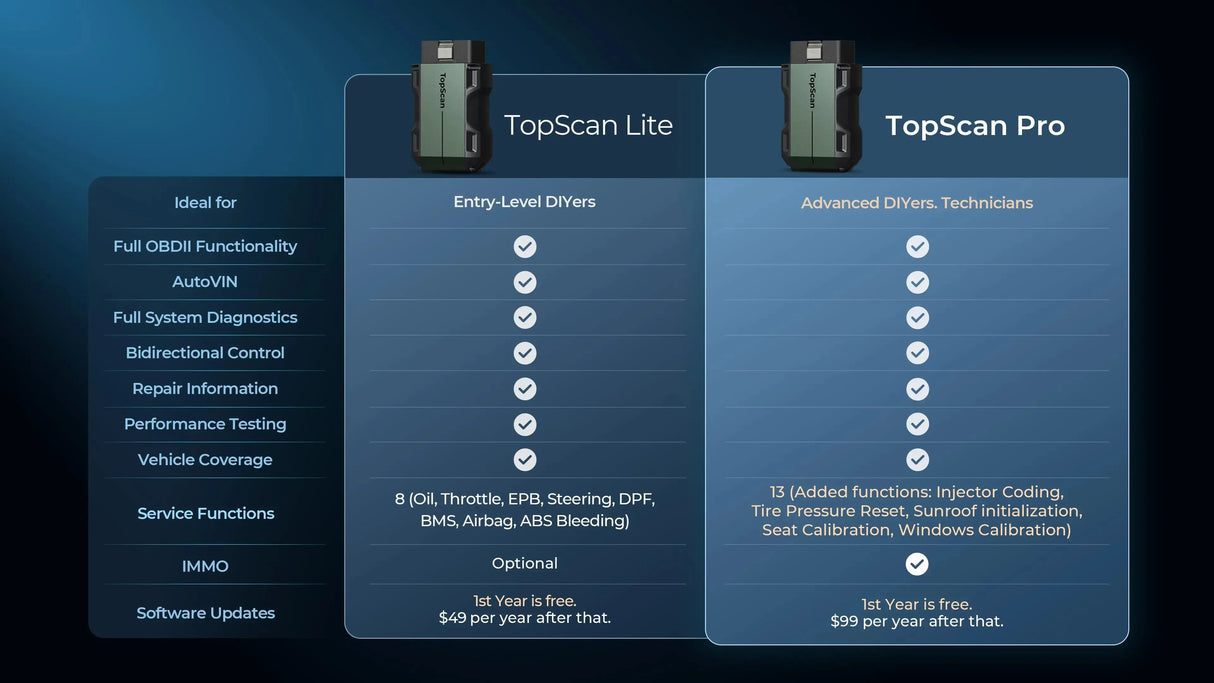

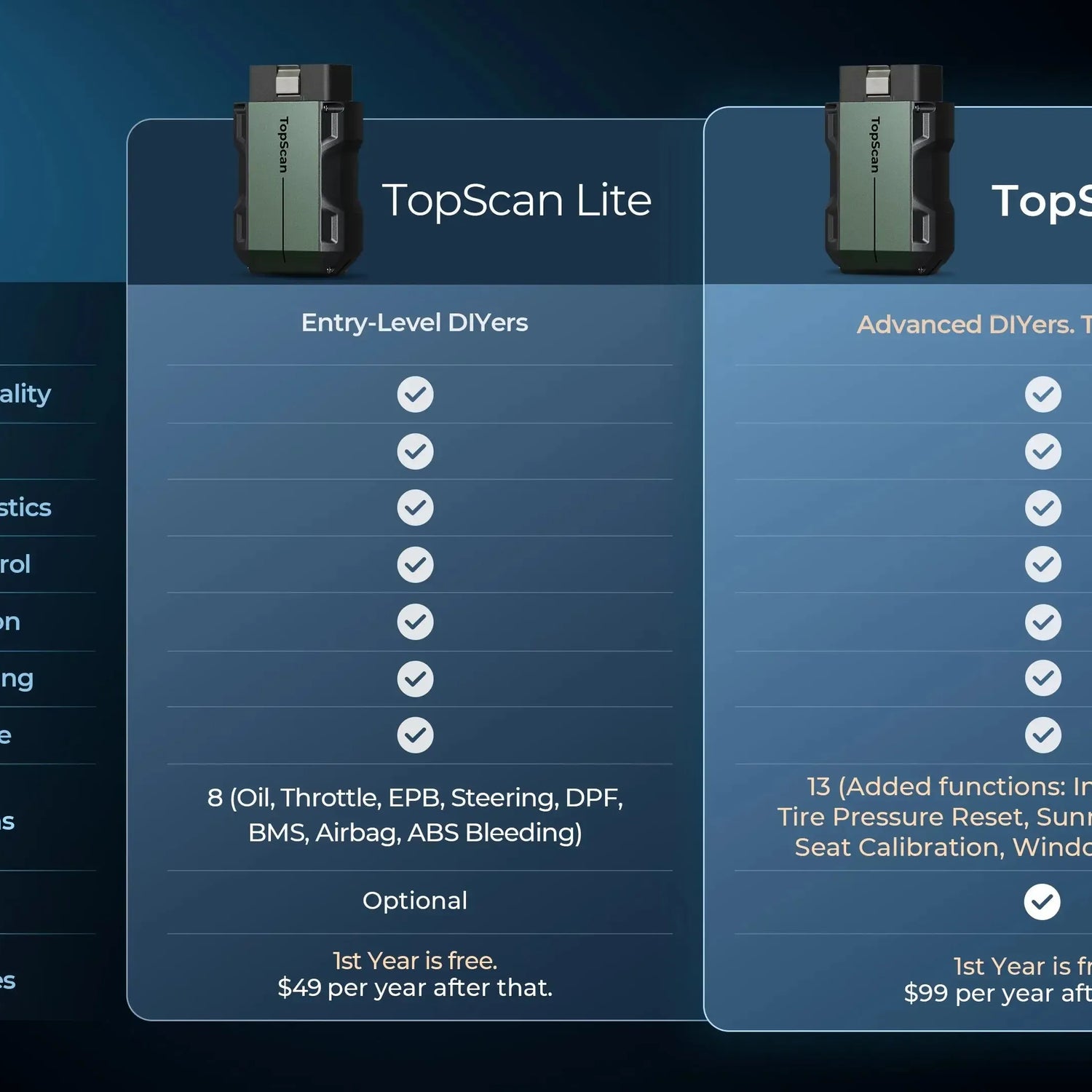

In addition to the standard diagnostic functions, the TopScan Pro features bidirectional control, allowing components to be directly controlled for testing purposes. The device is equipped with 13 service functions for routine maintenance. Functionality can be further expanded with optional SGW licenses for secured vehicles from FCA and Renault. The integrated repair database provides technical support and manuals directly within the application.

---

Diagnostic functions:

The Topdon TopScan Pro performs a full system diagnosis, analyzing all electronic control units in the vehicle.

• Read and clear fault codes: Reads and clears diagnostic trouble codes (DTCs) from all available systems, such as the engine, transmission, ABS, airbags, and body.
• Live data functions: Displays real-time data from sensors and components in various views, including text, graphs, and merged data streams for detailed analysis.
• Actuator control (Bidirectional control): Sends commands to vehicle systems and components to test their operation. This can activate injectors, pumps, windows, or windshield wipers, for example.

---

Service and maintenance functions:

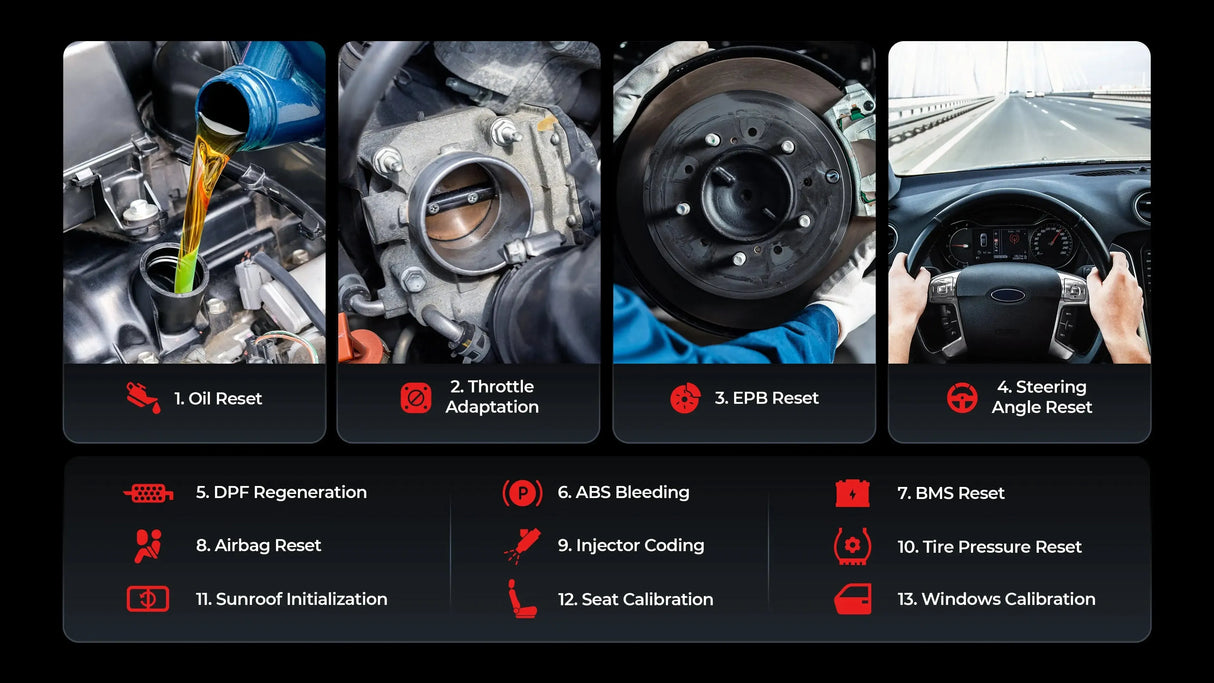

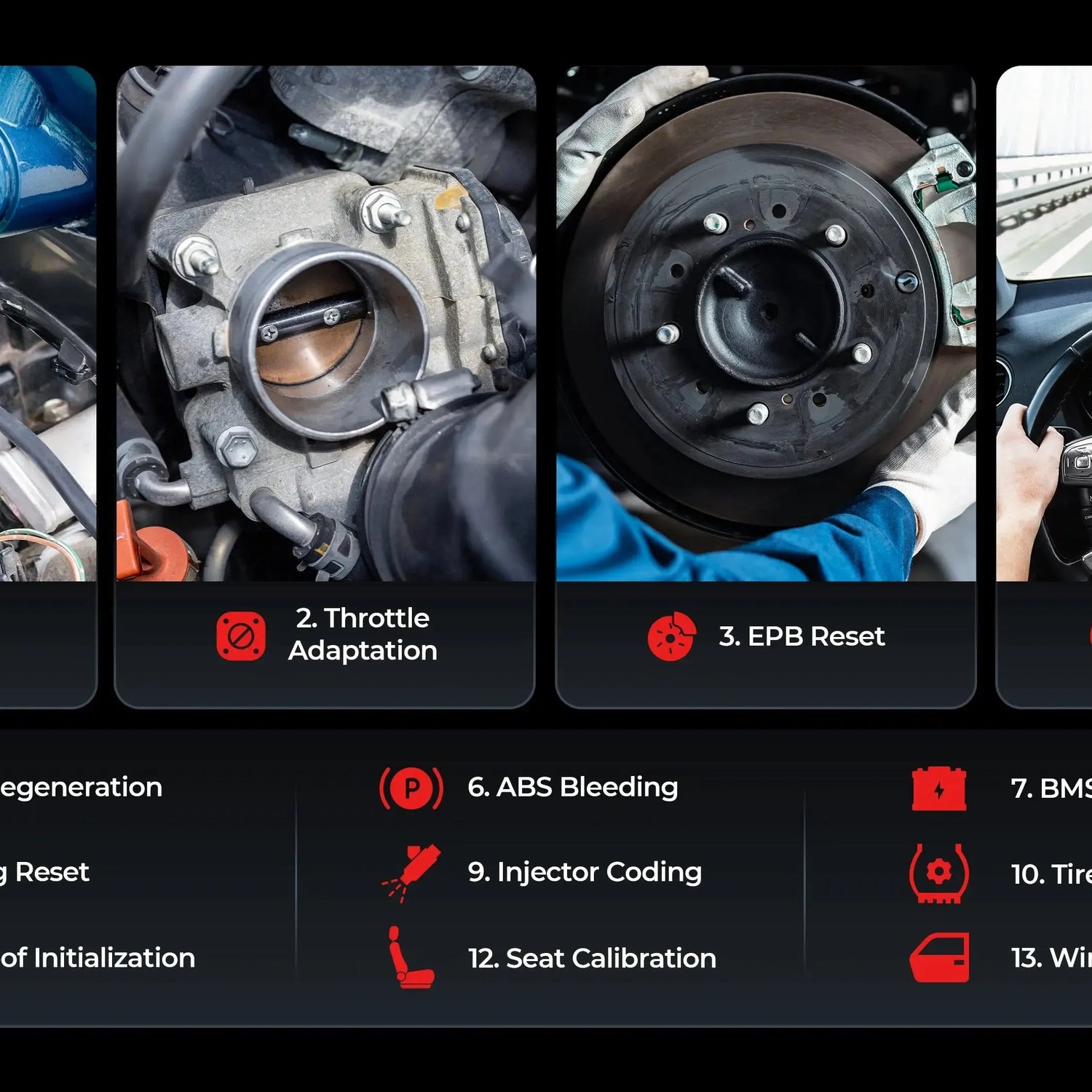

This device supports 13 service and maintenance functions. The available functions may vary by specific brand and model.

Engine and drivetrain:

• Oil service and inspection reset: Resets the service message for oil and maintenance after a service.
• Throttle body learning: Resets the throttle control to the default settings.
• Injector coding: Programs new injector codes into the control unit after replacement.

Brakes:

• ABS brake system bleeding: Removes air from the ABS system to restore braking performance.
• Electronic parking brake reset (EPB): Deactivates and activates the EPB system for maintenance and calibrates the brake pads after replacement.

Exhaust systems:

• Diesel particulate filter regeneration (DPF): Starts a forced regeneration of the DPF to remove blockages.

Steering system:

• Steering angle sensor initialization (SAS): Calibrates the steering angle sensor, which is necessary for systems like ESP.

Body and electronics:

• Battery reset (BMS): Registers a new Battery in the Battery Management System (BMS) after replacement.
• Window calibration: Calibrates the electric windows to set the correct opening and closing positions.
• Sunroof initialization: Resets the sunroof system to the default settings.
• Seat calibration: Calibrates the memory functions of electrically adjustable seats.

Safety systems:

• Airbag reset: Resets the airbag module and warning lights after a repair.
• Tire Pressure Monitoring System reset (TPMS): Learns new TPMS sensors and resets the system after a tire change.

---

Special functions and features:

The Topdon TopScan Pro offers various advanced functions for coding, reporting, and technical support.

Coding and programming:

• Online coding: Provides the ability to perform online coding for vehicles from Volkswagen, Audi, Seat, and Skoda.

Cloud and reporting functions:

• Diagnostic reports: Generates detailed diagnostic reports of the full system scan. These reports can be saved, printed, or shared digitally.

Documentation and diagrams:

• Repair database: Provides access to an integrated database with repair manuals, fault code analysis, and technical service bulletins.

Other special features:

• Performance test: Measures the vehicle's acceleration, for example from 0 to 100 km/h, and records the required time and distance.

---

Optional expansion modules:

The functionality of the Topdon TopScan Pro can be expanded with the following optional, brand-specific licenses. These expansions are sold separately.

Software modules and licenses:

• FCA Secure Gateway (SGW) license: Offers authorized access to the secure vehicle systems of Fiat, Chrysler, Alfa Romeo, Jeep, Dodge, and RAM models.
• Renault Secure Gateway (SGW) license: Provides authorized access for performing diagnostics and special functions on Renault, Dacia, and RSM vehicles equipped with a Secure Gateway.

---

Supported vehicle brands:

The Topdon TopScan Pro is compatible with a wide range of vehicle brands. Below is an overview of the supported brands, categorized by region.

• European: Abarth, Alfa Romeo, Audi, Bentley, BMW, Bugatti, Citroen, Cupra, Dacia, DS, Ferrari, Fiat, Iveco, Jaguar, Lamborghini, Lancia, Land Rover, Maserati, Maybach, Mercedes-Benz, Mini, Opel, Peugeot, Polestar, Porsche, Renault, Rolls-Royce, Saab, Seat, Skoda, Smart, Vauxhall, Volkswagen, Volvo
• Asian: Acura, Daewoo, Daihatsu, Genesis, Holden, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Mahindra, Maruti, Mazda, Mitsubishi, Nissan, Perodua, Proton, Scion, SsangYong, Subaru, Suzuki, Tata, Toyota
• American: Buick, Cadillac, Chevrolet, Chrysler, Dodge, Ford, General Motors, GMC, Jeep, Lincoln
• Chinese: Aeolus, Baichuansu, Baicmotor, Baojun, Brilliance, BYD, Changan, Chery, Cowin, Denza, Dongfeng, Emgrand, Englon, Exeed, Geely, Gleagle, Greatwall, Hafei, Haval, Jetour, Karry, Lynk & Co, Maple, Maxus, MG, Rely, Riich, Roewe, Senova, SGMW, Sokon, SWMmotor, Venucia, Weiwang

---

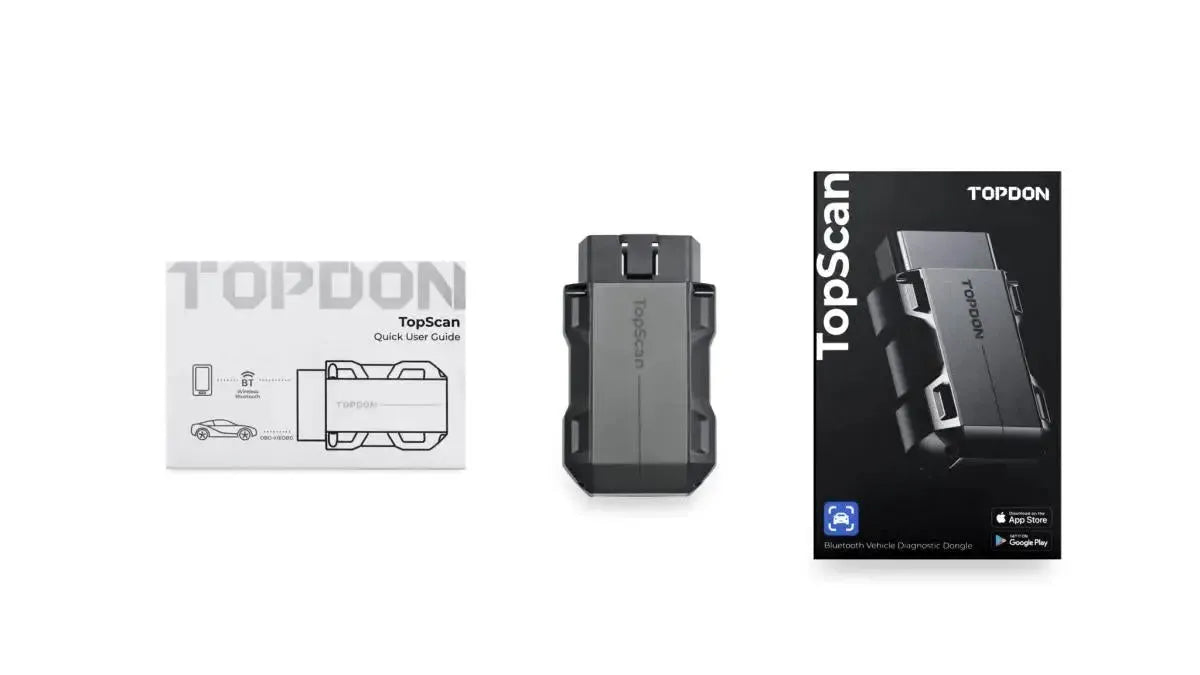

Package Contents:

• 1x Topdon TopScan Pro VCI dongle
• 1x Manual
• 1x Storage box

---

License information:

• Including 1 year updates: A 12-month update license is included with the purchase.

After the license period expires, it is necessary to purchase a new license to continue using the device's diagnostic functions, service functions, and online capabilities. Without an active license, the functions are not available.

---

Technical specifications:

Specification	Description
Product Brand	Topdon
Product Model	TopScan Pro
Operating System	Application compatible with iOS 11.0 and Android 7.0 or higher
Connectivity	Bluetooth 5.0
