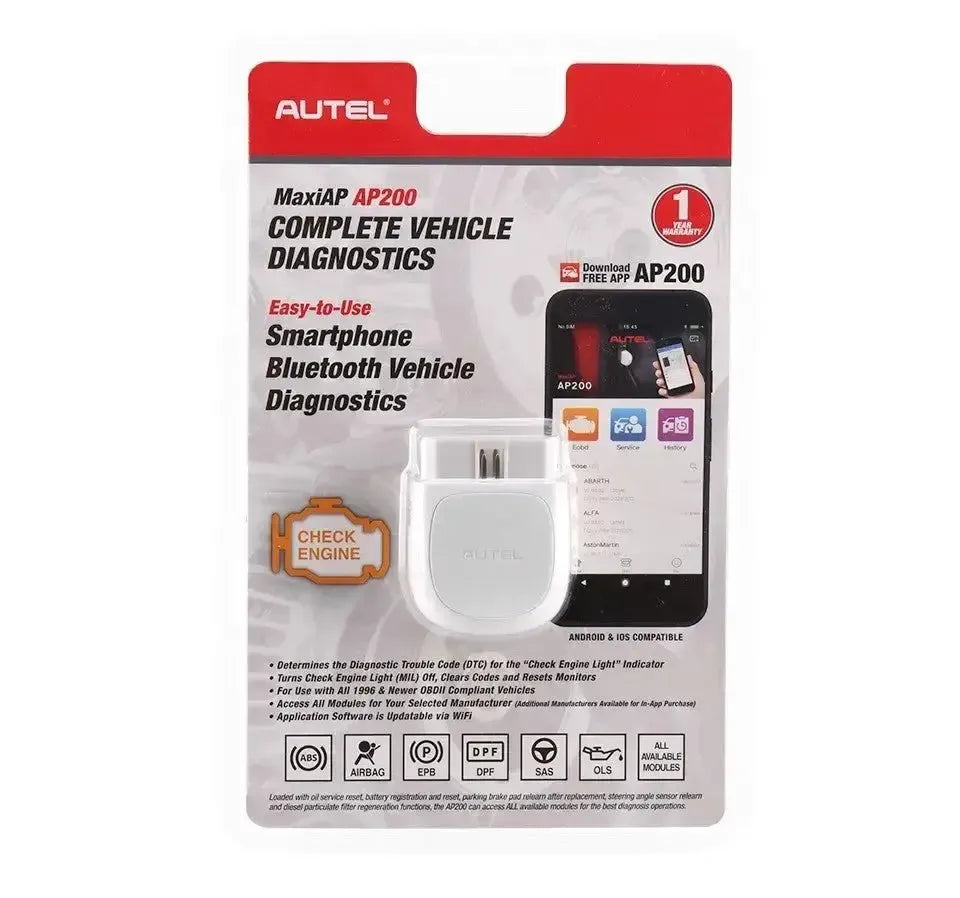

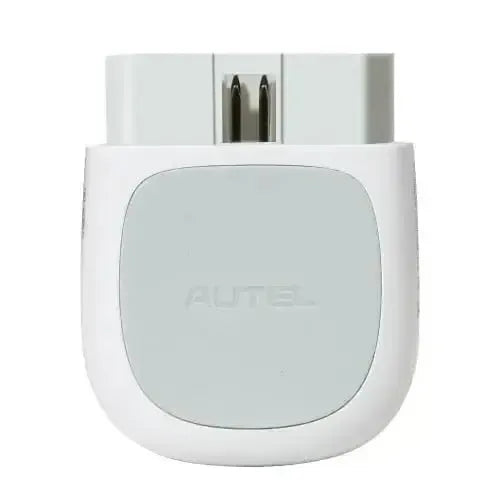

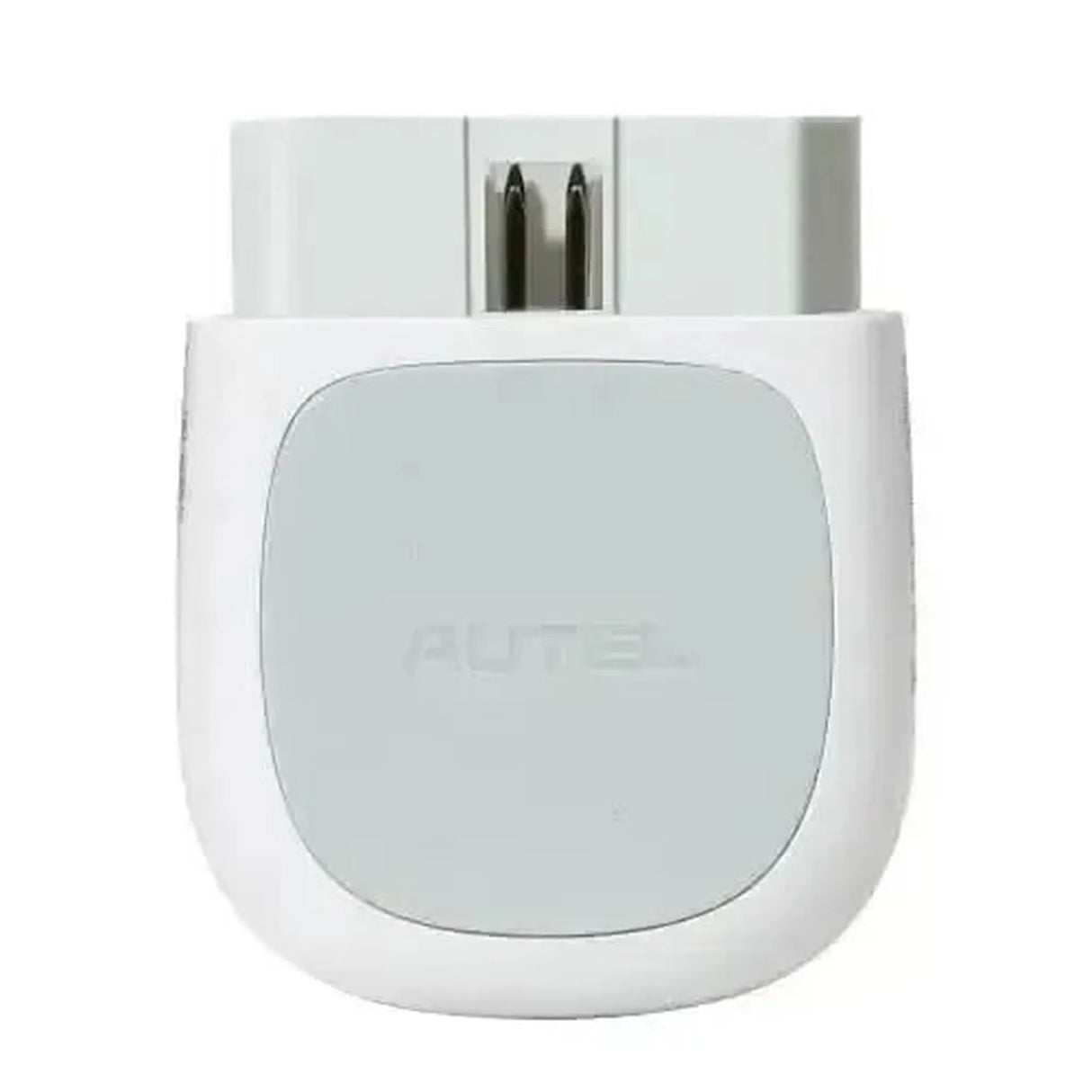

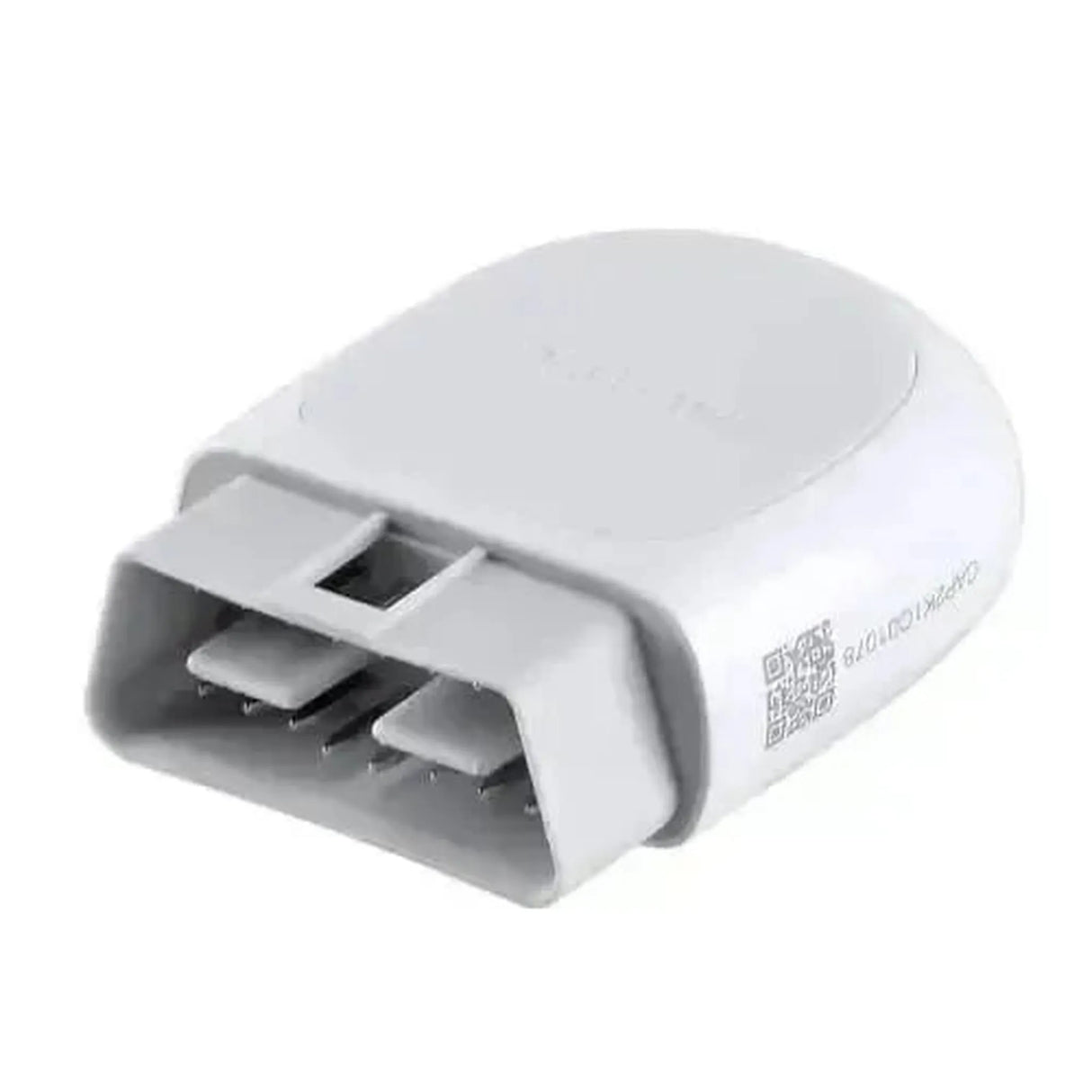

Autel MaxiAP AP200 Car Diagnostic Tool

The Autel MaxiAP AP200 is a compact and powerful Bluetooth Diagnostic Tool (dongle) that turns your smartphone (iOS or Android) into a professional diagnostic tool. This device is developed for the demanding DIYer or semi-professional user who needs in-depth brand-specific diagnostic capabilities combined with universal OBD2 functionality.

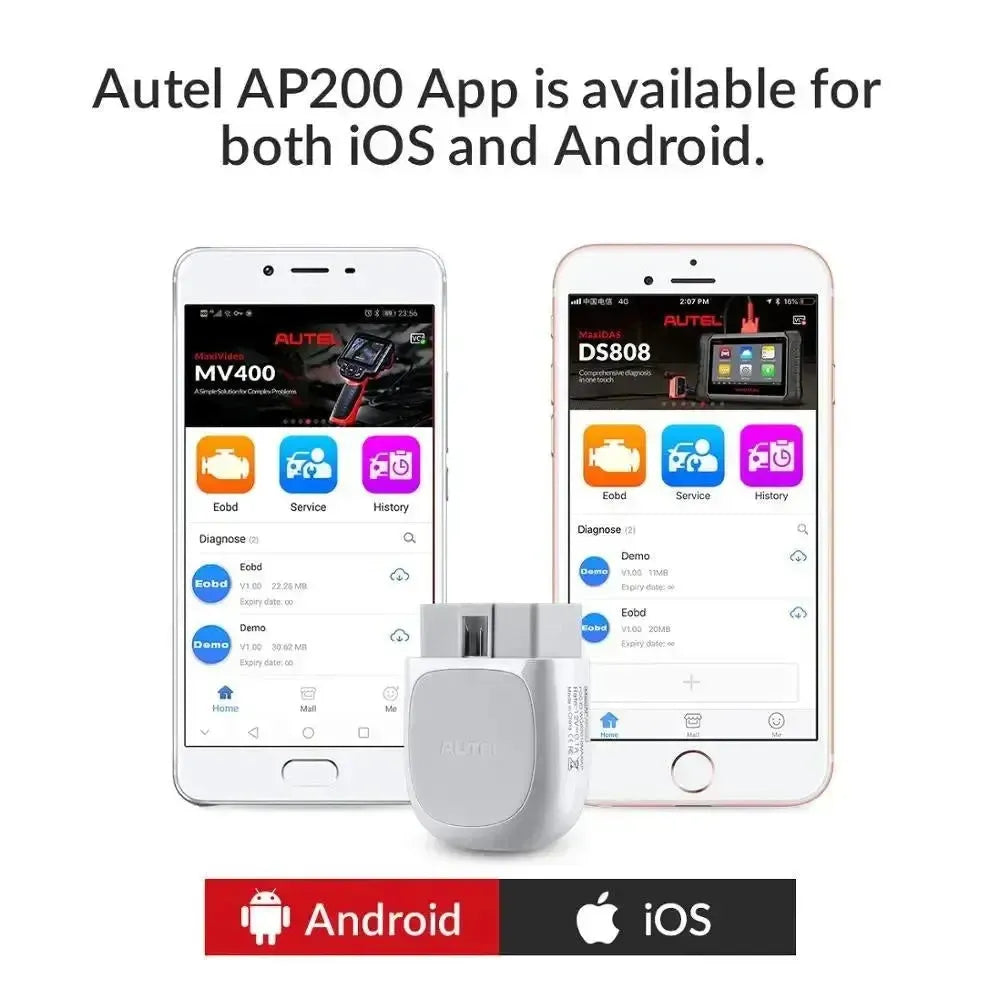

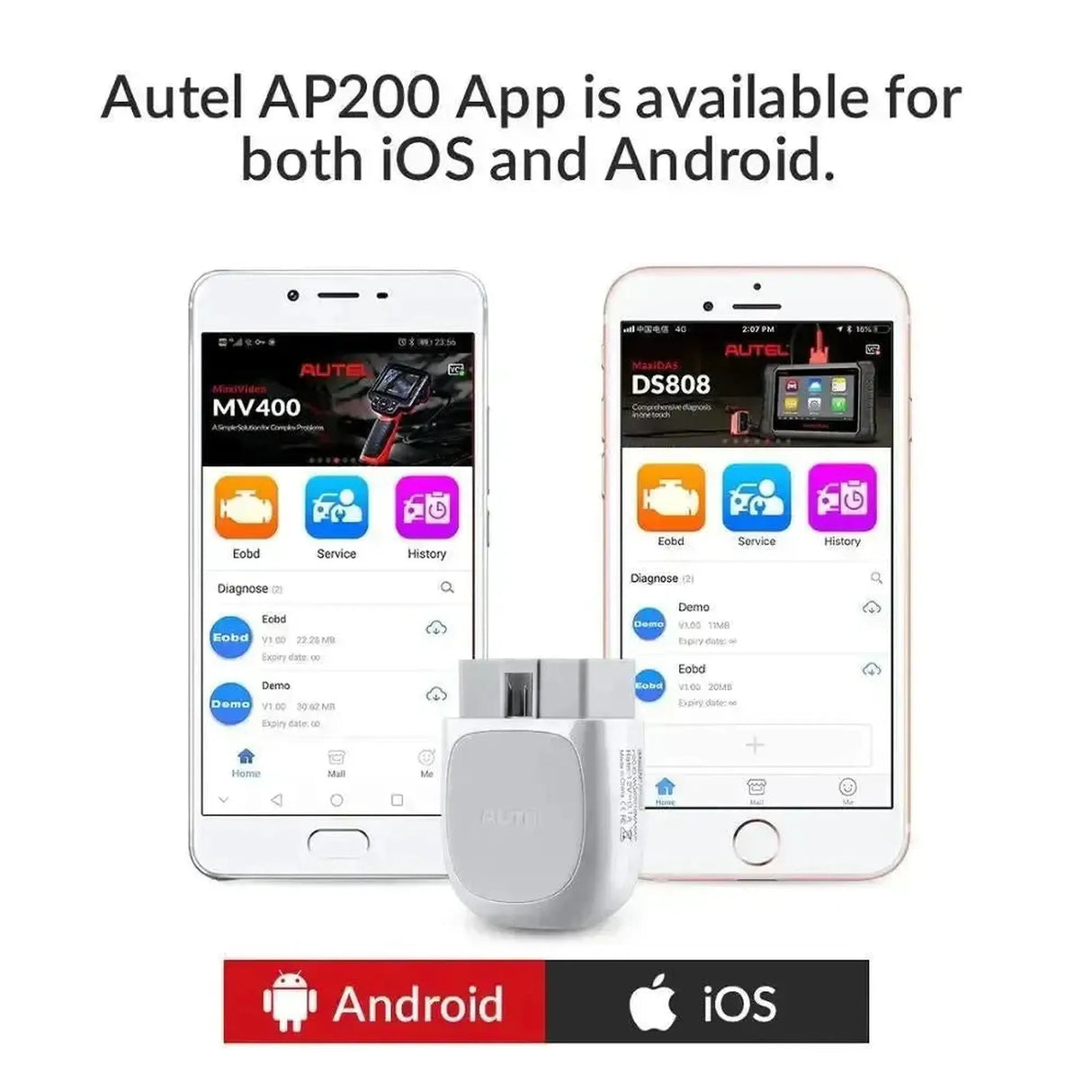

After registration, the AP200 offers full system diagnosis and a comprehensive package of service and maintenance functions for one car brand of choice, which remains free for life. For all other brands, the AP200 functions as a full-featured OBD2 scanner, enabling generic engine diagnosis. Operation is via the user-friendly MaxiAP200 app, making the AP200 a versatile and cost-effective solution for those working with multiple vehicles but needing deep diagnosis for one brand.

Diagnostic functions:

The Autel MaxiAP AP200 offers extensive diagnostic capabilities, tailored to both brand-specific and universal applications:

• Full system diagnosis (for 1 selected brand): reads and clears fault codes from all electronic control units within the selected brand, including engine, transmission, ABS, airbag (SRS), climate control, instrument panel, parking sensors, and other modules.
• Live datastream: displays real-time data from supported systems in various display formats (numeric or graphical) for accurate analysis of vehicle performance.
• Full OBD2 functionality (for all brands): supports all 10 OBD2 test modes, including reading and clearing engine faults, I/M Readiness (emission test), O2 sensor tests, and reading vehicle information (VIN).

Maintenance and service functions:

For the registered car brand, the Autel MaxiAP AP200 supports up to 19 commonly used service and maintenance procedures, depending on the vehicle model. Some of the most supported functions are:

• Oil Service Reset: restores the oil and maintenance interval after a service.
• Electronic Parking Brake Reset (EPB): activates the service mode of the brake system for safe replacement of brake pads.
• Steering Angle Sensor Calibration (SAS): calibrates the steering angle sensor after alignment work or replacement of steering components.
• Battery registration (BMS): registers a new battery and adjusts the charging specifications.
• Throttle body learning: recalibrates the electronic throttle for correct idle control and throttle response.
• Diesel particulate filter regeneration (DPF): performs a forced regeneration to remove accumulated soot from the filter.
• TPMS reset: initializes the tire pressure monitoring system after sensor or tire replacement.
• Injector coding: programs new injectors for precise fuel injection.
• ABS bleeding: supports removing air from the hydraulic brake system including the ABS module.
• Adaptive headlight reset (AFS): recalibrates the adaptive lighting after replacement or maintenance.
• Sunroof initialization: resets the end positions of the sunroof after repair work.

Extra functions:

The Autel MaxiAP AP200 features additional functions that make the diagnostic process more efficient and user-friendly:

• AutoVIN technology: automatically identifies the vehicle based on the chassis number (VIN) for a quick and error-free diagnostic start.
• Diagnostic reports: generates clear fault code and system summaries in PDF format, which can be saved and shared via the app.
• Vehicle history: stores an overview of previously performed diagnostics, so vehicles can be easily reselected for follow-up diagnostics or maintenance.

Supported car brands:

• European brands: Abarth, Alfa Romeo, Aston Martin, Audi, Bentley, BMW, Bugatti, Citroën, Dacia, Ferrari, Fiat, FordEU, Jaguar, Lancia, Lamborghini, Land Rover, Maserati, Maybach, Mercedes-Benz, Mercedes-Benz LD, MINI, Opel, Peugeot, Porsche, Renault, Saab, Seat, Skoda, Smart, Vauxhall, Volkswagen, Volkswagen CV, Volkswagen LT3, Volvo
• Asian brands: Acura, Daewoo, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Maruti Suzuki, Mazda, Mitsubishi, Nissan, Nissan GTR, Samsung, Scion, SsangYong, Subaru, Suzuki, Toyota
• American brands: Chrysler, Dodge, Ford, GM, Jeep

Package contents:

• Autel MaxiAP AP200 Diagnostic Tool
• Manual

License information:

The Autel MaxiAP AP200 operates on a brand-specific license model:

• Software for one brand: upon registration, the user receives lifetime free access to full system diagnosis and all available service functions for one chosen car brand, including software updates.
• Additional brands: support for other brands can optionally be added via annual licenses, which are sold separately within the MaxiAP200 app.

Technical specifications
