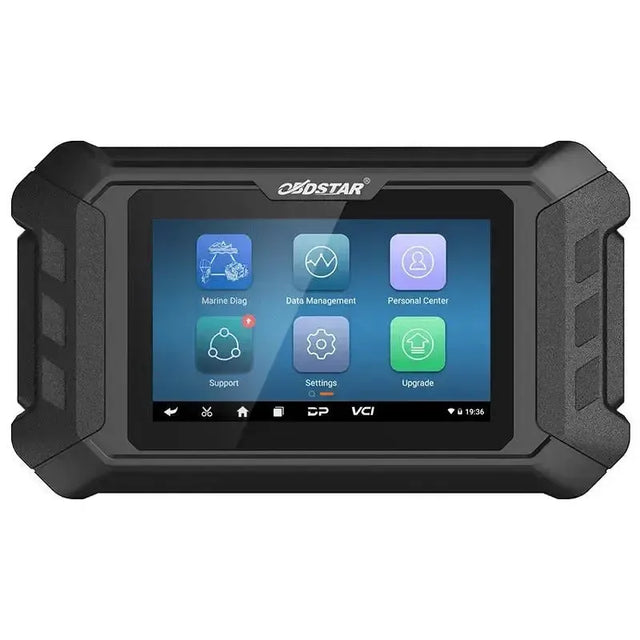

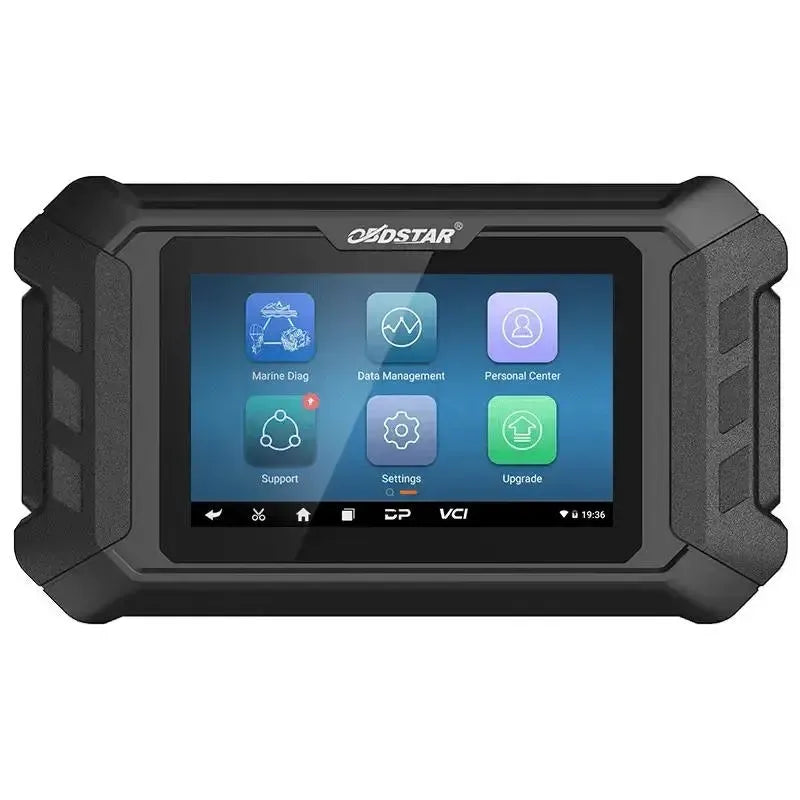

OBDSTAR IScan Honda (Marine) | Diagnostic Tool | Motorboat

Diagnostic functions

The OBDSTAR iScan Honda (Marine) supports a range of diagnostic functions needed to read and analyze Honda outboard motors and jet skis.

• Read fault codes: Read active and stored fault codes from the engine control modules.
• Clear fault codes: Remove fault codes after repairs or maintenance.

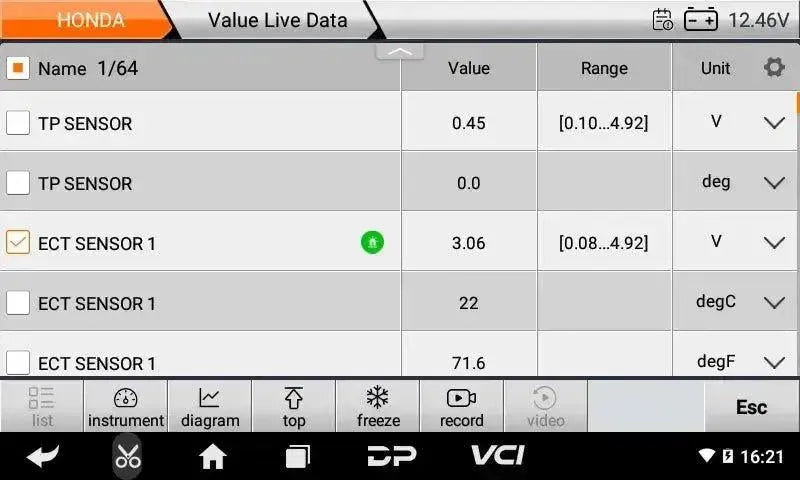

• Live data: Real-time display of sensor and component values in text, waveform, or gauge view.
• Record and playback data: Record live data for later analysis, enabling precise localization of sensor and component faults.
• Actuator test: Activate components to verify proper operation without disassembly.
• Coding: Adjust parameters in the control module according to factory specifications.
• Settings: Configure module settings for specific tasks or adjustments.

Service and maintenance functions

The reader device supports multiple service and maintenance functions for Honda marine applications. Available functions may vary by engine model and year.

Engine and drivetrain

• Reset engine control module: Reset the engine control module after maintenance or component replacement.
• Set self-test: Activate and configure the engine self-test procedure to check system status.

Maintenance and usage logging

• Record operating hours: Log the number of operating hours for maintenance planning and warranty administration.
• Set hour meter: Adjust the hour meter, for example after replacing the control module.

Warning and safety systems

• Reset warning device: Reset the warning system after resolving a fault.
• Replace warning device: Guided procedure for replacing and programming a new warning device.

Special features and capabilities

In addition to diagnostic and service functions, the reader device offers various special features that support the diagnostic process.

• One-click remote assistance: Connect remotely with OBDSTAR technicians for technical support during diagnostics.
• One-click software update: Update the device software via WiFi with a single action.

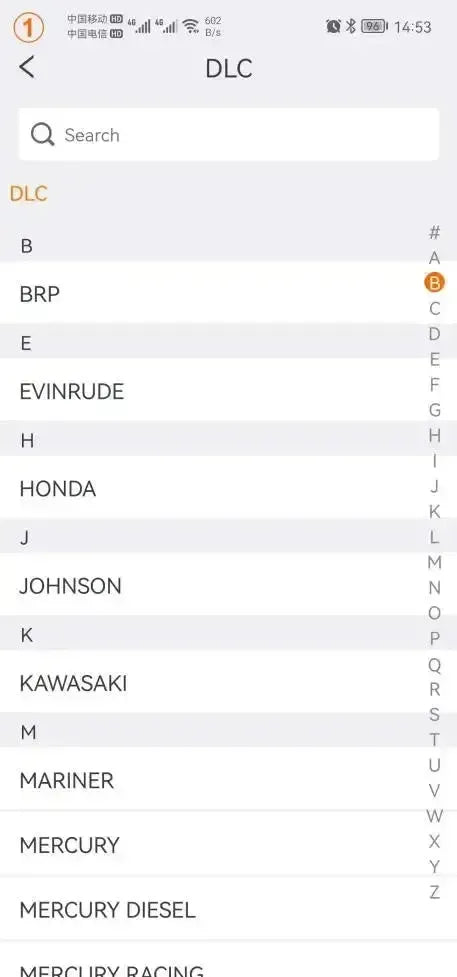

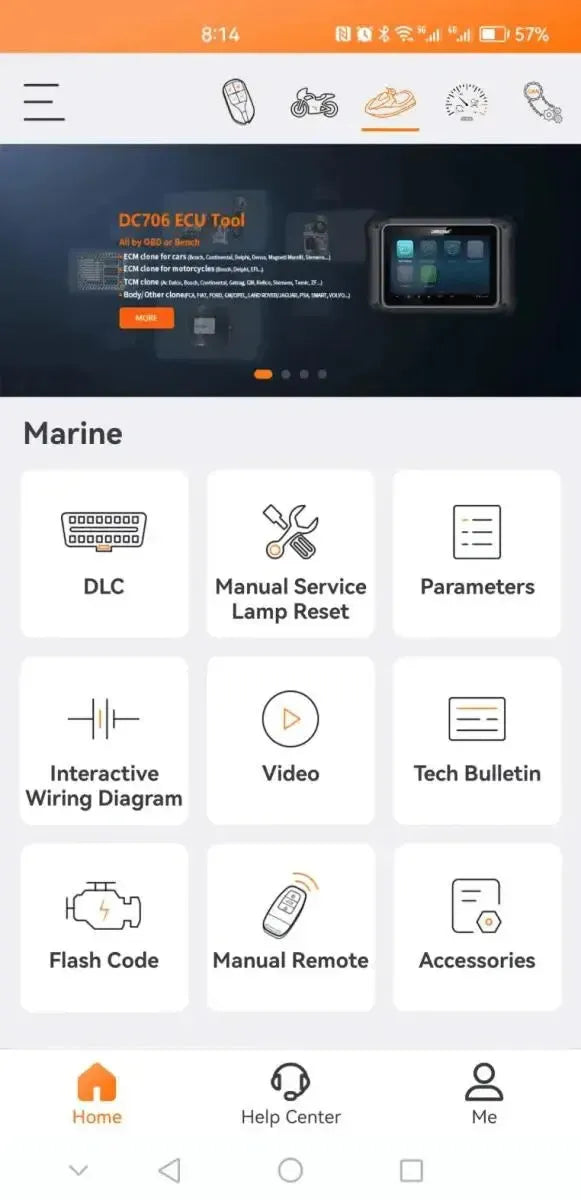

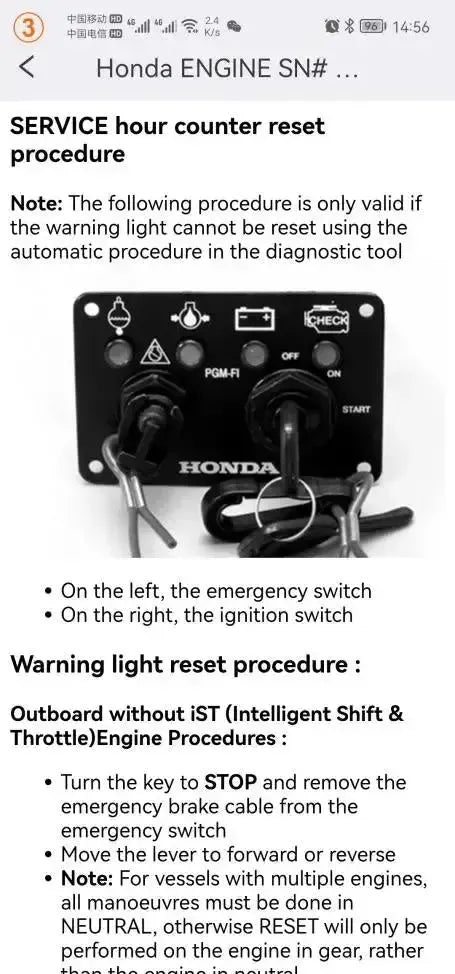

• OBDSTAR mobile app: Additional features such as location of diagnostic connectors, flash code lookup, technical bulletins, manual service functions (service lamp reset), and basic parameters.

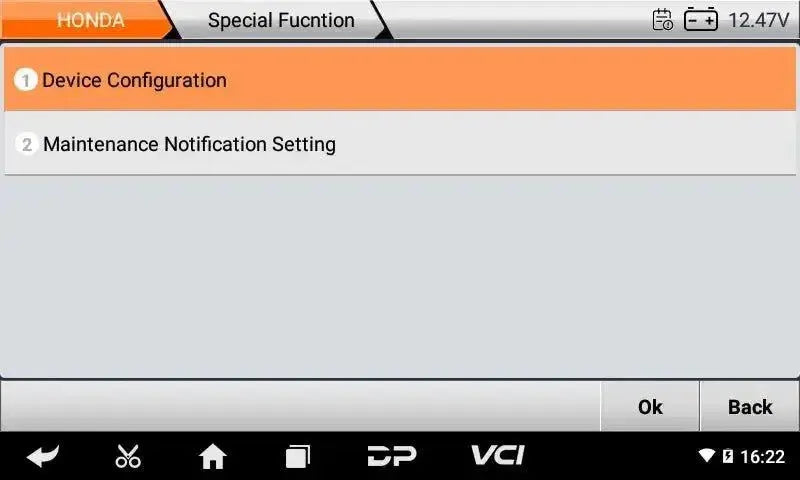

• Device configuration: Adjust device settings to the usage environment.
• Set maintenance alerts: Configure notifications for periodic maintenance.
• Repair information: Access repair data within the Diagnostic Tool.
• Data management: Manage and store diagnostic and session data on the device.

Supported vehicle brands

The OBDSTAR iScan Honda (Marine) is a brand-specific Diagnostic Tool developed exclusively for Honda marine applications.

• Asian: Honda (Jet Ski and Outboard models from 2004 to 2022)

License information

The OBDSTAR iScan Honda (Marine) comes with a license that provides access to software updates and functional expansions for Honda marine diagnostics during the license period.

• License period: Valid for 2 years from device activation.
• Software updates: Updates typically include expanded model year coverage for Honda Jet Ski and Outboard models, new diagnostic functions, and bug fixes.
• Extended functions: An active license is required to receive software updates, access new diagnostic protocols, and additional functionality via WiFi connection.
• After license expiration: The Diagnostic Tool remains functional with the last installed software version. New updates and expansions require license renewal.

Package Contents

• 1x OBDSTAR iScan Honda (Marine) Diagnostic Tool
• 1x 12V 2A charger
• 1x M001B main cable
• 1x M015A Honda adapter
