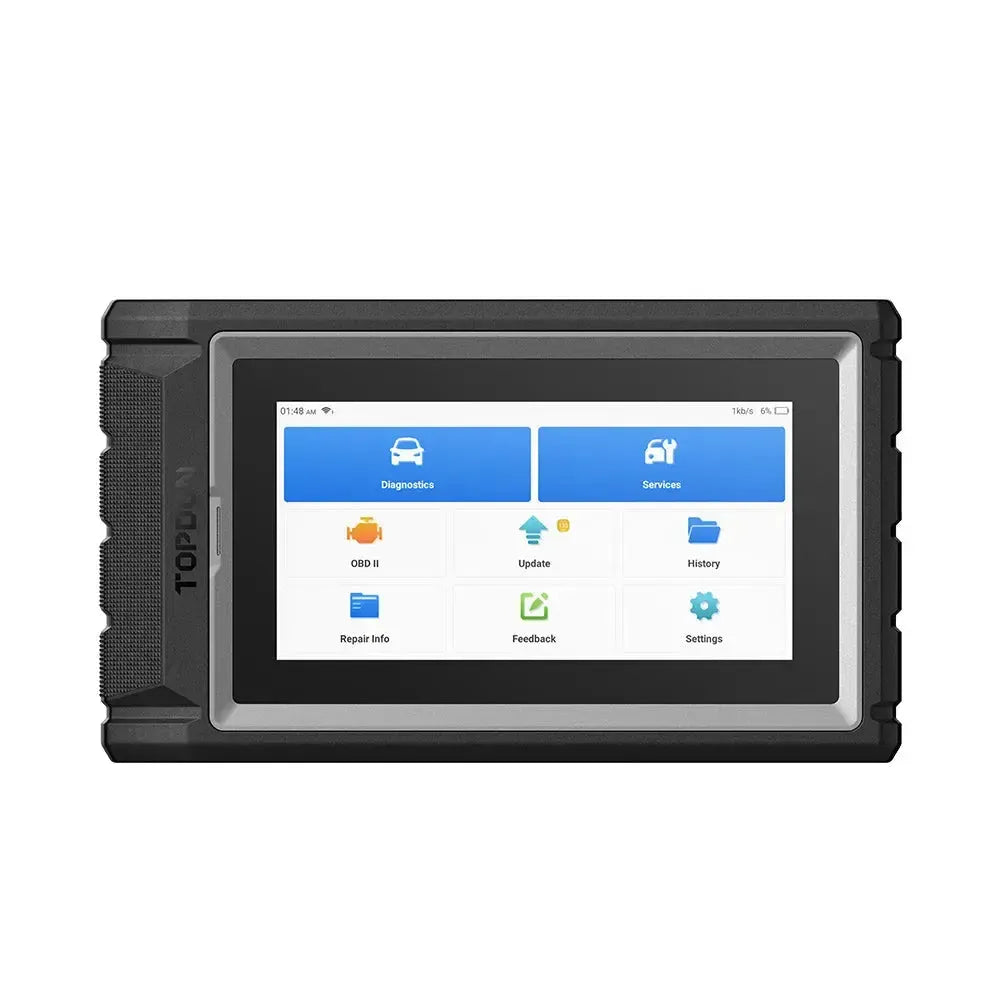

The Topdon ArtiDiag800 BT 2 is a wireless vehicle diagnostic tool designed to perform a full system diagnosis on more than 100 vehicle brands. This device is equipped with a Bluetooth VCI module for wireless communication and supports protocols such as CAN-FD. The diagnostic tool provides access to 28 service and maintenance functions and comes with a license for 2 years of free software updates.
Operation is via a 6-inch touchscreen and the Android 11.0 operating system. Features such as AutoVIN for automatic vehicle identification and generating diagnostic reports are integrated. Functionality can optionally be expanded with a license for FCA Secure Gateway (SGW) access, enabling diagnosis of secured vehicles from Fiat, Chrysler, Alfa Romeo, and Dodge.
Diagnostic functions:
The ArtiDiag800 BT 2 performs a full diagnosis on all electronic control units present in the vehicle. The VCI module enables wireless communication with the vehicle.
- Read and clear fault codes: Reads and clears fault codes (DTCs) from all available systems, such as engine, transmission, ABS, and airbags.
- Retrieve ECU information: Shows detailed information from the control unit, including type, version numbers, and other specifications.
- Live data: Displays real-time data from sensors and components, both in text format and graphically. This allows monitoring of parameters such as engine speed, coolant temperature, and battery voltage.
Service and maintenance functions:
This diagnostic tool supports 28 service and maintenance functions. The availability of specific functions may vary by vehicle make, model, and year.
Engine and drivetrain:
- Oil service reset: Resets the service interval indicator after an oil change.
- Injector coding: Registers new injector codes in the control unit after replacement.
- Throttle body learning: Resets the throttle actuator to default settings.
- Crankshaft sensor learning: Learns the tolerances of the crankshaft position sensor for accurate engine control.
- Initialize transmission: Adjusts the shift points of the automatic transmission for smooth shifting behavior.
- Learn EGR valve: Resets the values of the exhaust gas recirculation valve after cleaning or replacement.
- Deactivate/activate start/stop system: Changes the settings of the automatic start-stop system.
- Bleed cooling system: Activates the water pump to remove air from the cooling system.
Exhaust systems:
- Diesel particulate filter regeneration (DPF): Forces regeneration of the diesel particulate filter to remove blockages.
- Reset AdBlue system: Resets the AdBlue system after refilling the fluid.
- Reset NOx sensor: Resets the learned values of the NOx sensor after replacement.
- Reset air-fuel ratio: Adjusts the mixture ratio of air and fuel.
Brakes and chassis:
- Initialize electronic parking brake (EPB): Performs maintenance on the electronic brake system, such as replacing brake pads.
- Bleed ABS system: Removes air from the brake system after repairs to the anti-lock braking system.
- Calibrate air suspension: Resets or calibrates the level sensors of the air suspension.
Steering and tires:
- Initialize steering angle sensor (SAS): Calibrates the sensor that measures the steering wheel position.
- Reset tire pressure monitoring system (TPMS): Resets the TPMS after changing or inflating tires.
Body and electronics:
- Register battery management system (BMS): Registers a new battery in the vehicle system.
- Initialize adaptive headlight system (AFS): Resets the system for swiveling headlights.
- Initialize sunroof: Reset the basic settings and functions of the sunroof or panoramic roof.
- Calibrate windows: Calibrates the electric window motors.
- Calibrate seats: Initializes the memory functions of electrically adjustable seats.
Safety systems:
- Reset airbag module: Resets the airbag data after a collision or component replacement.
- Program immobilizer (IMMO): Programs new keys or deactivates lost keys.
Other functions:
- Enable/disable transport mode: Activates or deactivates the mode that limits power consumption during transport.
- Adjust odometer (ODO): Calibrates the value of the odometer after replacing the instrument panel.
- Change language settings: Changes the language of the instrument panel or infotainment system.
Special functions and capabilities:
This reader device has various functions that support the diagnostic process.
- AutoVIN: Automatically identifies the vehicle based on the chassis number for a quick start of the diagnosis.
- CAN-FD protocol support: Compatible with the CAN-FD protocol, used in newer vehicles from, among others, General Motors.
- Diagnostic reporting: Generates a detailed report of the performed diagnosis, which can be saved or shared.

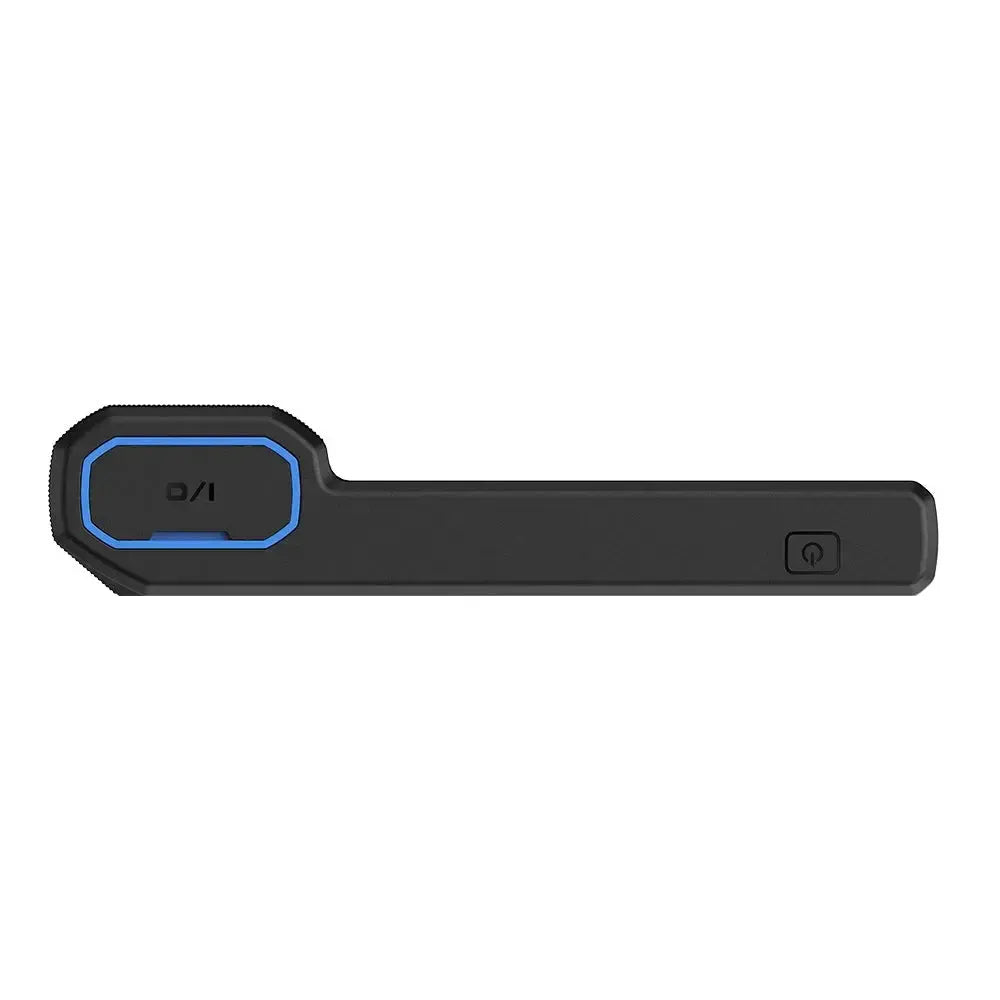

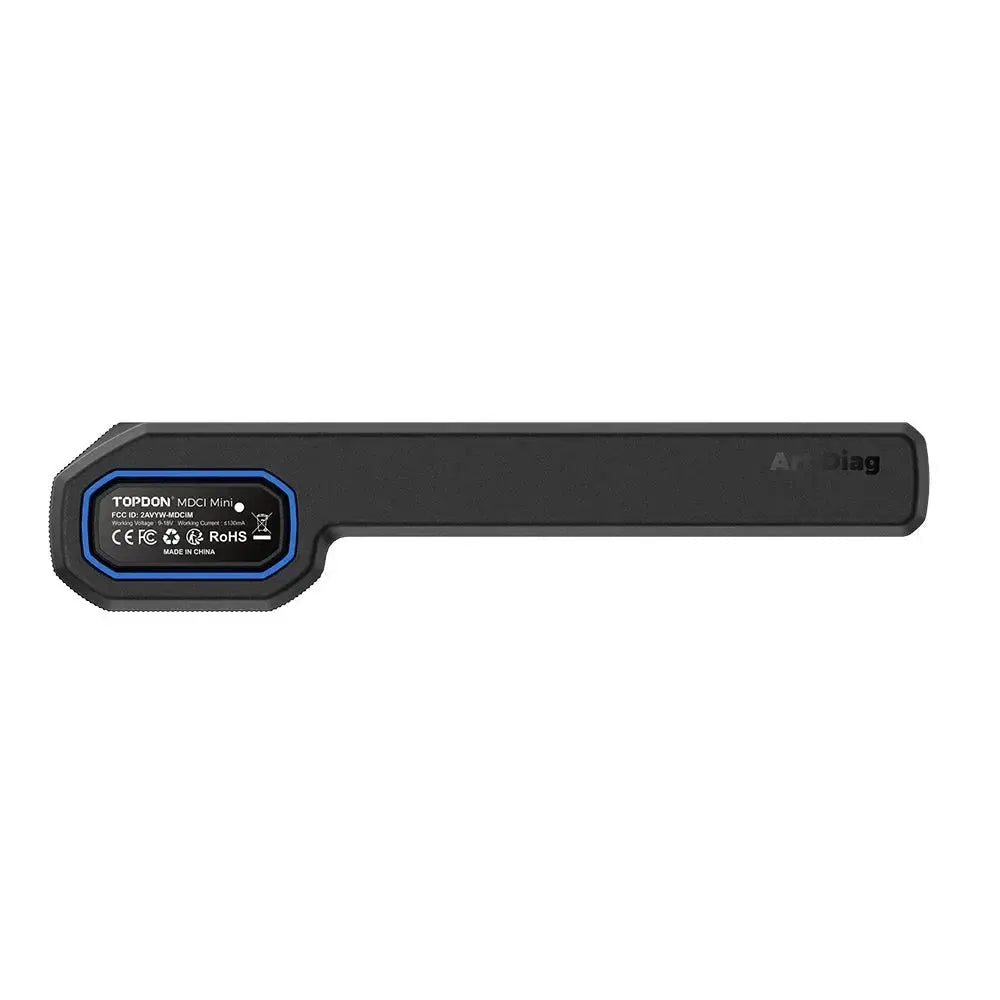

- Wireless diagnosis: The included VCI module establishes a stable Bluetooth connection with the vehicle, allowing remote diagnosis from the dashboard.
- Vehicle History: Stores previous diagnostic reports so that the maintenance history per vehicle can be consulted.
Optional expansion modules:
The functionality of this reader device can be expanded with the optional software licenses listed below. These expansions are specific to Topdon and may require an active internet connection and a valid subscription.
Software modules and licenses:
- FCA Secure Gateway (SGW) license: Provides authorized access to the secure gateway module on vehicles from Fiat, Chrysler, Alfa Romeo, and Dodge, enabling advanced diagnostic functions and adjustments.
Supported vehicle brands:
The Topdon ArtiDiag800 BT 2 supports a wide range of vehicle brands from various regions, including Europe, Asia, America, and China.
- European: Abarth, Alfa Romeo, Audi, Bentley, BMW, Bugatti, Citroën, Dacia, DS, Fiat, Jaguar, Lamborghini, Lancia, Land Rover, Maserati, Maybach, Mercedes-Benz, Mini, Opel, Peugeot, Porsche, Renault, Rolls-Royce, Saab, Seat, Skoda, Smart, Sprinter, Vauxhall, Volkswagen, Volvo
- Asian: Acura, Daewoo, Daihatsu, Genesis, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Mahindra, Maruti, Mazda, Mitsubishi, Nissan, Proton, Scion, SsangYong, Subaru, Suzuki, Tata, Toyota
- American: Buick, Cadillac, Chevrolet, Chrysler, Dodge, Ford, General Motors, GMC, Holden, Jeep, Lincoln
- Chinese: BAICMOTOR, BAICHUANSU, BYD, Chery, Geely, Hafei, Maxus (SAIC), MG (SAIC), Senova (BAIC), Weiwang (BAIC)
Package Contents:
- 1x Topdon ArtiDiag800 BT 2 tablet
- 1x VCI module
- 1x Power adapter
- 1x USB Type-C to USB-A cable
- 1x Manual
- 1x Quick start guide
- 1x Storage case
License information:
- Includes 2 years of updates: A 24-month update license is included with purchase.
After this period, the reader device will continue to function with the last installed software version. Access to new software updates and online features requires a new, paid license.
Technical specifications:
| Specification | Description |
|---|---|
| Product brand | Topdon |
| Product model | ArtiDiag800 BT 2 |
| Operating system | Android 11.0 |
| Screen size | 6 inch LCD |
| Screen resolution | 1440 x 720 pixels |
| Processor | 4-core, 1.8 GHz |
| RAM memory | 4 GB |
| Storage memory | 64 GB |
| Connectivity | Bluetooth 5.0, Wi-Fi (2.4 & 5 GHz), USB Type-C |
| Camera | 8 megapixel (rear) |
| Battery | 3100 mAh / 7.6 V |
