Autel MaxiPro MP900E Car Diagnostic Tool

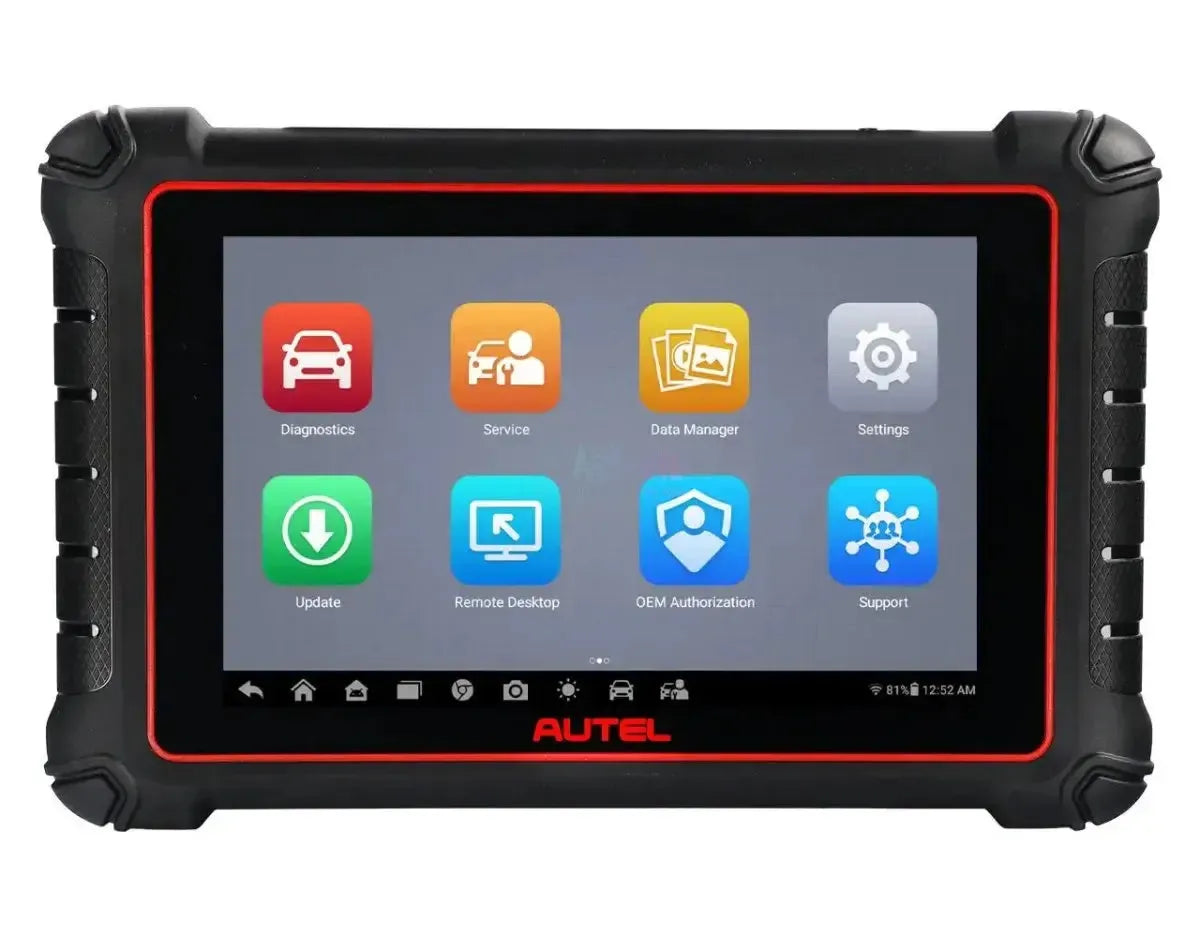

The Autel MaxiPro MP900E is a powerful, wired professional Diagnostic Tool developed for the modern workshop that needs an all-in-one solution for vehicle diagnosis, maintenance, and coding. The system is built on a fast 8-inch Android tablet with Android 11, a 1.8GHz quad-core processor, and an intuitive interface, ensuring a smooth and efficient user experience.

The MP900E is the successor to the successful MP808 series and offers broader vehicle coverage, faster performance, and more advanced OE-level features. With capabilities for full system diagnosis, a comprehensive package of maintenance and service functions, and support for codings and adaptations, the MP900E enables technicians to perform complex faults and configurations with one device – all via a wired OBD connection for maximum stability.

---

Diagnostic functions:

The Autel MaxiPro MP900E offers extensive OE-level diagnostics for more than 150 vehicle brands worldwide. The system is designed for deep fault analysis and efficient troubleshooting in the workshop.

• Complete system diagnosis: Reads and clears fault codes (DTCs) from all electronic control units, including engine, transmission, ABS, airbag, air conditioning, instrument panel, body systems and more.
• Active tests (bi-directional control): Sends direct commands to vehicle components to test operation. Examples include activating the fuel pump, EGR valve, windows, lighting, or other actuators – without dismantling parts.
• Live data stream: Displays real-time sensor and system data, supporting multiple data channels simultaneously. The data can be recorded, saved, and graphically displayed, also in combined view.
• AutoVIN & AutoScan: Automatically recognizes vehicles via the chassis number (VIN) and performs a complete system scan for a quick overview of all fault codes.
• Pre- and post-scan reports: Generates comprehensive vehicle status reports before and after repair. Ideal for workshop documentation, customer communication, and insurance reporting.

---

Service and maintenance functions:

The Autel MaxiPro MP900E supports more than 40 commonly used service and maintenance procedures, making it one of the most comprehensive Diagnostic Tool solutions in its class. These functions enable fully independent routine maintenance and calibrations.

• Oil service reset: Resets the maintenance interval after an oil change.
• Electronic parking brake (EPB): Puts the brakes in service mode for maintenance and performs calibration after replacement of brake pads.
• Steering angle sensor (SAS) calibration: Calibrates the steering angle sensor after alignment or replacement of the steering wheel.
• Battery registration (BMS): Registers a new Battery in the vehicle and adjusts the charging strategy.
• DPF regeneration: Starts a forced regeneration of the diesel particulate filter after saturation or malfunction.
• Throttle body learning: Calibrates the throttle position sensor for stable idle and throttle response.
• Injector coding: Learns the injector codes after replacement or overhaul, for optimal combustion and engine performance.
• ABS bleeding: Supports the bleeding of the ABS system after replacement of hydraulic components.
• Adaptive headlights (AFS) reset: Restores the correct adjustment of swiveling headlights after maintenance or adjustment.
• Air suspension calibration: Calibrates the ride height of the air suspension system per axle or per wheel.
• Transmission adaptation: Resets the learning values of the automatic transmission after maintenance or software update.
• Sunroof initialization: Performs the basic settings of the sliding/tilting roof again after power interruption or malfunction.
• Seat calibration: Calibrates the position and memory settings of electrically adjustable seats.

---

Additional functions:

The Autel MaxiPro MP900E stands out with a range of user-friendly and advanced features that significantly increase efficiency in the workshop. Both novice and experienced technicians benefit from time savings, accuracy, and extra control over the diagnostic process.

• AutoVIN technology: The vehicle is automatically recognized via the chassis number (VIN) read from the ECU. This prevents errors in manual selection of make, model, and year.
• Scan VIN / scan license plate: With the built-in camera, the user can take a photo of the VIN sticker or – in supported regions – of the license plate. This significantly speeds up vehicle identification.
• Wi-Fi printing: Diagnostic reports can be printed wirelessly via any Wi-Fi-compatible printer on the network. This is ideal for direct documentation towards the customer.
• Data Manager: An integrated module for clearly managing vehicle history, customer data, saved reports, and live data recordings.
• Remote support: Via the TeamViewer QuickSupport app, an Autel technician can provide live support remotely for complex diagnostics or technical questions.

---

Special functions:

For advanced technicians, the MP900E offers functionalities normally only available on more expensive platforms.

• ECU coding: This allows software settings of control units to be adjusted, such as activating needle sweep, cornering lights, or adjusting vehicle recognition for installed LED lighting. This function requires technical knowledge and must be applied carefully.
• VAG Guided Functions: For vehicles of the Volkswagen group (VW, Audi, Seat, Skoda), the system offers step-by-step guidance for procedures such as component learning, calibrations, and basic settings. The required login codes or security codes are applied automatically.
• Unlock hidden functions: The MP900E makes it possible to activate factory-deactivated options for brands such as BMW, VW, Audi and Skoda, such as:
  • Personalization of interior lighting
  • Auto-lock function when driving away
  • Adjustments to the dashboard display or ‘coming home’ lighting

---

Extensions and accessories:

The Autel MaxiPro MP900E can be expanded with various compatible accessories, which increase functionality and further extend the range of applications. These optional modules allow the Diagnostic Tool to be customized to the specific needs of the workshop.

Compatible accessories:

• Digital inspection camera: Supports the Autel MaxiVideo MV105S and MV108S. This videoscope connects directly to the tablet and enables visual inspections in hard-to-reach locations, such as in cylinder heads, behind dashboards, or in the intake manifold.
• Battery Tester (BT506): Can be connected to the Autel MaxiBAS BT506. This expands the MP900E with full battery analysis functionality, including testing the battery condition, starting capacity, and the charging performance of the alternator/charging system.
• MP900E-KIT (non-OBDII adapters): An expansion kit with a set of brand-specific diagnostic adapters, intended for older vehicles without a standard 16-pin OBD2 connector. Includes adapters for older BMW, Mercedes-Benz, Volkswagen/Audi/Skoda/Seat, Fiat and other models from before 2001.

---

Special communication protocols:

The Autel MaxiPro MP900E is designed with future vehicle technologies in mind and supports the latest vehicle communication protocols, which is crucial for diagnostics on modern vehicles from model year 2020 onwards.

• CAN FD (Flexible Data-Rate): Supports fast data communication with high-speed networks in the latest vehicles. Essential for reading systems with higher bandwidth, such as advanced driver assistance systems (ADAS) and electrification platforms.
• DoIP (Diagnostics over Internet Protocol): Used by brands such as Volvo, Jaguar/Land Rover, BMW and Mercedes-Benz for communication via ethernet/IP networks. This makes diagnostics faster, more stable, and better prepared for the digital architecture of modern vehicles.

---

Supported car brands:

• European brands: Abarth, Alfa Romeo, Audi, Aston Martin, Bentley, BMW, Bugatti, Citroën, DS, Dacia, Ferrari, Fiat, FordEU, Iveco LD, Jaguar, Lancia, Lamborghini, Land Rover, Maserati, MAN LD, Maybach, Mercedes-Benz, Mercedes-Benz LD, MINI, Opel, Peugeot, Porsche, Renault, Rolls-Royce, Saab, Seat, Skoda, Smart, Vauxhall, Volkswagen, Volkswagen CV, Volkswagen LT3, Volvo
• Asian brands: Acura, Daewoo, Daihatsu, Fuso, Honda, Hyundai, Hyundai CV, Infiniti, Isuzu, Kia, Lexus, Mahindra, Maruti Suzuki, Mazda, Mitsubishi, Nissan, Nissan GTR, Perodua, Proton, Samsung, Scion, SsangYong, Subaru, Suzuki, Tata, Toyota
• American brands: Chevrolet, Chrysler, Dodge, Ford, GM, Jeep
• Chinese brands: BAIC Motor, BAIC Senova, Borgward, Brilliance, BYD, Chery, DFSK, DFFG, Emgrand, Foton, Geely, Great Wall, JAC, LDV, Lifan, Maxus, SAIC MG, Zotye

---

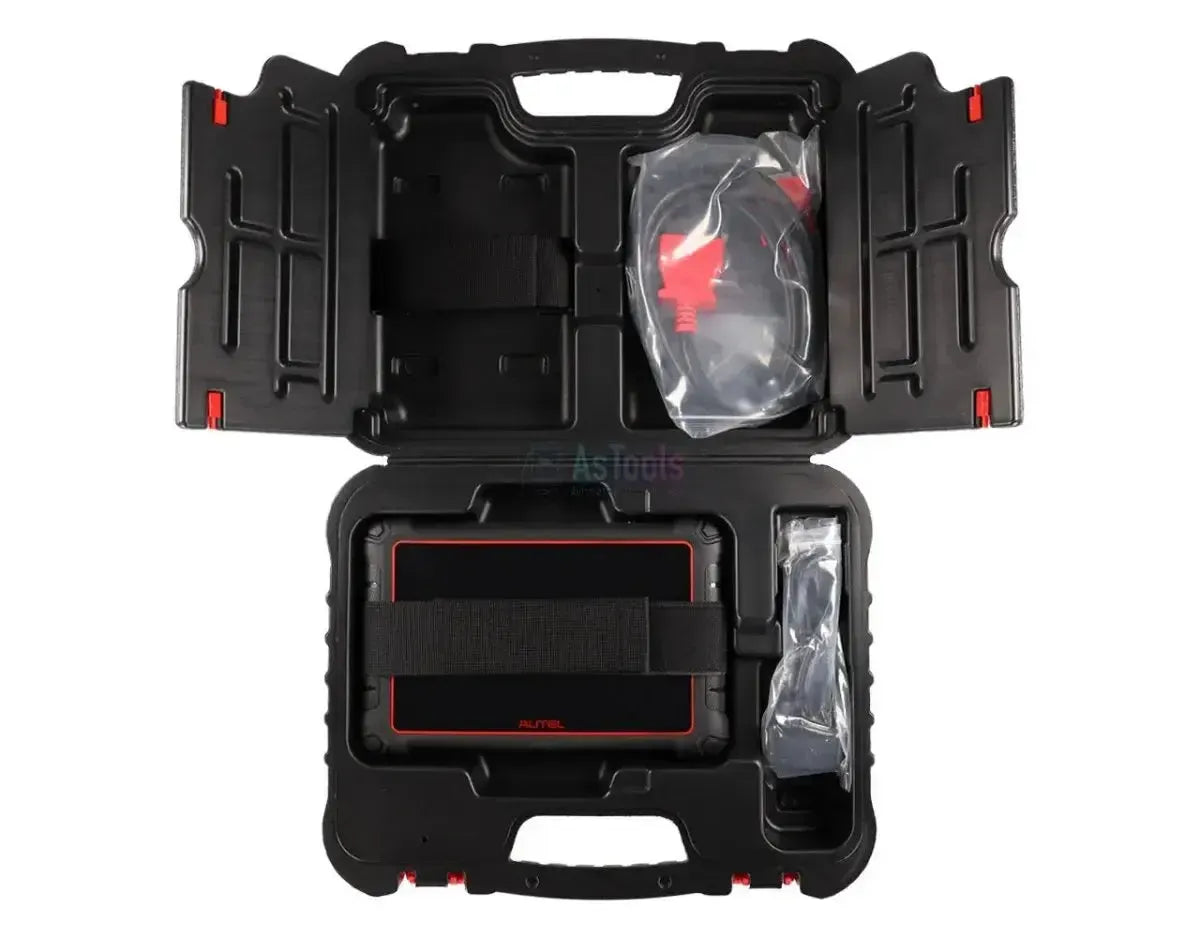

Package contents:

• Autel MaxiPro MP900E Diagnostic Tool
• Autel 15 Pins DB15 - 16 Pins OBD2 adapter cable
• USB-A - USB-C adapter cable
• Charging plug
• Manual
• Storage case

---

License and update information:

To get the most out of the Autel MaxiPro MP900E, it is important to understand how the software license and update structure works.

Software updates:

• Included with purchase: The MP900E is standard delivered with one year of free software updates. During this period, you receive all updates free of charge for:
  • New vehicle coverage
  • Extensive service and diagnostic functions
  • Stability improvements and bug fixes
    Updates are performed wirelessly (OTA) via Wi-Fi.
• After the first year: Renewing the license is not mandatory. The device remains fully functional with the last installed software version. All available functions and vehicle support at that time remain accessible.
• License renewal: Do you also want to continue using:
  • New vehicle models (including upcoming model years)
  • Extensive functionalities
  • Continuous system optimizations and online features
    Then it is recommended to renew the update license annually

---

Technical specifications

Specification	Details
Operating system	Android 11
Processor	1.8 GHz quad-core processor
Memory (RAM)	4 GB
Storage (ROM)	64 GB internal, expandable via Mini SD card (max. 64 GB)
Screen	8-inch LCD capacitive touchscreen
Resolution	1280 × 800 pixels
Battery	3.7 V / 7700 mAh lithium-polymer Battery
Camera (rear)	8 Megapixel with autofocus
Connectivity	Wi-Fi, USB Type-C, USB 2.0
