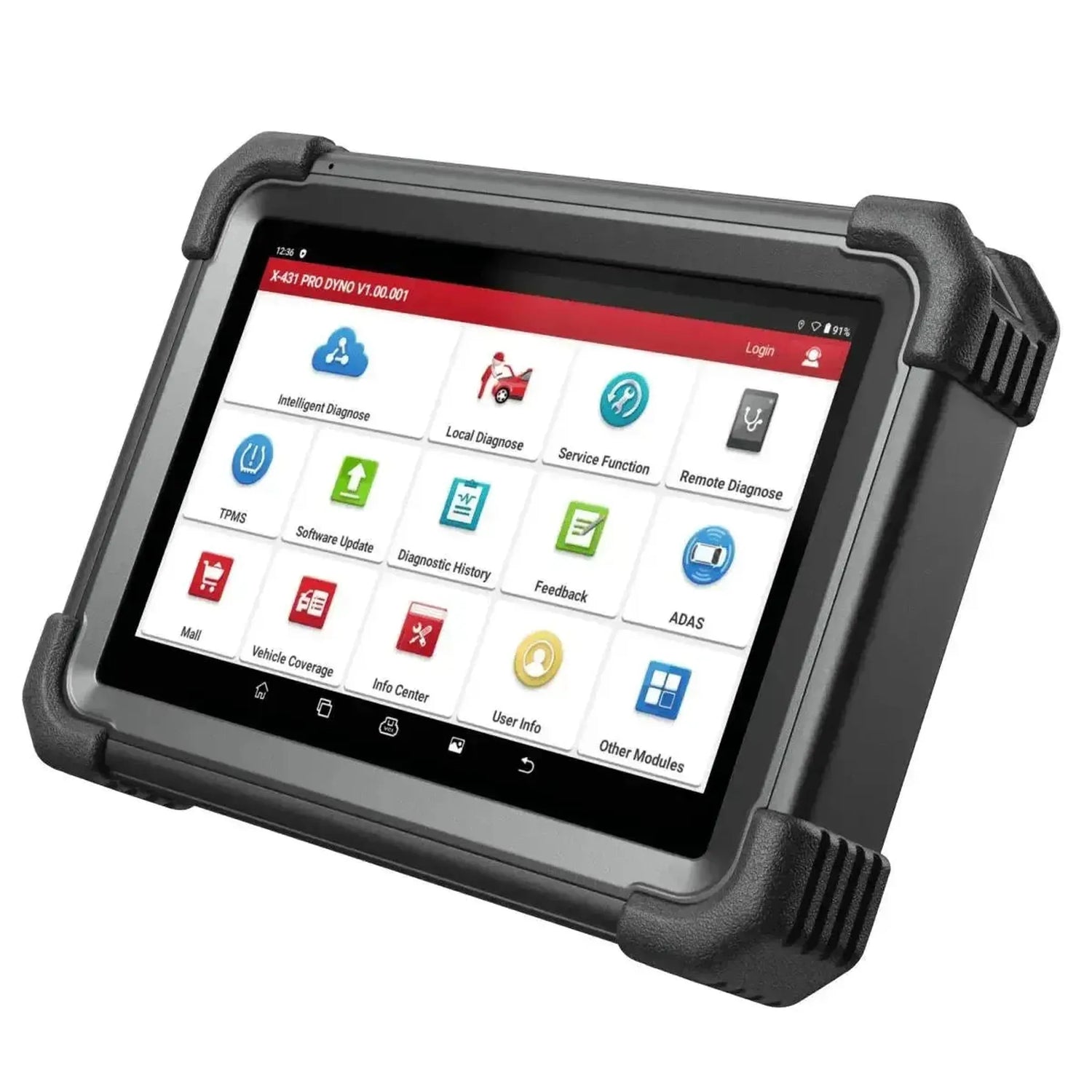

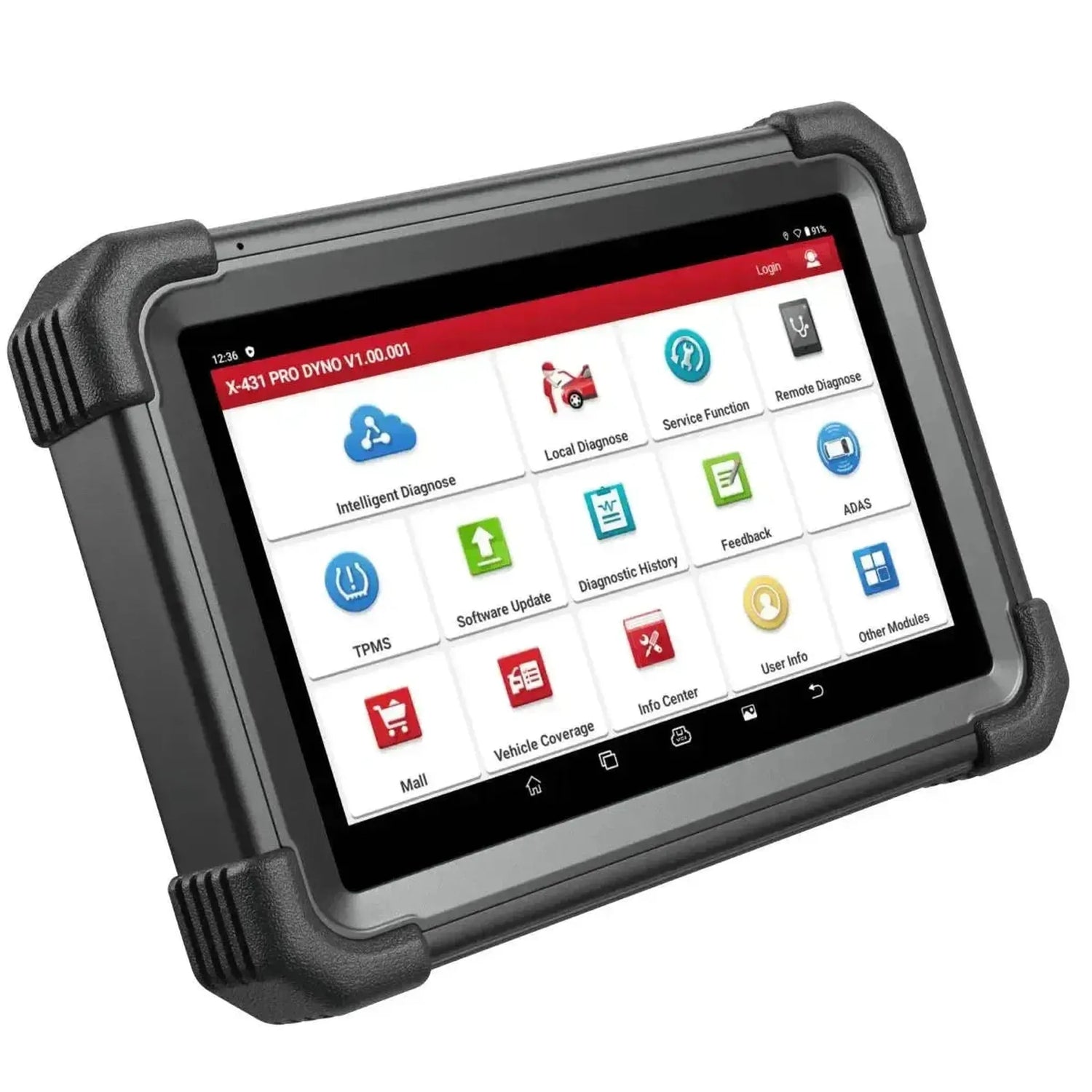

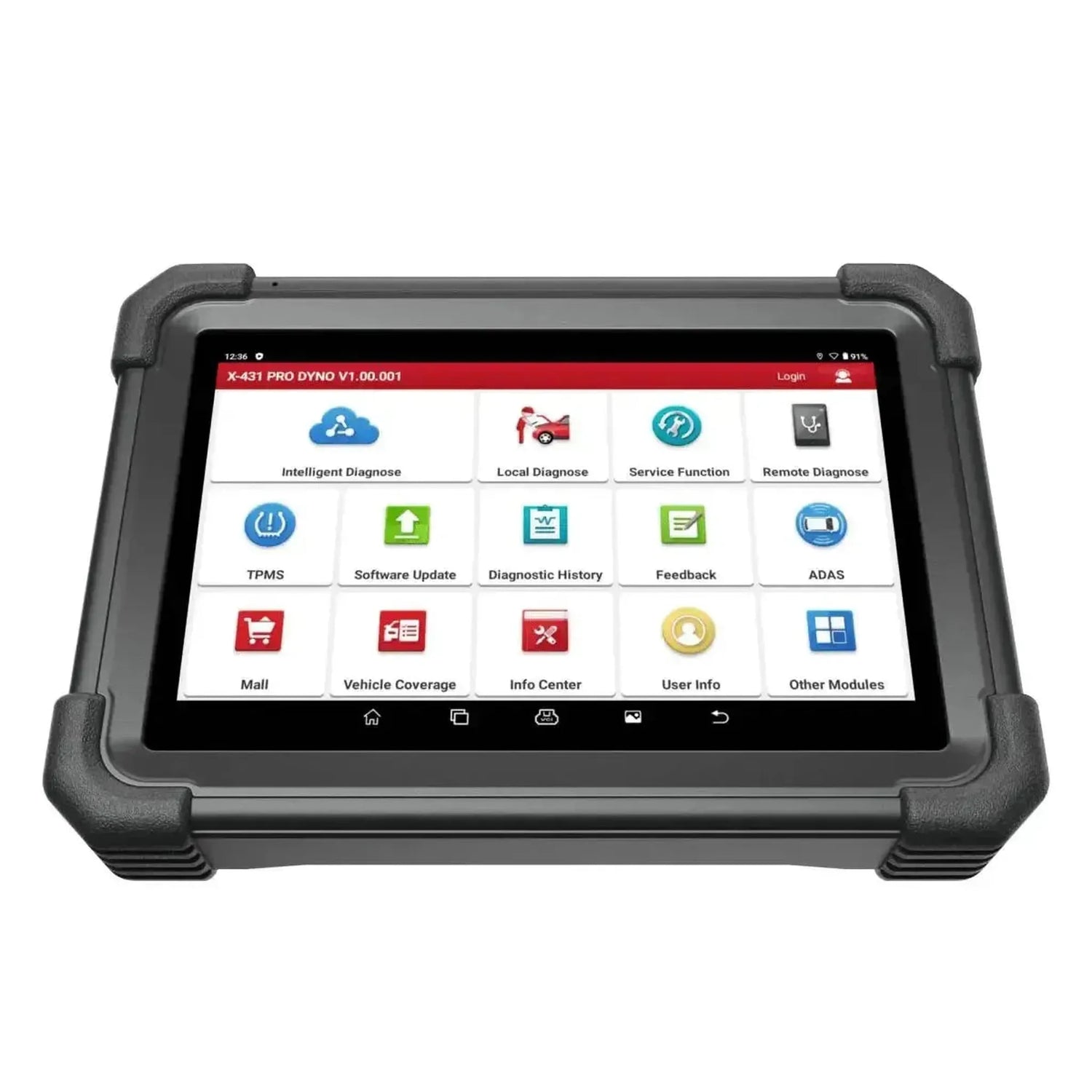

The Launch X-431 Pro3 Dyno is an advanced and powerful OE-level diagnostic solution, specifically designed for modern and universal workshops servicing a wide range of vehicle manufacturers. As the successor to the successful X-431 V4.0, this Apex version features enhanced hardware and faster software, combining comprehensive system diagnostics, online coding and over 30 maintenance functions in one robust platform. At the heart of the system is a fast 10.1-inch Full HD touchscreen tablet running the stable Android 10 operating system, enabling technicians to work efficiently on fault diagnosis, system adjustments and advanced vehicle configuration.

Wireless communication is handled by the new Launch DBScar VII VCI, a compact and powerful interface compatible with the latest communication protocols such as CAN-FD and DoIP. This ensures a stable and fast connection with the most modern vehicles on the market. The Pro3 Apex comes standard with two years of free software updates, including access to a rapidly expanding vehicle coverage of over 110 manufacturers worldwide. After this period, the system remains fully functional with the last installed software, but an annual licence is required to receive updates and use online functions.

Diagnostic functions:

The Launch X-431 Pro3 Apex offers comprehensive OE-level diagnostic capabilities, suitable for professional fault analysis, system communication checking and live monitoring of vehicle data.

• Full system diagnosis (OE-Level): Provides access to all electronic control units in the vehicle, such as engine, transmission, ABS, airbag (SRS), body control module (BCM), air conditioning, steering, instrument cluster and more. Supports reading and clearing fault codes with detailed descriptions.

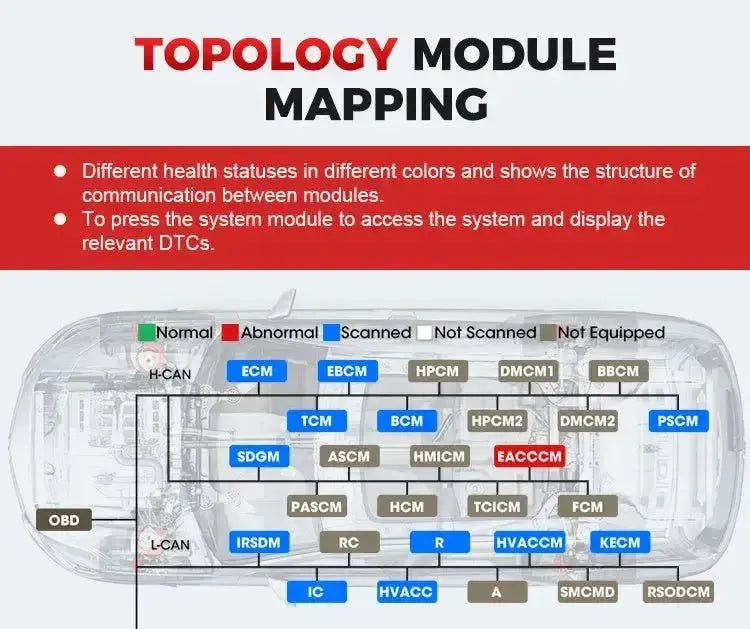

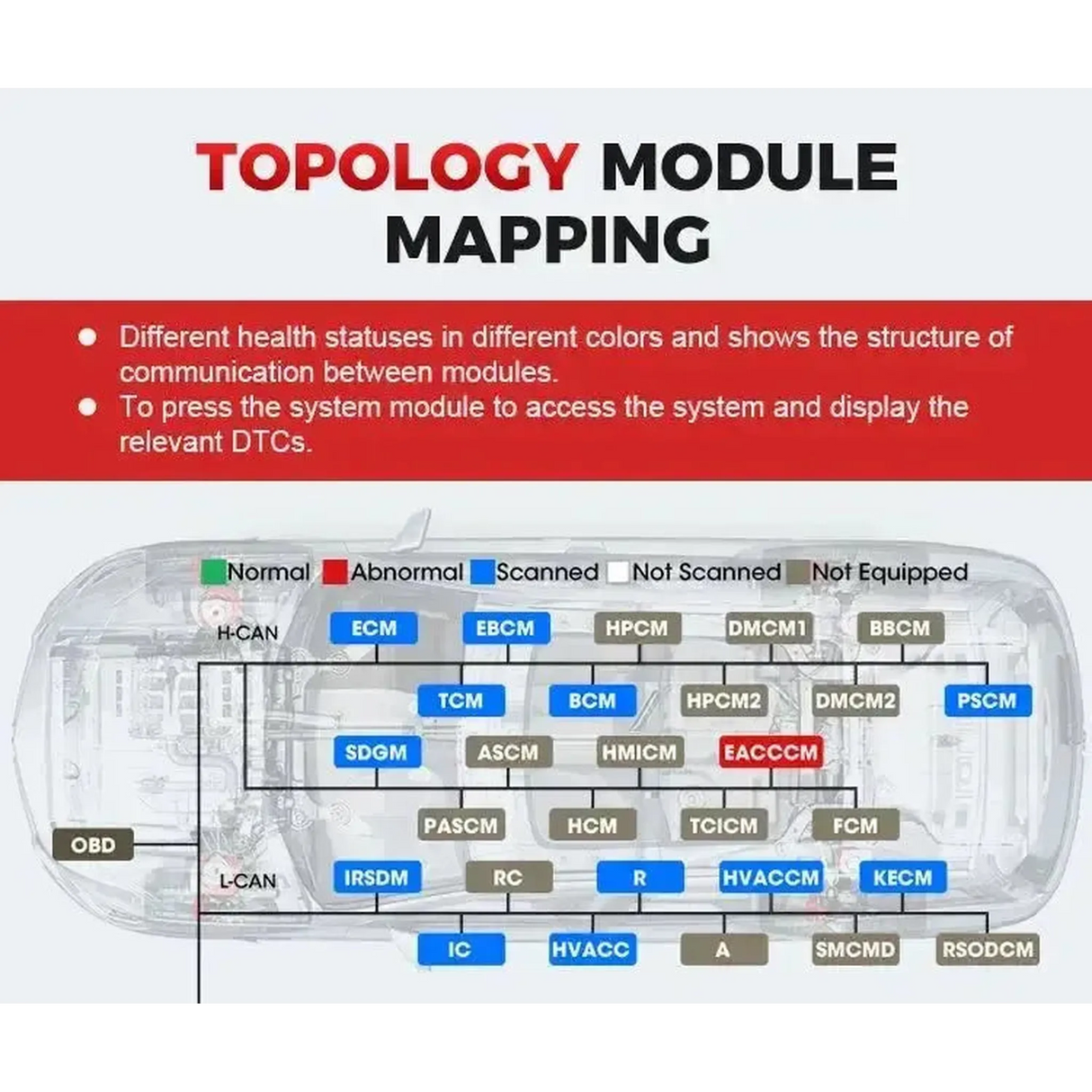

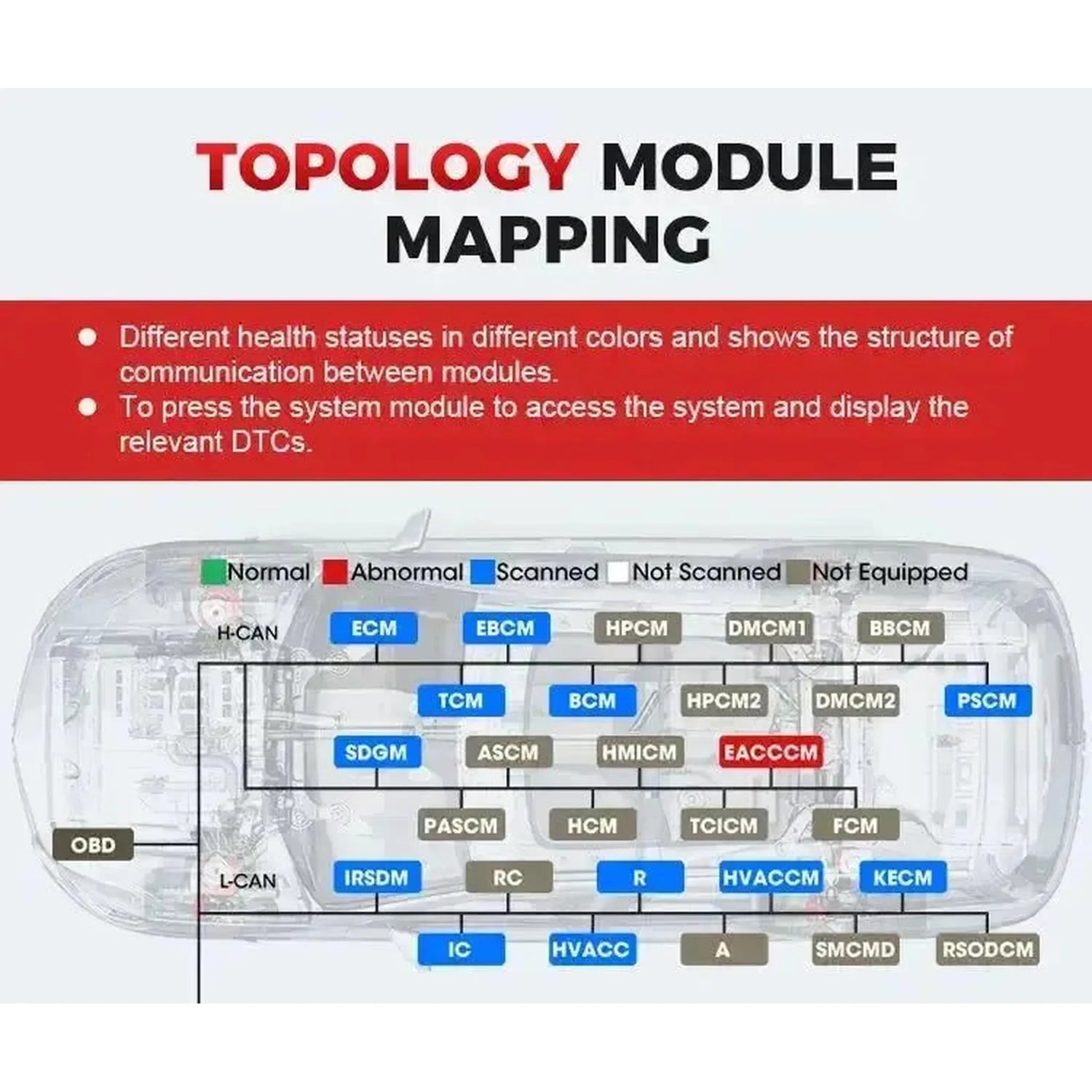

• Intelligent topology mapping: Visualises the complete network of ECUs in an interactive module map. Communication status is clearly displayed with colour coding, allowing faults in, for example, the CAN-bus to be quickly and precisely identified.
• Active tests (bidirectional control): Sends commands to actuators, relays and components to test their operation without disassembly. Examples include controlling the fuel pump, activating the air-conditioning clutch, or testing the windscreen wiper motor.
• Live datastream: Displays real-time sensor data from modules in text format, graph view or as analogue gauges. Supports simultaneous display of multiple datastreams for thorough system comparison and fault diagnosis.
• AutoVIN: Automatically recognises the vehicle via the chassis number (VIN) and automatically selects the correct manufacturer, model and year of manufacture. This saves time and prevents errors in manual selection.

Maintenance and service functions:

The Launch X-431 Pro3 Apex supports over 40 maintenance and reset functions, allowing vehicle systems to be calibrated, reset or reconfigured after maintenance or component replacement. Suitable for universal workshops and dealer-level servicing.

• Oil service reset (Service): Resets the maintenance interval and extinguishes the service lamp after an oil change.
• Electronic parking brake (EPB): Release, close and initialise the electronic handbrake for safe brake servicing.
• Battery management system (BMS): Registers a new battery and restores the vehicle's charging strategy.
• Steering angle sensor (SAS): Calibrates the steering angle sensor after wheel alignment or replacement of steering components.
• Diesel particulate filter (DPF): Initiates forced regeneration of the soot filter and clears related fault codes.
• ABS pump bleeding (ABS): Removes air from the ABS system via electronic actuation of the pump and valves.
• Tyre pressure monitoring system reset (TPMS): Learns in new sensors or resets existing sensors in the tyre pressure control system.
• Throttle body initialisation (ETC): Calibrates the electronic throttle after cleaning or replacement.
• Injector coding: Programmes the correct identification codes of new injectors into the ECU.
• Transmission adaptation (CVT/AT): Resets learning values of automatic transmissions for improved shift behaviour.
• Crankshaft sensor learning (TEC): Re-learns the crankshaft position after sensor or ECU replacement.
• AdBlue system reset: Resets urea level and fault codes after refilling or system servicing.
• Air suspension calibration: Calibrates ride height on vehicles with electronic or adaptive air suspension.
• Headlight adjustment (AFS): Calibrates adaptive or auto-levelling headlights after replacement or realignment.
• Windows and roof initialisation: Restores automatic functions of electric windows and sunroofs.
• Start/stop settings: Activates or deactivates the automatic start/stop system via software adjustment.
• Seat occupancy sensor (SRS): Calibrates passenger detection for correct airbag deployment.
• Transport mode activation/deactivation: Places the vehicle in or out of transport mode for delivery or storage.
• System language change: Modifies language settings on the vehicle display or infotainment system.
• Air/fuel ratio reset (A/F): Restores adaptive values for mixture control after sensor replacement or adjustment.

Programming and coding functions:

The Launch X-431 Pro3 Apex offers powerful coding capabilities for adapting, configuring and learning vehicle modules. This allows technicians to optimise vehicle systems or correctly activate new components according to OE specifications.

• Advanced ECU coding: Provides the ability to recode electronic control units, correctly configure new modules and activate hidden functions, such as disabling start/stop, coming-home lighting, or automatic mirror folding.
• Online coding: Supports direct connection to the factory servers of Volkswagen, Audi, BMW and Porsche, with coding data automatically loaded for the most accurate module configuration.
• Guided functions (VAG): For vehicles from the Volkswagen Group (VW, Audi, Seat, Skoda), the system provides step-by-step instructions for complex tasks such as key coding, steering module replacement, or ABS reprogramming, minimising the risk of errors.
• Important limitation: The Pro3 Apex does not support full ECU programming (flashing) with the standard DBScar VII VCI. For J2534 Pass-Thru ECU programming via OEM software, the optional Launch SmartLink C VCI is required.

Cloud and reporting functions:

The Launch X-431 Pro3 Apex supports powerful cloud and reporting tools for efficient workshop administration, customer communication and documentation of performed diagnostics.

• Cloud storage & management: All diagnostic reports are automatically saved to Launch Cloud, allowing them to be centrally managed, safely backed up and accessed at any time from multiple devices.
• Professional reports: Generates clear pre-scan and post-scan reports, which can be personalised with workshop logo, customer information and notes. Ideal for transparent customer communication and insurance documentation.
• Easy sharing and printing: Reports can be shared directly from the tablet via email or printed wirelessly over Wi-Fi, without requiring a PC or additional software.

Additional features and special capabilities:

The Launch X-431 Pro3 Apex is designed as a powerful and future-proof diagnostic platform, equipped with technologies and features that far exceed standard fault code readers. The system supports modern vehicle protocols, authorised access to secure vehicle systems and efficient workshop workflows.

• Support for modern vehicle protocols: The DBScar VII VCI is fully compatible with the latest protocols such as CAN-FD (required for recent models from manufacturers including GM and Ford) and DoIP (required for brands such as BMW, Volvo and Land Rover). These protocols deliver rapid communication and stable programming on vehicles with complex networks.
• FCA Secure Gateway (SGW) access: Provides authorised access to secure vehicle systems for Fiat, Chrysler, Jeep, Dodge and Alfa Romeo. This enables fault code reading as well as active tests, coding and service functions (requires an AutoAuth account).
• Professional workshop workflow: The software supports an efficient and transparent working method including:
  • Pre- & post-scan reports: Generate comprehensive system reports before and after repair, essential for customer transparency and insurance documentation.

  • Diagnostic feedback: Send a fault analysis or diagnostic report to Launch technical support with one click, for rapid assistance with unusual or complex cases.
• Expandable diagnostic platform: The Pro3 Apex acts as the centre of a modular ecosystem. Expand functionality easily with ADAS calibration kits, TPMS tools, Heavy Duty (24V) truck diagnostics, and more — a sustainable investment that grows with your workshop needs.

Optional extensions and modules:

The Launch X-431 Pro3 Apex is modularly expandable and compatible with a wide range of Launch accessories, transforming the system into a comprehensive platform for specialist applications.

• ADAS calibration: Compatible with Launch's ADAS calibration frames (mobile and PRO) for precise adjustment of driver assistance systems such as lane assist, adaptive cruise control, blind spot detection and front cameras.
• Key programming: Supports integration with the Launch X-PROG 3, an advanced immobiliser tool for key coding, starter interrupt functions and data reading on vehicles including BMW, VAG and Mercedes.
• Battery analysis: Works with the Launch BST360 Bluetooth battery tester, for comprehensive diagnosis of 12V batteries, including voltage, resistance and state of charge.
• Video borescope: Compatible with the Launch VSP-600 inspection camera, for visual inspection of hard-to-reach components such as cylinder heads, pipes and dashboards.
• Oscilloscope: Supports expansion with the Launch O2-1 Scopebox, a 4-channel oscilloscope for advanced measurements on sensors, CAN bus lines and actuators.
• TPMS tool: Integrates with the Launch X-431 TSGUN, enabling TPMS sensors to be read, programmed and taught in – suitable for universal and OE sensors.
• J2534 programming: Can be upgraded with the Launch SmartLink C VCI, enabling full Pass-Thru programming via OEM software, including ECU flashing.

Supported vehicle makes:

• European makes: Abarth, Alfa Romeo, Aston Martin, Audi, Bentley, BMW, Bugatti, Citroën, Dacia, DR, Ferrari, Fiat, FordEU, GAZ, Iveco, IZH, Jaguar, Lamborghini, Lancia, Land Rover, Maserati, Maybach, McLaren, Mercedes-Benz, MINI, Opel, PAZ, Peugeot, Porsche, Renault, Rolls-Royce, Rover, Saab, Seat, SeAZ, Skoda, Smart, Sprinter, UAZ, Vauxhall, VAZ, Volvo, Volkswagen, Volkswagen CV, ZAZ
• Asian makes: Acura, Daewoo, Daihatsu, GTR, Holden, Honda, Hyundai, IKCO, Infiniti, Isuzu, Kia, Lexus, Luxgen, Mahindra, Maruti, Mazda, Mitsubishi, MVM, Nissan, Perodua, Proton, Samsung, SsangYong, Subaru, Suzuki, Tata, Toyota, United Pakistan
• American makes: Buick, Cadillac, Chevrolet, Chrysler, Dodge, Ford, GM, Jeep, Lincoln
• Chinese makes: BAIC, BJEC, Brilliance, BYD, Changan, Changhe, Chery, DFSK, FAW, Foton, Geely, Gonow, GWM, Hafei, Haima, JAC, JAC Refine, Jinlong, JMC, Joylong, Lifan, Maxus, MG, Polarsun, Qoros, Senova, Senoua, Soueast, SGM, SGMW, Shineray, Spark, Trumpchi, Weiwang, Xinkai, Zotye, Zhongxing

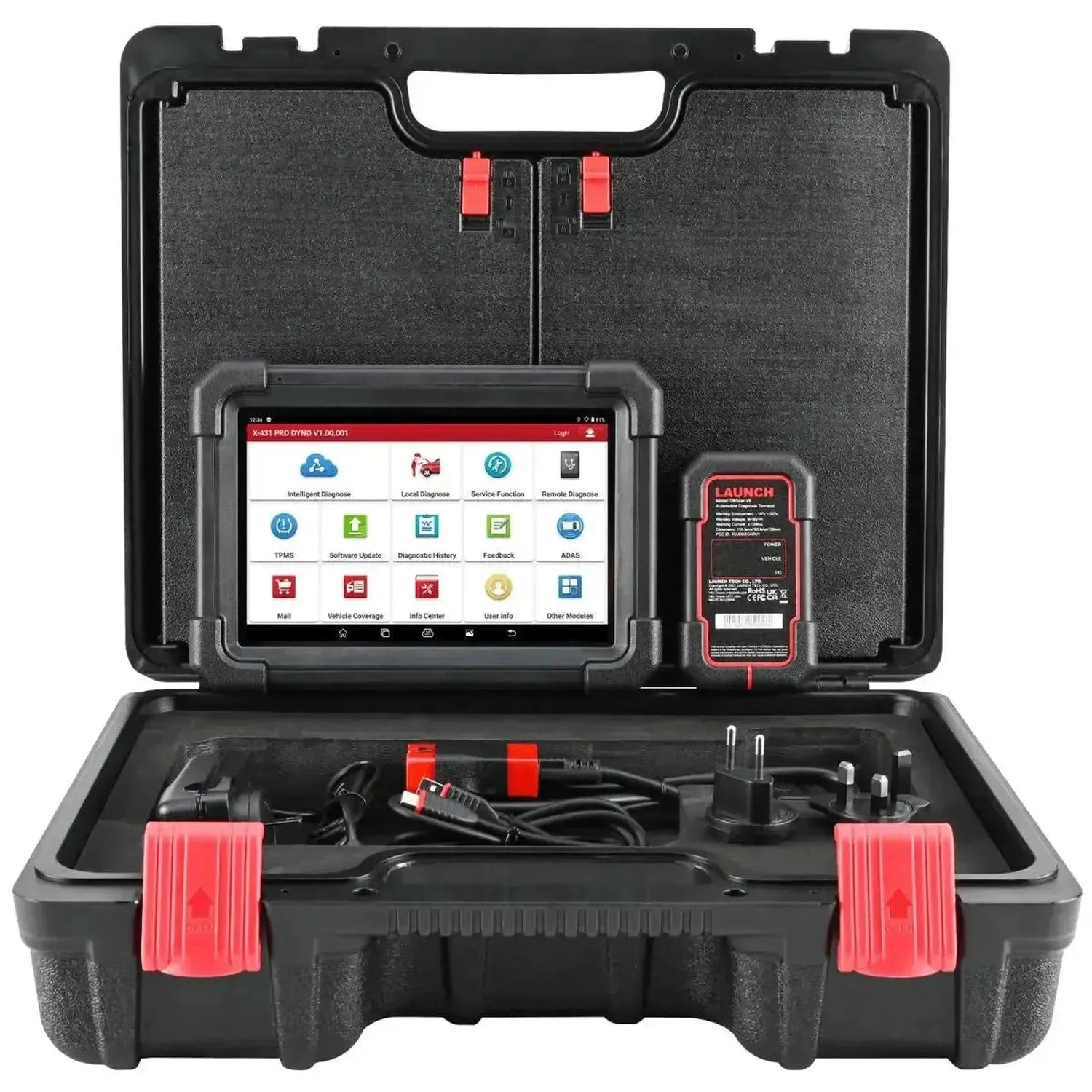

Package contents:

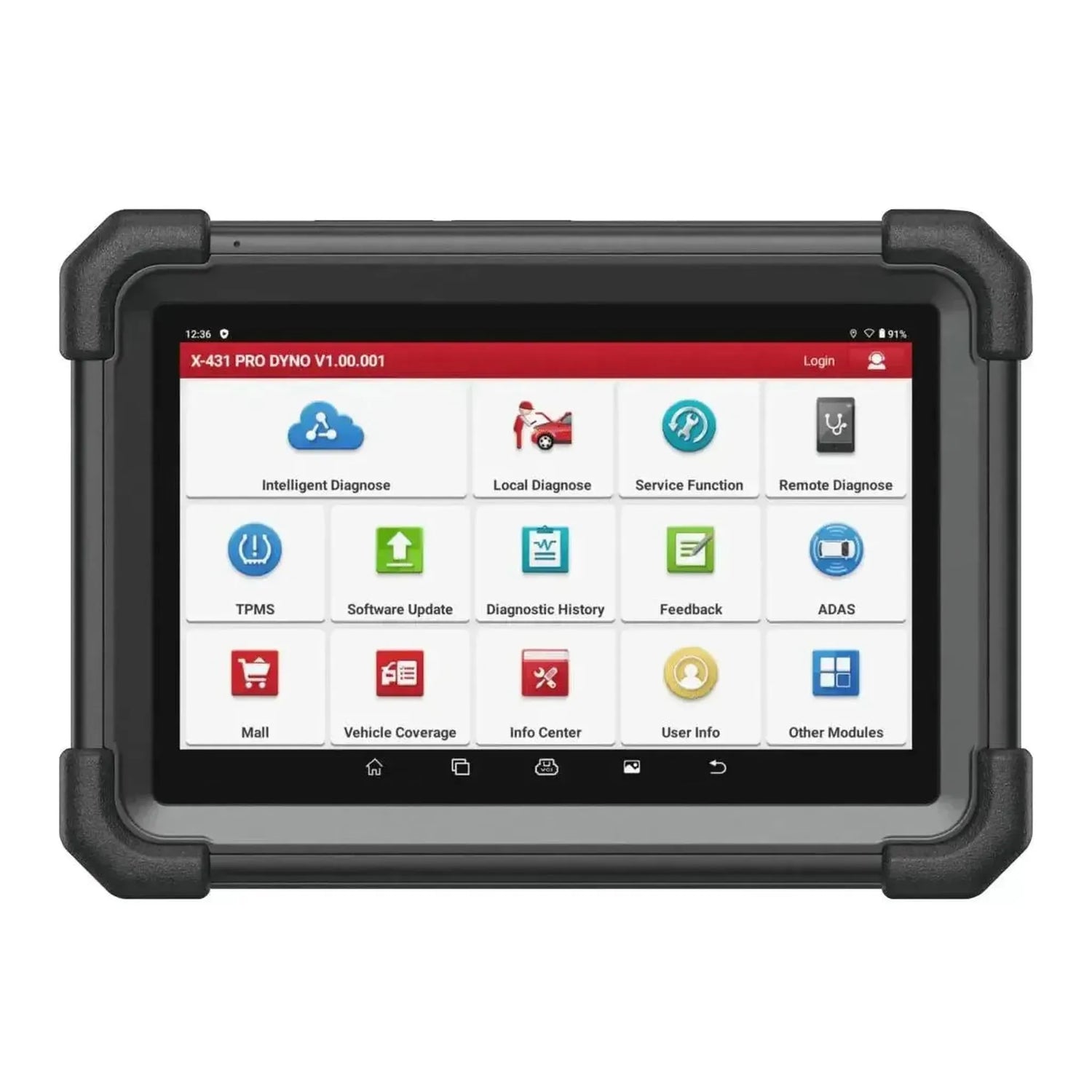

• Launch X-431 Pro Dyno Fault code reader
• Launch DBSCar VII Interface
• Launch 15-pin DB15 Extension cable
• Launch 15-pin DB15 to 16-pin OBD2 Adapter
• USB-A to USB-C Adapter cable
• Power adapter
• User manual
• Launch Battery clamps Power cable
• Launch Cigarette lighter Power cable

Licence information:

• Includes 2 years of updates: A 24-month update licence is included with purchase.

After the first year, the licence can be renewed for an annual fee. The device remains fully functional for already supported models, even without licence renewal. However, new software updates cannot be installed, and some online features may be limited or no longer supported.
