OBDSTAR | SKU: M026

OBDSTAR (M026) | SYM 3-pins OBD – 16-pins OBD2 Adapter Cable | Moped

Name: OBDSTAR (M026) | SYM 3-pins OBD – 16-pins OBD2 Adapter Cable | Moped
Brand: OBDSTAR
SKU: M026
Price: 26.95 EUR
Availability: OutOfStock

€26,95 incl.

€22,27 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

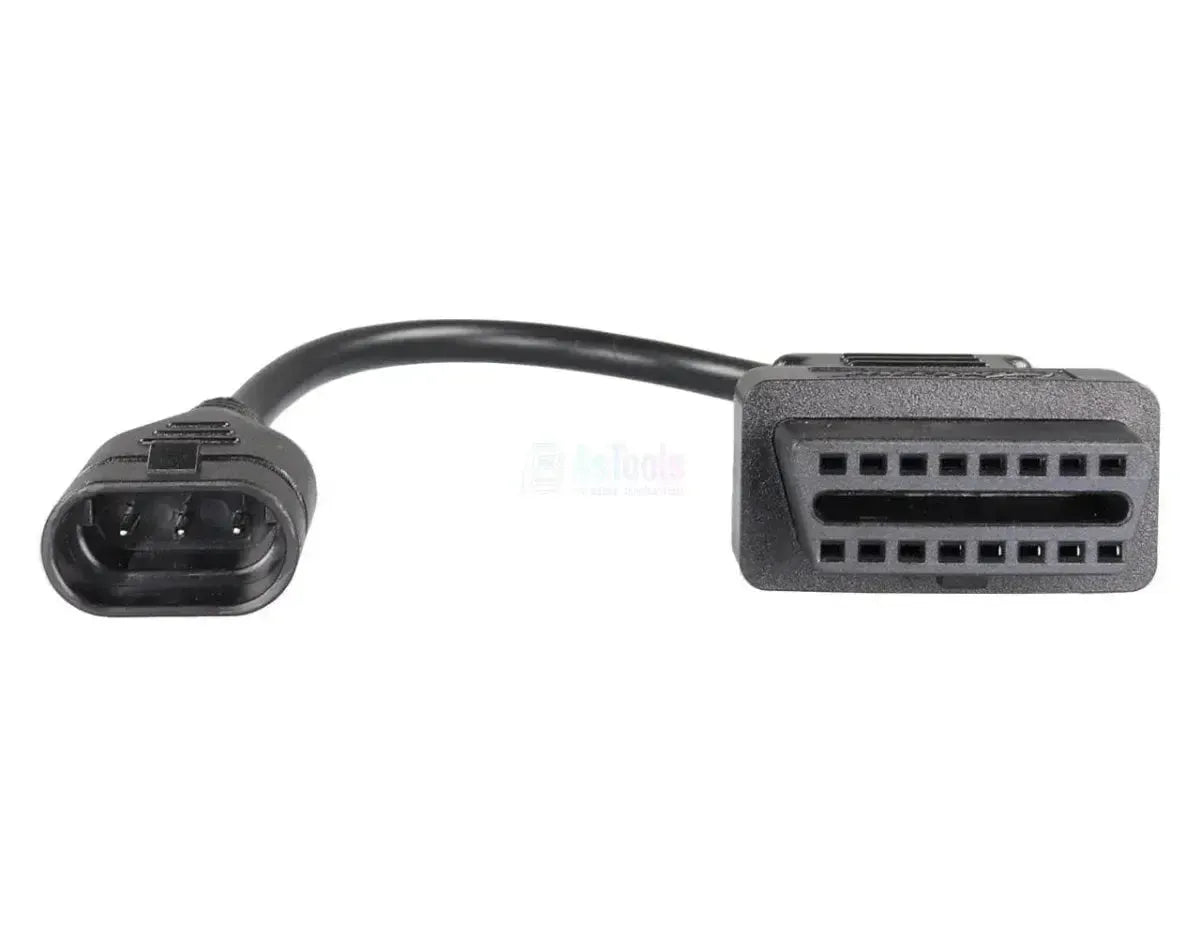

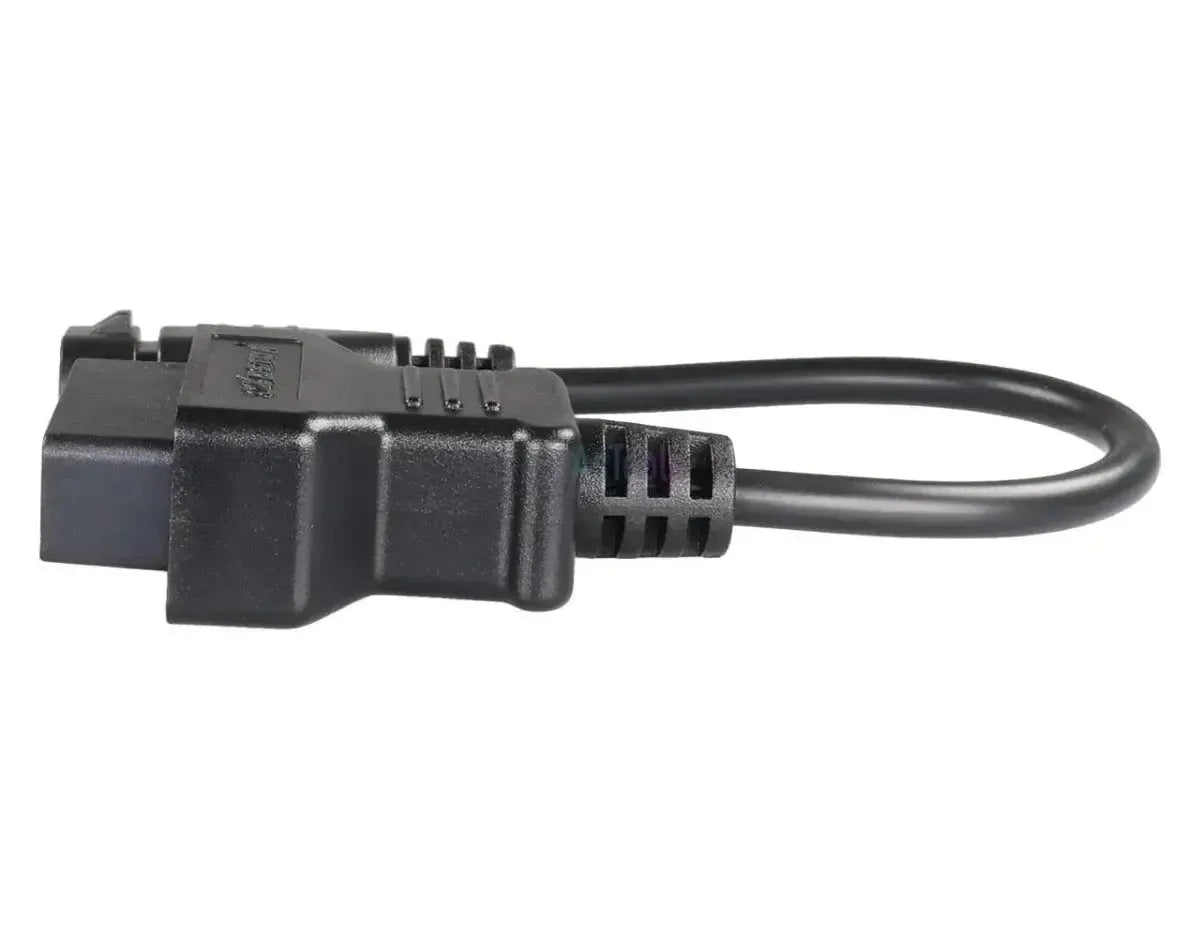

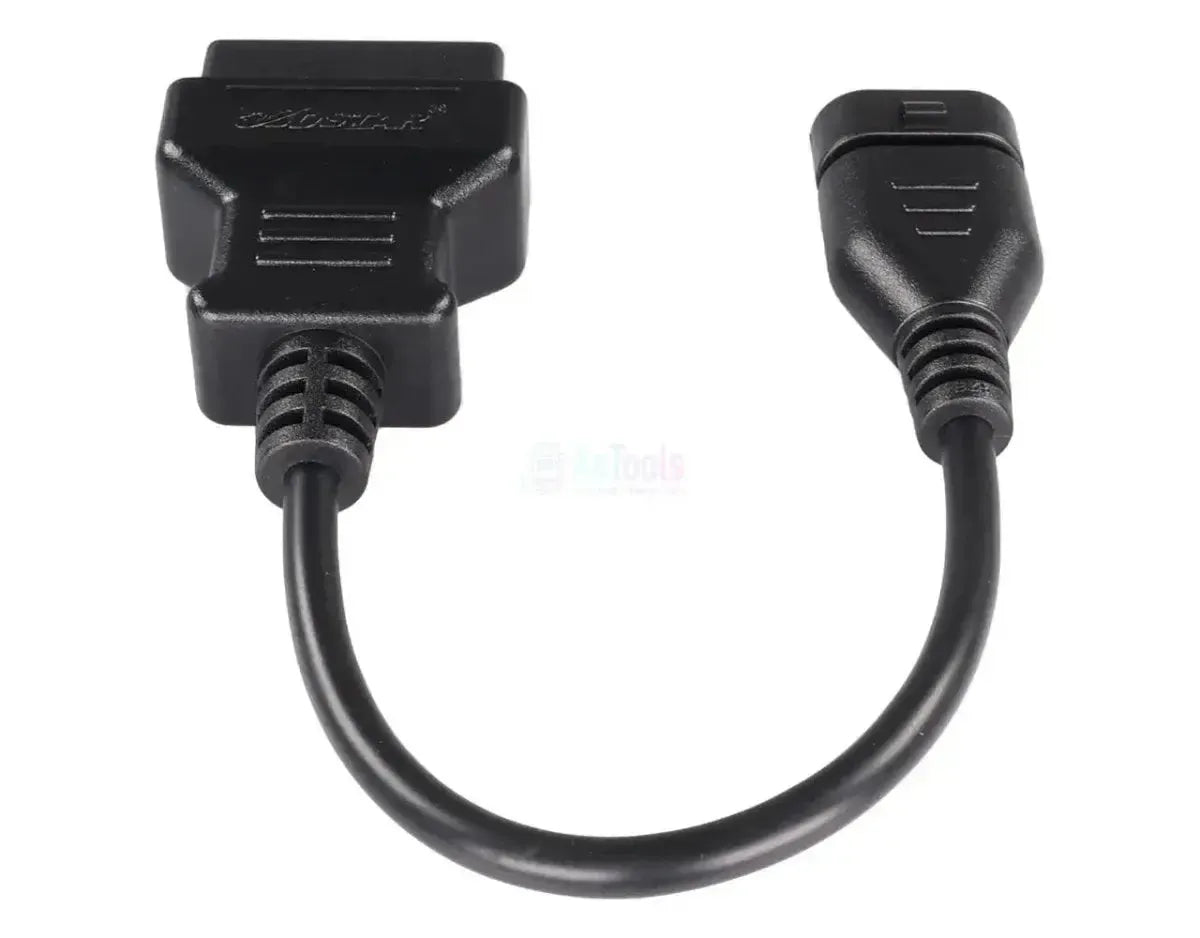

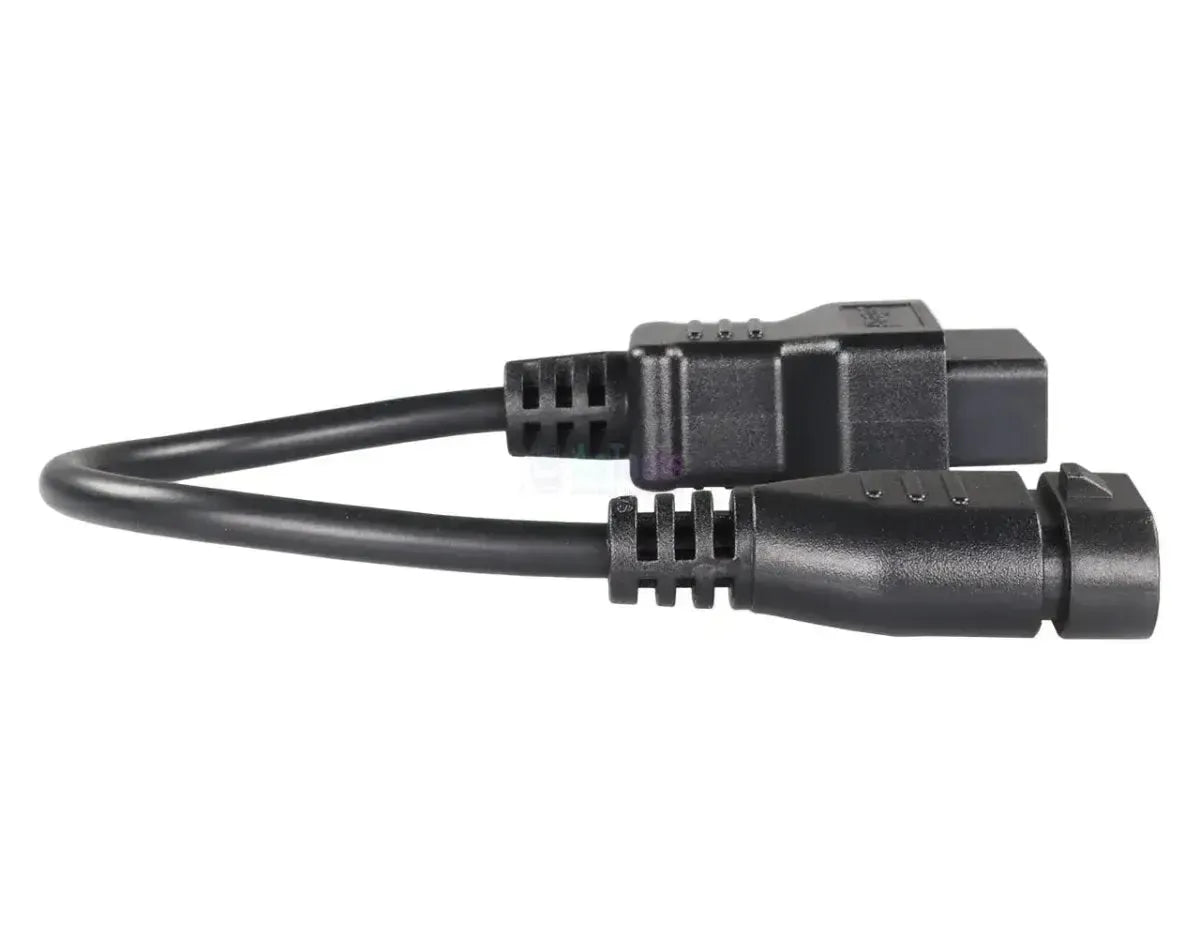

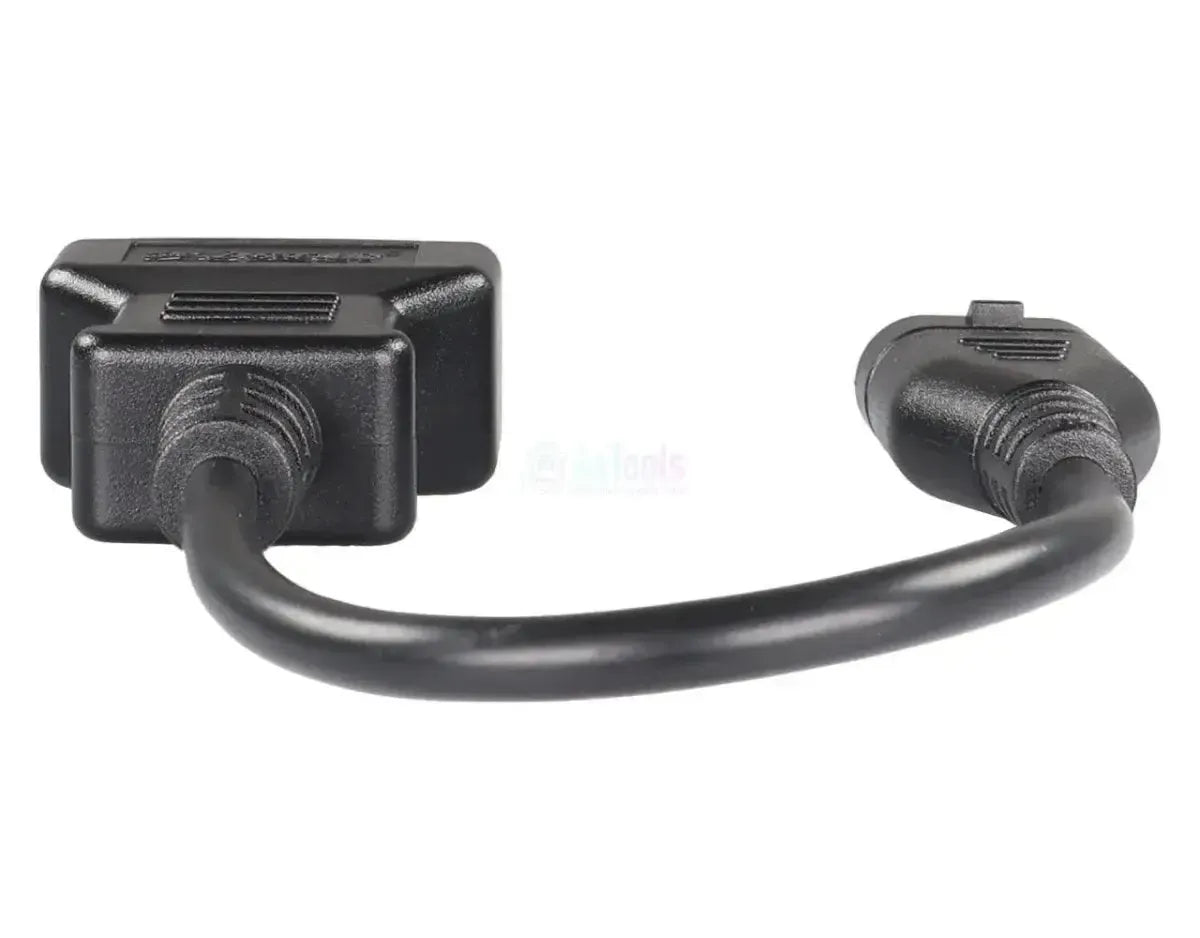

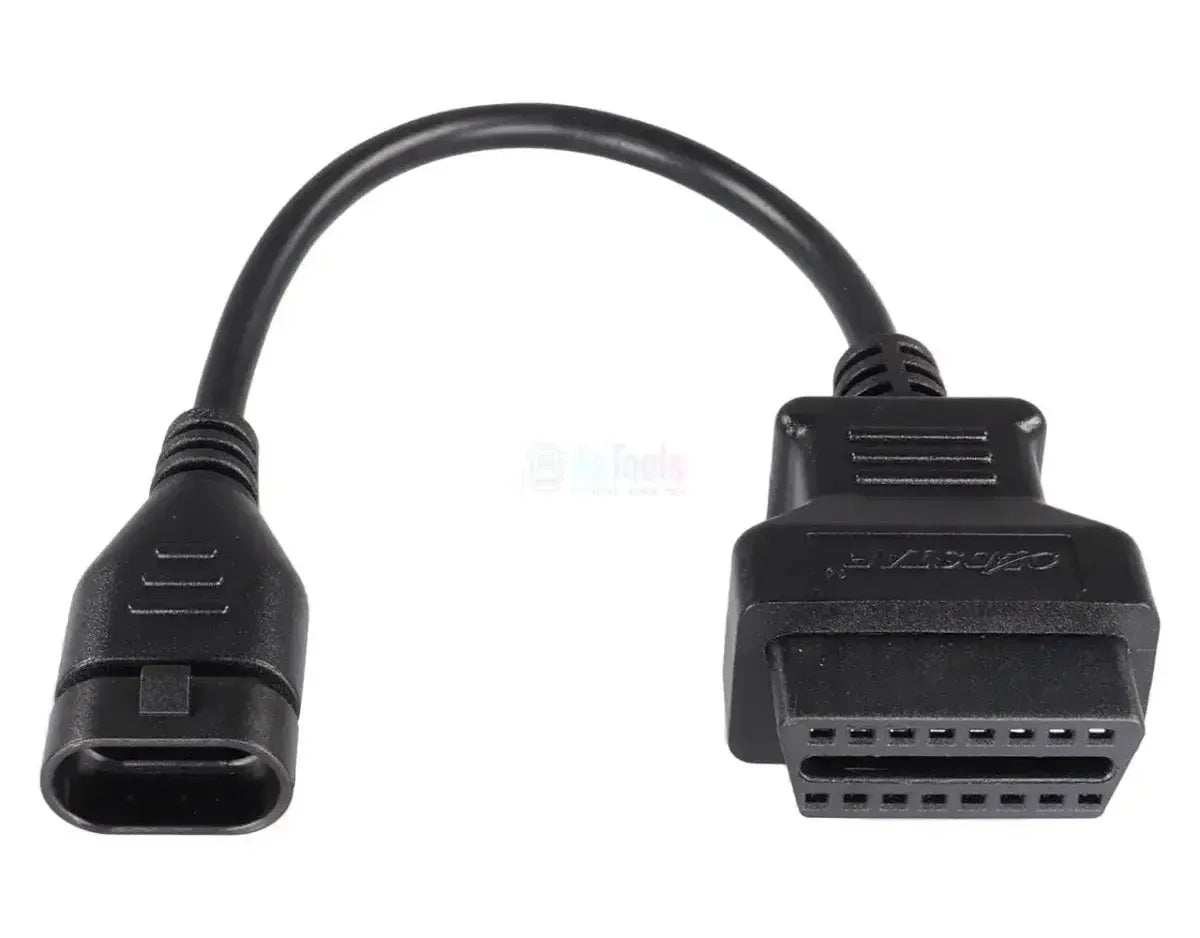

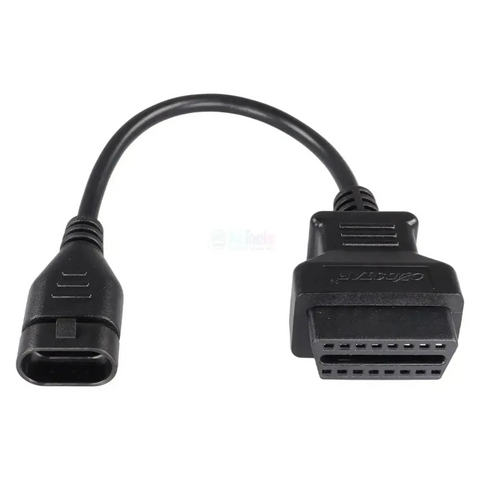

The OBDSTAR M026 connects the 3-pin diagnostic connector of SYM scooters to the 16-pin OBD2 side of your OBDSTAR device. The location of the connector varies by model.

SYM models fitted with this plug do not have a 16-pin OBD2 connector. Via the cable, the device reaches the engine management, so you can read and clear fault codes and view live data. The cable only converts the connector physically. The device itself must support SYM diagnostics.

ADVANTAGES

✔Makes the 3-pin SYM connector accessible for your OBDSTAR device.

✔Provides access to the engine management of SYM models without a 16-pin connector.

✔No changes are required to the wiring of the vehicle.

✔The device end has a standard 16-pin OBD2 connector.

POINTS TO NOTE

✕Your diagnostic tool must support SYM diagnostics via this connector; the cable does not convert protocols.

✕A basic EOBD code reader does not work via this cable; it only reads emissions-related OBD2 data.

✕OBDSTAR also offers the M024 and the N026 with a 3-pin SYM plug; when ordering, please check that you select the correct article number.

✕Which functions you get varies by model and by OBDSTAR device.

Applications and functions

This cable is intended for workshops that read out SYM scooters with the 3-pin connector.

Control units you can access

Engine management: Fault memory and sensor values.

What you can do

Fault codes: Read and clear.
Live data: View sensor values.
Actuator tests: Where the device offers them.

How to use it

Locate the connector: Find the 3-pin diagnostic plug.
Connect: Plug the cable into the 3-pin connector.
Couple the device: Connect the 16-pin end to the device.
Ignition on: Switch the ignition on, without starting the engine.
Read out: Select SYM, the model and the system.

Compatible vehicles and applications

The deciding factor is the 3-pin SYM diagnostic connector. If the plug fits, the cable makes the connector accessible; the coverage of your device determines which functions you get.

SYM:

Scooters with 3-pin connector: Year of manufacture and functions depend on the coverage of your device.

💡

Good to know: Count the pins of the diagnostic plug. With 3 pins, this cable fits. If your SYM already has a 16-pin connector, you can connect the device directly.

Package contents

1x OBDSTAR (M026) | SYM 3-pin OBD – 16-pin OBD2 Adapter Cable | Scooter

Technical specifications

General

The brand of the cable or adapter. It often has to match the brand of your diagnostic tool.Brand: OBDSTAR
The type of product: a separate adapter cable, an adapter without a cable or a complete set.Product type: Adapter cable

Suitable for

The brand of diagnostic tool the cable works with. A cable for one brand usually does not fit a tester of another brand.Compatible diagnostic tool: OBDSTAR
Whether the cable needs a separate power connection, for example via battery clamps. A passive cable works without one.Separate power supply required: No

Connections

The connector that plugs into the diagnostic port of the vehicle or machine. It must fit exactly.Vehicle-side connector: 3-pin OBD
The connector on the side of your diagnostic tool or interface. Usually a 16-pin OBD2 connector.Tool-side connector: 16-pin OBD2 (J1962)
