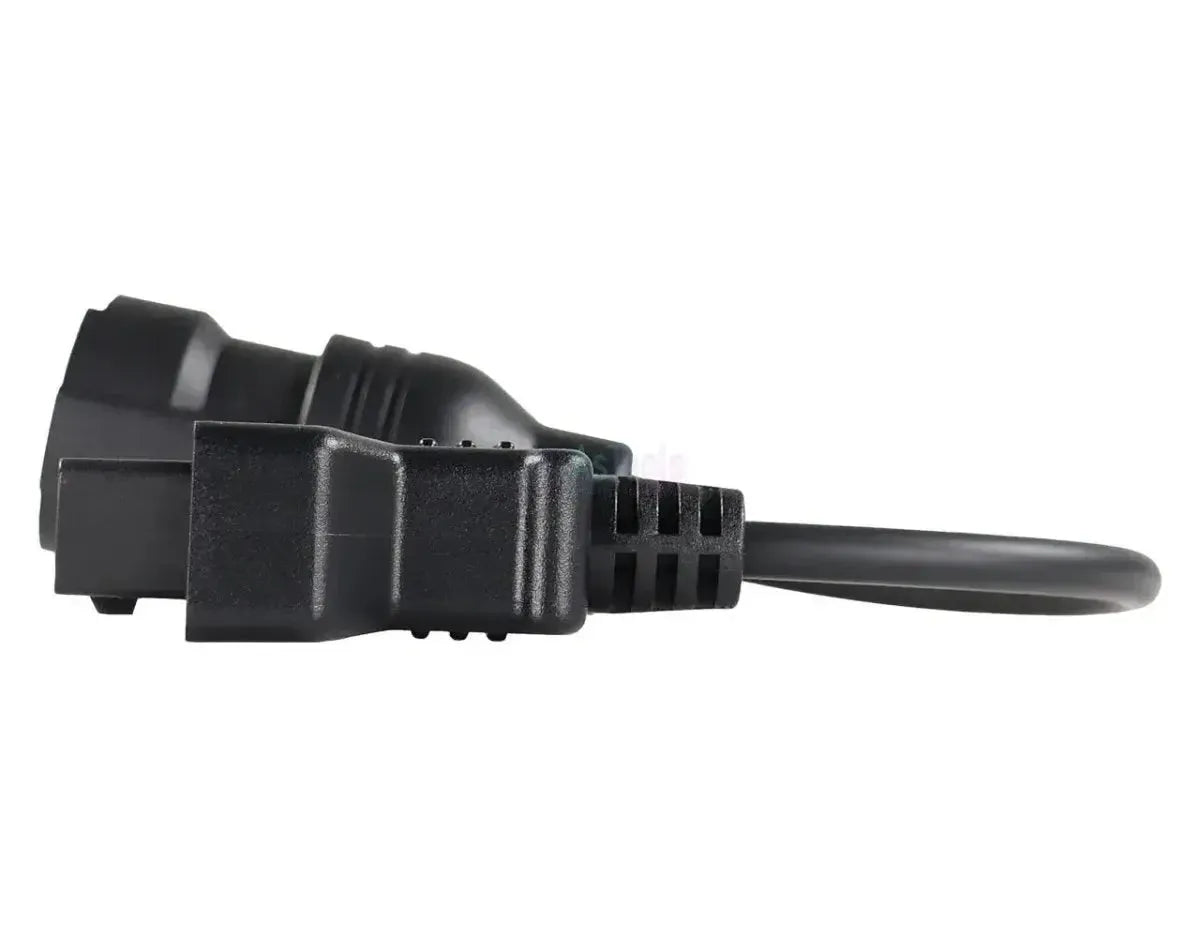

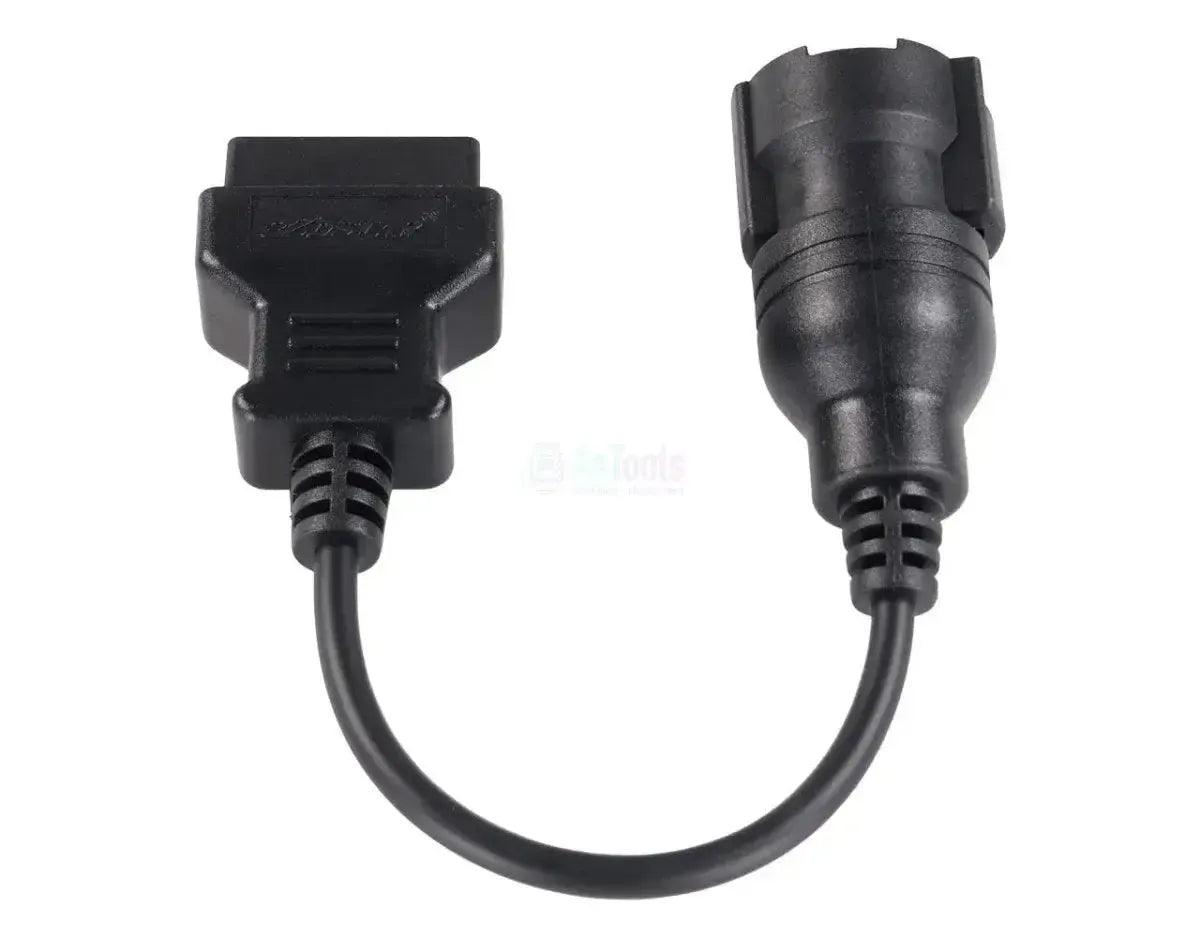

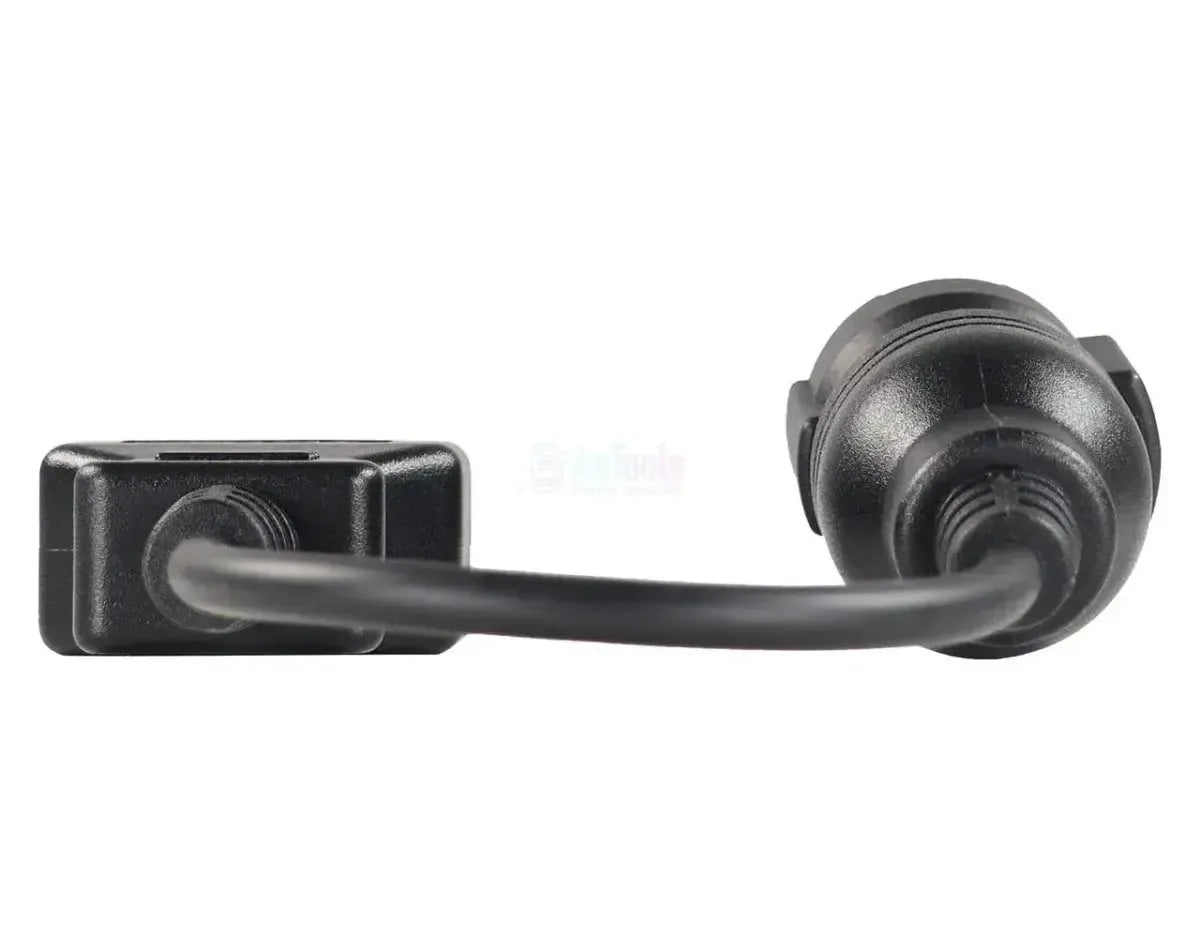

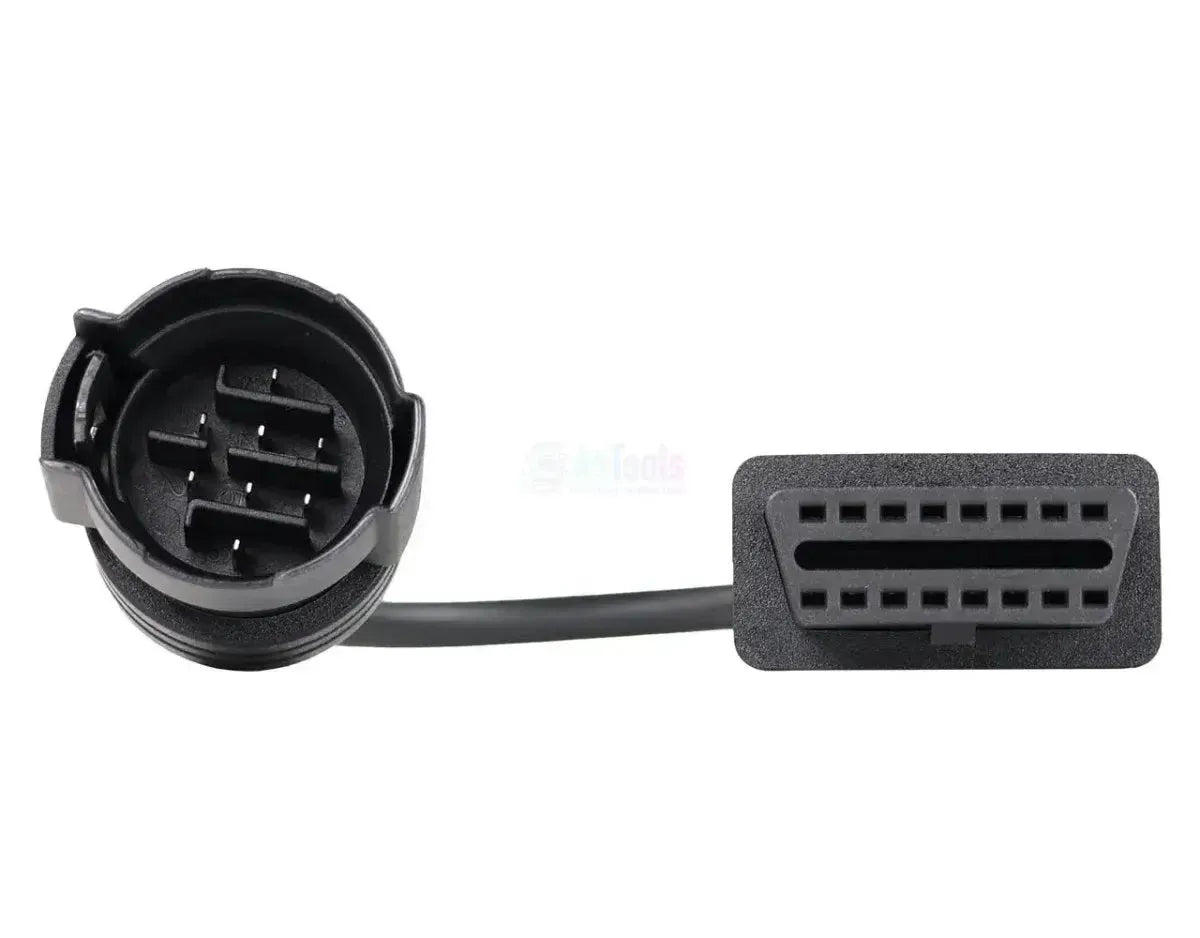

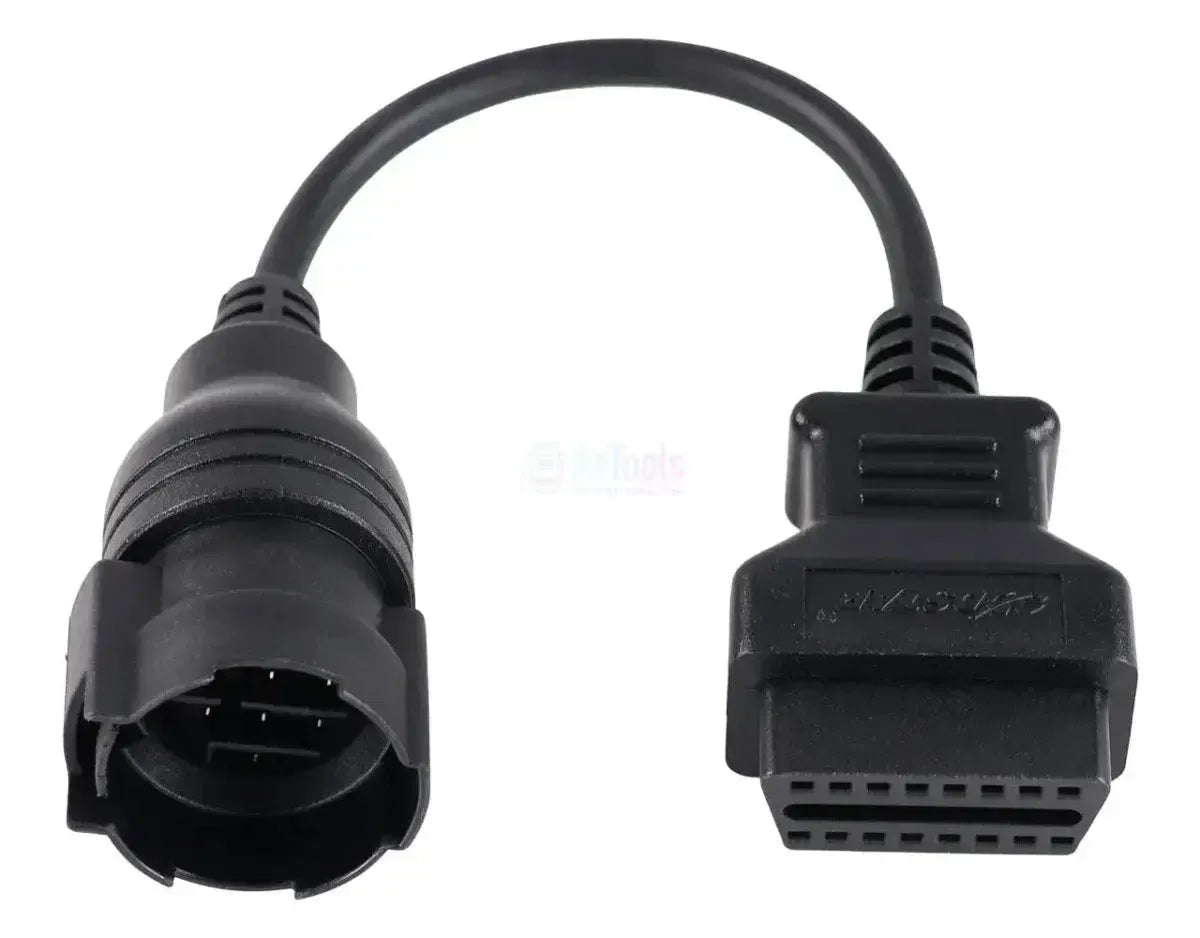

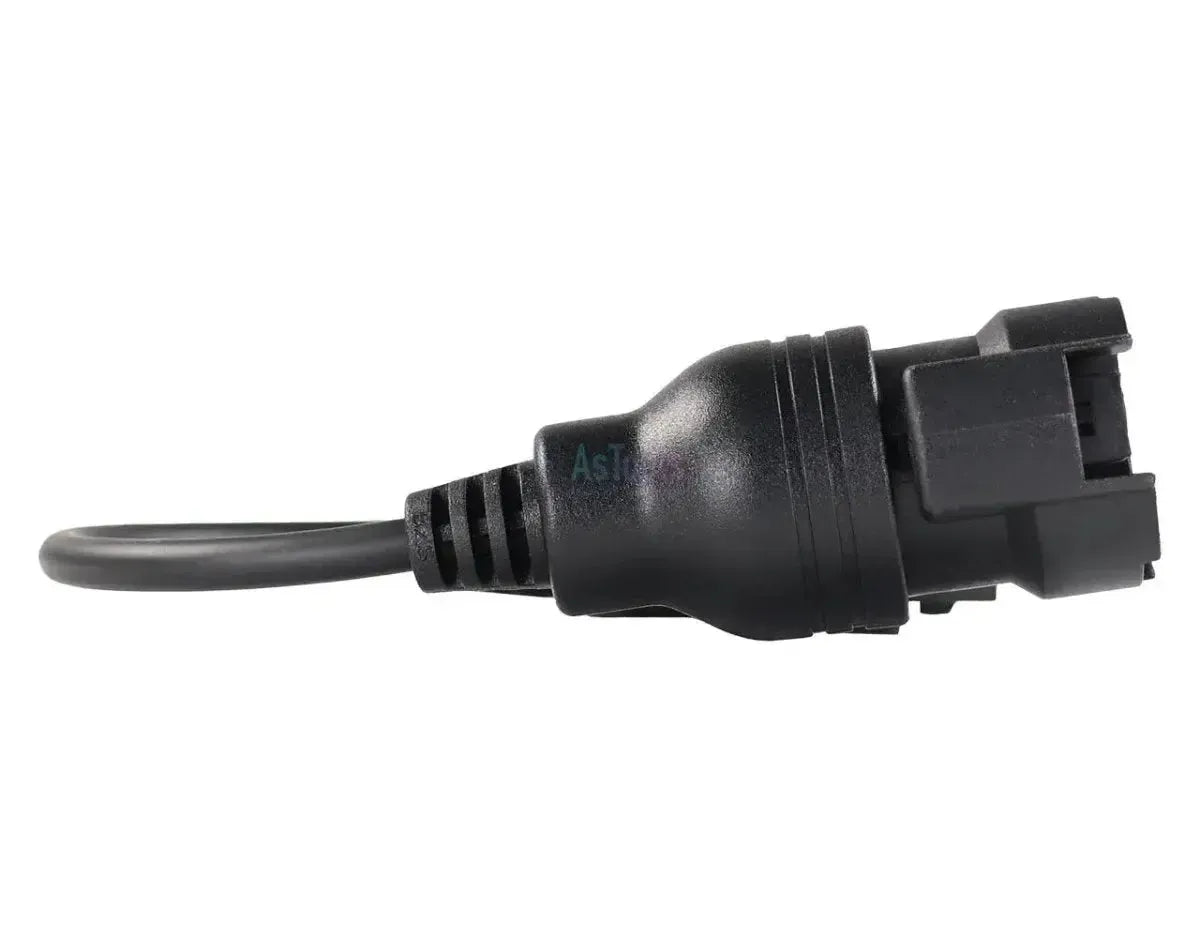

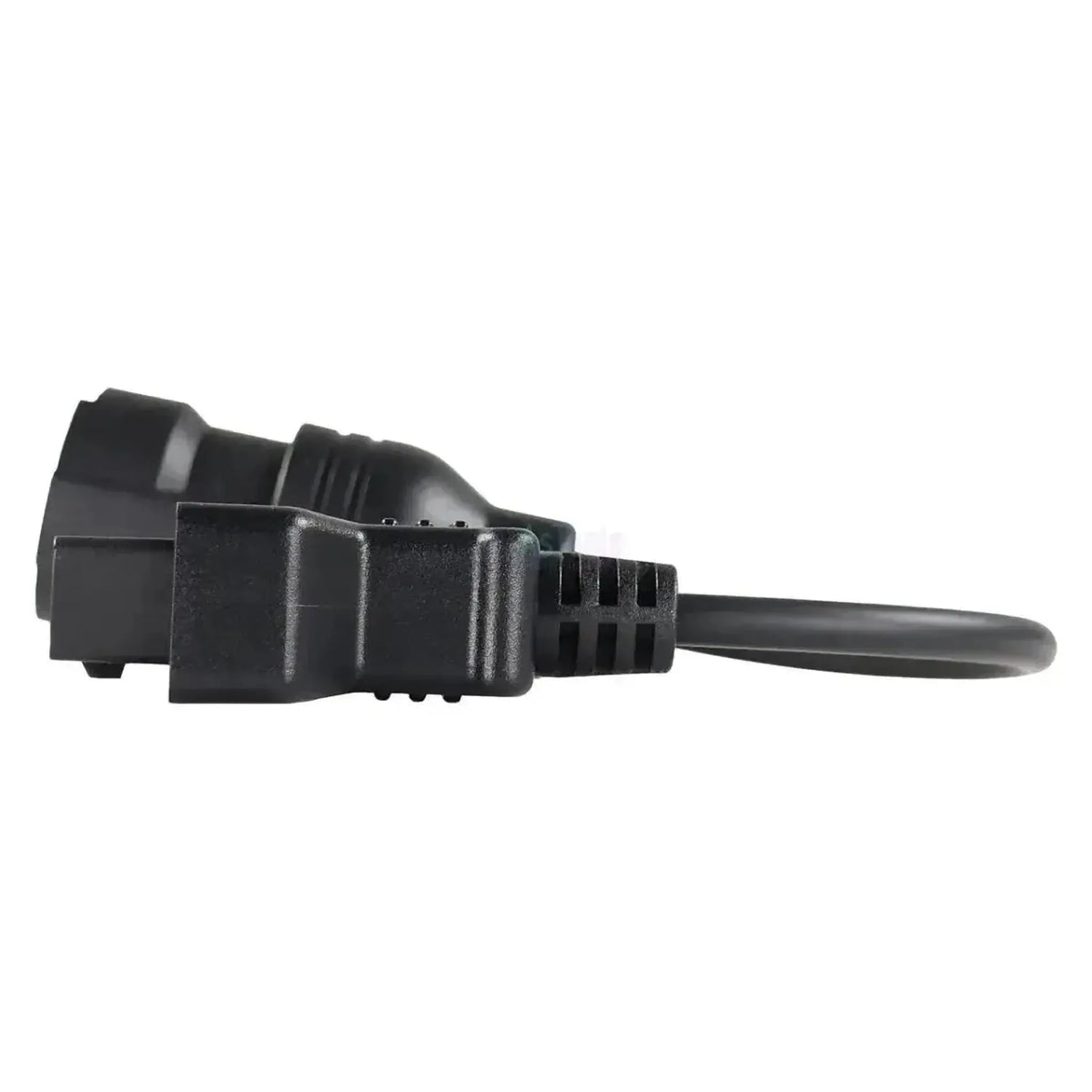

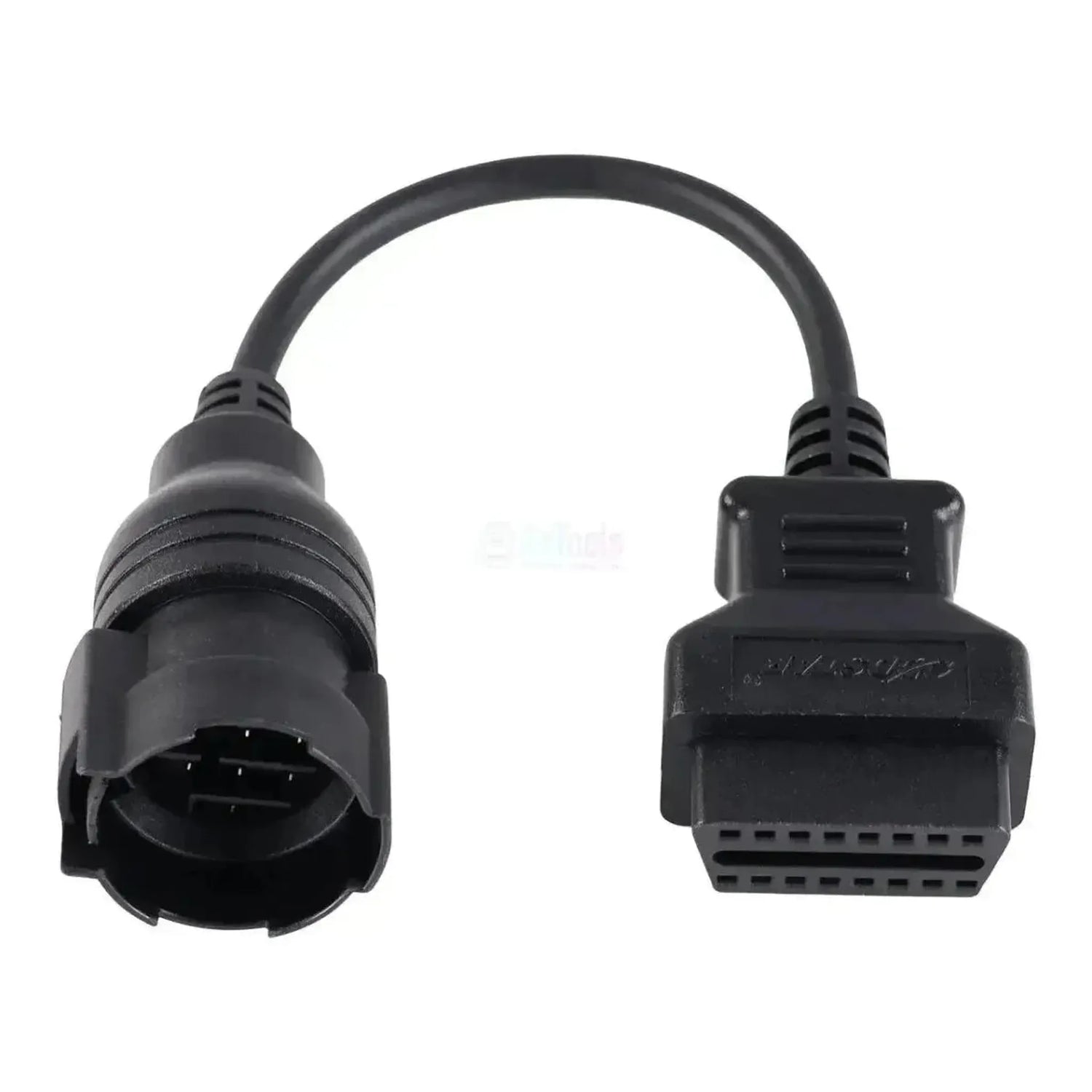

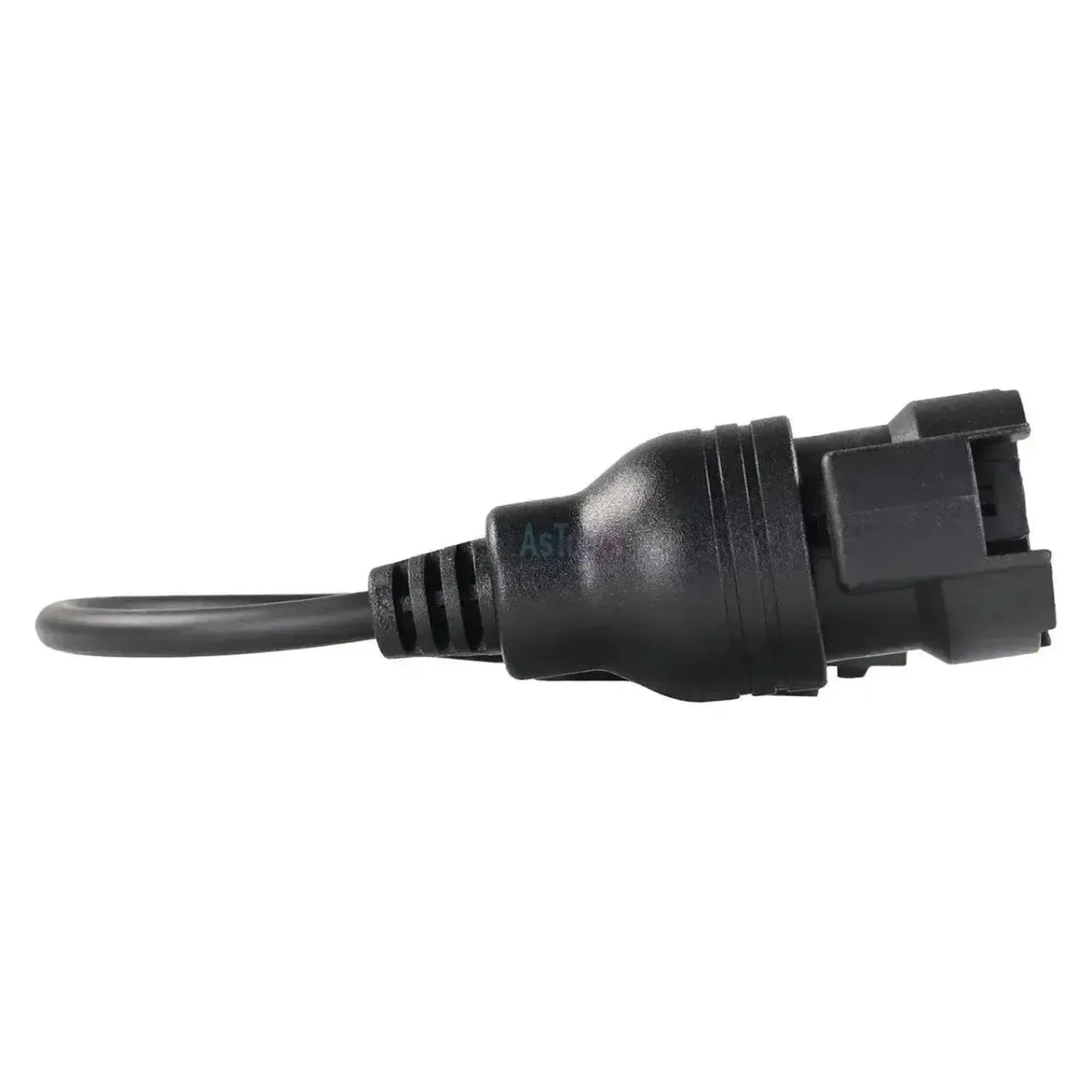

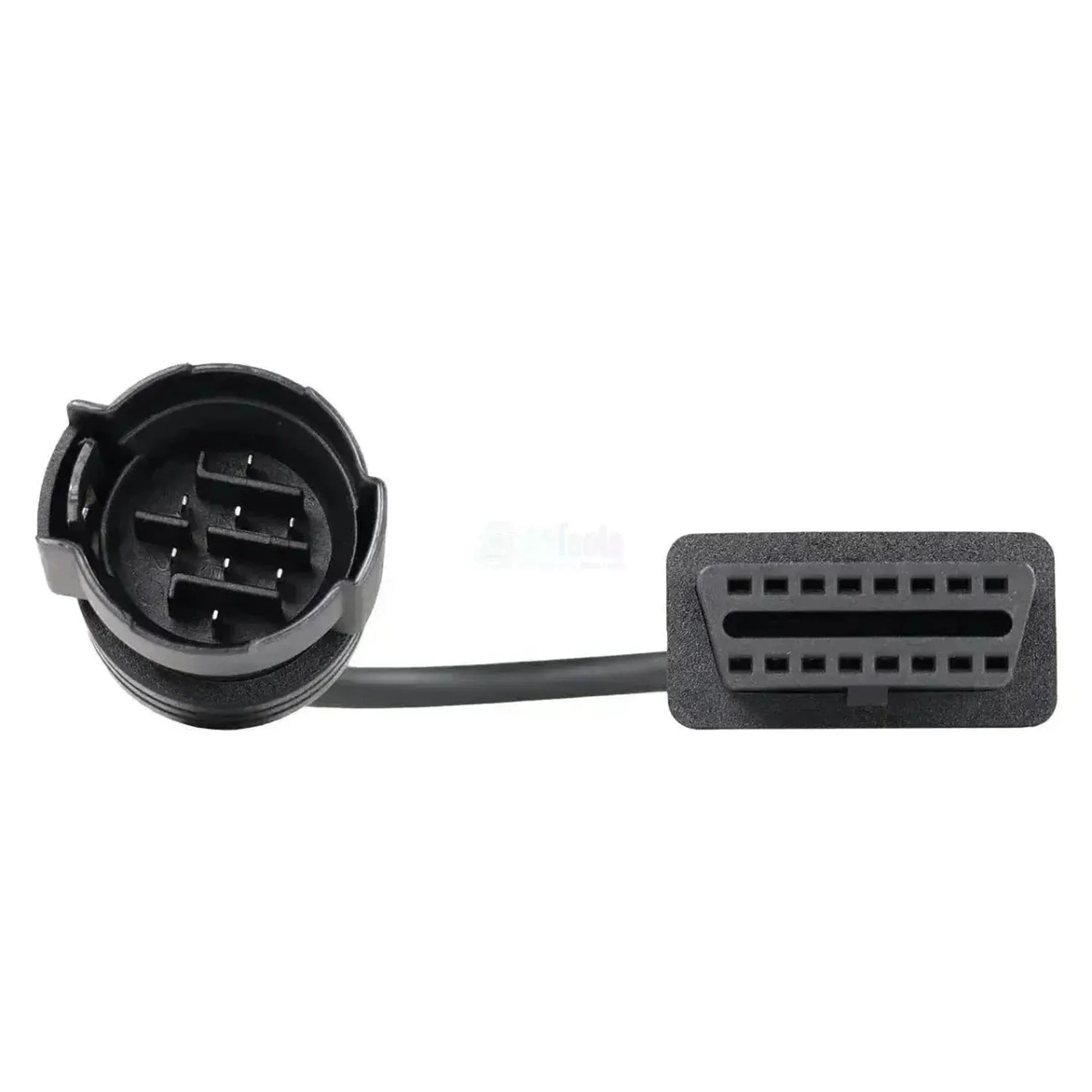

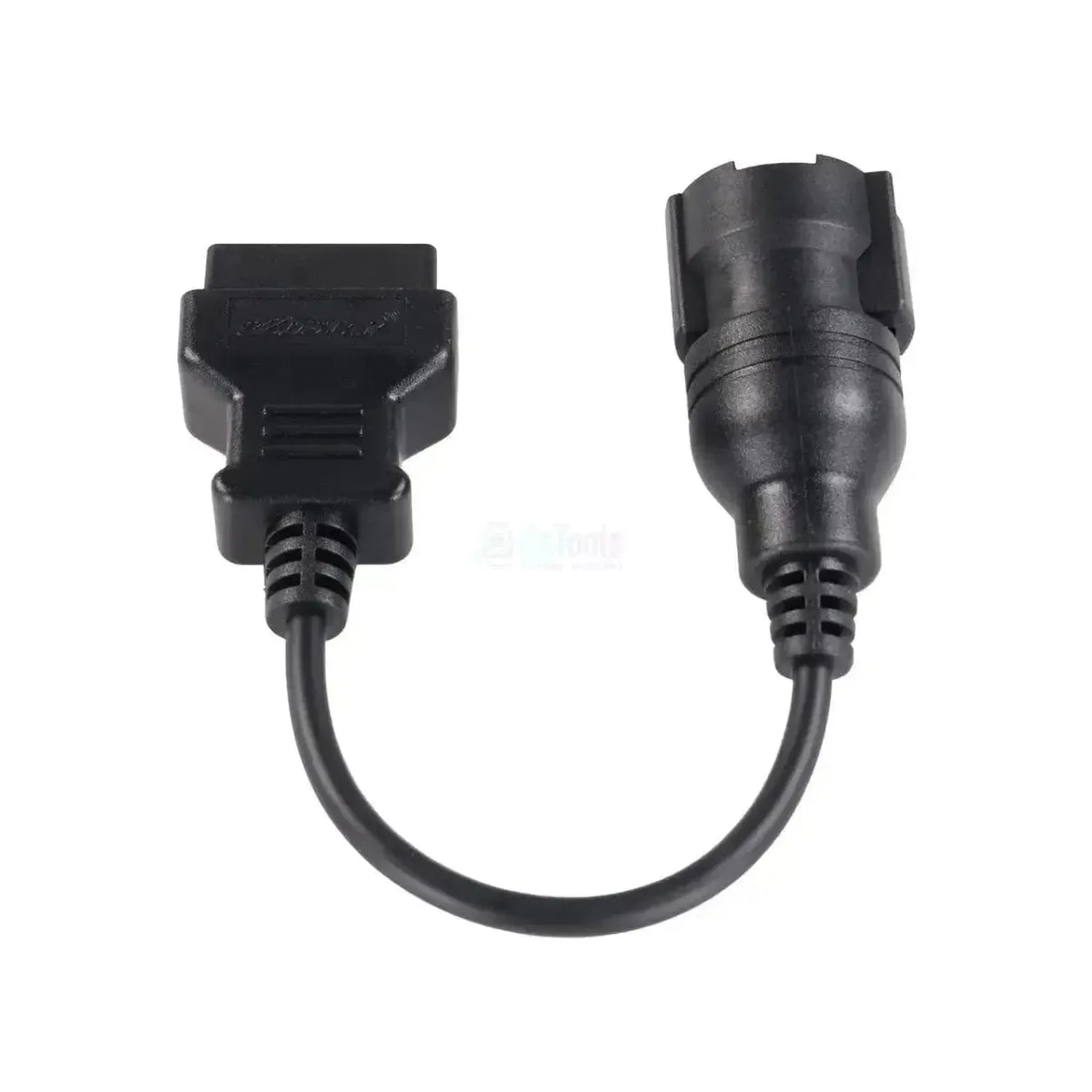

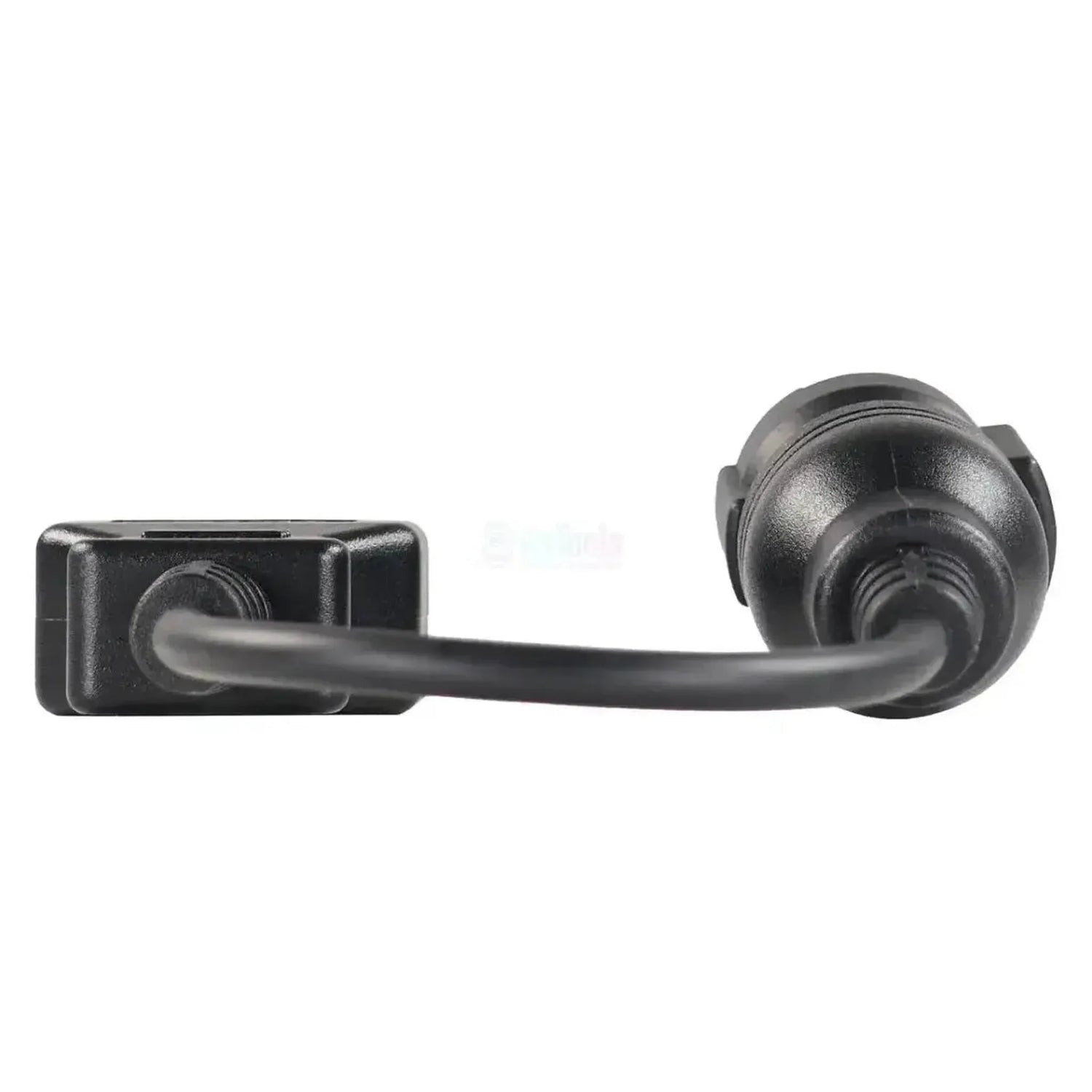

The OBDSTAR M012A connects the 6-pin Suzuki diagnostic connector to the 16-pin OBD2 side of the main cable of your OBDSTAR device. On Suzuki motorcycles, the connector is usually located under the seat. OBDSTAR supplies this cable with the MotoMaster.

Suzuki motorcycles of the Euro 4 generation do not have a 16-pin OBD2 port. With the cable, your device reaches the engine control unit, so you can read and clear fault codes and view live data. The M012A is the version with a short cable; the N012A is a compact adapter for the same connector. The cable only converts the connection physically. The device itself must support Suzuki diagnostics.

HIGHLIGHTS

✔Makes the 6-pin Suzuki connector accessible for the main cable of your OBDSTAR device.
✔One cable for multiple model ranges, from the GSX-R1000 to the V-Strom and the SV650.
✔The short cable provides some slack when the connector is deep under the seat.
✔The cable works passively: No software and no settings are required.

POINTS TO NOTE

✕Your handheld scanner must support Suzuki diagnostics via the 6-pin connection; the cable does not convert protocols.
✕A simple EOBD code reader does not work via this cable; it only reads general OBD2 data.
✕Not suitable for Suzuki models with the red 6-pin Euro 5 connector; a different cable is required for those.
✕Which systems you can access varies by model and year of manufacture.

Applications and functions

The cable is intended for workshops and motorcyclists who read out Suzuki motorcycles with the 6-pin connector.

Systems you can access

  • Engine management: Injection and ignition.
  • Other systems: Depending on model and equipment.

What you can do

  • Fault codes: Read and clear.
  • Live data: View current sensor values.
  • ECU info: Request software and identification.
  • Settings: Where your device offers them.

How to use it

  1. Locate the connector: Remove the seat and find the 6-pin connector.
  2. Check the connector: Count the pins and note the colour.
  3. Connect: Plug the M012A into the diagnostic connector.
  4. Link the device: Connect the main cable of your device.
  5. Read out: Switch the ignition on and select Suzuki and the model.

Compatible vehicles and applications

The grey 6-pin Suzuki diagnostic connector is decisive. The cable fits the following Suzuki models that have this connector:

Suzuki:

  • GSX-R1000 / GSX-R1000R: Euro 4 version from 2017.
  • GSX-R125: Euro 4 version from 2017.
  • GSX-S125: Euro 4 version from 2017.
  • GSX-S750: Euro 4 version from 2017.
  • GSX-S1000 / GSX-S1000F: Euro 4 version from 2017.
  • V-Strom 650 (DL650): Euro 4 version from 2017.
  • V-Strom 1000 (DL1000): Euro 4 version from 2017.
  • SV650 / SV650X: Euro 4 version from 2018.
💡
Good to know: Suzuki uses three types of diagnostic connectors: a white 4-pin, a grey 6-pin and, on Euro 5 models, a red 6-pin connector. Therefore, first check the colour and the number of pins under the seat.

Package contents

  • 1x OBDSTAR (M012A) | Suzuki 6-pin OBD – 16-pin OBD2 Adapter Cable | Motorcycle

Technical specifications

General

The brand of the cable or adapter. It often has to match the brand of your diagnostic tool.Brand
OBDSTAR
The type of product: a separate adapter cable, an adapter without a cable or a complete set.Product type
Adapter cable

Suitable for

The brand of diagnostic tool the cable works with. A cable for one brand usually does not fit a tester of another brand.Compatible diagnostic tool
  • OBDSTAR
Whether the cable needs a separate power connection, for example via battery clamps. A passive cable works without one.Separate power supply required

Connections

The connector that plugs into the diagnostic port of the vehicle or machine. It must fit exactly.Vehicle-side connector
6-pin OBD
The connector on the side of your diagnostic tool or interface. Usually a 16-pin OBD2 connector.Tool-side connector
16-pin OBD2
The data lines through which the cable passes signals. The vehicle and the tester must use the same communication method.Communication
  • K-line

Size and weight

The weight of the cable or adapter.Weight
0.25 kg
Control units
Engine management (ECU)

Other specifications

Application
Suzuki motorcycles with the 6-pin diagnostic connector
Device-side connection
16-pin OBD2, for the main cable of the device
Operation
Passive, no protocol conversion
Compatible with
OBDSTAR MotoMaster and other OBDSTAR devices with Suzuki coverage
