OBDSTAR | SKU: M038

OBDSTAR (M038) | MV Agusta 4-pins OBD – 16-pins OBD2 Adapter Cable | Motorcycle

Name: OBDSTAR (M038) | MV Agusta 4-pins OBD – 16-pins OBD2 Adapter Cable | Motorcycle
Brand: OBDSTAR
SKU: M038
Price: 26.95 EUR
Availability: InStock

€26,95 incl.

€22,27 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

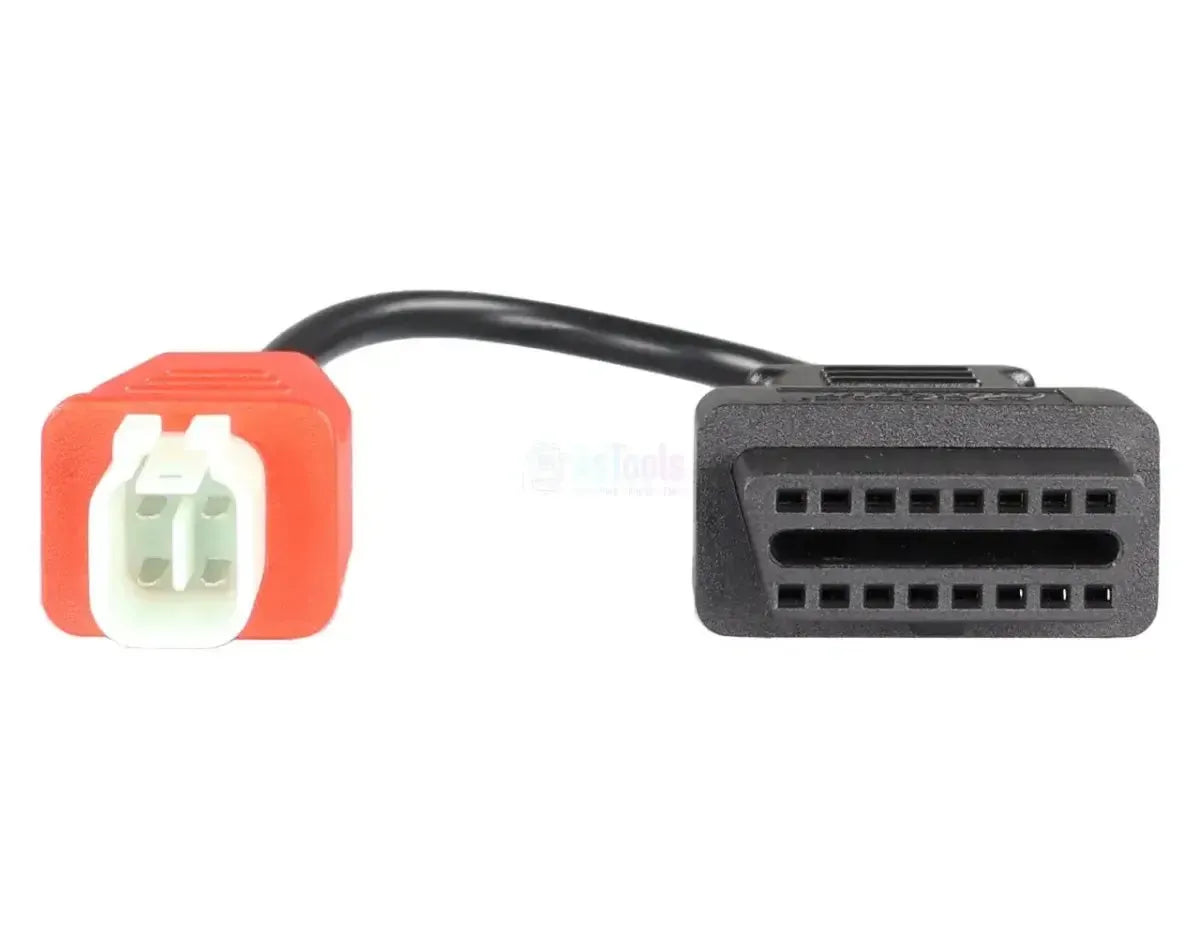

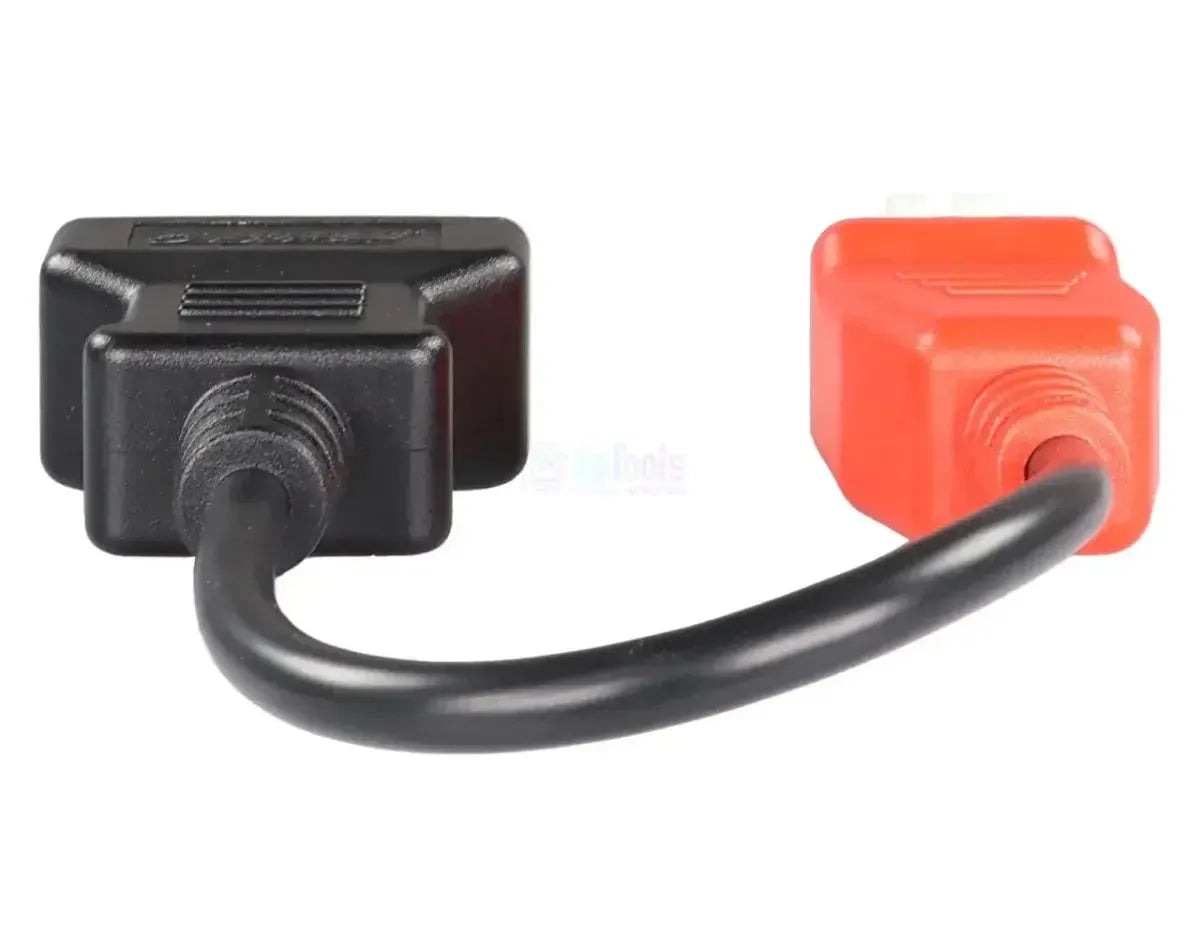

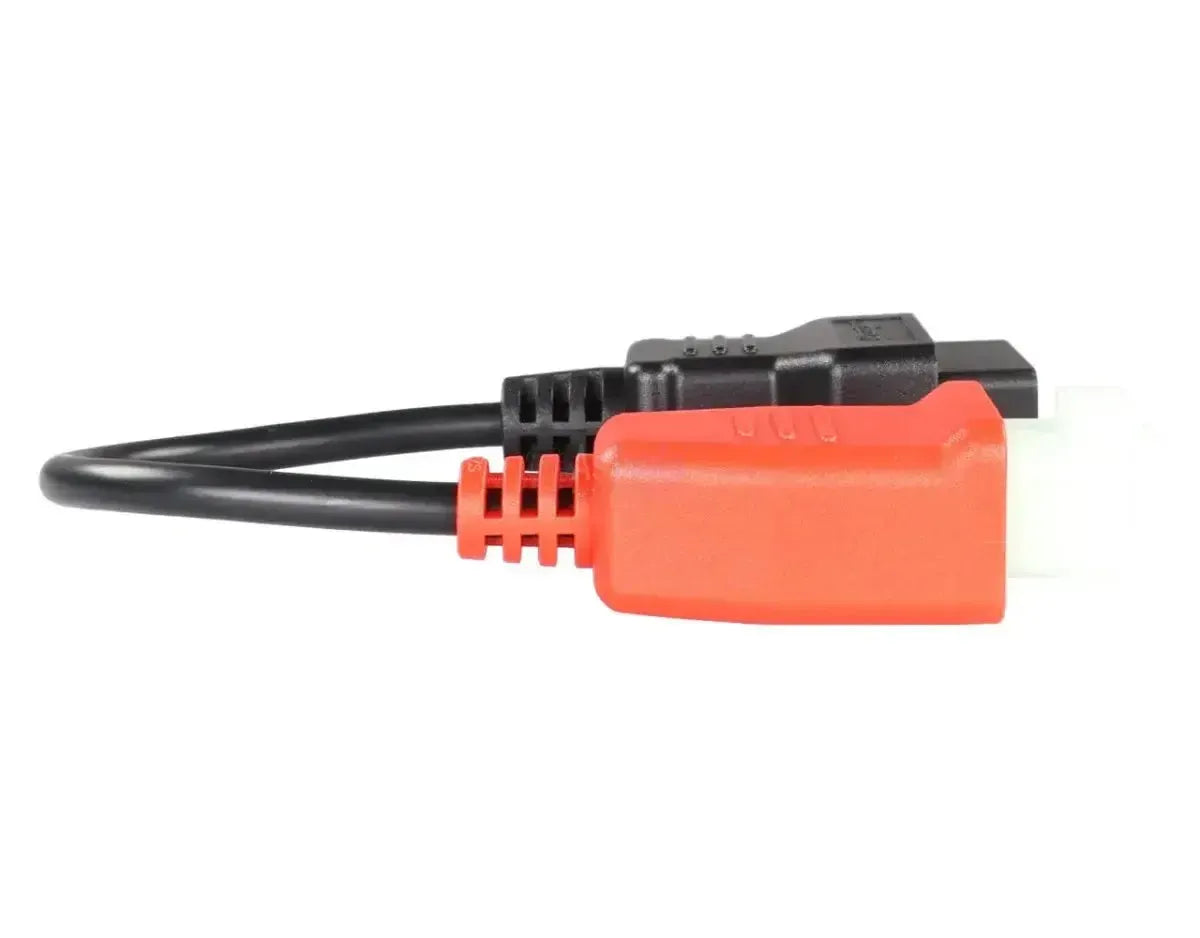

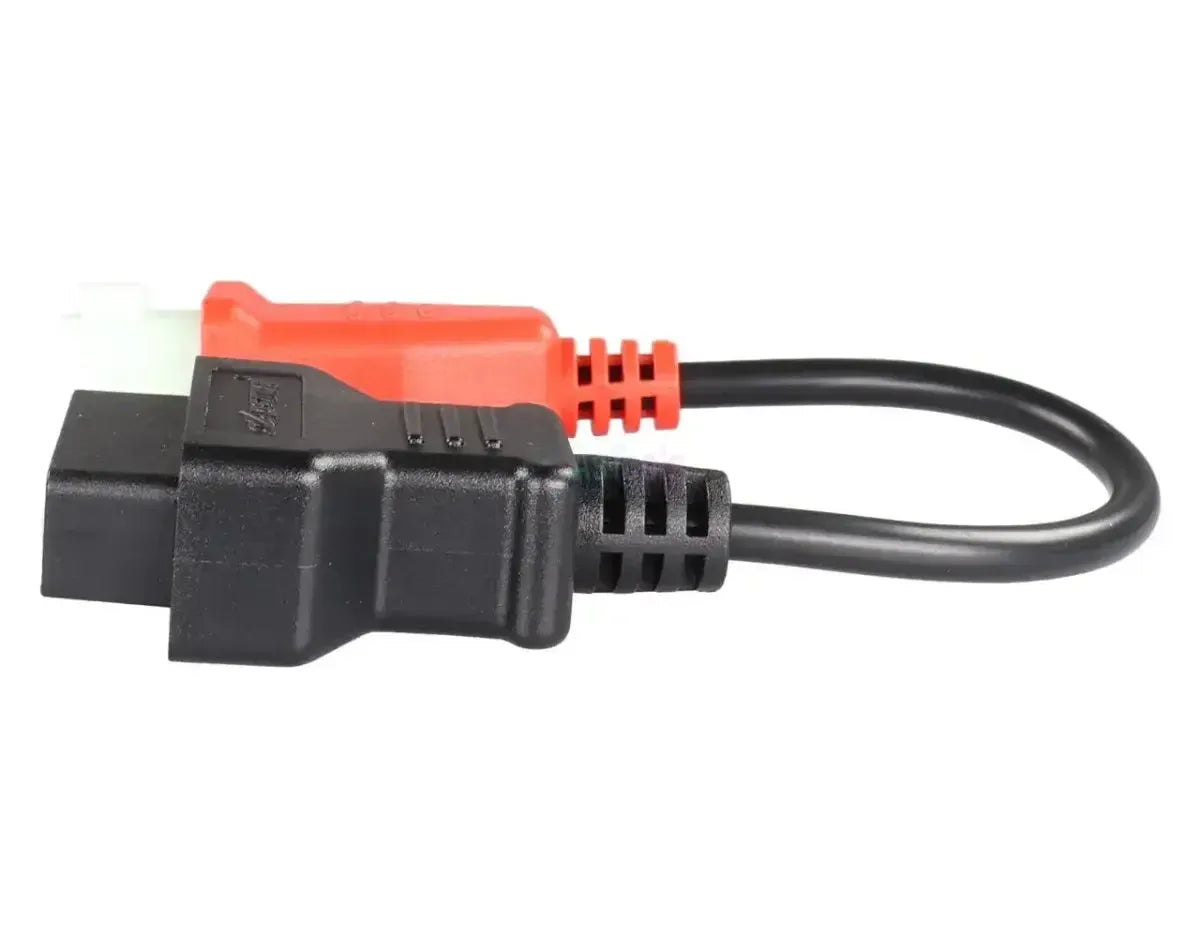

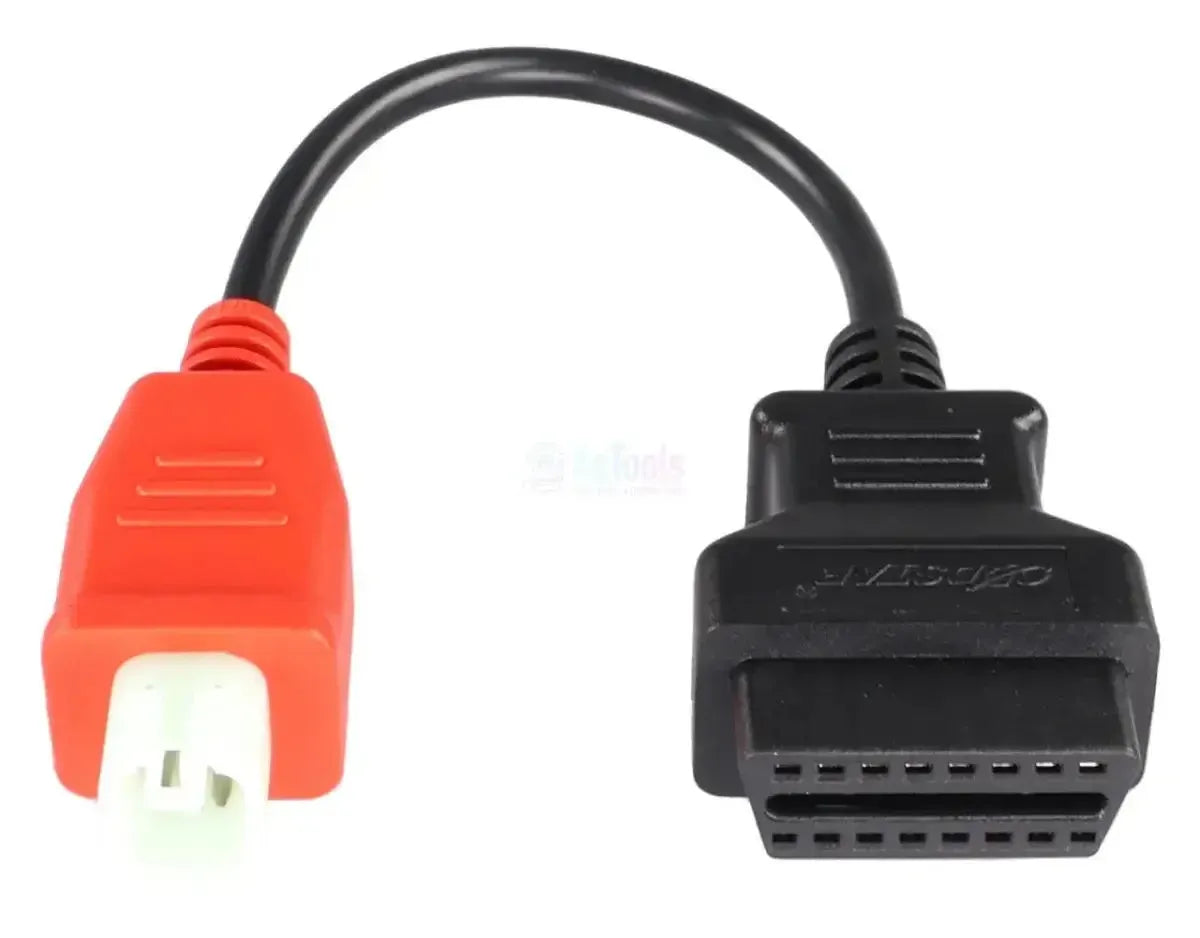

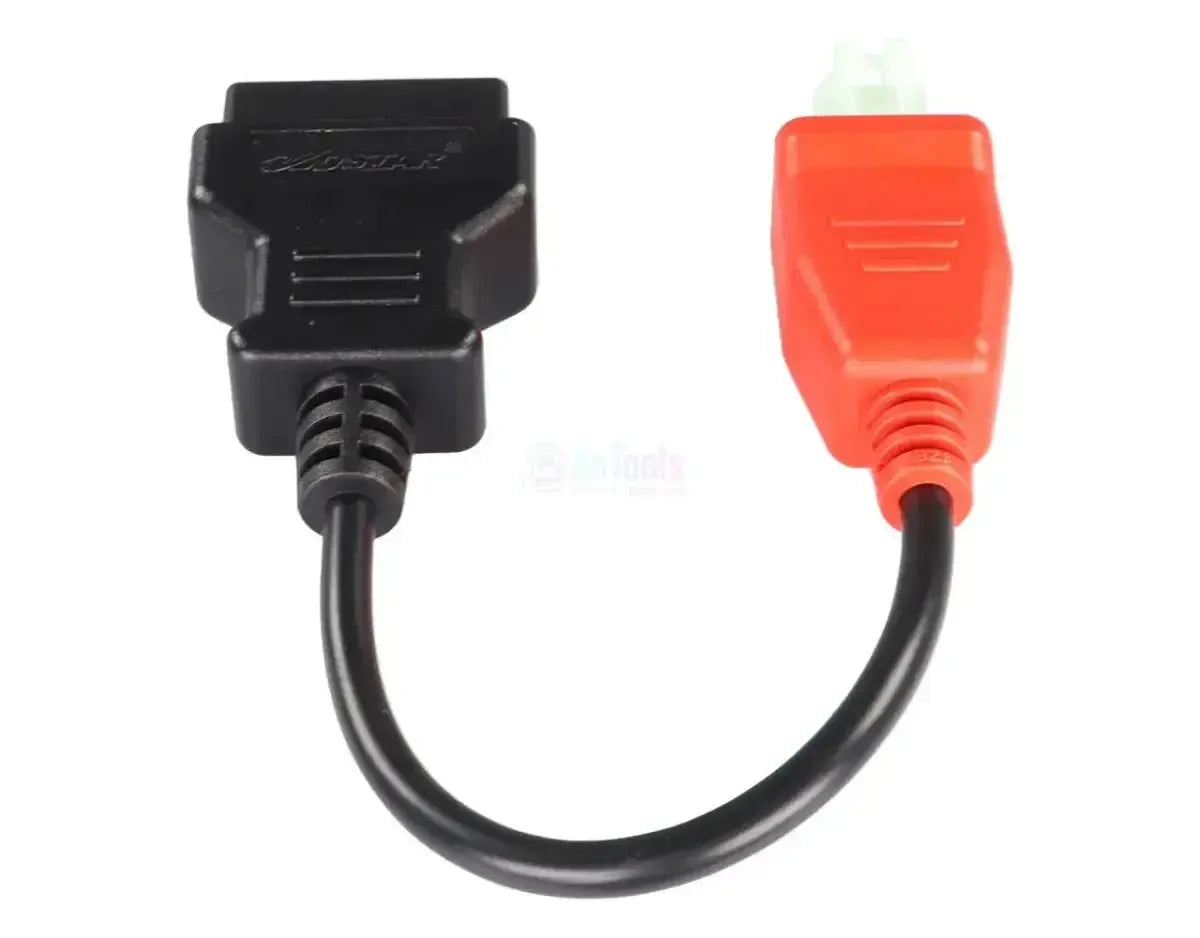

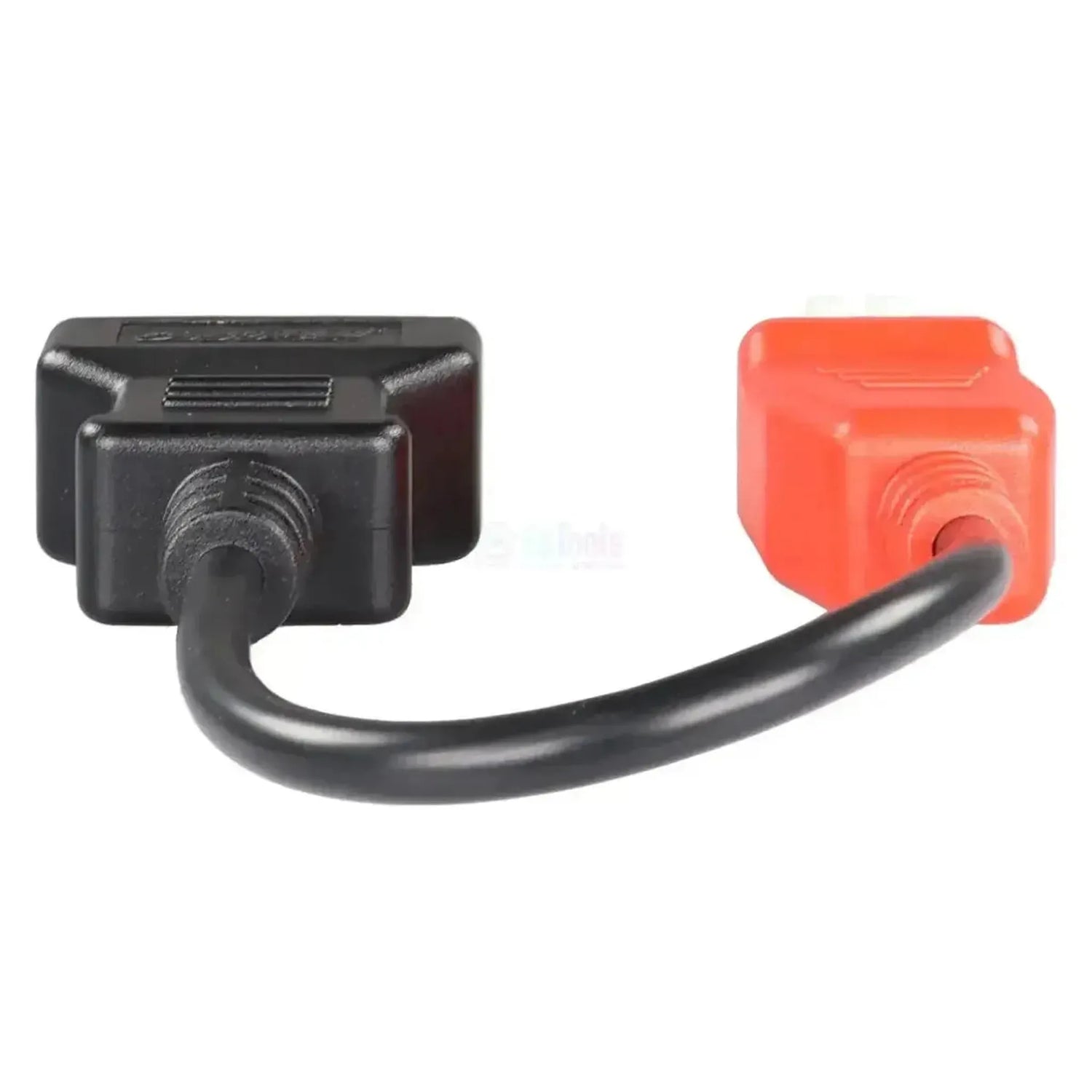

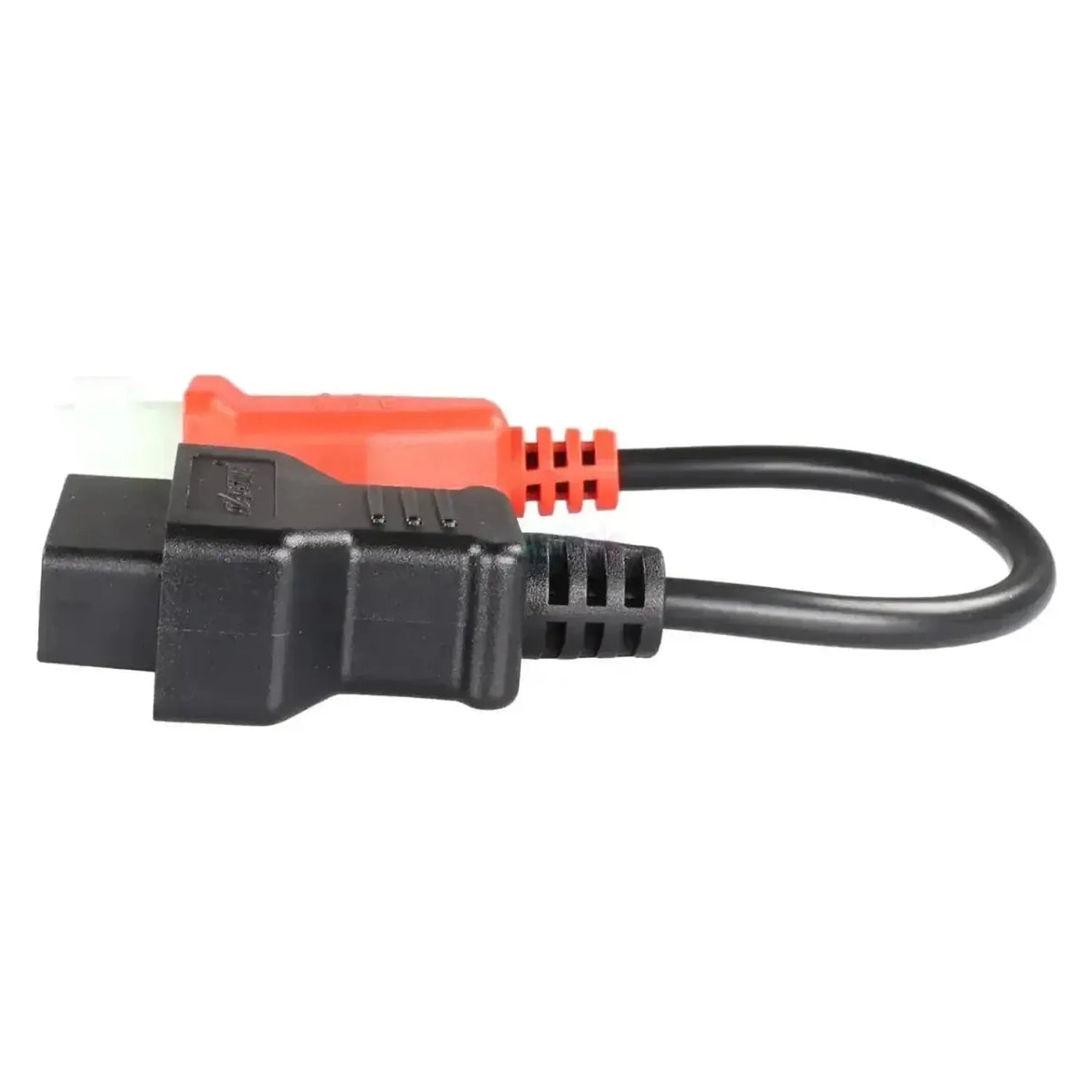

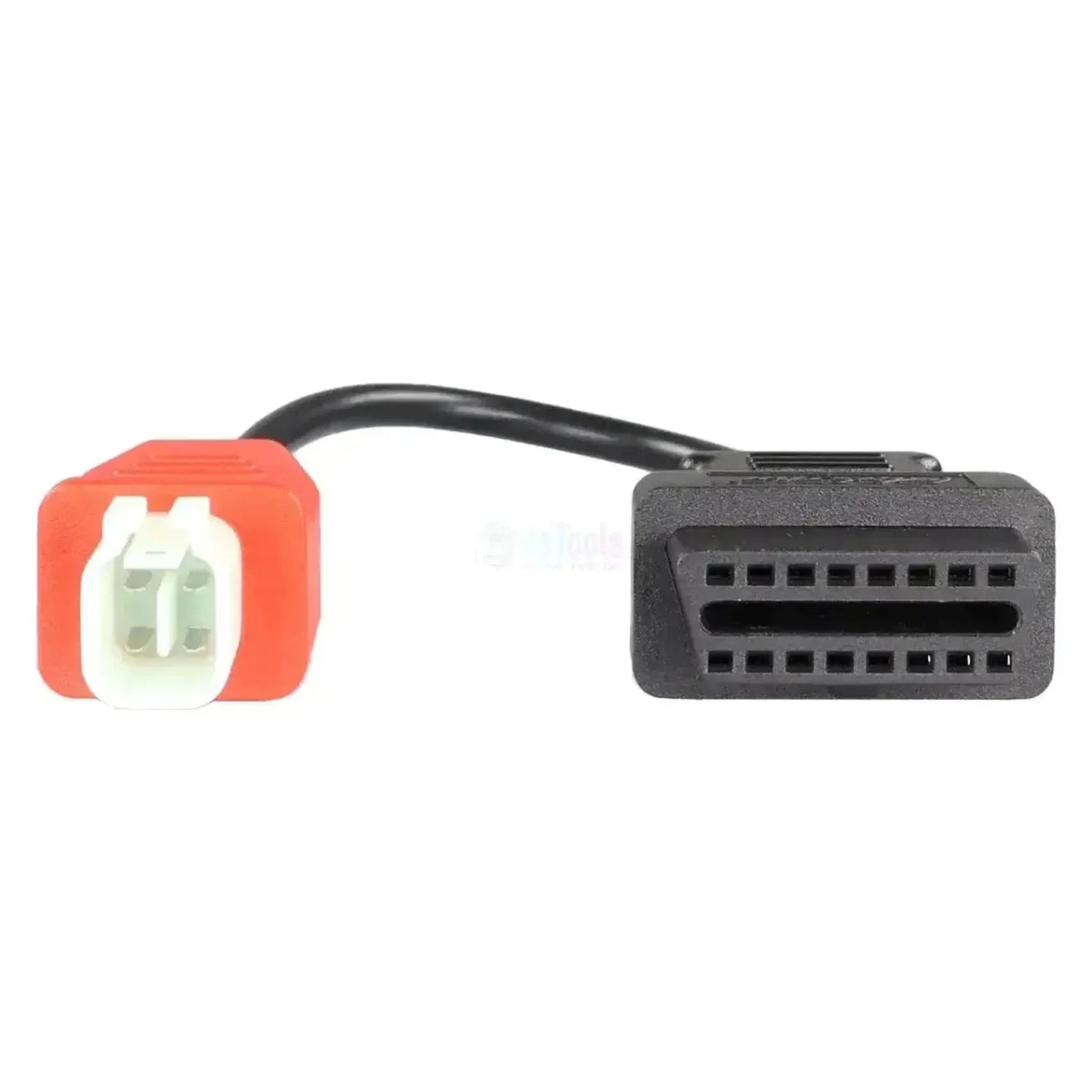

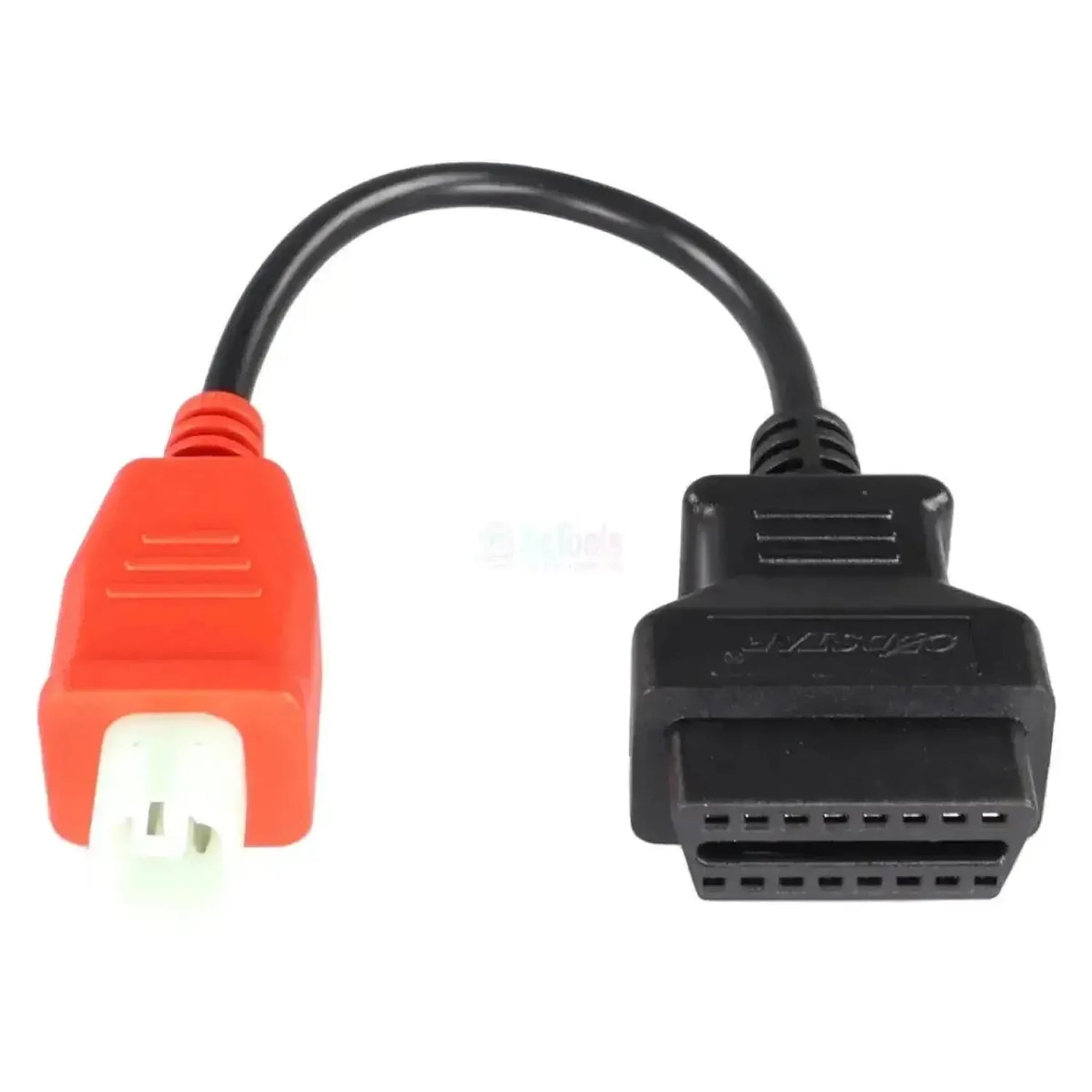

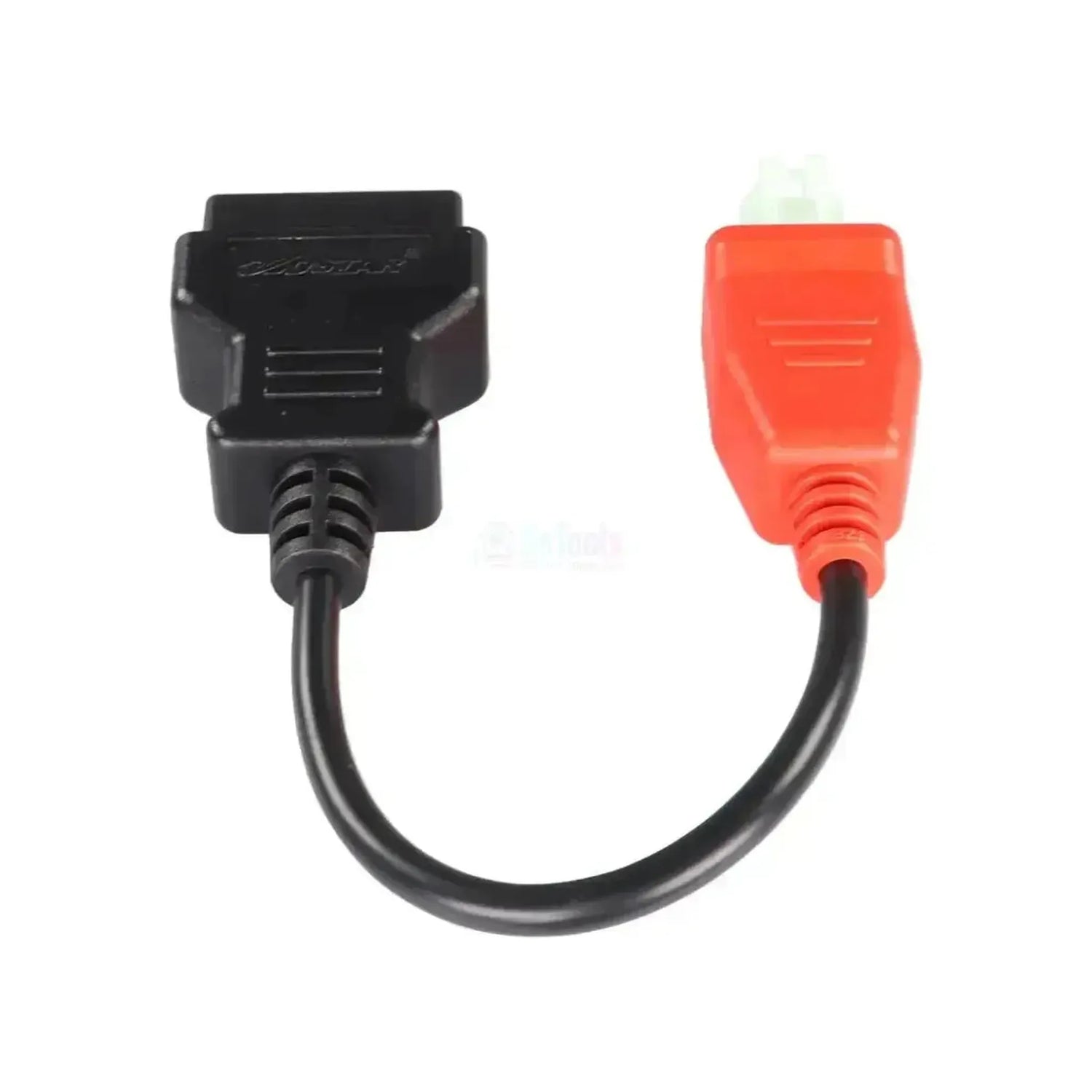

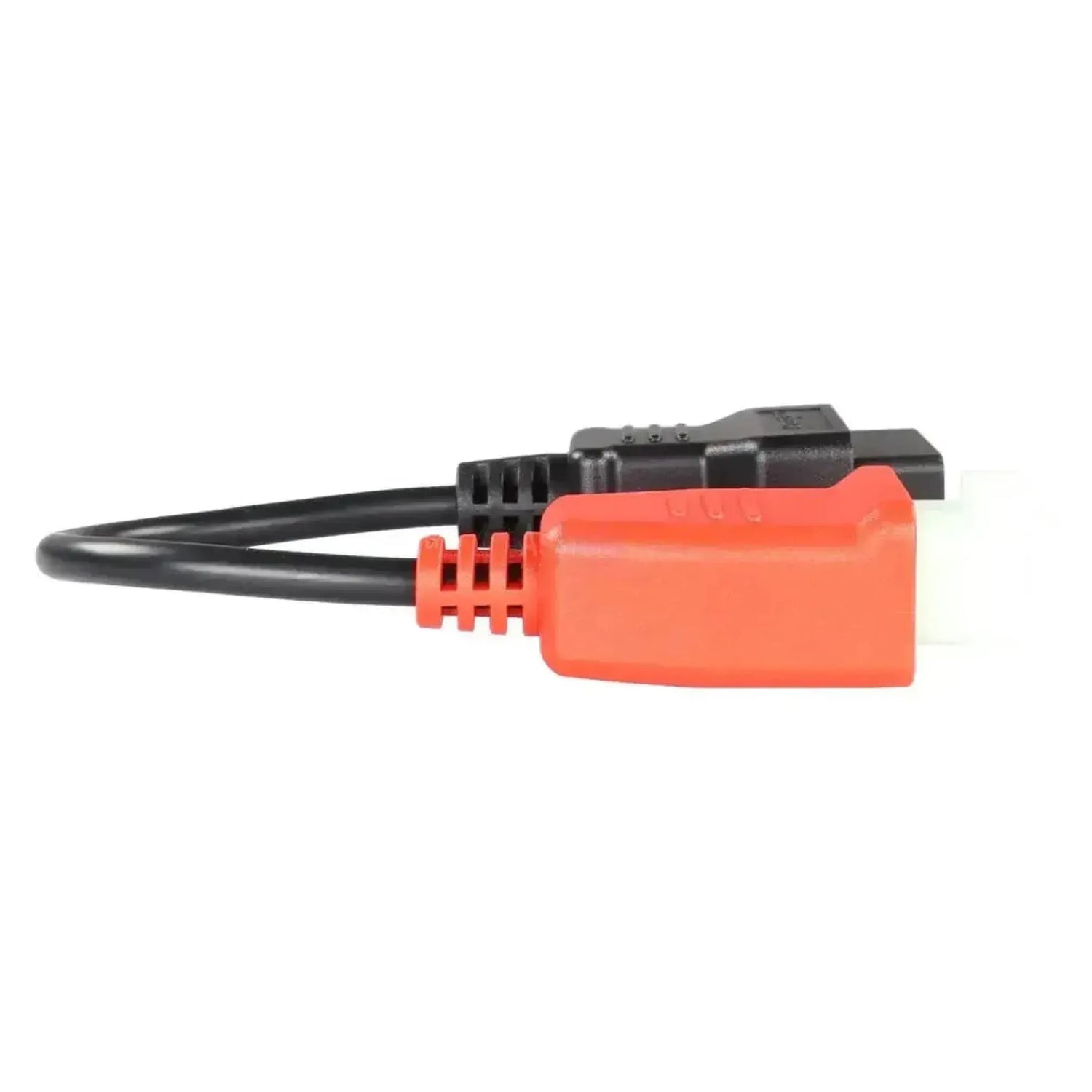

The OBDSTAR M038 connects the 4-pin diagnostic connector of MV Agusta to the 16-pin OBD2 port of your diagnostic tool. The cable is one of the optional cables for the OBDSTAR MS50 and MS80.

With the cable, your tool reaches the engine control unit, allowing you to read and clear fault codes and view live data. The cable only converts the connector. The diagnostic tool itself must support MV Agusta diagnostics.

HIGHLIGHTS

✔Gives your OBDSTAR tool access to the 4-pin MV Agusta connector.

✔One of the optional cables for the OBDSTAR MS50 and MS80.

✔You connect without intervening in the motorcycle's wiring.

✔The 16-pin end fits directly into the OBD2 port of the tool.

POINTS TO NOTE

✕Your diagnostic tool must support brand-specific MV Agusta diagnostics via the 4-pin connector; the cable does not convert protocols.

✕A simple EOBD code reader does not work with this cable; it only reads the standard OBD2 data of cars.

✕Older MV Agusta models have a 3- or 2-pin connector; this cable is not intended for them.

✕Which systems you can access varies by model and by tool.

Applications and functions

The cable is intended for mechanics and workshops that read out an MV Agusta with the 4-pin connector.

Systems you can access

Engine management: Injection and ignition.
Other systems: Depending on model and tool.

What you can do

Fault codes: Read and clear.
Live data: View current values.
Identification: Control unit data.
Other functions: Where the tool offers them.

How to use it

Locate the connector: Find the diagnostic connector; see the workshop manual.
Connect: Insert the 4-pin plug into the connector.
Link the tool: Connect the 16-pin plug to the tool.
Ignition on: Switch the ignition on without starting the engine.
Reading out: Select MV Agusta, the model and the system.

Compatible vehicles and applications

The deciding factor is the 4-pin MV Agusta diagnostic connector. The cable only fits models that have this connector.

MV Agusta:

Models with 4-pin connector: Check the plug before ordering.

💡

Good to know: Count the pins of the diagnostic connector. With 4 pins, this cable fits; if you see 3 or 2 pins, your MV Agusta requires a different cable.

Package contents

1x OBDSTAR (M038) | MV Agusta 4-pin OBD – 16-pin OBD2 Adapter Cable | Motorcycle

Technical specifications

General

The brand of the cable or adapter. It often has to match the brand of your diagnostic tool.Brand: OBDSTAR
The type of product: a separate adapter cable, an adapter without a cable or a complete set.Product type: Adapter cable
The types of vehicles or machinery on which the cable can be used. This shows quickly whether it suits the vehicles entering your workshop.Vehicle types: Motorcycle and scooter

Suitable for

The brand of diagnostic tool the cable works with. A cable for one brand usually does not fit a tester of another brand.Compatible diagnostic tool: OBDSTAR
Whether the cable needs a separate power connection, for example via battery clamps. A passive cable works without one.Separate power supply required: No

Connections

The connector that plugs into the diagnostic port of the vehicle or machine. It must fit exactly.Vehicle-side connector: 4-pin OBD
The connector on the side of your diagnostic tool or interface. Usually a 16-pin OBD2 connector.Tool-side connector: 16-pin OBD2 (J1962)
The data lines through which the cable passes signals. The vehicle and the tester must use the same communication method.Communication: K-line
