Autel  |  SKU: Chrysler-16

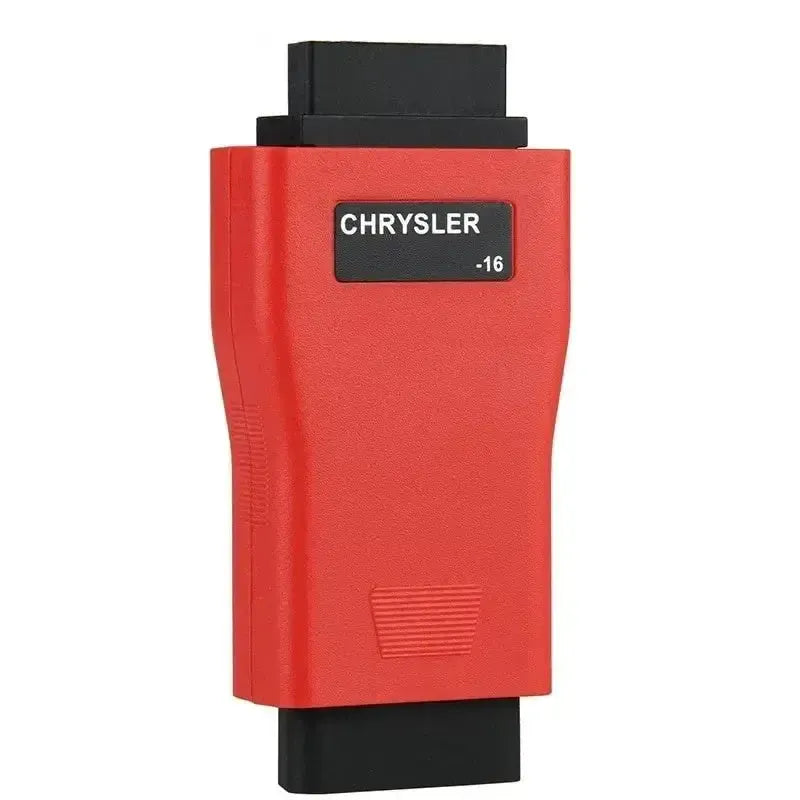

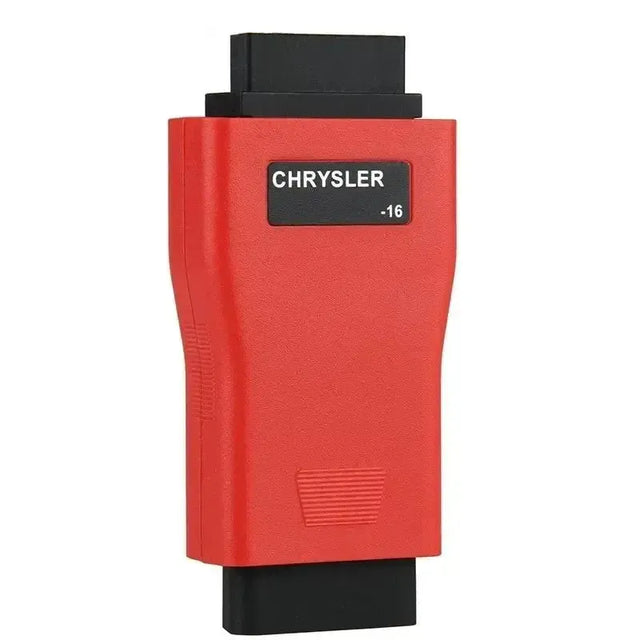

Autel | Chrysler 16-pin OBD1 – 16-pin OBD2 Adapter | Passenger car

€34,95 incl.
€16,95 incl.
€14,01 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

This adapter connects the 16-pin diagnostic connector of older Chrysler, Dodge and Jeep passenger cars to the 16-pin OBD2 main cable of your Autel tool. The connector on the vehicle looks like a standard OBD2 connector, but the pin assignment is different.

On these models, the Chrysler CCD bus runs over pins 3 and 11 of the connector. Through this bus, a tester reaches systems such as ABS and airbag. Without the adapter, your tool often reads only the engine management via generic OBD2. With the adapter, you also read the fault codes of the other systems and clear them after the repair. The adapter is included in Autel's official OBD1 adapter set. The tool itself must support the Chrysler diagnostics of this generation.

HIGHLIGHTS

✔Provides access to systems on the CCD bus, such as ABS and airbag.
✔Genuine adapter from the Autel OBD1 adapter set for the MaxiSys tools.
✔One adapter for older models from Chrysler, Dodge and Jeep.
✔Compact adapter piece on the OBD2 main cable; you do not need an extra cable.

POINTS TO NOTE

✕Your Autel tool must support Chrysler diagnostics via the CCD bus; the adapter does not convert protocols.
✕A simple EOBD code reader does not work via this adapter; it reads only emissions-related OBD2 data.
✕Not for the 6-pin connector of older Chrysler models; a different adapter is required for that.
✕Which systems you can reach varies by model, year of manufacture and equipment.

Applications and functions

The adapter is intended for garages and mechanics who read older models from the Chrysler group with an Autel tool.

Systems you can access

  • ABS: Anti-lock braking system.
  • Airbag: SRS control unit.
  • Other modules: On the CCD bus, depending on model.

What you can do

  • Read fault codes: View per system.
  • Clear fault codes: After the repair.
  • Check: Read again after a test drive.

How to use it

  1. Locate connector: Find the 16-pin connector under the dashboard.
  2. Fit adapter: Connect the adapter to the OBD2 main cable.
  3. Connect: Plug the adapter into the vehicle's connector.
  4. Ignition on: Switch the ignition on, without starting the engine.
  5. Read out: Select the brand, model and system.

Compatible vehicles and applications

The deciding factor is the 16-pin connector with the CCD bus on pins 3 and 11. The adapter is intended for models from the following period:

Chrysler, Dodge and Jeep:

  • Models with CCD bus: 1996 to 2002.
💡
Good to know: The connector on the vehicle looks like a standard OBD2 connector. If your tool reads only the engine management and not ABS or airbag, use this adapter.

Package contents

  • 1x Autel | Chrysler 16-pin OBD1 - 16-pin OBD2 Adapter | Passenger car

Technical specifications

General

The brand of the cable or adapter. It often has to match the brand of your diagnostic tool.Brand
Autel
The type of product: a separate adapter cable, an adapter without a cable or a complete set.Product type
Adapter
The types of vehicles or machinery on which the cable can be used. This shows quickly whether it suits the vehicles entering your workshop.Vehicle types
  • Passenger car

Suitable for

The brand of diagnostic tool the cable works with. A cable for one brand usually does not fit a tester of another brand.Compatible diagnostic tool
  • Autel

Connections

The connector that plugs into the diagnostic port of the vehicle or machine. It must fit exactly.Vehicle-side connector
16-pin Chrysler OBD1
The connector on the side of your diagnostic tool or interface. Usually a 16-pin OBD2 connector.Tool-side connector
16-pin OBD2
The data lines through which the cable passes signals. The vehicle and the tester must use the same communication method.Communication
  • SCI and CCD bus

Other specifications

Application
Chrysler, Dodge and Jeep passenger cars with CCD bus on the 16-pin connector
Device-side connector
16-pin OBD2, for the OBD2 main cable of the Autel tool
Compatible with
Autel MaxiSys Ultra, MS919 and MS909
