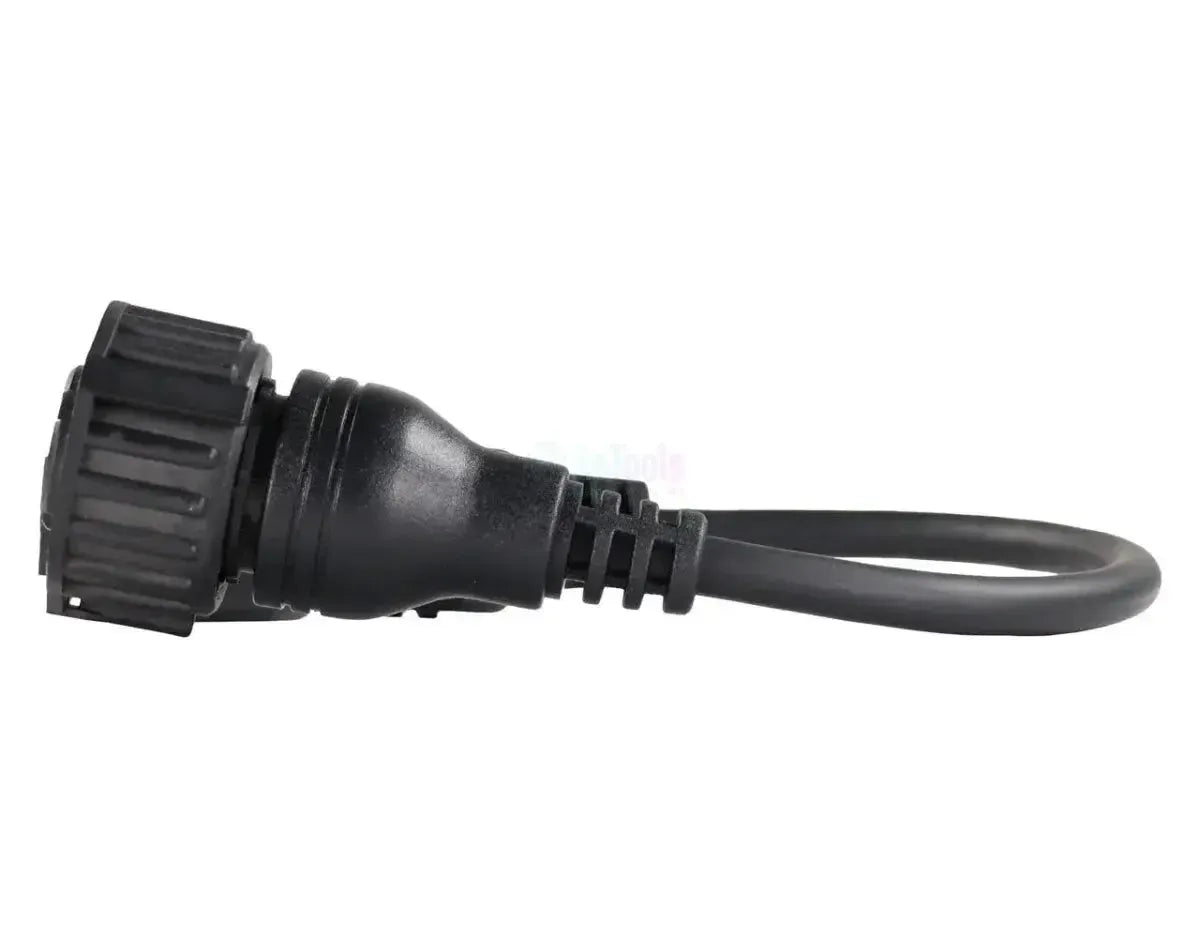

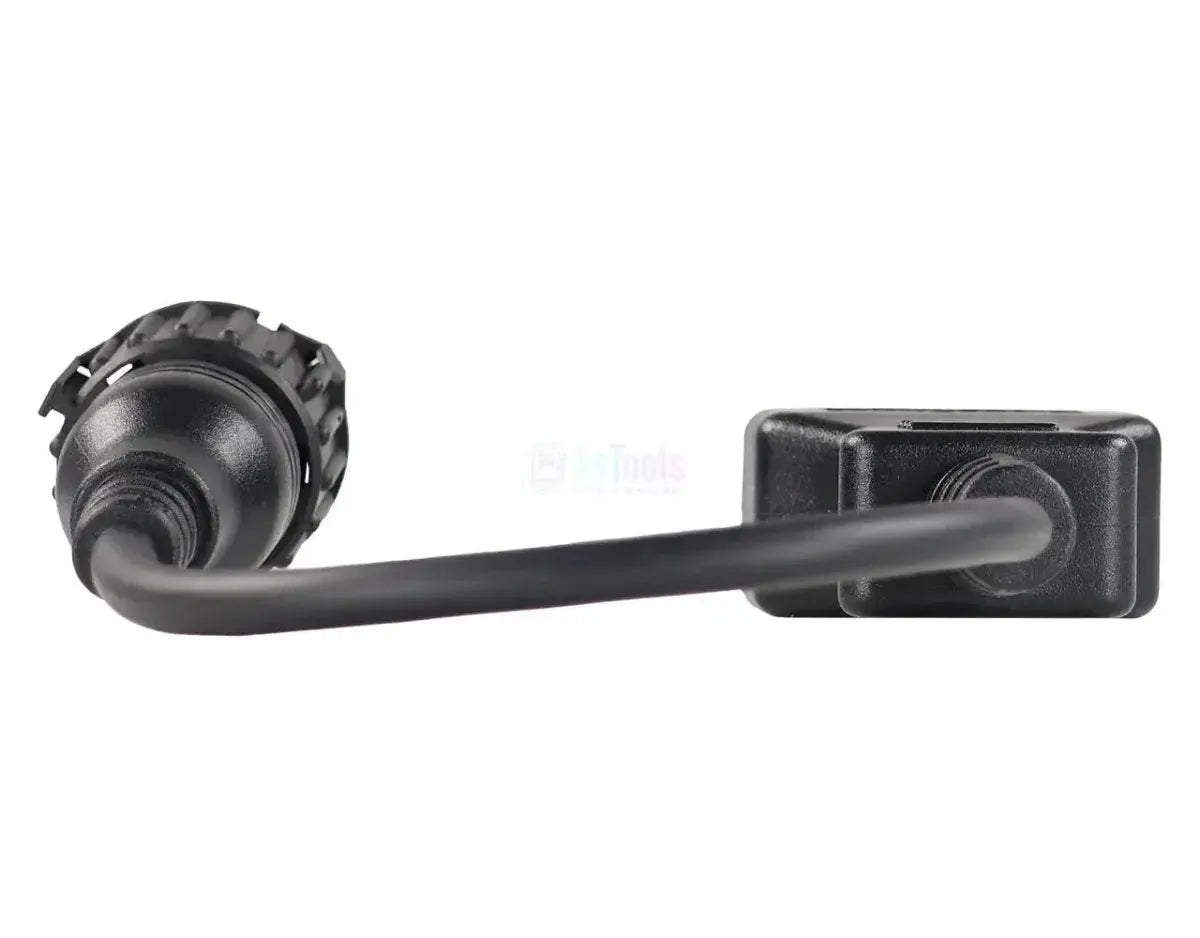

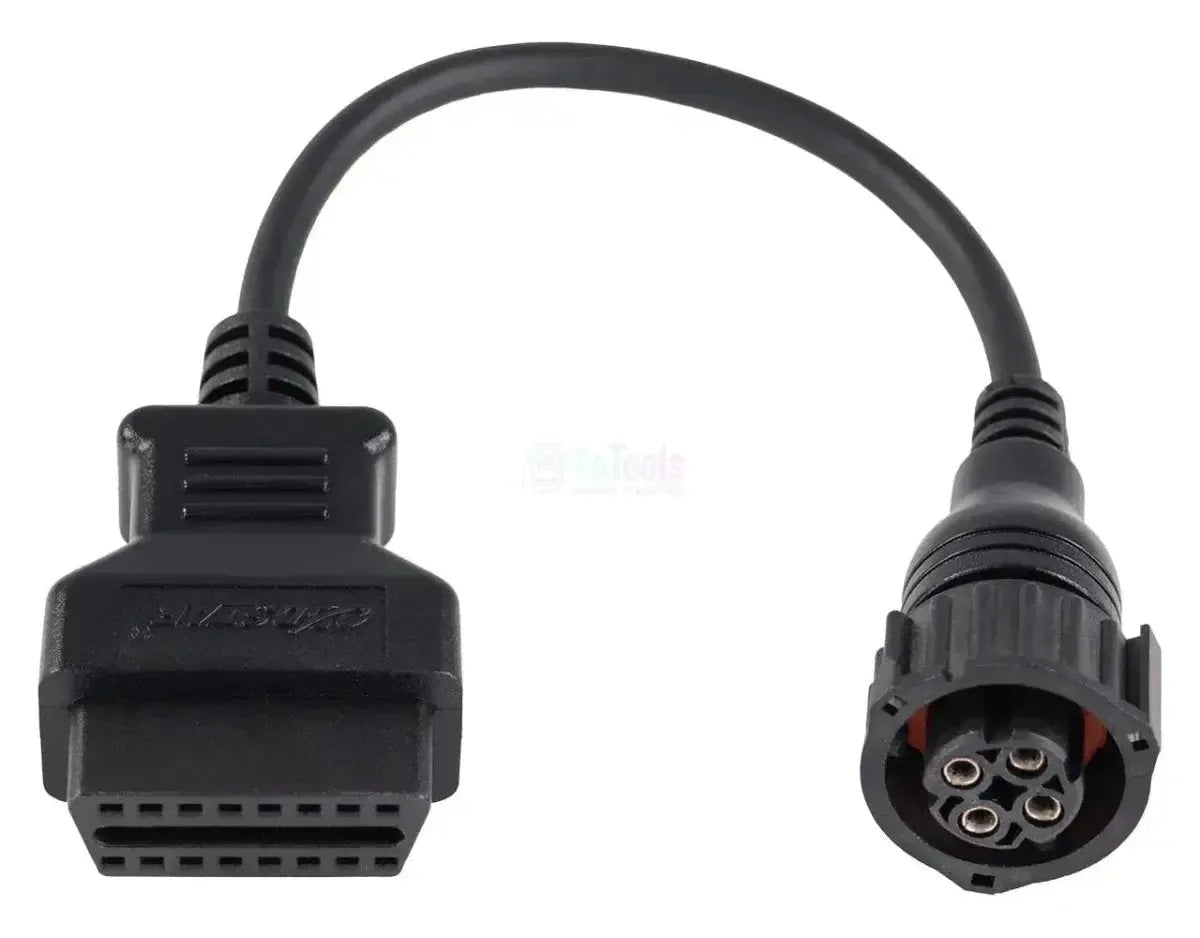

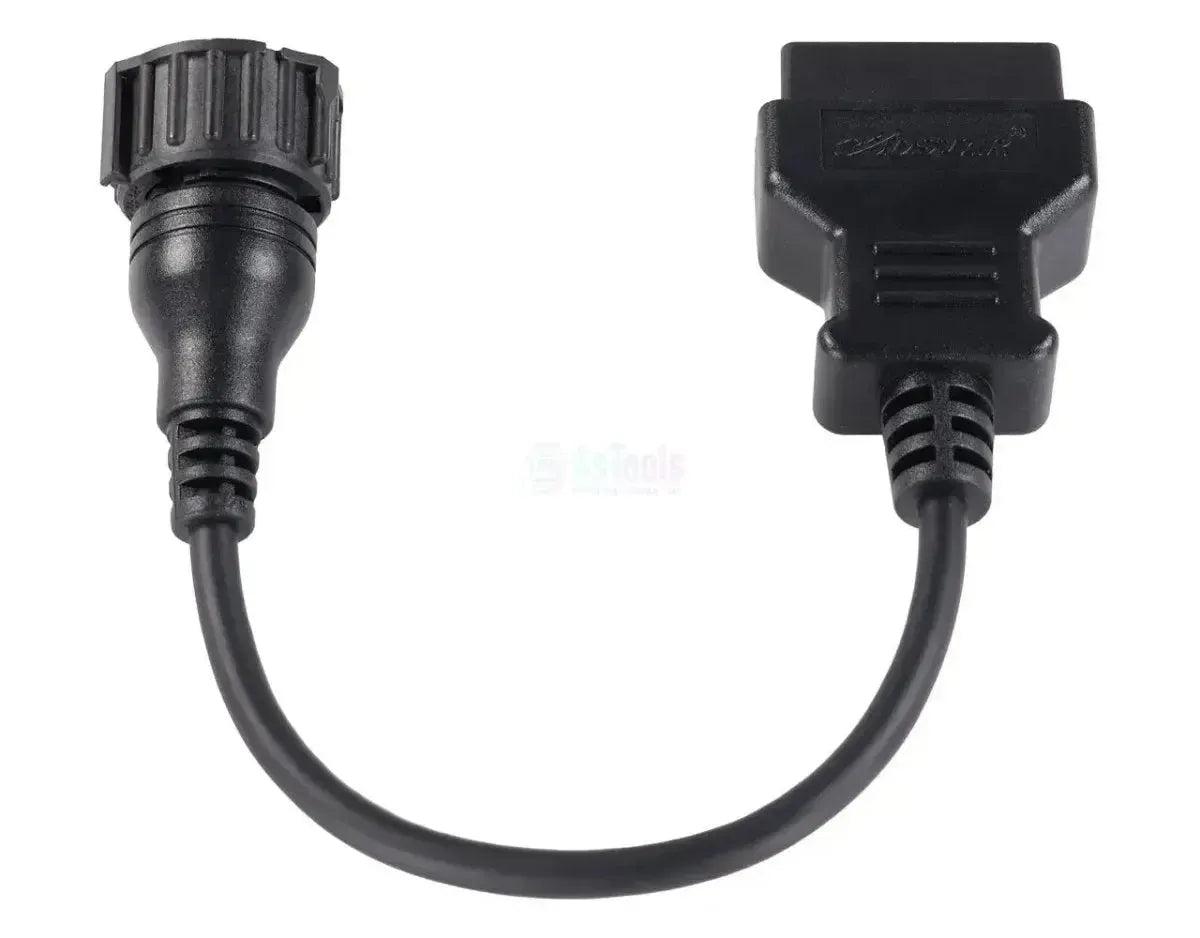

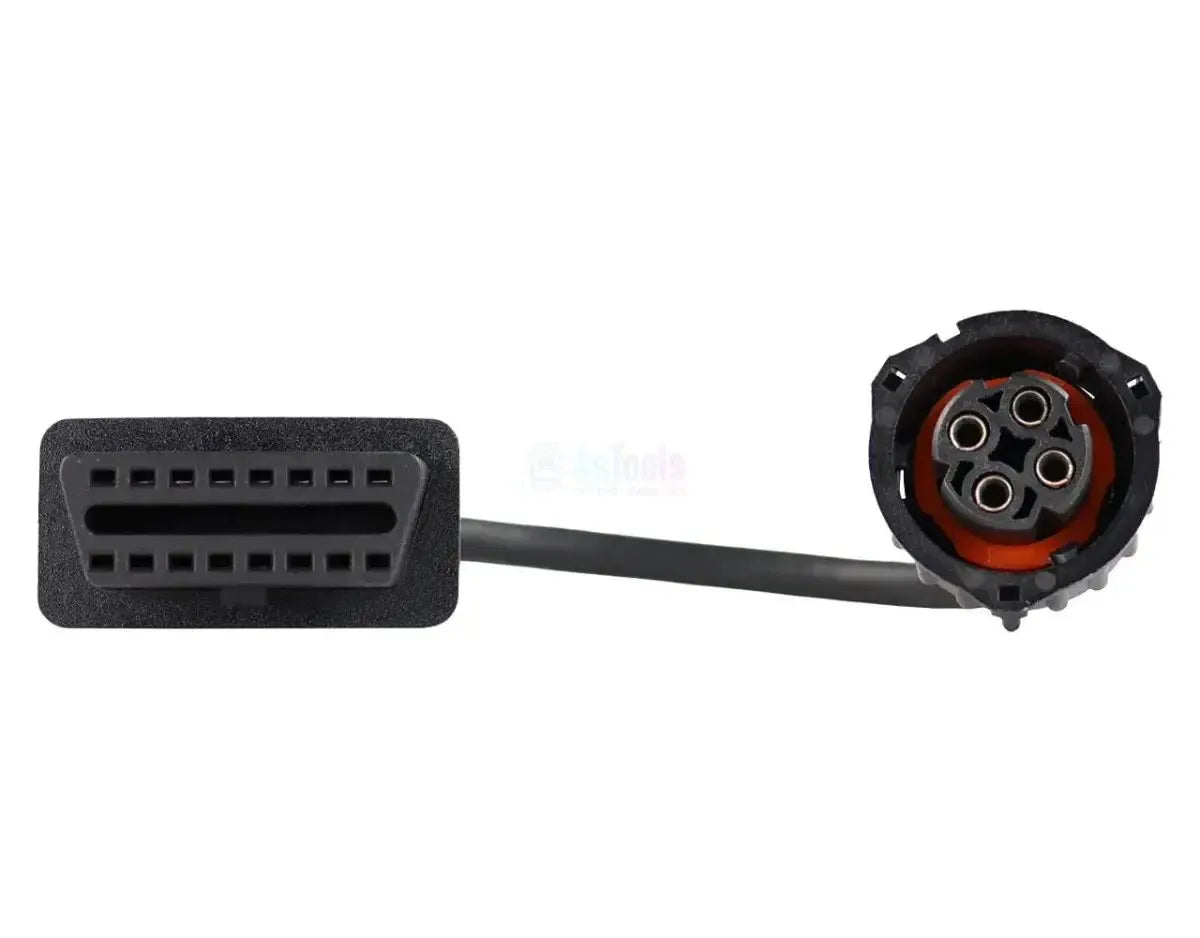

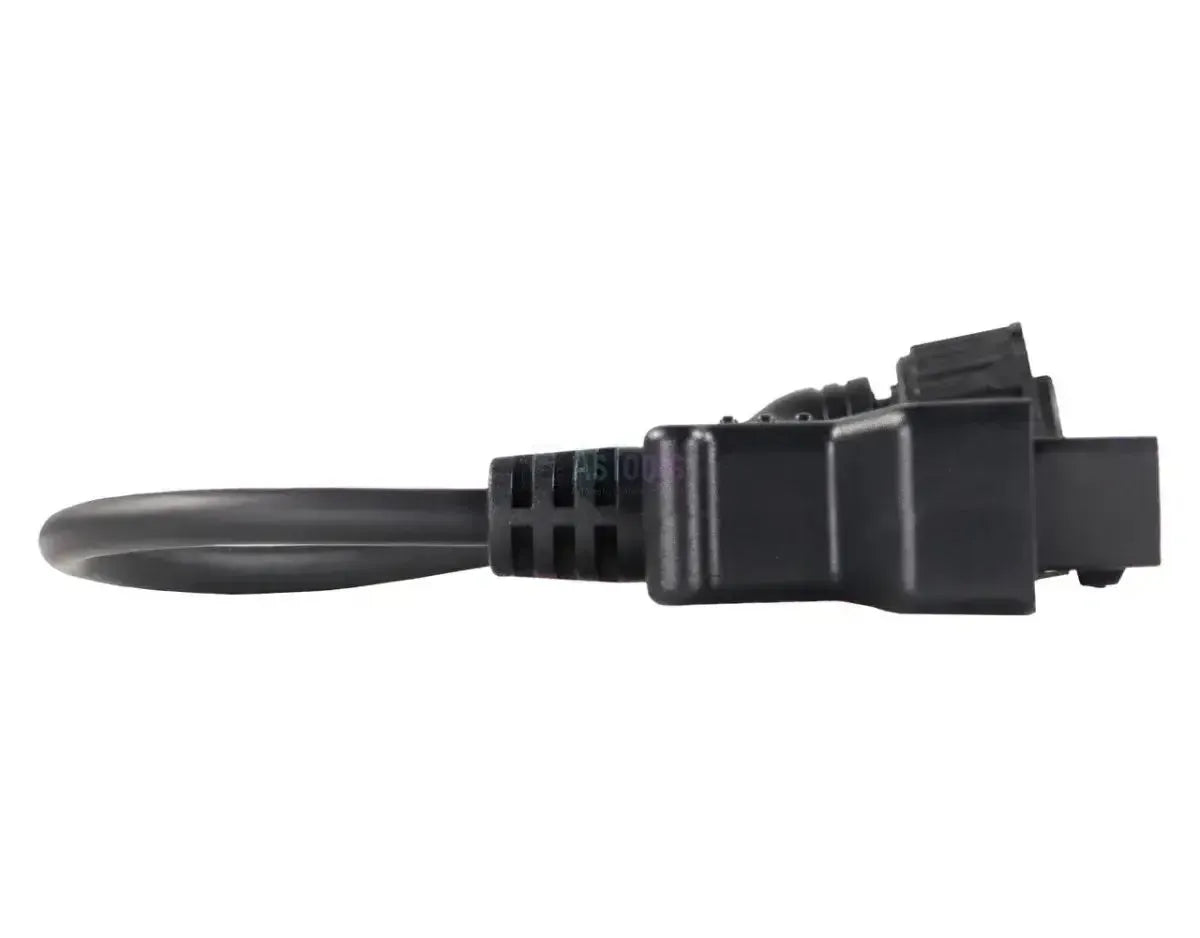

The OBDSTAR M084 is the adapter cable for the round 4-pin Scania diagnostic port. The cable connects that port to the 16-pin OBD2 (J1962)-connector on your OBDSTAR device and plugs into the vehicle's factory diagnostic port on the truck.
Scania fitted its own round 4-pin port on these vehicles instead of a standard OBD2 connector. This port carries the K-line, the communication protocol used by older Scania-diagnostic systems. The cable itself performs no signal processing: it provides only the mechanical and electrical connection between the two connector types. What you access through this cable is the vehicle's engine management system. Which fault codes and live data you can read out depends on the software of your own OBDSTAR device; the cable adds no vehicle coverage.
KEY BENEFITS
IMPORTANT NOTES
Applications and functionality
Via the 4-pin Scania port, you access the vehicle's engine management system.
Control units you can reach
- Engine management system: The engine control connected to the 4-pin Scania diagnostic port.
- Other systems: Whether additional control units are accessible via this port varies by vehicle and device.
What you can do
- Read engine management: Request fault codes and live data from the engine management system via the 4-pin diagnostic port.
- Diagnostic communication via K-line: The cable carries the K-line signal used by older Scania diagnostic systems.
- Connect to OBDSTAR equipment: The 16-pin side connects directly into diagnostic readers and programmers with a standard J1962 connector.
- Clear fault codes: Erase the fault memory to the extent your device supports this function for the vehicle.
- Note: What is available per vehicle and model year is determined by your OBDSTAR device's software.
Compatible vehicles and applications
The 4-pin round diagnostic port is what matters, not the model. The Scania series listed below are equipped with this port. The years overlap: when a series changes, the manufacturer may have switched, so check the connector in the cab if in doubt. Only vehicles with petrol or diesel engines are applicable.
Scania:
- Scania 4-series (P, R, T, G): (1995–2007)
- Scania P-series: (2004–2016)
- Scania G-series: (2007–2016)
- Scania R-series: (2004–2016)
Package contents
- 1xOBDSTAR (M084) | Scania 4-pin OBD – 16-pin OBD2 Adapter Cable | Petrol Engine
Technical specifications
| Specification | Description |
|---|---|
| Brand | OBDSTAR |
| Part number | M084 |
| Type | Adapter cable |
| Application | Scania 4-pin round diagnostic port on commercial vehicles |
| Vehicle-side connector | Scania 4-pin OBD |
| Device-side connector | 16-pin OBD2 |
| Communication | K-line |
| Control units | Engine management system |
| Segment | Petrol engine |
| Supported brands | Scania |
| Model range | Scania 4-series from 1995 through P-, G- and R-series until 2016, provided the vehicle is equipped with the 4-pin round port |
| Required to use | OBDSTAR diagnostic reader or programmer with 16-pin OBD2 input |
| Additional requirements | None; the cable operates without adapter or power supply |
| Weight | 0.1 kg |
