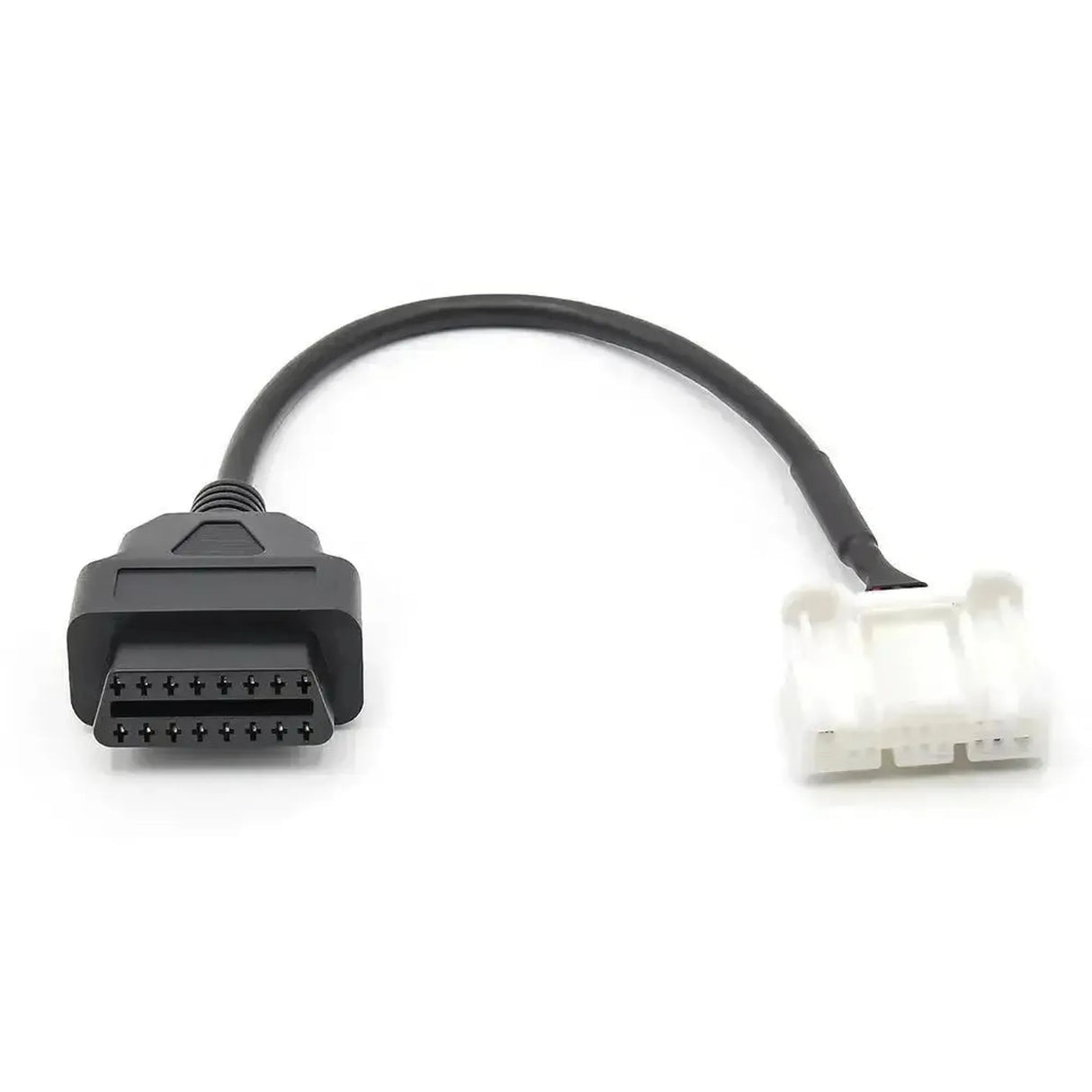

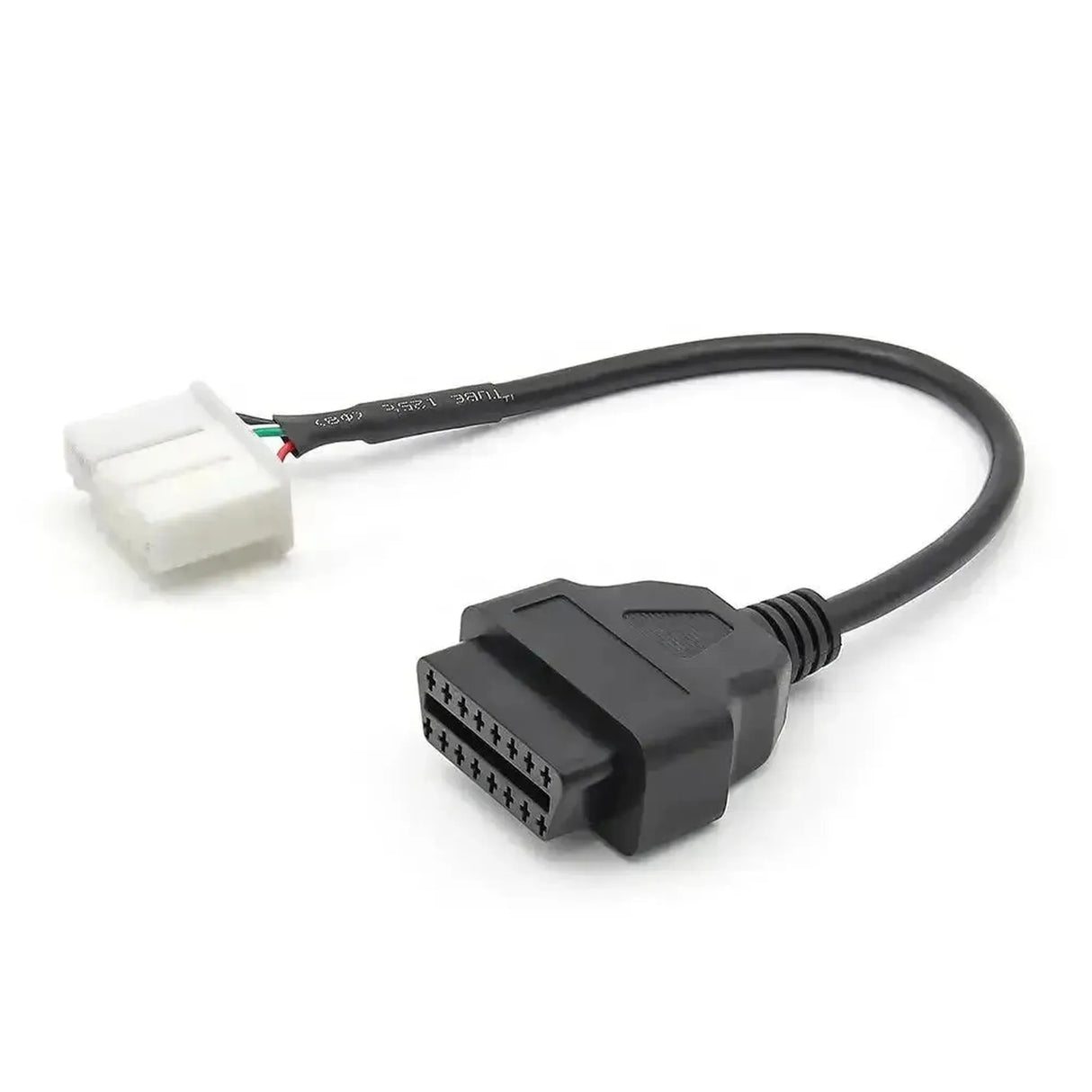

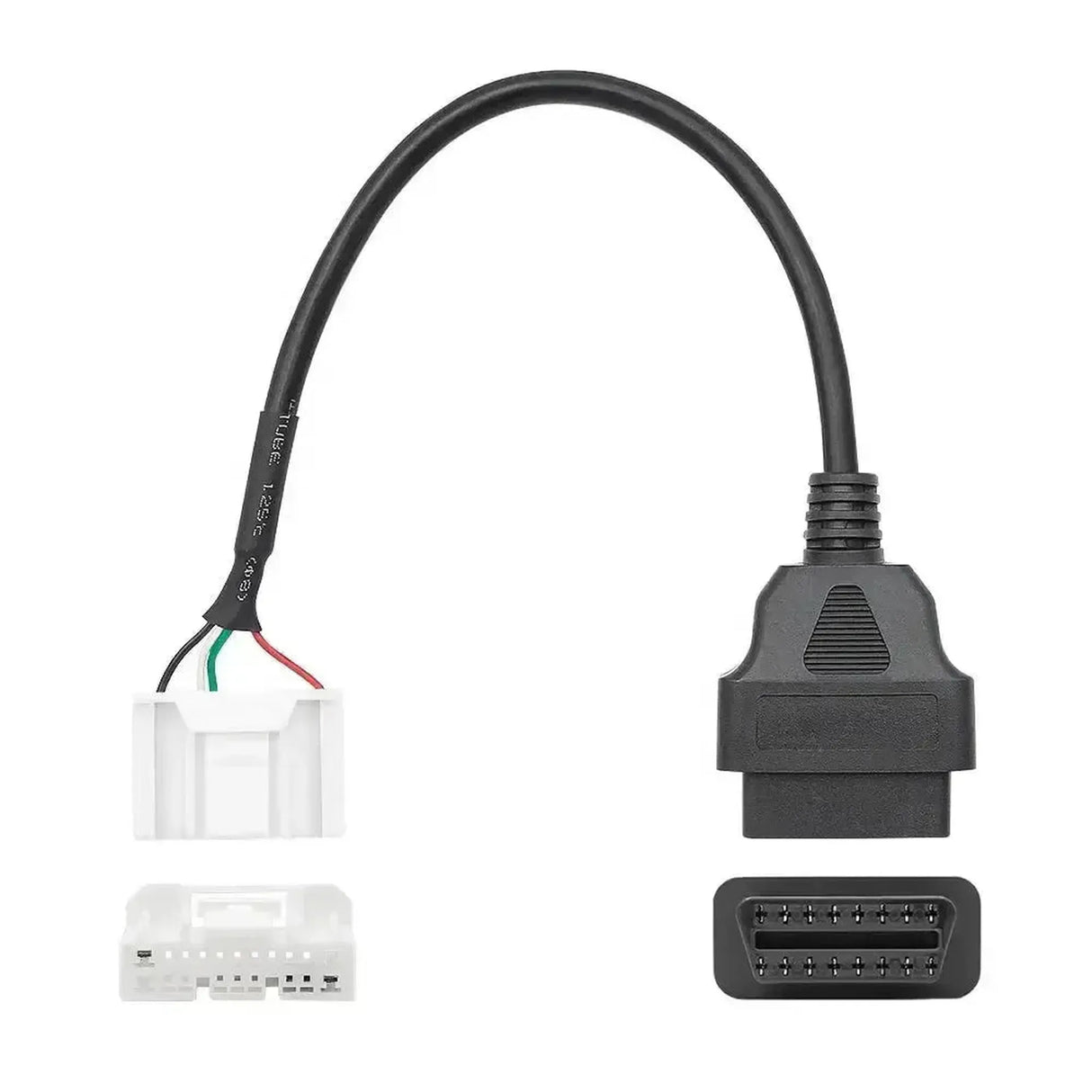

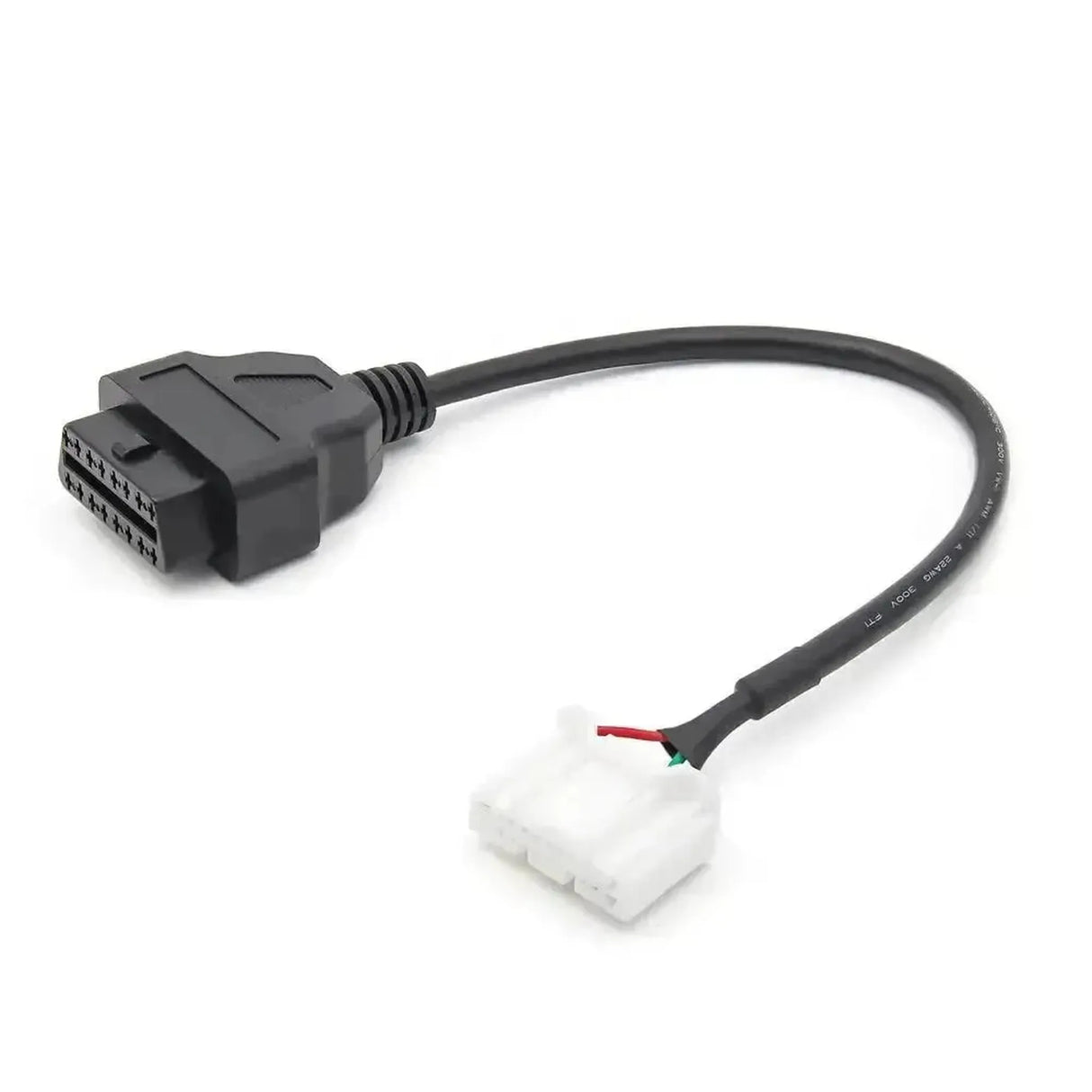

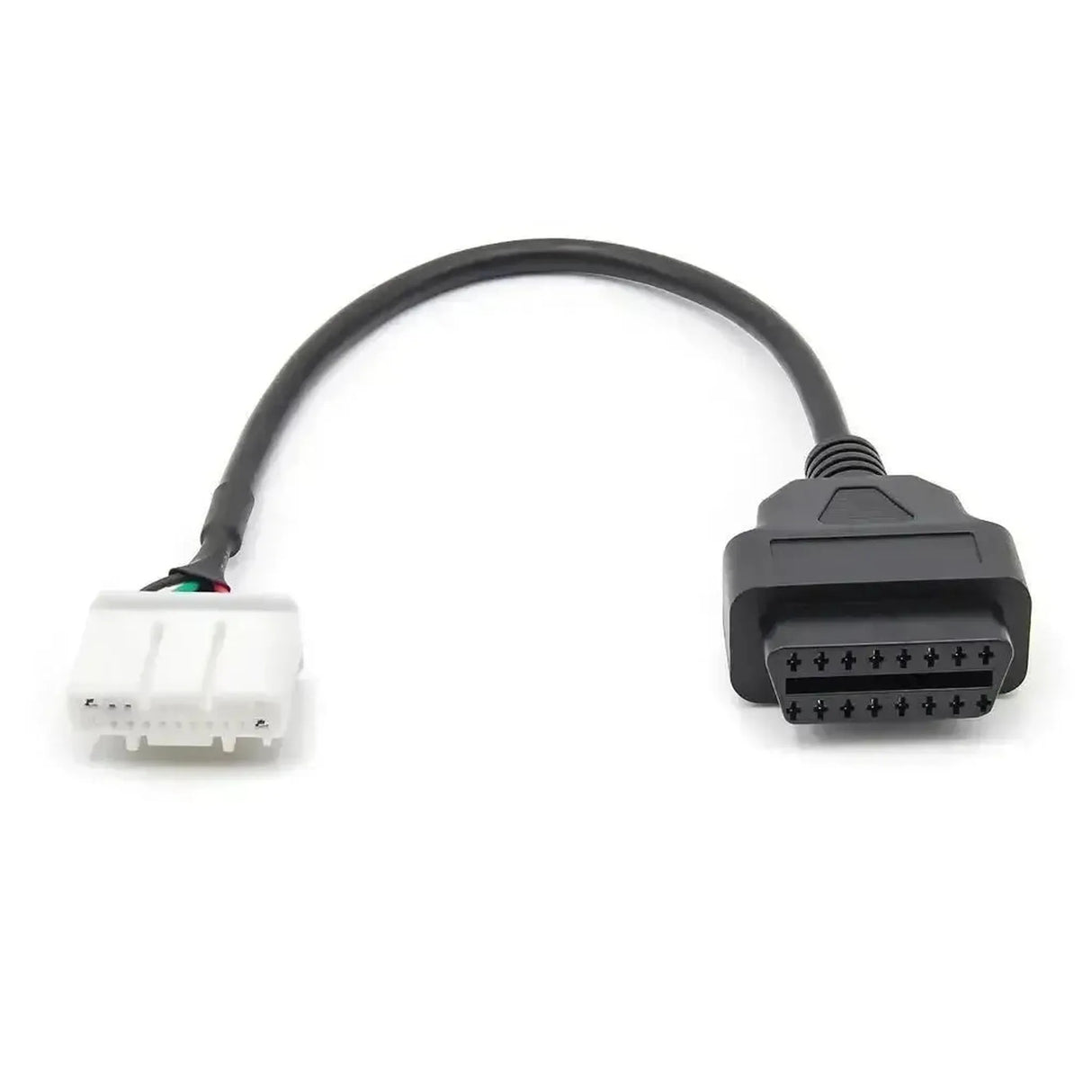

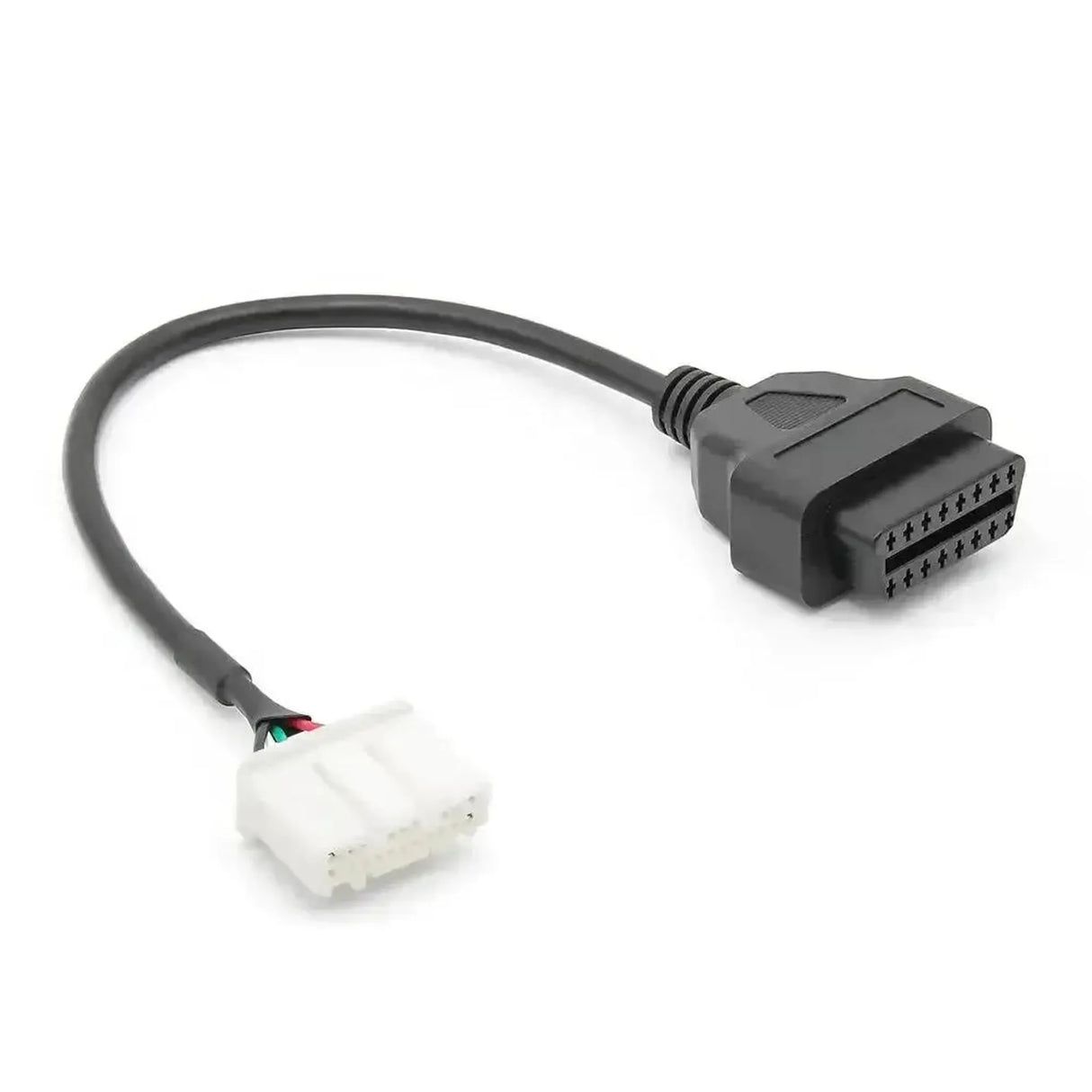

Tesla 20-pins to 16-pins OBD2 Adapter Cable – Passenger Car
The Tesla 20-pin to 16-pin adapter cable is a specialized diagnostic adapter designed for reading vehicle data on early Tesla Model 3 vehicles and certain model years of the Model S and Model X. These models feature a Tesla-specific 20-pin connector instead of a standard OBD2 port.
This adapter cable acts as a pass-through CAN-bus bridge, allowing an OBD2 scanner or dongle (such as the OBDLink MX+) to access data streams from systems like battery, powertrain, HVAC, and chassis. Combined with software like Scan My Tesla, it offers extensive real-time analysis functions, far beyond standard OBD2 diagnostics.
Application and functionality:
With this adapter, users can read live data and parameters from essential subsystems. Capabilities include:
- Battery management: Cell voltages, temperature, charge status, State of Health (SoH)
- Powertrain: Real-time power, RPM, and engine performance
- HVAC & chassis: Monitoring of cooling systems, consumption, and control
The cable is designed for passive signal transmission; all functionality depends on the scanner and software.
Compatible with the following vehicle makes and models:
This adapter is exclusively compatible with Tesla vehicles using the 20-pin diagnostic connector. Compatible models include:
- Tesla Model 3: produced before January 2019
- Tesla Model S: produced after September 2015
- Tesla Model X: produced after September 2015
Note: for Model 3’s from January 2019 onwards, a 26-pin adapter is required. Port location may vary by model.

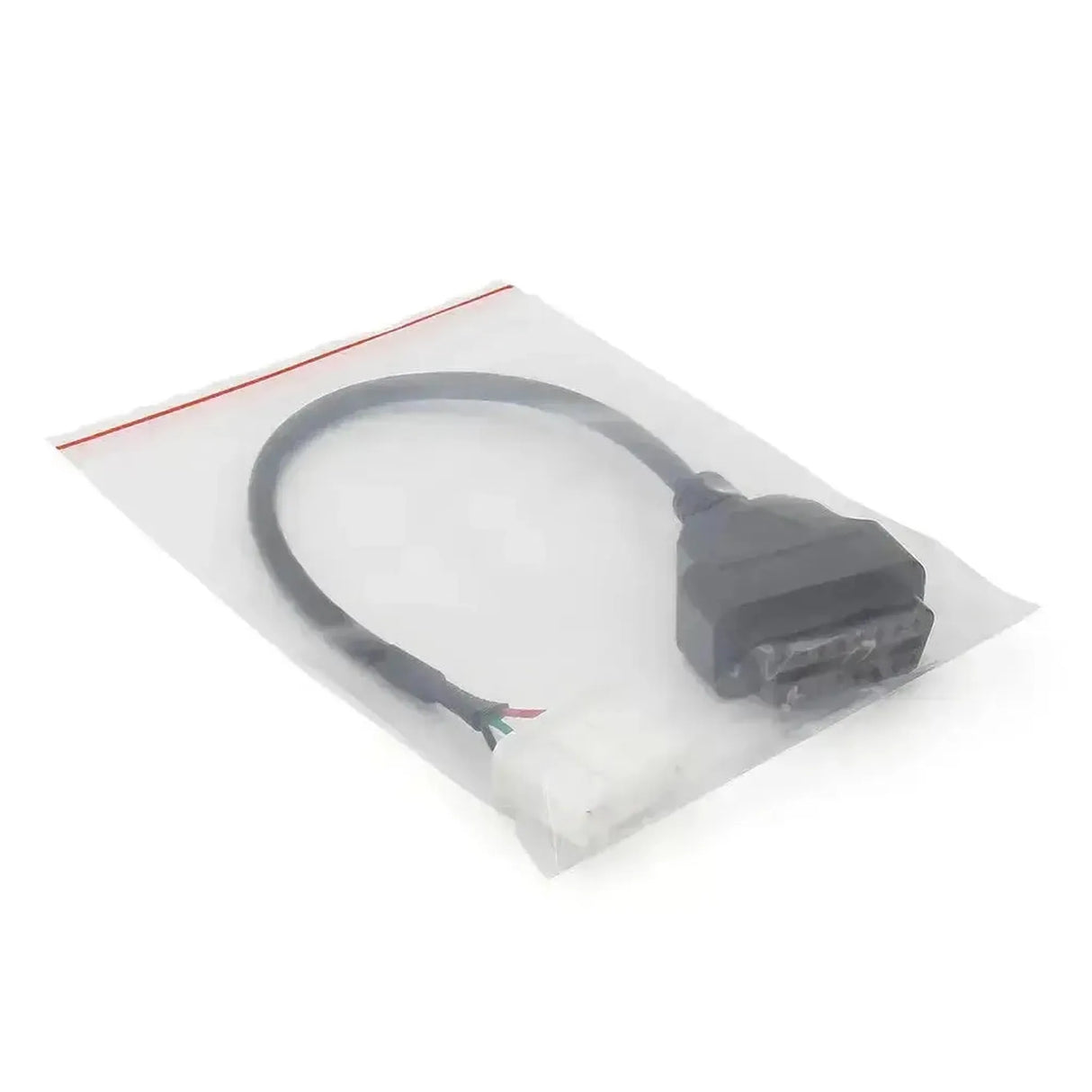

Package Contents:
- 1x Tesla 20-pin to 16-pin OBD2 adapter cable
Technical specifications:
| Specification | Description |
|---|---|
| Connector A | Tesla 20-pin vehicle-specific male connector |
| Connector B | Standard 16-pin OBD2 (J1962) female connector |
| Cable type | Passive adapter cable (CAN-bus bridge) |
| Cable length | Approximately 20 to 30 cm (depending on manufacturer) |
| Pinout | Connects relevant CAN-bus lines (pin 6 & 14) from Tesla connector to OBD2 interface |
