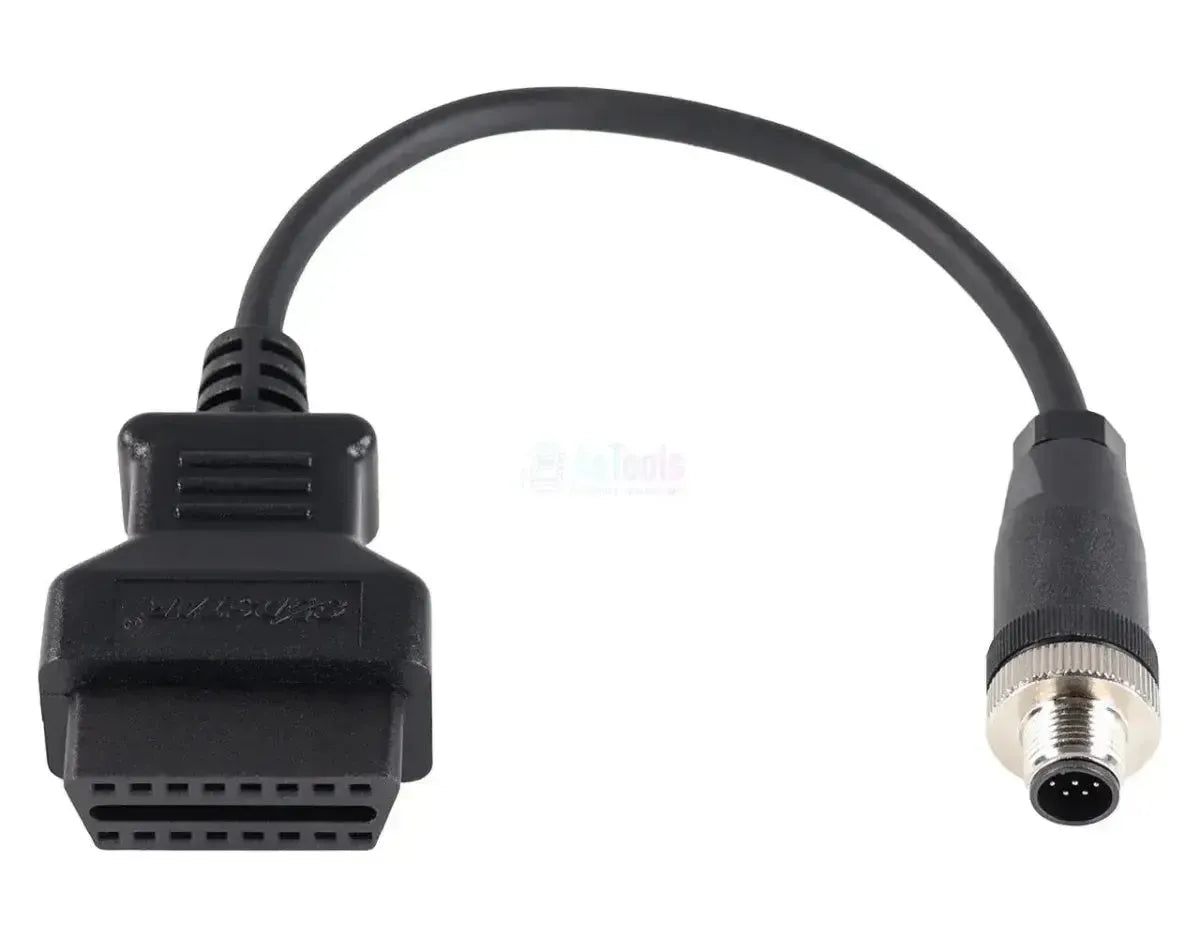

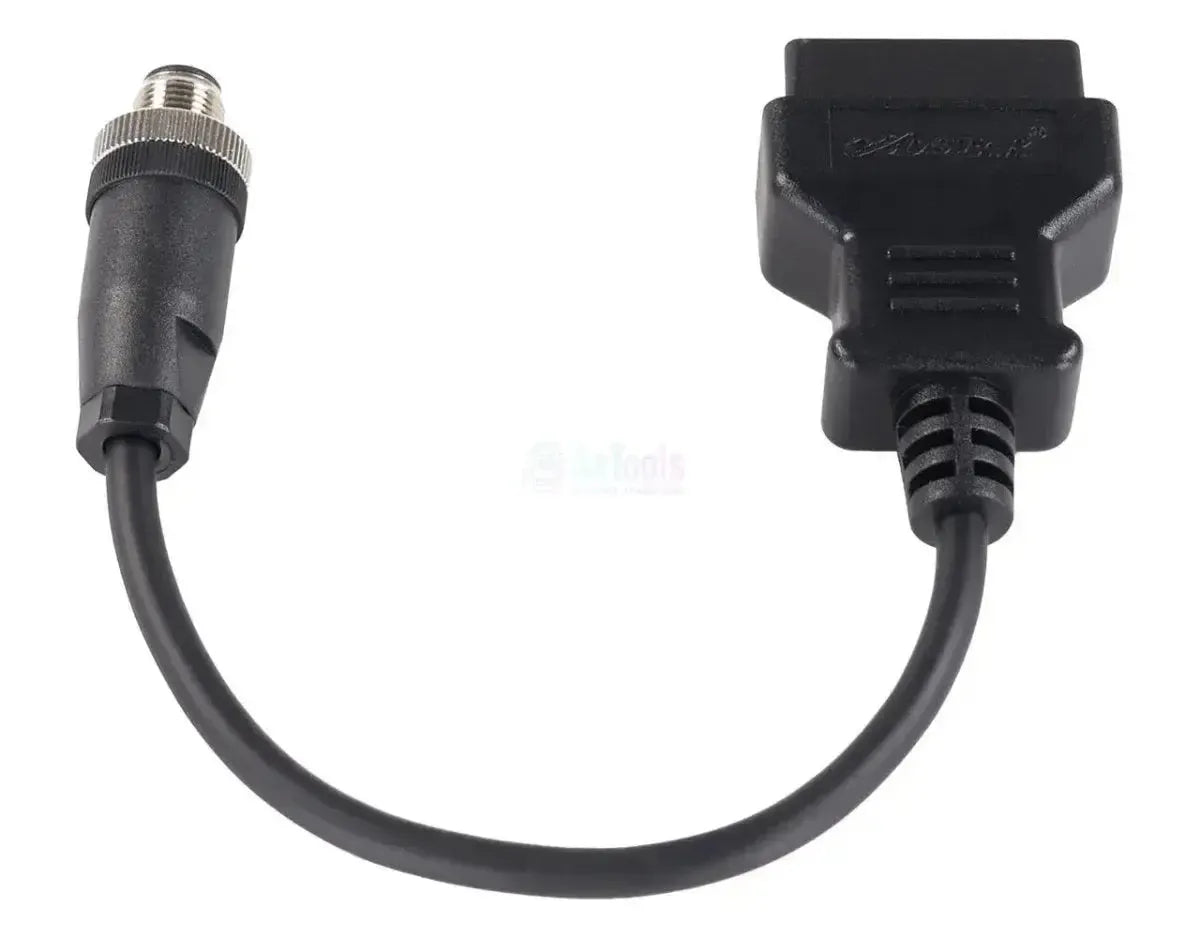

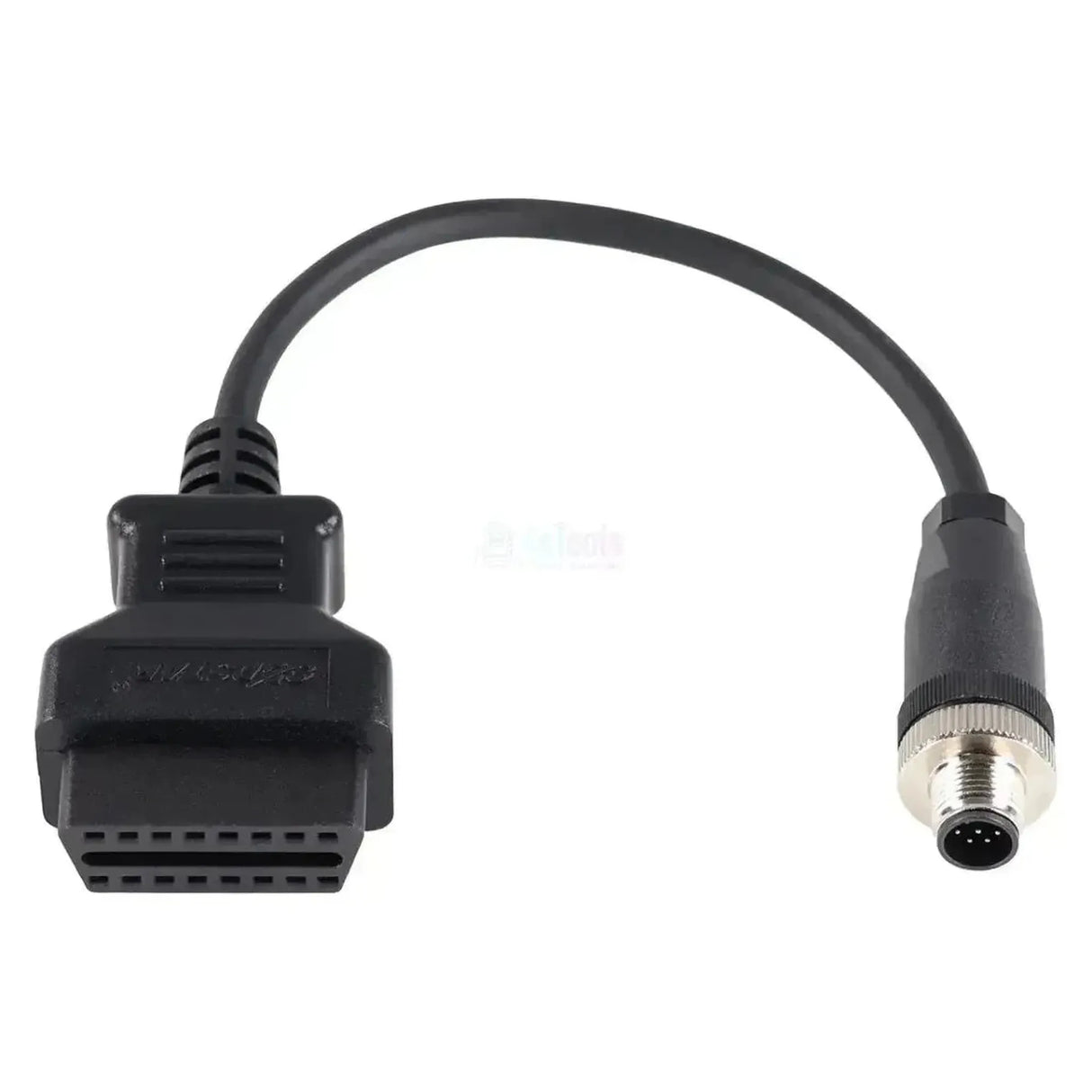

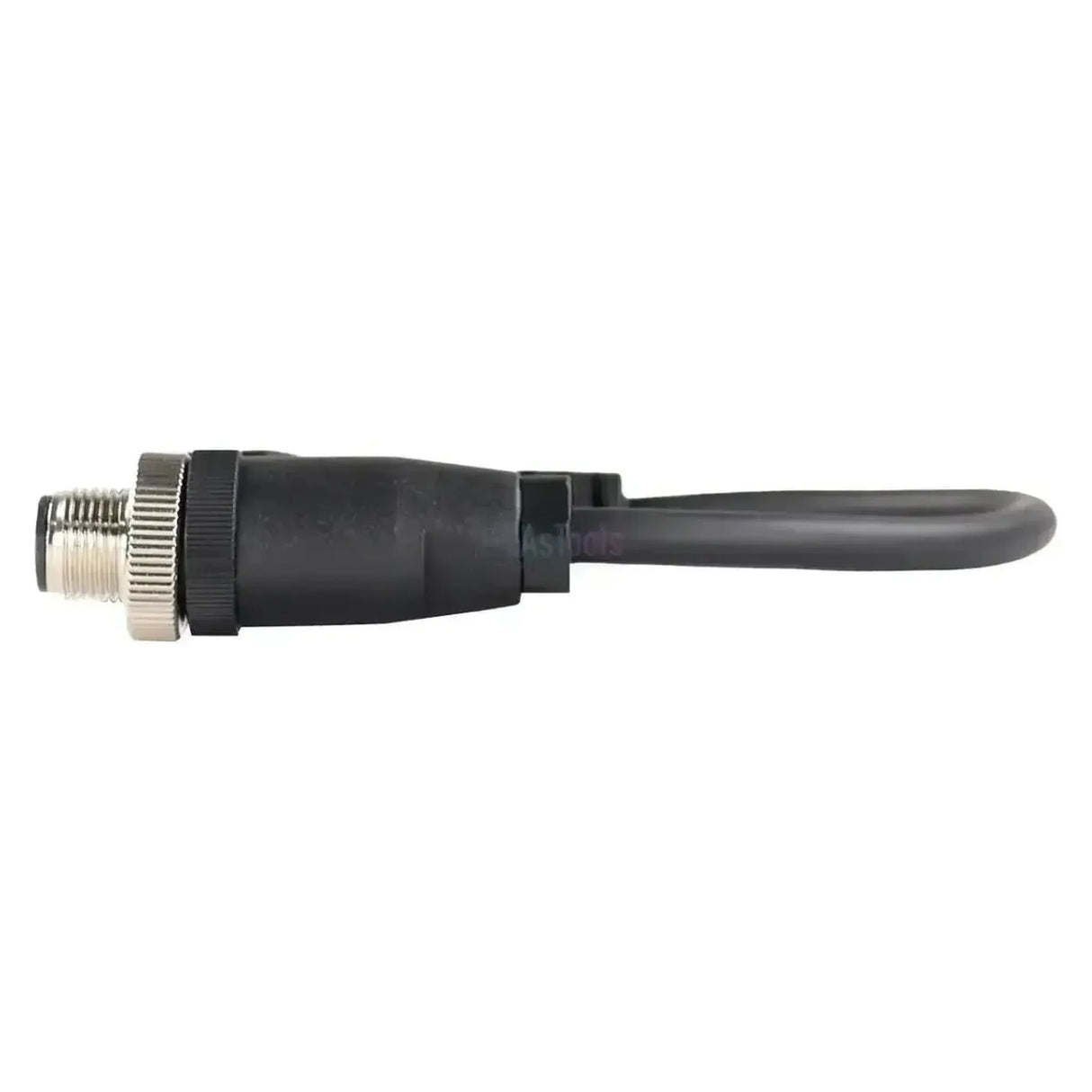

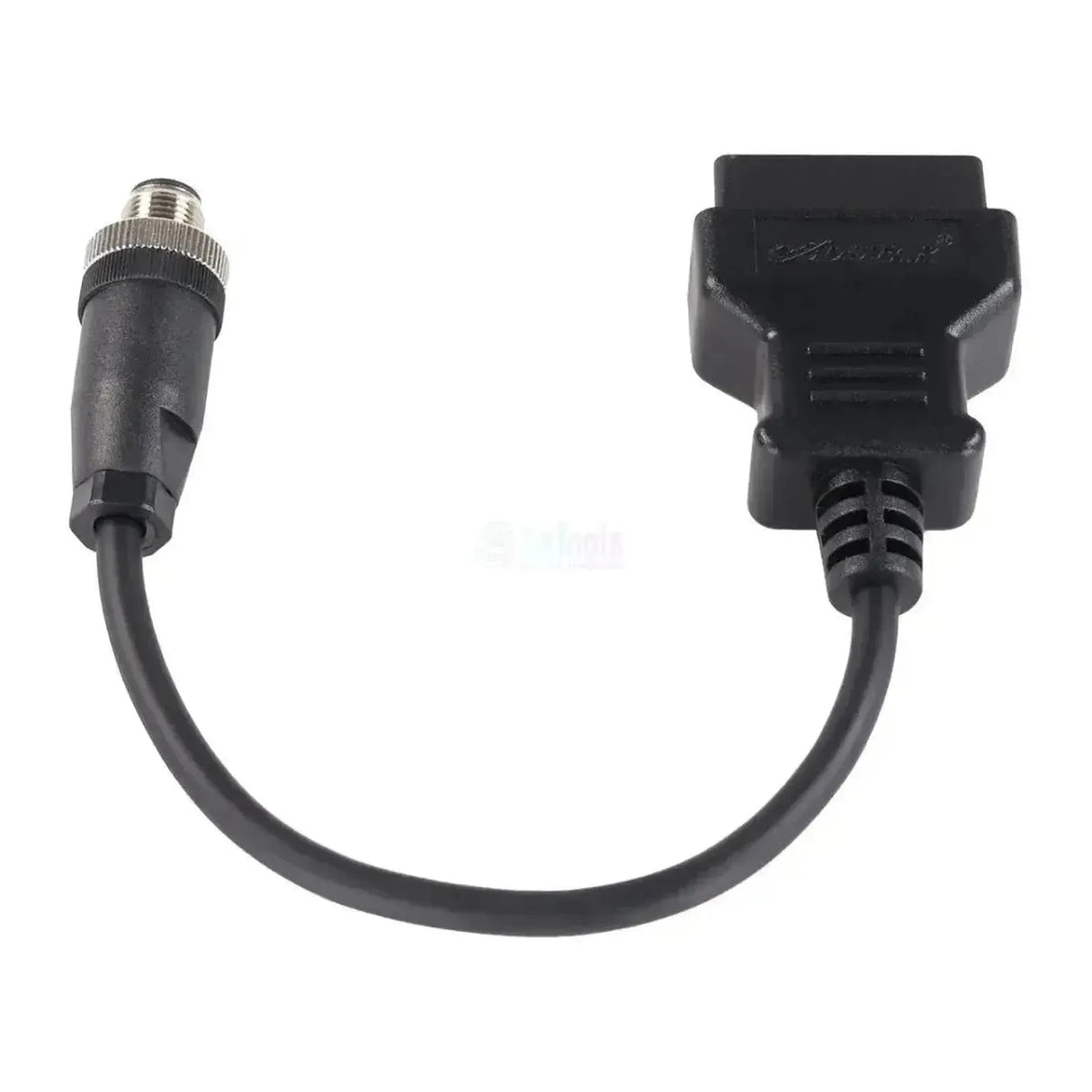

The OBDSTAR M081 connects the round 8-pin diagnostic connector of MAN marine engines to the 16-pin OBD2 side of your OBDSTAR device. The connector is located on the engine, in the vessel's engine compartment. The cable comes as standard with the MarineMaster C+D and A+B+C+D.

MAN marine engines do not have a standard OBD2 port. With this cable you can reach the engine control module to read fault codes and view live data. Which functions work is determined by the OBDSTAR software for each engine type.

HIGHLIGHTS

✔Provides access to the MAN engine control module for your OBDSTAR device.

✔Enables diagnostics on engines without an OBD2 port.

✔You connect it to the existing diagnostic plug; nothing changes on the engine.

✔The cable is supplied as standard with the MarineMaster C+D and A+B+C+D; if ordered separately, you can replace a lost one with it.

POINTS TO NOTE

✕Your reader must support the manufacturer-specific diagnostics of this engine; the cable does not convert protocols.

✕A simple EOBD code reader does not work via this cable; it only reads emission-related OBD2 data from cars.

✕For MAN engines with the 8-pin connector only.

✕OBDSTAR does not provide a list of MAN engine types for this cable; therefore, check the connector on the engine.

Applications and functionality

The cable is intended for mechanics and boatyards that read out MAN marine engines with the 8-pin connector.

Systems you can access

Engine control unit: The ECU of the marine engine.
Other systems: Varies by engine and installation.

What you can do

Fault codes: Read and clear.
Live data: View current engine values.
Engine data: Identification of the control unit.
Fault finding: Check sensors and signals.

How to use it

Locate the connector: Find the round 8-pin plug on the engine.
Connect: Plug the 8-pin connector of the cable into it.
Connecting the device: Connect the 16-pin end to the main cable.
Ignition on: Switch the ignition on, without starting the engine.
Reading out: Select the engine make and engine type.

Compatible vehicles and applications

The deciding factor is the round 8-pin MAN connector on the engine. OBDSTAR lists this cable for:

Engine makes:

MAN: Marine engines with the 8-pin connector.

💡

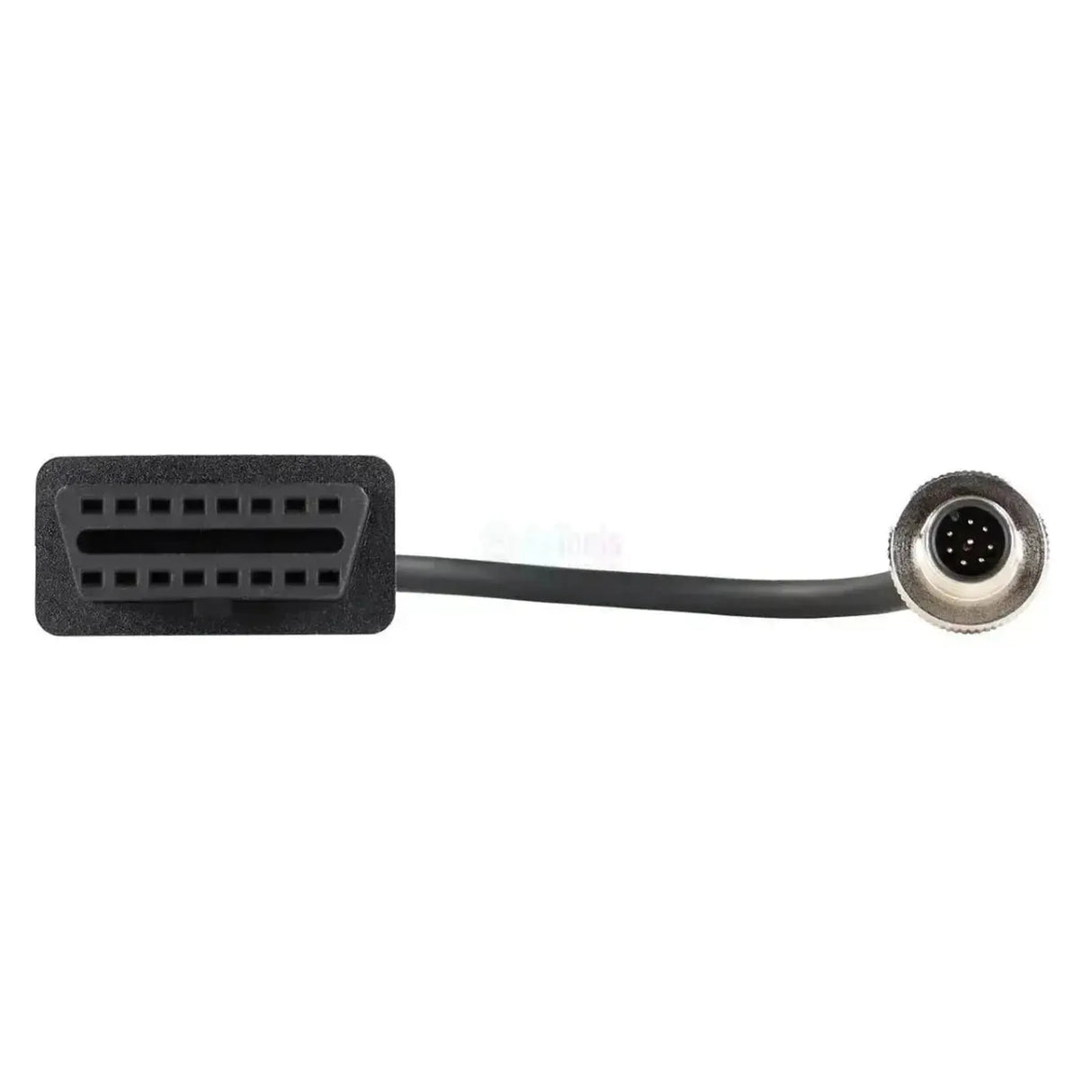

Good to know: The MAN plug has eight pins in a round housing. Count the pins on the engine; 9-pin marine cables do not fit here.

Package contents

1x OBDSTAR (M081) | MAN 8-pin OBD - 16-pin OBD2 Adapter Cable | Motor boat

Technical specifications

General

The brand of the cable or adapter. It often has to match the brand of your diagnostic tool.Brand: OBDSTAR
The type of product: a separate adapter cable, an adapter without a cable or a complete set.Product type: Adapter cable

Suitable for

The brand of diagnostic tool the cable works with. A cable for one brand usually does not fit a tester of another brand.Compatible diagnostic tool: OBDSTAR
Whether the cable needs a separate power connection, for example via battery clamps. A passive cable works without one.Separate power supply required: No

Connections

The connector that plugs into the diagnostic port of the vehicle or machine. It must fit exactly.Vehicle-side connector: 8-pin OBD
The connector on the side of your diagnostic tool or interface. Usually a 16-pin OBD2 connector.Tool-side connector: 16-pin OBD2
The data lines through which the cable passes signals. The vehicle and the tester must use the same communication method.Communication: K-line
