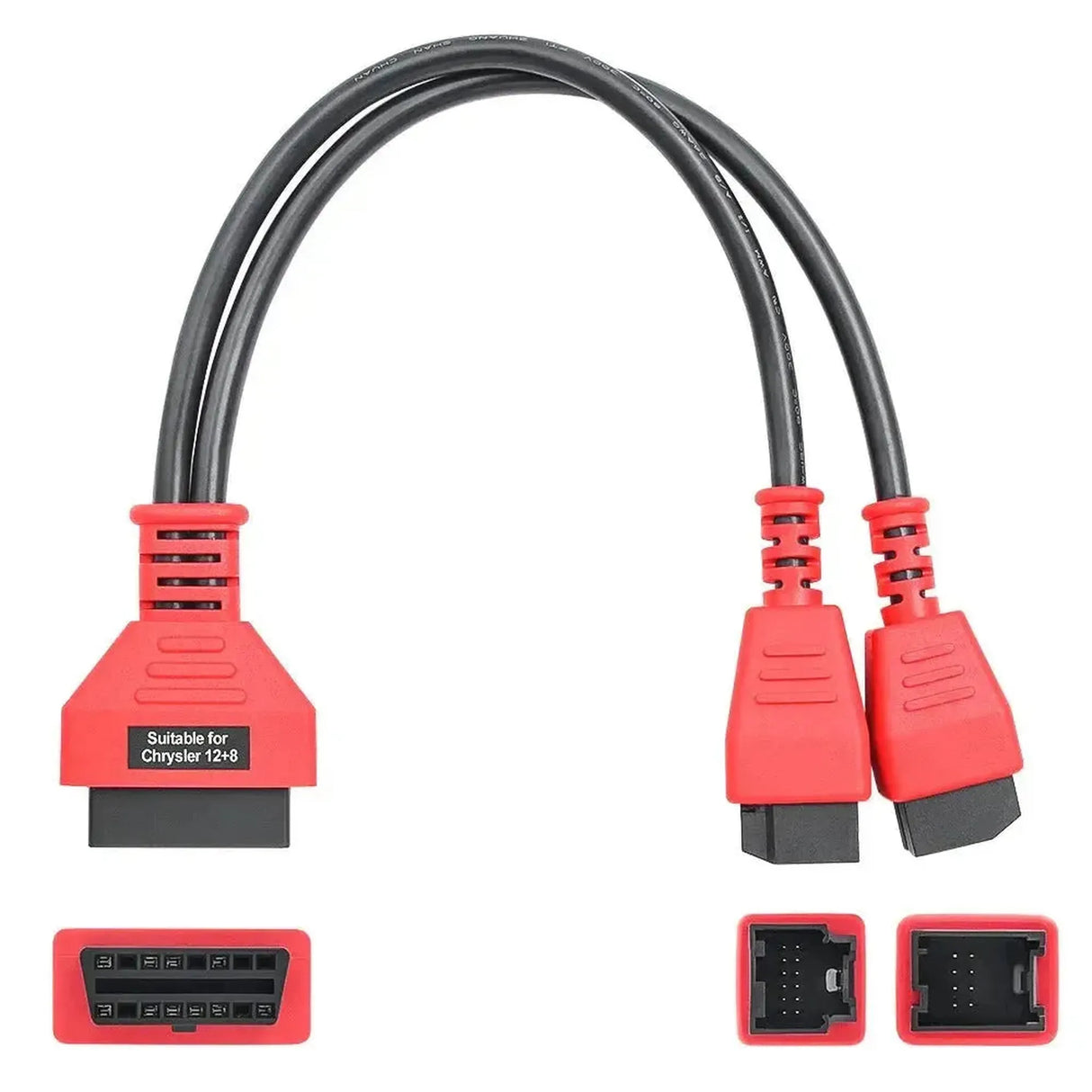

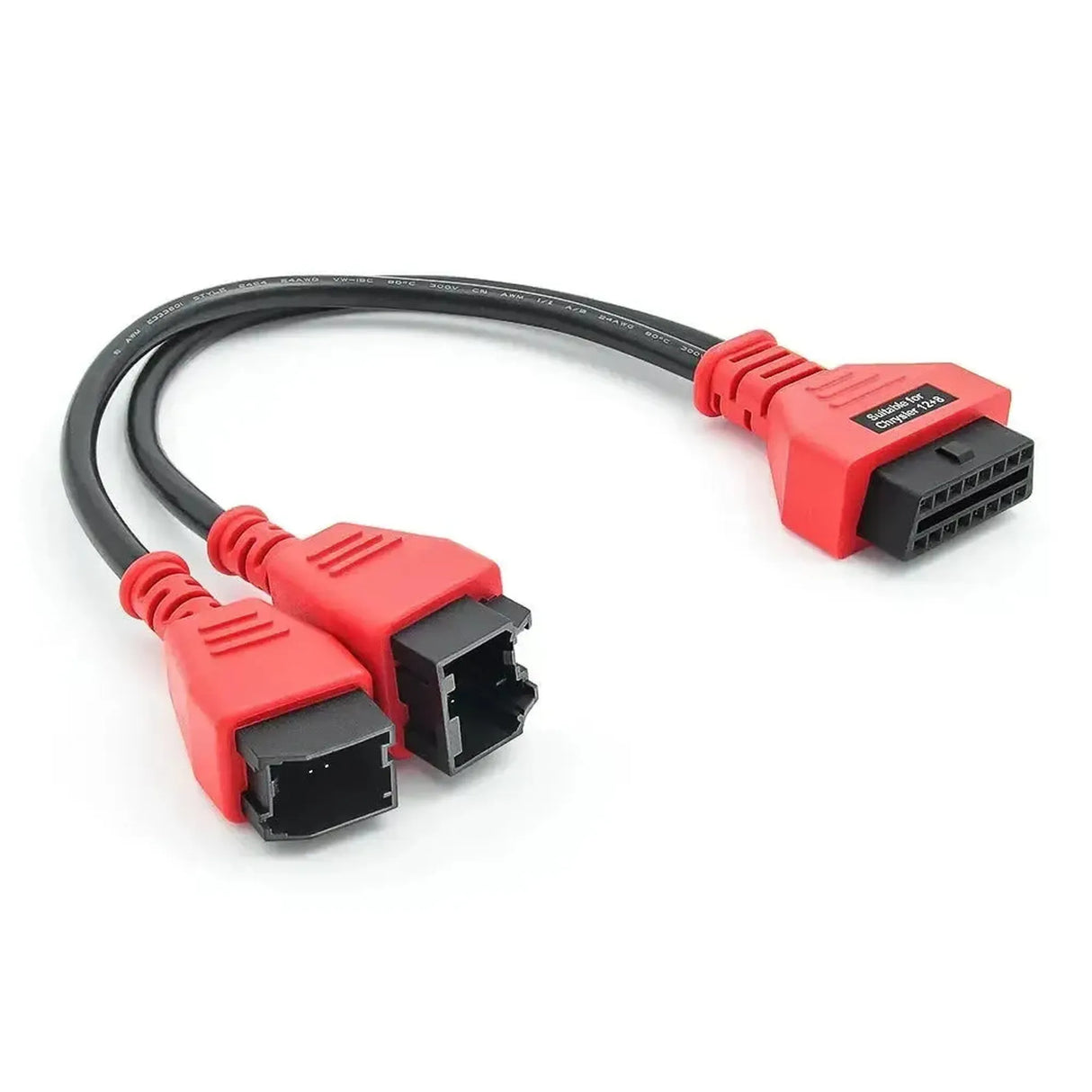

FCA 12+8-pins SGW – 16-pins OBD2 Adapter Cable | Passenger Car
Regular price
€13,95 incl.
€11,53 excl.
Unavailable
Warranty directly via AsTools
Warranty directly via AsTools
We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.
2 years warranty on all products
2 years warranty on all products
All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.
Easy returns
Easy returns
You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.
Professional customer service
Professional customer service
Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!
This adapter cable connects the 12-pin and 8-pin connectors of the Security Gateway Module (SGW) in FCA group vehicles to a scan tool with a 16-pin OBD2 connector. You disconnect the two connectors from the SGW and connect them to the cable. The SGW is usually located under or behind the dashboard, near the steering column, behind the glovebox or behind the radio.
From approximately model year 2018, the SGW only permits reading data via the OBD2 port. Clearing fault codes, actuator tests, calibrations and resets are blocked. With this cable, the scan tool communicates directly with the vehicle's CAN network. The cable physically converts the connection; the scan tool itself must support FCA diagnostics.
BENEFITS
✔Gives the scan tool full access to clearing fault codes, actuator tests and resets, which the SGW otherwise blocks.
✔You do not need to cut anything: the cable fits between the existing connectors and the SGW goes back in place afterwards.
✔Suitable for many FCA models from model year 2018, from Alfa Romeo to Jeep and Ram.
✔The cable works passively: no software or setting is required.
POINTS TO NOTE
✕Your scan tool must support brand-specific FCA diagnostics; the cable does not convert protocols.
✕A simple EOBD code reader has no use for this cable; it only reads emissions-related OBD2 data.
✕Not suitable for models where the SGW is integrated into the BCM, and not for the Alfa Romeo Tonale and the Jeep Grand Cherokee (WL).
✕On models including Giulia, Stelvio, 500X, Renegade and Compass, part of the diagnostics runs via a second CAN bus; check whether your scan tool can reach it through this cable.
Applications and functions
This cable is intended for garages and mechanics who want to fully diagnose FCA vehicles with a Security Gateway.
Systems you can access
- Powertrain: Engine and transmission.
- ABS and ESP: Braking and stability control.
- Airbag: Airbag system and sensors.
- Body: Including the BCM.
- Other systems: Varies by model and equipment.
What you can do
- Clearing: Clearing fault codes after repair.
- Actuator tests: Activating and testing components.
- Resets: Including service intervals.
- Calibrations: Where the scan tool offers them.
How to use it
- Locating the SGW: Find the module under or behind the dashboard.
- Disconnecting connectors: Disconnect the 12-pin and 8-pin connector.
- Connecting: Connect both connectors to the cable.
- Connecting the scan tool: Connect the 16-pin connector and switch the ignition on.
- Finishing: After diagnosis, reconnect the SGW.
Compatible vehicles and applications
Essential is a Security Gateway Module with a 12-pin and an 8-pin connector. The cable is suitable for the following models with that module:
Alfa Romeo:
- Giulia (952): From model year 2018.
- Stelvio (949): From model year 2018.
Fiat:
- 500X (334): From model year 2018.
Jeep:
- Renegade (BU): From model year 2018.
- Compass (MP): From model year 2018.
- Wrangler (JL): From model year 2018.
- Grand Cherokee (WK2): Model year 2018 to 2021.
Ram:
- 1500 (DT): From model year 2019.
💡
Good to know: On most FCA models the SGW is located under or behind the dashboard, often on the driver's side near the steering column. On some models it is behind the glovebox or the radio. The connectors only fit one way, so reversing them is not possible.
Package contents
- 1x FCA 12+8-pin SGW – 16-pin OBD2 Adapter Cable | Passenger car
Technical specifications
General
- The brand of the cable or adapter. It often has to match the brand of your diagnostic tool.Brand
- AsTools
- The type of product: a separate adapter cable, an adapter without a cable or a complete set.Product type
- Adapter cable
- The types of vehicles or machinery on which the cable can be used. This shows quickly whether it suits the vehicles entering your workshop.Vehicle types
- Passenger car
Connections
- The connector on the side of your diagnostic tool or interface. Usually a 16-pin OBD2 connector.Tool-side connector
- 16-pin OBD2 (J1962)
- The data lines through which the cable passes signals. The vehicle and the tester must use the same communication method.Communication
- CAN-bus
Diagnostic functions
- Allows you to activate components yourself to test whether they are faulty. This saves time when fault finding.Component activation
- Yes
- Allows you to reset the service message or service interval after maintenance.Service reset
- Yes
- The cable gives access to control units behind a secured gateway. On newer cars this is required for full diagnostics.Secure Gateway (SGW) bypass
- Yes
Other specifications
- Application
- FCA vehicles with a Security Gateway Module (12+8-pin)
- Vehicle-side connector
- 12-pin and 8-pin SGW connector
- Device-side connector
- 16-pin OBD2 (J1962)
- Operation
- Passive, no protocol conversion
