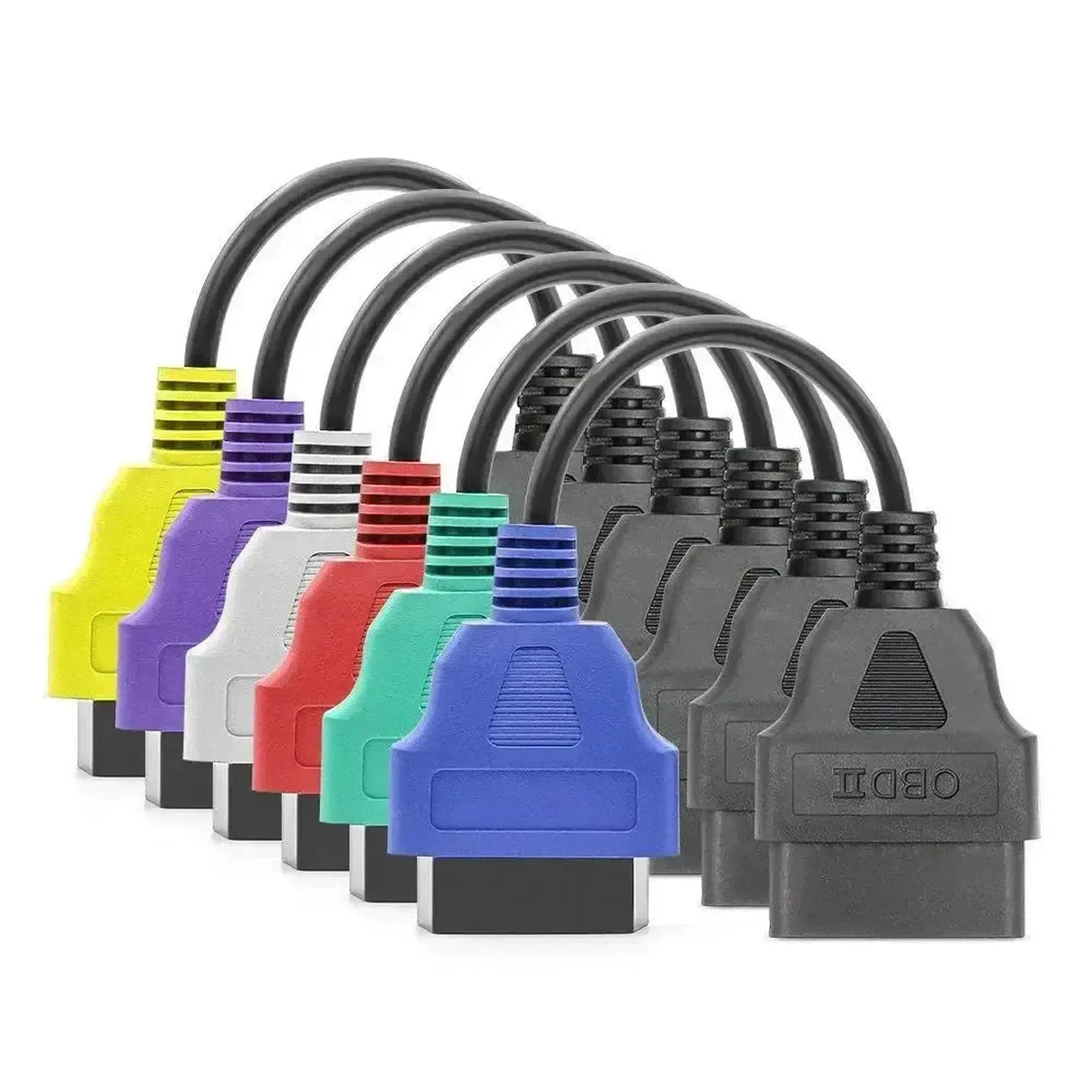

MultiECUScan Adapter Cable Set (6-piece)

This set of diagnostic cables, known as the MultiECUScan Adapter Cable Set (6-piece), is specifically assembled for vehicles that use non-standard or older diagnostic standards. The set facilitates the connection between a standard OBD2 16-pin diagnostic interface and various specific ECUs (Electronic Control Units) or older diagnostic ports in vehicles. Each cable in the set is designed to bridge specific communication protocols and pin configurations, allowing access to systems such as the engine, ABS, airbags, power steering, and CAN bus networks.

The 6-piece set typically includes a selection of commonly used adapters, including color-coded cables that enable connection to specific systems in the vehicle. These adapters ensure that universal OBD2 diagnostic interfaces or VCIs (Vehicle Communication Interfaces) that work with software such as MultiECUScan (formerly FiatECUScan) can correctly communicate with non-standard OBD ports or systems that do not provide direct OBD2 support.

Application and functionality:

This cable set is a tool for performing advanced diagnostics on vehicles that are not fully OBD2 compatible or that require specific system connections. It allows users to delve deeper into vehicle electronics than is possible with only a standard OBD2 connection.

• ECU communication: Enables connection to specific control units such as engine (ECU), anti-lock braking system (ABS), airbags (AIRBAG), electronic power steering (EPS), and more.
• Read and clear fault codes: Supports reading and clearing diagnostic trouble codes (DTCs) for the connected systems.
• Live data: Facilitates viewing real-time sensor values and operational parameters of various vehicle systems.
• Adjustments and proxy alignment: Provides the ability to perform specific adjustments, coding, and proxy alignment on compatible vehicles and systems.
• Protocol bridging: Converts vehicle-specific protocols into a format that can be processed by a standard OBD2 diagnostic interface.

Compatible vehicles and applications:

The MultiECUScan Adapter Cable Set is primarily designed for a wide range of vehicles from the FCA group (Fiat Chrysler Automobiles), including various models of Alfa Romeo, Chrysler, Dodge, Fiat, Jeep, and Lancia. The specific functionality may vary depending on the vehicle model and year of manufacture.

• Alfa Romeo: 145, 146, 147, 155, 156, 159, 164, 166, Brera, GT, GTV, Giulietta, Mito, Spider
• Chrysler: 300C, Delta, Grand Voyager, Ypsilon
• Dodge: Caliber, Journey
• Fiat: 500, Bravo, Croma, Doblo, Ducato, Fiorino, Idea, Linea, Marea, Multipla, Panda, Punto, Scudo, Seicento, Stilo, Tipo, Ulysse
• Jeep: Cherokee, Compass, Grand Cherokee, Renegade
• Lancia: Dedra, Delta, Lybra, Musa, Phedra, Thesis, Ypsilon, Zeta

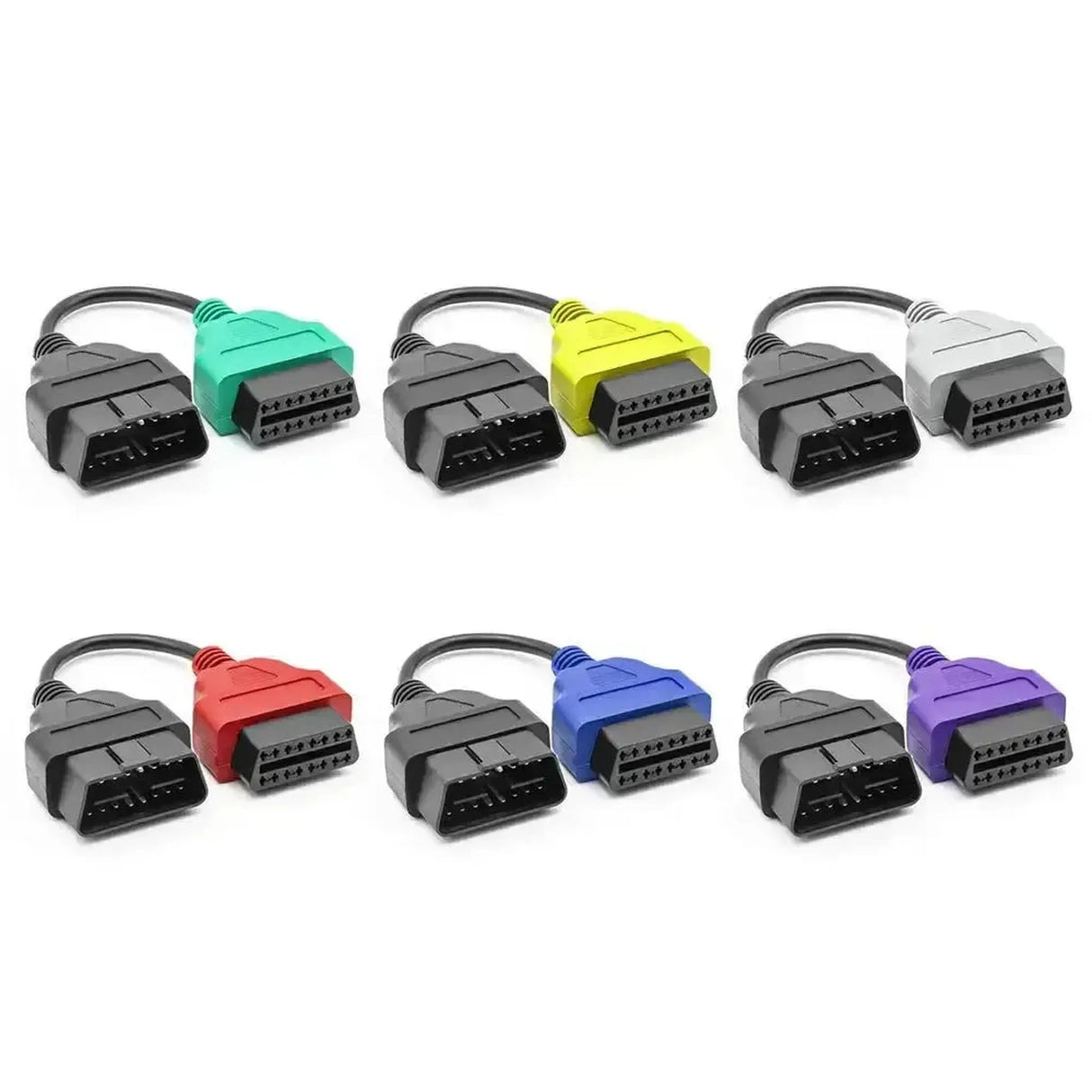

Package Contents:

• 1x MultiECUScan Adapter Cable Set (6-piece)
• 1x Main OBD2 16-pin extension cable

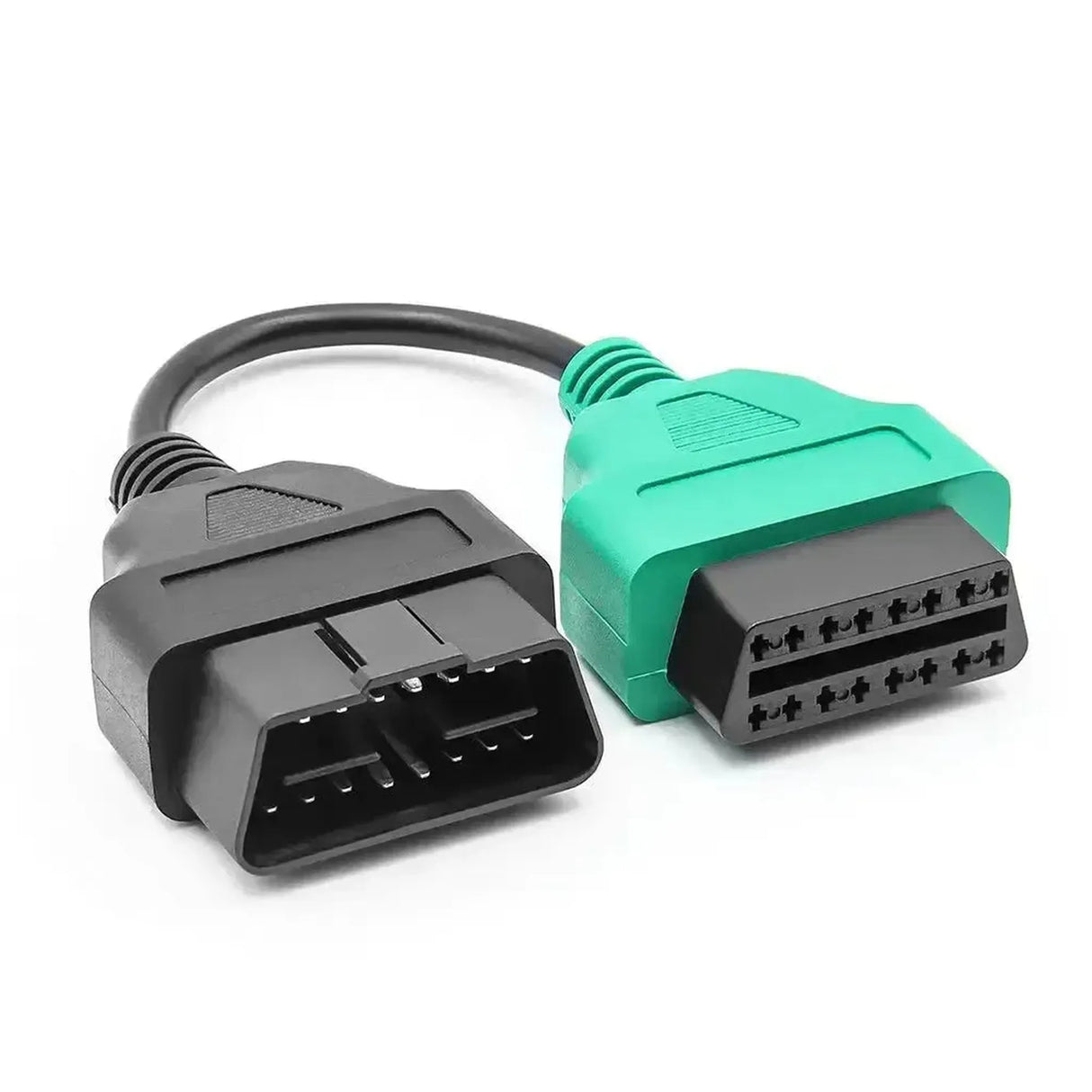

• 1x Green adapter (MultiECUScan Adapter 1 for ABS, power steering, and CAN bus)
• 1x Red adapter (MultiECUScan Adapter 2 for airbags)

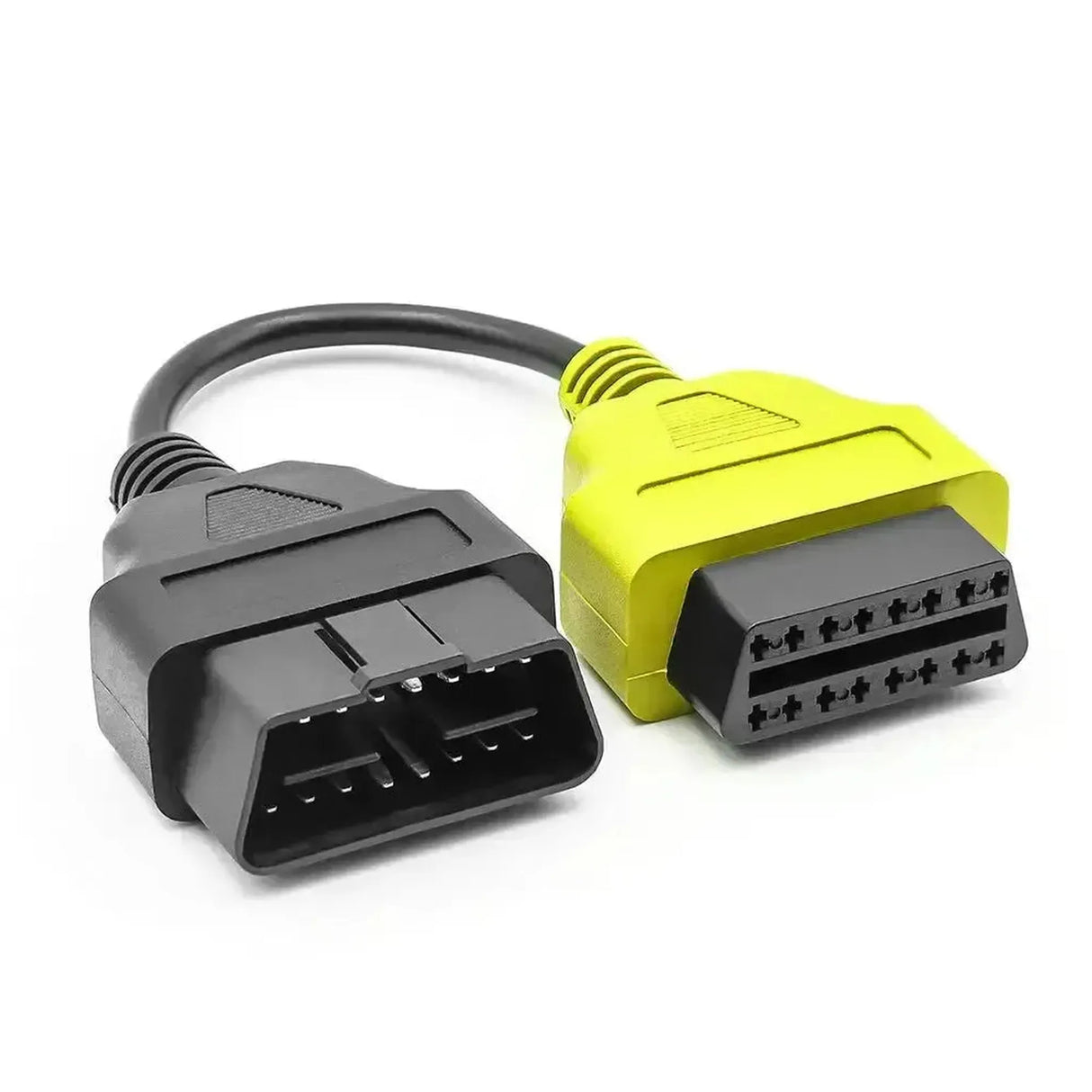

• 1x Yellow adapter (MultiECUScan Adapter 3 for low-frequency CAN bus or specific ECUs)

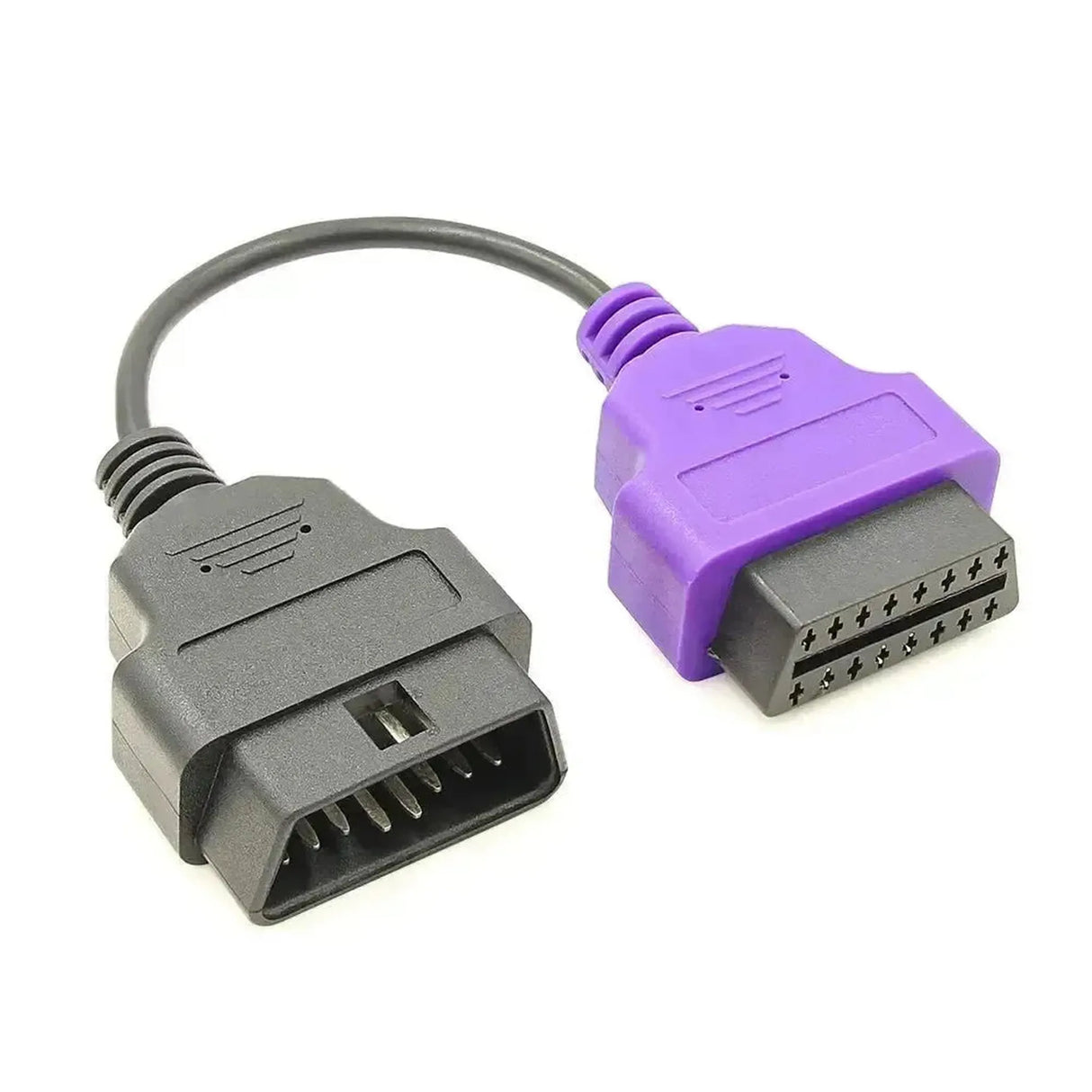

• 1x Purple adapter (MultiECUScan Adapter 4 for electric power steering)
• 1x Fiat 3-pin to OBD2 16-pin adapter
