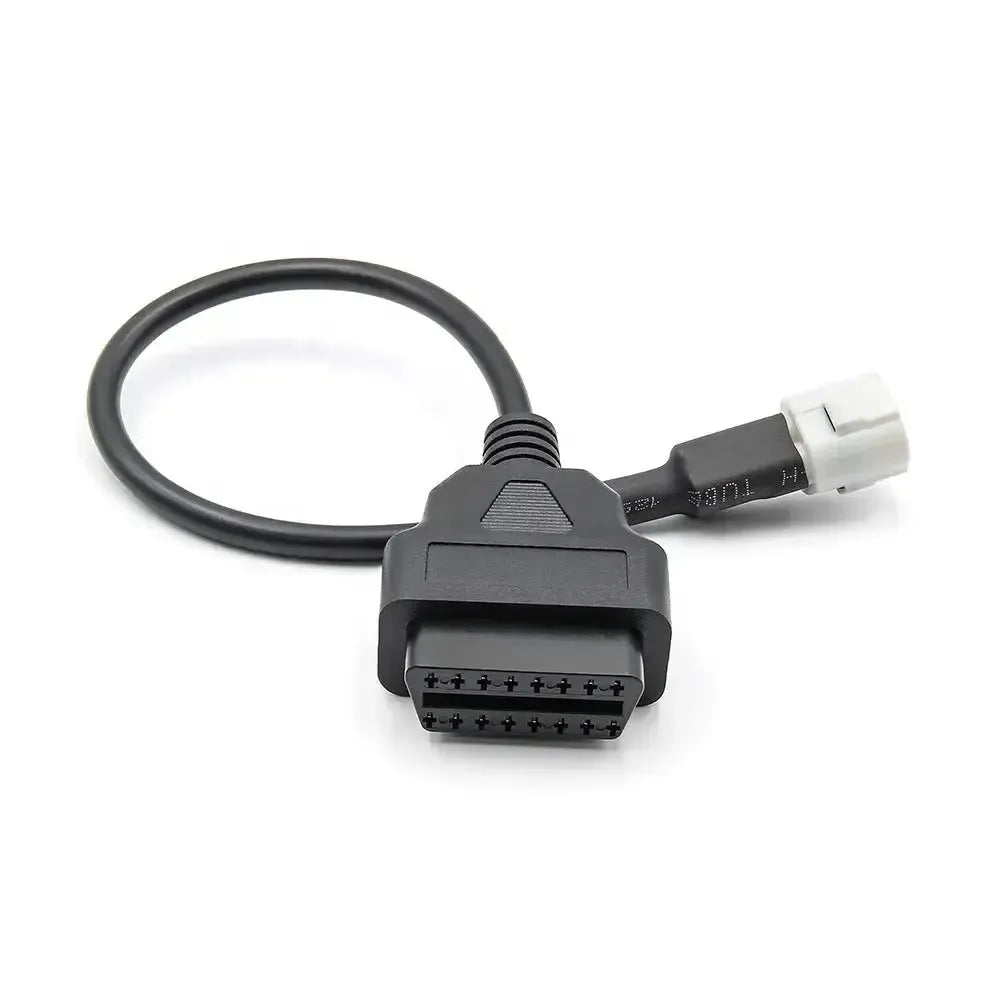

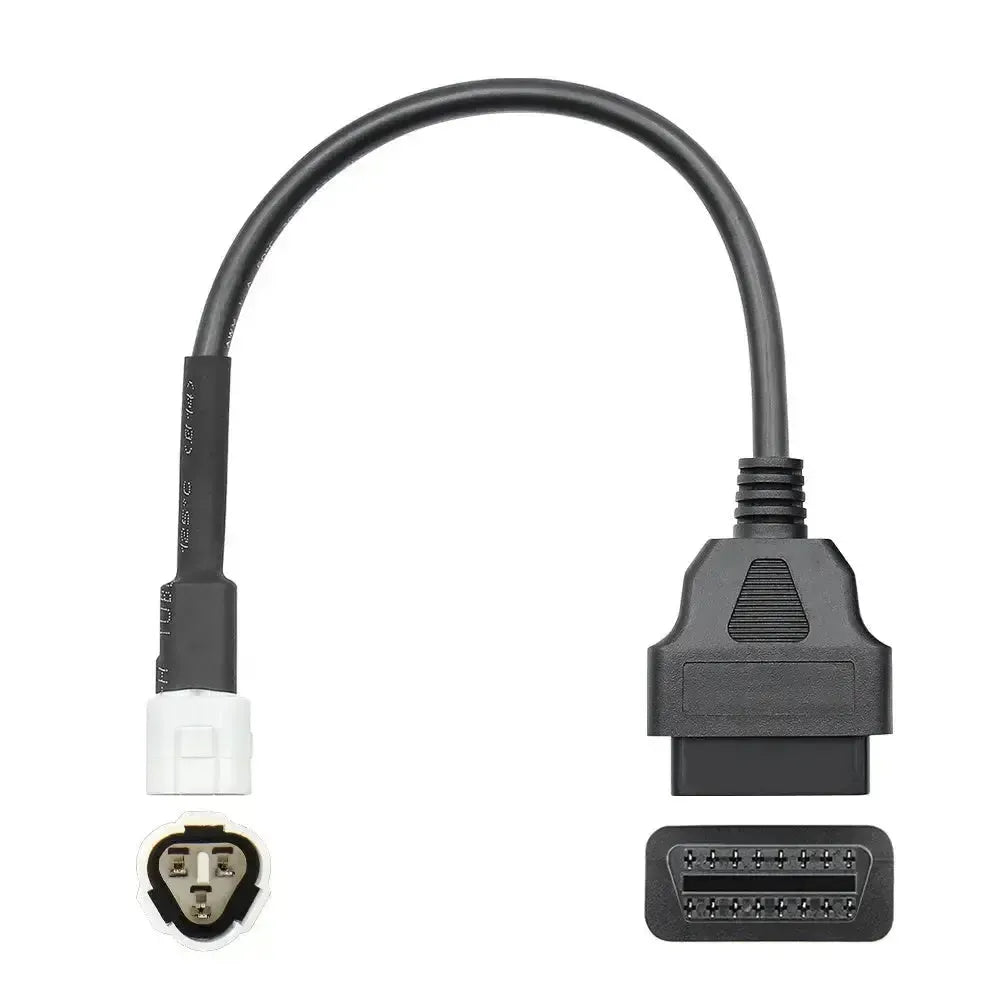

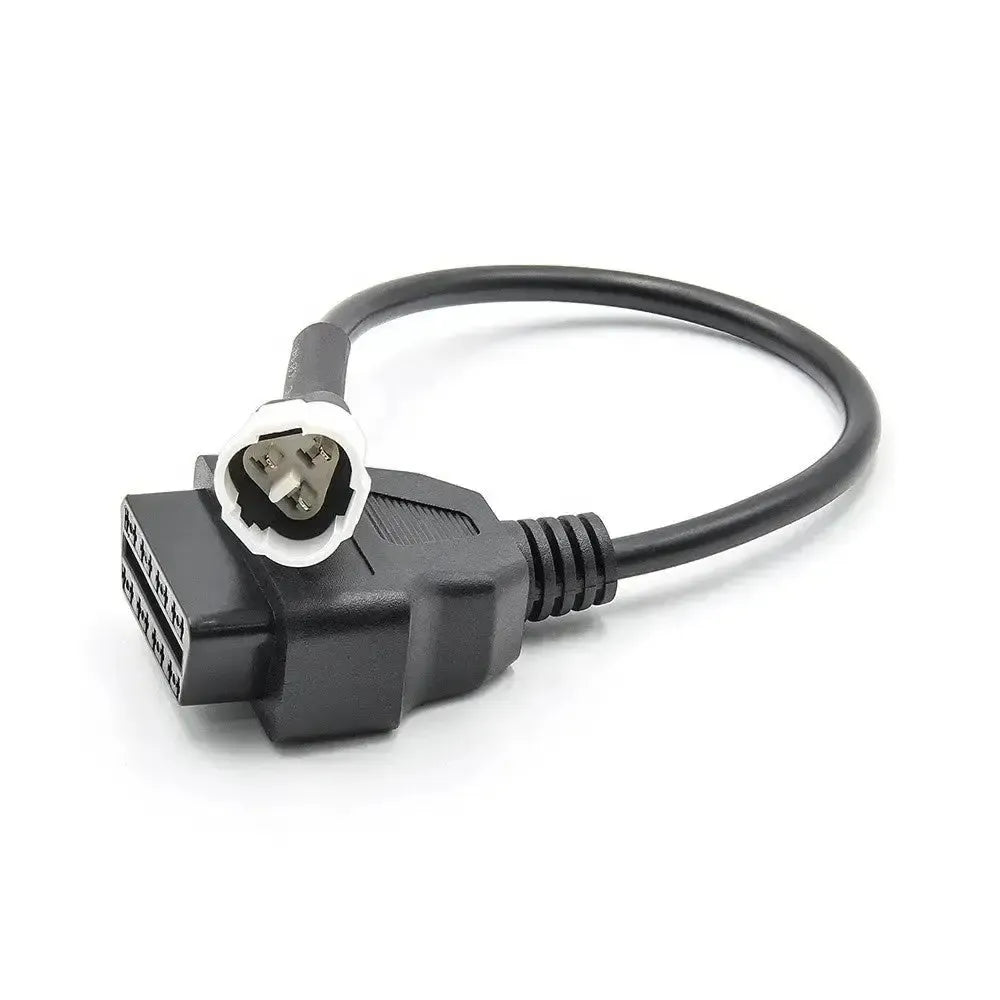

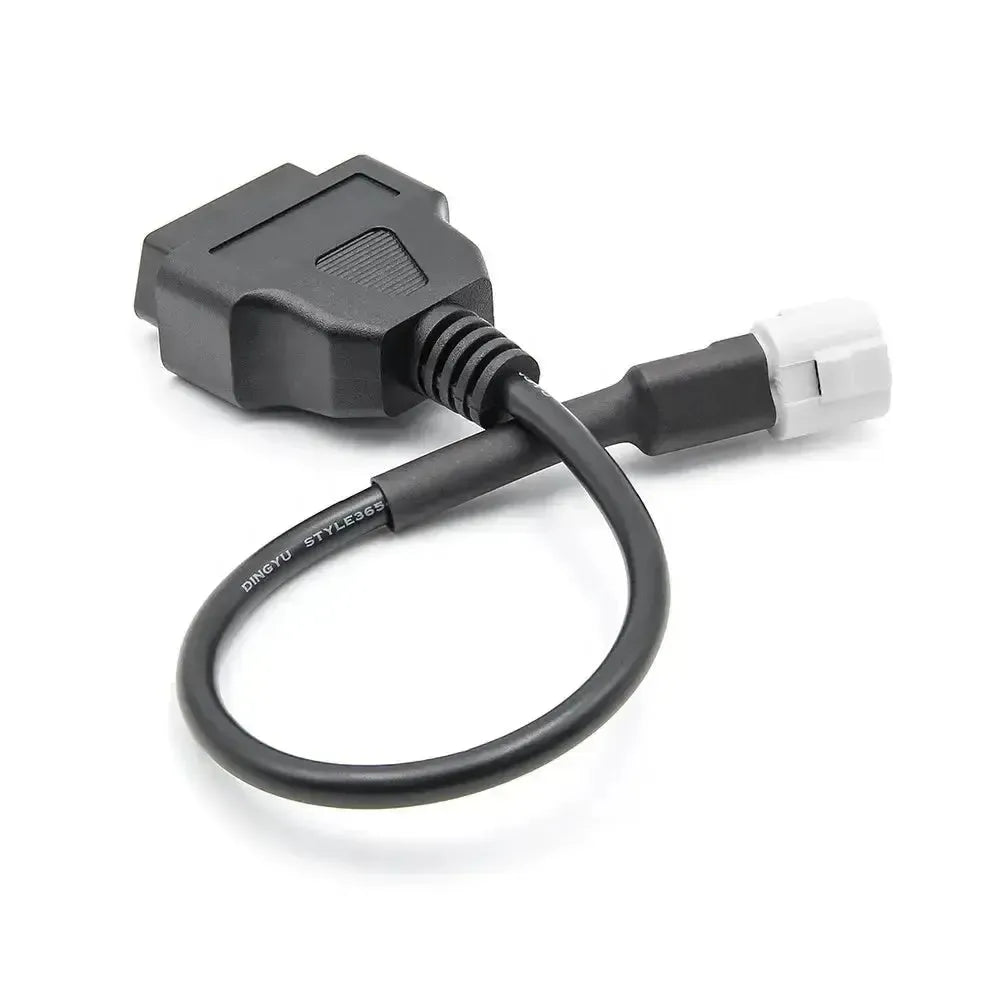

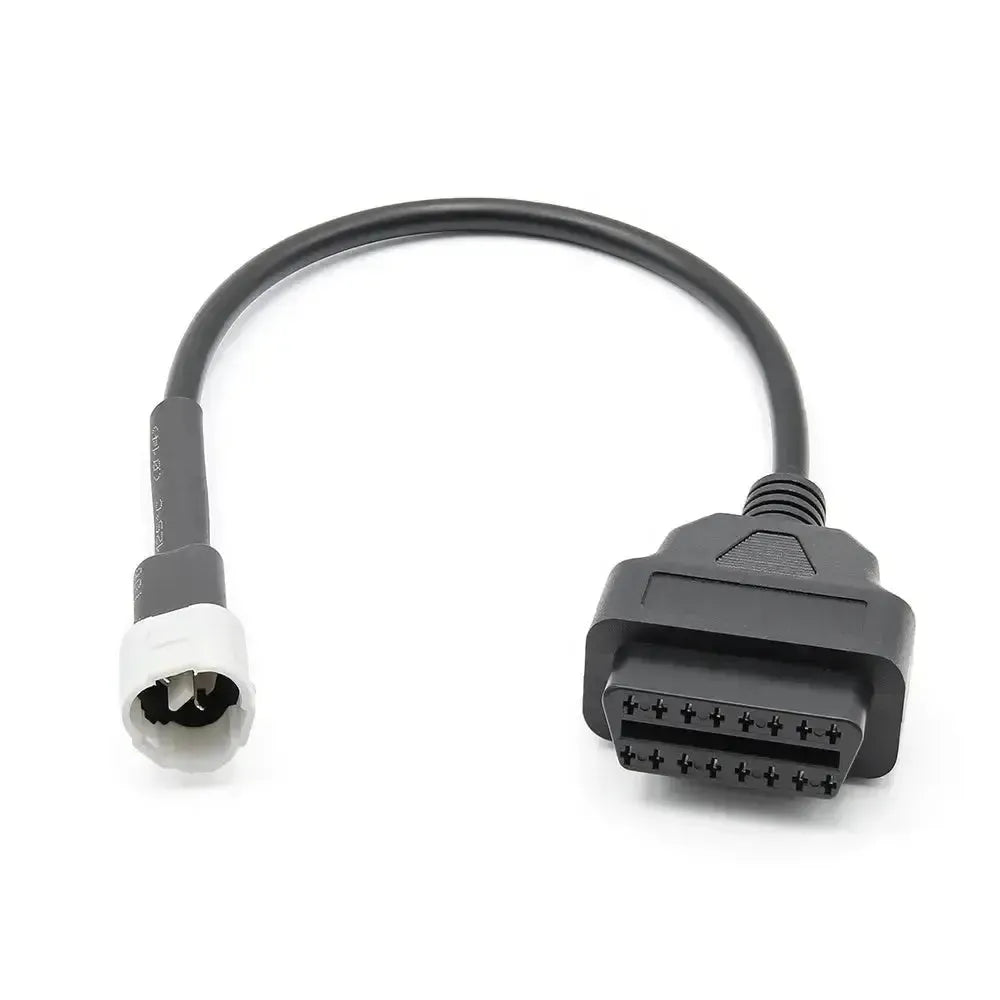

Yamaha 3-pins to 16-pins OBD2 Adapter Cable – Motorcycle
The Yamaha 3-pin to 16-pin OBD2 adapter cable is a specialized diagnostic adapter designed to connect modern reading equipment with various Yamaha motorcycles, scooters, and ATVs. Many Yamaha models produced before the introduction of the standardized 4-pin or 6-pin Euro norm connector use a specific 3-pin diagnostic port. This is usually located under the seat and is not compatible with standard 16-pin OBD2 connectors.
This adapter acts as an indispensable bridge between the Yamaha 3-pin connection and a 16-pin diagnostic interface, such as an OBD2 scanner or a Bluetooth/Wi-Fi dongle. This enables both professional mechanics and DIY enthusiasts to read fault codes and analyze systems. The cable is designed for a reliable and durable connection, essential for accurate diagnosis.
Application and functionality:
The primary application of this adapter cable is to enable electronic vehicle diagnostics via the Yamaha 3-pin diagnostic connector. In combination with a scanner that supports Yamaha-specific protocols, the user gains access to the engine management system (ECU).
The functionality includes reading and clearing fault codes (DTCs) and – depending on the scanner and software – viewing live sensor values. This facilitates troubleshooting and maintenance.
Compatible with the following vehicle makes and models:
This adapter cable is compatible with a range of older Yamaha vehicles equipped with the 3-pin diagnostic connector. Examples of compatible models:
- Yamaha YZF-R1: older models
- Yamaha YZF-R6: older models
- Yamaha FZ6
- Yamaha FZ1
- Yamaha X-MAX / T-MAX: older models
- Various other Yamaha motorcycles, scooters, and ATVs
It is strongly recommended to check the physical diagnostic connector on the vehicle before purchase.
Package Contents:
- 1x Yamaha 3-pin to 16-pin OBD2 adapter cable
Technical specifications:
| Specification | Description |
|---|---|
| Connector A | Yamaha 3-pin motorcycle-specific male connector |
| Connector B | Standard 16-pin OBD2 (J1962) female connector |
| Cable type | Passive adapter cable (no internal software or protocol conversion) |
| Cable length | Approximately 20 to 30 cm (depending on manufacturer) |
| Pinout | Connect the essential pins for power, ground, and the K-Line data line to the correct positions on the 16-pin connector |
