AsTools | SKU:
A0043
Iveco 38-pins OBD – 16-pins OBD2 Adapter Cable | Delivery van
Regular price
€11,95 incl.
€9,88 excl.
Unavailable
Warranty directly via AsTools
Warranty directly via AsTools
We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.
2 years warranty on all products
2 years warranty on all products
All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.
Easy returns
Easy returns
You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.
Professional customer service
Professional customer service
Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

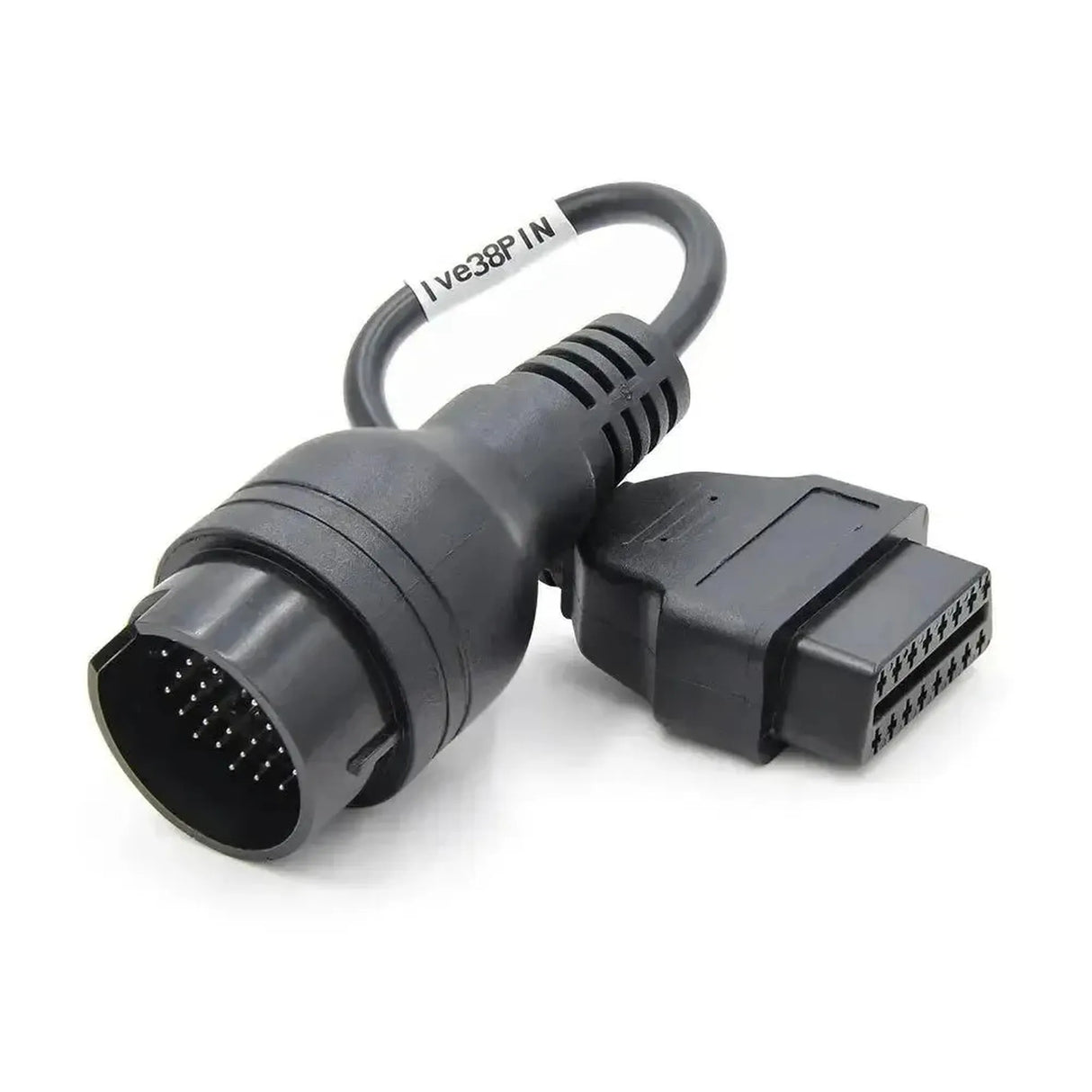

This adapter cable connects the round 38-pin diagnostic connector of the Iveco Daily from 2000 to 2006 to a scan tool with a 16-pin OBD2 plug. The connector is located under the bonnet, on the left-hand side, beneath a screw-on cover.
This Daily does not have a 16-pin OBD2 connector. Via the 38-pin connector you can reach the control units, such as the engine management and the ABS. The cable physically converts the connector. The scan tool must itself support the Iveco diagnostics of this generation.
HIGHLIGHTS
✔Provides access to the control units behind the 38-pin connector, which you cannot reach with a standard OBD2 plug.
✔You use your existing scan tool with a 16-pin OBD2 plug; a separate Iveco testing device is not required.
✔Suitable for the Iveco Daily III, a common van from that period.
✔The cable works passively and does not require its own software.
POINTS TO NOTE
✕Your scan tool must support the manufacturer-specific diagnostics via this connector; the cable does not convert protocols.
✕A simple EOBD code reader does not work via this cable; it only reads emissions-related OBD2 data.
✕For the 38-pin connector only; Iveco trucks with the 30-pin connector require a different cable.
✕Which control units you can reach varies by specification and equipment.
Applications and functions
The cable is intended for garages and mechanics who read out an older Iveco Daily.
Control units you can access
- Engine: Control of the diesel engine.
- ABS: Anti-lock braking system.
- Airbag: If fitted.
- Instruments: The instrument panel.
What you can do
- Fault codes: Read and clear per system.
- Live data: View current sensor values.
- Actuator tests: Where the scan tool offers them.
- Service: Reset the service interval.
How to use it
- Bonnet open: Locate the round connector on the left in the engine bay.
- Cover off: Unscrew the plastic protective cover.
- Connect: Insert the 38-pin plug straight into the connector.
- Ignition on: Connect your scan tool and switch the ignition on.
- Reading out: Select Iveco, the model and the control unit.
Compatible vehicles and applications
The round 38-pin connector under the bonnet is decisive. It is located in the following van:
Iveco:
- Daily III: 2000 to 2006.
💡
Good to know: The round 38-pin connector is located in the engine bay on the left-hand side, beneath a plastic cover that you unscrew. Switch the ignition on before you connect the scan tool.
Package contents
- 1x Iveco 38-pin OBD – 16-pin OBD2 Adapter Cable | Van
Technical specifications
General
- The brand of the cable or adapter. It often has to match the brand of your diagnostic tool.Brand
- AsTools
- The type of product: a separate adapter cable, an adapter without a cable or a complete set.Product type
- Adapter cable
- The types of vehicles or machinery on which the cable can be used. This shows quickly whether it suits the vehicles entering your workshop.Vehicle types
- Van
Connections
- The connector that plugs into the diagnostic port of the vehicle or machine. It must fit exactly.Vehicle-side connector
- 38-pin round (Iveco)
- The connector on the side of your diagnostic tool or interface. Usually a 16-pin OBD2 connector.Tool-side connector
- 16-pin OBD2 (J1962)
Other specifications
- Application
- Iveco Daily III (2000 to 2006) with the round 38-pin diagnostic connector
- Device-side connection
- 16-pin OBD2 (J1962)
- Operation
- Passive, no protocol conversion
