OBDSTAR | SKU: M067

OBDSTAR (M067) | Kawasaki 6+6-pins OBD – Dealer Mode Switch Adapter Cable | Jet Ski

Name: OBDSTAR (M067) | Kawasaki 6+6-pins OBD – Dealer Mode Switch Adapter Cable | Jet Ski
Brand: OBDSTAR
SKU: M067
Price: 26.95 EUR
Availability: InStock

€26,95 incl.

€22,27 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

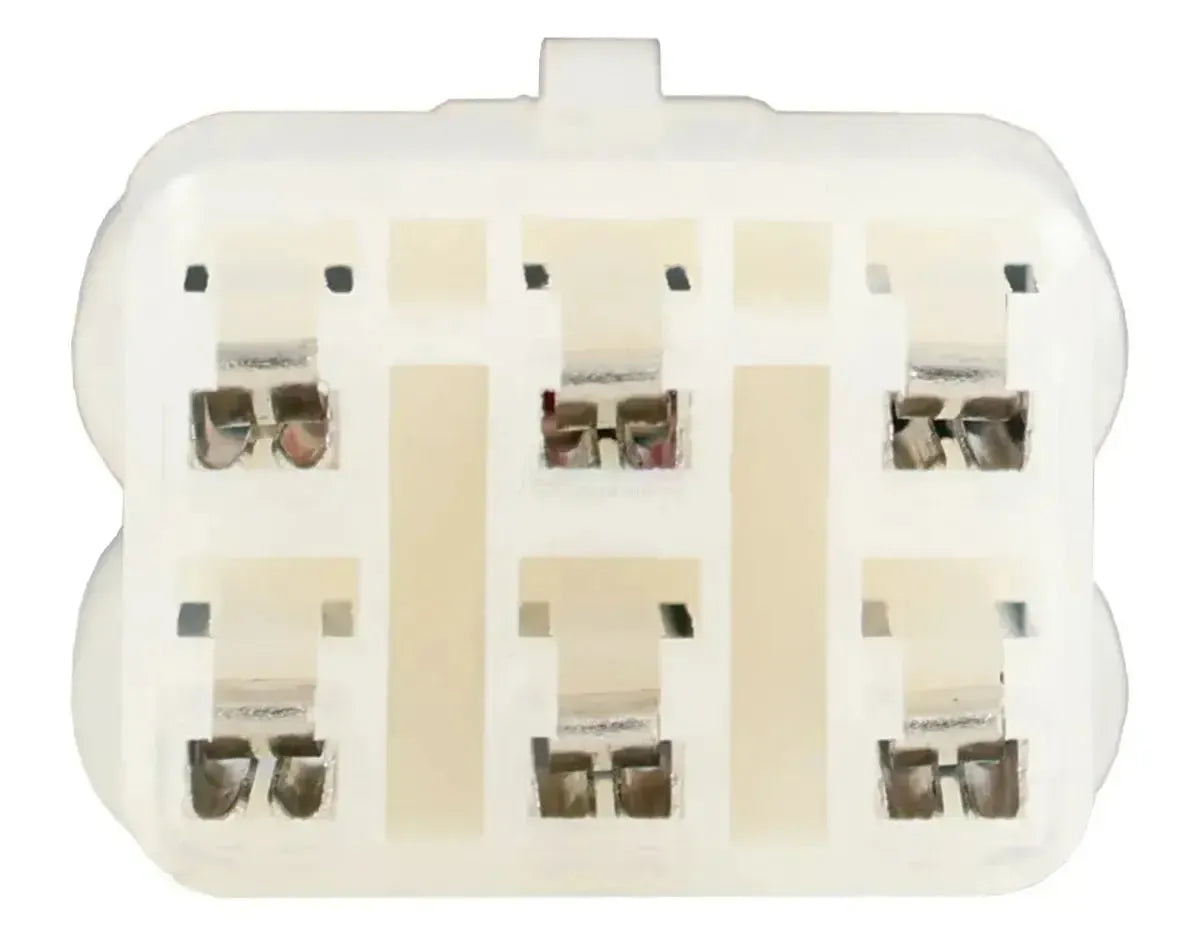

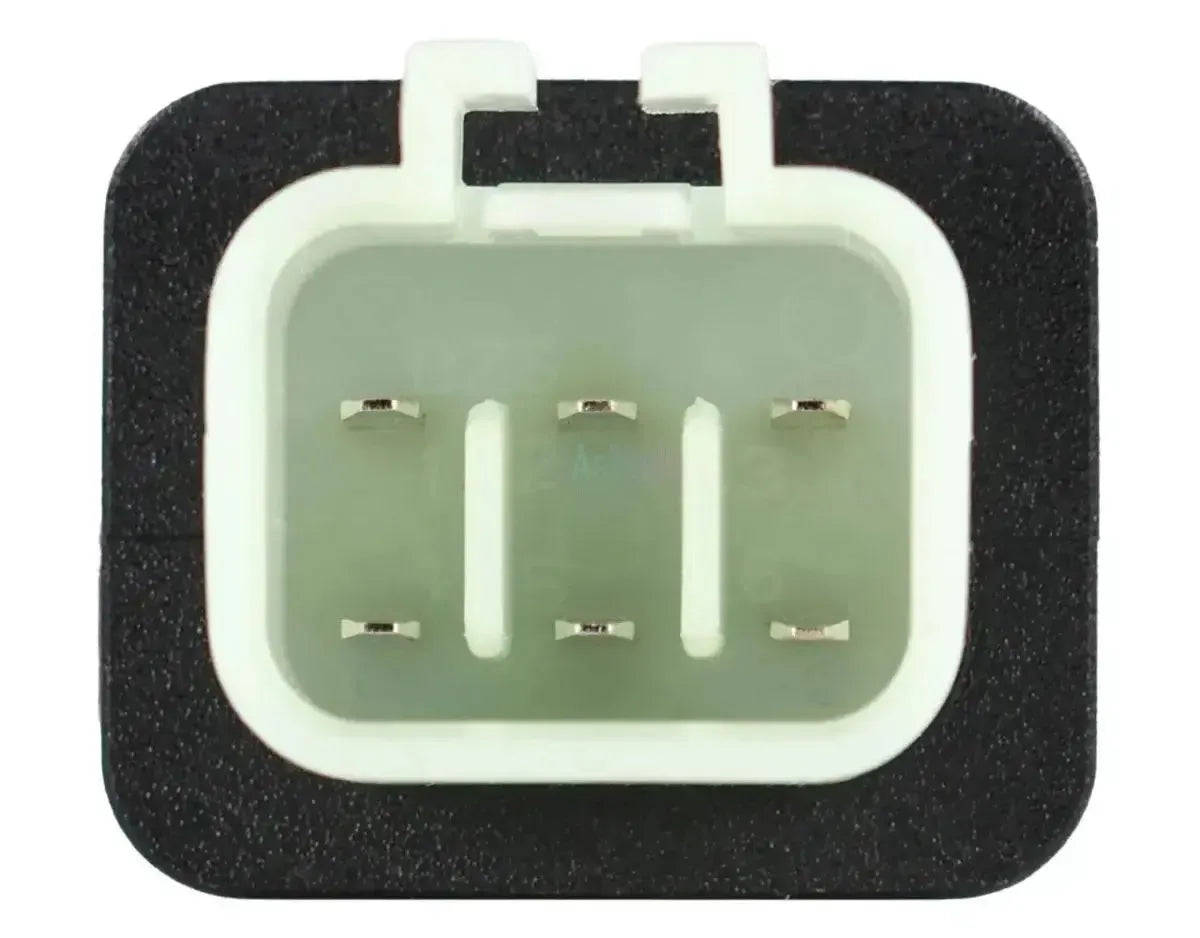

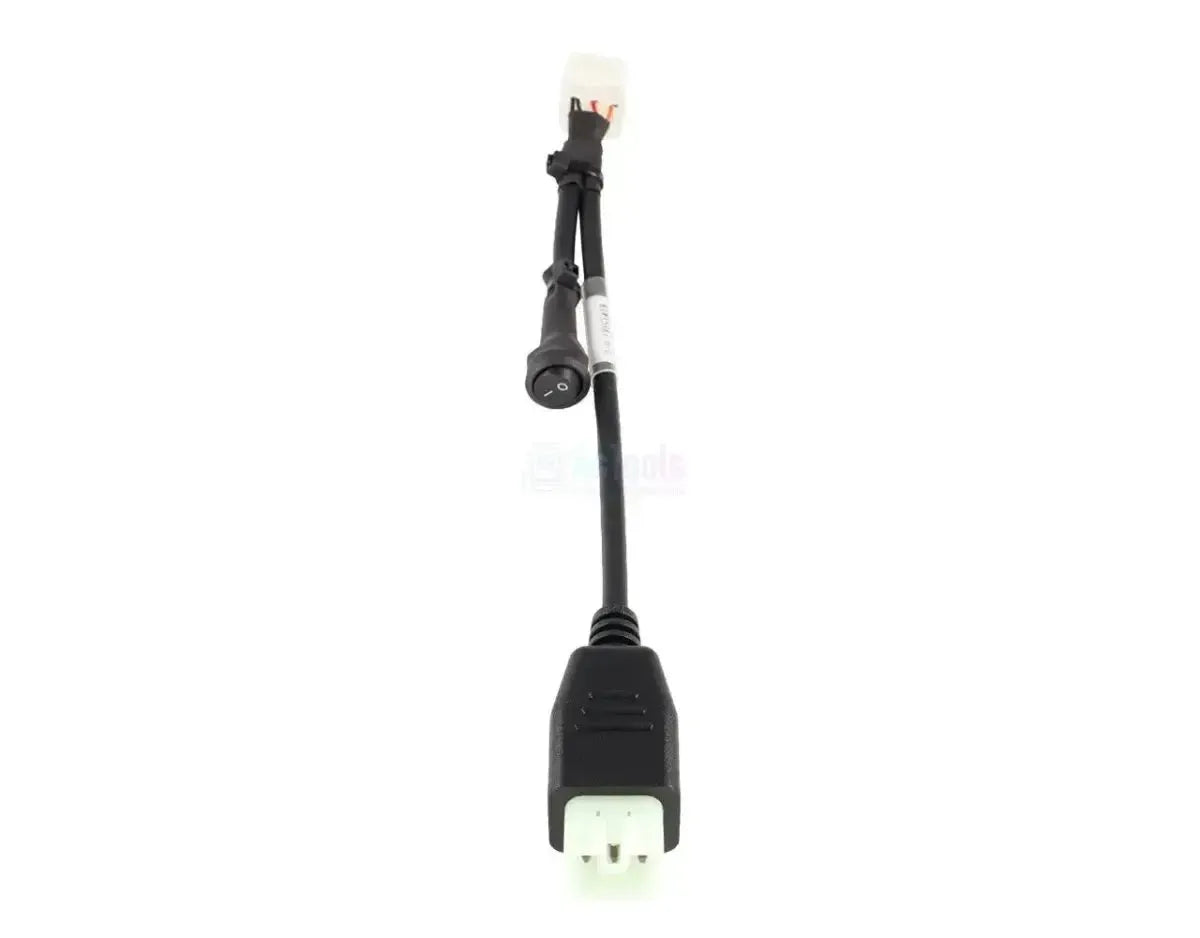

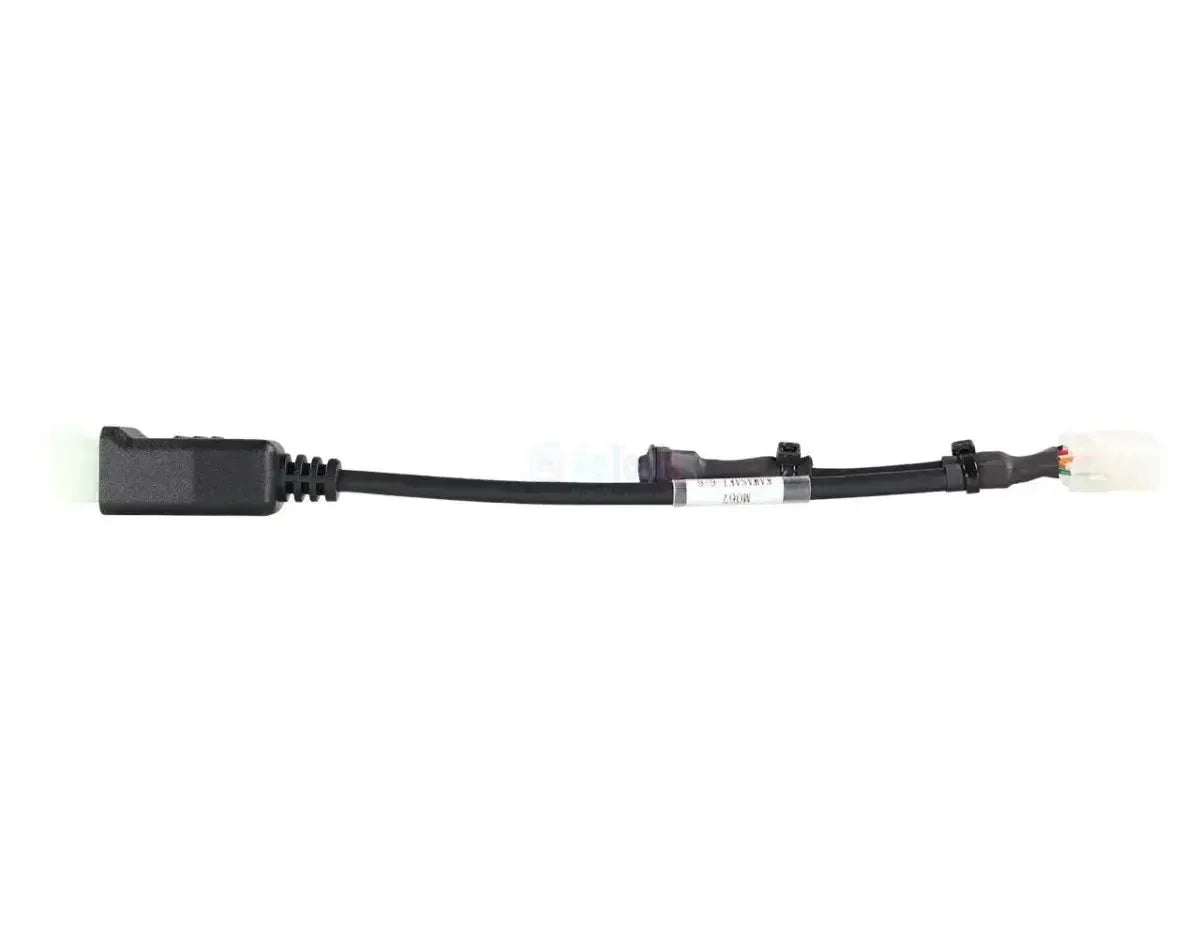

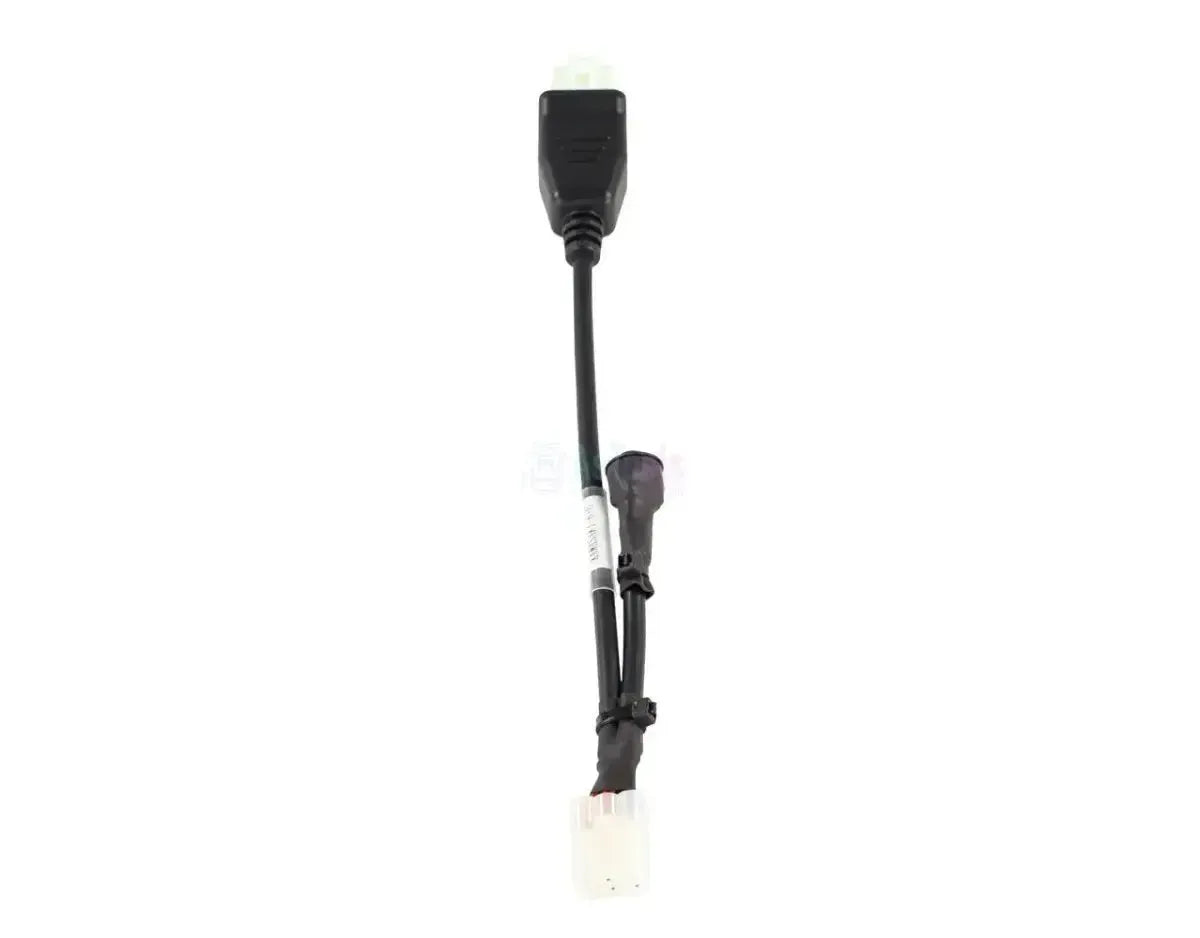

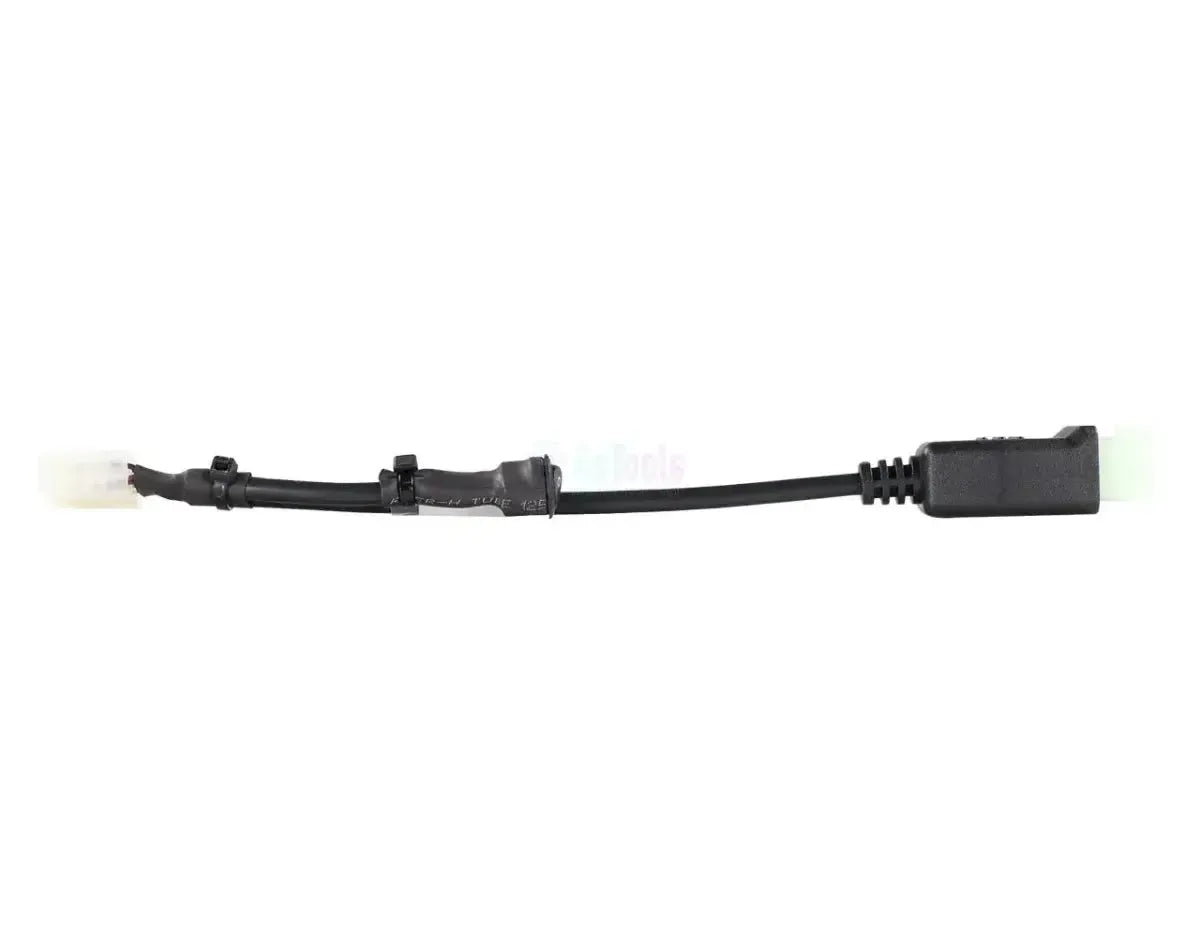

The OBDSTAR M067 is a Kawasaki adapter cable for personal watercraft. The vehicle side has 6+6-pin connectors, and the cable includes a switch for dealer mode. The other end connects to the main cable of your OBDSTAR device.

OBDSTAR supplies the M067 with the IScan Kawasaki (Marine). For the MarineMaster it is available as a separate adapter. Together with such a device, you can read fault codes and live data and carry out actuator tests. The cable does not convert protocols. The device itself must support Kawasaki diagnostics.

KEY BENEFITS

✔The dealer mode switch is built into the cable; a separate box is not required.

✔Included as standard with the IScan Kawasaki (Marine), so you can replace a lost or damaged cable with this one.

✔Expands the MarineMaster for Kawasaki personal watercraft.

✔The cable does not require its own power supply or software.

POINTS TO NOTE

✕Your diagnostic tool must support Kawasaki diagnostics via this connector, as the cable does not convert protocols.

✕A simple EOBD code reader for passenger cars does not work via this cable.

✕Only for Kawasaki personal watercraft with the 6+6-pin connector, not for Kawasaki motorcycles.

✕Which functions work varies by model and year of manufacture.

Applications and functionality

The cable is intended for watersports businesses and mechanics who read Kawasaki personal watercraft with an OBDSTAR device.

Control units you can access

Engine management: Injection and ignition.
Other modules: Depending on the model.

What you can do

Fault codes: Read and clear.
Live data: View current values.
Actuator tests: Activate components.
ECU registration: Where the device offers it.

How to use it

Ignition off: Switch off the personal watercraft before connecting.
Locate the connector: Find the 6-pin Kawasaki connector.
Plug in: Insert the cable connectors.
Connect the device: Connect the cable to the main cable.
Reading: Follow the device prompts, including for the switch.

Compatible vehicles and applications

The 6+6-pin Kawasaki connector is decisive. The IScan Kawasaki (Marine), which the M067 is supplied with, supports among others these series:

Kawasaki Jet Ski:

STX-12F and STX-15F: Stand-up and sit-down.
Ultra LX, 250X and 250LX: Ultra series.
Ultra 260X and 260LX: Ultra series.
Ultra 300 series: 2011 to 2013.
Ultra 310 series: From 2014.

💡

Good to know: Before connecting, check which connectors your personal watercraft has. The OBDSTAR device shows when you need to use the switch.

Package contents

1x OBDSTAR (M067) | Kawasaki 6+6-pin OBD – Dealer Mode Switch Adapter Cable | Personal Watercraft

Technical specifications

General

The brand of the cable or adapter. It often has to match the brand of your diagnostic tool.Brand: OBDSTAR
The type of product: a separate adapter cable, an adapter without a cable or a complete set.Product type: Adapter cable

Suitable for

The brand of diagnostic tool the cable works with. A cable for one brand usually does not fit a tester of another brand.Compatible diagnostic tool: OBDSTAR
Whether the cable needs a separate power connection, for example via battery clamps. A passive cable works without one.Separate power supply required: No
