Jaltest (JDC216A9) | 3+3-pins J1939 - 16-pins OBD2 Adapter Cable | ...

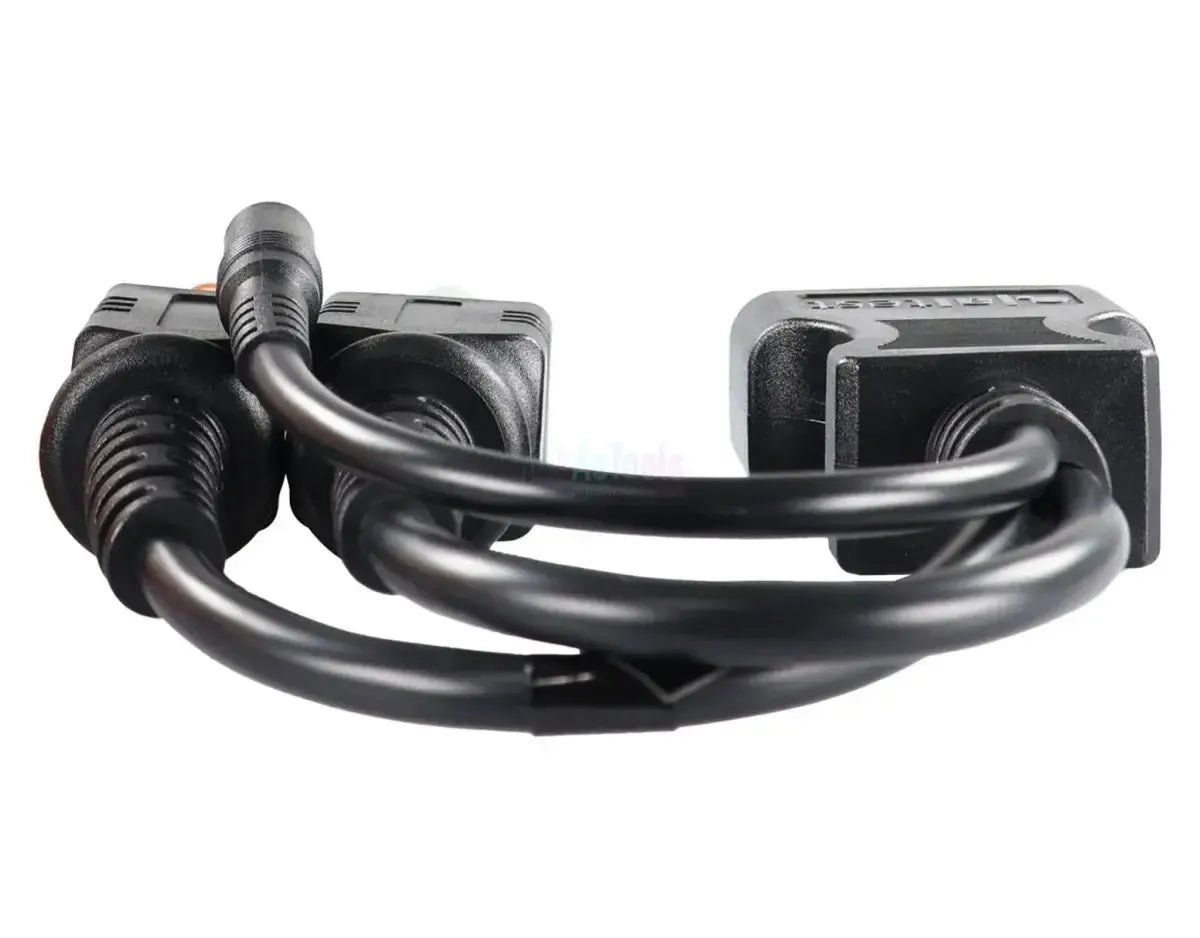

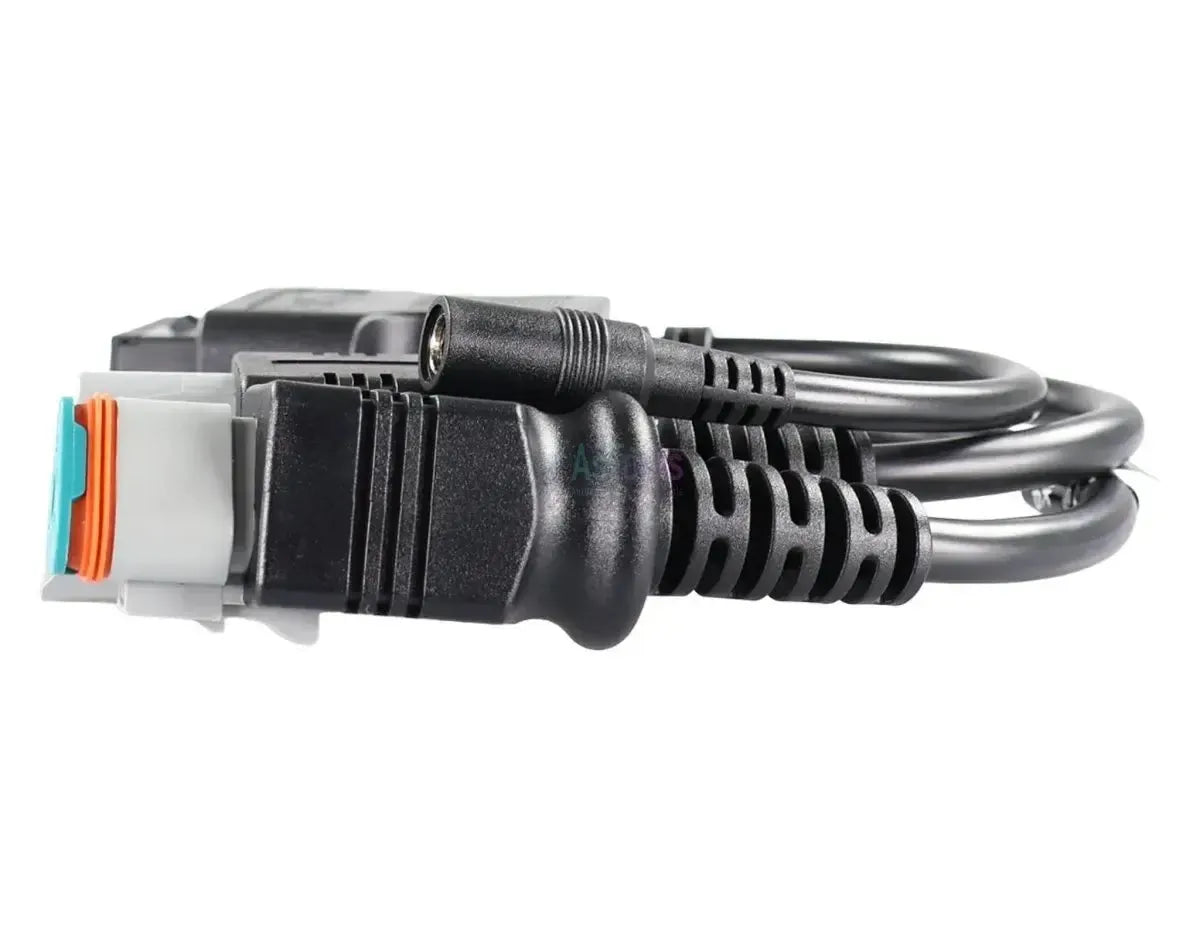

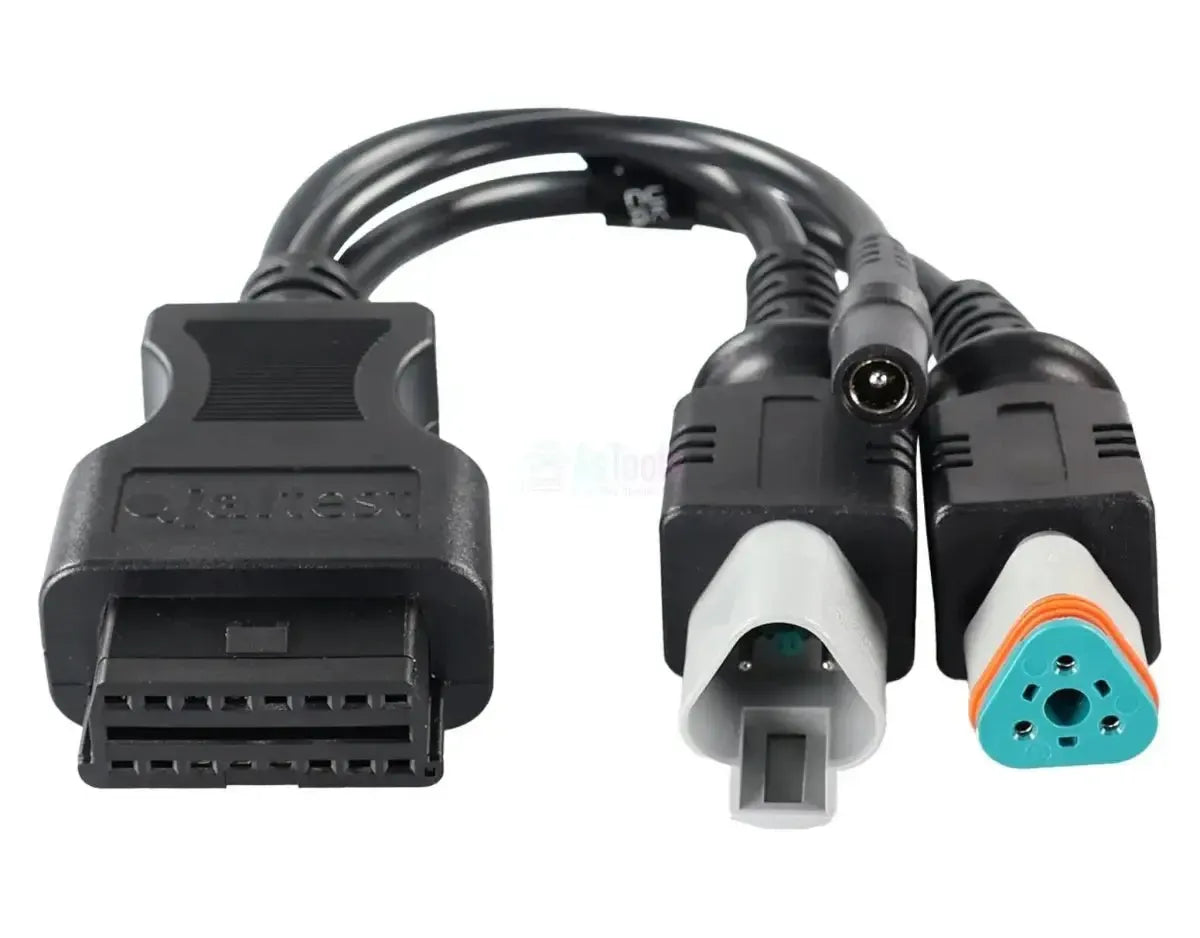

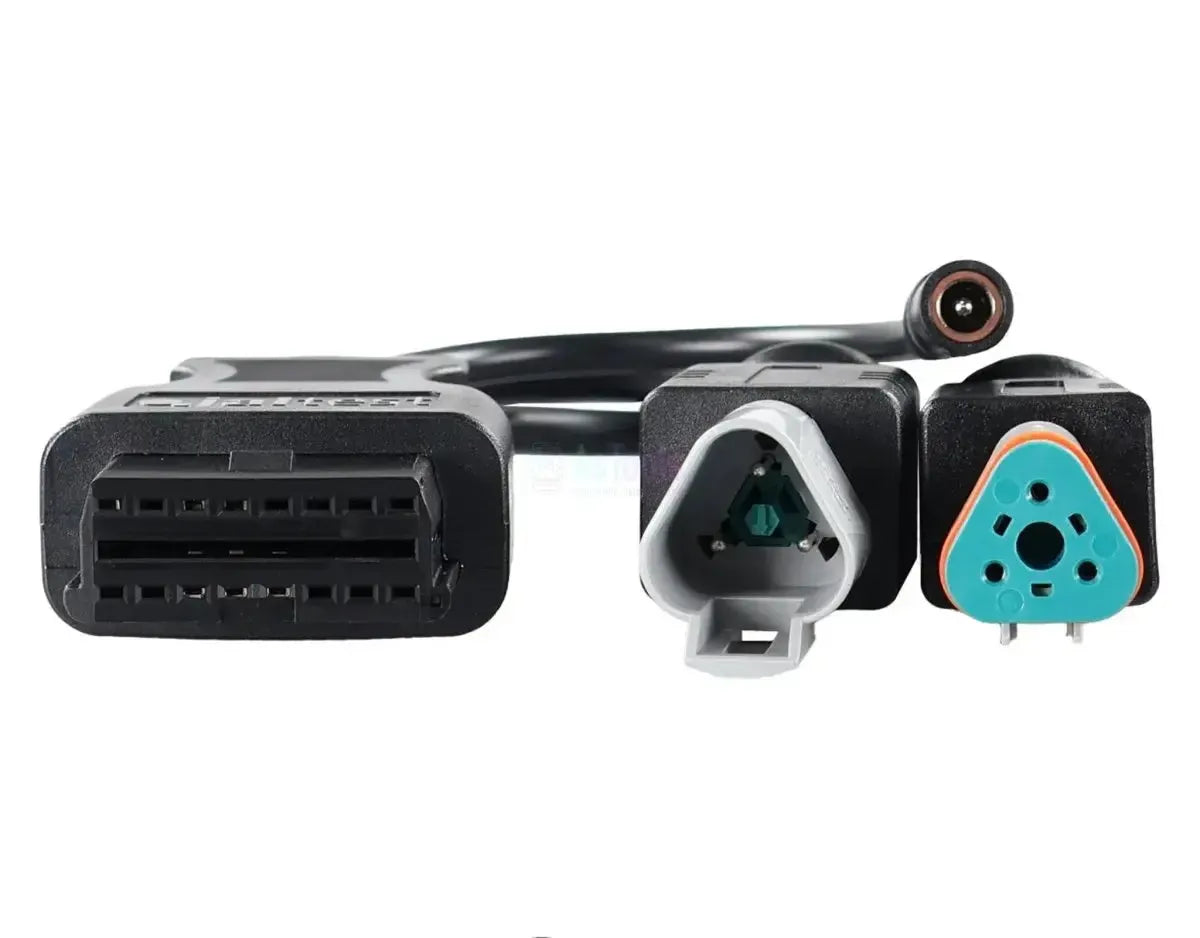

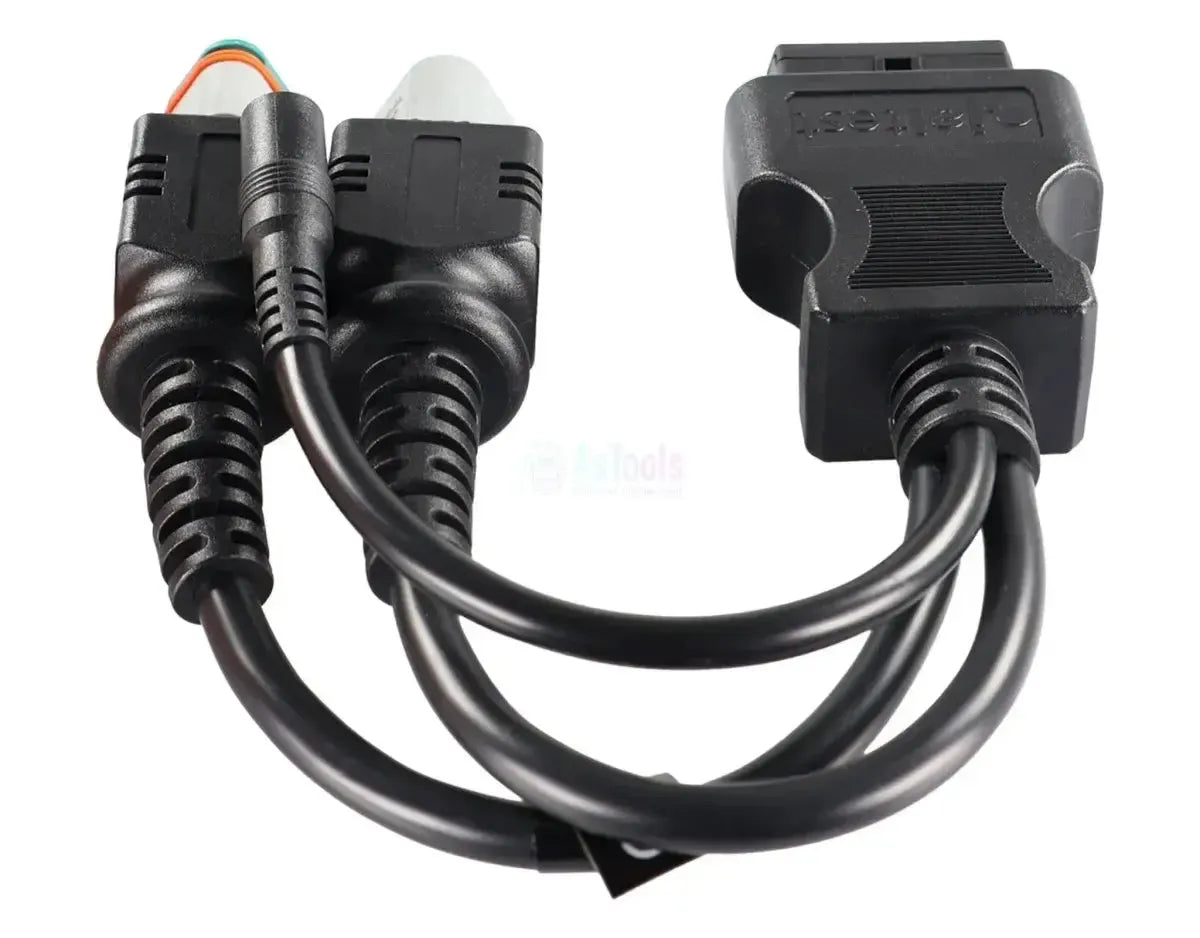

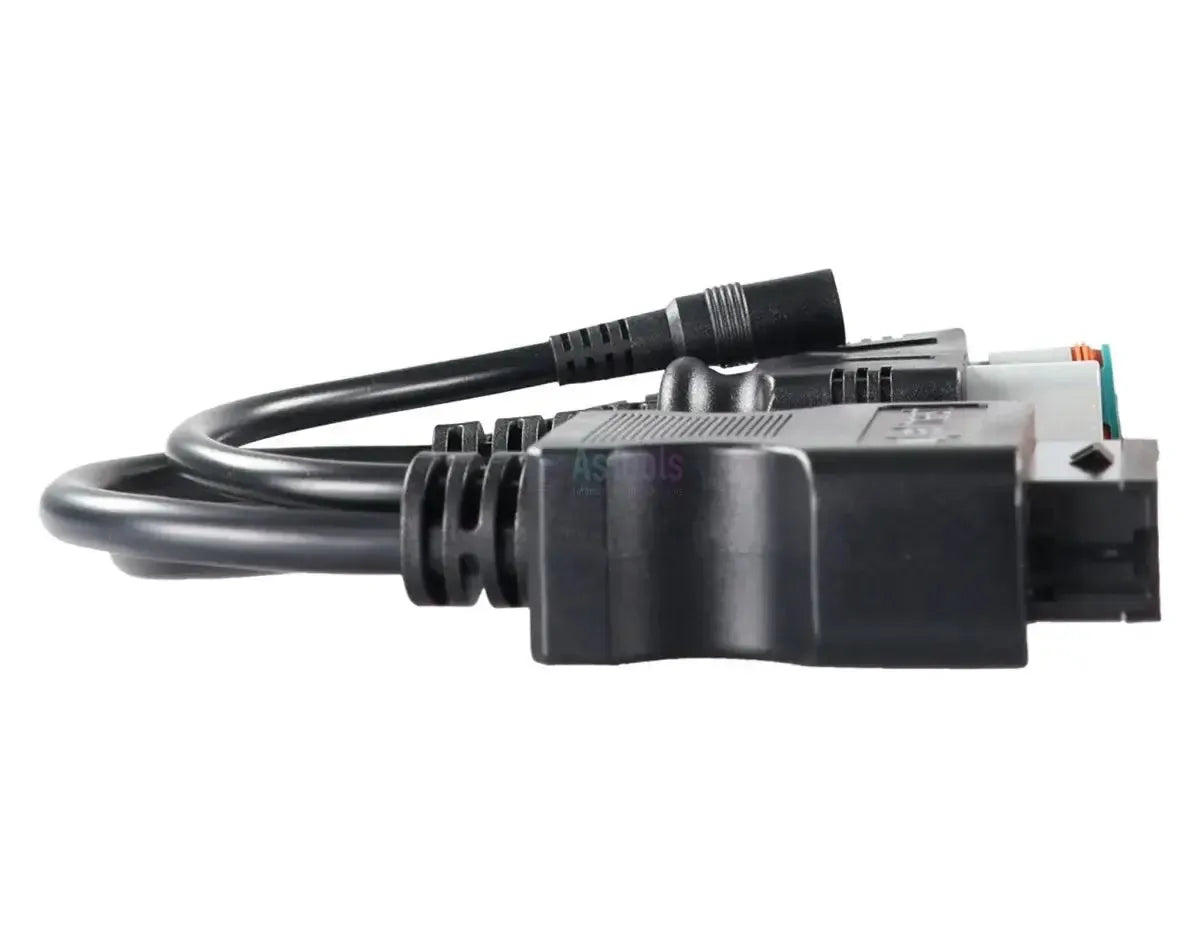

The Jaltest JDC216A9 is a highly specialized "Y-cable" or splitter cable, designed for the diagnosis of complex commercial and work vehicles with a split J1939 CAN-bus network. This unique cable combines two separate 3-pin Deutsch connectors from the vehicle into a single, usable 16-pin OBD2 connection for your Jaltest main cable.
This adapter is indispensable for machines where the electronics of the base vehicle (the truck) and the body (for example a crane, sweeper, or agricultural implement) have separate networks. The JDC216A9 merges these two data streams, allowing the technician to get a complete picture of the entire machine and diagnose the interaction between the chassis and the body. It is the only way to perform a full and accurate diagnosis on this type of integrated systems.
Application and functionality:
The main purpose of this cable is to merge and diagnose split J1939 CAN-bus networks via two separate 3-pin Deutsch connectors.
- Combined system diagnosis: simultaneous access to multiple, separate CAN-bus networks, such as the Vehicle CAN-bus and Implement CAN-bus (tool network).
- Full machine integration: diagnosis of both base vehicle (engine, brakes, transmission) and specific body (hydraulics, controls, sensors).
- Read and clear fault codes: read and remove fault codes from all merged systems.
- View live data: combined data stream from both chassis and body, essential for communication problem analysis.
- Set parameters: adjust parameters that affect the interaction between vehicle and body.
Suitable vehicles and applications:
This cable can be used on a wide range of specialized machines that use a separated network architecture.
- Primary application: Diagnosis of machines with split J1939 network.
-
Industries and machine types:
- Municipal vehicles: garbage trucks, sweepers, spreaders.
- Agricultural vehicles: tractors with advanced ISOBUS implements via separate CAN bus.
- Construction machines: mobile cranes, concrete mixers, machines with separate body control.
- Connector requirement: two separate 3-pin Deutsch diagnostic ports that together form the complete J1939 network.
Package Contents:
- 1x Jaltest (JDC216A9) | 3+3-pin J1939 - 16-pin OBD2 adapter cable
Technical specifications:
| Specification | Description |
|---|---|
| Article number | JDC216A9 |
| Brand | Jaltest |
| Connector A (vehicle side) | Two 3-pin Deutsch connectors (Y-splitter) |
| Connector B (adapter side) | 16-pin OBD2 (J1962) connector (female) |
| Application | Diagnosis of split J1939 CAN bus networks |
