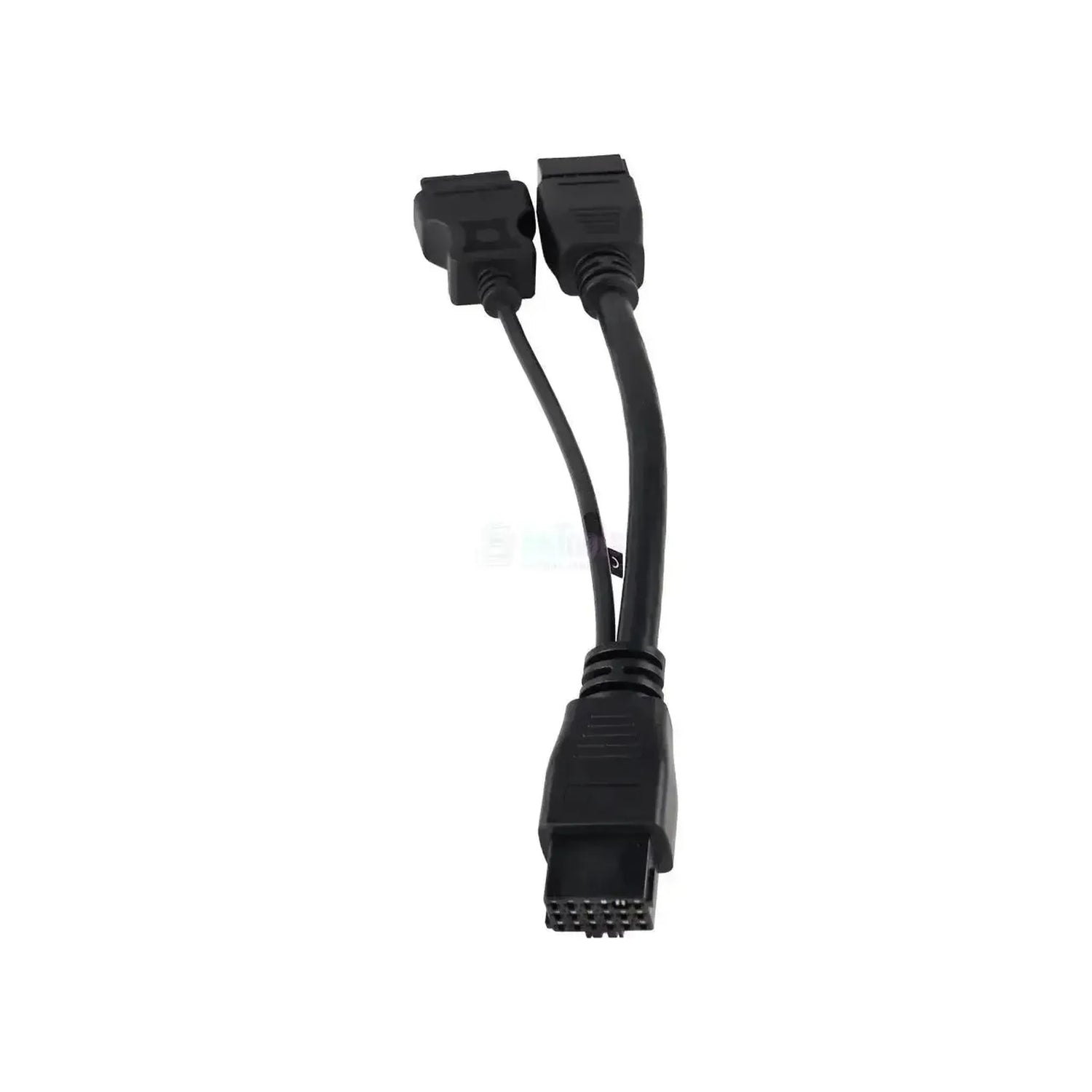

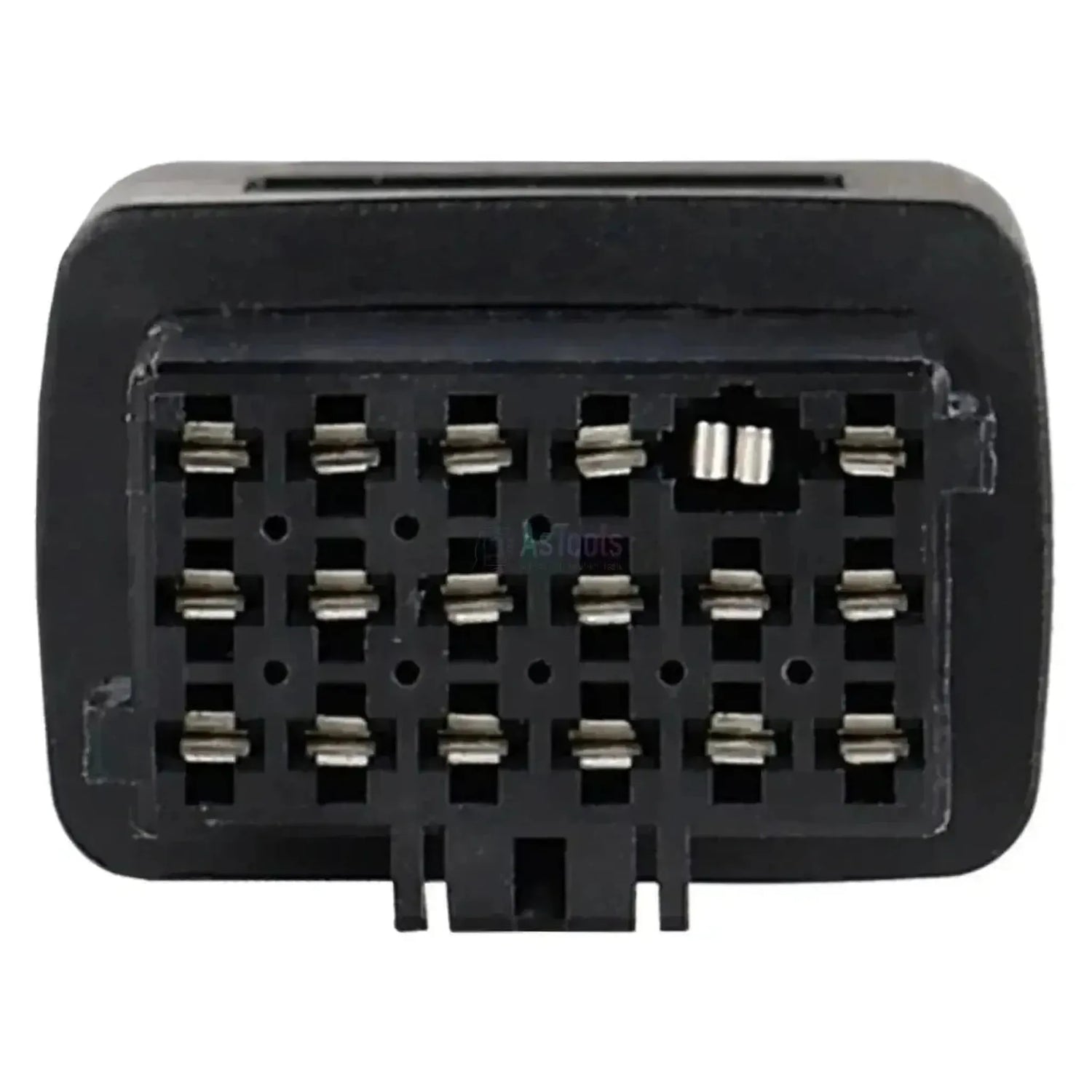

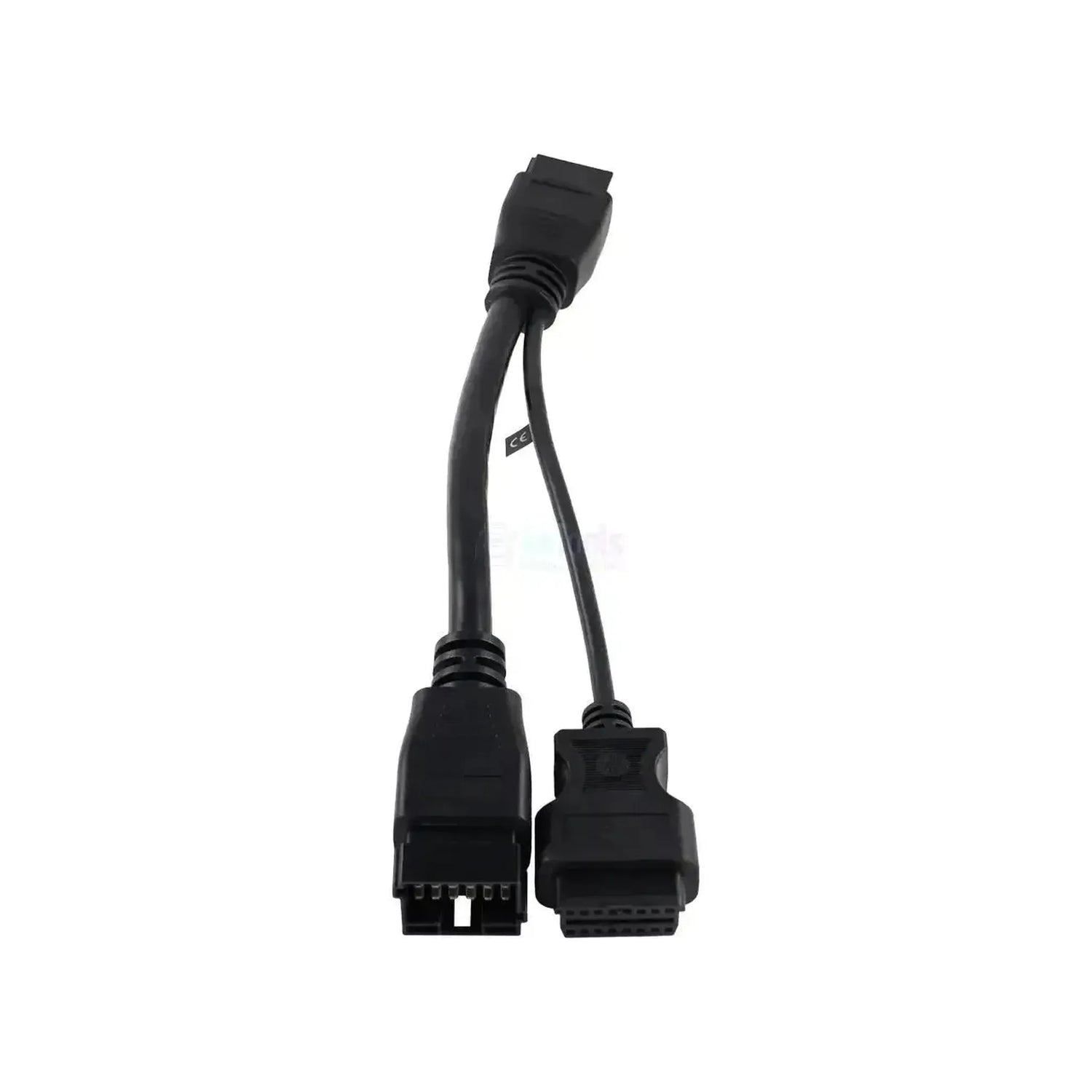

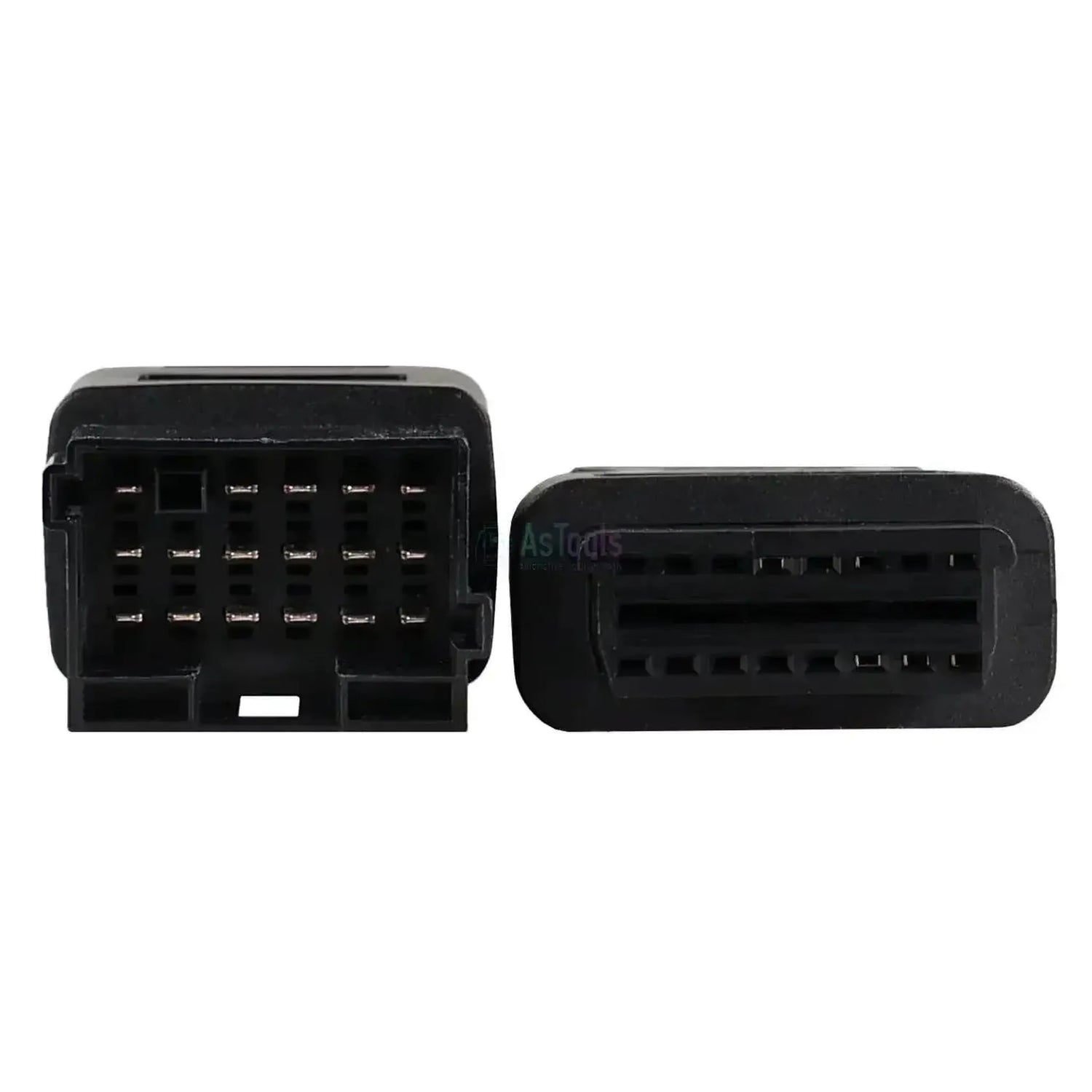

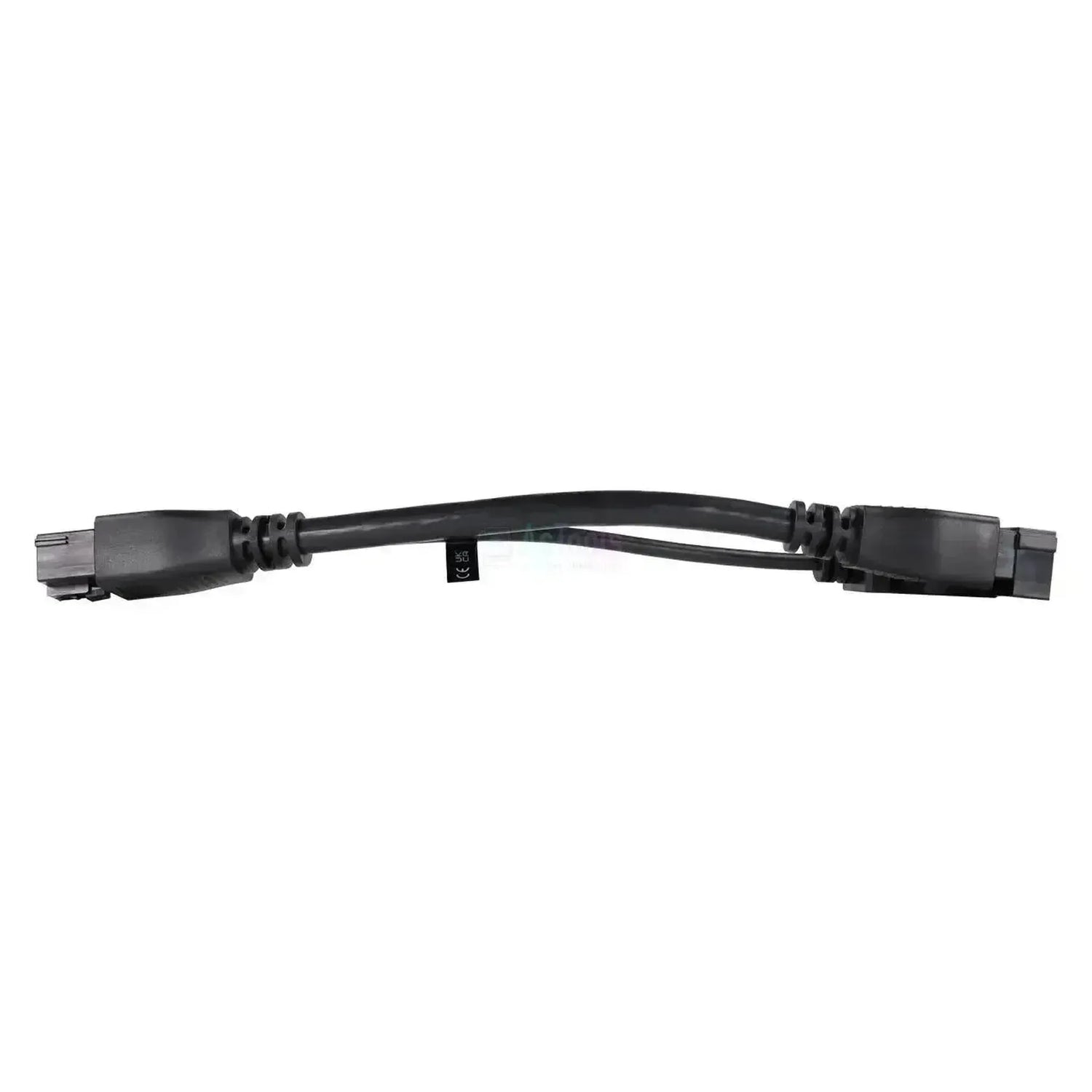

The Jaltest JDC220A connects directly to the control unit of the Knorr-Bremse EBS 5, which carries its diagnostic line on the unit itself. Behind the 16-pin OBD2 head, the cable splits into two branches, each with a rectangular 18-pin connector arranged in three rows of six: one with pins, the other with sockets.
You disconnect the existing connection between the control unit and the wiring harness and fit this cable in between, so the braking system stays connected while you read it. The Jaltest software then reads fault codes and measured values, activates components, adjusts parameters and carries out resets. Some of these are available with the Knorr-Bremse Diagnostics module (ref. 71502007).
ADVANTAGES
POINTS TO NOTE
Applications and functions
Via this connection, the Jaltest software gives access to the electronically controlled braking system from Knorr-Bremse. Because the cable runs in-line between the control unit and the wiring harness, the system remains connected during measurement.
Control units you can access
- EBS 5: Electronically controlled braking system.
What you can do
- Fault codes: Read and clear.
- Measured values: In figures and graphs.
- Components: Activate brake components.
- Parameters: Adjust brake configuration.
- Resets: After completed work.
How to use it
- Secure the vehicle: Make the vehicle stationary and secure it against rolling away.
- Disconnect: Detach the wiring harness from the EBS 5 unit.
- Fit in between: Place the JDC220A between the unit and the wiring harness.
- Connect the link: Connect the OBD2 side to the Jaltest cable.
- Read out: Select Knorr-Bremse EBS 5 in Jaltest.
Compatible vehicles and applications
The control unit determines compatibility, not the vehicle make. The cable is for the Knorr-Bremse EBS 5, which you can recognise by the two 18-pin connectors that meet on the unit, not by an OBD connector elsewhere. An 18+18-pin connection on an ABS 6 or ABS24/EU12 unit belongs to the JDC305A.
Knorr-Bremse:
- EBS 5: The electronically controlled braking system for which this cable is made.
- ABS 6 and ABS24/EU12: The same 18+18-pin layout, but a different brake generation; the JDC305A is intended for these.
Scope:
- Vehicle make: Not decisive; the cable follows the Knorr-Bremse unit.
Package contents
- 1x Jaltest (JDC220A) | Knorr-Bremse (EBS5) 18+18-pin OBD - 16-pin OBD2 Adapter Cable | Trailer
Technical specifications
General
- The manufacturer of the cable. Jaltest cables work with Jaltest diagnostic equipment.Brand
- Jaltest (Cojali)
- The type of cable. A diagnostic cable connects to the diagnostic socket, a measuring cable tests an individual component.Cable type
- Adapter cable
- The Jaltest software package the cable belongs to. A licence for that module is required to use the cable.Jaltest software module
- CV commercial vehicles
- The types of vehicles or machines the cable is intended for. This shows quickly whether it suits the vehicles entering your workshop.Vehicle types
- Trailer
Connections
- The connector on the diagnostic device side. It must fit your interface or diagnostic cable.Interface-side connector
- 16-pin OBD2
- The connector on the vehicle, engine or machine side. It must fit the diagnostic socket or the component.Vehicle-side connector
- 18+18-pin OBD
Usage
- Reference number
- JDC220A
- Control units
- EBS 5 (electronically controlled braking system)
- Required for use
- Jaltest Link and an active licence for Jaltest CV
Other specifications
- Application
- Knorr-Bremse EBS 5 (electronically controlled braking system)
- Available as an add-on
- Knorr-Bremse Diagnostics module (ref. 71502007) for the full range of functions
