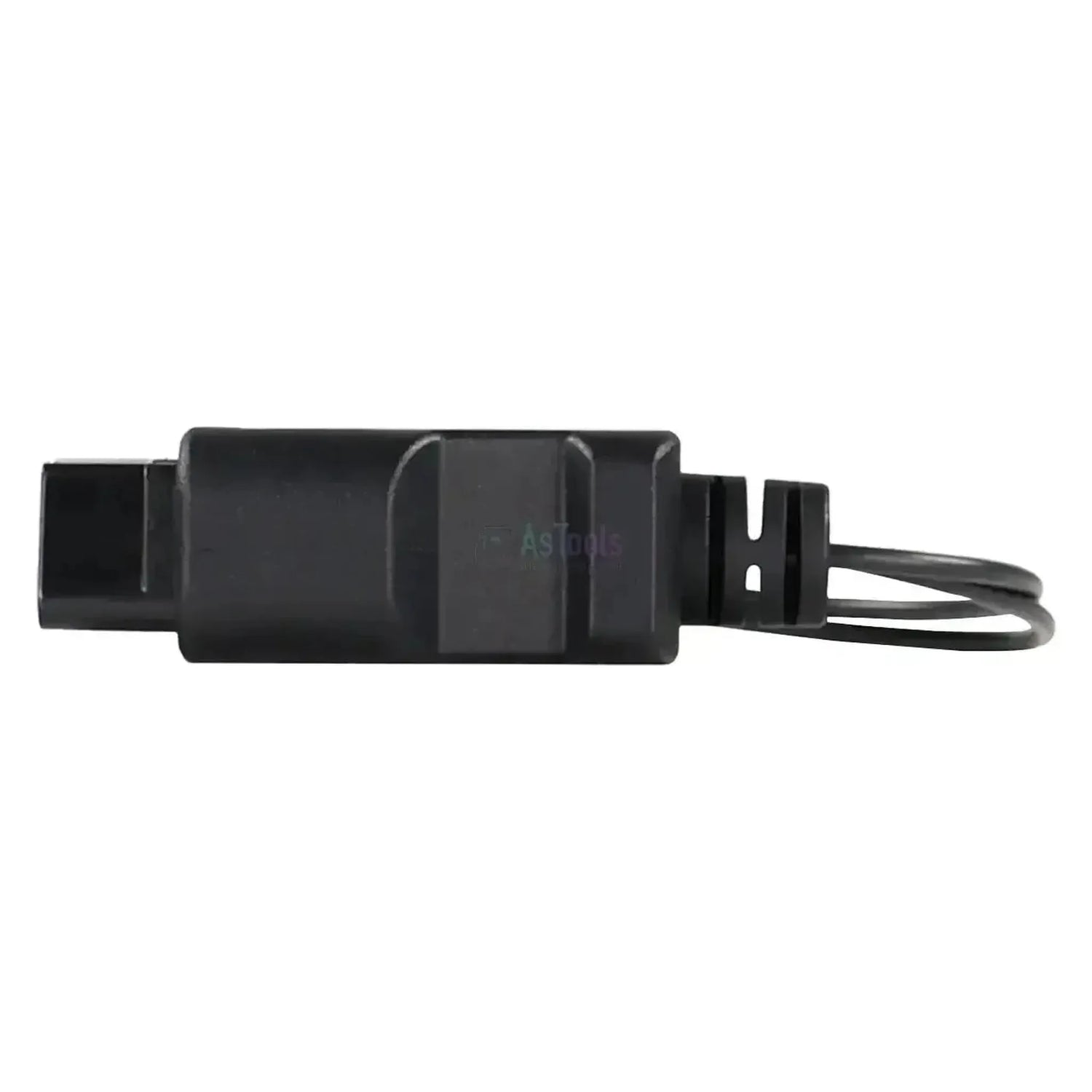

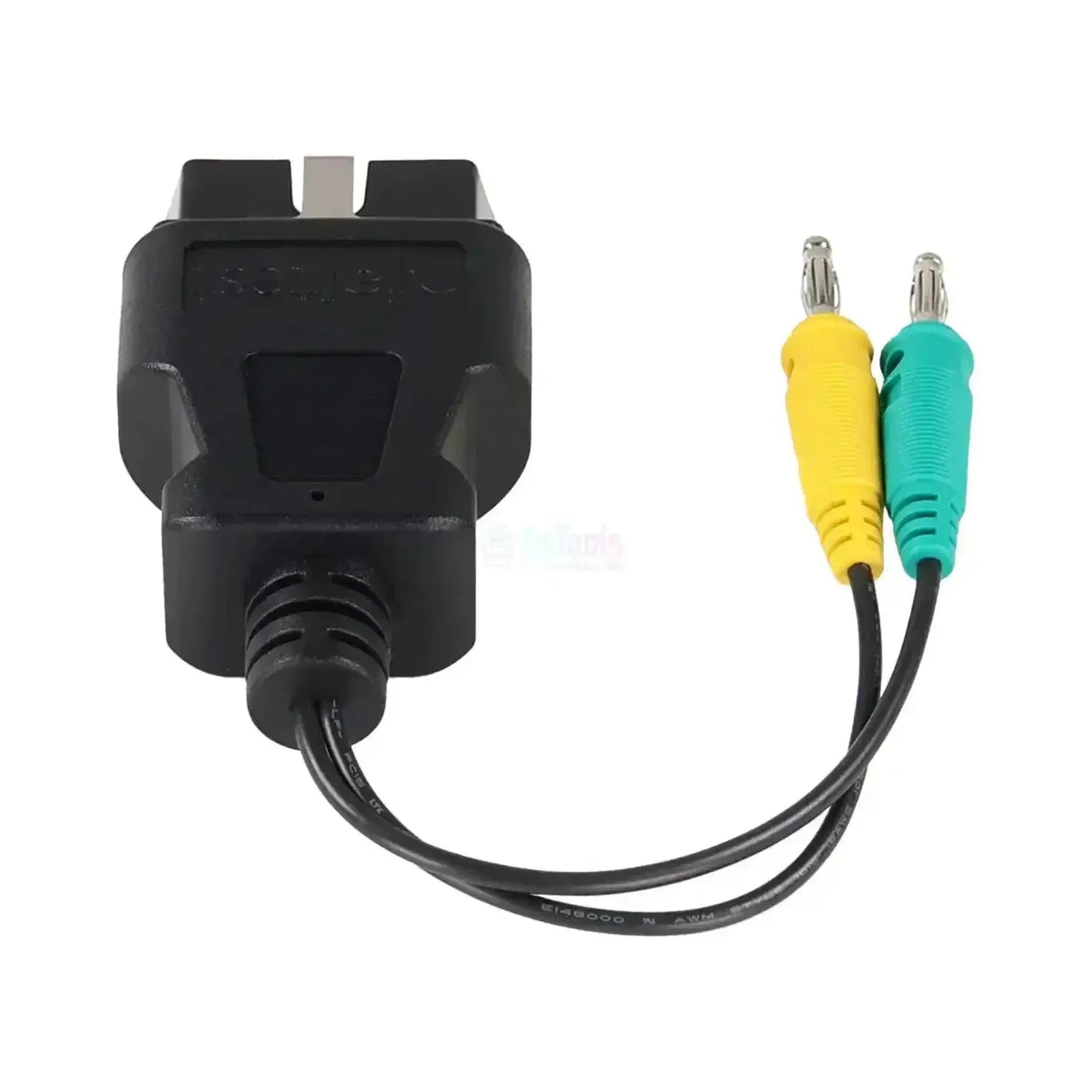

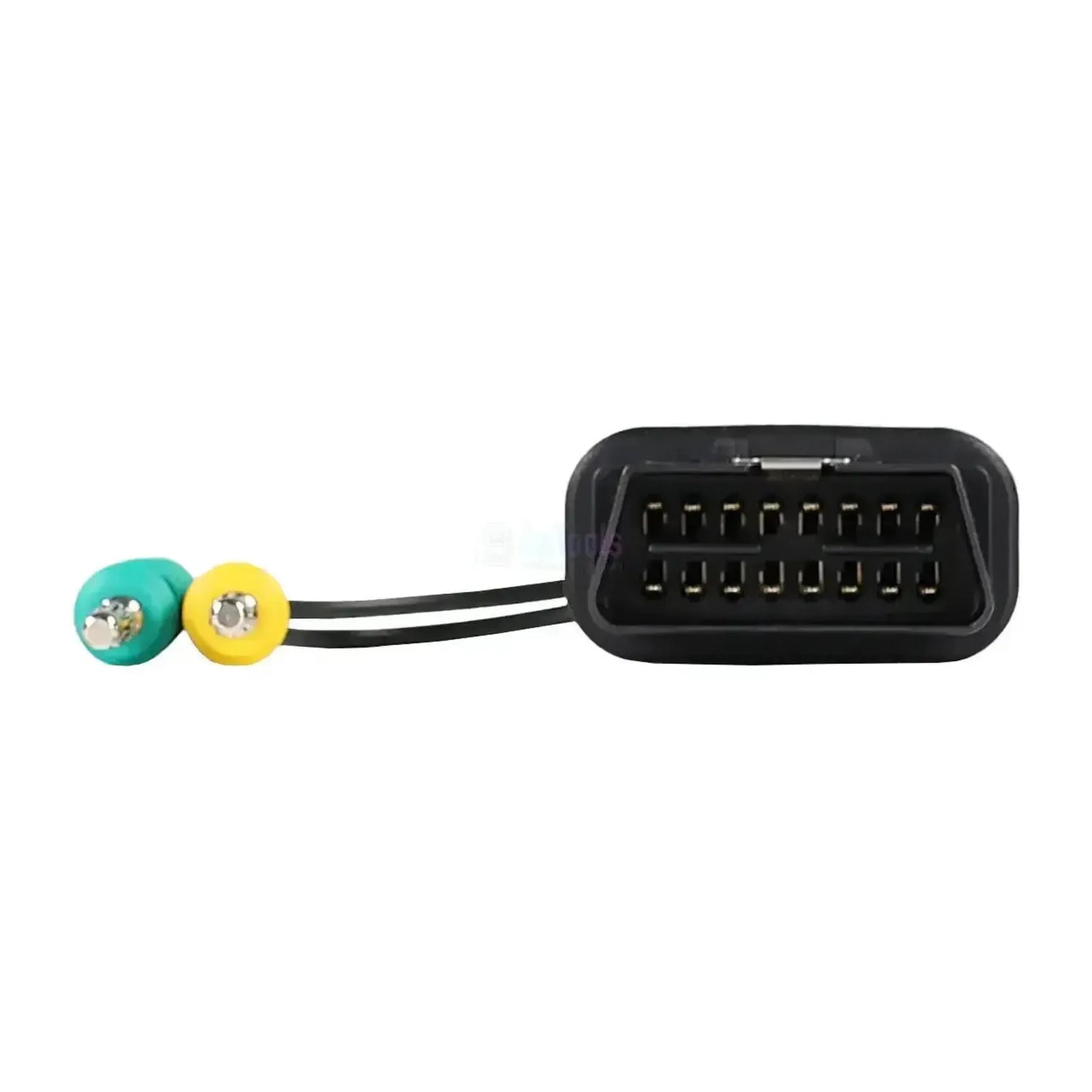

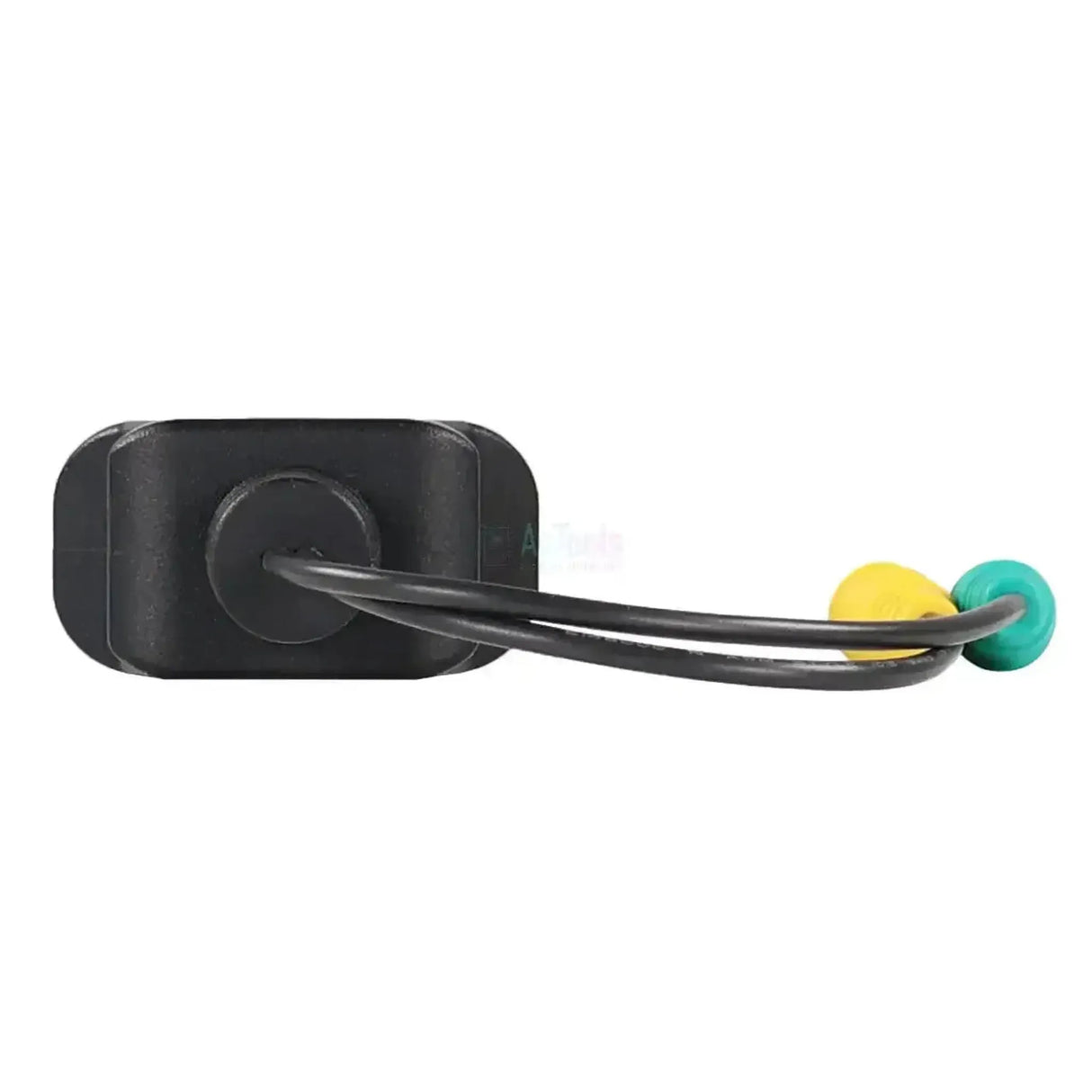

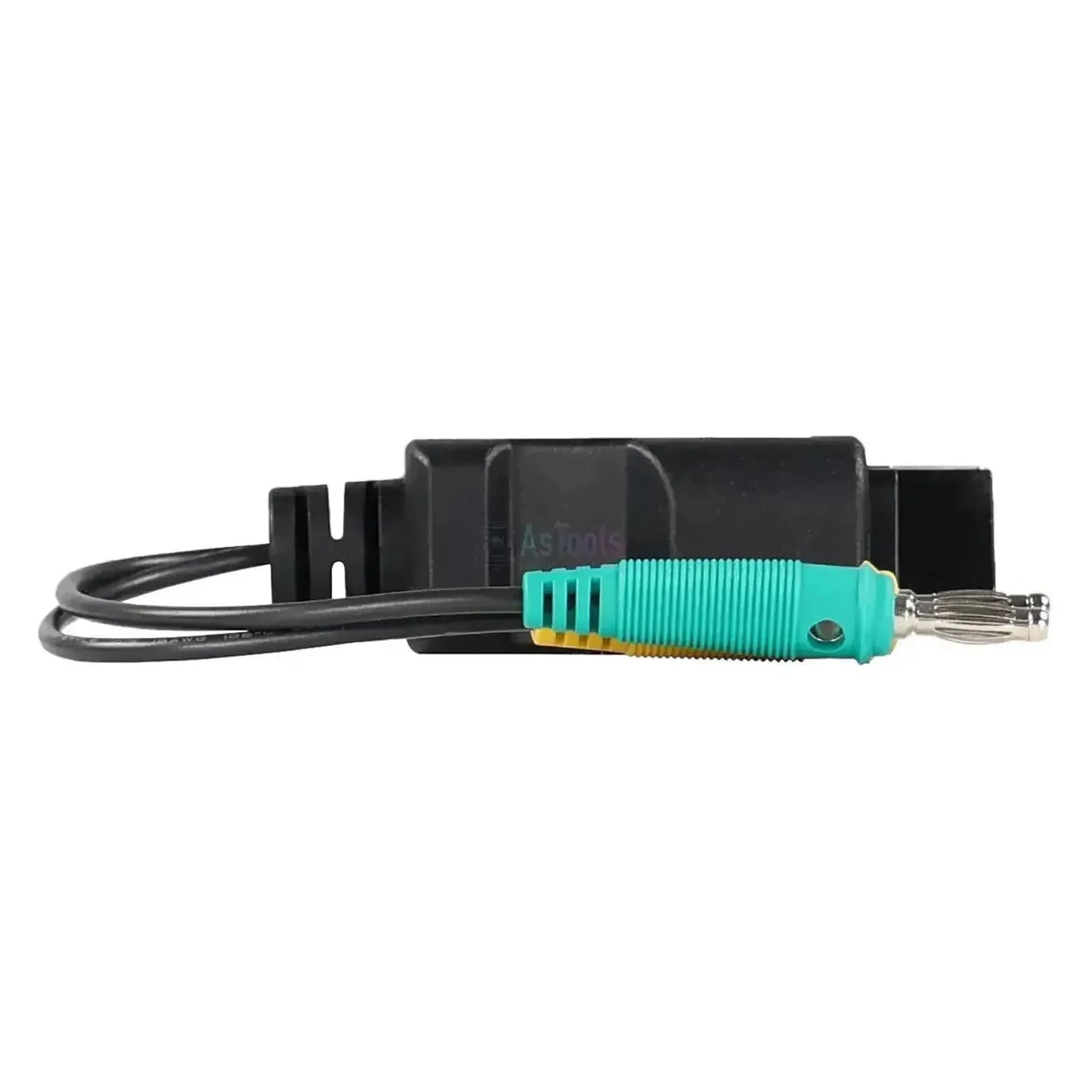

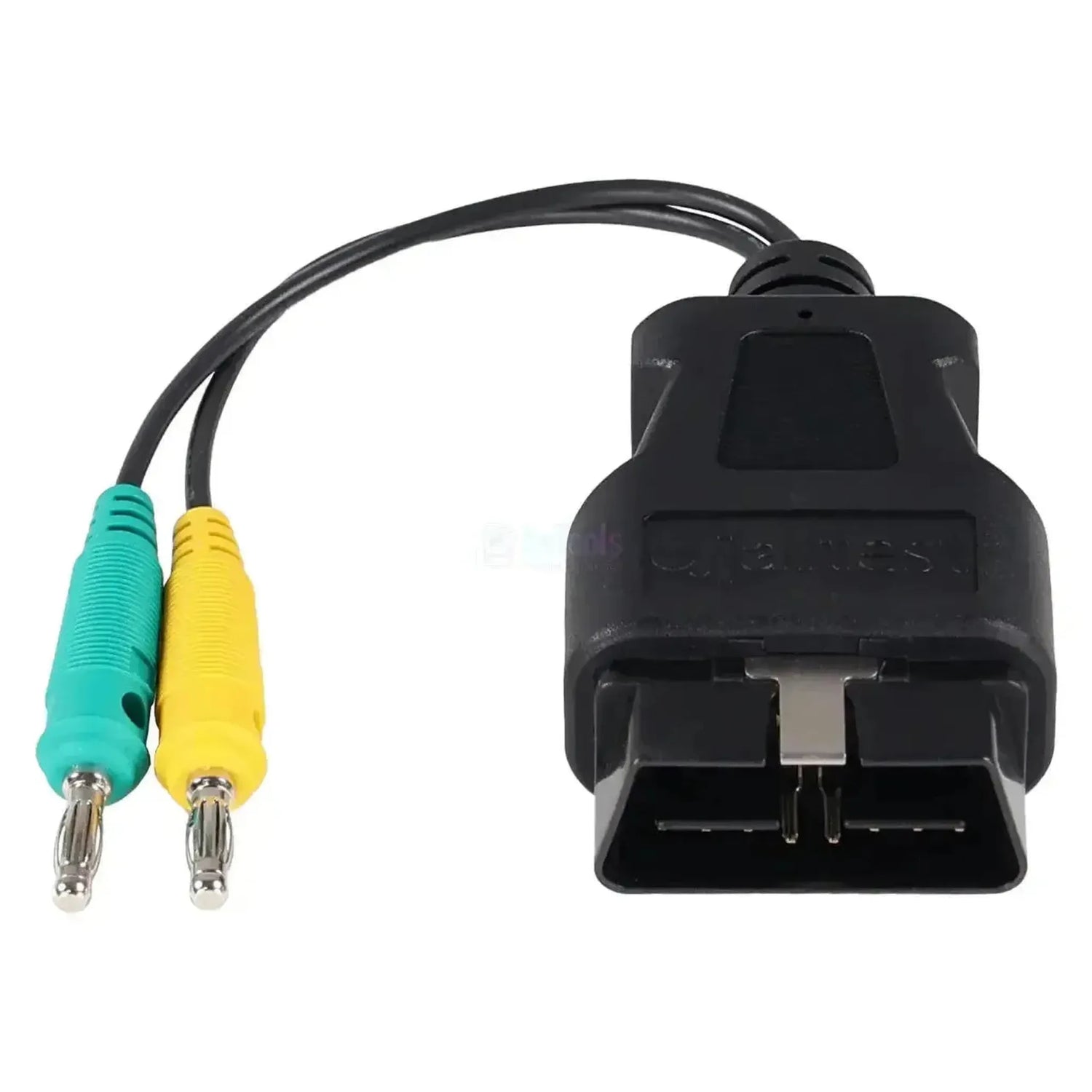

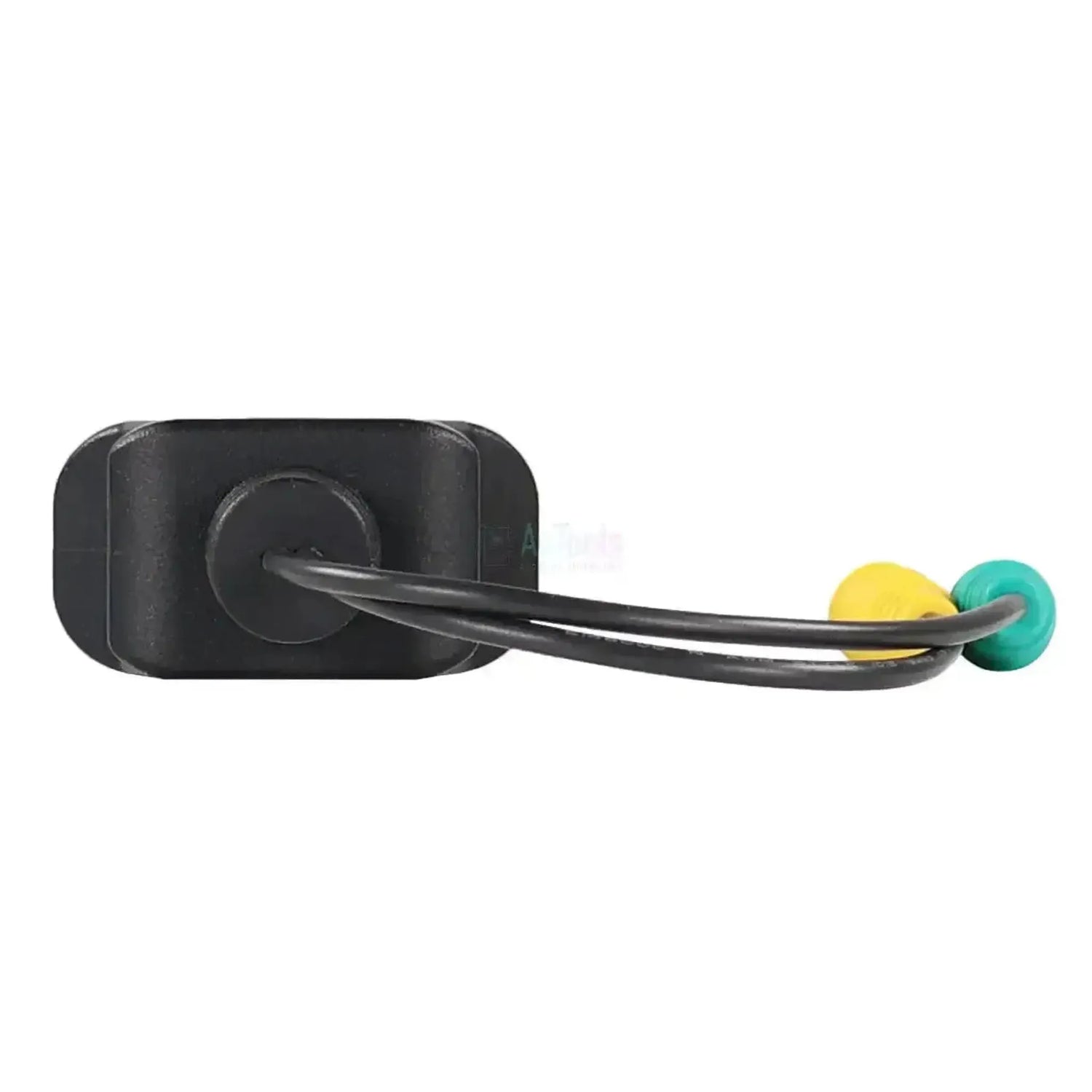

\nThe Jaltest MDC13 is the ETM multipin cable for speed sensors. On one end there is a 16-pin OBD2 connector in a black housing marked MDC13; this connects to the Jaltest ETM. On the other side, two loose wires run to two loose measurement pins of the banana plug type, one green and one yellow. This allows you to connect directly to the speed sensor: There is no fixed mating connector included; you insert the two pins yourself onto the contacts. That is what multipin means in this context.\n
\nWith this connection you measure speed sensors from commercial vehiclesthrough with theJaltest ETM, the diagnostic modulewhereby you assess components independently of the control unit. The cable does not work standalone: you will need the ETM itself in addition to it on aJaltest Link, with a ETM licence and a running CV or Modular software licence.\n
KEY FEATURES
IMPORTANT NOTES
Applications and functionality
Via this cable, the Jaltest ETM directly with the speed sensor, without intermediary control unit of the vehicle. Below you will find what the cable is used for used and what the ETM does in this context.
What this cable is used for
- Speed sensor testing:This is the auxiliary cable for speed sensors on commercial vehicles.
- Probing with individual test leads:You place the green and yellow test leads yourself on the sensor connection contacts.
- Trailer adapter MDC14:Same configuration with three measurement pins, designed for the brake pad wear sensor.
- Always paired with the ETM:The cable is used with the Jaltest ETM on a Jaltest Link.
What the ETM does
- Test components:The ETM is the test module for components within Jaltest.
- EBS modulators:The MDC02 to MDC09 cables are designed for the EBS modulators from Knorr-Bremse and Wabco.
- Speed sensors:For this purpose, there are MDC12 and MDC13.
- Brake pad wear sensors:For that purpose, there are MDC10, MDC11 and MDC14.
- Connection to the Jaltest Link:Via the ETM interface for V9 (70001007), or via the MDC100.9 adapter cable for an earlier ETM version.
What you'll need
- Jaltest ETM:The component test module itself.
- Jaltest Link:The ETM connects via the ETM interface for V9 (70001007), or via the MDC100.9 adapter cable for earlier ETM versions.
- ETM licence:Without that licence, the ETM will not operate. The annual renewal has reference 29701.
- A valid Jaltest software licence:A CV licence or a Modular licence. Other modules cannot be combined with the ETM.
Package Contents
- 1x Jaltest (MDC13) | ETM Multipin Adapter Cable (Speed Sensor) | Commercial Vehicle
Technical specifications
| Specification | Description |
|---|---|
| Brand | Jaltest (Cojali) |
| Reference number | MDC13 |
| Type | ETM multipin cable, physical item |
| Application | Measure speed sensors using the Jaltest ETM |
| Machine-side connection | Two loose measurement pins of the banana plug type, one green and one yellow |
| Interface-side connection | 16-pin OBD2 connector in a black housing marked MDC13 |
| Length | 24.5 to 25.5 cm |
| Interface | Jaltest Link V8.1 and V9 |
| Counterpart | MDC14, three measurement pins, for brake pad wear sensors |
| Part of cable set | Multipin kit for the ETM (JTP98) |
| Required to use | Jaltest ETM + Jaltest Link + ETM licence + active Jaltest software licence |
| Supported licences | CV or Modular |
| Not supported | Jaltest handhelds |
| Annual ETM renewal | 29701 |
| Delivery | Physical item, shipped |
