The Jaltest 74502005 is the software activation for Jaltest Marine Jet Skis, the diagnostic module for jet skis. It's a one-time purchase: The activation unlocks the jet ski software on your Jaltest equipment and remains valid thereafter, with no expiration date. We link the activation to the serial number of your Jaltest Link and activate it within one business day after your order.
With this activation alone, you cannot yet diagnose. Jaltest requires three components: The Jaltest Link, the software activation, and also the software license for the first year (74502017). From the second year onwards, you continue with the update license (74602005). This activation is therefore the foundation on which the annual licenses rest; you purchase it once and never again.
KEY BENEFITS
IMPORTANT NOTES
Applications and Features

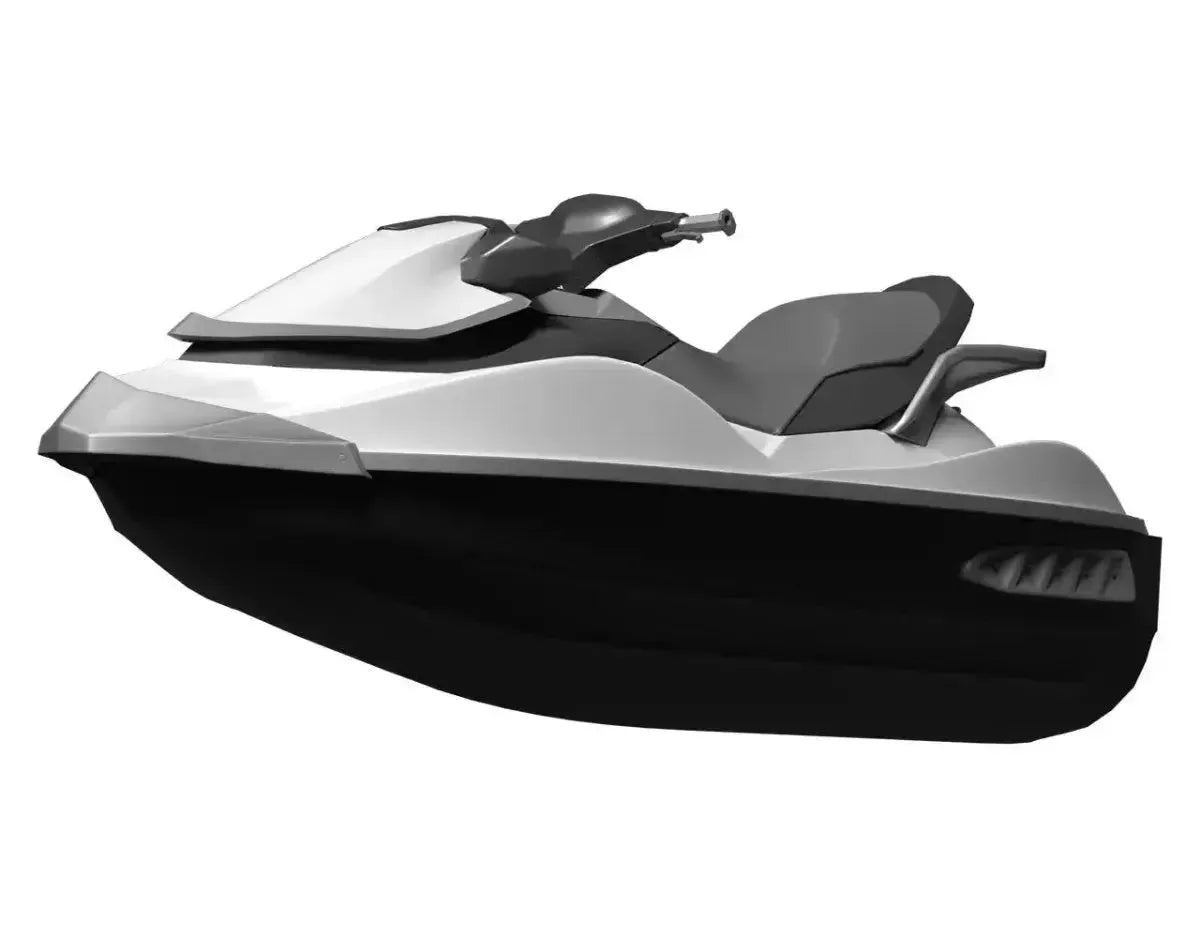

Jaltest Marine Jet Skis is the module for jet skis. This activation unlocks that module; what you can do with it depends on the vessel and the cable you use.
What the jet ski module covers
- Jet skis: Engine management and associated control units.
- BRP Seadoo: Via the JDC602A cable from the jet ski cable set.
- Other connections: Via the JDC610A, JDC641M, JDC660M, JDC661M and JDC662M cables from the same set.
- Yamaha: Requires a separate Yamaha cable. This is not included in set 29985, but is included in the Marine Complete (74502001) and Vessel (70002008) sets.
- Beyond this module: Inboard, outboard, gasoline engines and onboard electronics; for these you need Marine Vessel (74502002) or Marine Complete (74502001).
What you can do
- System scan: Display all available control units and identify any fault codes.
- Read and clear fault codes: Read the fault memory per control unit, including descriptions of the faults.
- Live data and sensor readings: Request sensor values and monitor them in real-time while operating or running the watercraft.
- Component actuation: Activate actuators individually to determine whether a fault originates in the component itself or in the wiring.
- Parameters and calibrations: Write settings and perform the calibration procedures that Jaltest offers for each system.
- Service resets: Reset service and maintenance intervals.
What you'll need
Jaltest requires three components to perform diagnostics.This activation is one of them; the complete setup is detailed below.
- Jaltest Link: The diagnostic interface. Required, and also needed to launch the software on your PC.
- Software activation (74502005): This product. One-time purchase, valid indefinitely.
- First-year software license (74502017): The annual license that gives you full access to the software.
- Update license (74602005): From year two onwards, for continuous access and new software versions.
- Diagnostic cables: The jet ski cable set (29985), supplemented with the Yamaha cable if you service Yamaha jet skis. Cables are not included.
Jet skis are one of six marine variants. If you also service other vessels, Marine Vessel (74502002) covers inboard, outboard, gasoline engines and onboard electronics, while Marine Complete (74502001) brings all marine segments under a single activation. These modules are purchased separately.
What's included
- 1x Jaltest (74502005) | Marine (Jet Ski) | Software activation, digitally delivered to your Jaltest Link serial number
Technical specifications
| Specification | Description |
|---|---|
| Brand | Jaltest (Cojali) |
| Reference number | 74502005 |
| Type | Software activation, one-time |
| Module | Jaltest Marine (Jet Skis) |
| Validity | Unlimited; no expiration date |
| Activation | By us, on the serial number of the Jaltest Link, within 1 business day |
| Required to use | Jaltest Link + software license first year (74502017) |
| Renewal from year 2 | Update license (74602005) |
| Number of installations | Maximum 5 PCs per license |
| Registration | Every six months and after a new software version |
| Delivery | Digital, no physical shipment |
To ensure you always have access to the latest software updates and releases for your Jaltest device, it's important that you register the correct distributor.
Only the authorized distributor can perform new software installations and updates. When you designate us as your distributor, we can handle this for you and guarantee that your device stays current and runs smoothly.
How does it work?
-
Download and complete the change form
You can find the form as a PDF file here. -
Send us the completed form
You can easily do this by email to support@astools.eu. -
We'll take care of the rest
With the form, we can notify Jaltest of the change and officially register you as our customer.
