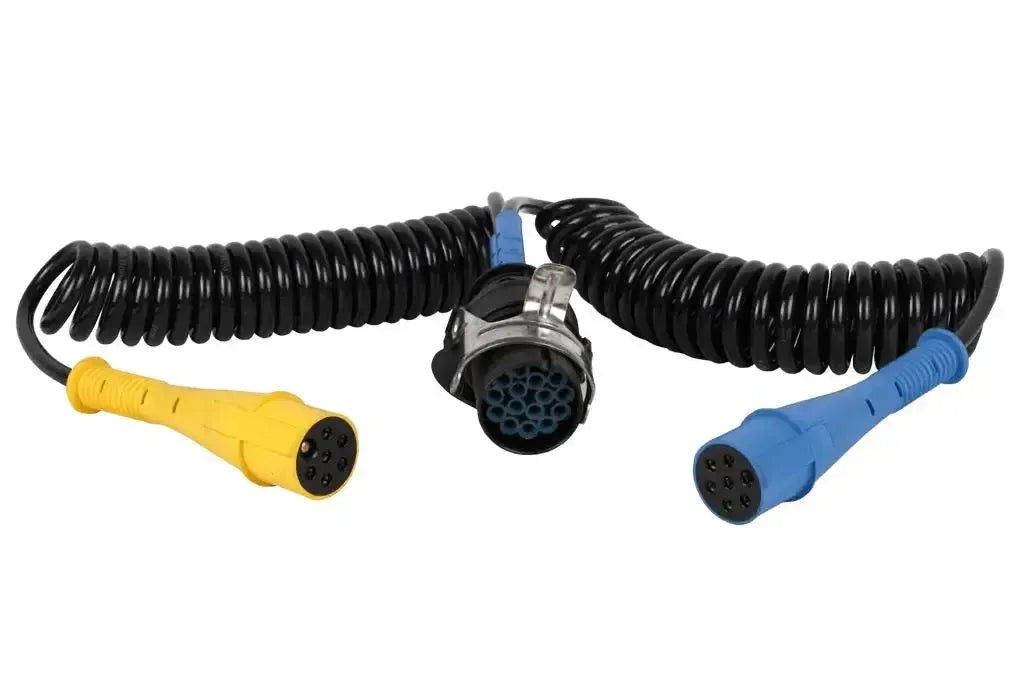

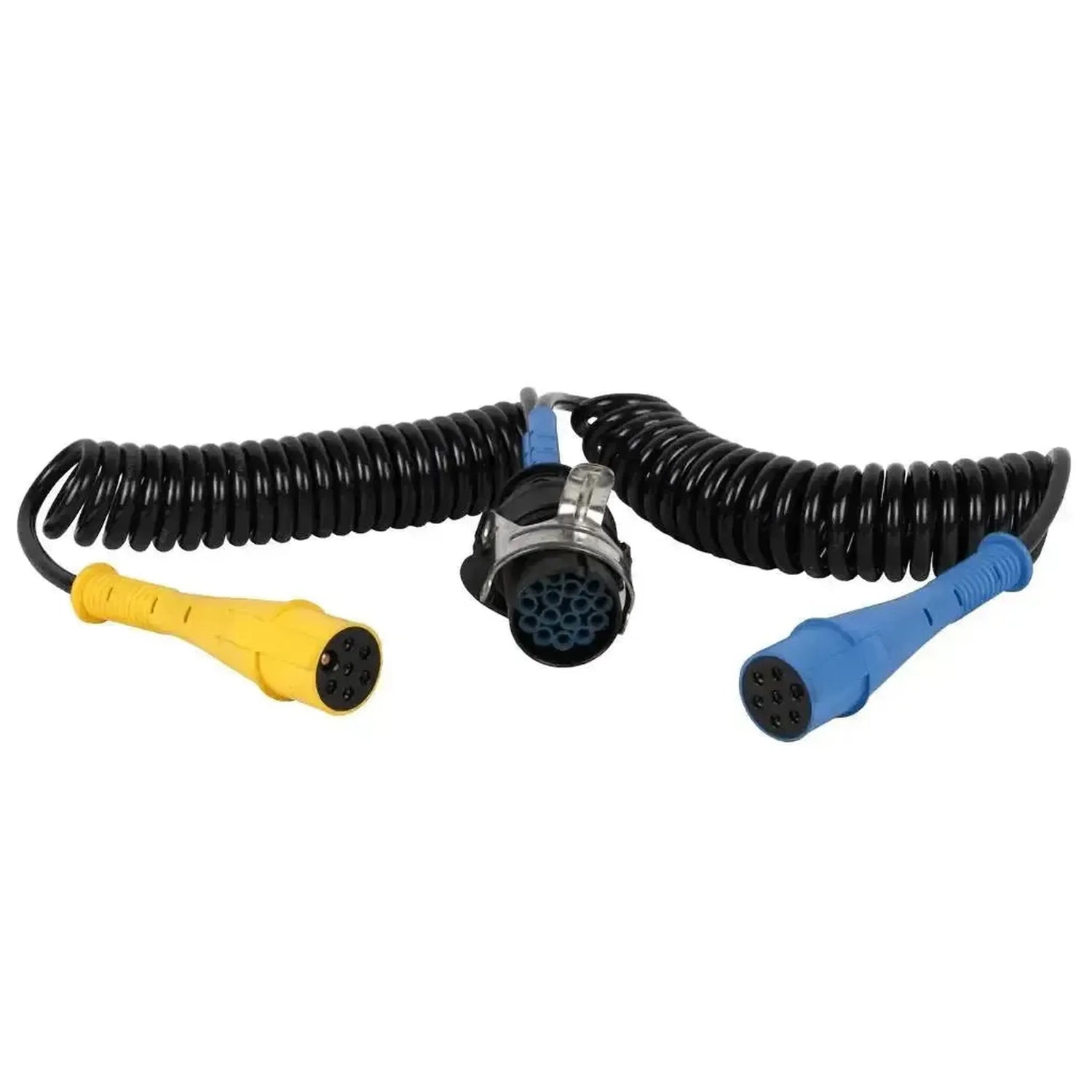

The Cojali 2260136 is a 24 V spiral cable that connects a 15-pin plug (ISO 12098) to two 7-pin plugs: a Type N (ISO 1185, black) and a Type S (ISO 3731, white). Cojali has wired it with the pin assignment for Iveco.

You use the cable between a tractor with a 15-pin connection and a trailer with the 7-pin connections 24N and 24S. The Cojali catalogue also lists it as an optional cable for the Jaltest PTE, the test device for power and signals between tractor and trailer.

HIGHLIGHTS

✔In addition to lighting, fog light and reversing light, the cable also connects pins 10, 11 and 12 of the 15-pin plug, so that the Iveco-specific signals arrive at the 7-pin plugs.

✔The black 24N and white 24S plugs can be told apart by colour, so you can connect them correctly in one step.

✔The permanent +24 V of pin 9 goes to pin 4 and pin 6 of the 24S, so that both power pins receive trailer voltage.

✔With a maximum length of 4.0 m and an operating temperature of -40 to 80 °C, the cable is suitable for daily outdoor use.

POINTS TO NOTE

✕The pin assignment is matched to Iveco; the version for Mercedes-Benz is 2260135 and the general version is 2260108.

✕Pins 13, 14 and 15 of the 15-pin plug are not connected through, so CAN signals from the 15-pin connection are not carried.

✕For the EBS/ABS connection you also need a cable with ISO 7638, such as the 2260113.

✕For 24 V systems only; the cable is not intended for 12 V trailers.

Applications and functions

The cable connects a tractor with a 15-pin connection to a trailer with a 24N and 24S connection, or serves as a test cable with the Jaltest PTE.

What the cable connects

Lighting to 24N: Indicators, brake light and rear lights.
Fog light to 24S: From pin 3 to 24S pin 7.
Reversing light: From pin 8 to 24S pin 3.
Power to 24S: Pin 9 to 24S pins 4 and 6.
Iveco signals: Pin 10 to 24N 7, pins 11 and 12 to 24S.
Earth: Pin 4 to pin 1 of both plugs.

What you can do

Coupling: Electrically connect tractor and trailer.
Testing: Read the signals with the Jaltest PTE.
Replacing: Replace a worn spiral cable.

How to use it

Check the plugs: Check that the pins are clean and straight.
Connecting Type N: Insert the black plug into the 24N on the trailer.
Connecting Type S: Insert the white plug into the 24S on the trailer.
Connecting the 15-pin: Insert the 15-pin plug into the tractor or the PTE.
Checking functions: Check lighting and power per function.

Compatible vehicles and applications

The pin assignment for Iveco is decisive. The cable fits a tractor with a 15-pin connection to ISO 12098 and a trailer with 7-pin connections to ISO 1185 and ISO 3731.

ISO 12098 to ISO 1185 and ISO 3731:

Iveco tractors with 15-pin connection: With a trailer with 24N and 24S.

💡

Good to know: The three 15-pin to 2x 7-pin cables differ only in pin assignment. The 2260108 leaves pins 10 to 15 unused, the 2260136 also connects pins 10, 11 and 12, and the 2260135 connects pins 12 and 15. The Type N is black, the Type S white.

Package contents

1x Cojali (2260136) | Iveco 7-pin - 15-pin Type-S/N Spiral Cable | Trailer

Technical specifications

General

The brand of the cable or adapter. It often has to match the brand of your diagnostic tool.Brand: Cojali
The type of product: a separate adapter cable, an adapter without a cable or a complete set.Product type: Coiled cable

Connections

The on-board voltage at which the cable works. Lorries and trailers usually use 24 V.Voltage: 24 V
The temperature range within which the cable can be used safely.Operating temperature: -40 to 80 °C

Size and weight

The length of the cable. A longer cable gives more freedom of movement with a port that is difficult to reach.Cable length: 400 cm
Reference number: 2,260,136

Other specifications

Application: Electrical connection between tractor and trailer, Iveco pin assignment
Tractor side connection: 15-pin ISO 12098 (male)
Trailer side connection: 7-pin Type N (ISO 1185, black) and 7-pin Type S (ISO 3731, white)
Standard: ISO 12098, ISO 1185, ISO 3731
