Cojali (2260109) | 15-pins Type-S/N Spiral Cable | Trailer

Name: Cojali (2260109) | 15-pins Type-S/N Spiral Cable | Trailer
Brand: Cojali
SKU: 2260109
Price: 158.95 EUR
Availability: InStock

€158,95 incl.

€131,36 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

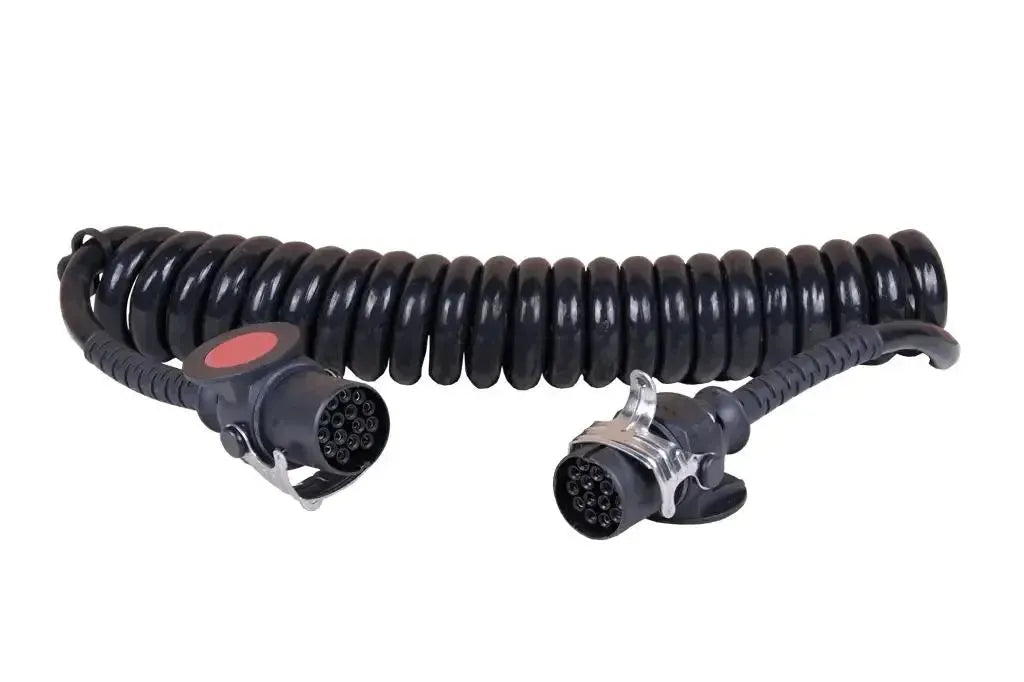

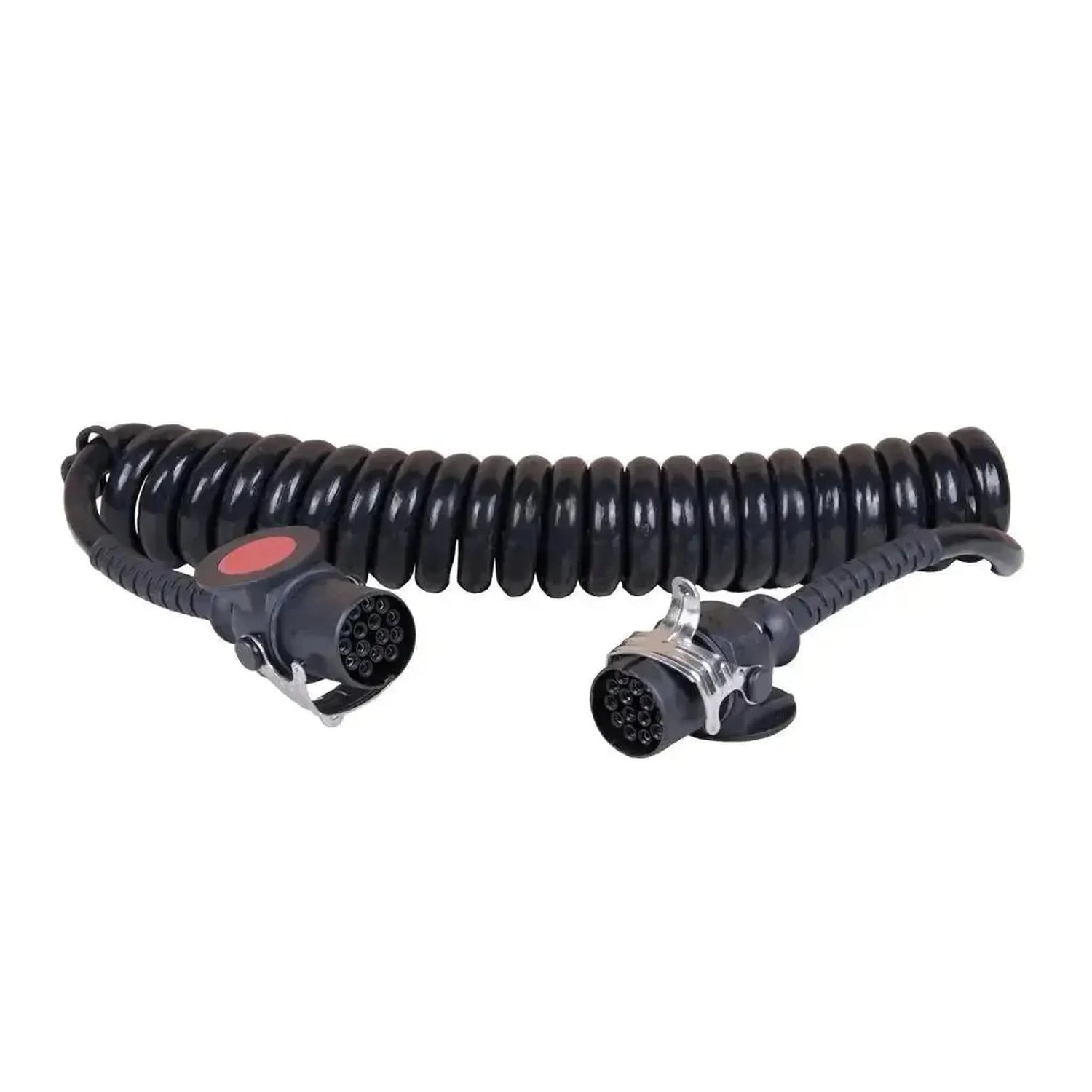

The Cojali 2260109 is a 24V coiled cable with a 15-pin plug at each end conforming to ISO 12098. All fifteen pins are wired one-to-one, so the cable connects the tractor's 15-pin connector directly to that of the trailer.

Through the 15-pin connector, the standard carries the lighting, rear fog light, reversing light, permanent power supply and signals such as brake wear, parking brake and lift axle. The Cojali catalogue also lists the cable as an optional cable for the Jaltest PTE.

HIGHLIGHTS

✔All fifteen pins are wired through, so the signals for brake wear, parking brake and lift axle are also included.

✔No conversion to 7-pin: A direct connection between two 15-pin connectors.

✔Cojali lists, among others, WABCO 4460087100 and Volvo 20730342 as comparable references.

✔With a maximum length of 4.5 m and an operating temperature of -40 to 80 °C, the cable is suitable for daily outdoor use.

POINTS TO NOTE

✕CAN pins 14 and 15 of ISO 12098 are not for EBS/ABS; for that you need the ISO 7638 cable 2260113.

✕If the trailer has 7-pin connectors 24N and 24S, choose the 2260108, 2260135 or 2260136.

✕A 13-pin connector looks similar to the 15-pin but has a different pin layout and does not fit.

✕For 24V systems only; the cable is not intended for 12V trailers.

Applications and functions

The cable connects the 15-pin connector of tractor and trailer, or serves as a test cable with the Jaltest PTE.

What the cable connects

Pins 1 to 3: Indicators and rear fog light.
Pins 5 to 8: Rear lights, brake light, reversing light.
Pin 9: Permanent +24 V.
Pins 10 to 12: Brake wear, parking brake and lift axle.
Pins 14 and 15: CAN, not for EBS/ABS.
Pins 4 and 13: Earth.

What you can do

Coupling: Electrically connect tractor and trailer.
Testing: Read the signals with the Jaltest PTE.
Replacement: Replace a worn coiled cable.

How to use it

Check the plugs: Make sure the pins are clean and straight.
Finding the connector: Locate the 15-pin socket on the trailer.
Connecting the trailer side: Insert a plug into the trailer.
Connecting the tractor side: Insert the other plug into the tractor or PTE.
Checking functions: Check the lighting and signals function by function.

Compatible vehicles and applications

The deciding factor is the 15-pin connector to ISO 12098 on both ends. The cable fits tractors and trailers that both have that connector.

ISO 12098:

Tractors and trailers with 15-pin connector: According to ISO 12098.

💡

Good to know: You can recognise the 15-pin plug by its round housing with fifteen pins. Count the pins before ordering, as the 13-pin version looks similar but has a different layout.

Package contents

1x Cojali (2260109) | 15-pin Type-S/N Coiled Cable | Trailer

Technical specifications

General

The brand of the cable or adapter. It often has to match the brand of your diagnostic tool.Brand: Cojali
The type of product: a separate adapter cable, an adapter without a cable or a complete set.Product type: Coiled cable

Connections

The on-board voltage at which the cable works. Lorries and trailers usually use 24 V.Voltage: 24 V
The temperature range within which the cable can be used safely.Operating temperature: -40 to 80 °C

Size and weight

The length of the cable. A longer cable gives more freedom of movement with a port that is difficult to reach.Cable length: 450 cm
The weight of the cable or adapter.Weight: 2.17 kg
Reference number: 2,260,109
