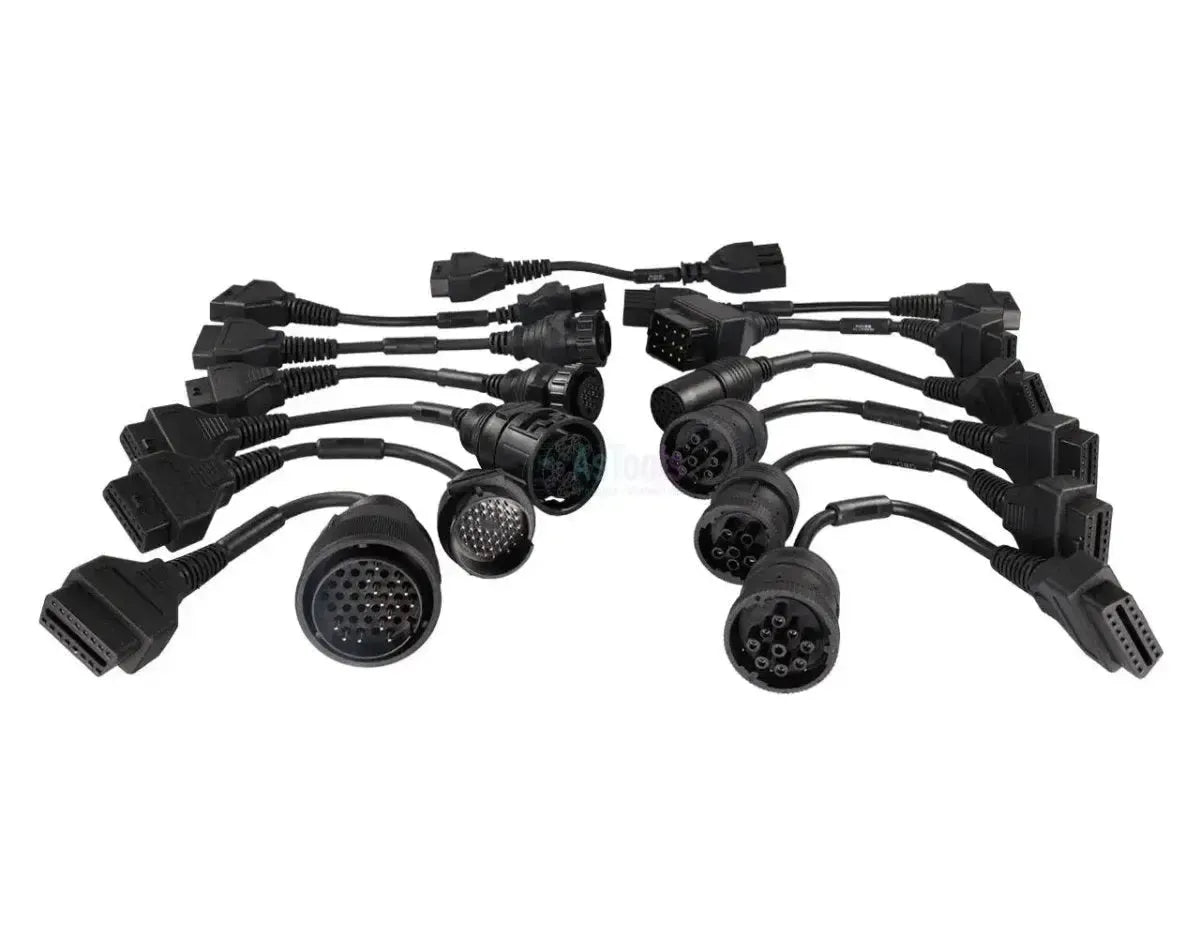

The Topdon HD Non-16 Pin Cable Set is a collection of diagnostic adapters designed to connect compatible Topdon diagnostic devices with heavy-duty vehicles. This set provides a solution for vehicles not equipped with a standard 16-pin OBD2 connector, such as trucks, buses, and construction machinery. The adapters enable communication with the various onboard computer systems of these specific vehicle categories.
With this cable set, technicians can perform diagnostic functions on a wide range of commercial vehicles. The adapters support various brand-specific connectors and industry-standard protocols, including SAE J1939 and SAE J1708. This enables the user to maintain a comprehensive fleet with a single diagnostic system, without the need for multiple separate scan tools per brand.
Application and functionality:
The cable set is intended to make a universal Topdon diagnostic tester compatible with the various non-standardized diagnostic ports common in the heavy-duty sector. Each cable is designed for a specific connector or vehicle brand.
- OBD-6 & OBD-9: Adapters for vehicles using the American SAE J1708 and SAE J1939 communication protocols, common in the transport sector.
- OBD-16: Adapter for specific Euro III, Euro IV, and China III vehicle models.
- Benz-14: Adapter for diagnostics on older Mercedes-Benz trucks and commercial vehicles with a 14-pin round connector.
- CAT-9: Adapter specifically for Caterpillar engines and equipment with a 9-pin connector.
- Isuzu-3 & Isuzu-20: Adapters for various Isuzu trucks and commercial vehicles with 3-pin or 20-pin connectors.
- Iveco-30 & Iveco-38: Adapters for Iveco vehicles with respectively a 30-pin or 38-pin diagnostic port.
- MAN-12 & MAN-37: Adapters designed for MAN vehicles with a 12-pin or 37-pin connector.
- Renault-12: Adapter for diagnostics on Renault trucks with a 12-pin connection.
- Volvo-8PIN: Adapter for Volvo trucks and heavy equipment equipped with an 8-pin diagnostic connector.

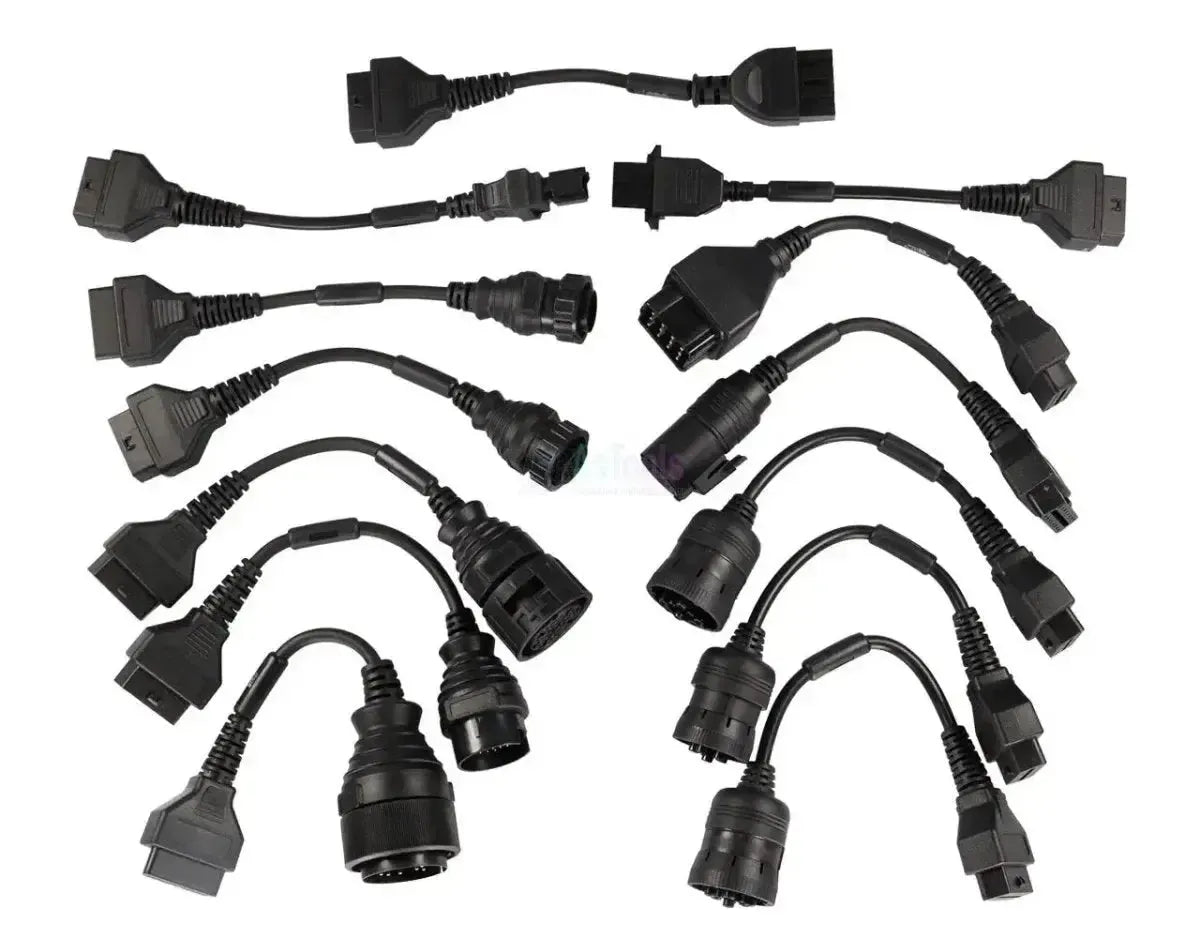

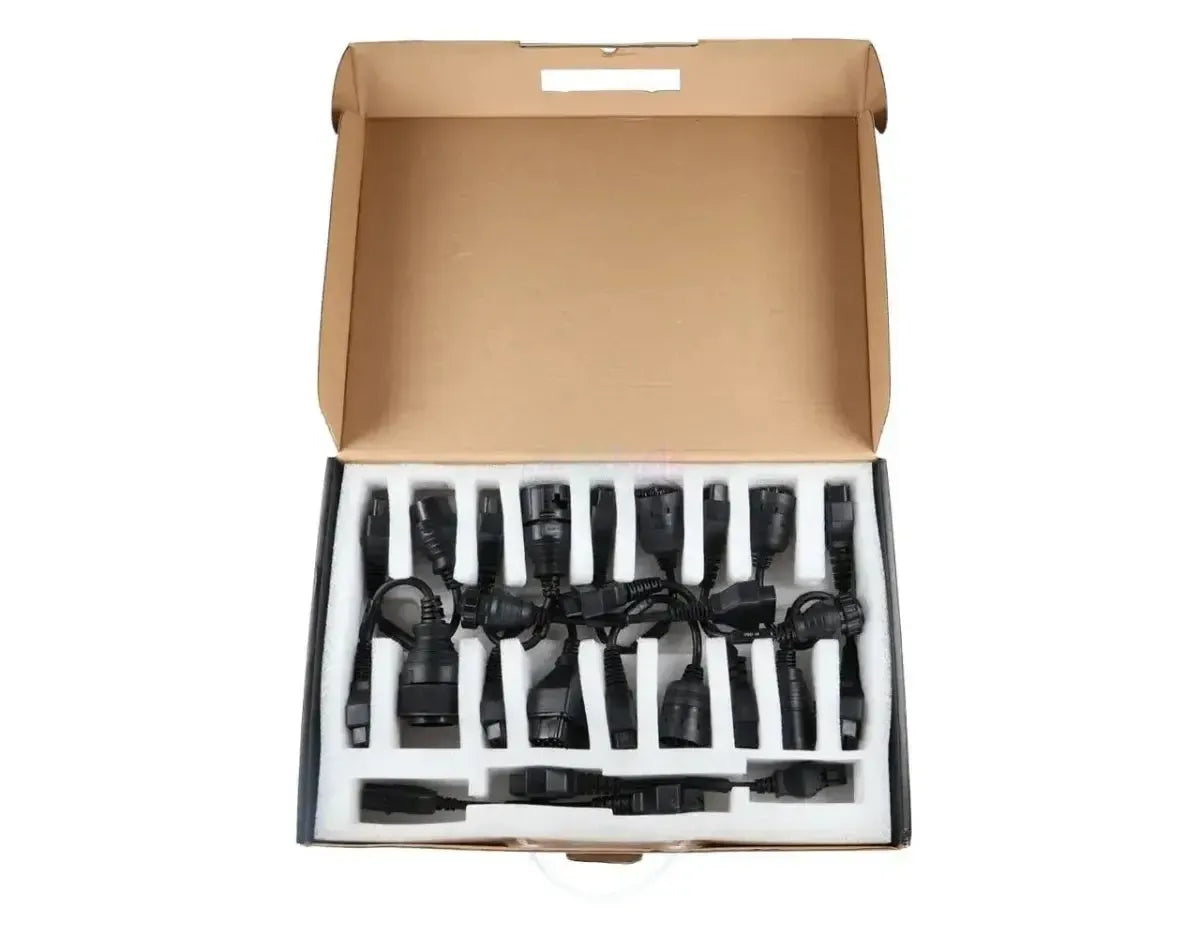

Package Contents:
- 1x Benz-14 Adapter
- 1x CAT-9 Adapter
- 1x Isuzu-20 Adapter
- 1x Isuzu-3 Adapter
- 1x Iveco-30 Adapter
- 1x Iveco-38 Adapter
- 1x MAN-12 Adapter
- 1x MAN-37 Adapter
- 1x OBD-16 Adapter
- 1x OBD-6 cable
- 1x OBD-9 cable
- 1x Renault-12 Adapter
- 1x Volvo-8PIN Adapter
Technical specifications:
| Specification | Description |
|---|---|
| Brand | Topdon |
| Model | HD Non-16 Pin Cable Set |
| Application | Diagnosis of heavy-duty vehicles (trucks, buses, agricultural and construction machinery) |
| Compatibility | Designed for use with Topdon Phoenix series and other compatible diagnostic devices |
| Supported brands | Caterpillar, Isuzu, Iveco, MAN, Mercedes-Benz, Renault, Volvo and vehicles with SAE standards |
