OBDSTAR | SKU: M062

OBDSTAR (M062) | Suzuki 4-pins OBD – 16-pins OBD2 Adapter Cable | Motorboat

Name: OBDSTAR (M062) | Suzuki 4-pins OBD – 16-pins OBD2 Adapter Cable | Motorboat
Brand: OBDSTAR
SKU: M062
Price: 27.95 EUR
Availability: InStock

€27,95 incl.

€23,10 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

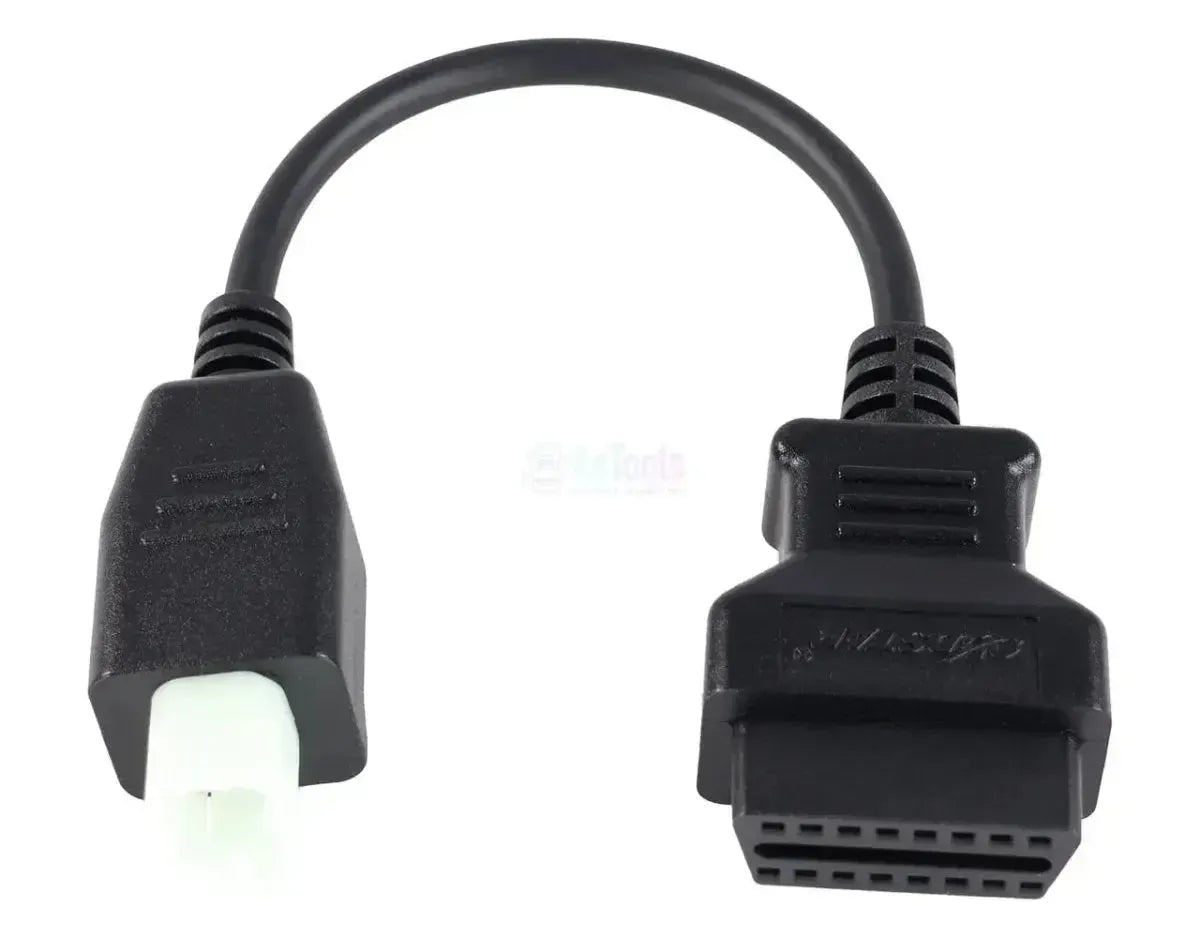

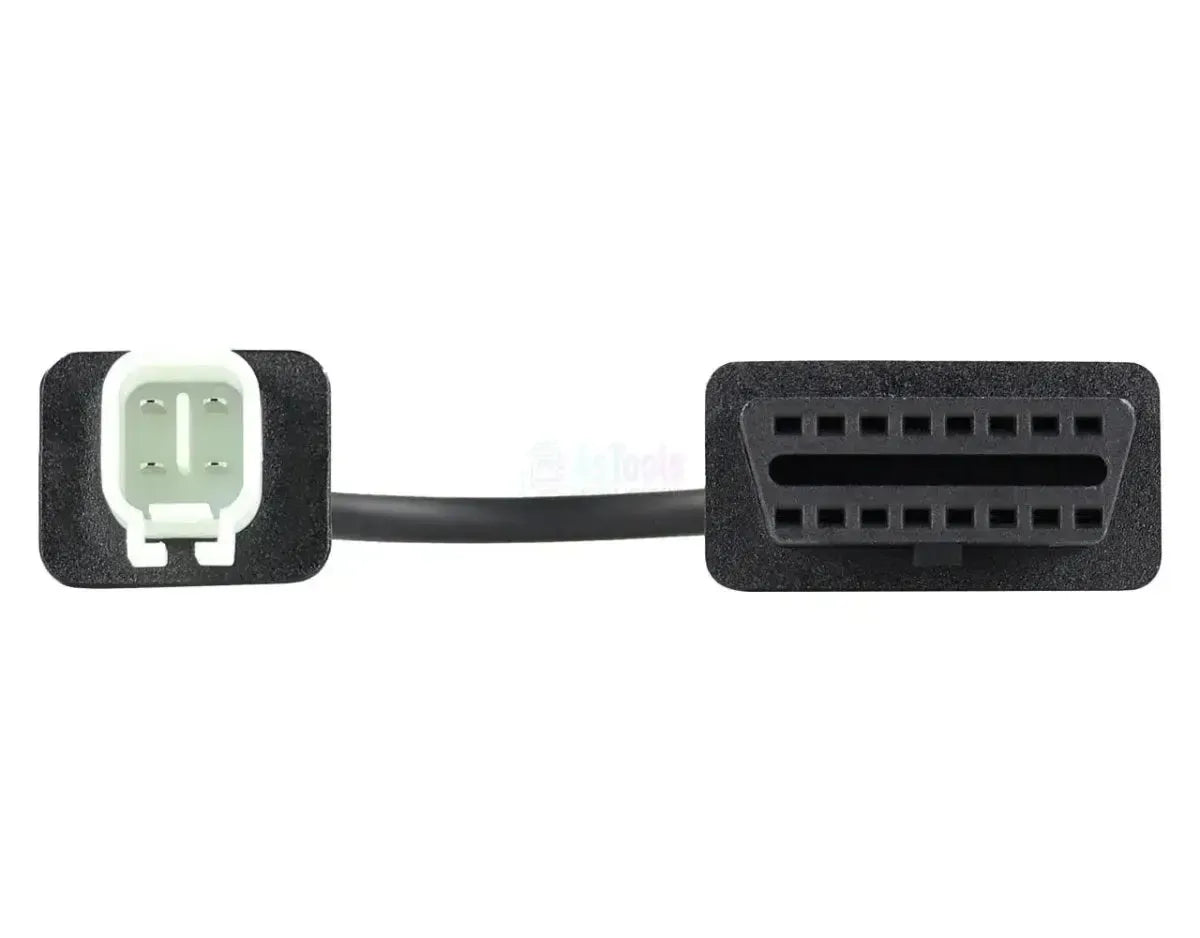

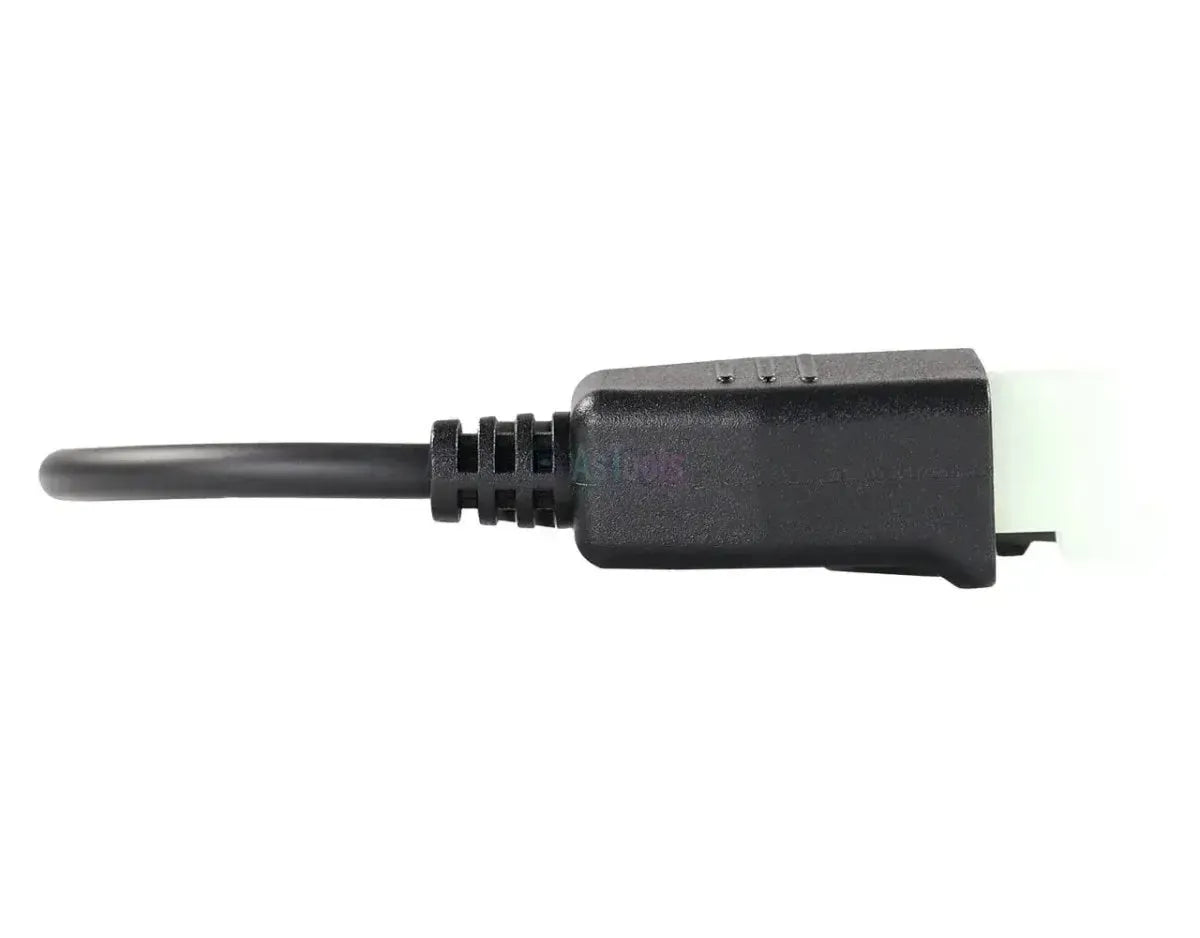

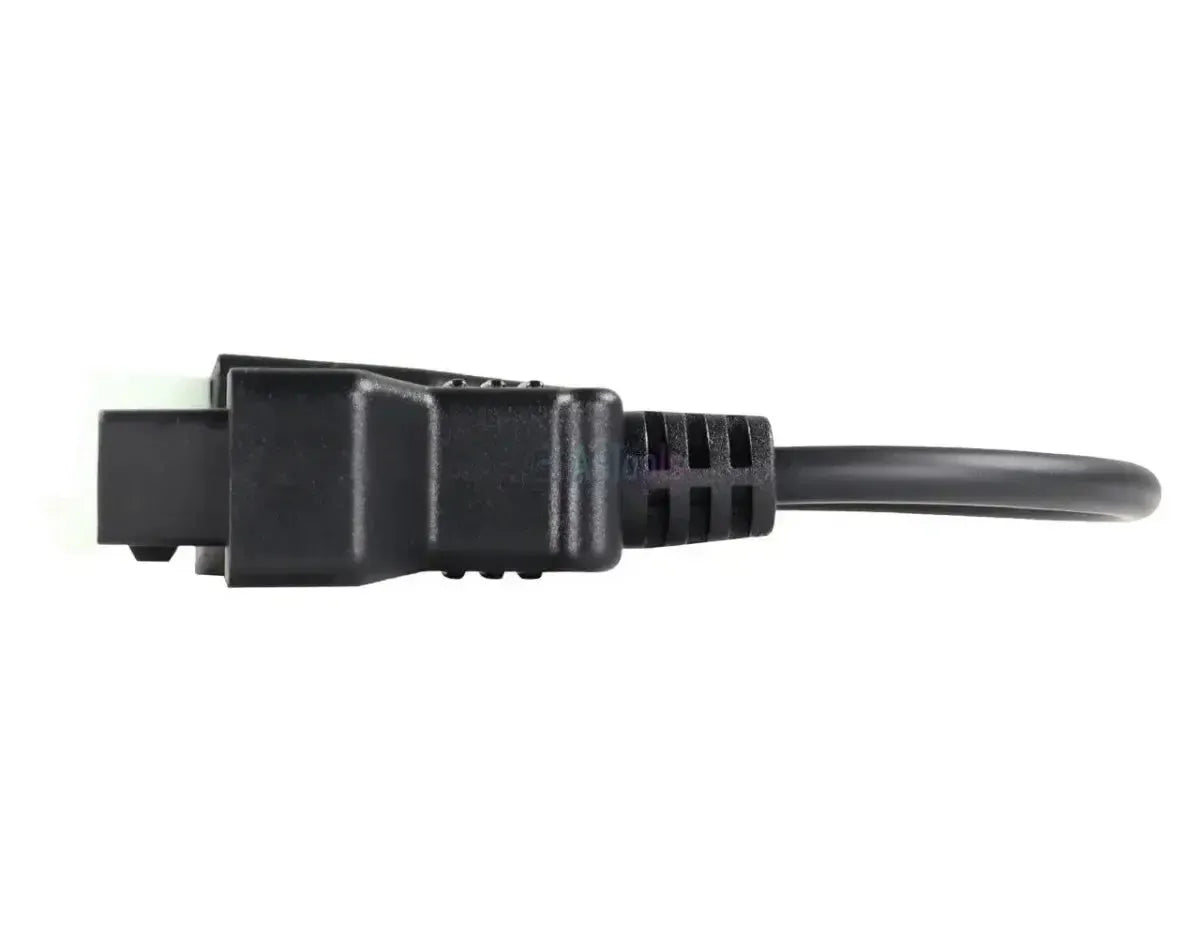

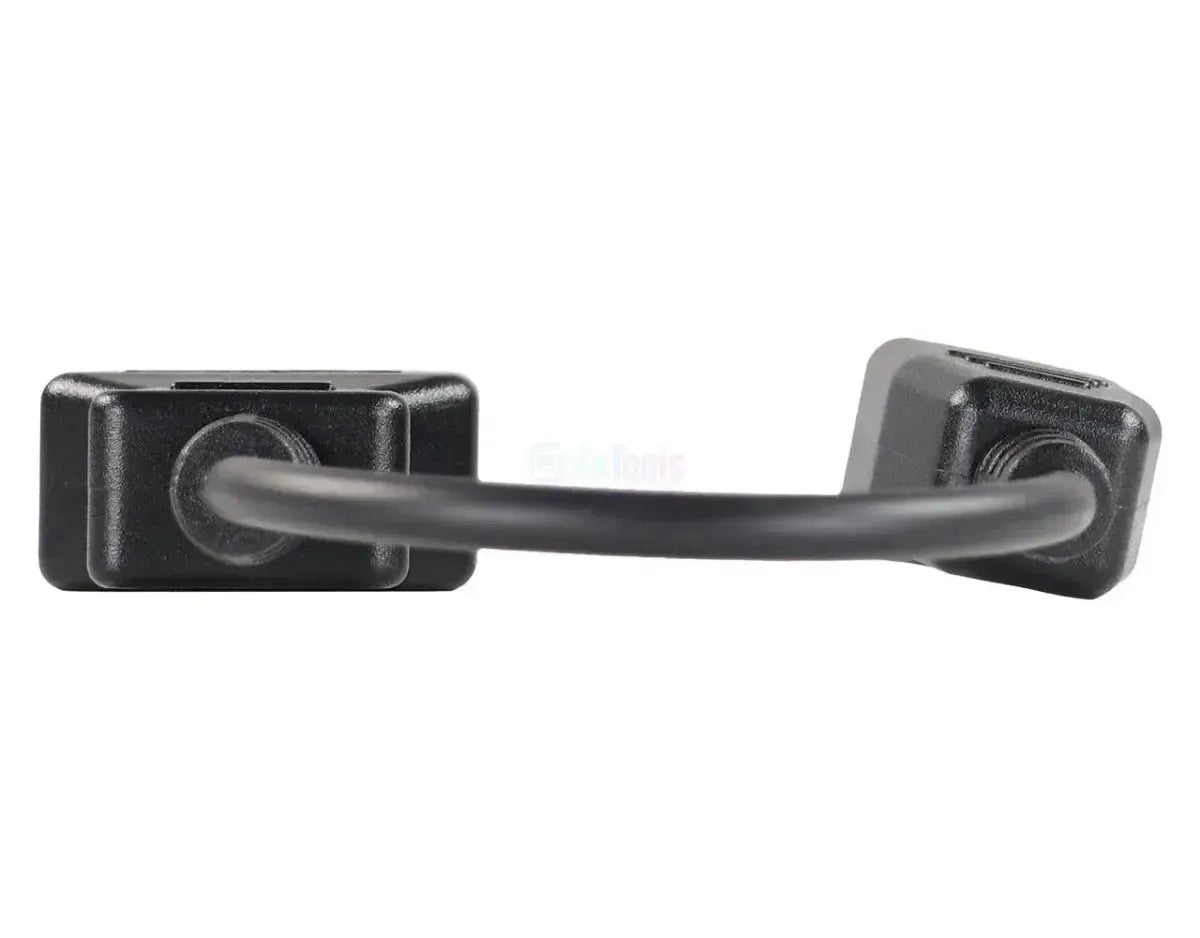

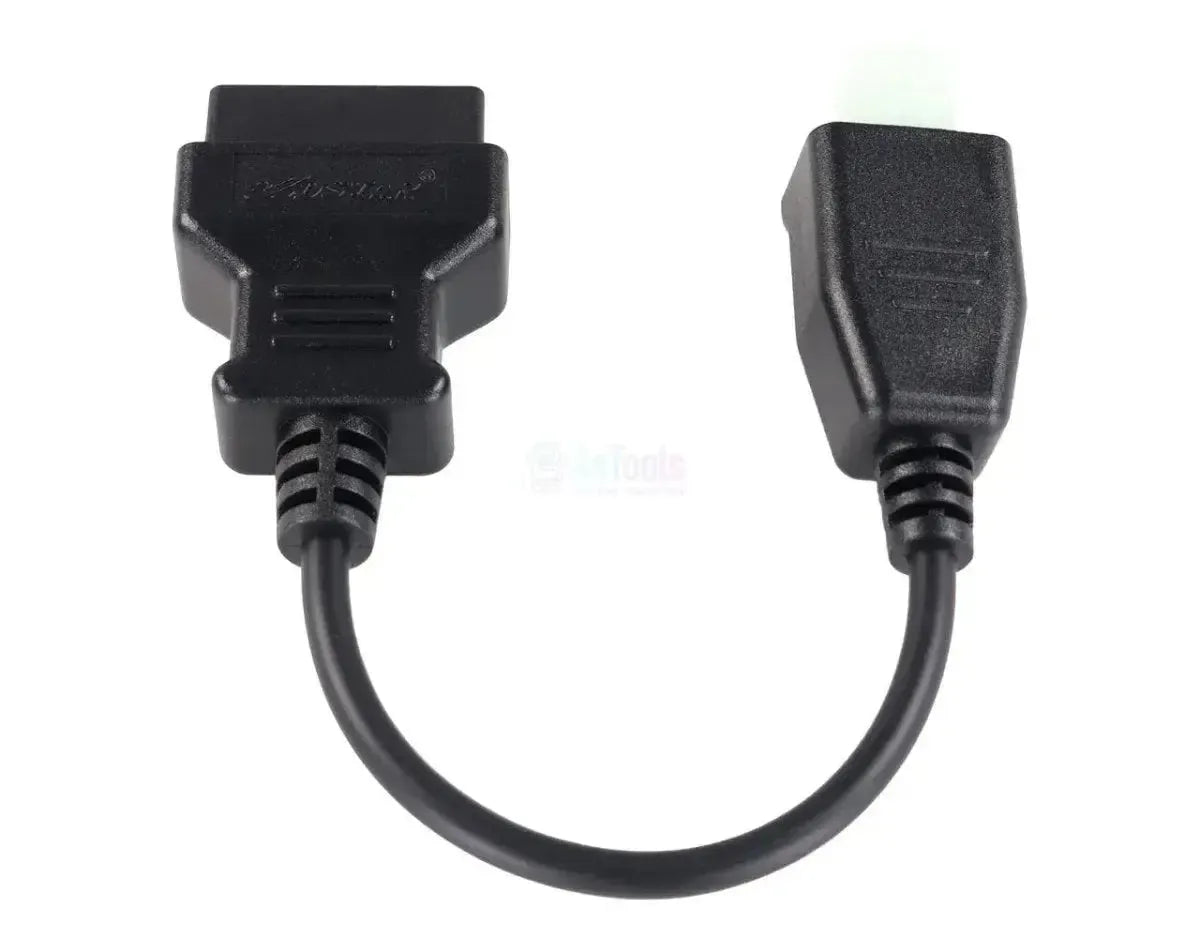

The OBDSTAR M062 connects the square 4-pin diagnostic connector of Suzuki outboard motors to the 16-pin OBD2 end of the main cable of your OBDSTAR device. The connector is usually located close to the engine control unit, under the engine cover.

OBDSTAR supplies the cable with the iScan Suzuki (Marine), the MarineMaster and the D700A. With the cable, you can read fault codes and live data from the engine control unit of the outboard motor. Older engines with the round 8-pin connector require the M069. The device itself must support the Suzuki Marine diagnostics.

BENEFITS

✔Makes the 4-pin Suzuki Marine connector accessible to your OBDSTAR device.

✔One cable for DF outboard motors with the square 4-pin connector.

✔Fits the main cable of the iScan Suzuki (Marine) and the MarineMaster.

✔The cable works passively: no software and no settings are required.

POINTS TO NOTE

✕Your reading device must support the Suzuki Marine diagnostics via the 4-pin connection; the cable does not convert protocols.

✕A basic EOBD code reader does not work with this cable; it only reads general OBD2 data.

✕Not for older engines with the round 8-pin connector; the M069 is intended for those.

✕Not for Suzuki motorcycles; these have a different 4-pin connector.

Applications and functions

The cable is intended for boat mechanics and watersports businesses that read Suzuki outboard motors.

Systems you can access

Engine control: ECU of the outboard motor.
Other systems: By engine type.

What you can do

Fault codes: Read and clear.
Live data: View current sensor values.
ECU info: Request software and identification.
Settings: Where your device offers this.

How to use it

Remove the cover: Take the engine cover off the outboard motor.
Locate the connector: Find the square 4-pin connector near the ECU.
Connect: Plug the M062 into the diagnostic connector.
Connect the device: Connect the main cable of your device.
Read out: Switch the ignition on and select the engine type.

Compatible vehicles and applications

The square 4-pin diagnostic connector is decisive. It is found on newer Suzuki outboard motors:

Suzuki Marine:

DF outboard motors with square 4-pin connector: From 2008 onwards.

💡

Good to know: Suzuki uses two connectors: a round 8-pin on older engines and a square grey 4-pin on newer engines. The connector is usually located close to the ECU.

Package contents

1x OBDSTAR (M062) | Suzuki 4-pin OBD – 16-pin OBD2 Adapter Cable | Motor boat

Technical specifications

General

The brand of the cable or adapter. It often has to match the brand of your diagnostic tool.Brand: OBDSTAR
The type of product: a separate adapter cable, an adapter without a cable or a complete set.Product type: Adapter cable

Suitable for

The brand of diagnostic tool the cable works with. A cable for one brand usually does not fit a tester of another brand.Compatible diagnostic tool: OBDSTAR
Whether the cable needs a separate power connection, for example via battery clamps. A passive cable works without one.Separate power supply required: No

Connections

The connector that plugs into the diagnostic port of the vehicle or machine. It must fit exactly.Vehicle-side connector: 4-pin OBD
The connector on the side of your diagnostic tool or interface. Usually a 16-pin OBD2 connector.Tool-side connector: 16-pin OBD2
The data lines through which the cable passes signals. The vehicle and the tester must use the same communication method.Communication: K-line
